C5750Z-C6 V2.0

Chassis

Material/structure

All Aluminium Fanless

Colour

Gloss Black

Size (LWH)

195mm*148mm*57mm

Weight (bare net)

1.35KG

Installation

Desktop/Embedded

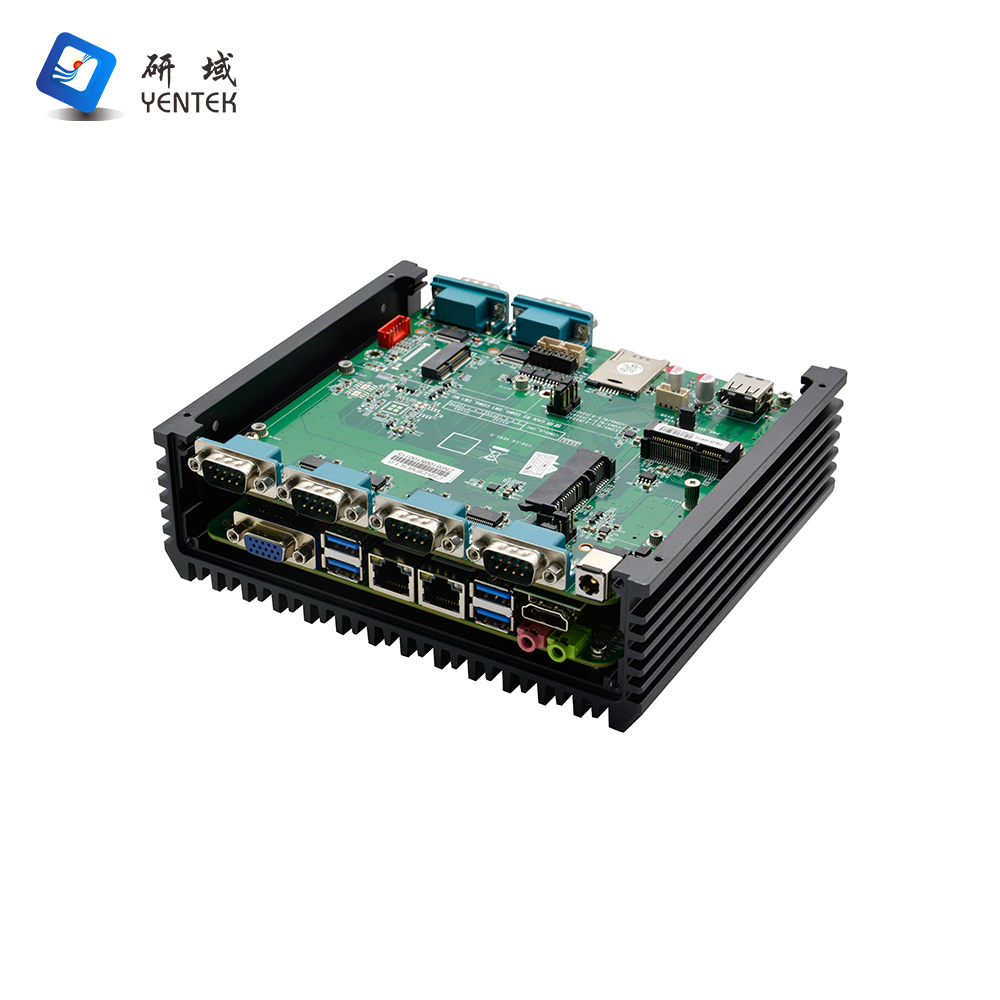

Motherboard

CPU

Integrated Intel®   i5-7360U/2.30GHz Dual-Core Quad-Thread Processor, TDP 15W

Display

Integrated Intel® Iris Plus   Graphics 620

RAM

2*DDR4 SODIMM memory plugs,   support 2133MHz memory, maximum support 32GB

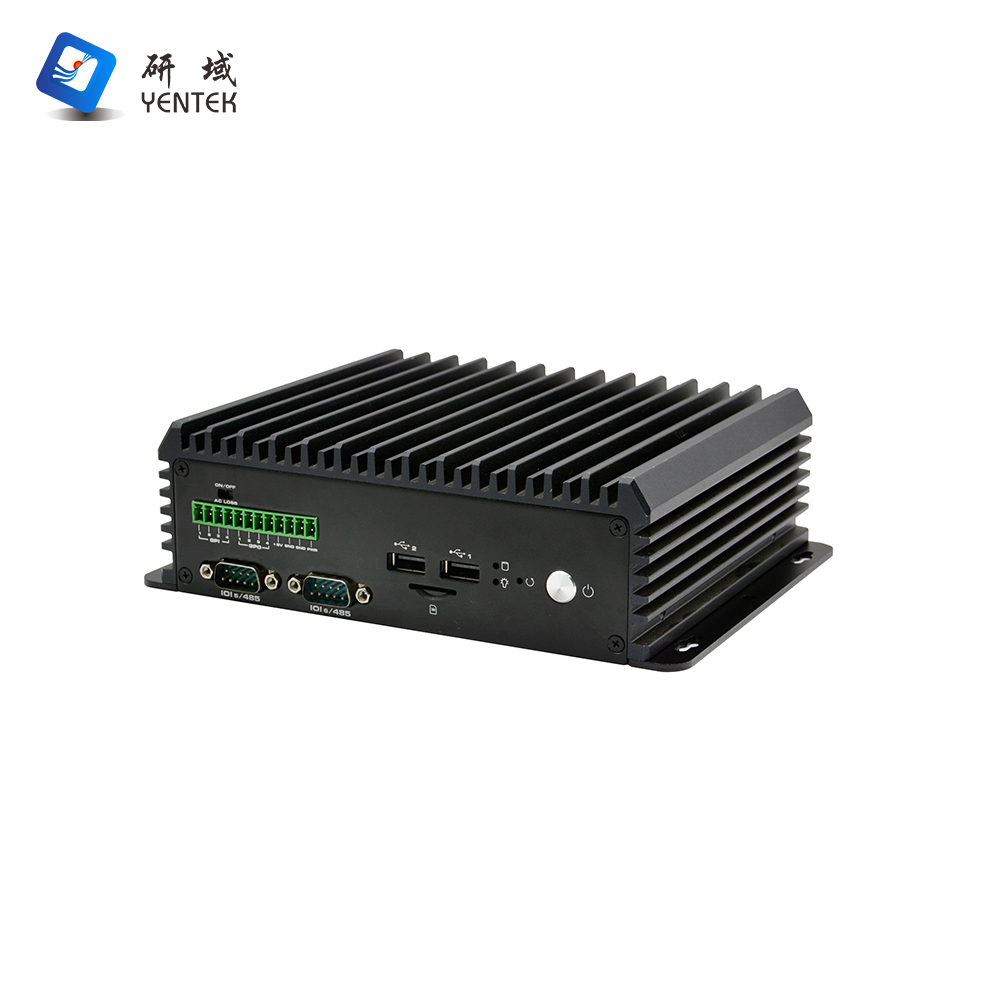

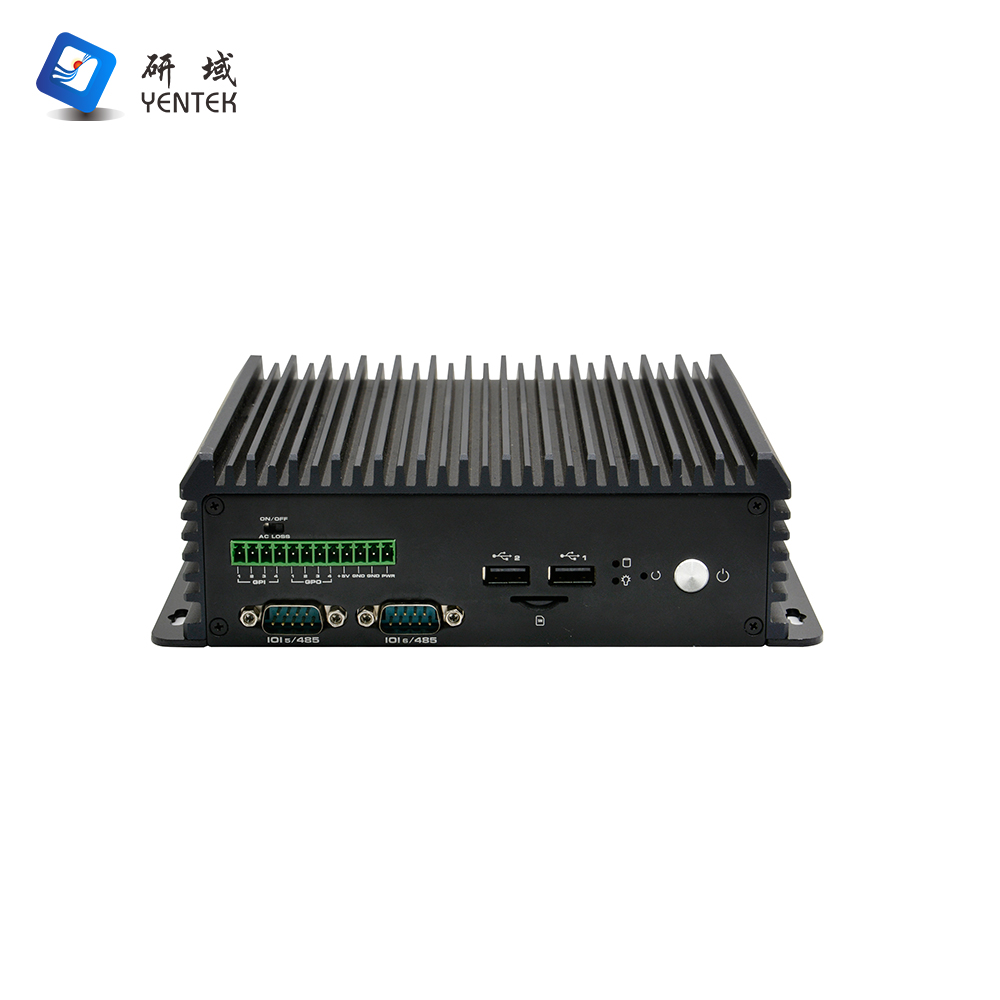

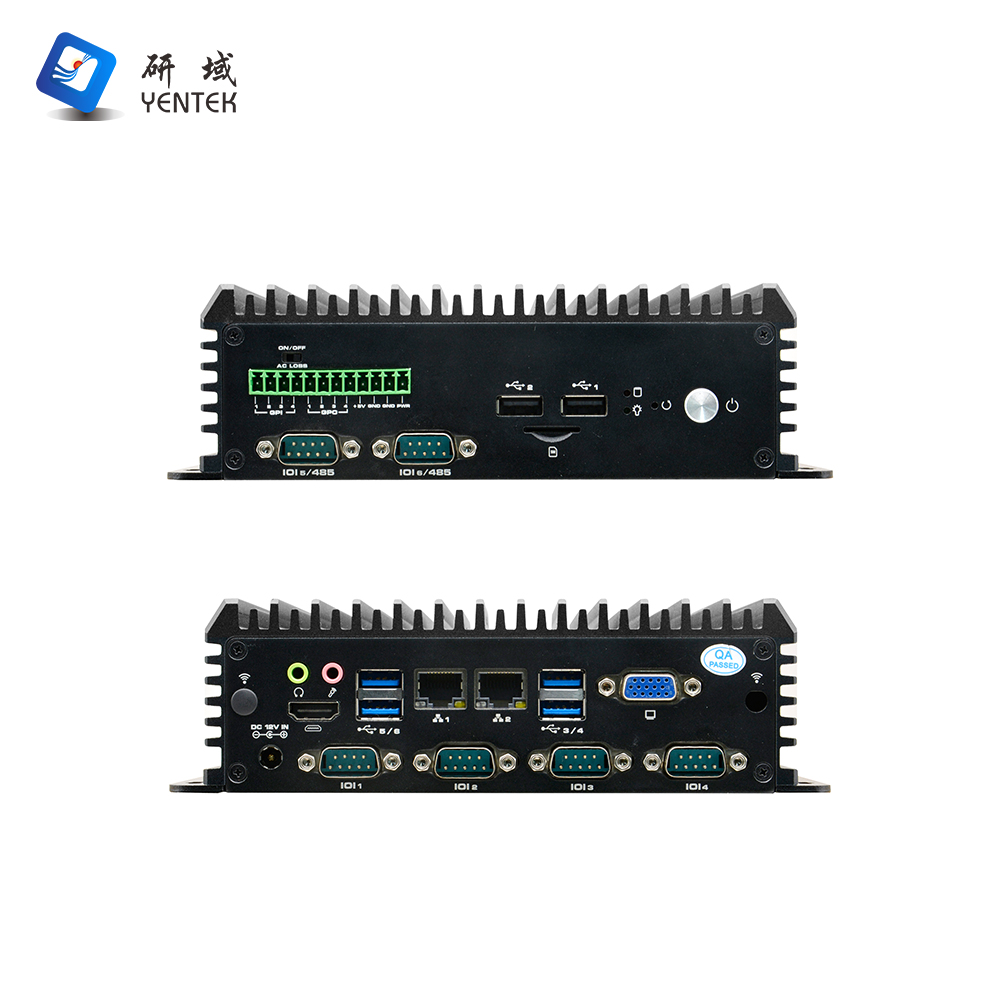

Front Panel Connectors

POWER

1*Power Switch, 1*One-Key   Restore (choose one with Reset button), 1*ACLOSS (Power On and Off DIP   Switch)

USB

2*USB2.0, 1*USB2.0 built-in

Phoenix Terminal

1*12pin, support four in four   out GPIO/power switch/5V signal

COM

2*RS232/485/422 DB9 serial port,   support CAN function (need to load MINIPCIE CAN module)

SIM

1*SIM standard card slot

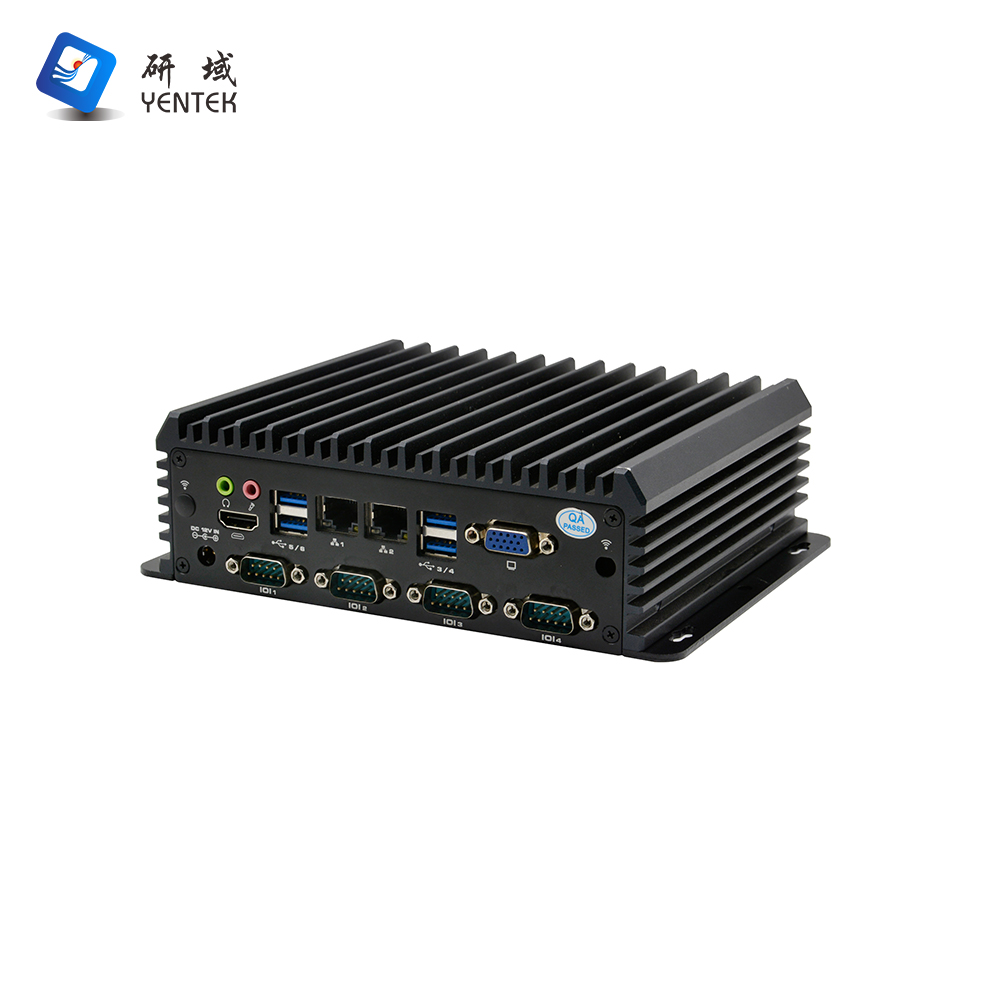

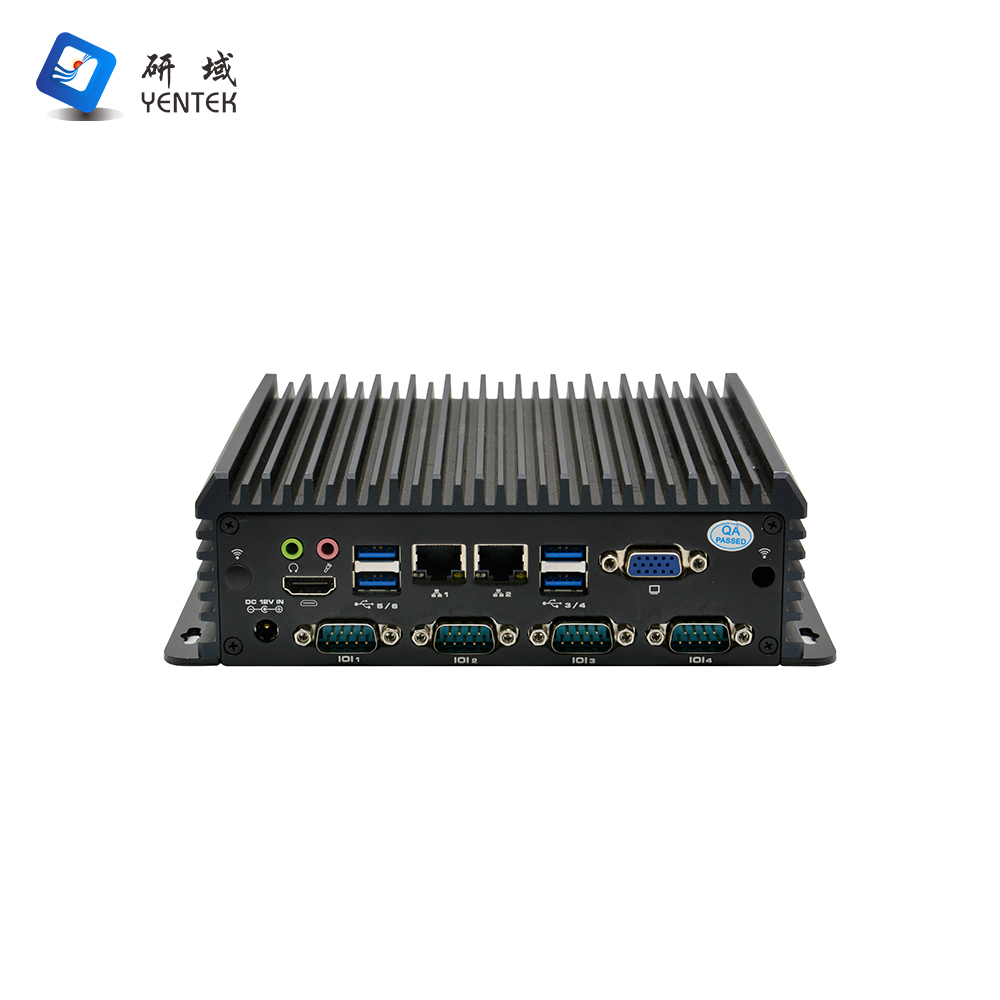

Rear Panel Interface

Display Interface

1*VGA(1920*1200@60Hz),   1*HDMI1.4(4096*2304@24Hz)

LAN

2*Intel® I210 Gigabit power   port, support Wake-on-Network, PXE function

USB

4*USB3.0

COM

4*RS232 DB9 serial port, COM1/2   support for the 9th pin 5V/12V power supply

AUDIO

1*Line out, 1*MIC

Power supply

1*DC12V power input

Storage

SATA

1*2.5-inch hard drive bay

MSATA

1*MSATA

Expansion

Mini PCIE

1*MiniPCIE slot, support WIFI/4G   module

M.2

1*M.2/WiFi, support Key-E, 2230,   WiFi module

System Support

Microsoft Windows

Windows 7

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power supply type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC, 60W and above   (depending on specific equipment)

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating
