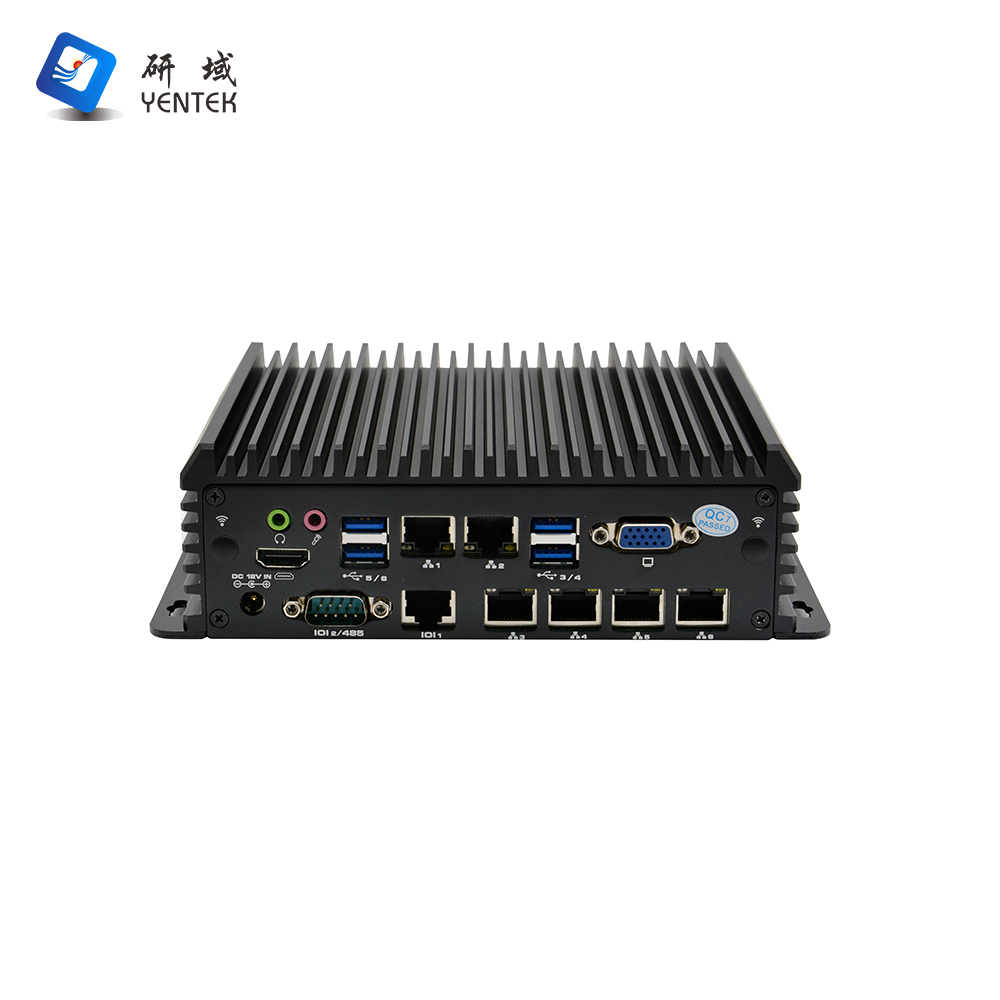

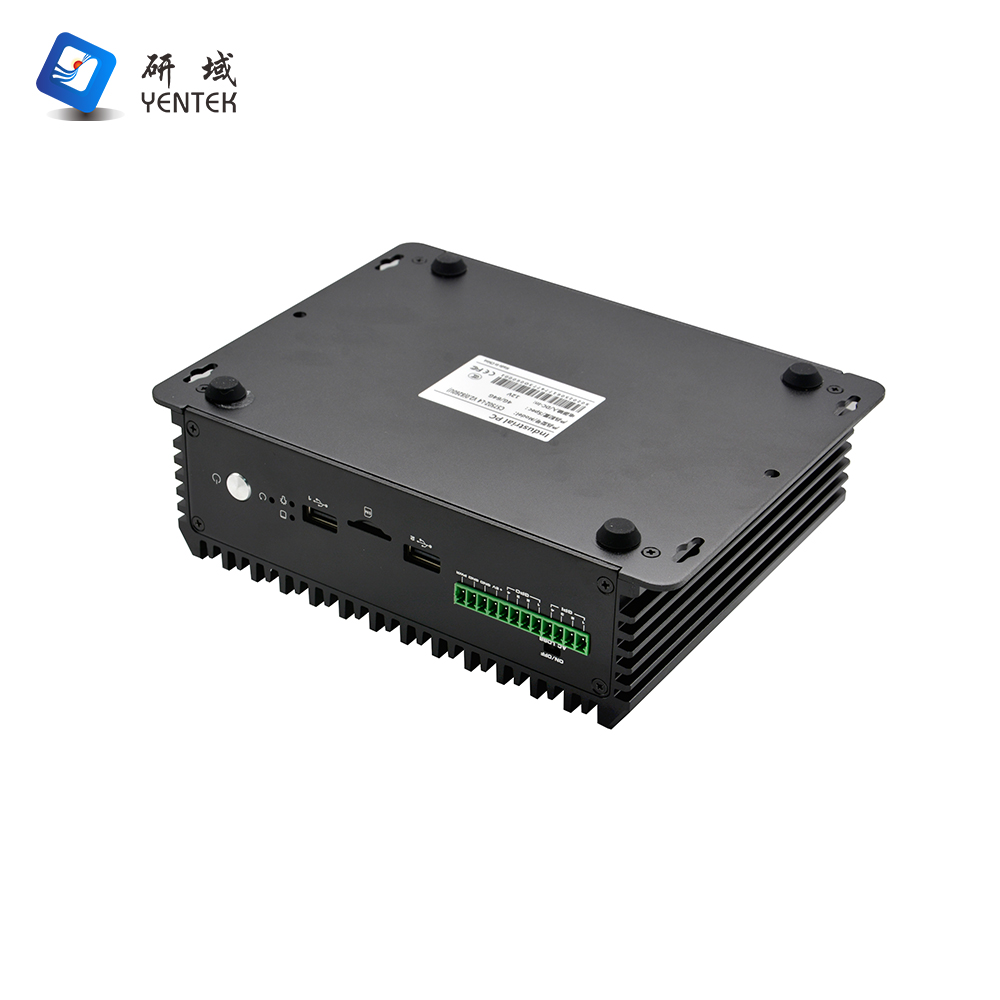

C5750Z-L4 V2.0

Chassis

Material/structure

All-aluminium alloy fanless   design

Colour

Black

Size (LWH)

195mm × 148mm × 57mm

Weight (bare net)

1.35kg

Installation

Desktop/Embedded

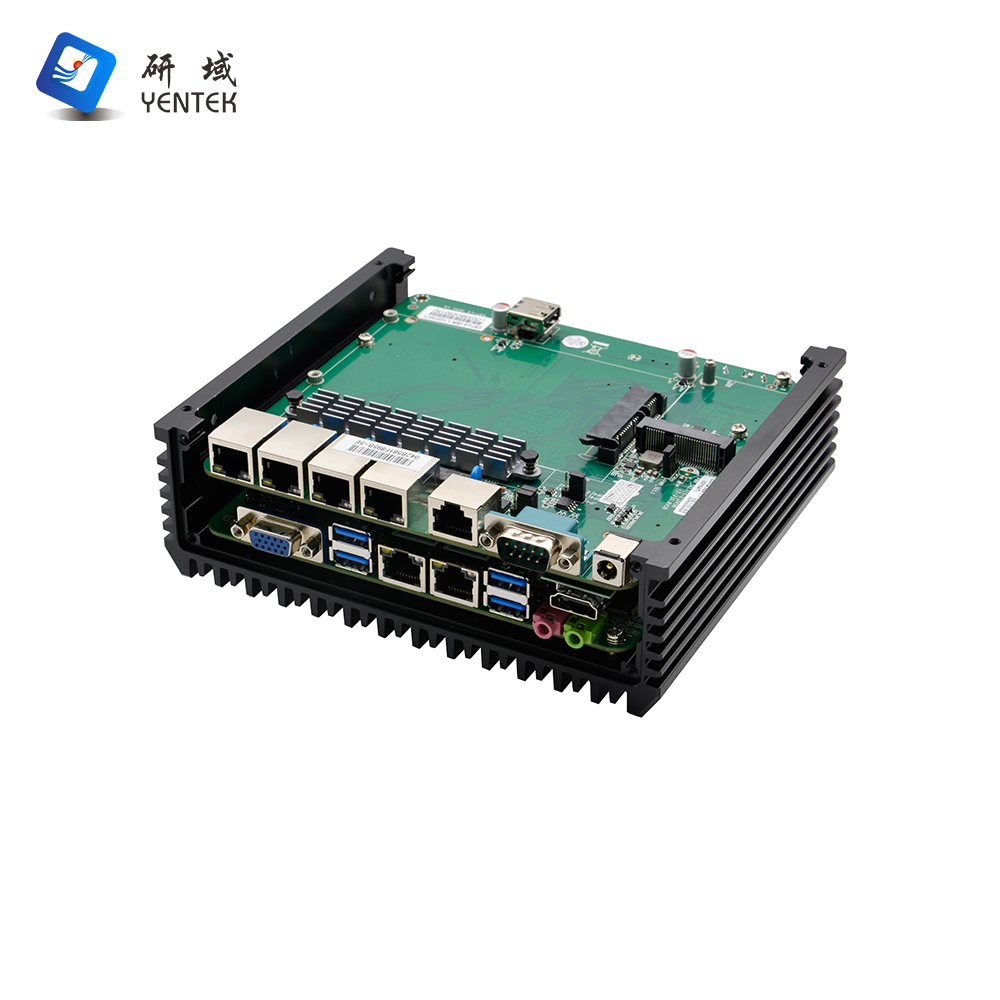

Motherboard

CPU

Integrated Intel® Core i5-8260U   processor (1.60GHz quad-core, 8 threads), TDP 15W

Display

Integrated Intel® UHD Graphics   620

Memory

2x DDR4 2400MHz memory slots,   supports up to 32GB

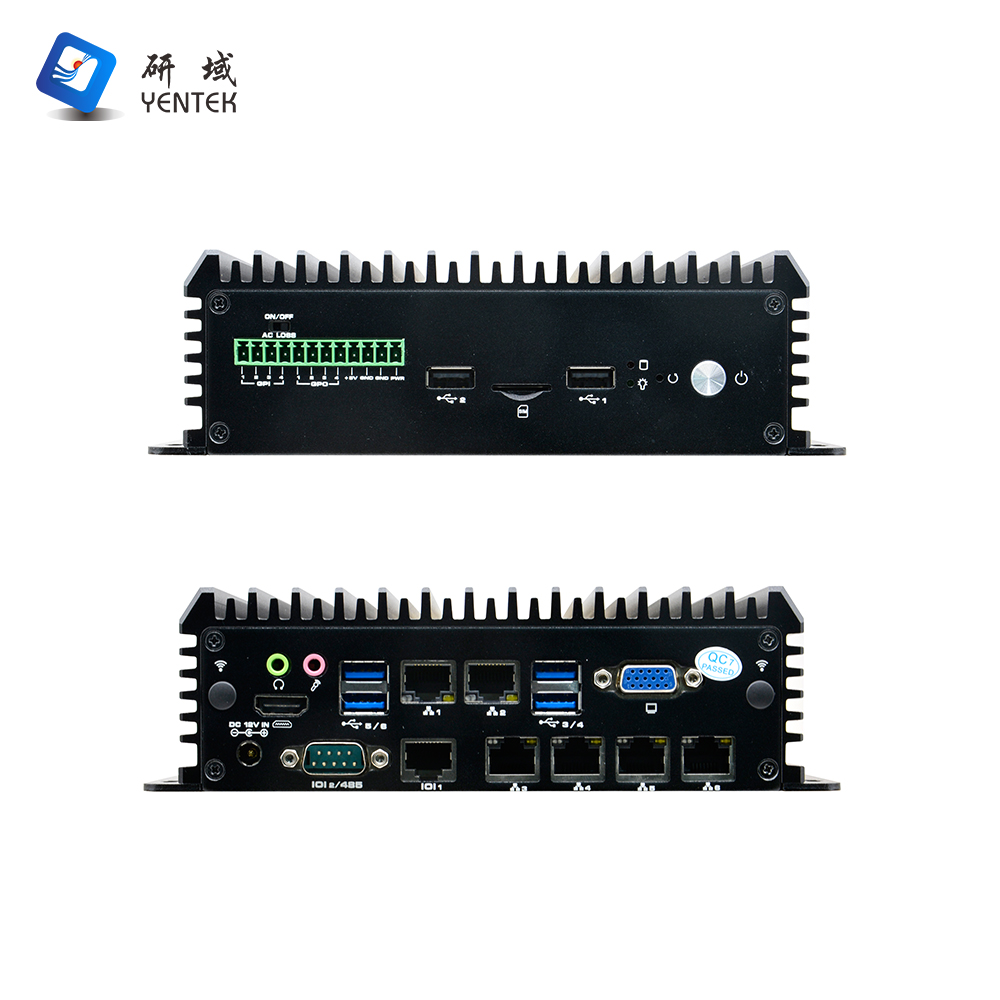

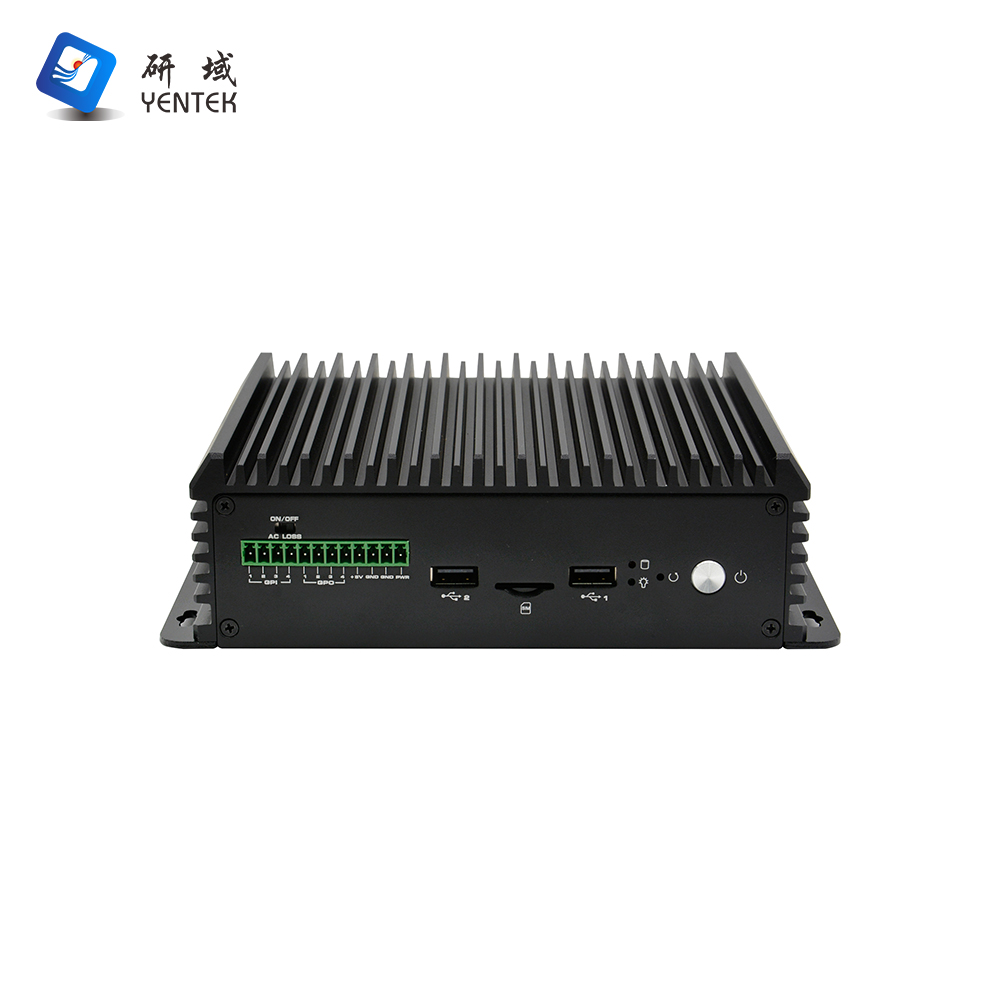

Front Panel Connectors

POWER

1x Power button, 1x One-touch   reset, 1x ACLOSS (power-on DIP switch)

LED

1x Power Indicator, 1x Hard   Drive Indicator

USB

2x USB 2.0, 1x Internal USB 2.0

SIM

1x SIM Card Slot

Remote switch

1x Power Switch, 1x Power   Indicator (on 1x 12-pin Phoenix Connector)

DI/DO

4x Digital Inputs, 4x Digital   Outputs (on 1x 12-pin Phoenix Connector)

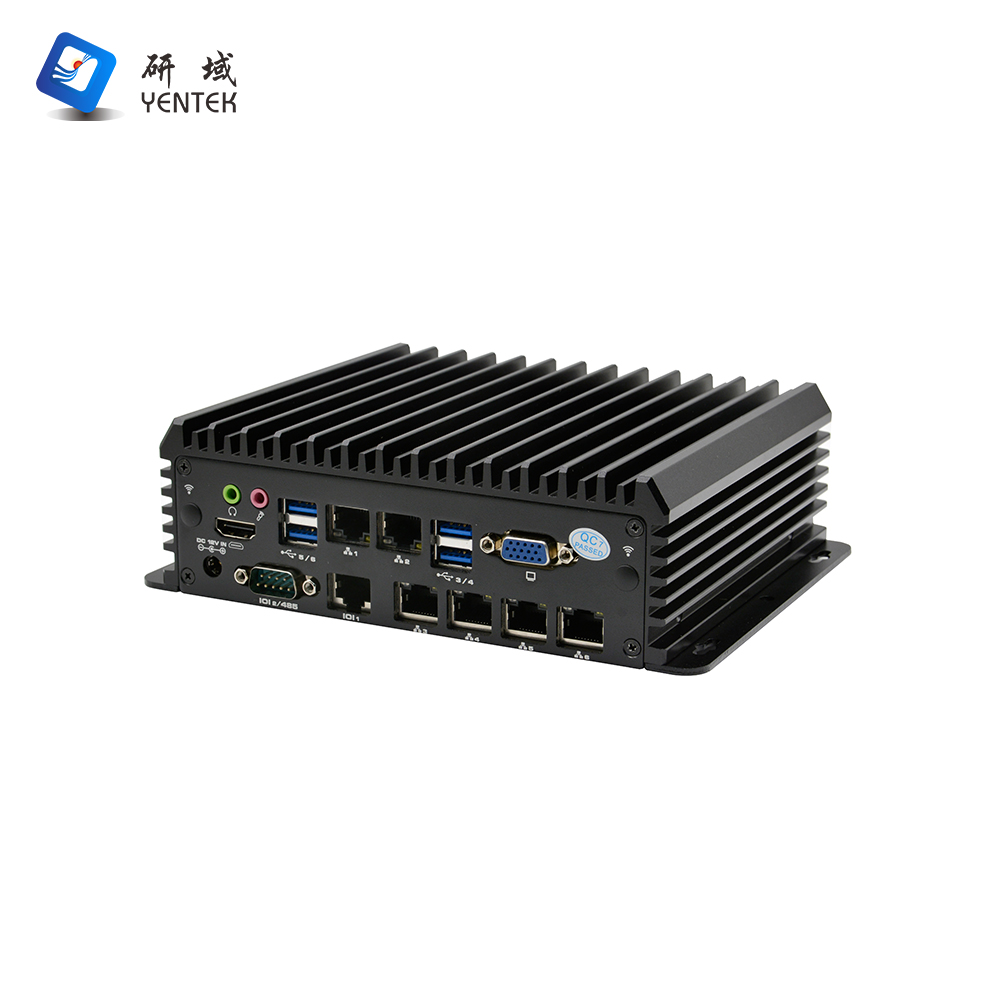

Rear Panel   Connectors

Display interface

1x VGA (1920×1080@60Hz), 1x HDMI   1.4 (4096×2304@60Hz)

LAN

2x Intel I225V, 4x Intel I210   (network card model subject to motherboard)

USB

4x USB 3.0 (USB 3.0/2.0 quantity   subject to motherboard)

COM

1x RS232/485 DB9 serial port

Console

1x Console port

Audio

1x Line out, 1x MIC

Power supply

1x DC (5.5*2.5mm) 12V power   input

Storage

SATA

1x 2.5-inch hard drive bay

MSATA

1x mSATA

Expansion

4G/WiFi

1x MiniPCIe, supporting WiFi+BT   or 4G

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Supports hardware reset function   (256 levels, 0–255 seconds)

Power Requirements

Power supply type

DC 12V

Power output

AC to DC, 60W+ (depending on   specific device)

Environment

Operating temperature

-10°C to 50°C

Storage temperature

-20°C to 70°C

Relative humidity

5%–95% relative humidity,   non-condensing

Operating vibration

0.5g rms/5-500HZ/random

1

C5760Z-R6 V2.0(5020U)

I3-5020U/2.0GHz

1*SODDR3L

C43_I326D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

7

9~36V

2

C5760Z-R6 V2.0(3685U）

3865U/1.8GHz

2*SODDR4

C58_C326D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

3

C5760Z-R6 V2.0(6300U)

I5-6300U/2.5GHz

2*SODDR4

C58_I526D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

4

C5760Z-R6 V2.0(6650U)

I7-6650U/2.2GHz

2*SODDR4

C58_I726D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

5

C5760Z-R6 V2.0(7200U)

I5-7200U/2.5GHz

2*SODDR4

C58_I526D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

6

C5760Z-R6 V2.0 (7500U)

I7-7500U/2.8GHz

2*SODDR4

C58_I726D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

7

C5760Z-R6 V2.0(8145U)

I3-8145U/2.1GHz

2*SODDR4

C81-I326D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

8

C5760Z-R6 V2.0(8265U)

I5-8265U/1.6GHz

2*SODDR4

C81-I526D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V

9

C5760Z-R6 V2.0(8565U)

I7-8565U/1.8GHz

2*SODDR4

C81-I726D

C58-R6/C68-G12/C68-HM

4in4out

3

6

1

1

8

9~36V
