C Series (Hot Sale)

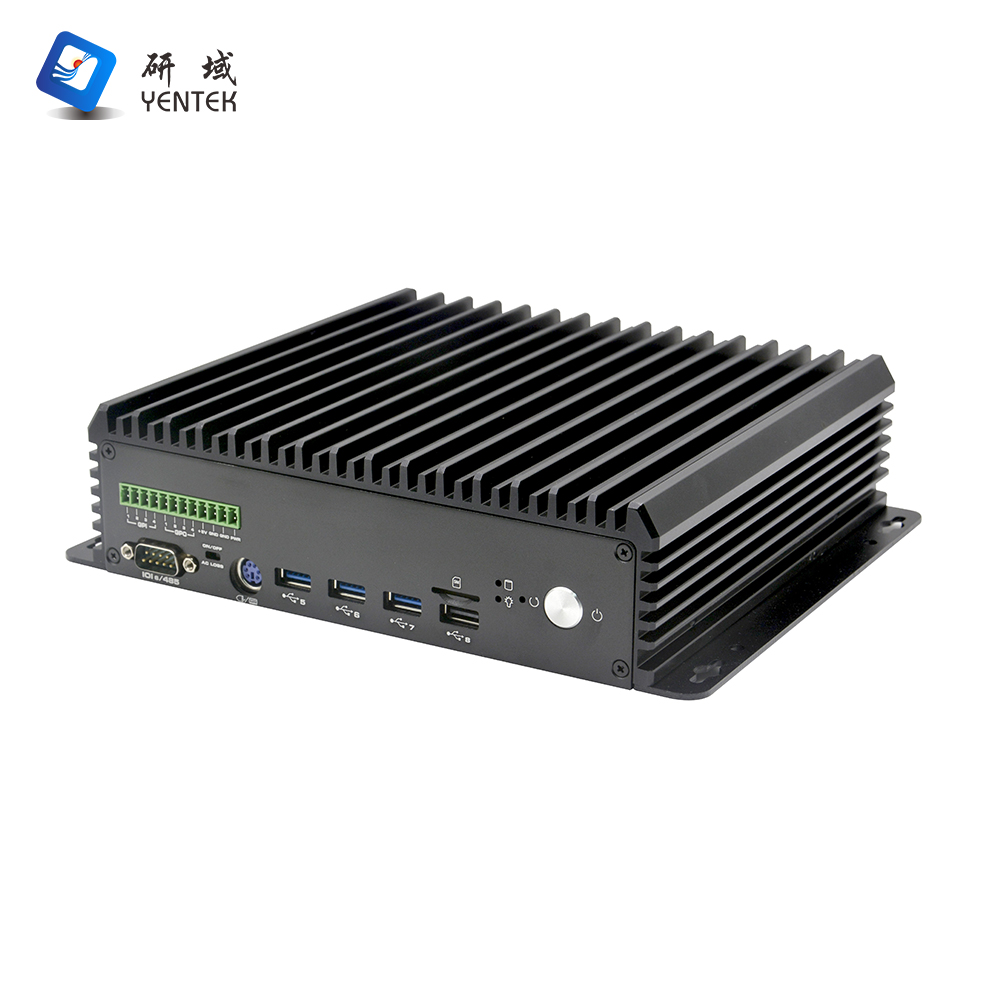

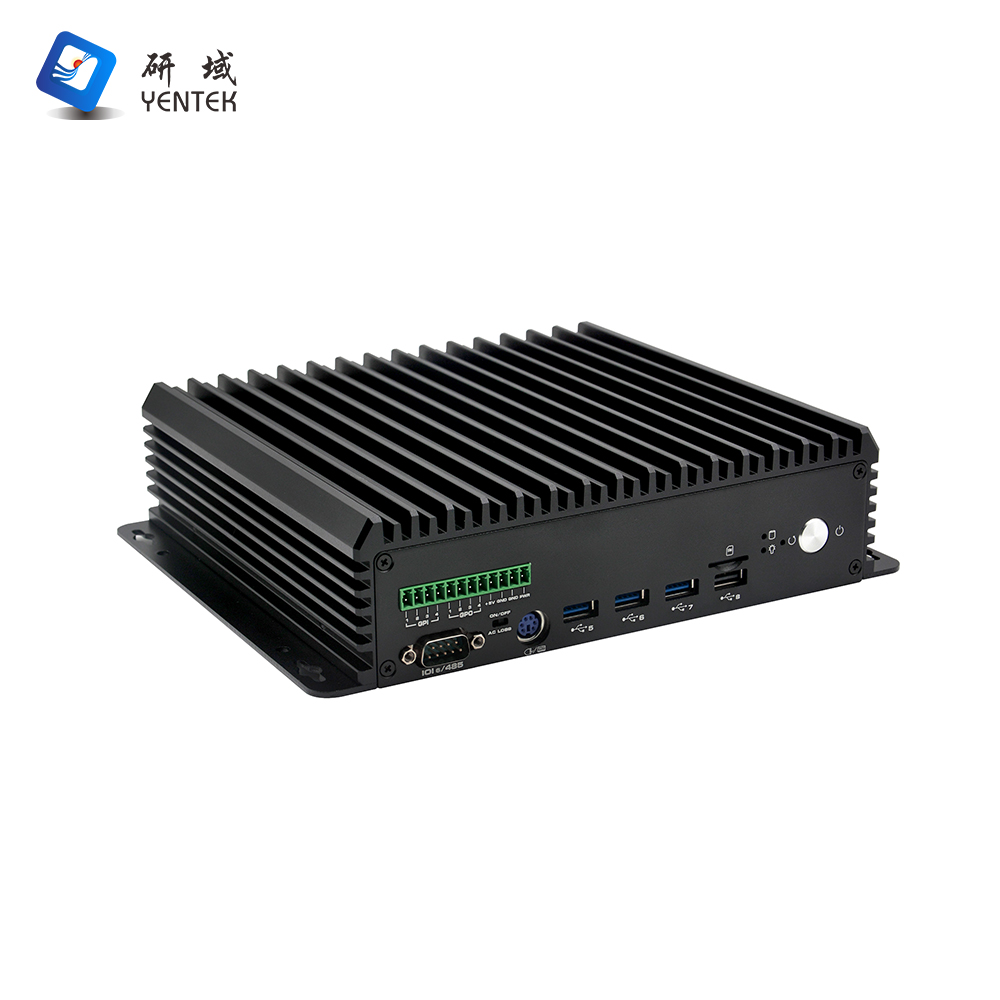

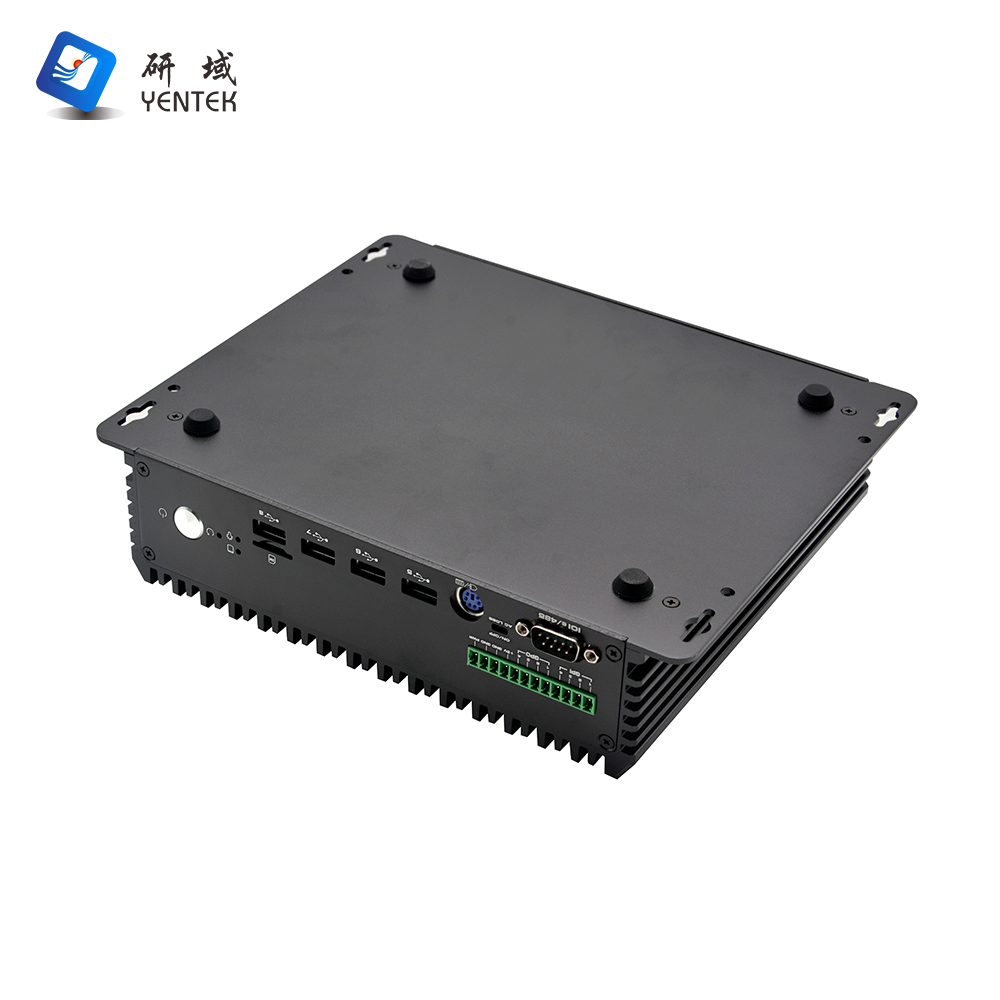

C6850Z-C6 V2.0

See 16 sizes
FEATURES

● Integrated Intel® Celeron J6412/2.00GHz quad-core, quad-thread processor.

● 2*SODIMM DDR4 2400MHz memory, supports up to 16GB.

● 1*HDMI1.4, 1*VGA, support dual display

● 2*Intel I226 Gigabit Ethernet port, support Wake-on-LAN and PXE function.

● 6*RS232 DB9 serial port, COM3~COM6 support RS232/RS485, COM5-COM6 can support CAN.

● 1*12PIN Phoenix terminal, four in four out GPIO, switch, 5V

● 5*USB3.0, 3*USB2.0, 1*USB2.0 built-in

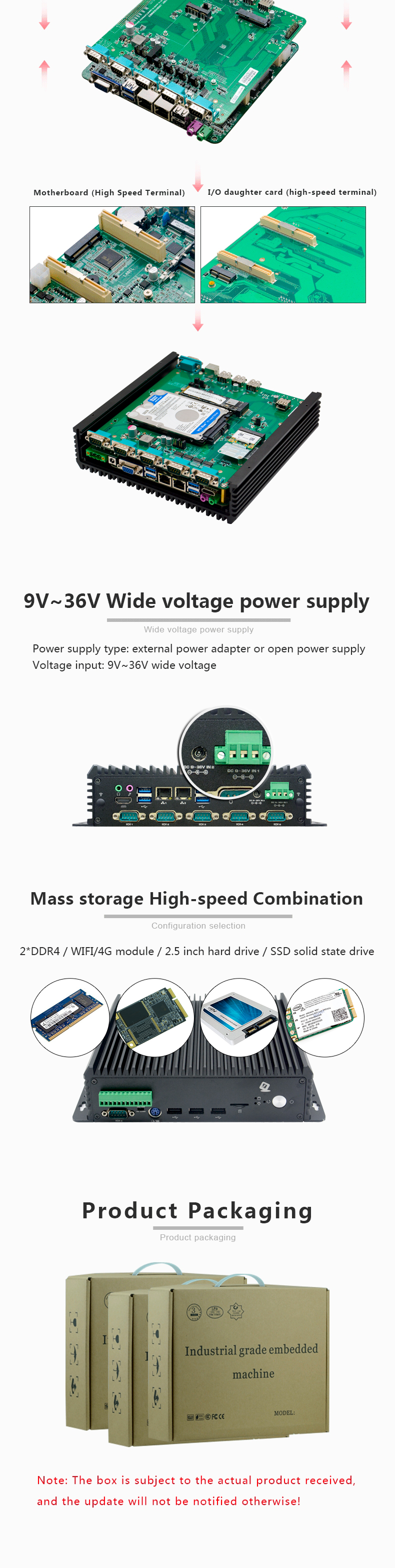

● Support 9~36V wide voltage input

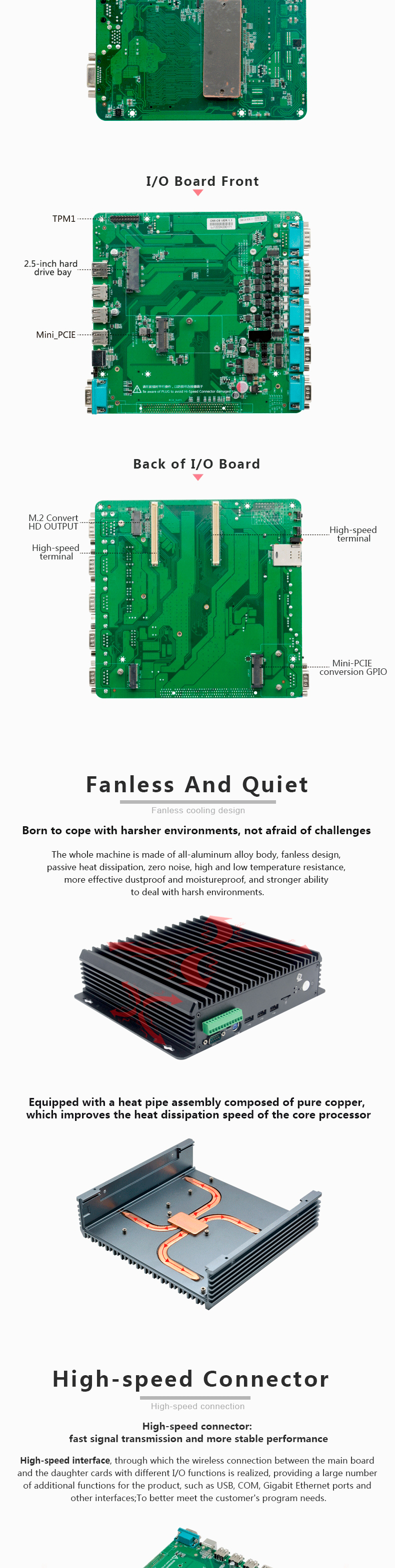

● Fanless cooling structure, all aluminium alloy material

More
Product description



Model number

C6850Z-C6 V1.2(J6412)

Case

Material/Structure

Full aluminum fanless
ColourGloss Black

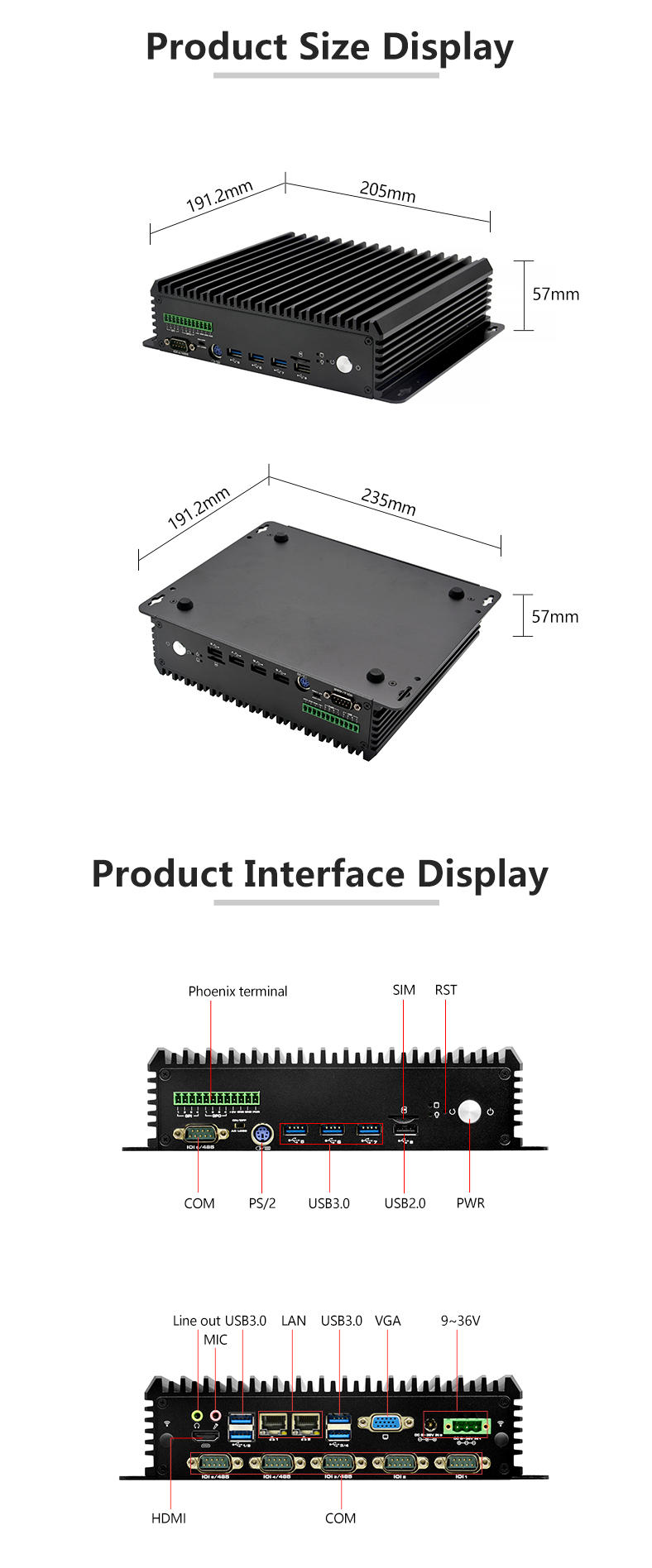

Dimension(L*W*H)

205*191.2*57MM
Weight (bare net)1.92KG
InstallationDesktop / Embedded

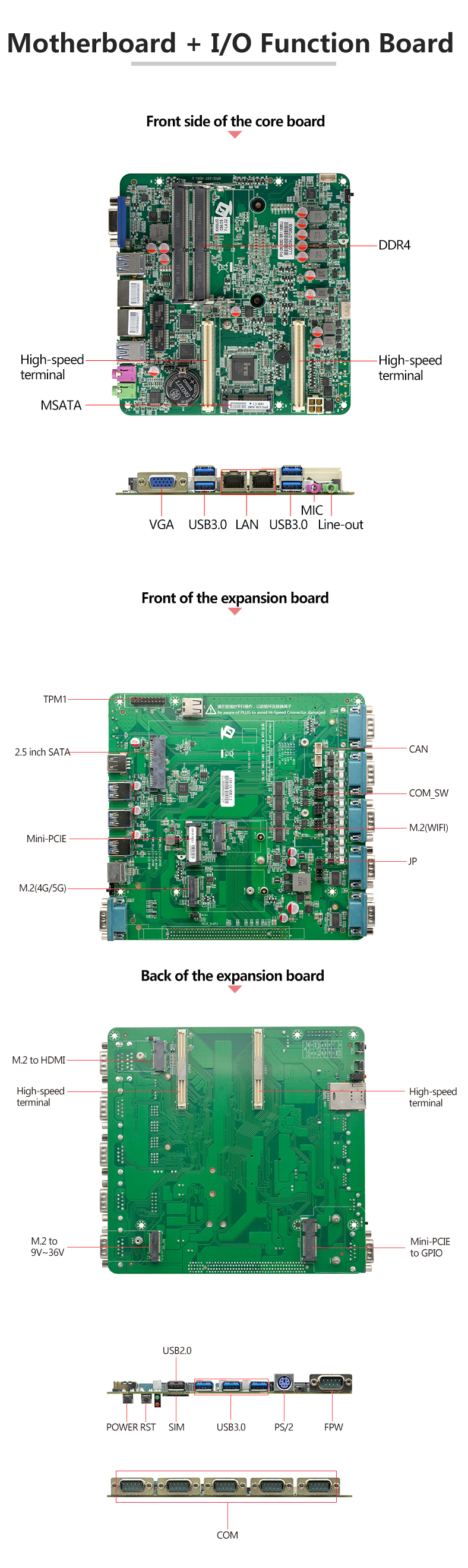

MotherboardCPUIntegrated Intel® Celeron J6412/2.00GHz Quad-Core Quad-Thread Processor, TDP 10W
Display

Integrated Intel® UHD Graphics

RAM2*SODIMM DDR4 2400MHz Memory, supports up to 16GB

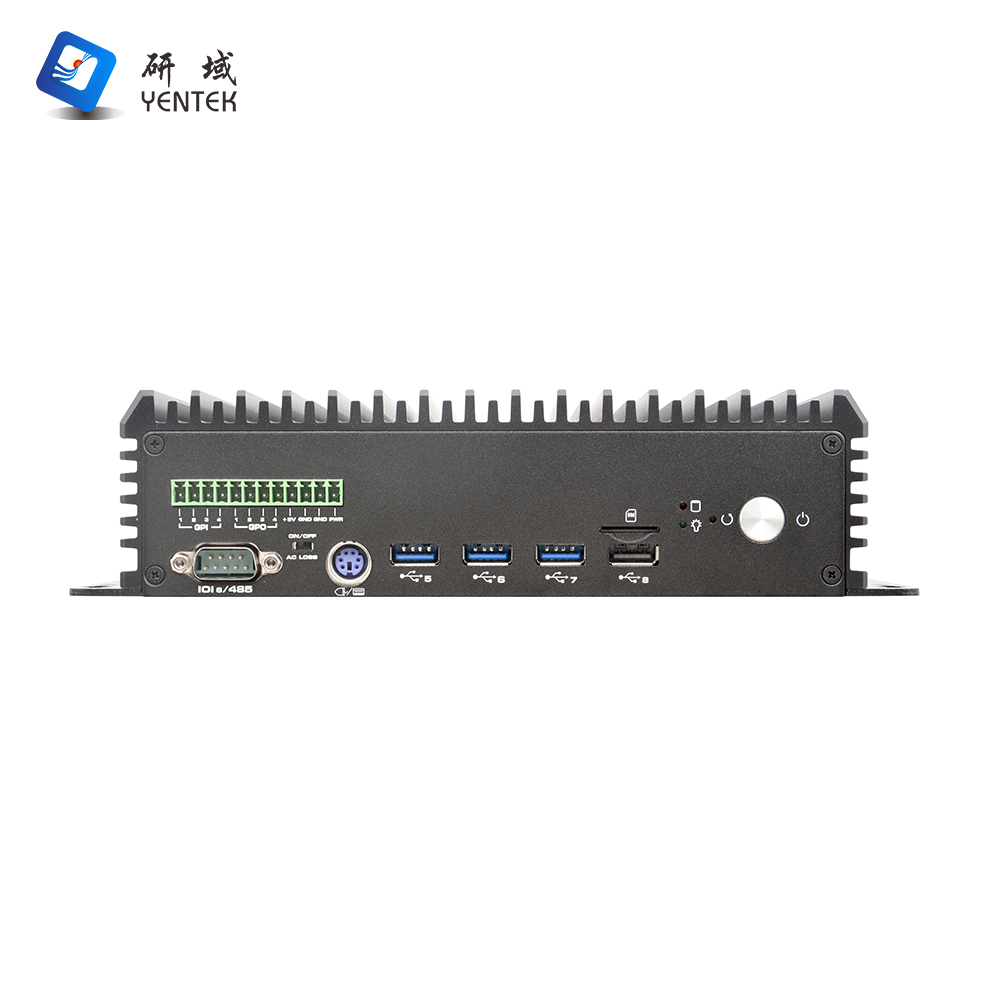

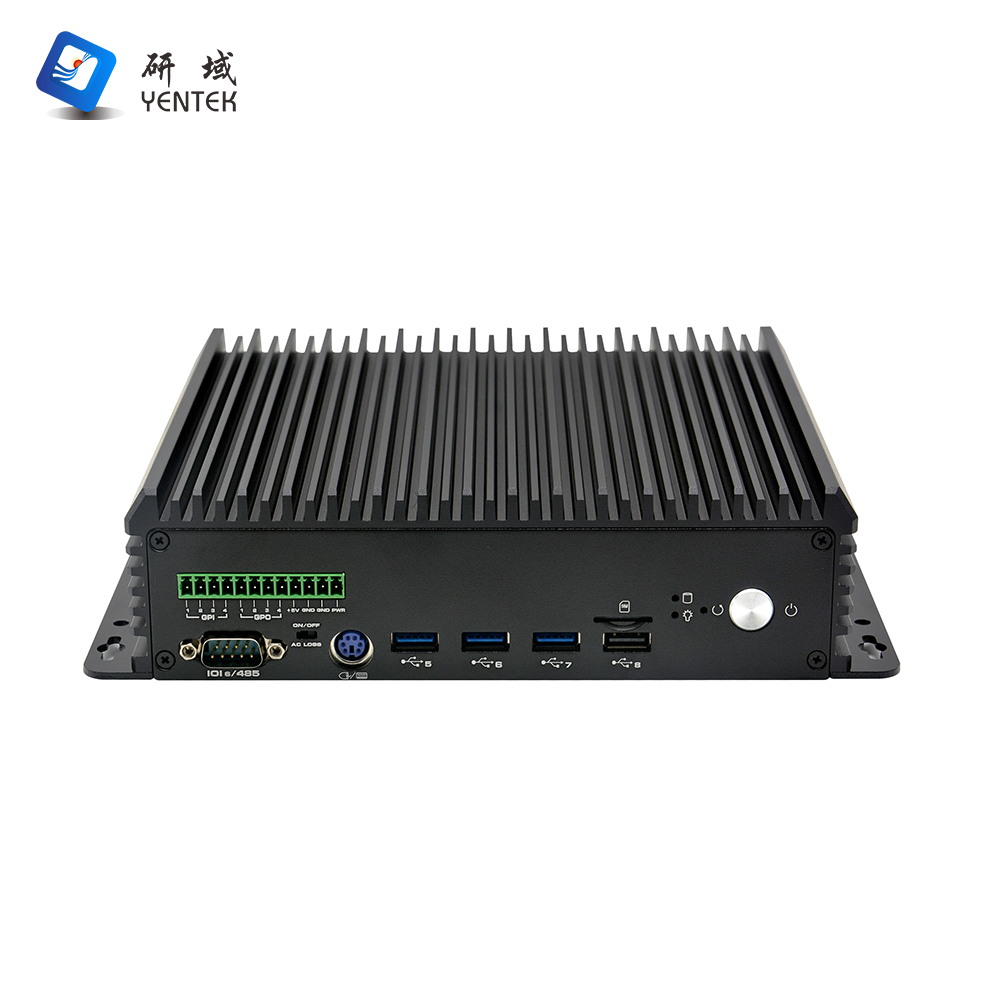

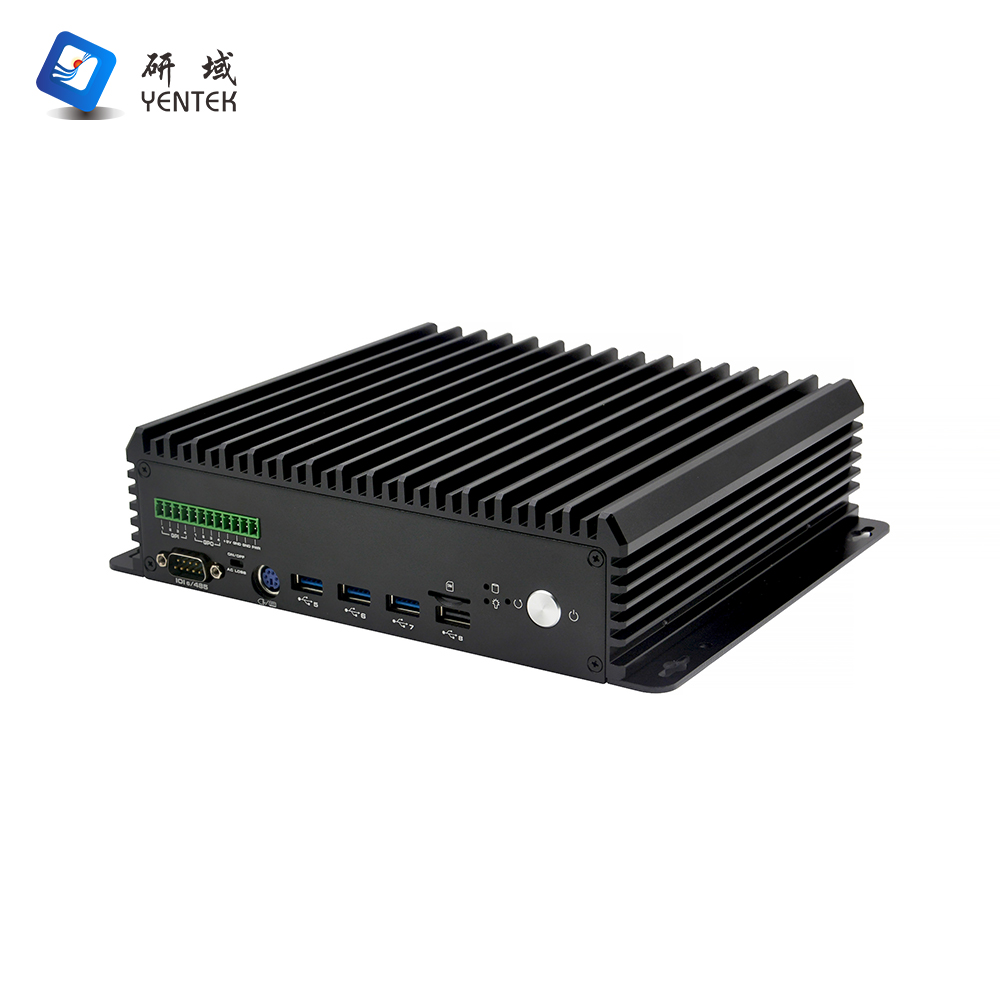

Front Panel ConnectorsPOWER1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power On Codec Switch)
Phoenix Terminal1*12pin (including four in four out GPIO/power-on signal/5V)
USB

3*USB3.0, 1*USB2.0, 1*USB2.0 built-in

PS21* PS2 port

COM

1*PS21*RS232/485 DB9 serial port, support CAN (need to load CAN module)

SIM

1*SIM standard card slot

LED1*Power Indicator, 1*Hard Drive Indicator

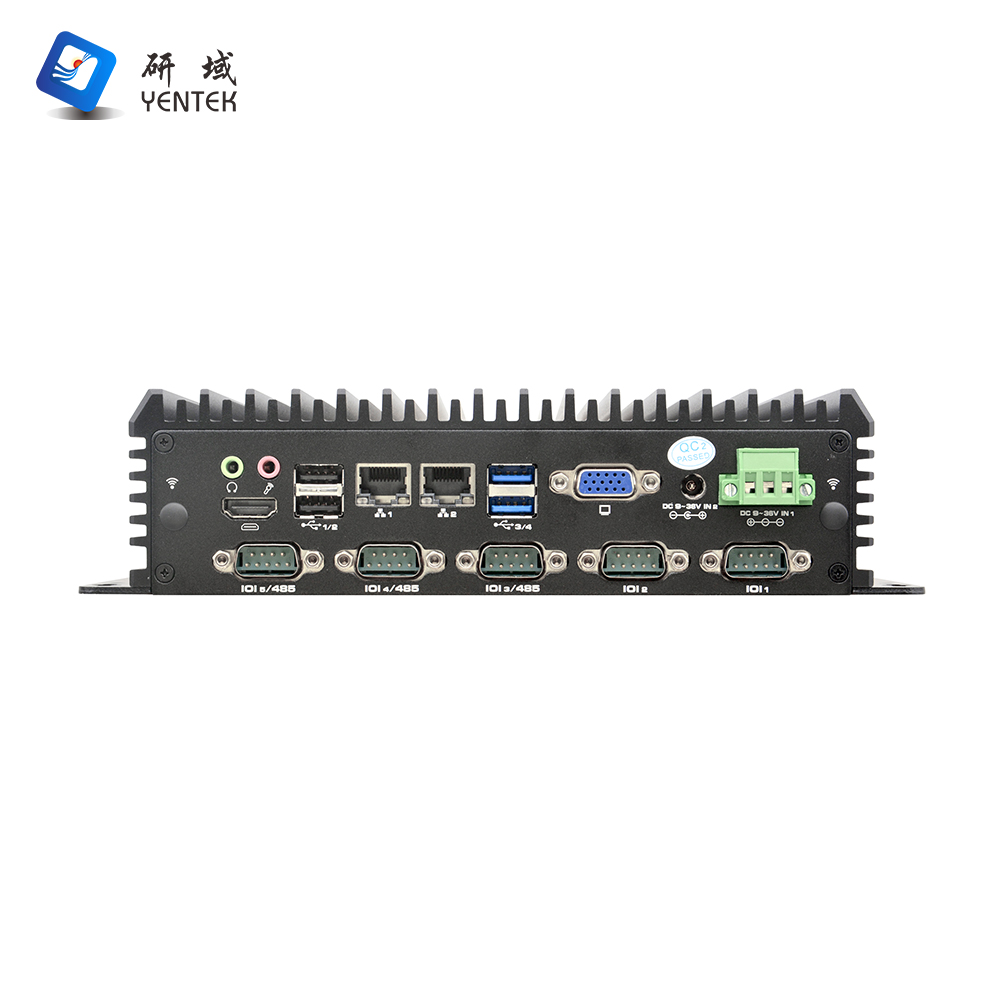

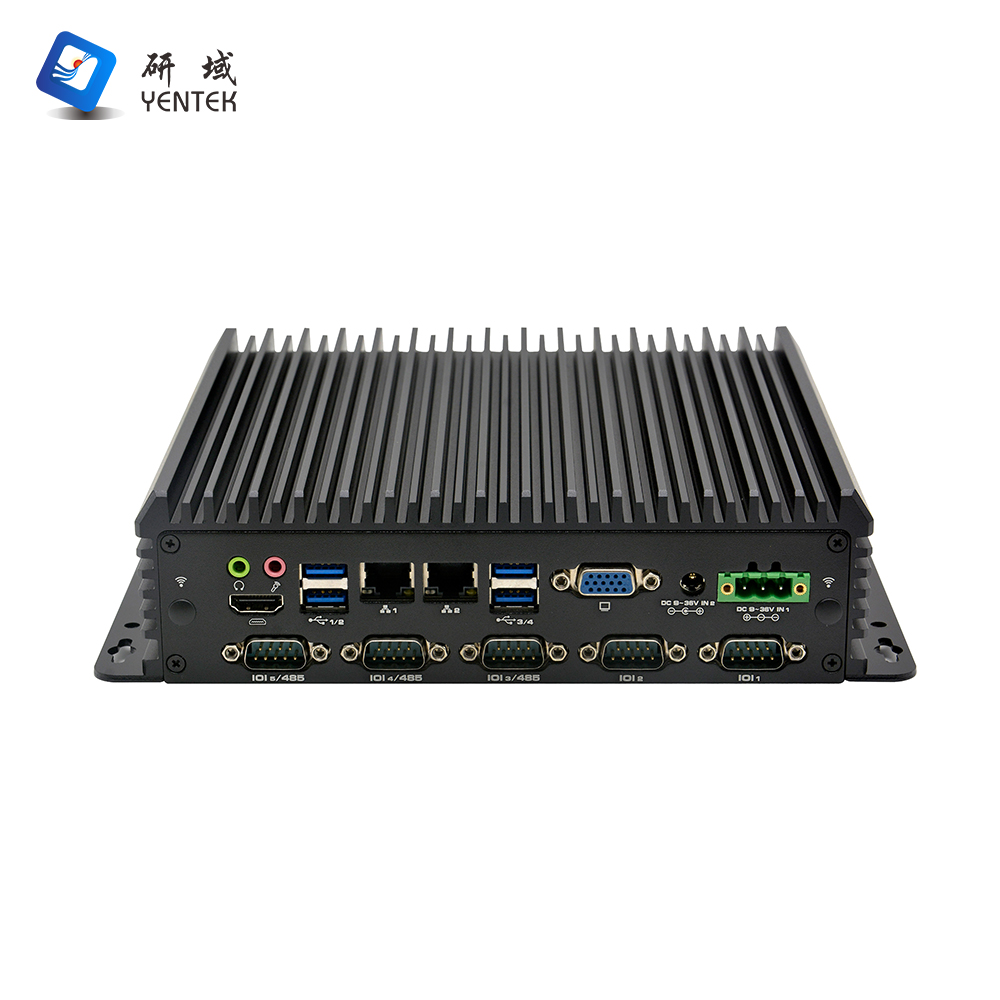

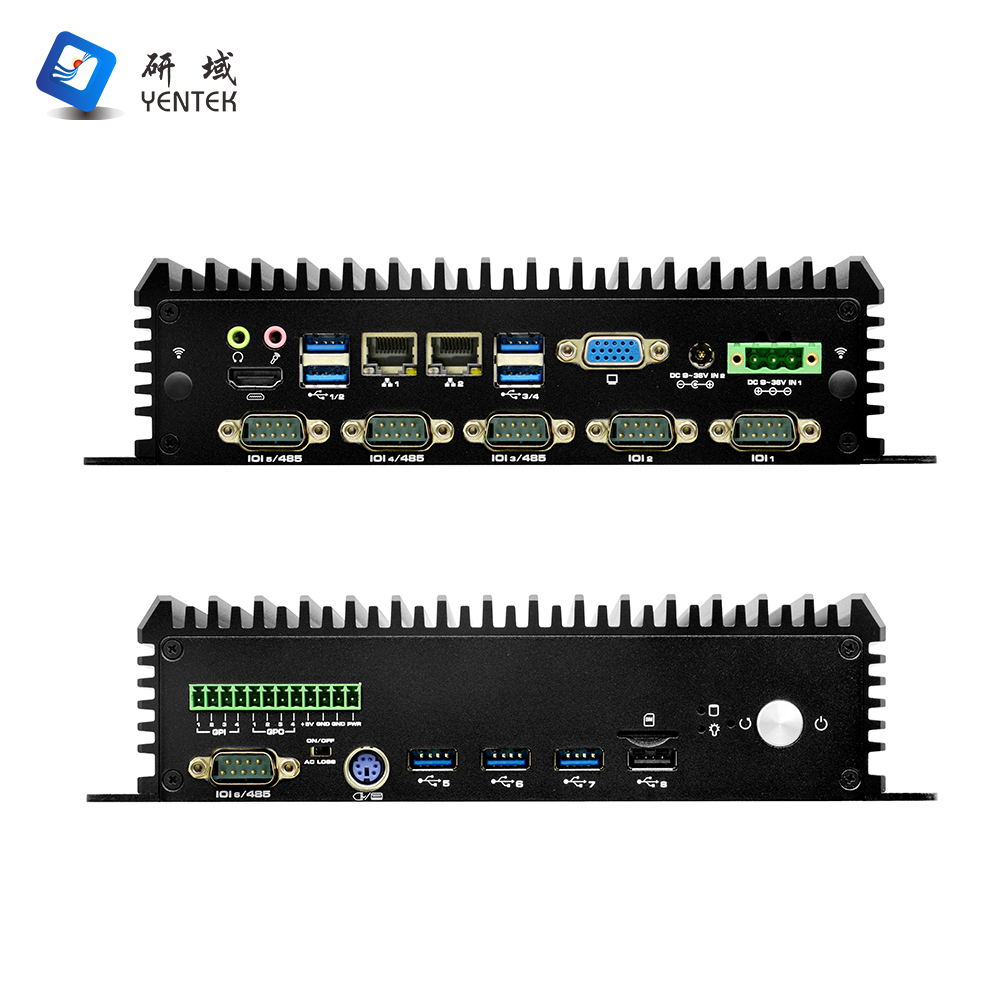

Rear Panel InterfaceDisplay Interface1*VGA(1920*1200@60Hz), 1* HDMI1.4(4096*2160@60Hz)
Audio1*Line out, 1* MIC
LAN2*Intel® I226 Gigabit power port, support Wake-on-Network, PXE function
USB2*USB3.0, 2*USB2.0
COM5*RS232 DB9 serial port, COM3~5 support RS232/485, COM5 support CAN (need to load CAN module)
Power Supply1*DC power connector or 1* 3pin Phoenix terminal power connector, support 9~36V power input
StorageSATA1*2.5-inch hard drive bay
MSATA1* MSATA
ExpansionMini PCIE1*MiniPCIE, support 4G module (choose one with M.2 5G, default 4G)
M.21*M.2/WiFi, support Key-E, 2230, WiFi module
1*M.2/5G, support Key-B, 2242/52, 5G module (Either one with MINIPCIE 4G, default 4G)
OS supportMicrosoft WindowsWindows 10
LinuxUbuntu
Watch DogSupport hardware reset function (L256，0~255 seconds)
Power SupplyPower TypeExternal power adaptor
Voltage Input9V~36V wide voltage
Power output60W~180W（depending on the specific equipment）
EnvironmentOperating temperature-10℃～50℃
Storage temperature-20℃～70℃
Relative humidity5%-95% relative humidity, no condensation
Working vibration0.5g rms/5-500HZ/random/operating

Order Information

No.ModelProcessorMotherboardIO BoardGPIOLANCOM

HDMI

VGA

CAN

USB

Power
1C6850Z-C6 V1.2(J1900)J1900/2.0GC19_J926DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
2C6850Z-C6 V1.2(5020U)I3-5020U/2.2GC43_I326DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
3C6850Z-C6 V1.2(4310U)I5-4310U/2.0GC43_I526DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
4C6850Z-C6 V1.2(6300U)I5-6300U/2.4GC58_I526DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
5C6850Z-C6 V1.2(6650U)I7-6650U/2.2GC58_I726DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
6C6850Z-C6 V1.2(7200U)I5-7200U/2.5GC58_I526DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
7C6850Z-C6 V1.2(7360U)I5-7360U/2.3GC58_I526DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
8

C6850Z-C6 V1.2(7500U

I7-7500U/2.7GC58_I726DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
9C6850Z-C6 V1.2(8145U)I3-8145U/2.1GC81_I326DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
10C6850Z-C6 V1.2(8265U)

I5-8265U/1.6G

C81_I526DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
11

C6850Z-C6 V1.2(8565U)

I7-8565U/1.8GC81_I726DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
12

C6850Z-C6 V1.2(1135G7

I5-1135G7/2.4GC110_I526DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
13

C6850Z-C6 V1.2(J6412)

J6412/2.0GC641_I126DC69-C6/C68-PW/C68-HM/C68-G124in4out2611299V~36V
