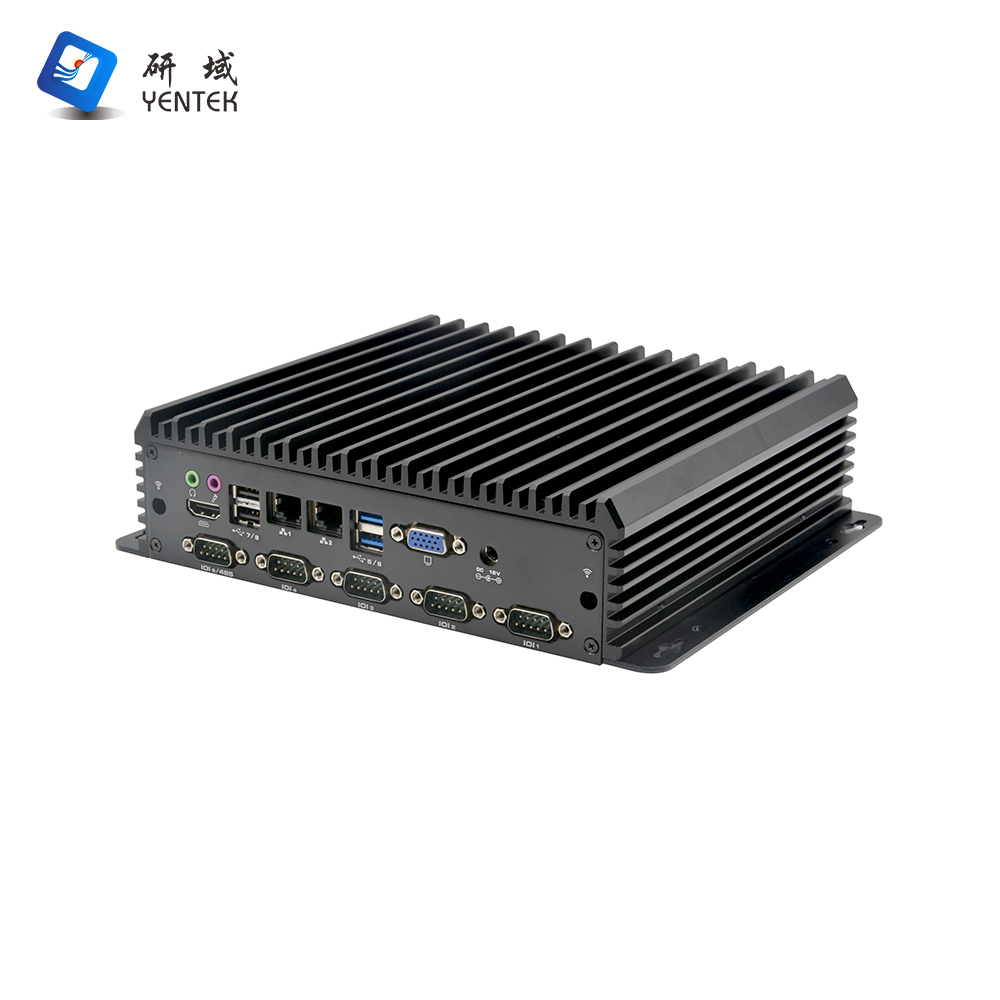

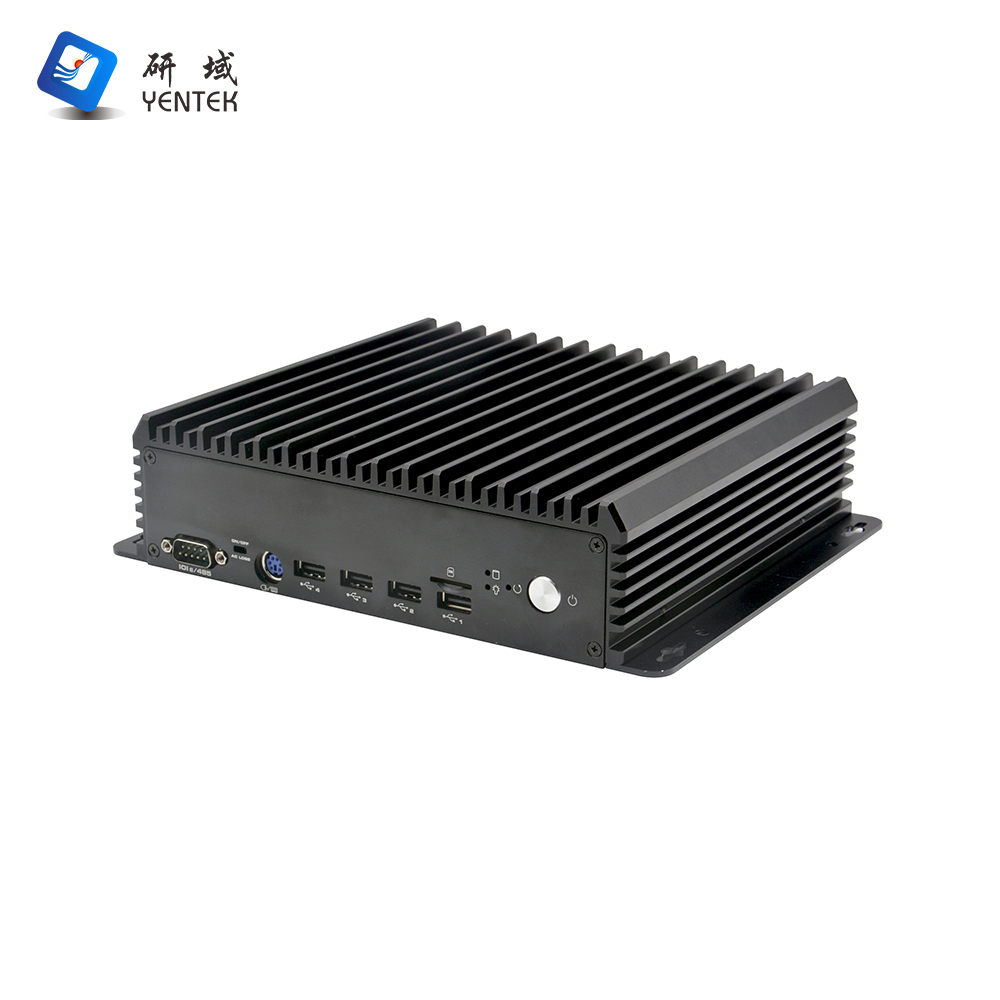

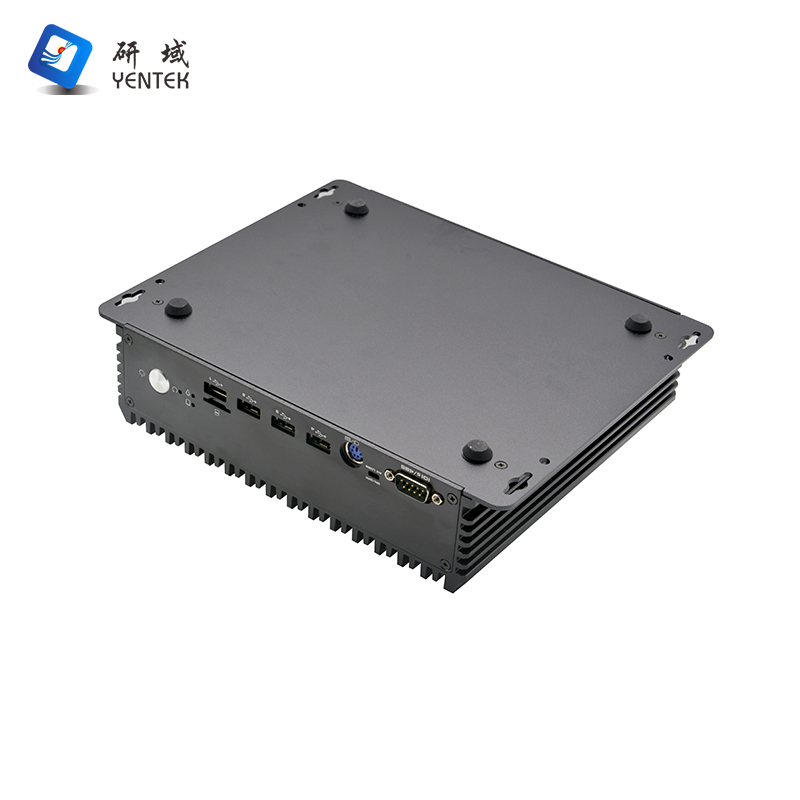

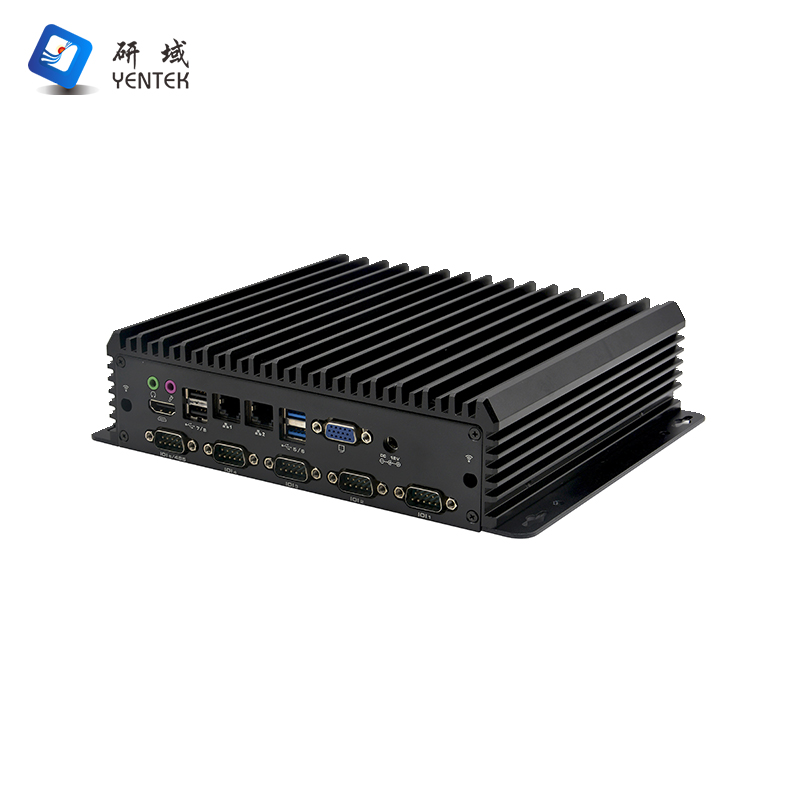

Model | C6850Z-D6 V1.0(7360U) |
Chassis | Material/structure | All Aluminium Fanless |
Colour | Gloss Black |
Dimensions (LWH) | L235*W191.2*H57mm |
Weight | 1.9KG |
Installation | Desktop/Embedded |

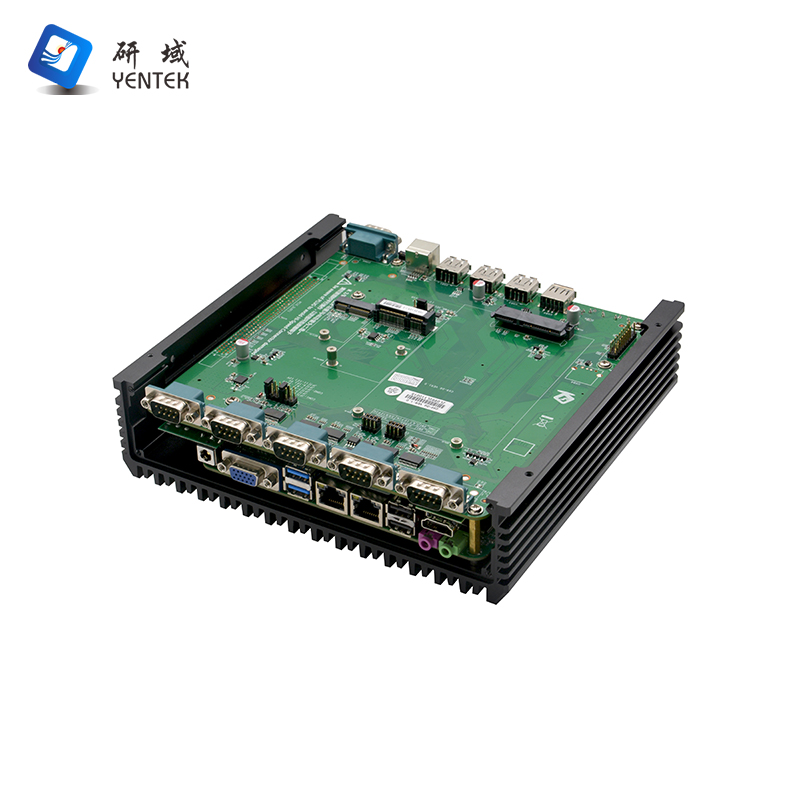

Motherboard | CPU | Integrated Intel® i5-7360U/2.30GHz Dual-Core Quad-Threaded Processor, TDP 15W |
Display | Integrated Intel® Iris Plus Graphics 640 |
Memory | 2*SODIMM DDR4 2133MHz Memory, Max. 32GB supported |

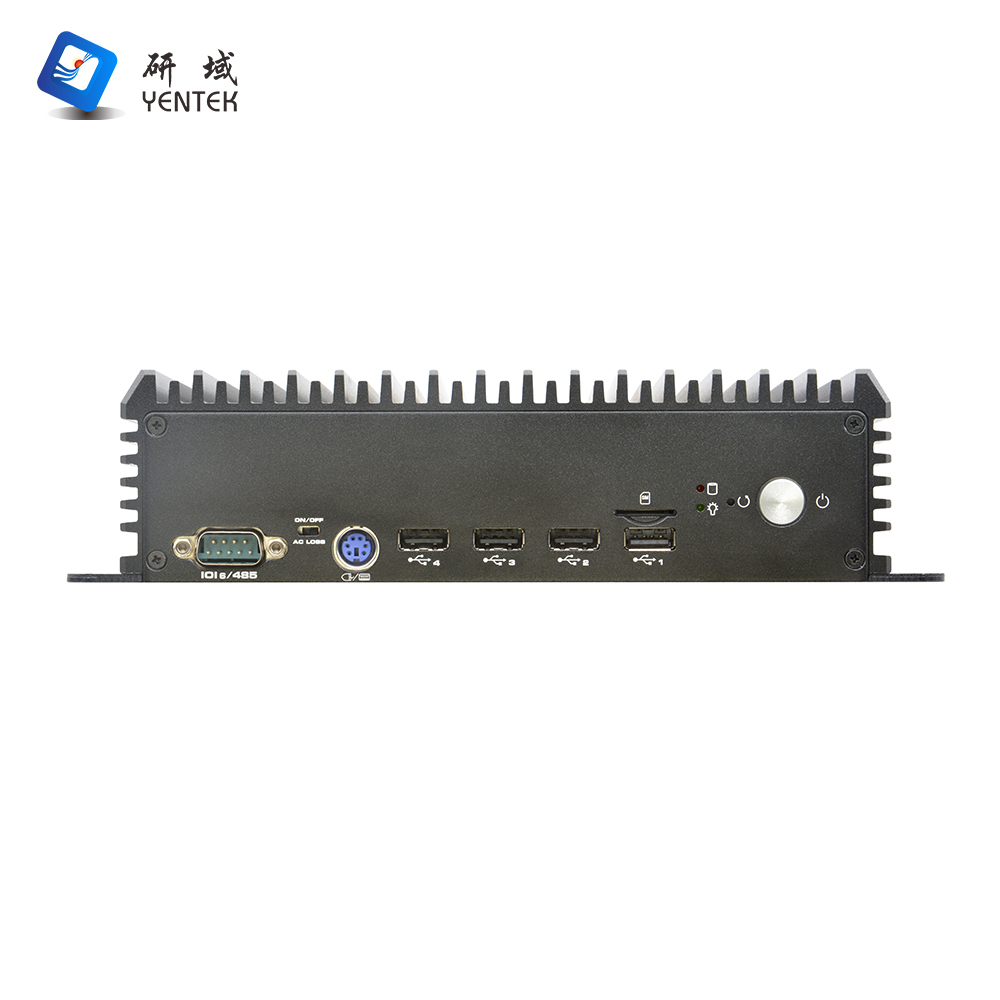

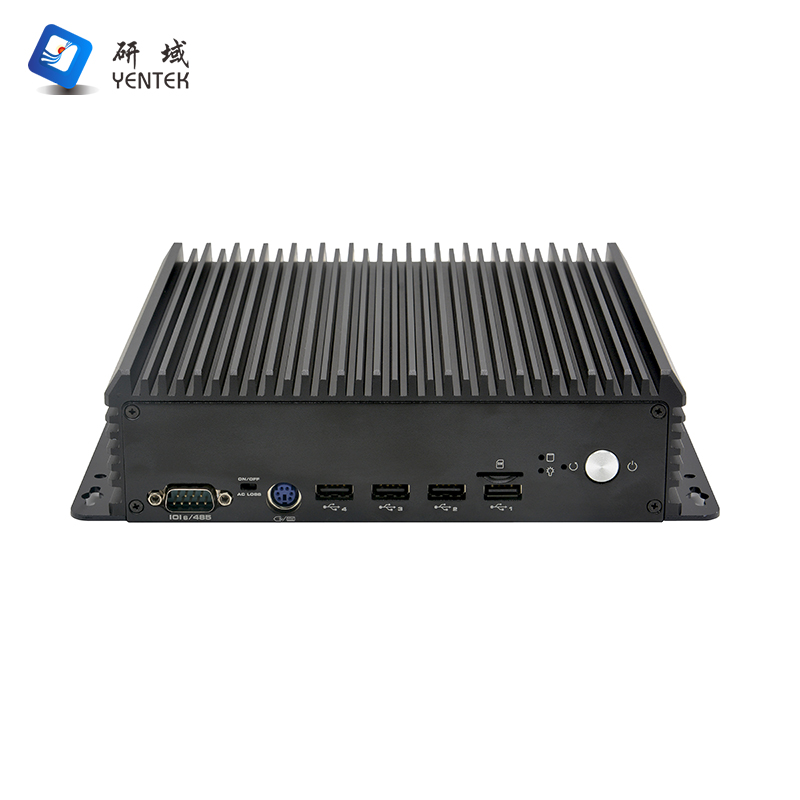

Front Panel Connectors | POWER | 1*Boot Button, 1*One-Key Restore, 1*ACLOSS (Power On and Off DIP Switch) |
LED | 1*Power Indicator, 1*Hard Drive Indicator |
USB | 4*USB2.0 |
COM | 1*RS232/485 DB9 Serial Port |
SIM | 1*SIM Standard Card Slot |

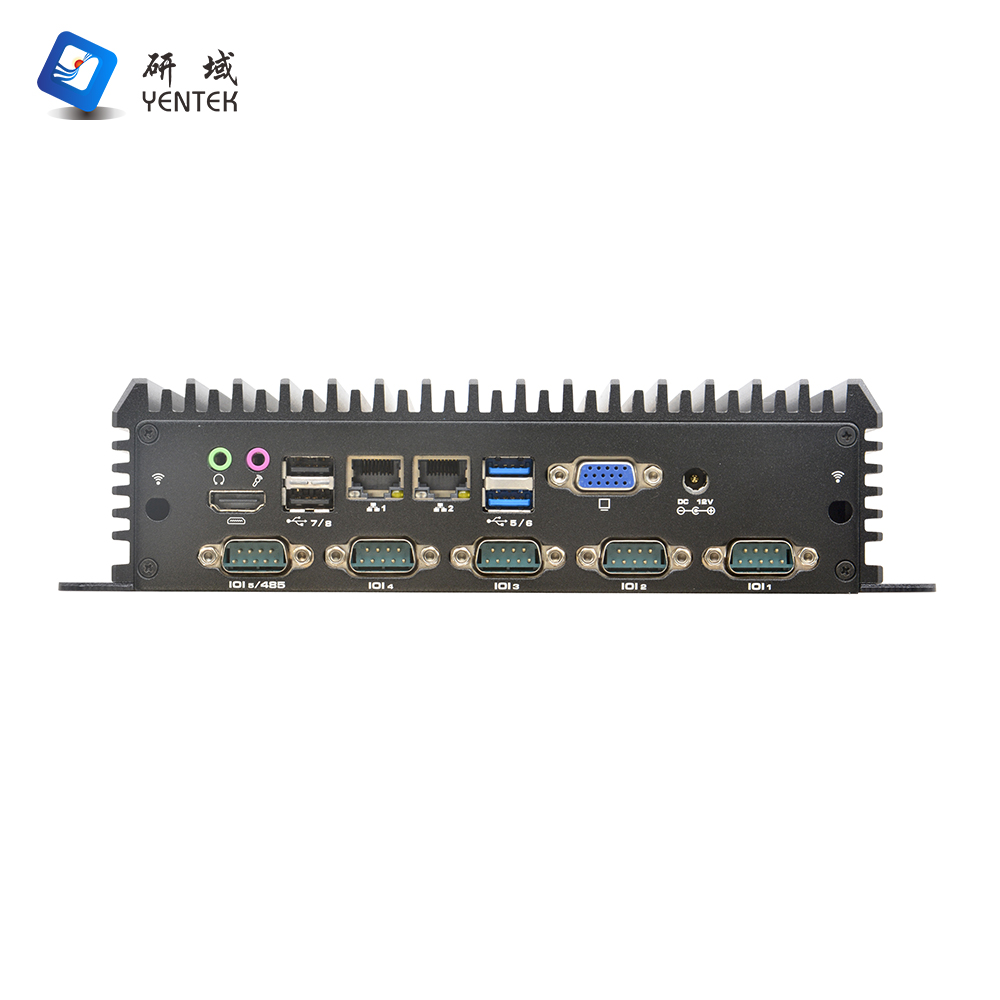

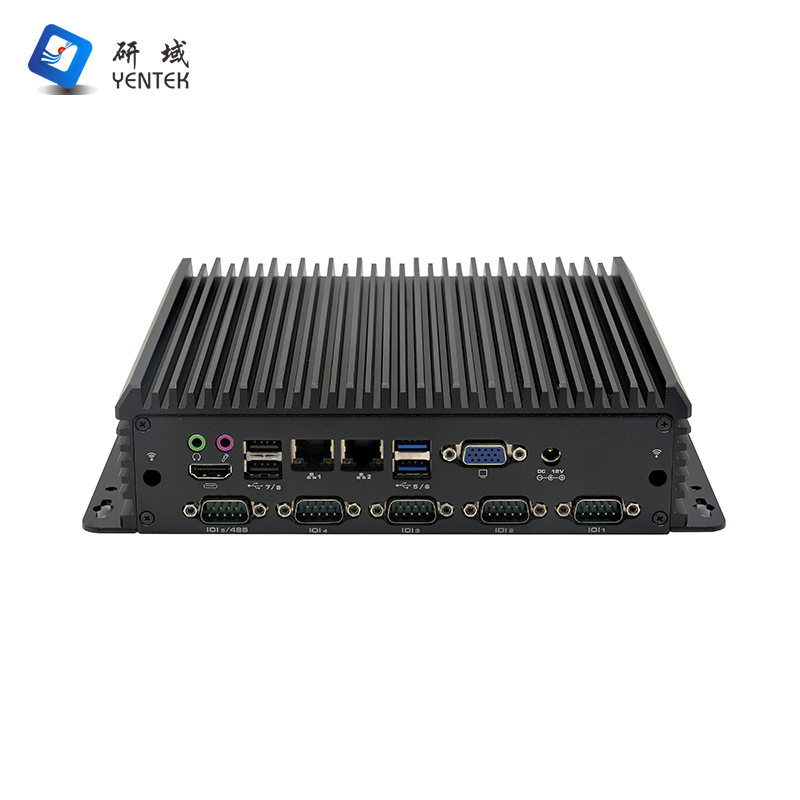

Rear Panel Interface | Display interface | 1*VGA(1920*1200@60Hz), 1*HDMI1.4(4096*2304@ 30Hz) |
LAN | 2*Intel® I210AT Gigabit power port, support Wake-on-Network, PXE function (subject to actual shipment) |
USB | 4*USB3.0 |
COM | 5*RS232 DB9 serial port, COM5 support RS232/485, COM1~2 9th pin with power function |
Audio | 1*Line out, 1* MIC |
Power supply | 1*DC power connector or 1*3P Phoenix terminal Power interface, support 9~36V power input |
Storage | SATA | 1*2.5 inch HDD bay |
MSATA | 1*MSATA |
Expansion | MINIPCIE | 1*MiniPCIE, support 4G module |
M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module |
System Support | Microsoft Windows | Windows 7 |
Linux | Ubuntu |
Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) |
Power Requirements | Power supply type | External power adapter |
Voltage input | DC 12V |
Power output | AC To DC 60W~90W (depends on specific equipment) |
Environments | Operating temperature | -10℃～50℃ |
Storage temperature | -20℃～70℃ |
Relative humidity | 5%-95% relative humidity, non-condensing |
Operating vibration | 0.5g rms/5-500HZ/random/operating |
