| Model number | C6860Z-C10 V1.1(3865U) | |
| Case | Material/Structure | Full aluminum fanless |
| Colour | Black | |
Dimension(L*W*H) | L235*W207*H78mm | |
| Weight (bare net) | 2.45KG | |
| Installation | Desktop / Embedded | |
| Motherboard | CPU | Integrated Intel® Celeron 3865U/1.80GHz dual-core, dual-threaded processor, TDP15W |
| Display | Integrated Intel® HD Graphics 610 with 4K support | |
| RAM | 2*SODDR4 DIMM 2133MHz memory, support up to 32GB | |

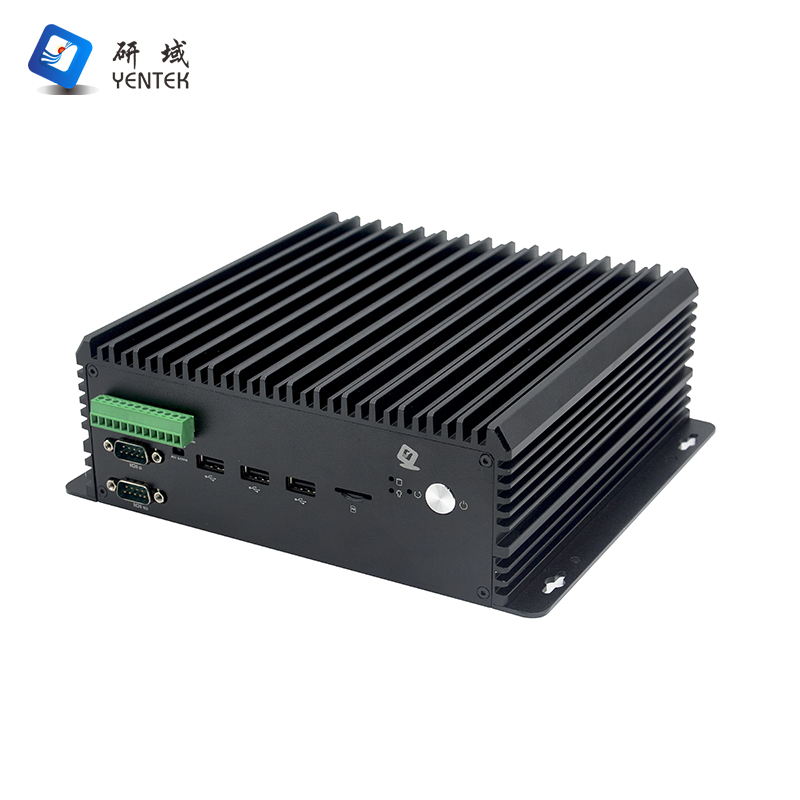

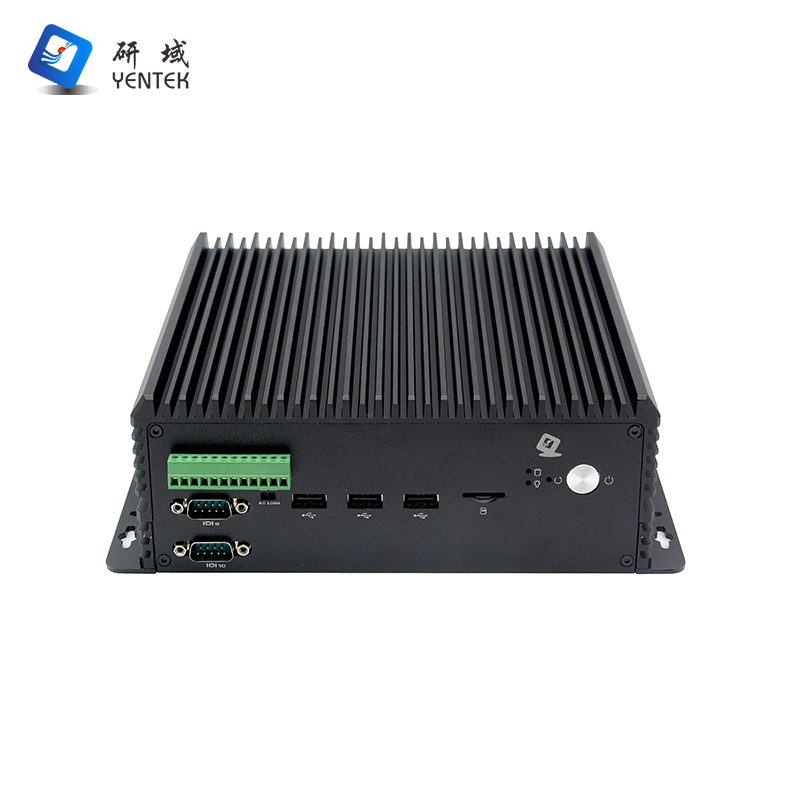

| Front Panel Connectors | POWER | 1*Boot button, 1*One-Key Restore (choose one with Reset button), 1*ACLOSS (power on/off toggle switch) |
| Phoenix Terminal | 1*12pin (including four in four out GPIO/power on button/5V) | |
| USB | 3*USB2.0, 1*Built-in USB2.0 | |
| COM | 2*RS232/485 DB9 serial port, support CAN (need to load CAN module) | |
| SIM | 1*SIM card slot | |
| LED | 1*Power Indicator, 1*Hard Drive Indicator | |

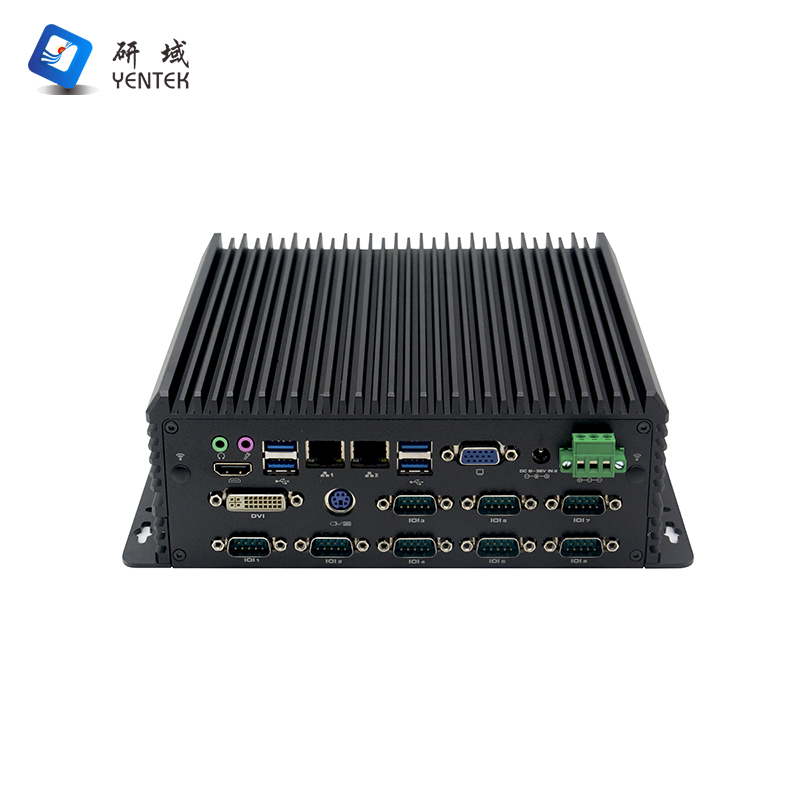

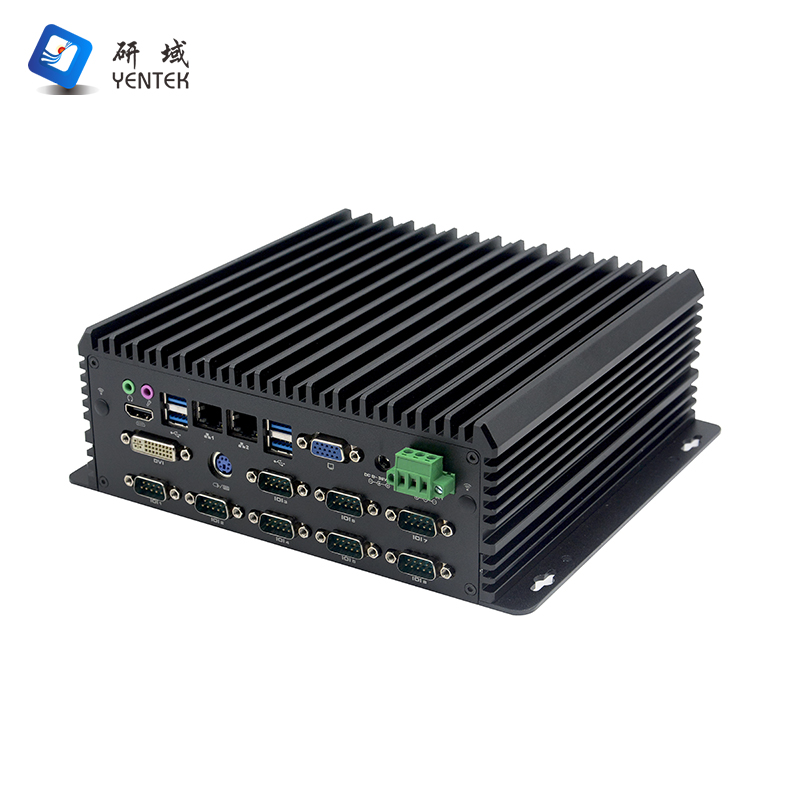

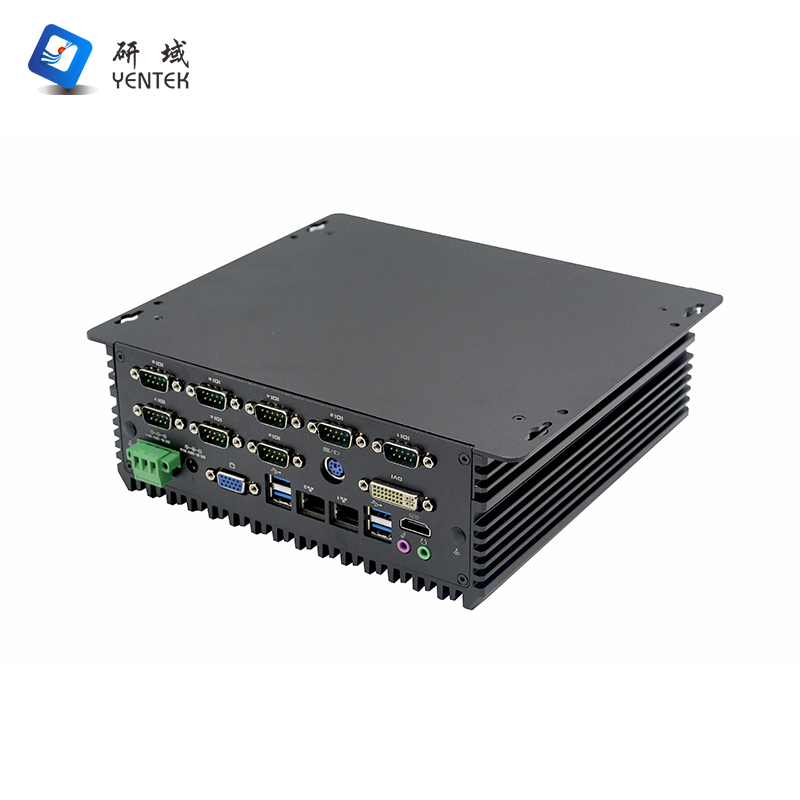

| Rear Panel Interface | Display Interface | 1*VGA(1920*1200@60Hz), 1*HDMI1.4(4096*2304@24Hz), 1*DVI, support triple displays |
| Audio | 1*Line out，1*MIC | |
| LAN | 2*Intel I211 Gigabit power port, support Wake on LAN, PXE function | |
| USB | 4*USB3.0 | |
| COM | 8*RS232 DB9 serial port, COM5~8 support RS485 Note:10 serial ports can support isolated | |
| PS2 | 1*PS2 | |
| Power Supply | 1*DC power supply interface or 1*3pin Phoenix terminal interface, support 9~36V wide voltage input | |
| Storage | SATA | 1*2.5 inch hard drive bay |
| MSATA | 1*MSATA, transfer speed up to 6Gbps | |
| Expansion | Mini PCIE | 1*MiniPCIE, support WIFI module |
| M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module | |
| 1*M.2/5G, support Key-B, 2242/52, 5G module | ||
| OS support | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |
| Power Supply | Power Type | External power adaptor |
| Voltage Input | 9V~36V wide voltage | |
| Power output | 60W~180W（depending on the specific equipment） | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Memory | Motherboard | IO Board | GPIO | LAN | COM | HDMI | VGA | DVI | USB | Power |
| 1 | C6860Z-C10 V1.2(J1900) | J1900/2.0G | 1*SODDR3L | C19_J926D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 2 | C6860Z-C10 V1.2(5020U) | I3-5020U/2.2G | 1*SODDR3L | C43_I326D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 3 | C6860Z-C10 V1.2(4310U) | I5-4310U/2.0G | 1*SODDR3L | C43_I526D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 4 | C6860Z-C10 V1.2(6300U) | I5-6300U/2.4G | 2*SODDR4 | C58_I526D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 5 | C6860Z-C10 V1.2(6650U) | I7-6650U/2.2G | 2*SODDR4 | C58_I726D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 6 | C6860Z-C10 V1.2(7200U) | I5-7200U/2.5G | 2*SODDR4 | C58_I526D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 7 | C6860Z-C10 V1.2(7360U) | I5-7360U/2.3G | 2*SODDR4 | C58_I526D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 8 | C6860Z-C10 V1.2(7500U | I7-7500U/2.3G | 2*SODDR4 | C58_I726D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 9 | C6860Z-C10 V1.2(8145U) | I3-8145U/2.1G | 2*SODDR4 | C81_I326D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 10 | C6860Z-C10 V1.2(8265U) | I5-8265U/1.6G | 2*SODDR4 | C81_I526D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
| 11 | C6860Z-C10 V1.2(8565U) | I7-8565U/1.8G | 2*SODDR4 | C81_I726D | C69-C10/C68-G12/C68-HM/C68-PW | 4in4out | 2 | 10 | 1 | 1 | 1 | 7 | 9V~36V |
