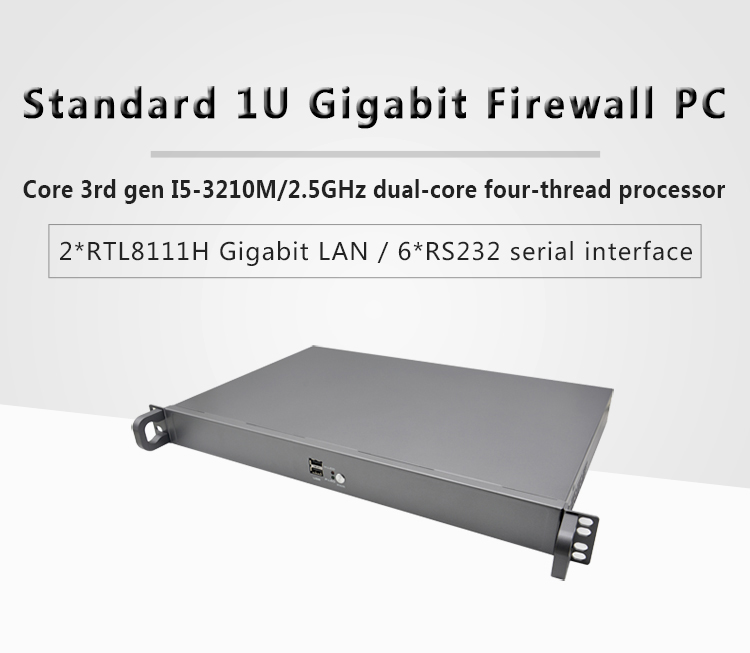

| Model number | R280H V1.0(B320) | |
| Chassis | Material/Structure | 1U standard case, high quality galvanized material |
| Colour | Light silver black | |
| Dimensions | 430* 280*45MM | |
| Install | 1U standard rack mounting method | |
| Motherboard | CPU | Integrated Intel®Core I5-3210M /2.5GHz dual core 4 thread processor,TDP 18W |
| Chipset | Intel® HM77 Express chipset | |
| Display | Integrated Intel® HD Graphics 4000 | |
| RAM | 1*SODDR3 RAM slot, support single channel, DDR3 1600/1333 , max up to 8GB | |
| Front Panel Port | LED | 1*Power.LED，1*HDD.LED |
| POWER | 1* Power switch | |
| USB | 2* USB2.0 port | |

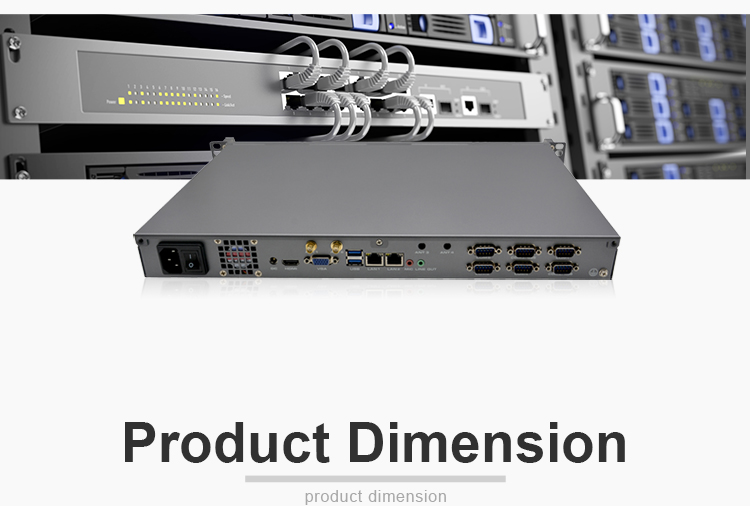

| Rear Panel Port | COM | 6* RS232 COM port ( COM1/COM2 the 9th pin charged function，COM2/COM3 support RS422/485) |
| LAN | 2* RTL8111H Gigabit Ethernet, support WOL / PXE function | |
| Power | 1* power supply connector | |
| USB | 2* USB3.0 | |
| Audio | 1* Line out port，1* MIC port，onboard ALC892 7.1+2 channel high fidelity audio controller | |
| Display Port | 1*VGA port，1*HD OUTPUT port | |
| Storage | SATA | 1* SATA2.0 HDD ,transfer rate up to 3Gbps |
| MSATA | 1*MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps | |
| Extend | Mini PCIE | 1* Mini-PCIE slot，support WIFI、3G/4G module |
| M.2 | N/A | |
| OS Support | Microsoft Windows | Window 7/Windows 10/Linux |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |
| Power Supply | Power supply type | Open power supply |
| Voltage | 12V/5A | |
| Consumption | AC TO DC，60W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | BYPASS | LAN | COM | HD OUTPUT | VGA | USB2.0 | USB3.0 | SFP | Power-input |
| 1 | R280H V1.0(B320) | 3210M /2.5GHz | B320 | 1*SODDR3 | N/A | 2 | 6 | 1 | 1 | 2 | 2 | N/A | DV 12V |
