| Model number | R41EAZ | |
| Chassis | Material/Structure | Fanless cooling， high quality galvanized steel |
| Colour | Light silver black | |
| Dimensions | 197mm*175mm*35mm | |
| Install | Desktop | |
| Motherboard | CPU | Integrated Intel®Celeron J4125 2.0GHz quad core 4-thread processor ,TDP 10W Compatible with Intel® Gemini Lake full series CPU |
| Chipset | SOC | |
| Display | Intel® UHD Graphics 600 | |
| RAM | 1* DDR4 SODIMM slot ,support single channel , 2400MHz , max up to 8GB | |
| Front Panel Port | LED | 1*Power LED, 1* HDD LED , 4* Network LED，4* Network data transmission LED |

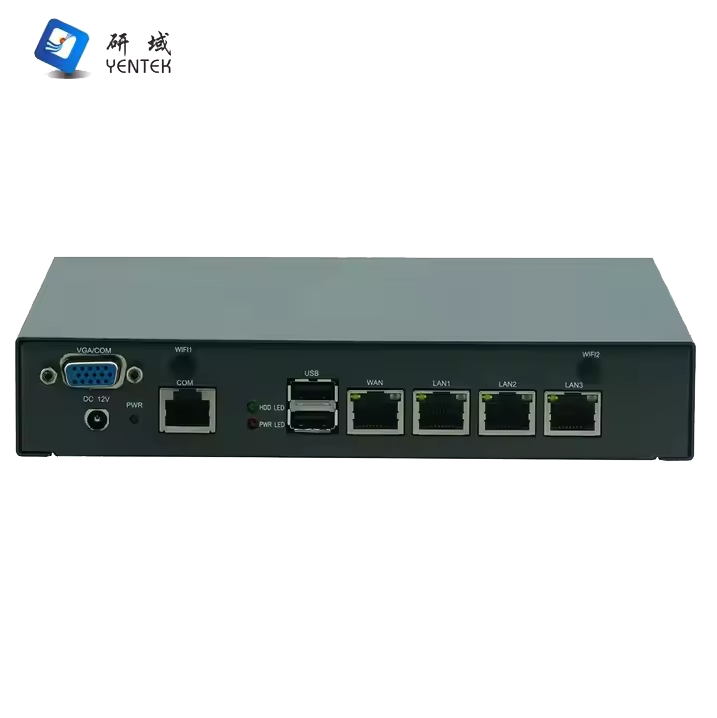

| Rear Panel Port | POWER | 1*Power Switch |
| USB | 2* USB2.0 port | |
| COM | 1* RS232 COM port | |
| LAN | 4* Intel I211 Gigabit Ethernet, support Wake On LAN/PXE | |
| Display Port | 1*VGA port | |
| Power Supply | 1* 12V DC power input | |
| LED | 1* Power LED，1*HDD LED | |
| Storage | SATA | 1*2.5”HDD expansion |
| SSD | 1* MSATA SSD expansion，transfer rate up to 3Gbps | |
| Extend | Mini PCIE | 1* Mini-PCIE slot, support WIFI / 4G module, default : USB signal Note: Mini-PCIE slot and the LAN4 share PCIE channel (optional |
| Support OS | Microsoft Windows | Windows 7/10，64bit(not include OS code) |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |
| Power Supply | Power supply type | External power adaptor |
| Voltage input | DC 12V | |
| Power output | AC TO DC，36W / 60W（optional） | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | HDD | GPIO | LAN | COM | HD OUTPUT | VGA | USB2.0 | USB3.0 | SIM | Power-input |
| 1 | R9FAZ | J1900/2.0GHz | M9F | 1*DDR3L | N/A | N/A | 4*583V | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
| 2 | R9EAZ | J1900/2.0GHz | M9F | 1*DDR3L | N/A | N/A | 4*I211 | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
| 3 | R41EAZ | J4125 /2.0GHz | M41E | 1*DDR4 | N/A | N/A | 4*I211 | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
| 4 | R41VAZ | J4125 /2.0GHz | M41V | 1*DDR4 | N/A | N/A | 4*I225V | 1 | N/A | 1 | 2 | N/A | N/A | DC 12V |
