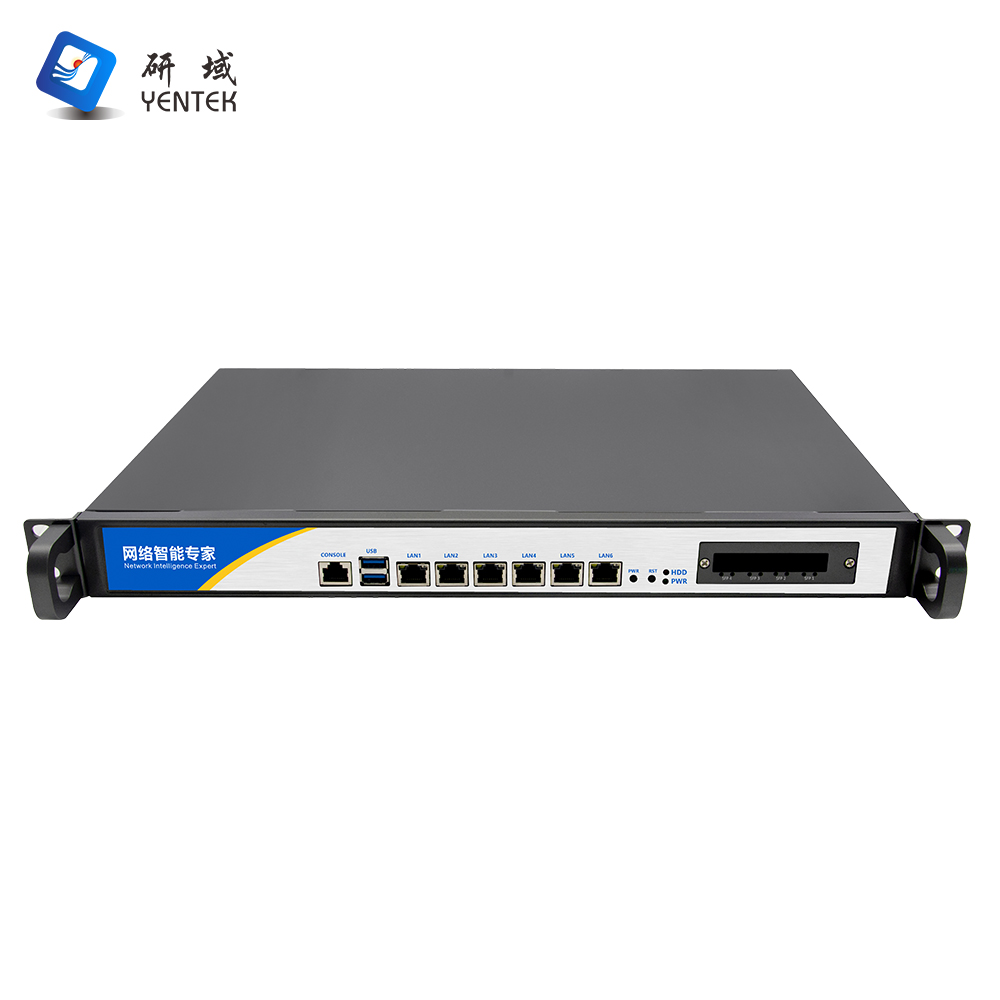

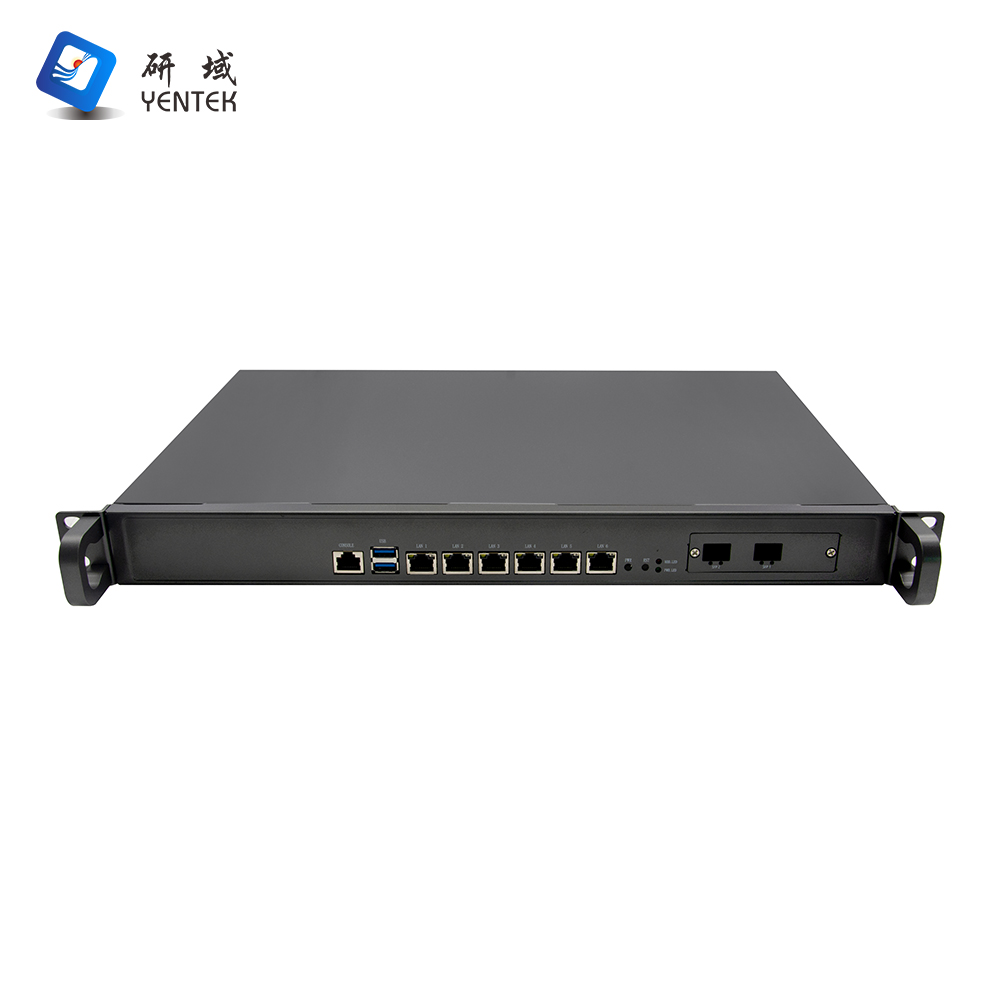

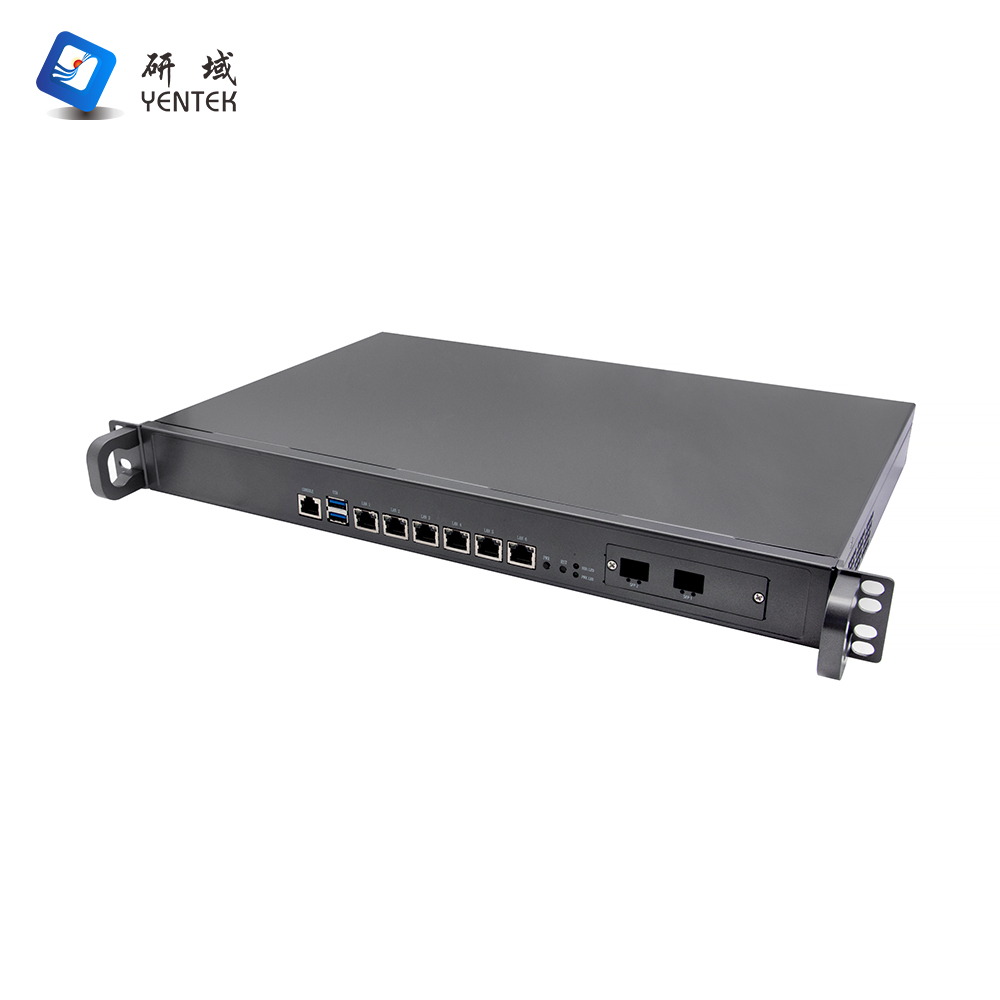

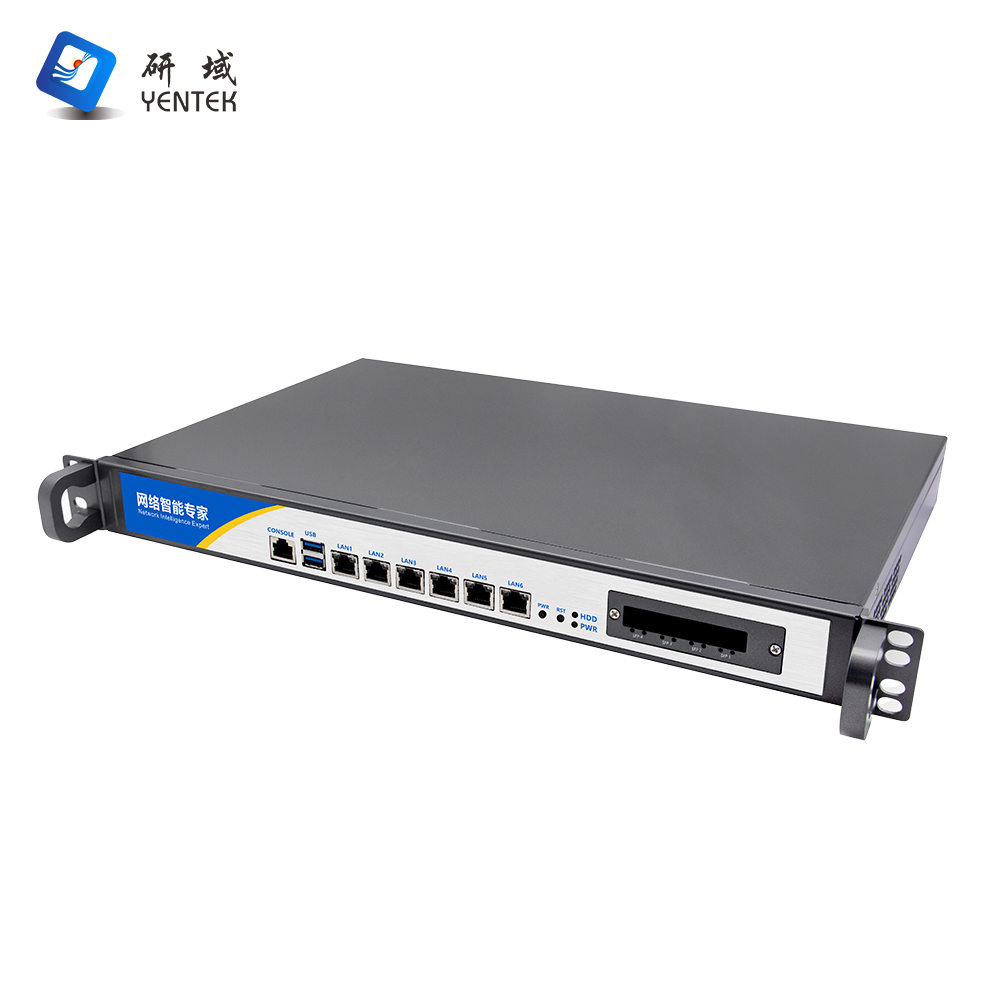

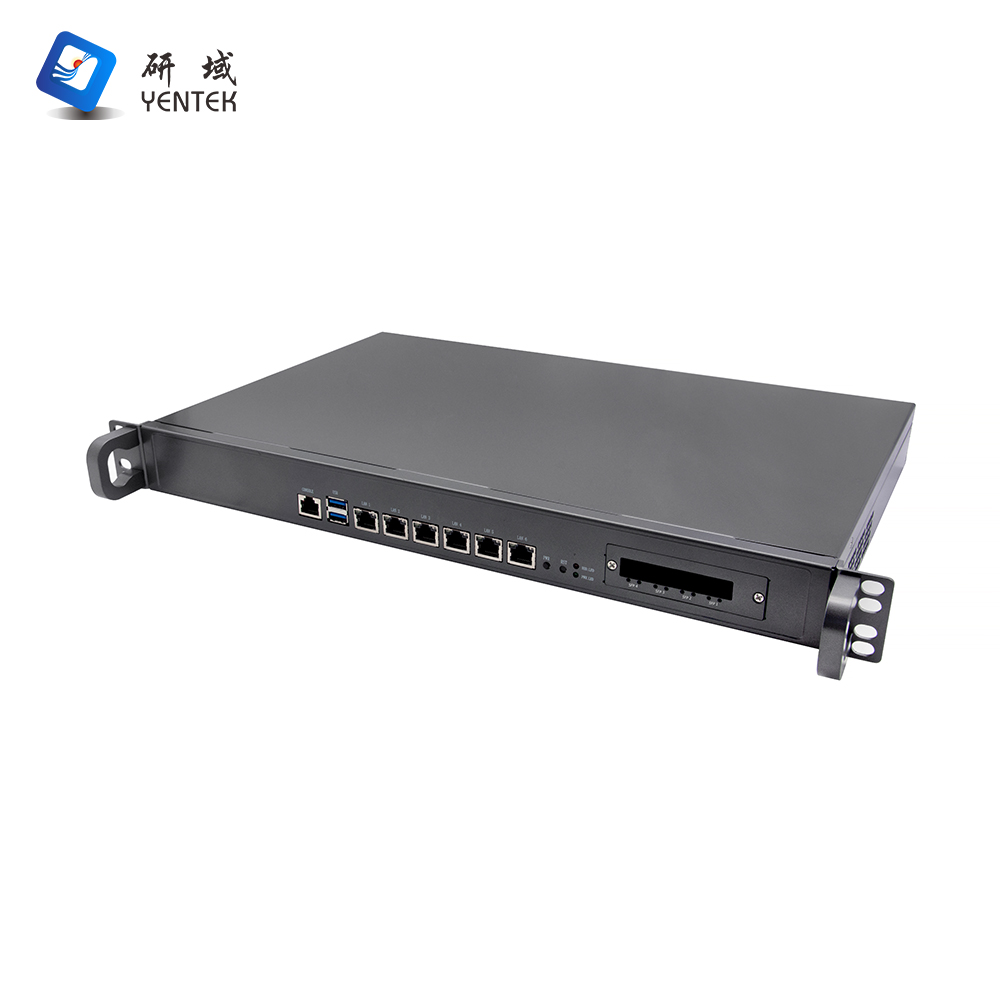

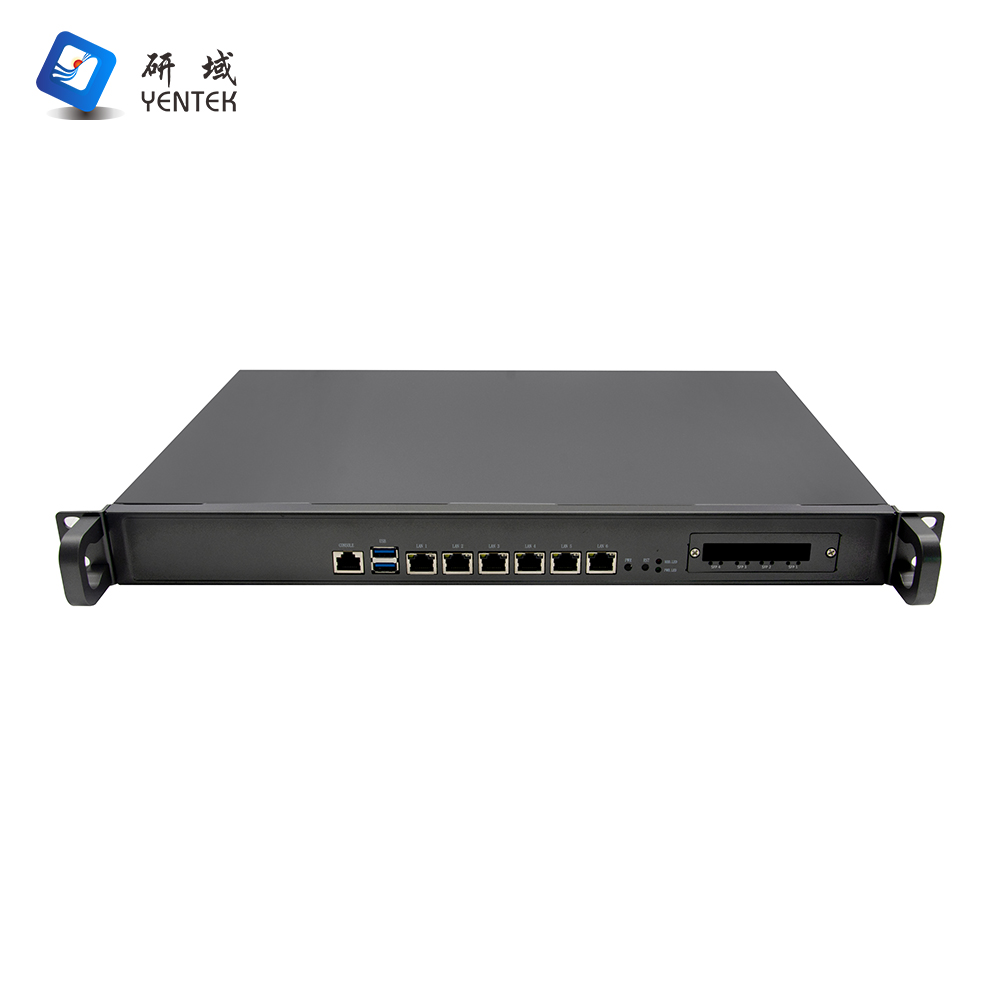

R280E-SF

Chassis

Material/structure

1U standard   chassis, high quality galvanised steel plate

Color

Silver black

Size (LWH)

L430* 280.2*44.5MM

Installation

1U Standard Rack

Motherboard

CPU

Integrated   10th Generation Intel Celeron 5205U/1.90GHz, dual-core, two-threaded   processor, TDP 15W

Display

Integrated   Intel® HD Graphics core graphics card

RAM

2*SODIMM   DDR4 2400MHz, supports up to 64GB

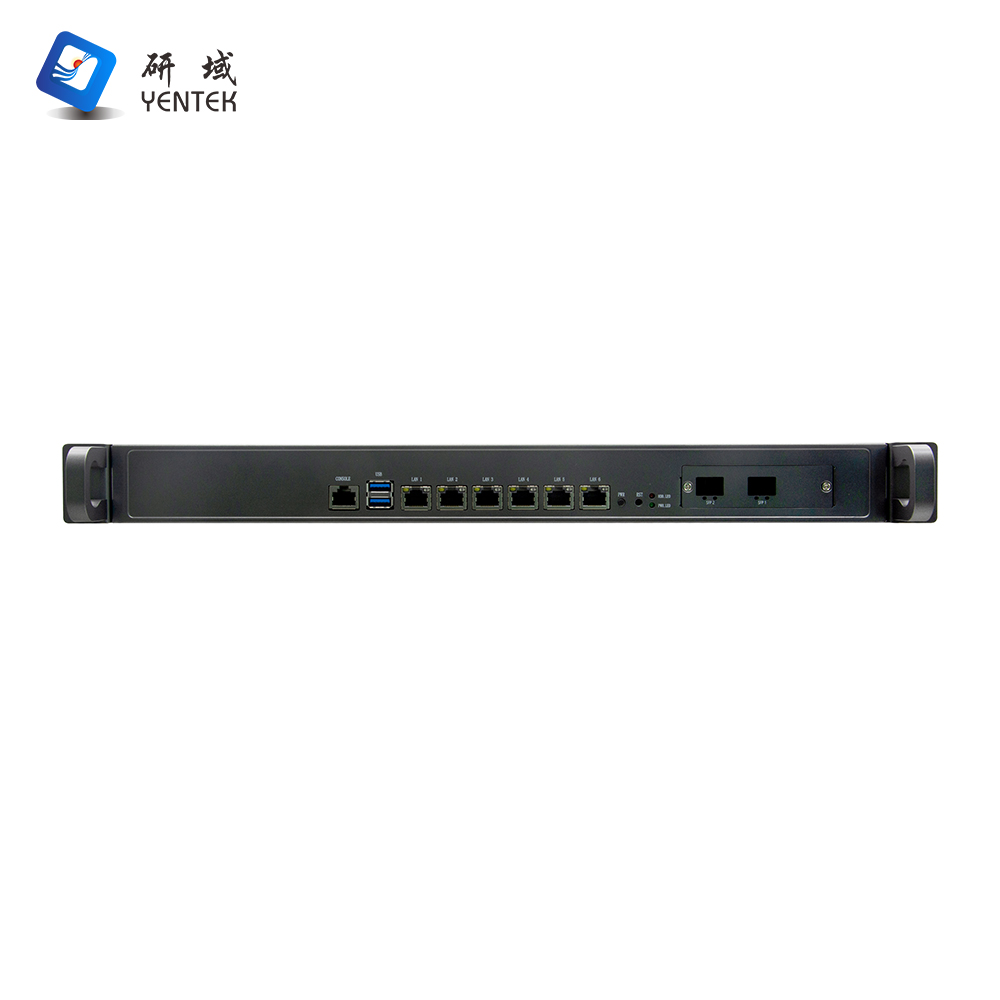

Front Panel interface

POWER

1*Power   Switch, 1*One-Key Restore

LED

1*Hard Drive   Indicator, 1*Power Indicator

LAN

6*Intel   I211AT network card, support Wake on LAN/PXE function

COM

1*RJ45   serial interface

USB

2*USB3.0,   built-in 1*USB2.0

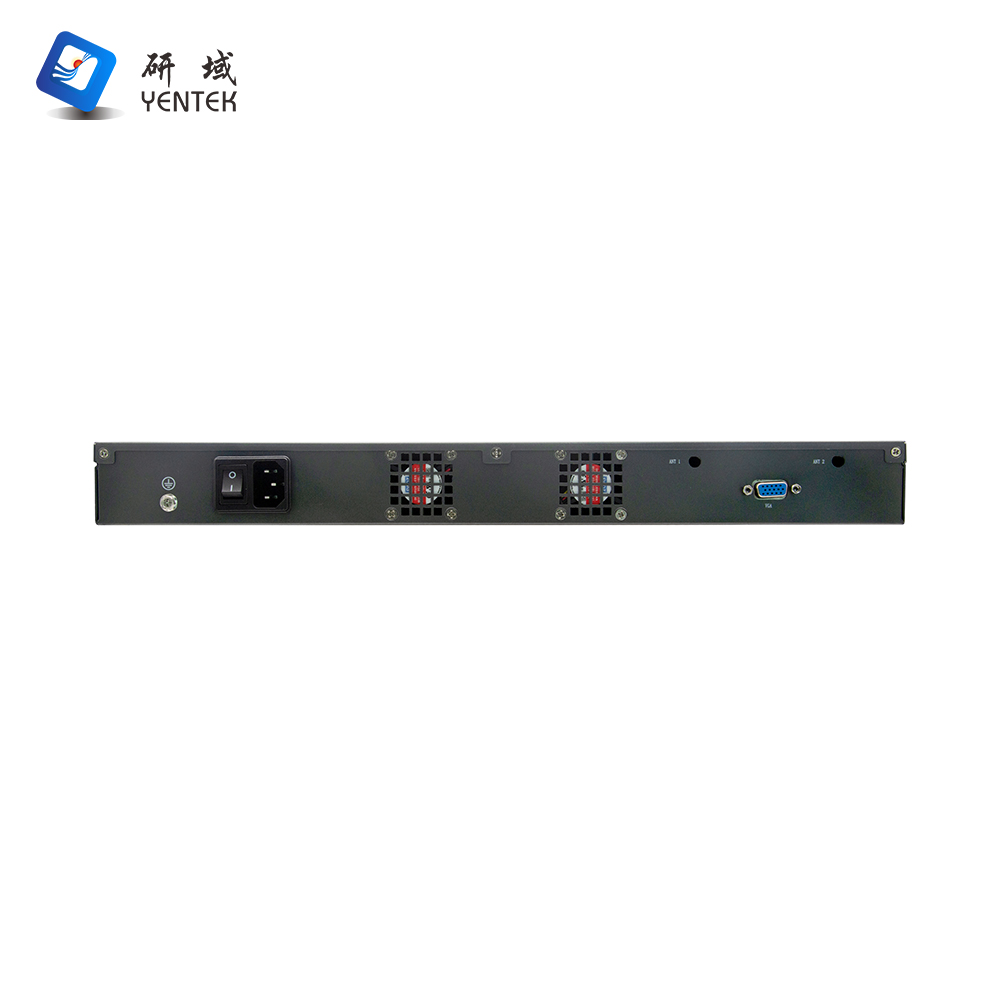

Rear Panel Interface

Display   Interface

1*VGA

Storage

SATA

1*2.5-inch   hard drive bay

MSATA

1*MSATA

Expansion

Mini PCIE

1* MINIPCIE,   support WiFi

M.2

1* M.2   support Key-B, 2242/2252 5G module

PCIE

1*PCIEx4,   support expanding 4-port fibre optic card

System   Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support   hardware reset function (256 levels, 0~255 seconds)

Power   Requirements

Power supply   type

Open Power   Supply

Voltage   Input

12V/5A

Power Output

AC TO DC,   72W

Environments

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

R280E-SF V2.0(3210M)

I5-3210M/2.4GHz

K320E

1*SODDR3

6*I210

2

(optional)

4/2

(optional)

1

2

DC 12V

2

R280E-SF V2.0(5205U)

5205U/1.9GHz

K520E

2* SODDR4

6*I210

2

(optional)

4/2

(optional)

1

2

DC 12V

3

R280V-SF V2.0(3210M)

i5-3210M/2.50GHz

K320V

1*SODDR3

6*I226V

2

(optional)

4/2

(optional)

1

2

AC 220V

4

R280V-SF V2.0(5205U)

5205U/1.9GHz

K520V

2*SODDR4

6*I226V

2

(optional)

4/2

(optional)

1

2

AC 220V
