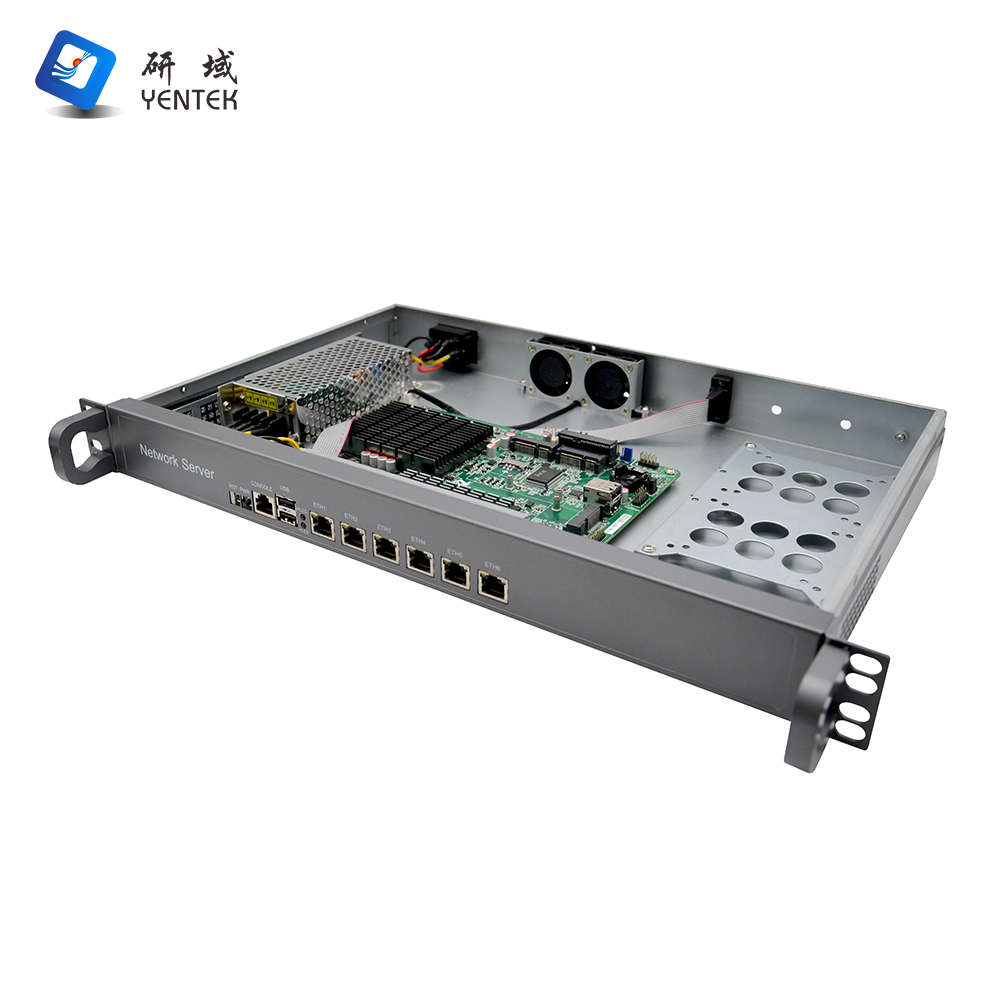

| Model number | R19SLZ | |
| Chassis | Material/Structure | 1U standard chassis, high quality galvanized steel |
| Colour | Asian silver black | |

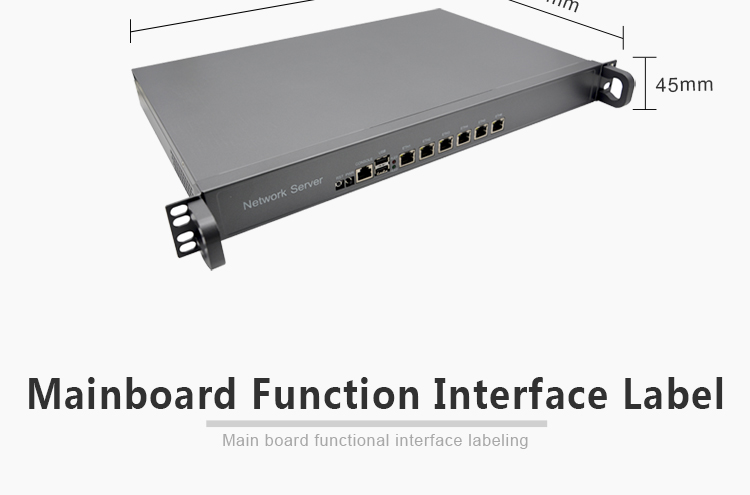

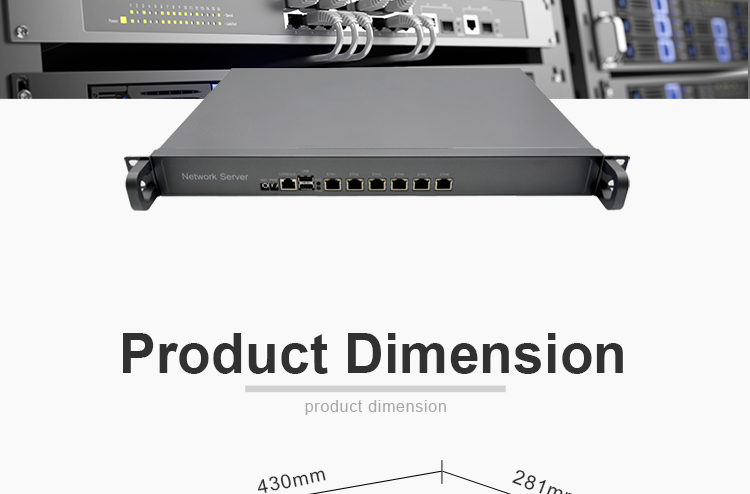

| Size (length, width and height) | 430mm*281mm*45mm | |
| Install | 1U standard rack | |

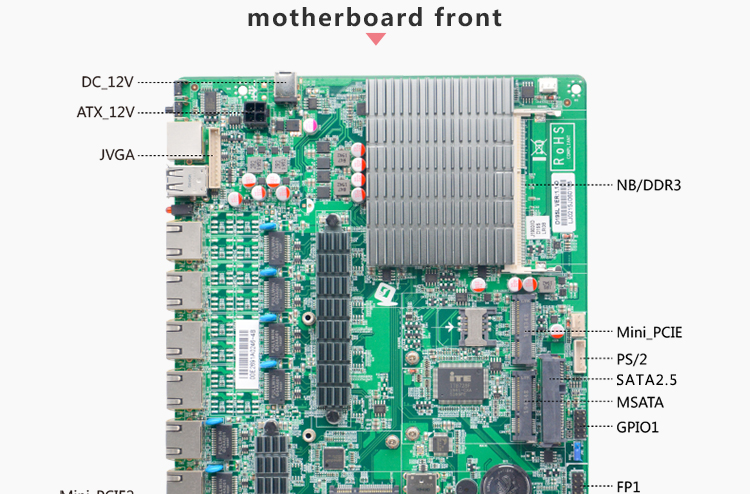

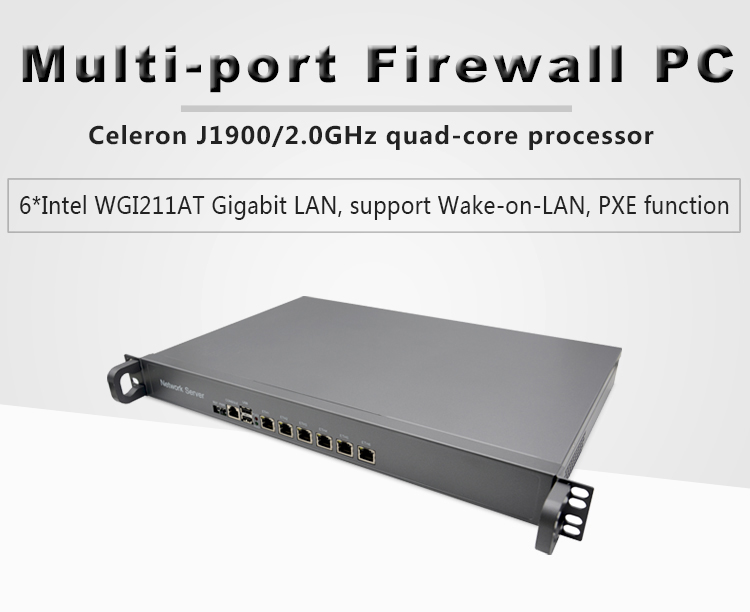

| Motherboard | CPU | Integrated Intel® Celeron® J1900 2.0GHz quad-core processor, TDP10W |
| System Chip | Based on Intel® Bay trail SOC platform | |
| Display | Integrated Intel® HD Graphics Core Graphics | |
| Memory | 1* SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB | |

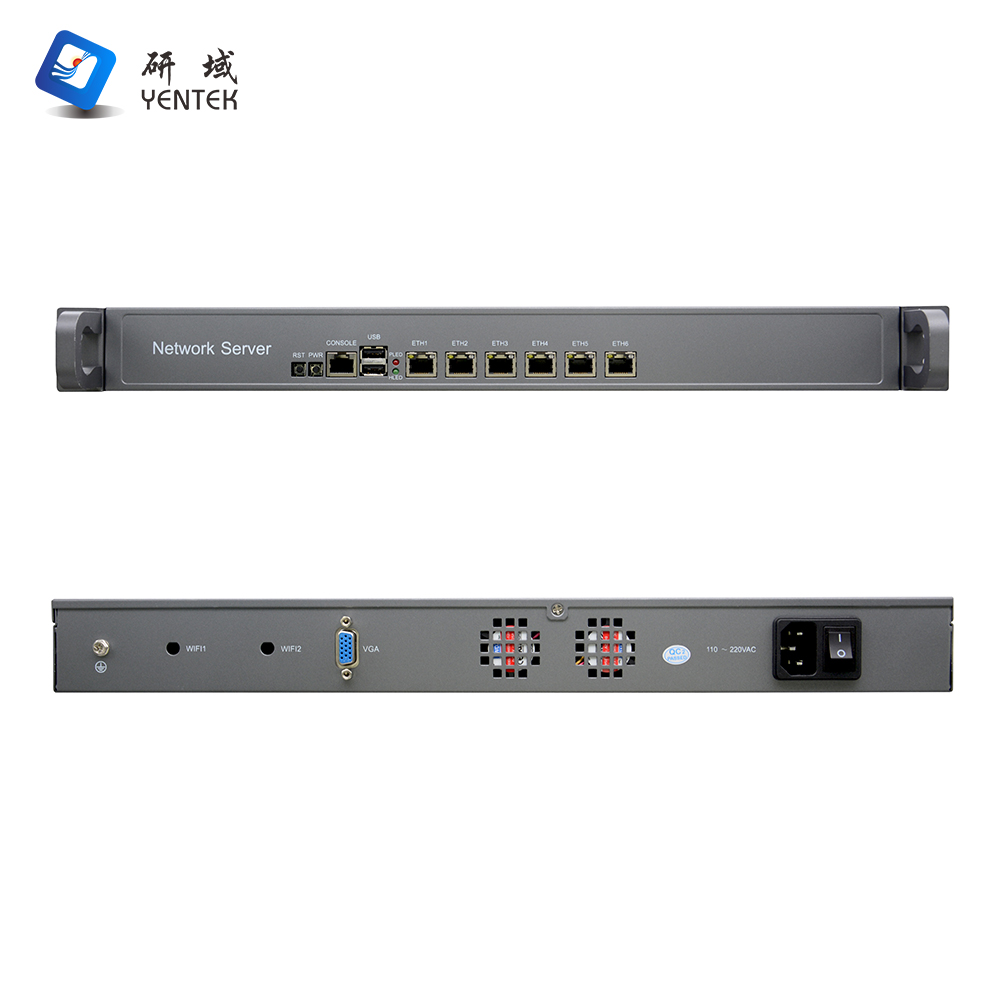

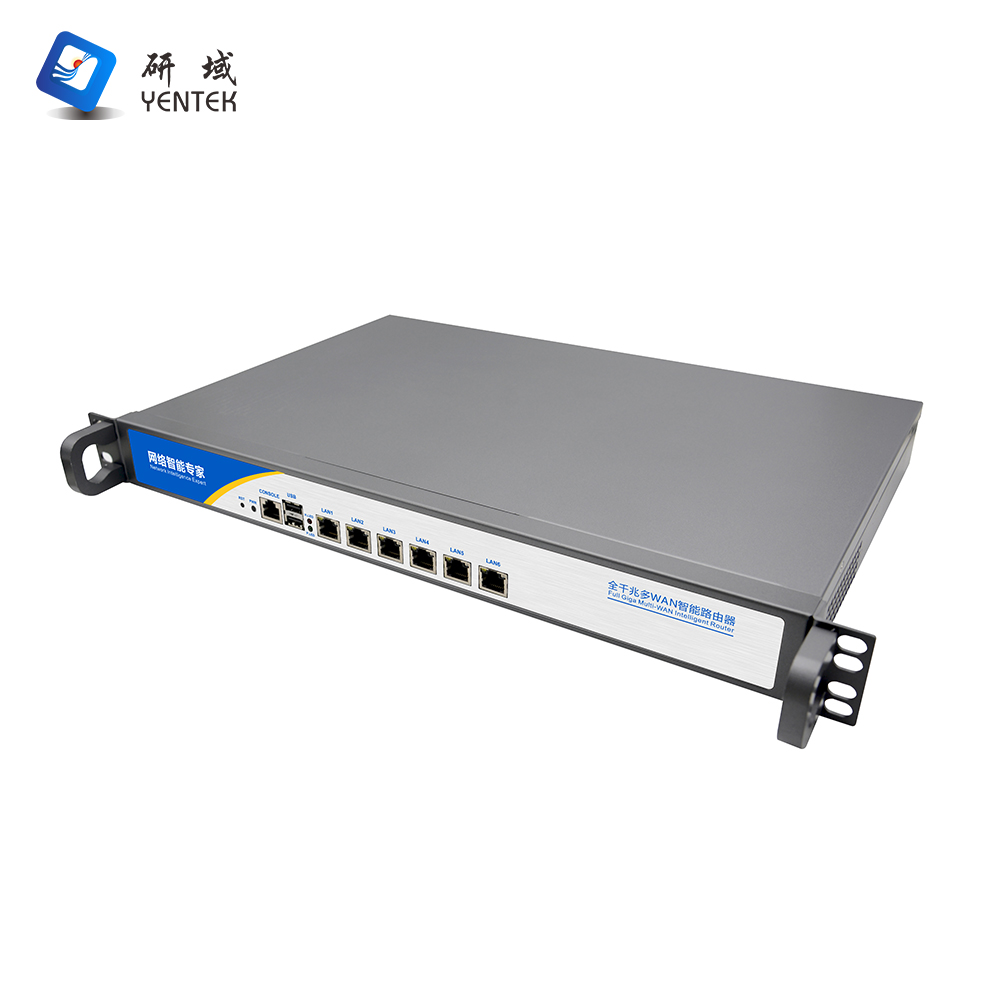

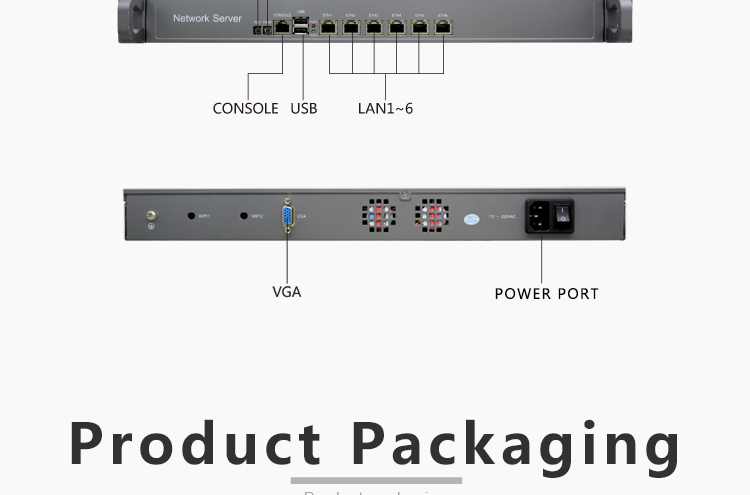

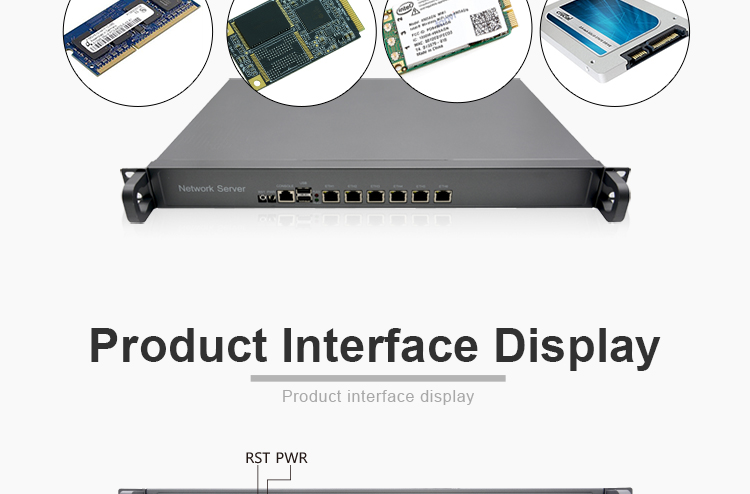

| Front panel interface | POWER | 1*Power switch, 1*Reset switch |
| LED | 1* power indicator, 1* hard disk indicator | |
| COM | 1* standard RS232 serial interface | |
| USB | 2* USB2.0 interface | |

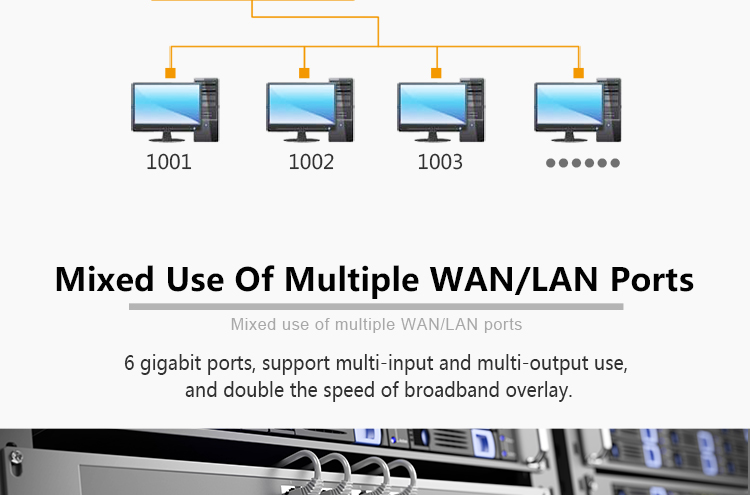

| LAN | 6* Intel WGI211AT Gigabit LAN, support Wake-on-LAN, PXE function, | |

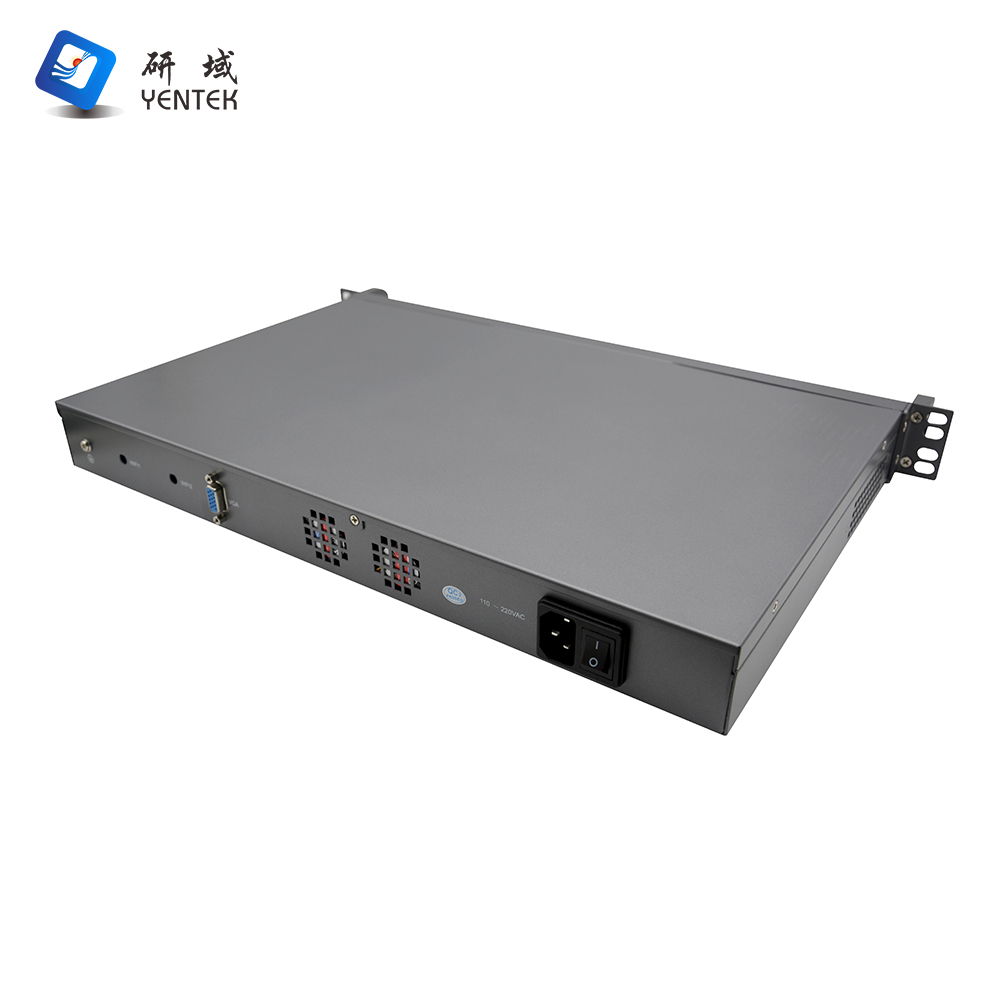

| Rear panel interface | Display interface | 1*VGA interface |
| Power supply | 1*AC power input interface | |

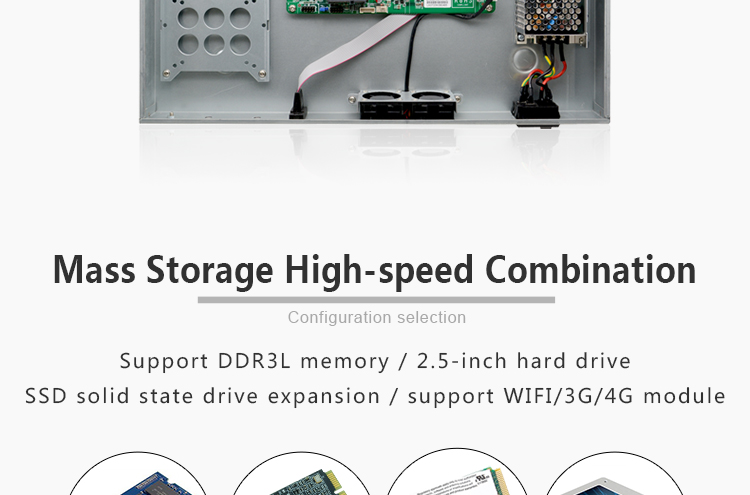

| Storage | SATA | 1* SATA2.0 2.5-inch notebook hard drive bay, you can directly install the hard drive |
| SSD | 1* MSATA SSD solid state drive expansion, SSD transfer speed up to 3Gbps | |
| Extend | Mini PCIE | 2* Mini PCIE slot, support WIFI/3G/4G module |
| Support OS | Microsoft Windows | Windows 7/10，64bit(without key) |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |

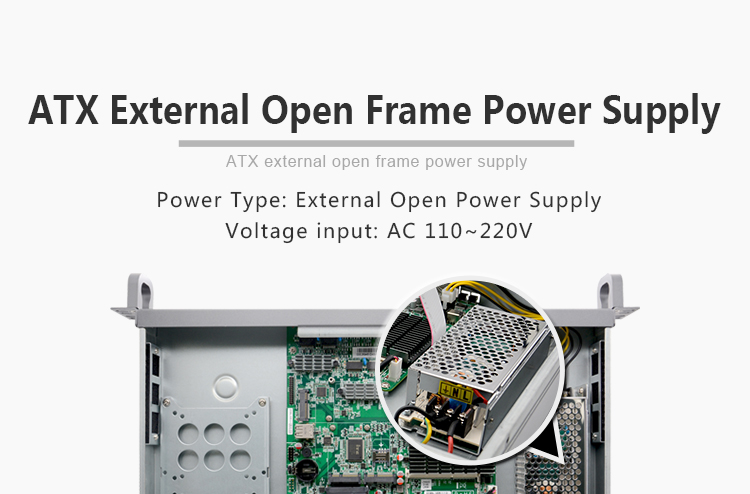

| Power Supply | Power supply type | External power adaptor |
| Voltage input | AC 110~220V | |
| Power output | AC TO DC, 60W | |
| Environment | Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | LAN | COM | VGA | USB2.0 | Power-input |
| 1 | R19SLZ | J1900/2.0GHz | D19SL | 1*DDR3 | 6*WGI211AT | 1 | 1 | 2 | AC convert DC |
| 2 | R41SLZ | J4125/2.0GHz | D41SL | 1*DDR4 | 6*225V | 1 | 1 | 2 | AC convert DC |
