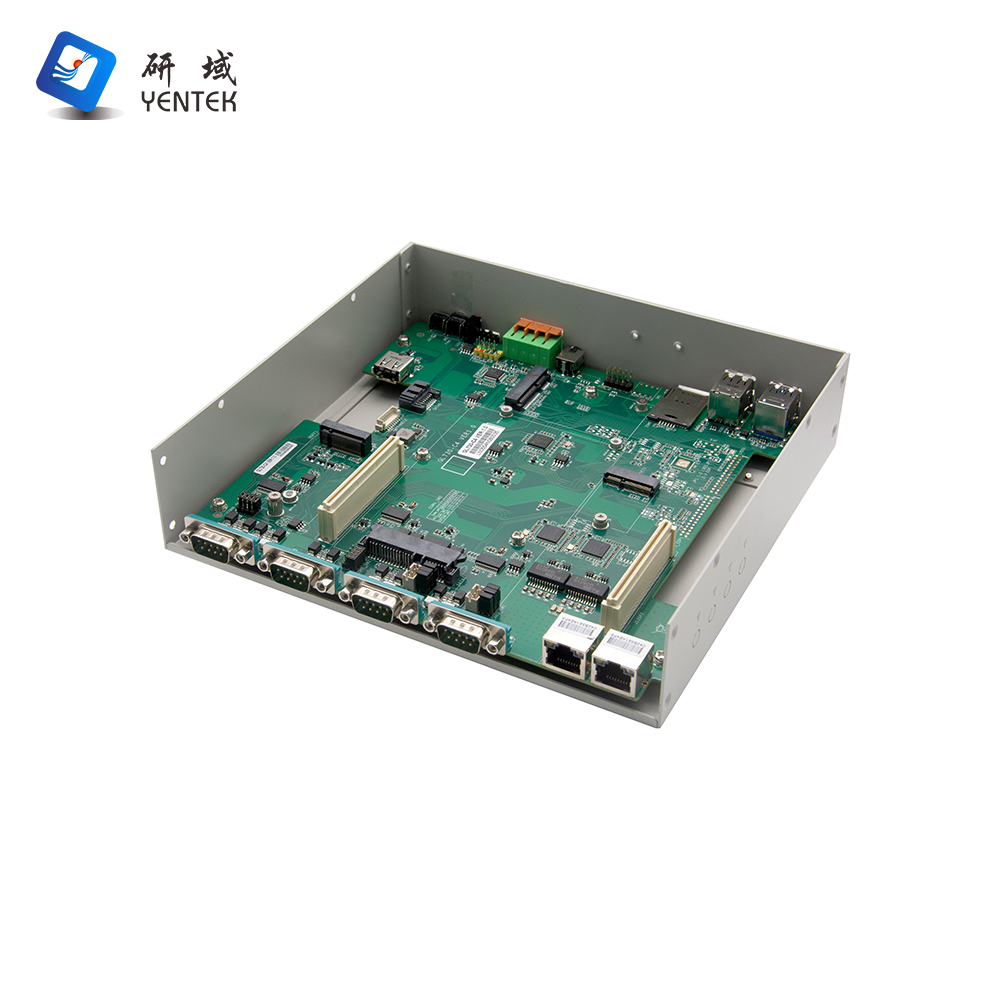

| Model number | G3250S-C6 V1.0(3210M) |
| Chassis | Material/Structure | Aluminium alloy + sheet metal |
| Colour | Iron grey + sand grain grey |
| Dimensions | 205*192*61.2MM |
| Weight (bare weight) | 2.6 KG |
| Install | Desktop/DIN Rail/Wall Mounted |
| Front panel interface | Switch | 1*Boot button, 1*One-Key-Restore, 1*ACLOSS (power-on toggle switch) |
| LED | 1*Power Indicator, 1*Hard Drive Indicator |
| USB | 2*USB3.0, 2*USB2.0, Built-in 1*USB2.0 |
Phoenix terminal | 1*4P Phoenix terminal (1*power indicator signal, 1*power switch signal) |
| SIM | 1*SIM standard card slot (signal default to M.2/5G) |
| Audio | 1*Audio, Line out and Mic 2-in-1 |
| Rear Panel Connectors | USB | 4*USB3.0 |
| COM | 6*RS232/485 DB9 serial ports, 2 of them support RS422, COM3~4 support CAN function (need to load CAN module) |
| LAN | 2*Intel I210AT Gigabit power port |
| Display Interface | 1*VGA, 1*HDMI1.4, support dual display |
| Dip switch | 6 sets of 6-position dip switches, COM1-6 RS232/485 switching through the dip switches to achieve, COM5-6 RS422 need to be achieved through the COM-SW2 jump cap |
| Power Interface | 1*4P P=5.08mm Phoenix terminal, support 9~36V wide voltage input |
| Store | SATA | 1*2.5-inch hard drive bay |
| MSATA | 1*MSATA |
| M.2 | 1*M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSDs |
| Extend | Mini PCIE | 1*MINIPCIE, support WiFi/4G module (4G and built-in USB2.0 with the same signal, default built-in USB2.0) |
| M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module |
| 1*M.2/5G, support Key-B, 2242/52, 5G module |
Power supply type
input | Power supply type | External power adaptor |
| Voltage input | DC 9-36V wide voltage |
| Power output | AC TO DC 90W or above |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5%-95% relative humidity, no condensation |
| Working vibration | 0.5g rms/5-500HZ/random/operating |
