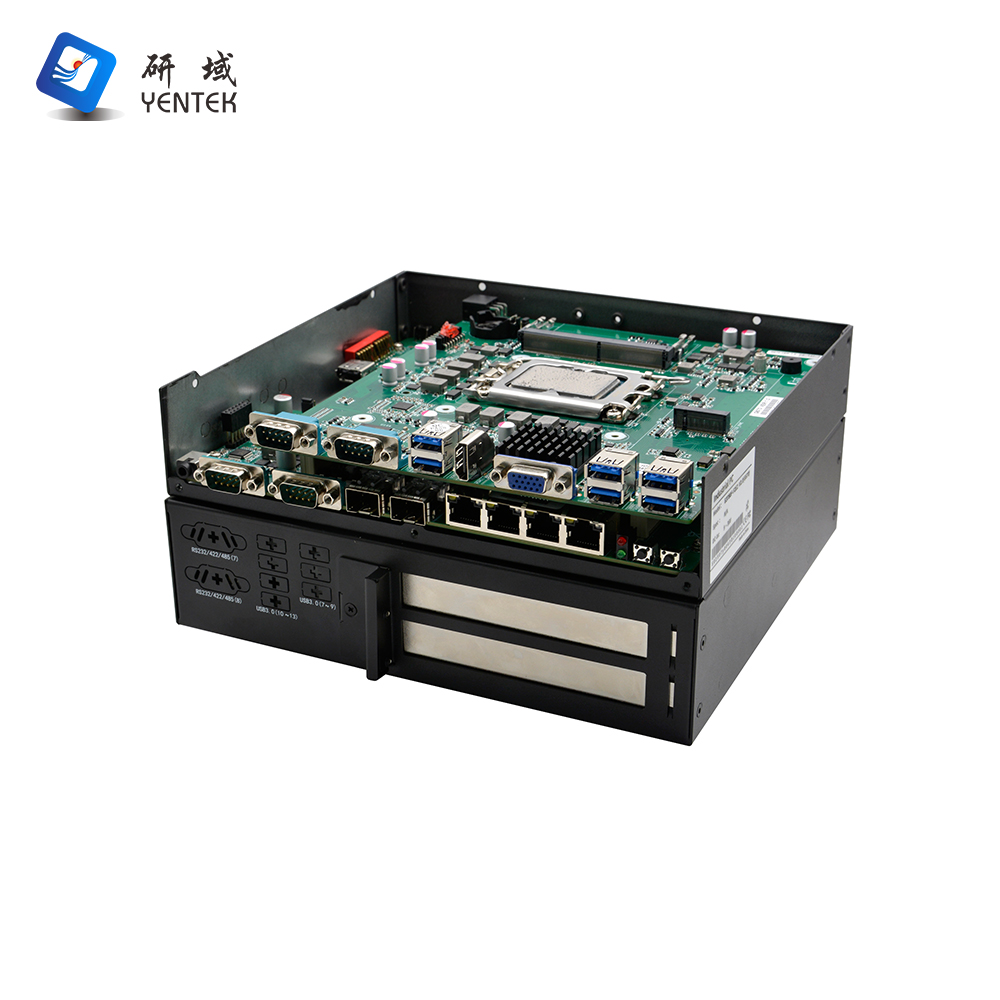

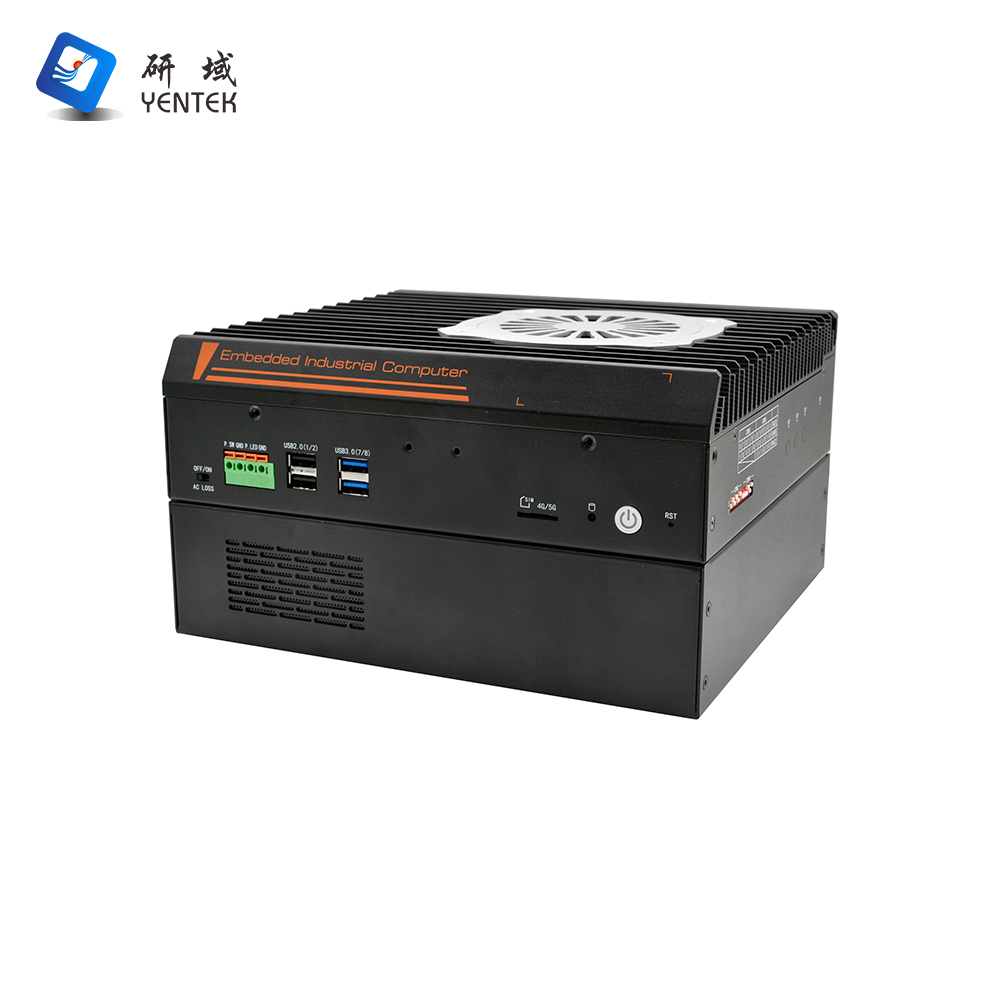

G3780F-F2E2

Chassis

Material/Construction

Aluminium   alloy + sheet metal construction, fan-assisted cooling

Colour

Black +   silver

Dimensions   (L x W x H)

229 × 208   × 125.7 mm

Weight

3.8 kg

Installation

Desktop/built-in

Motherboard

CPU

Intel®   LGA170 socket, 12th–14th generation processors

System-on-Chip

Intel®   H770

Memory

2x DDR4   slots, supporting up to 64GB

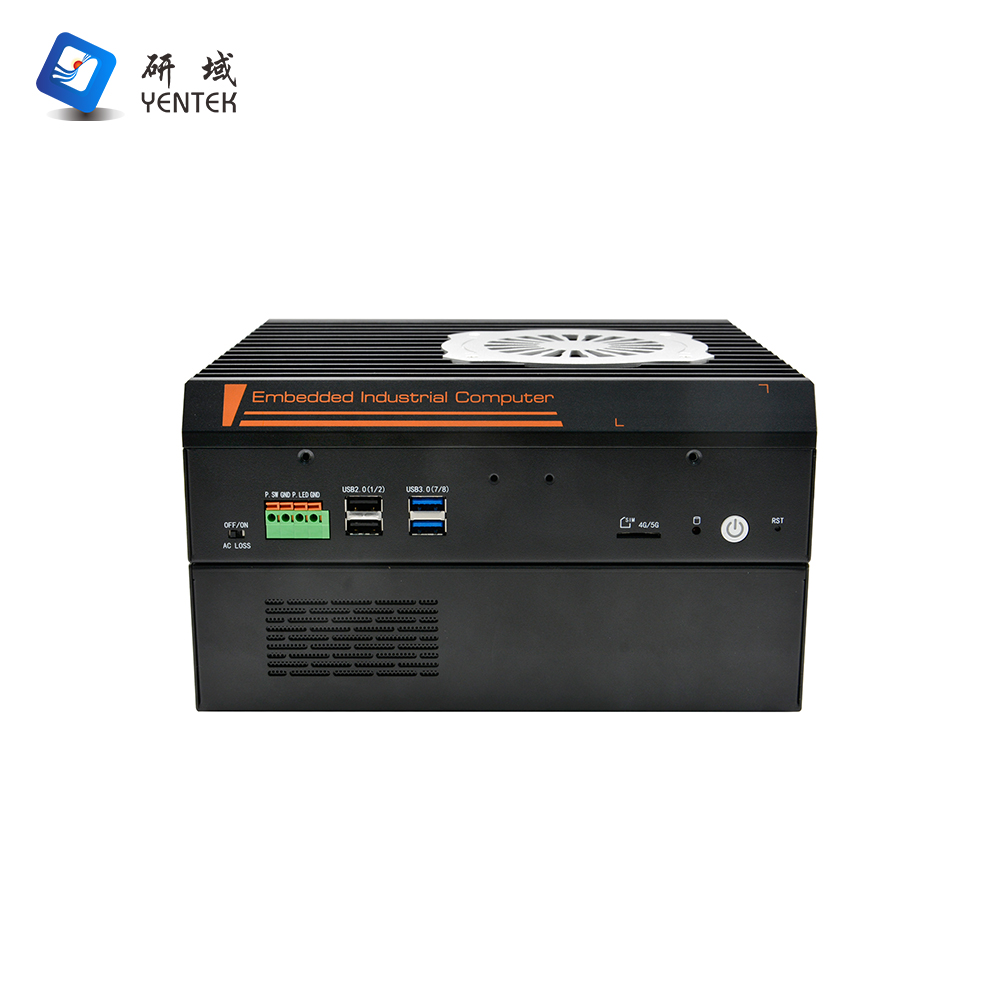

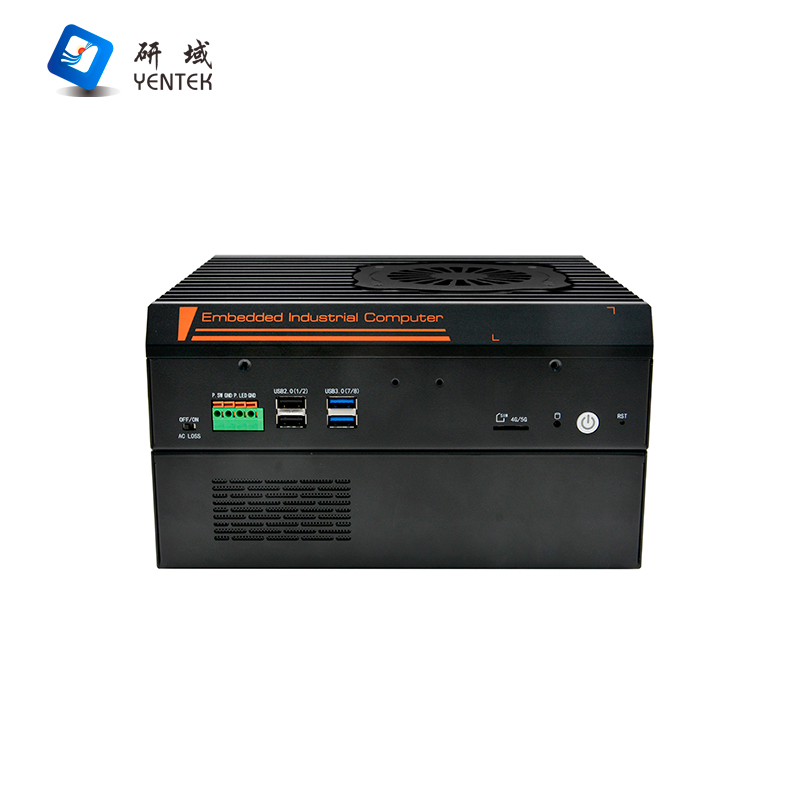

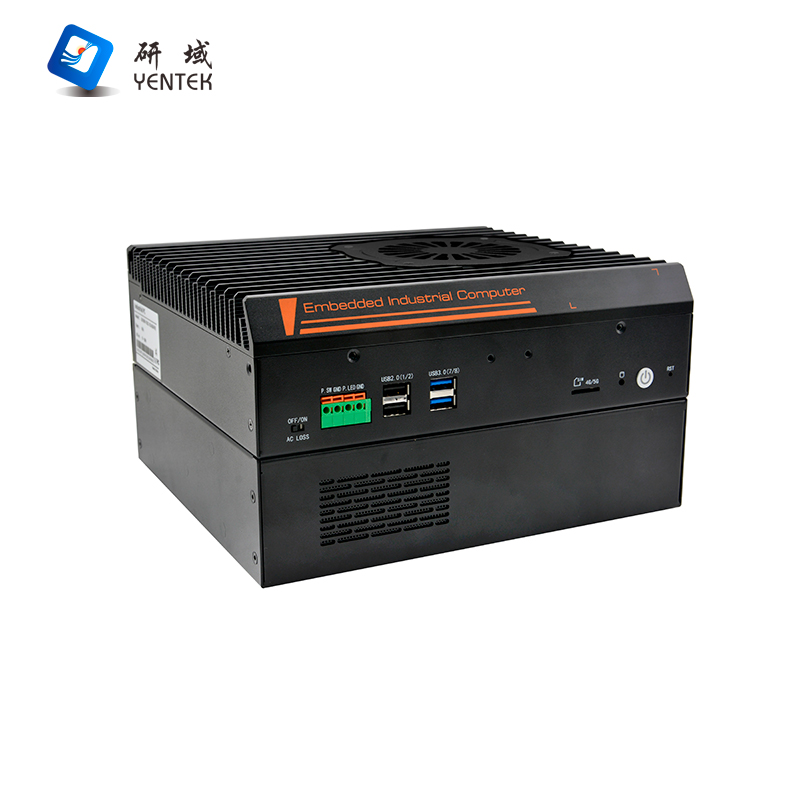

Front   Panel Connectors

Switch

1x Power   button with indicator light, 1x One-touch reset, 1x ACLOSS (power-on DIP   switch)

LED

1x HDD   activity light

USB

2x USB   3.0, 2x USB 2.0, 1x internal USB 2.0

Phoenix   Connector

1x 4-pin   connector (1x power indicator signal, 1x power switch signal)

SIM

1x SIM   card slot

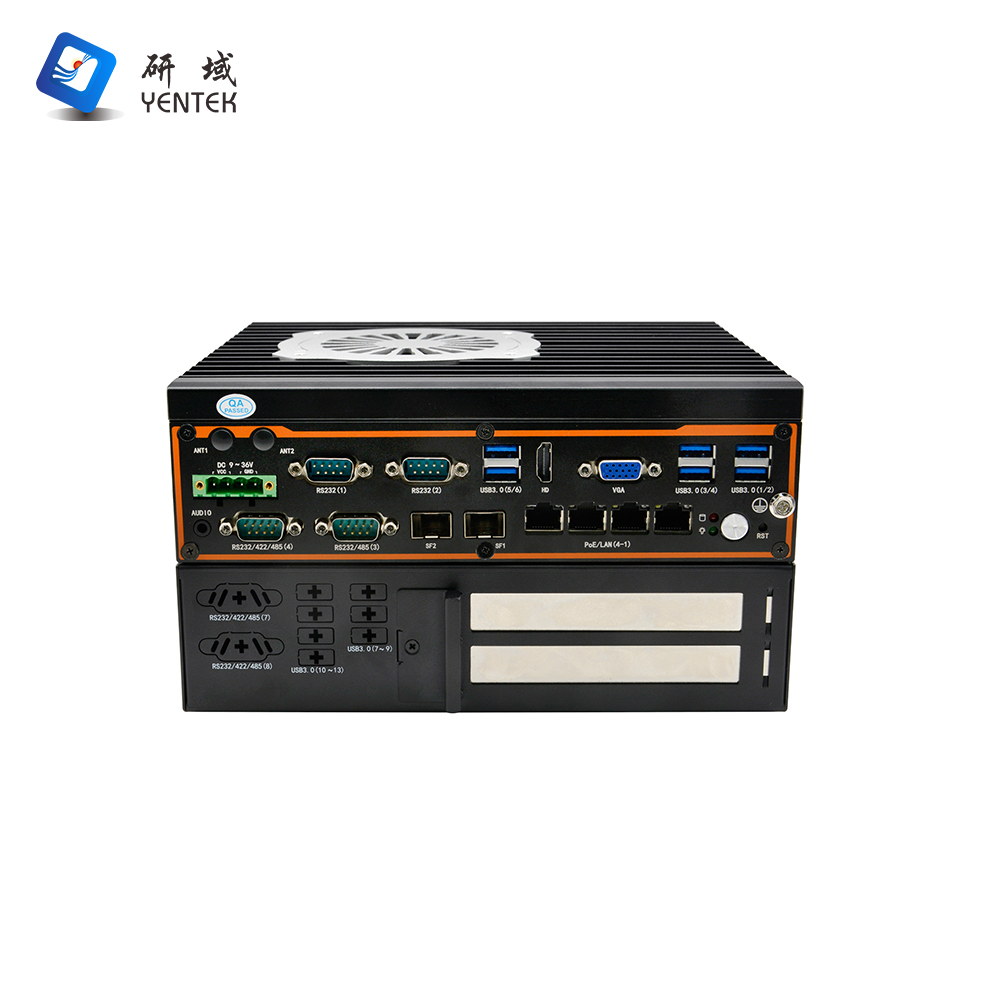

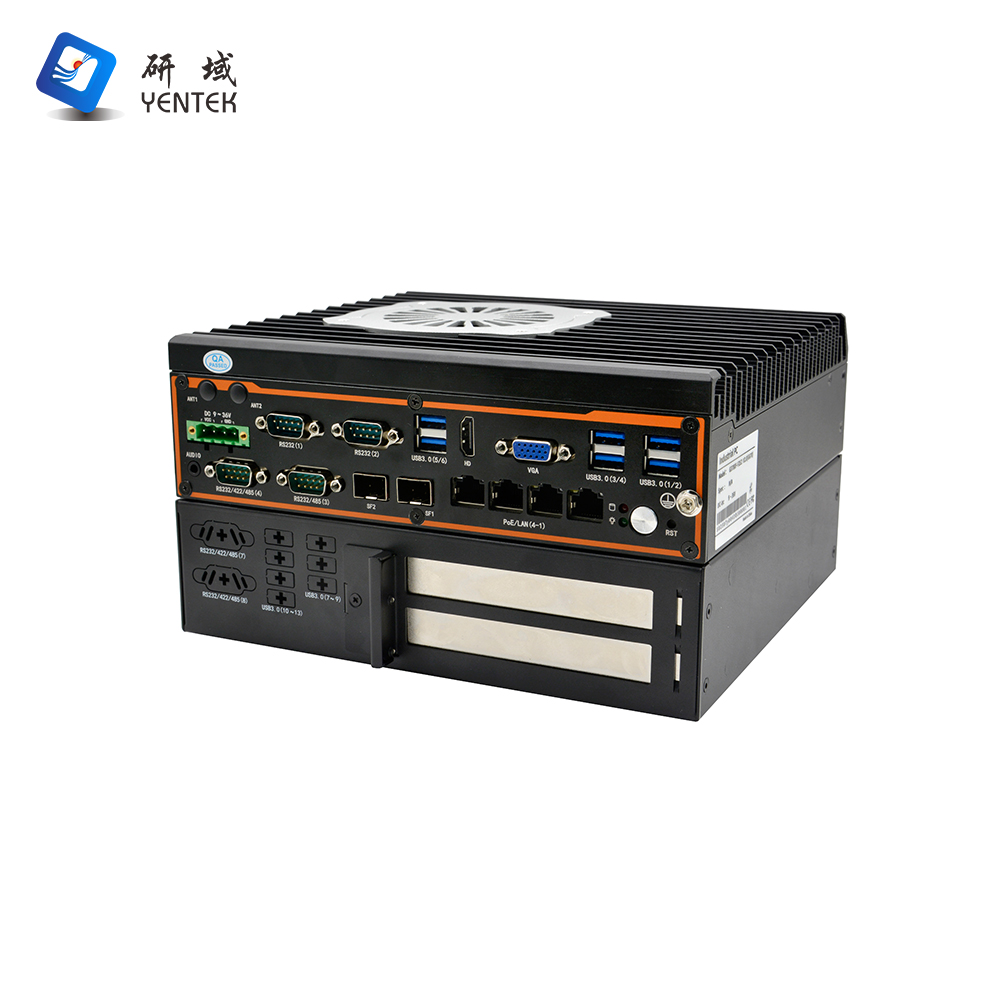

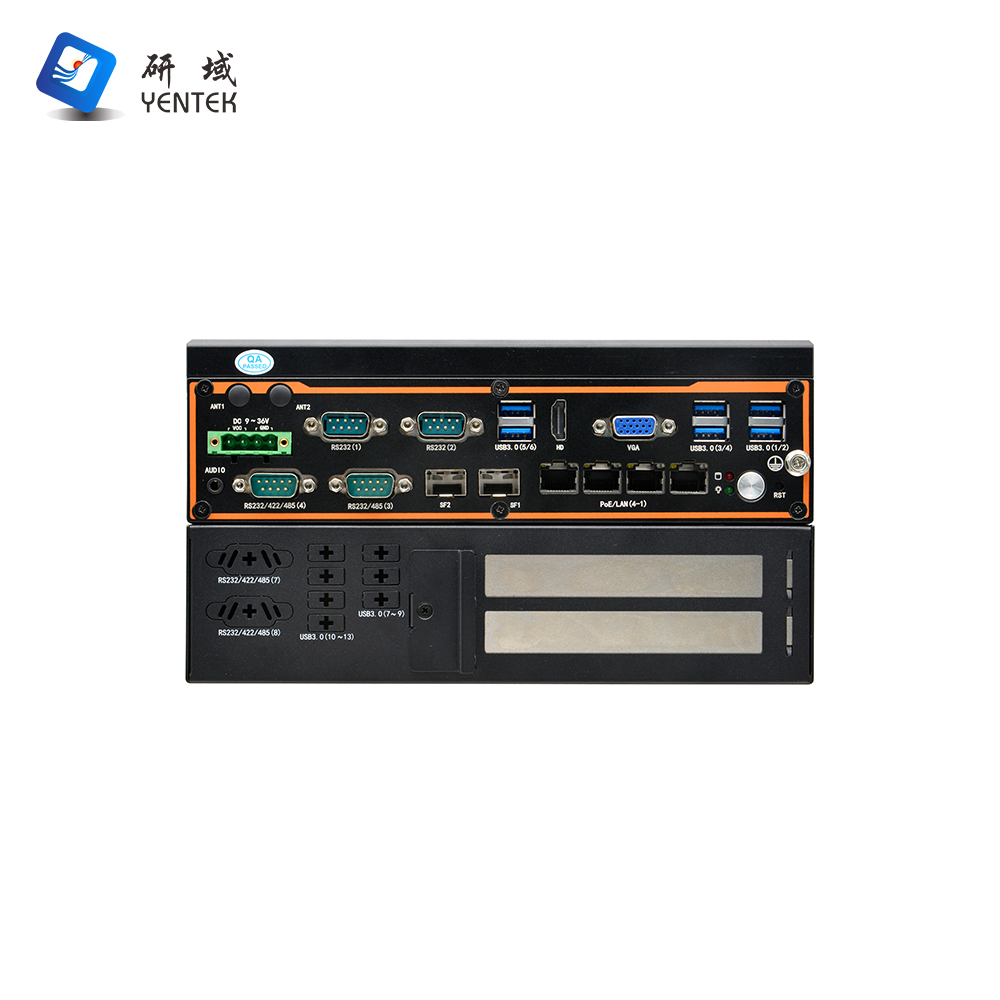

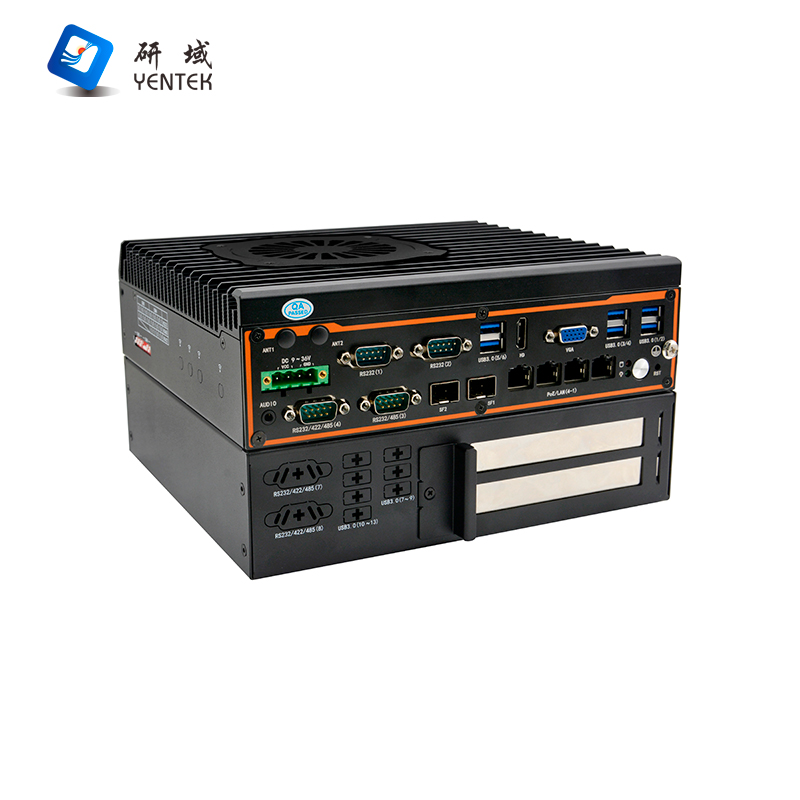

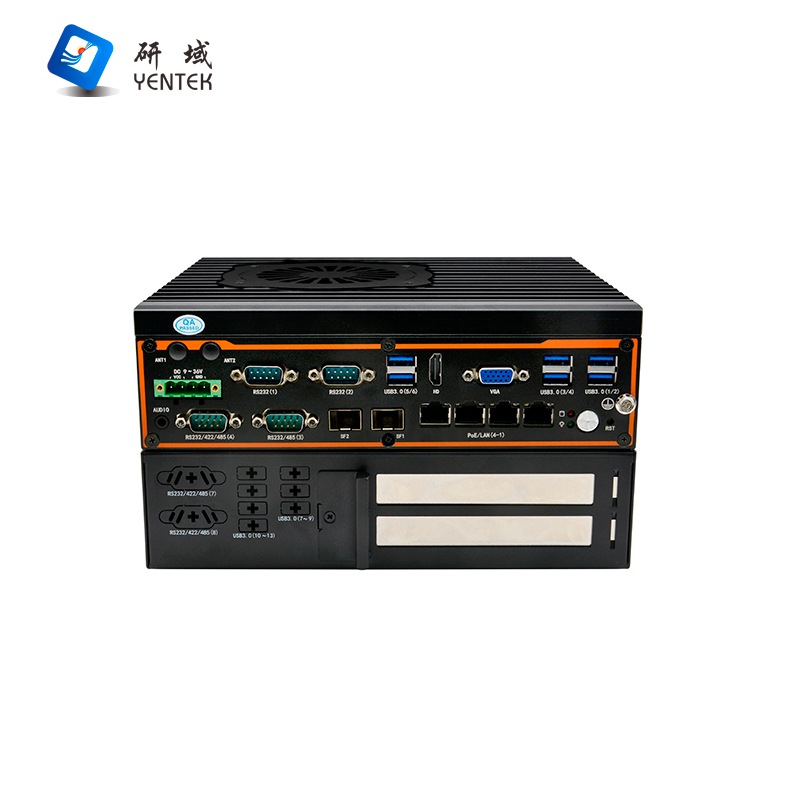

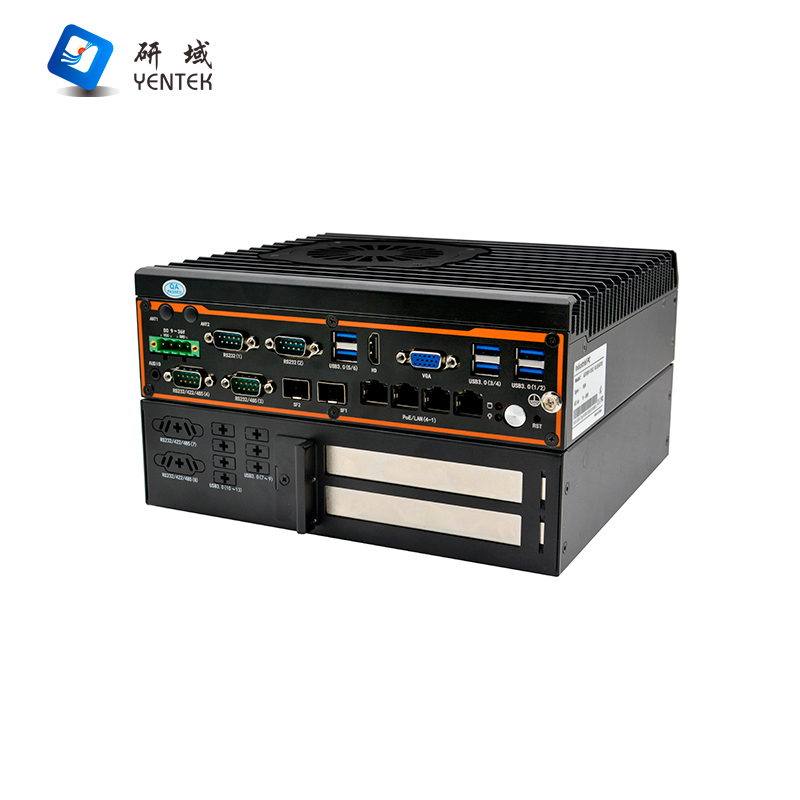

Rear   Panel Connectors

Display   Interface

1x VGA   (1920×1200@60Hz), 1x HDMI 1.4

Switch

1x Power   button, 1x One-touch reset

COM

4x RS232   DB9 serial ports, with COM3 supporting RS232/485 and COM4 supporting   RS232/422/485

LAN

4x Intel   I210AT Gigabit Ethernet ports, supporting POE

SFP

2x Intel   I210AS Gigabit Fibre Optic ports

USB

6x USB   3.0

Audio

1x Audio,   Line out and MIC combo jack

DIP   Switch

2 sets of   6-position DIP switches, RS232/422/485 switching via DIP switch + jumper cap   + BIOS configuration

Power   Interface

1x 4-pin   (P=5.08mm) Phoenix connector, supporting DC 9~36V wide-range input, maximum   load 220W

Storage

SATA

1x   2.5-inch hard drive bay

mSATA

1x mSATA

SSD

1x M.2,   supporting Key-M, 2280, NVMe PCIe x4 SSD (motherboard side)

Expansion

PCIe

1x PCIe   3.0 x16 (x8 signal)

1x PCIe   3.0 x8 (x8 signal) (Signal configuration depends on motherboard; refer to   order details)

WiFi

1x M.2,   supporting Key-E, 2230, WiFi module

5G

1x M.2, supporting   Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Supply Type

DC 9-36V   wide voltage, maximum load 220W

Power   Output

AC to DC   120W+ (depending on specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating
