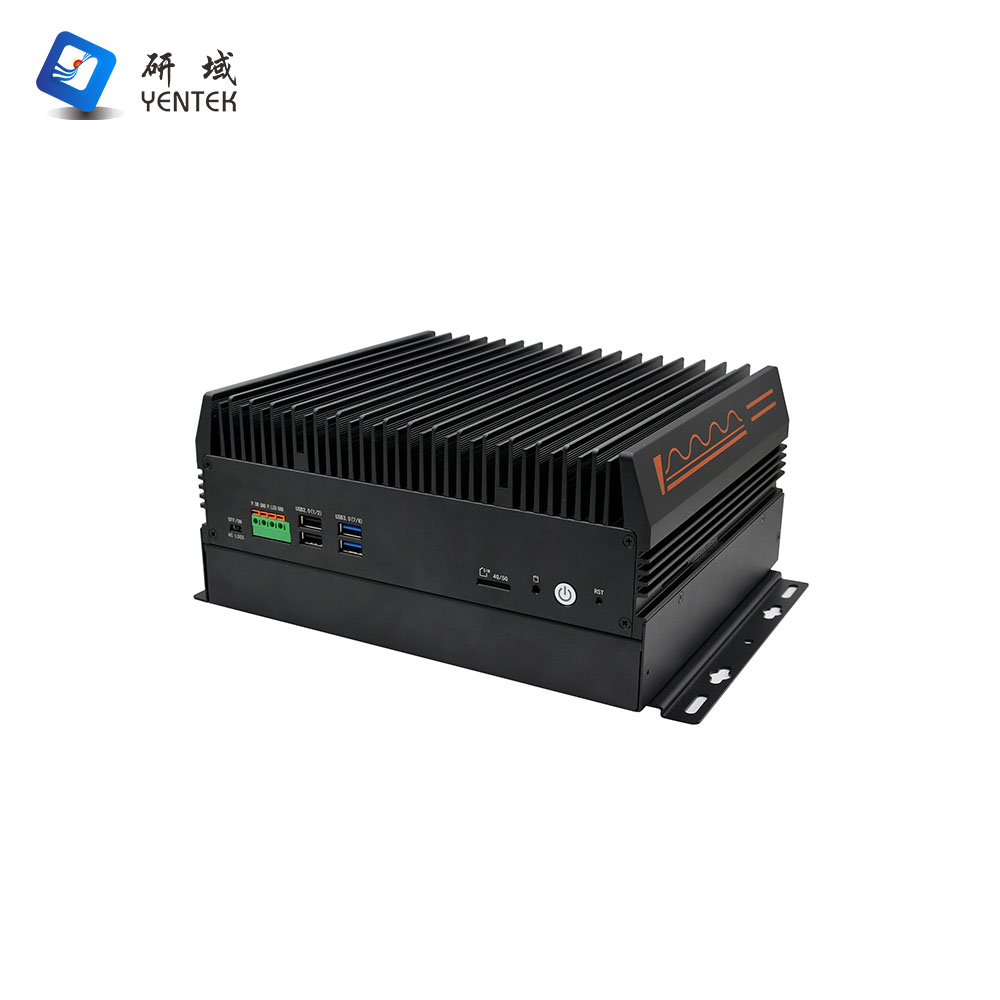

Model | G3760S-C6E1 V3.0(G250) |
Case | Material/Construction | Aluminum alloy + sheet metal |
Color | Black |
Dimensions | 243 x 208 x 137.3 mm |
Weight | 4.6 kg |
Installation | Desktop / Built-in |
Motherboard | CPU | Intel® LGA1151 / 6th, 8th, and 9th Gen processors (supports TDP up to 45W only) |
System-on-Chip | Intel® Z390 |
Memory | 2x SODDR4, supports up to 64GB |

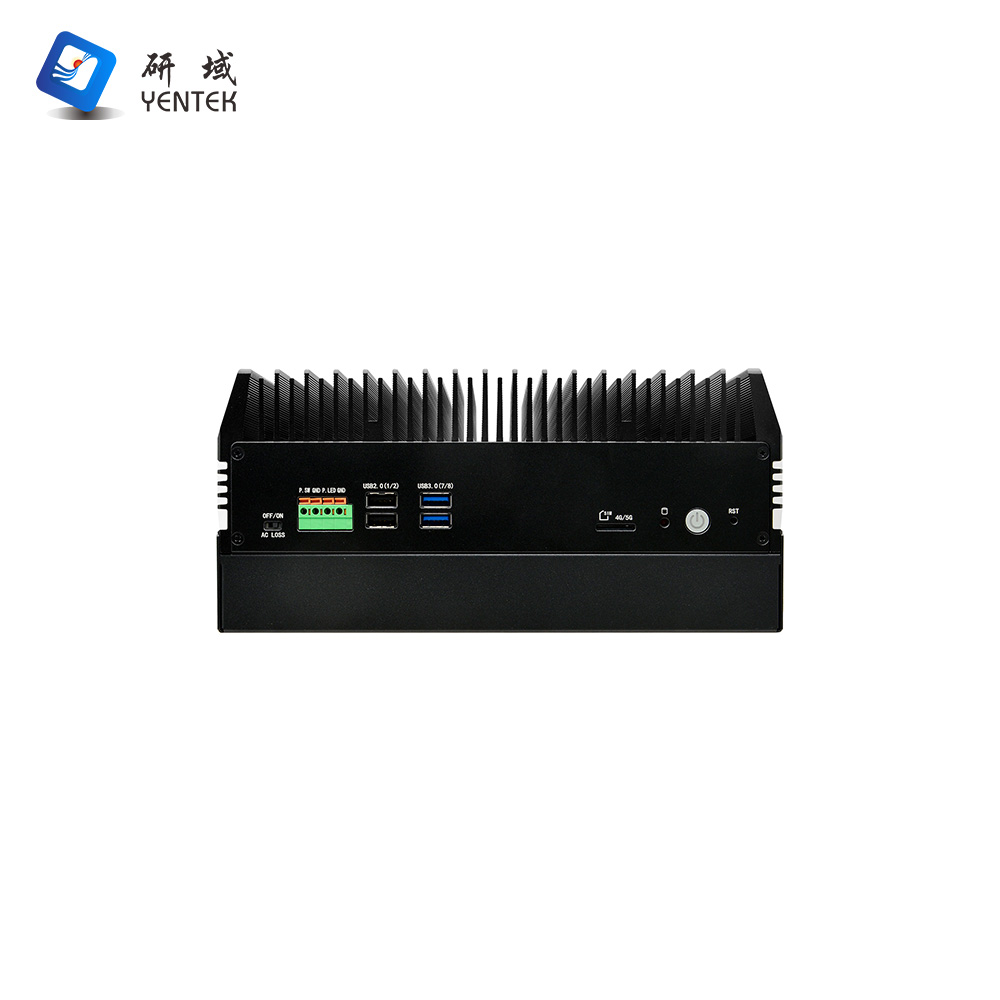

Front Panel Connectors | Power Switch | 1x Power button with indicator light, 1x One-Click Restore, 1x ACLOSS (power-on DIP switch) |
LED | 1x Hard drive indicator light |
USB | 2x USB 3.0, 2x USB 2.0, 1x internal USB 2.0 |
Remote Switch | 1x Power switch, 1x Power indicator light (located on 1x 4-pin Phoenix connector) |
SIM | 1*Standard SIM card slot (default signal: M.2 5G) |

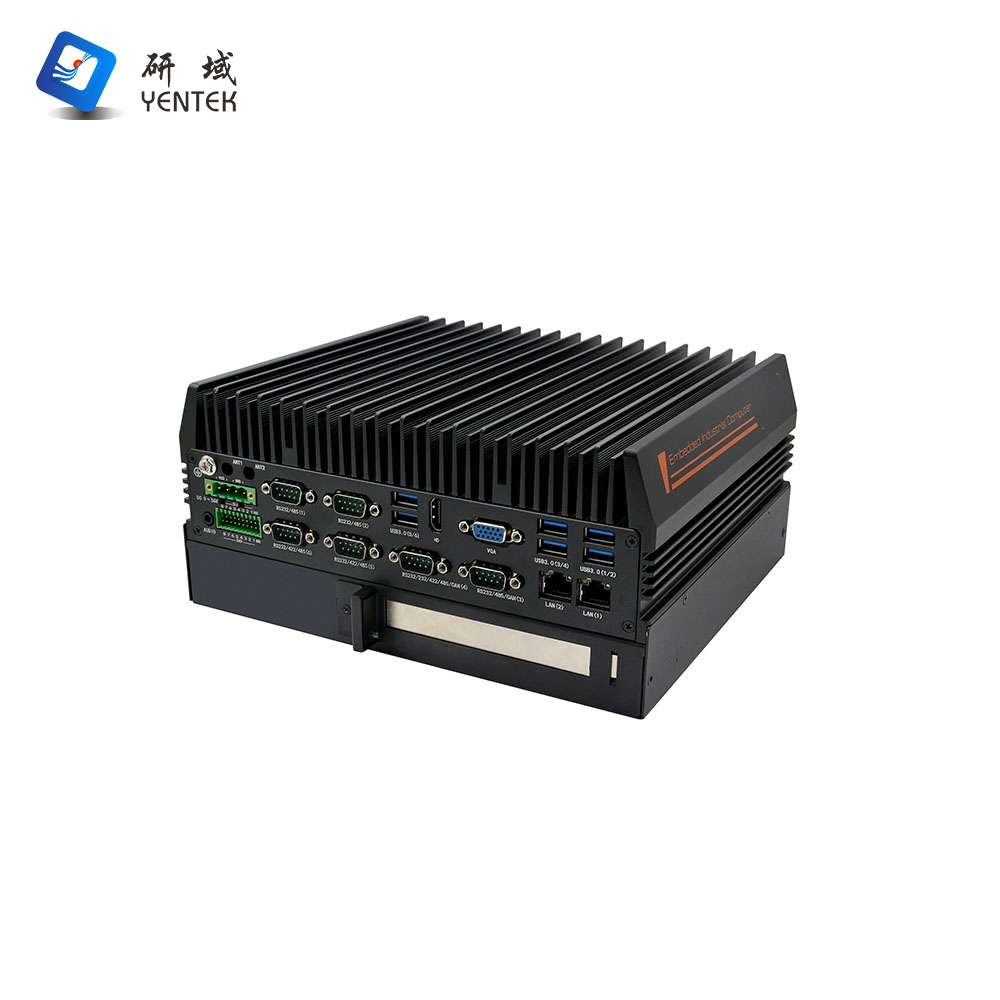

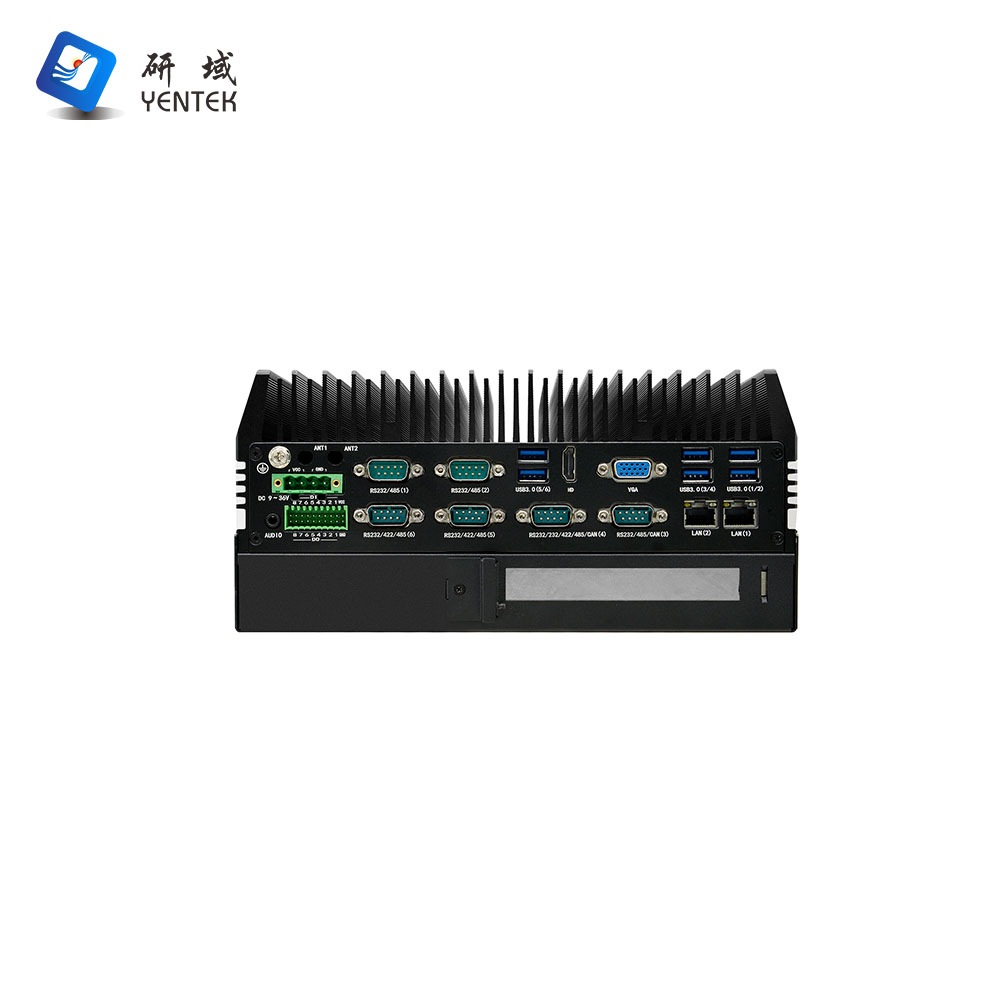

Rear Panel Connectors | Display Interface | 1*VGA (1920×1200@60Hz), 1*HDMI 1.4 |
COM | 6*RS232 DB9 serial ports; COM3–6 support RS232/485; COM4–6 support RS232/422/485; COM3–4 support CAN functionality (Requires CAN module) |
LAN | 2* Intel I210AT Gigabit Ethernet ports |
USB | 6* USB 3.0 |
DI/DO | 8* DI, 8* DO (PNP, located on 2* 10-pin Phoenix connectors) |
Audio | 1* Audio, combined Line Out and Mic |
DIP Switch | 2 sets of 6-position DIP switches; RS232/485 switching via DIP switches + jumper caps + BIOS settings |
Power Connector | 1 x 4-pin (P=5.08mm) Phoenix connector, supports 9–36V DC wide-voltage input, max load 220W |
Storage | SATA | 1 x 2.5-inch HDD bay |
mSATA | 1 x mSATA |
SSD | 1 x M.2, supports Key-M, 2280, NVMe PCIe x4 SSD |
Expansion | PCIe | 1 x PCIe 3.0 x16 (x8 signal) (supports graphics cards up to 180mm in length, including blade-style graphics cards) |
WiFi/4G | 1 x Mini-PCIe, supports Wi-Fi or 4G (4G shares the same signal as the built-in USB 2.0; 4G is not supported by default) |
WiFi | 1 x M.2, supports Key-E, 2230, Wi-Fi module |
5G | 1*M.2, supports Key-B, 3042/3052, 5G modules |
System Compatibility | Windows | Windows 10 |
Linux | Linux |
Power Supply Type | Power Type | DC 9-36V wide voltage range |
Input Voltage | AC to DC 120W or higher (depending on specific device), maximum load 220W |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
