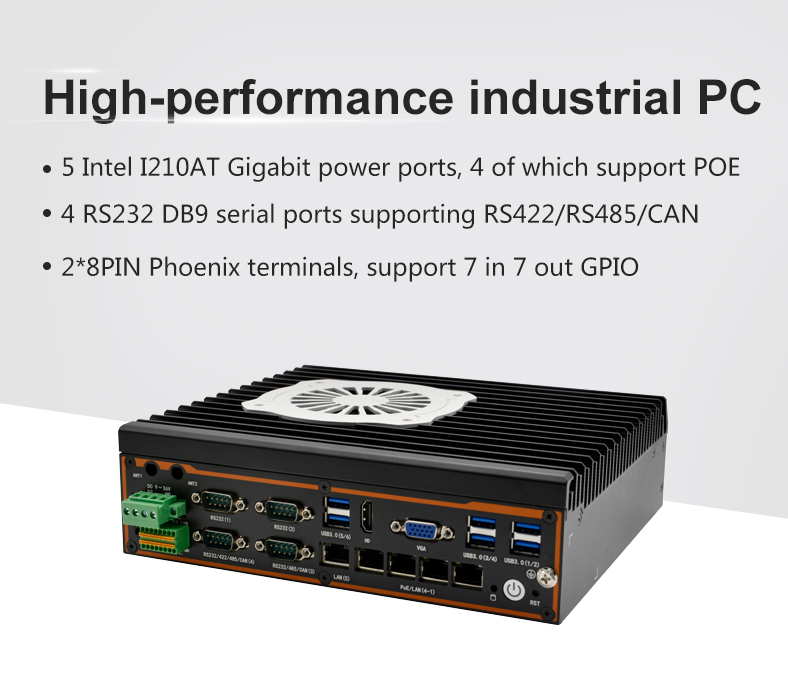

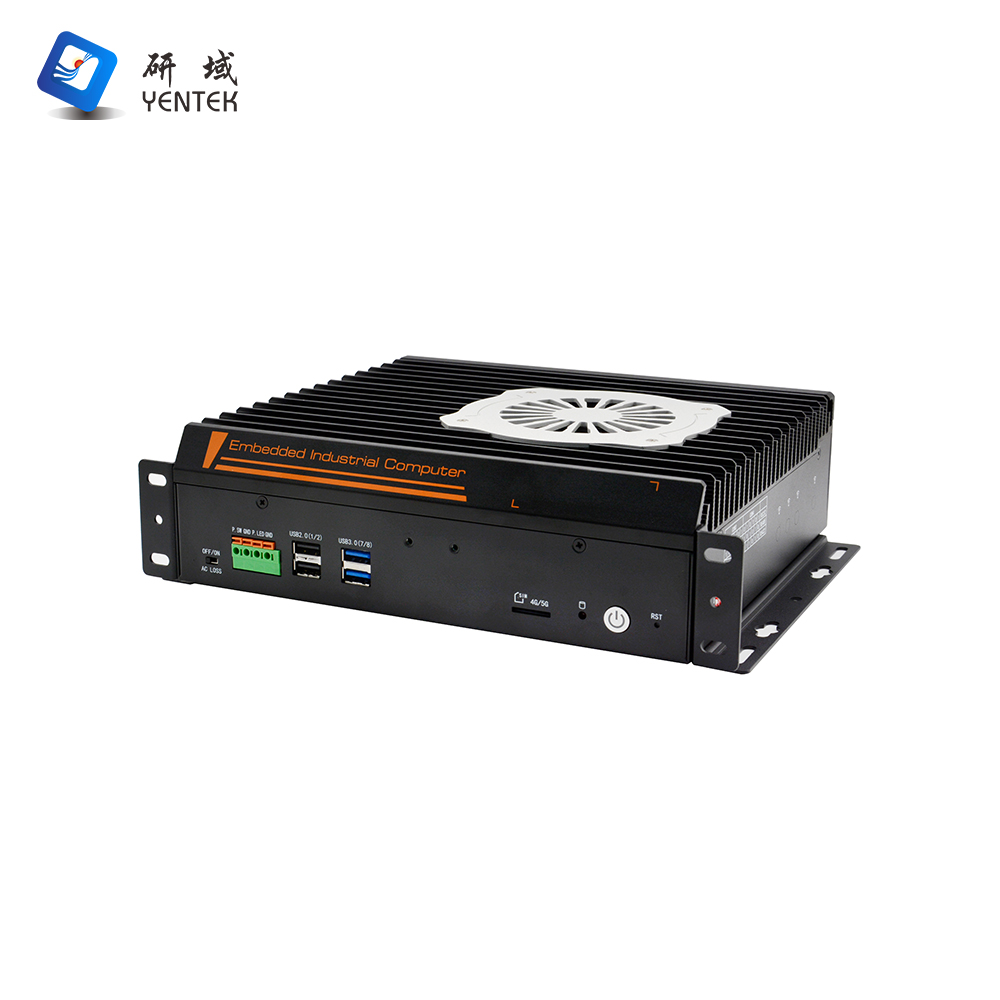

Product Characteristics:
● Intel LGA1151 / 6th~9th generation processor series
● 2*SODDR4 memory, support up to 64GB
● Intel Q250
● 1*HDMI, 1*VGA
● 5*Intel I210AT, 4 of them support POE
● 4*RS232 DB9 serial ports, COM3~4 can support CAN
● 8*USB3.0, 2*USB2.0, built-in 1*USB2.0
● Support DIO 7 in 7 out with isolation
● Support DC 9~36V wide voltage (1*4P phoenix terminal)

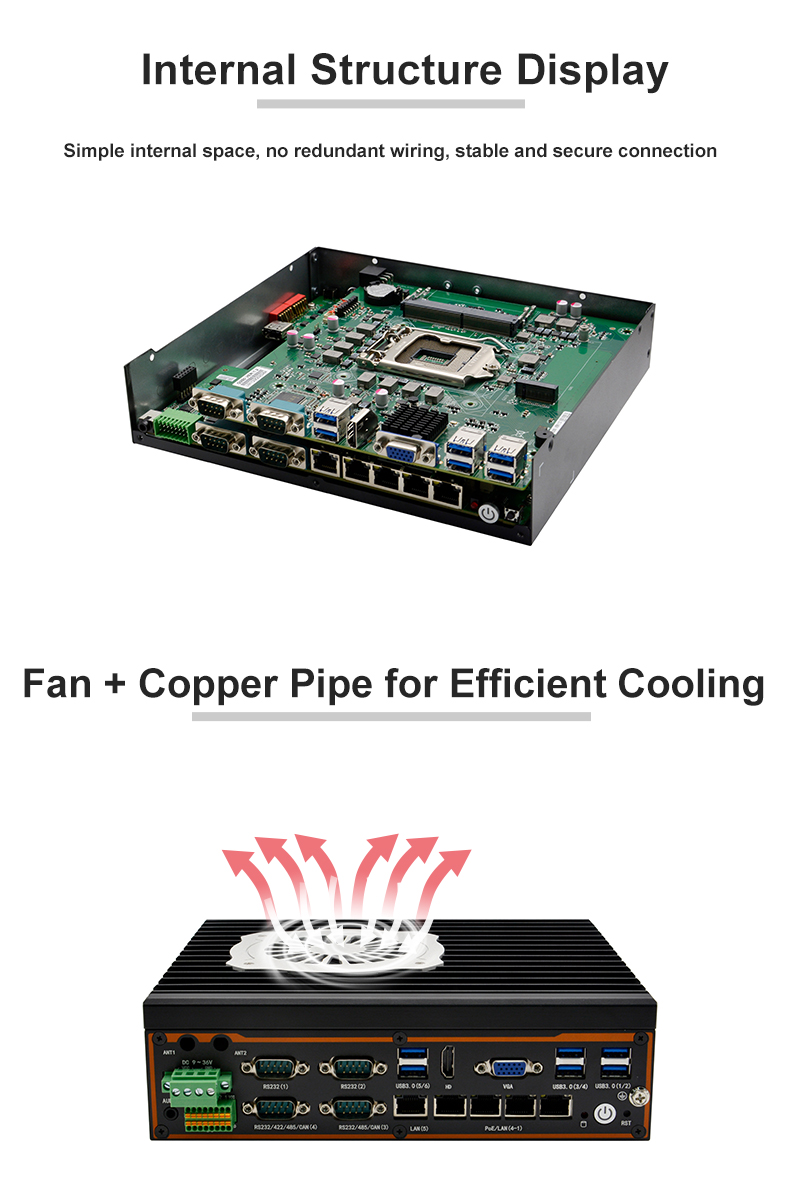

● Fan cooling, copper tube heat conduction
Model | G3750F-P4 V2.0(G250)
| |
Chassis

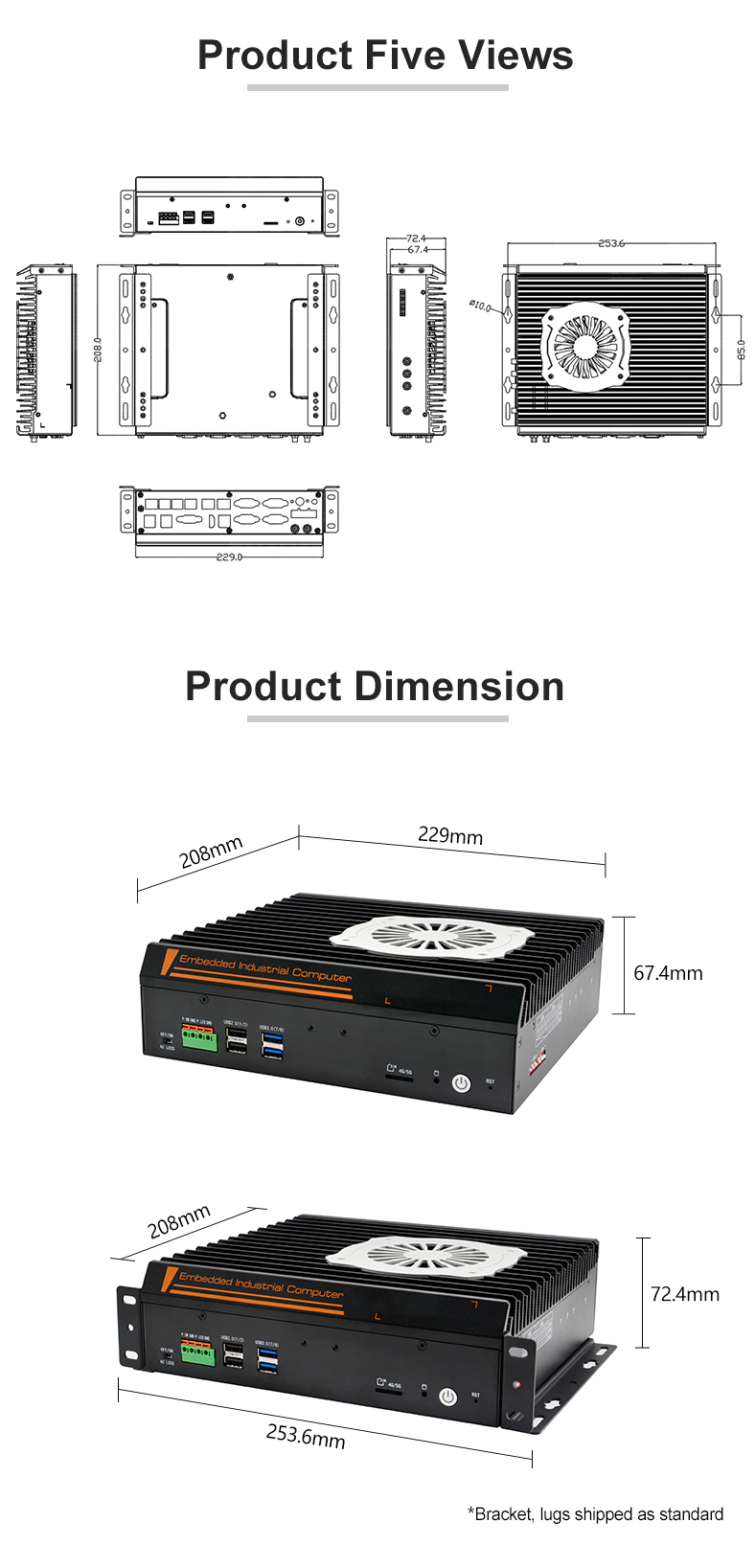

| Material/structure | Aluminium alloy + sheet metal material Fan cooling |
Colour | Iron grey + sand grain grey | |
Dimensions (LWH) | 229*208*67.4mm | |
Weight | 2.8KG | |
Installation | Desktop/Embedded/DIN rail (35mm) | |

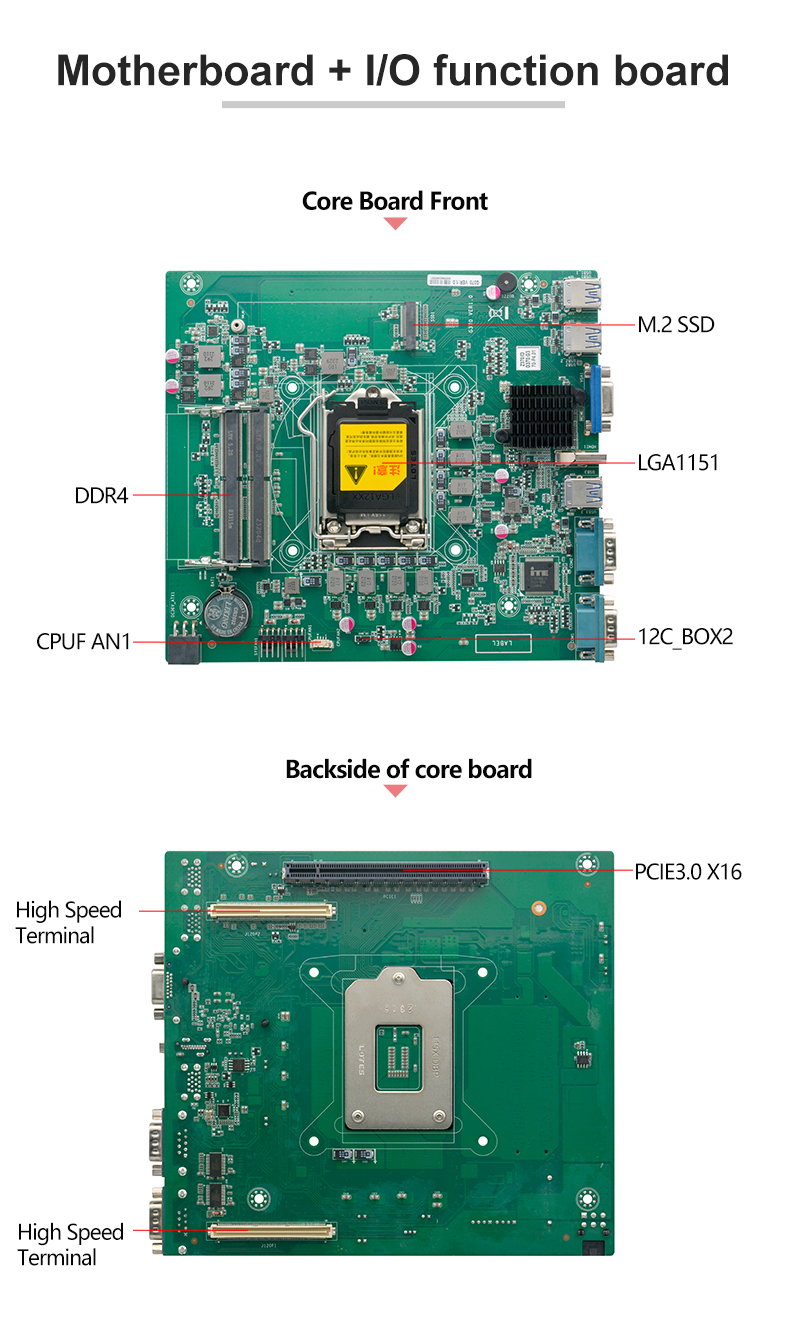

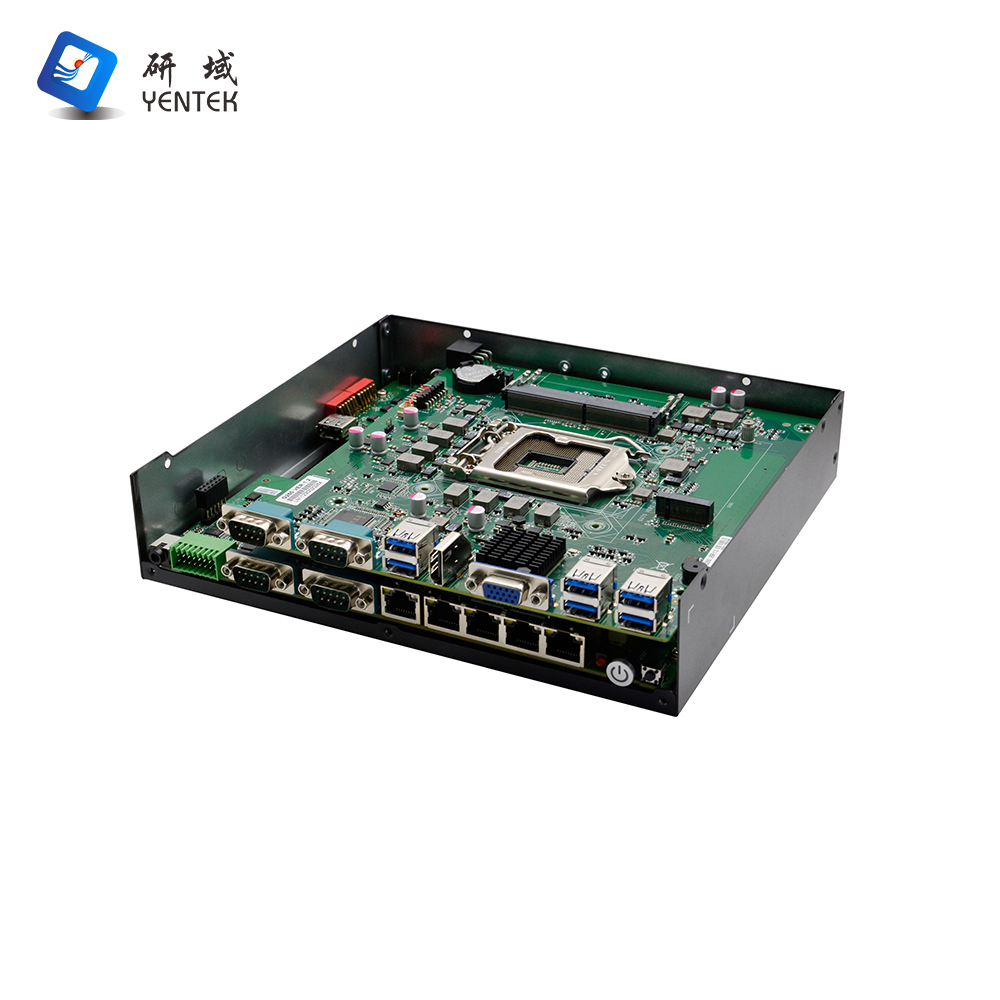

Motherboard
| CPU | Intel®LGA1151 /6~9th Generation series processor |
Chipset | Intel Q250 | |
Memory | 2*SODDR4 RAM, support up to 64GB | |

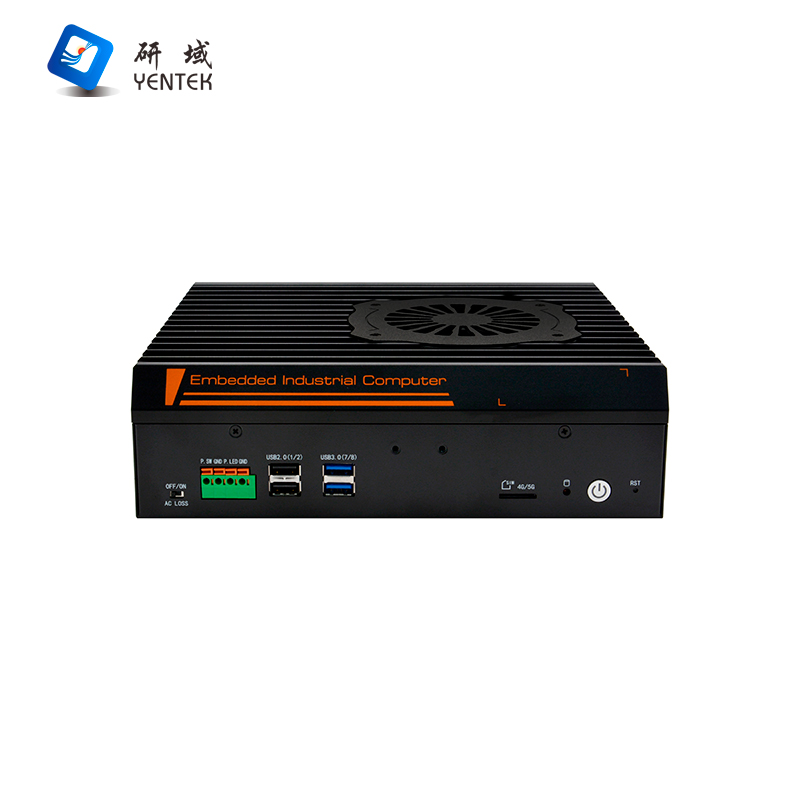

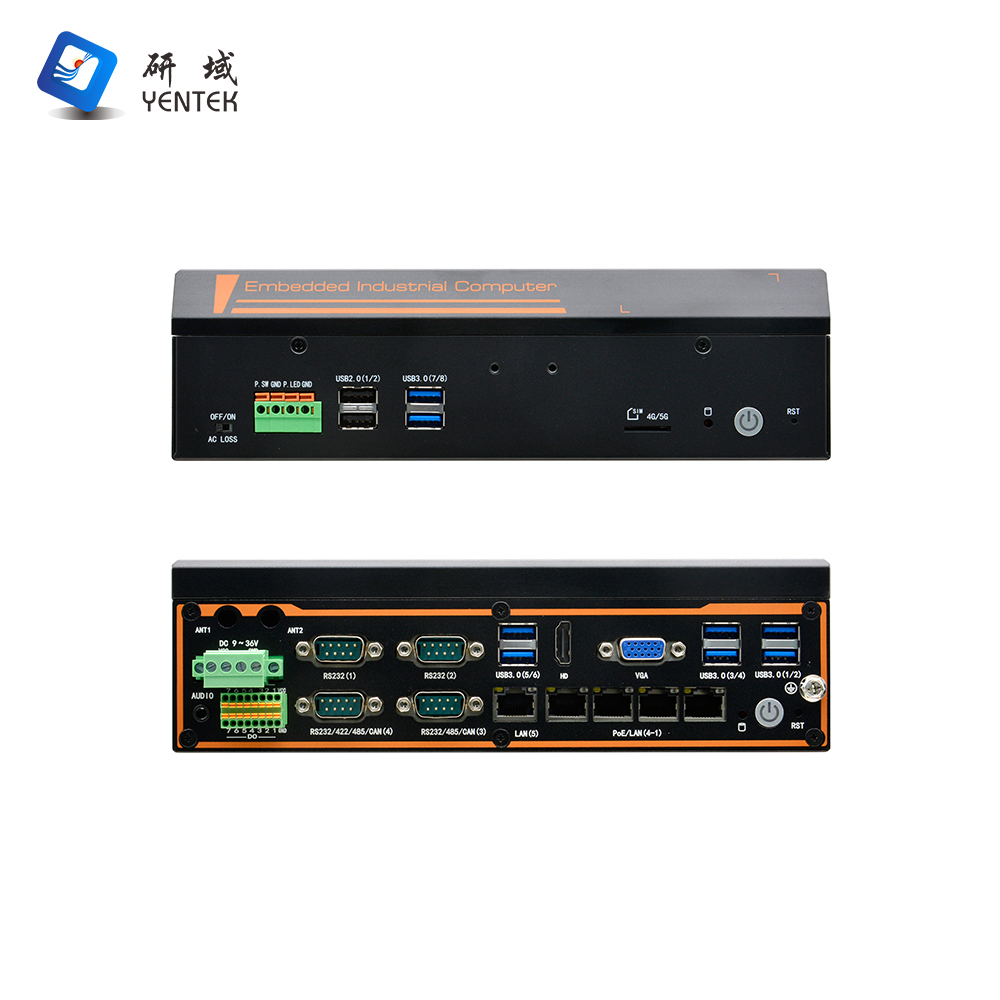

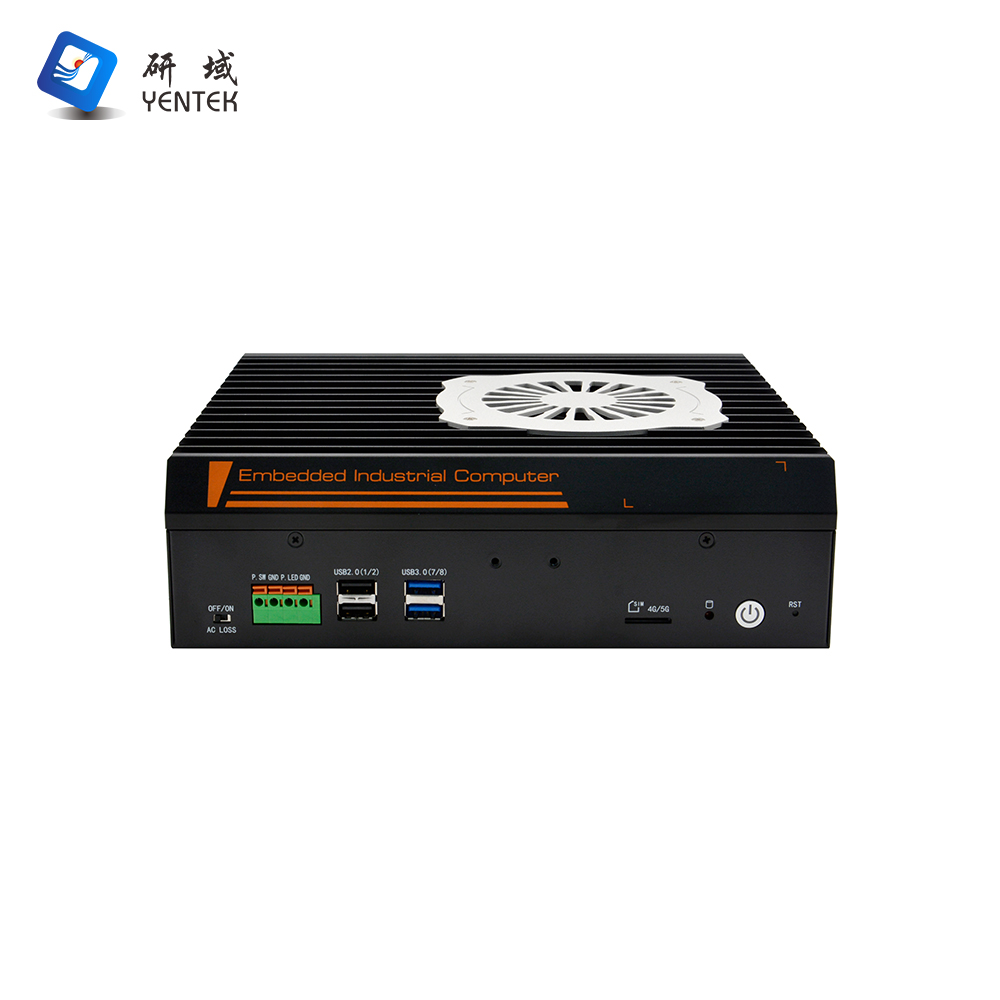

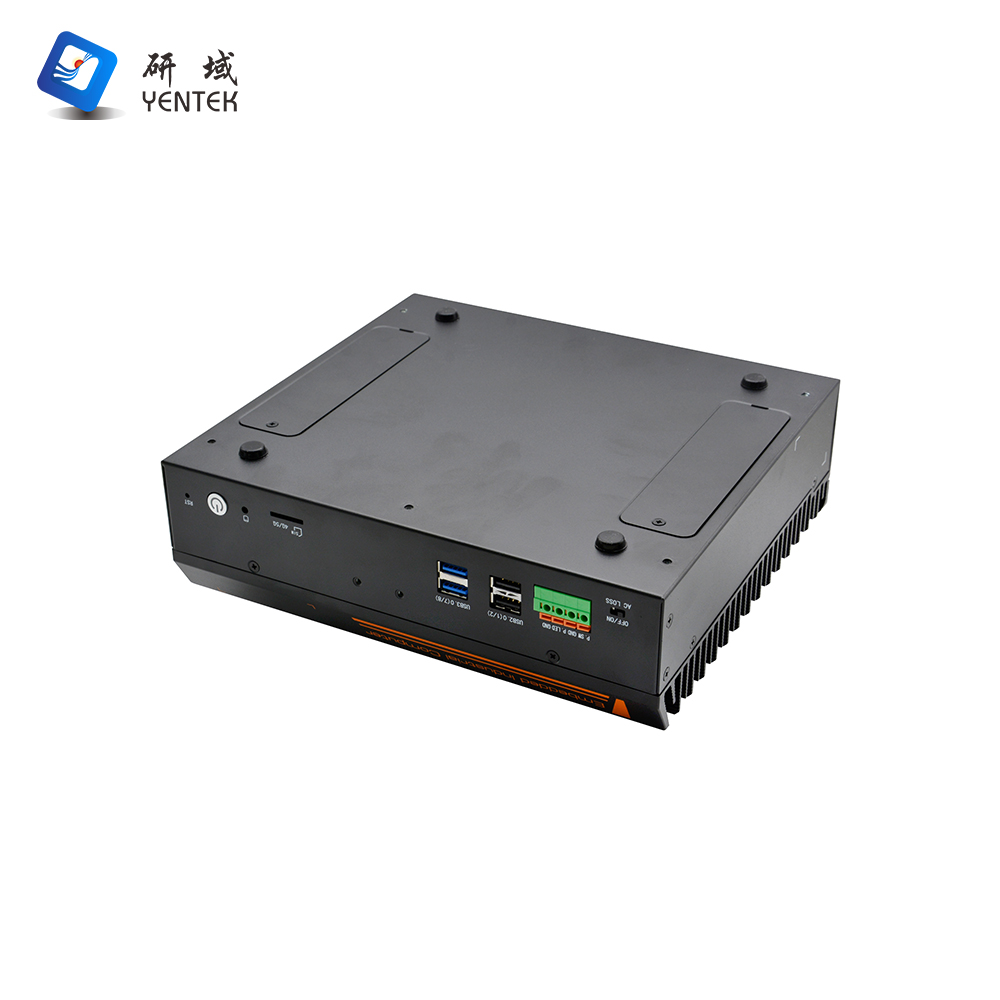

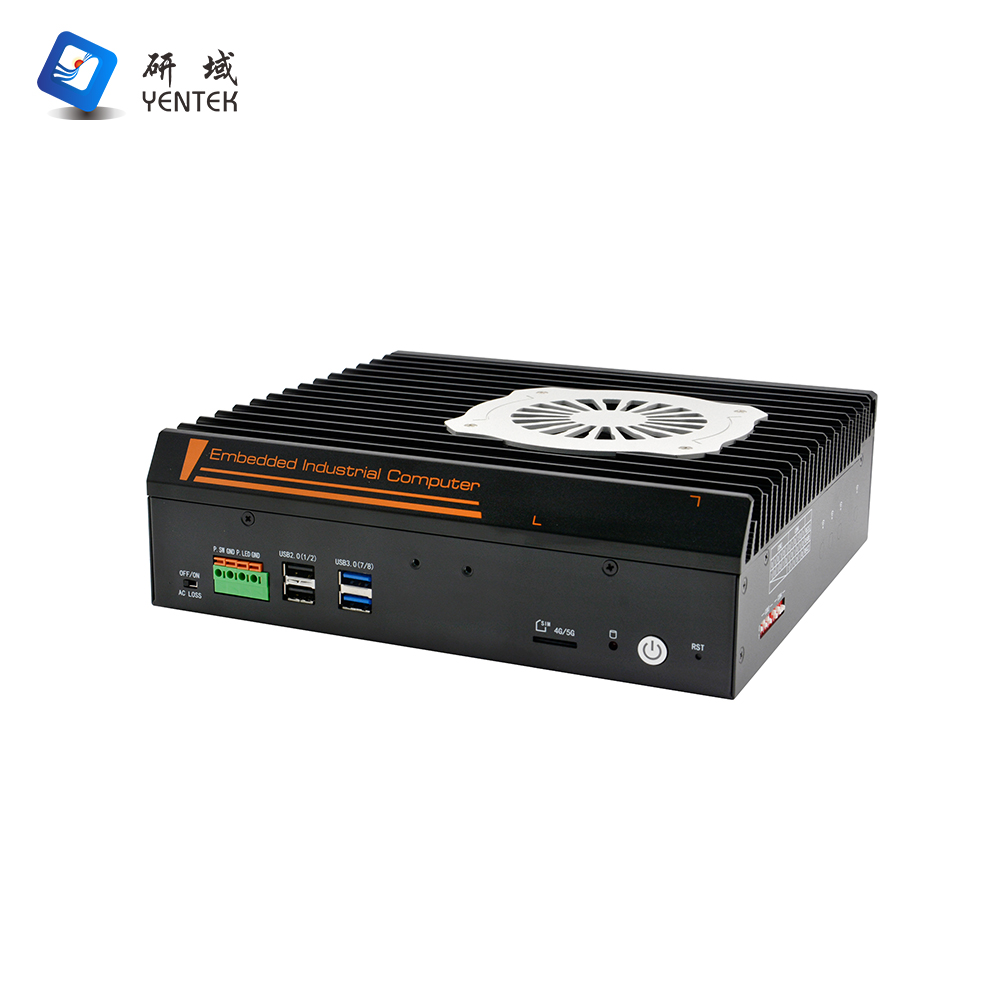

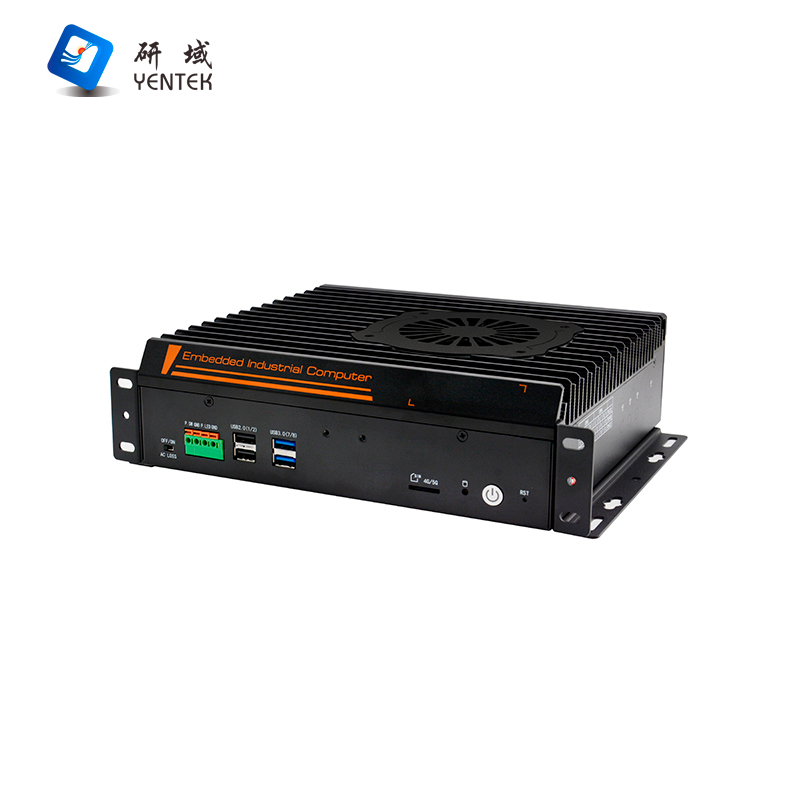

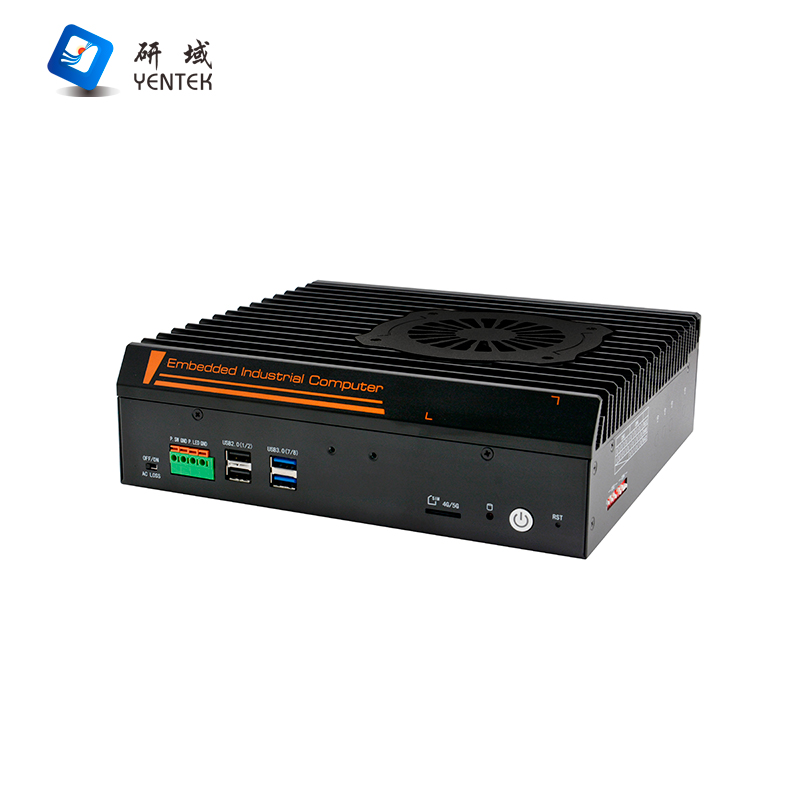

Front Panel Connectors
| Switches | 1*Boot button with indicator, 1*One-Key Restore, 1* ACLOSS (power on/off toggle switch) |
LED | 1* HDD indicator | |
USB | 2*USB3.0, 2*USB2.0, Built-in 1*USB2.0 | |
Remote switches | 1*Power Indicator Signal, 1*Power On/Off Signal (1*4P phoenix terminal) | |
SIM | 1*SIM Standard Card Slot (Signal Default M.2 5G) | |

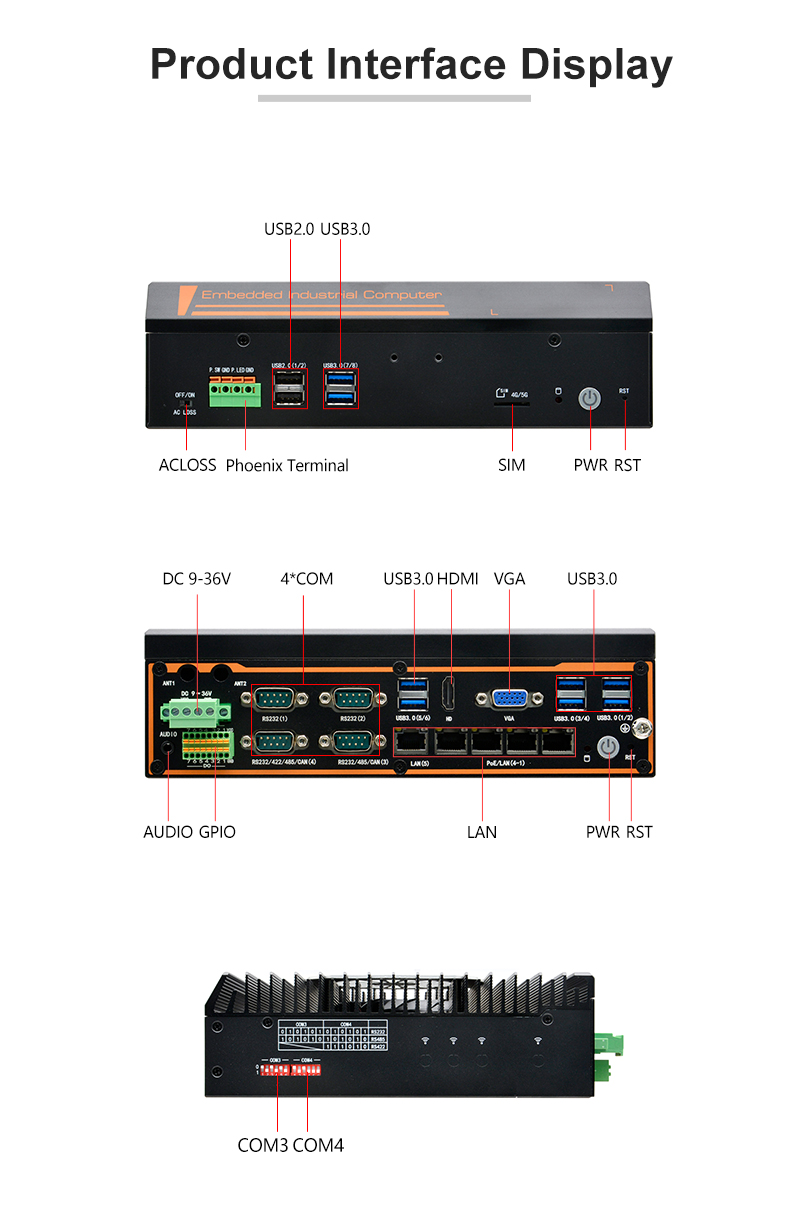

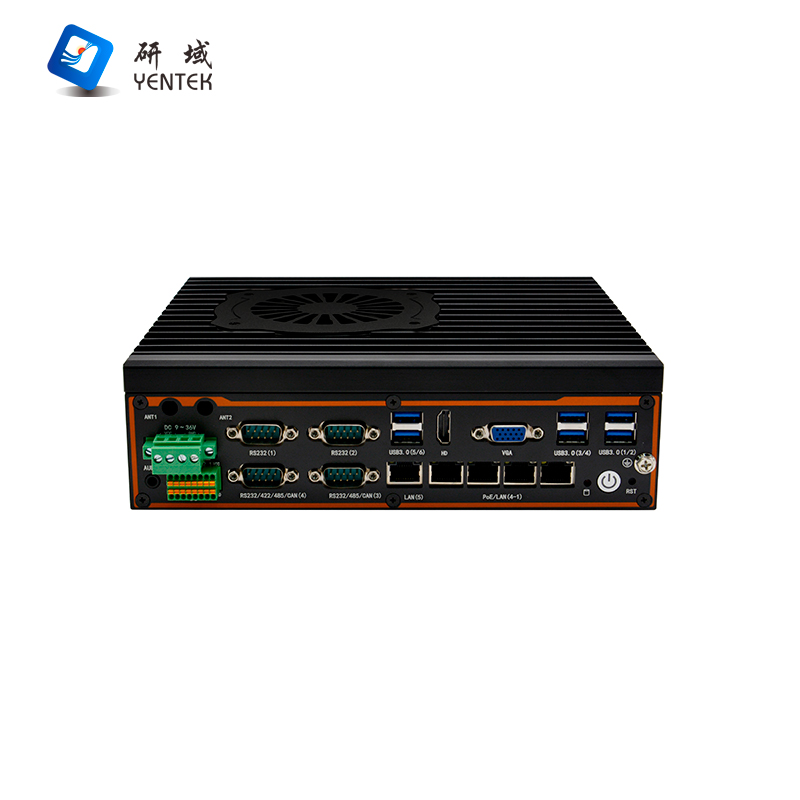

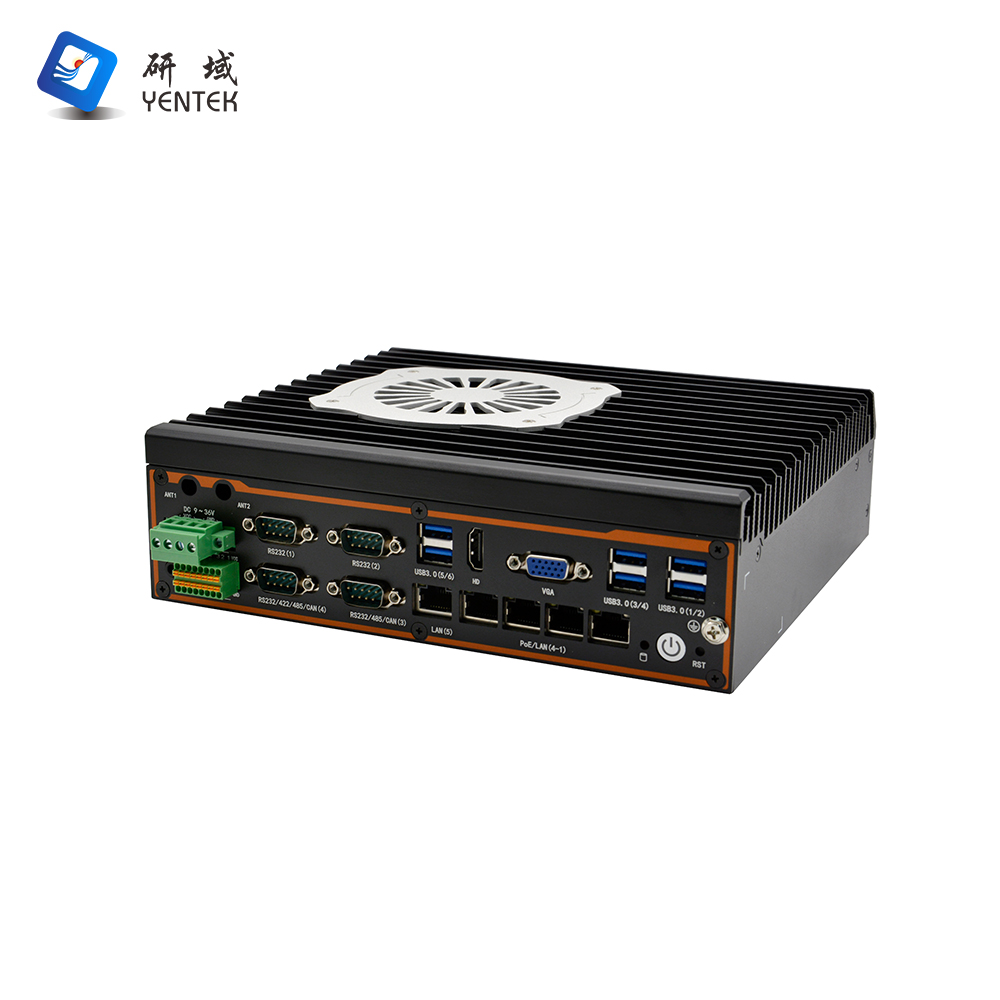

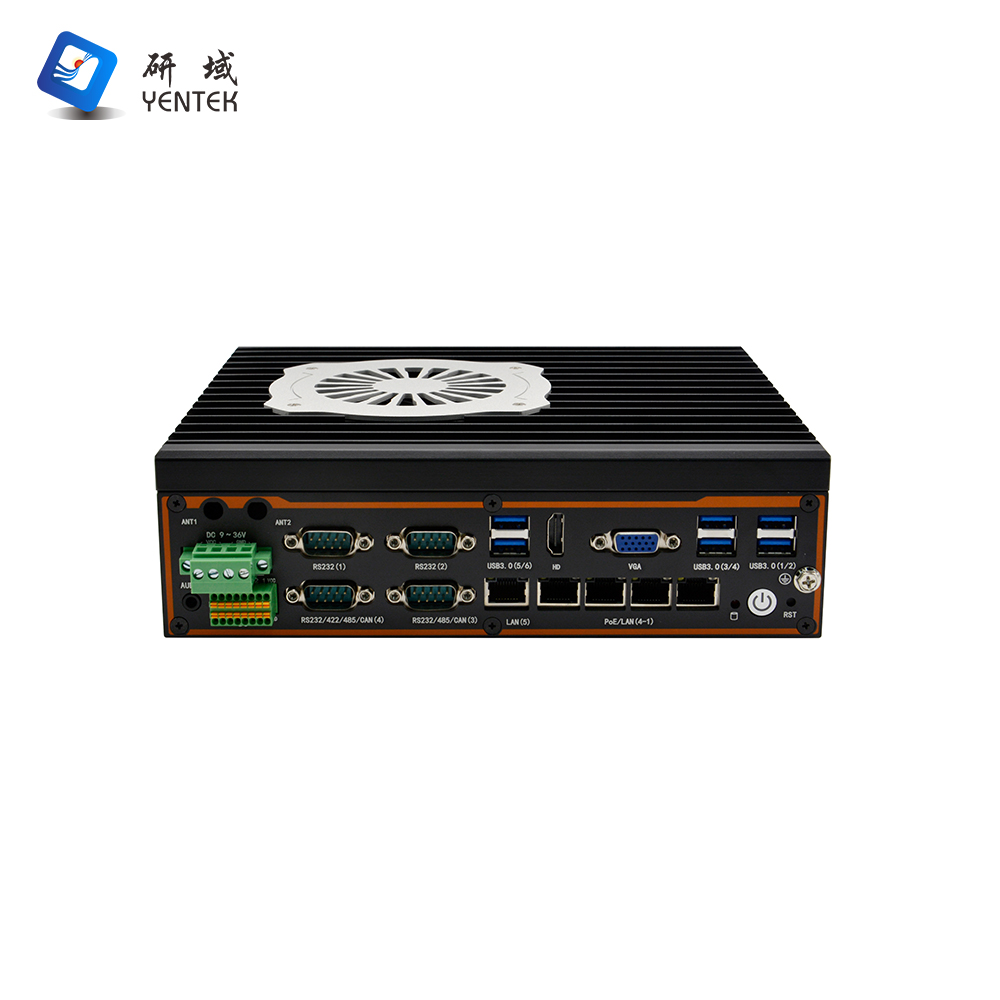

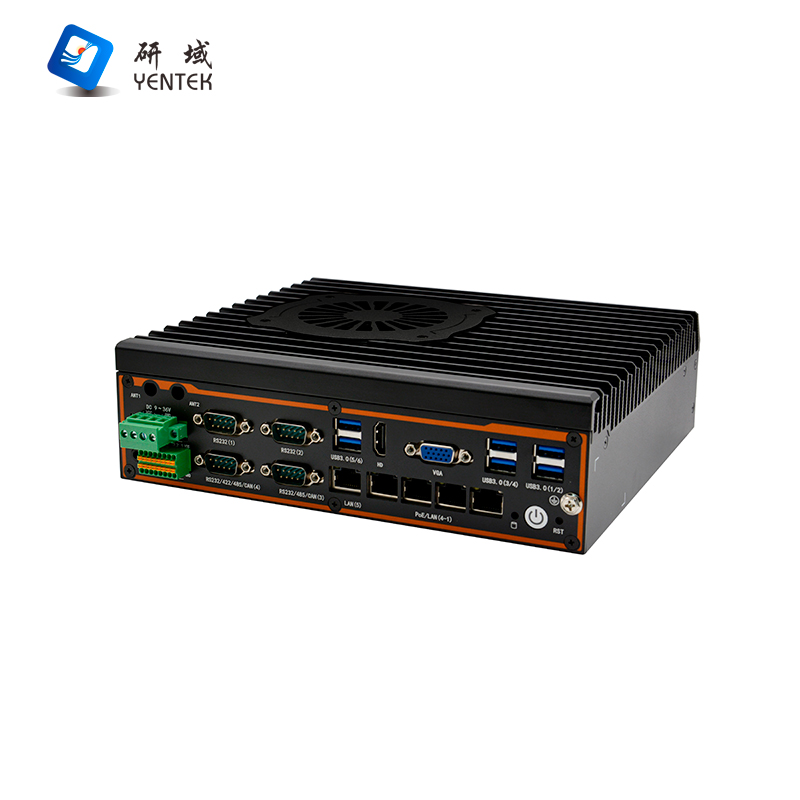

Rear Panel Interface

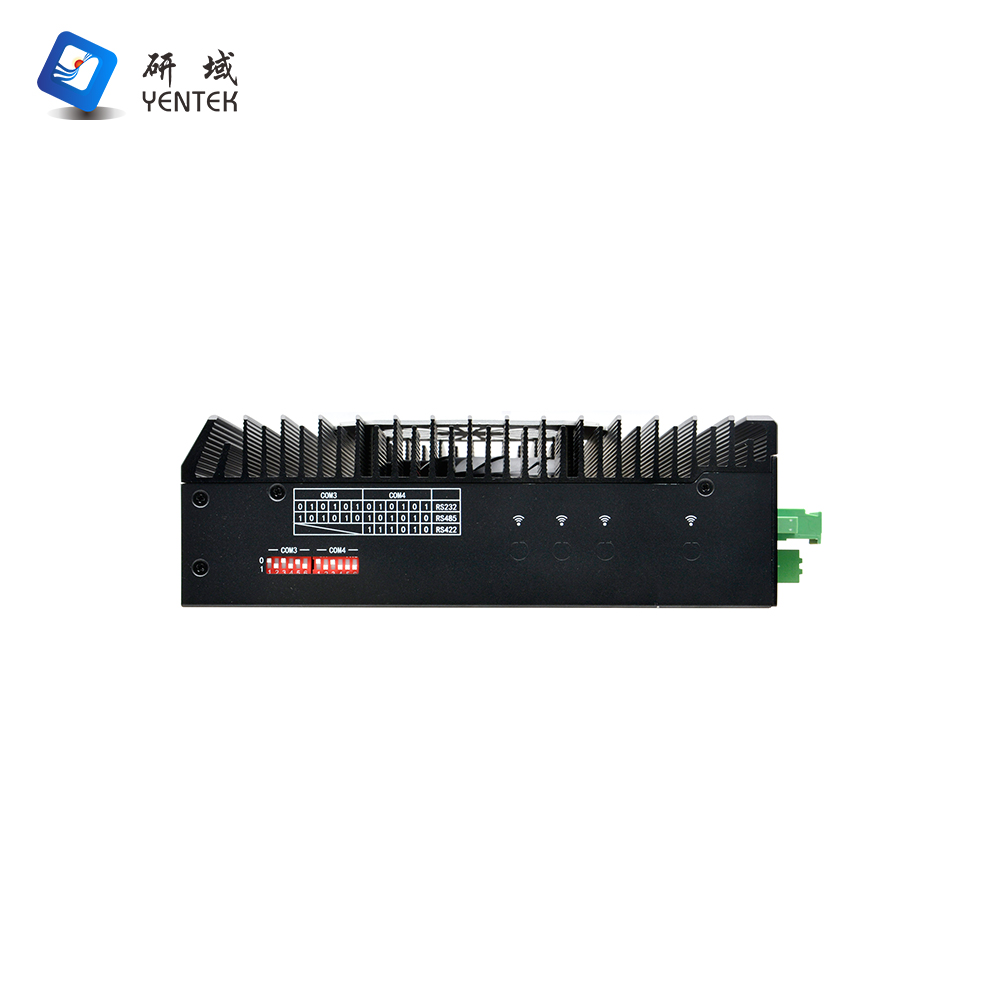

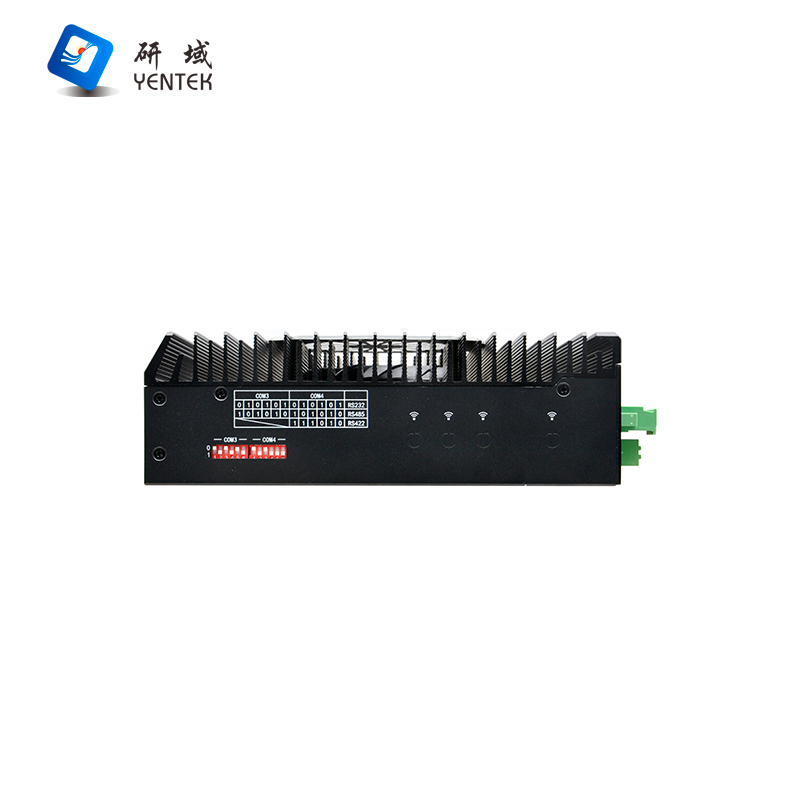

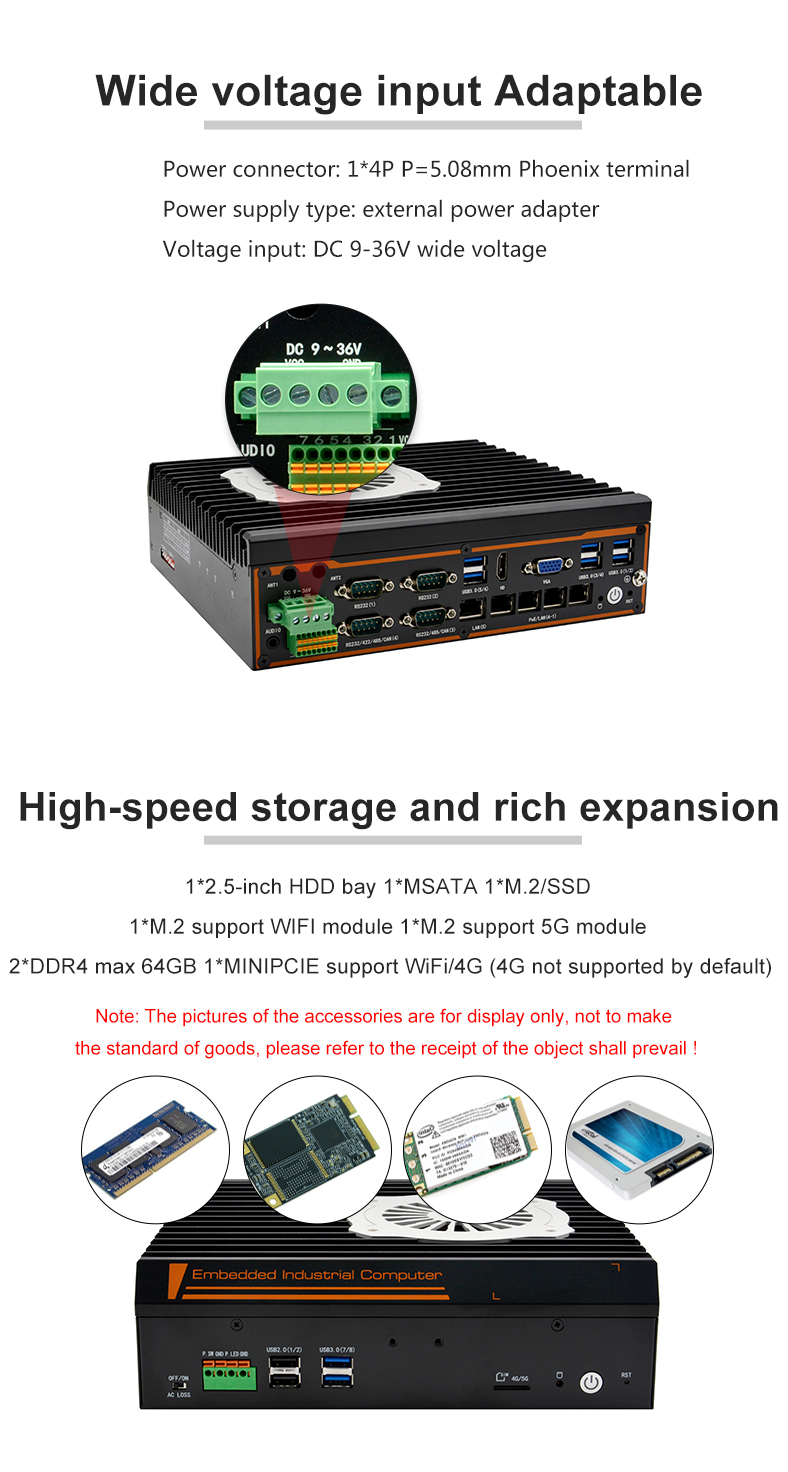

| Switches | 1*On Key with Indicator, 1*One Touch Restore |
LED | 1* HDD Indicator | |
Display interfaces | 1*VGA ( 1920*1200@60Hz), 1*HDMI1.4, support dual display | |
USB | 6*USB3.0 | |
COM | 4*RS232 DB9 serial ports, COM3 support RS485, COM4 support RS422/485, COM3~4 can support CAN function (need to load CAN module) | |
LAN | 5*Intel I210AT Gigabit power ports, 4 of them support POE | |
DI/DO | 7*DI, 7*DO (PNP, bit with 2*8P on Phoenix terminal) | |
Audio | 1*Audio, Line out and Mic 2-in-1 | |
Power interfaces | 1*4P (P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage input | |

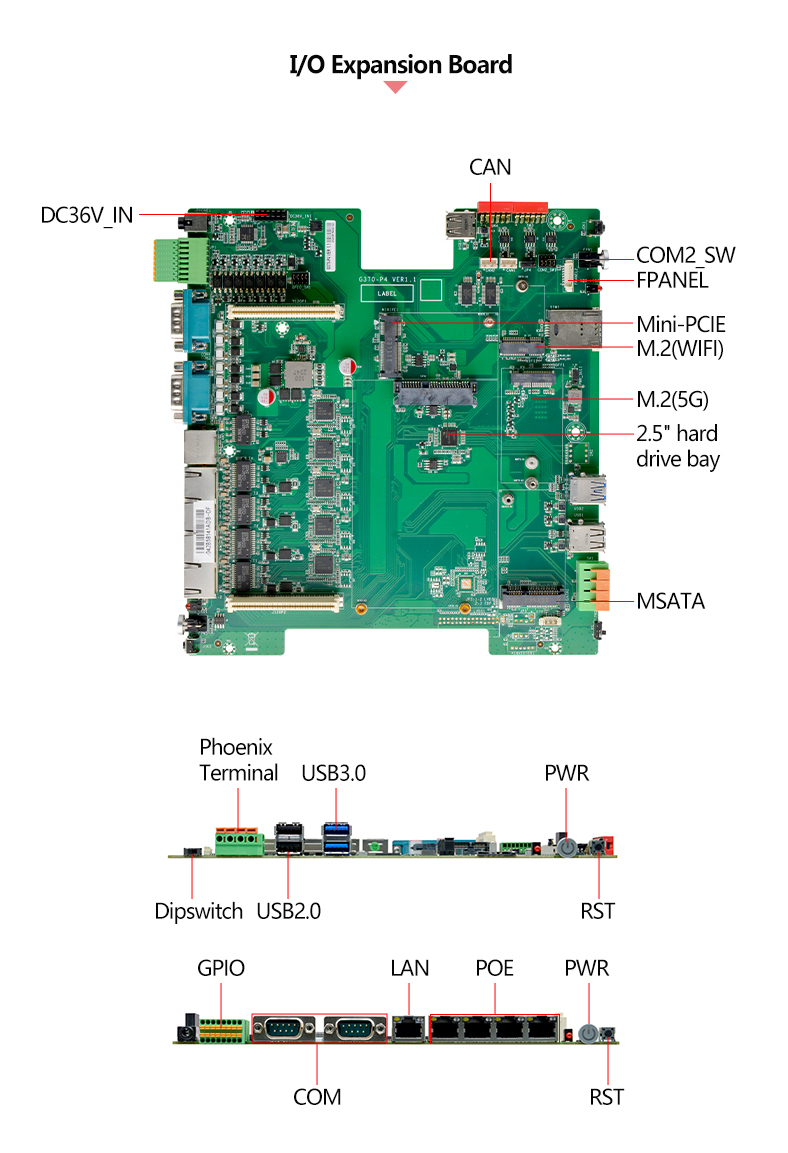

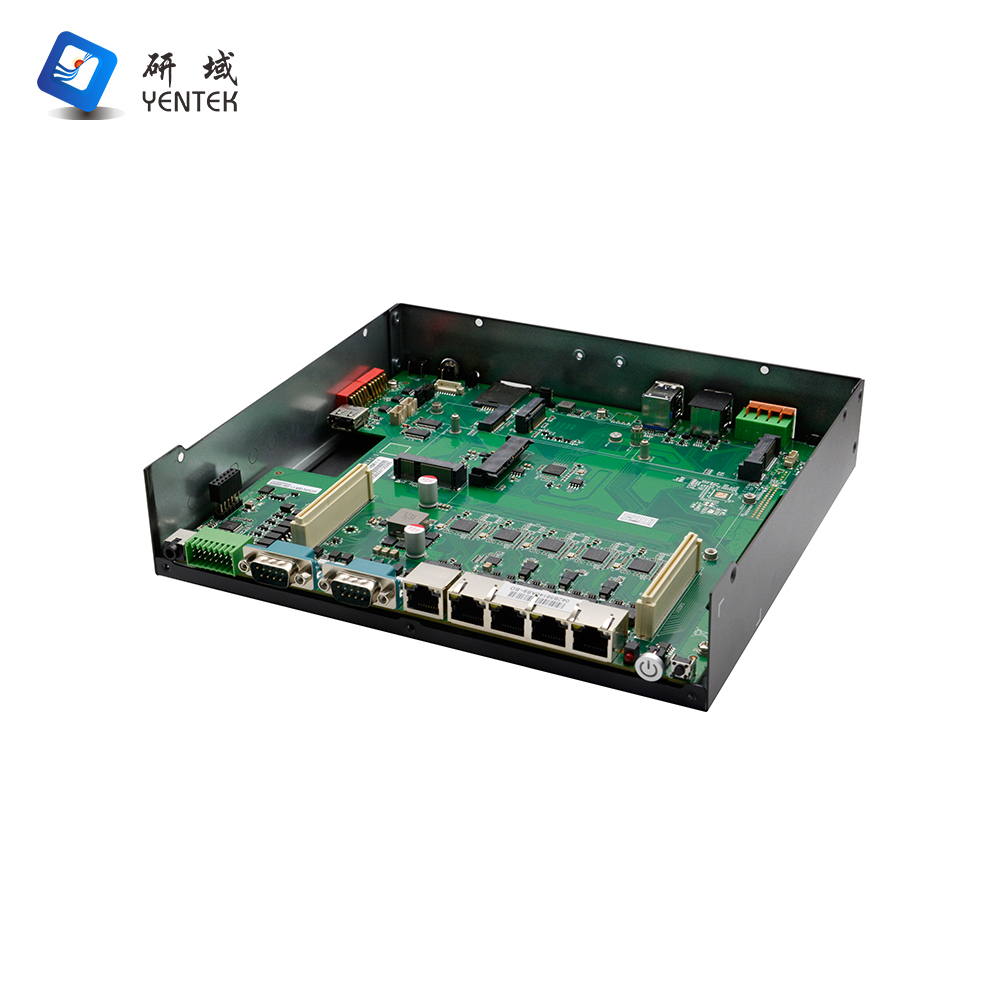

Storage
| SATA | 1*2.5-inch HDD bit (IO board side) |
MSATA | 1*MSATA (IO board side) | |
SSD | 1*M.2, support Key-M, 2280. NVME PCIEx4 SSD (motherboard side) | |
Expansion
| WiFi/4G | 1*MINIPCIE, support WiFi/4G (4G is not supported by default) |
WiFi | 1*M.2, support Key-E, 2230, WiFi module | |
5G | 1*M.2, support Key-B, 3042/3052, 5G module | |
System Support
| Microsoft | Windows 10 |
Linux | Linux | |
Power Supply Type
| Power supply type | External power adapter |
Voltage input | DC 9-36V wide voltage Maximum load 220W | |
Environment | Operating temperature | -10℃~50℃ |
Storage temperature | -20℃~70℃ | |
Relative humidity | 5%-95% relative humidity, non-condensing | |
Vibration | 0.5g rms/5-500HZ/random |
Order information
No. | Model | CPU | Memory | Motherboard | Chipset | IO Board | HDD | DI/DO | LAN | COM | CAN | HDMI | VGA | USB3.0 | USB2.0 | power |
1 | G3750F-P4 V2.0(G250) | LGA1151 6~9th | 2*SODDR4 | G250 | Q250 | G370-P4/G370-PW | 1*2.5+1*MSATA+1*M.2(NVME/SATA) | 7in7out | 5*I210 | 4 | 2 | 1 | 1 | 8 | 3 | 9-36V |
2 | G3750F-P4 V2.0(G670) | LGA1700 12~14th | 2*SODDR4 | G670 | H770 | G370-P4/G370-PW | 1*2.5+1*MSATA+1*M.2(NVME/SATA) | 7in7out | 5*I210 | 4 | 2 | 1 | 1 | 8 | 3 | 9-36V |
