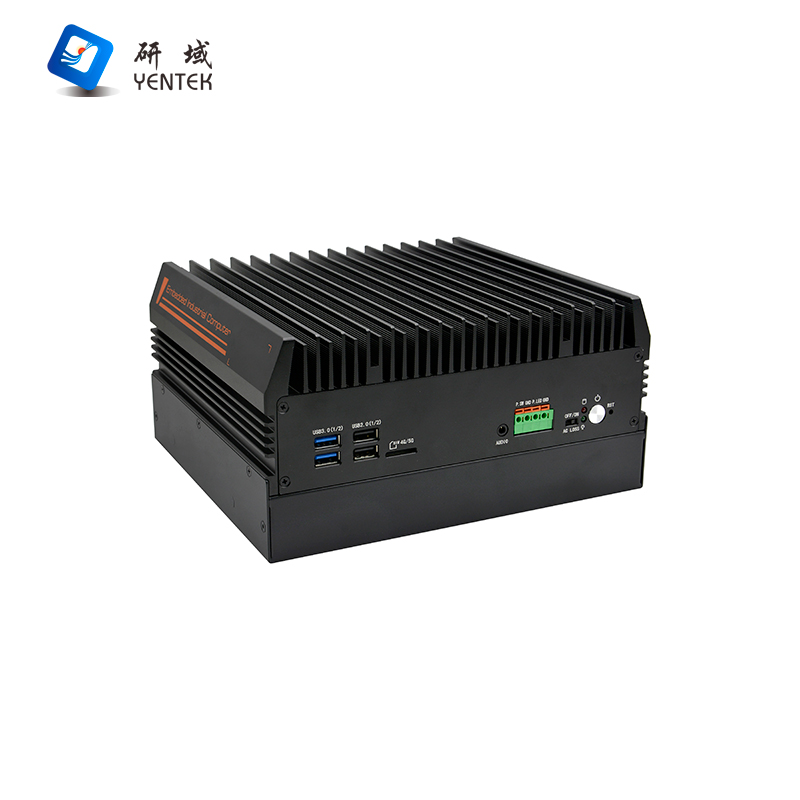

Model | G3260S-L6G4 V3.0(8300H) |
Case | Material/Construction | Aluminium alloy + sheet metal |
Colour | Black |

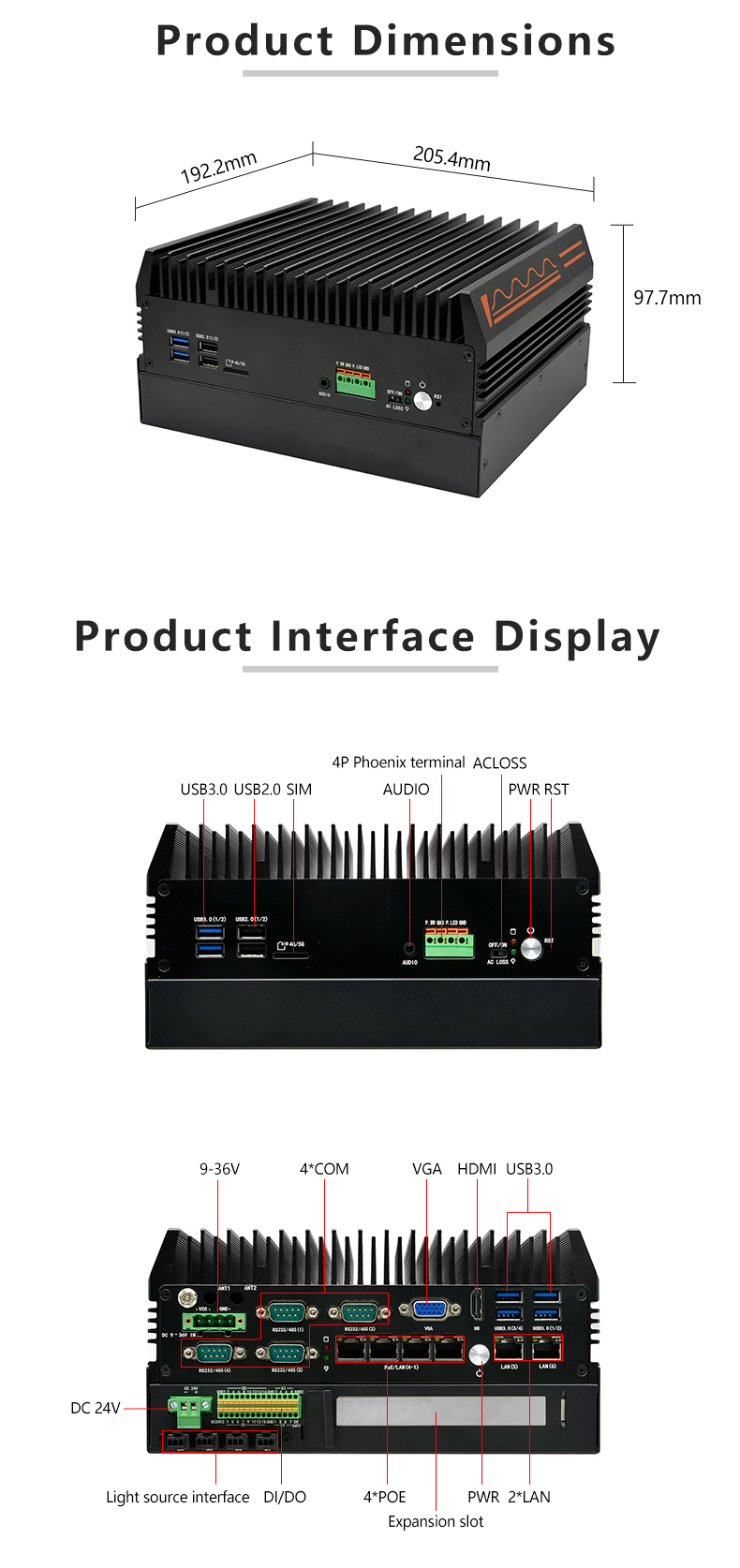

Dimensions | 219 × 192.6 × 109.5 mm |
Weight | 3.3 kg |
Installation | Desktop/Wall-mounted |

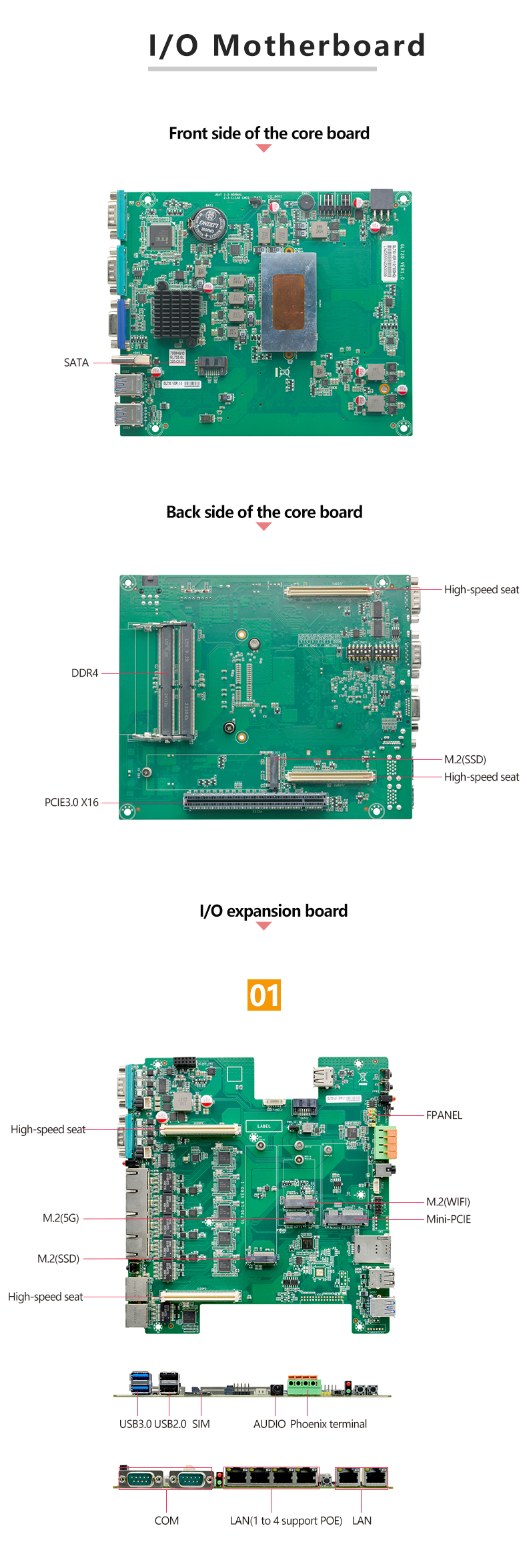

Motherboard | CPU | Integrated Intel® i5-8300H/2.30 GHz quad-core, eight-thread processor, TDP 45W |
Chipset | Intel HM370 |
Memory | 2 × SODDR4 2666 MHz, supports up to 64 GB |

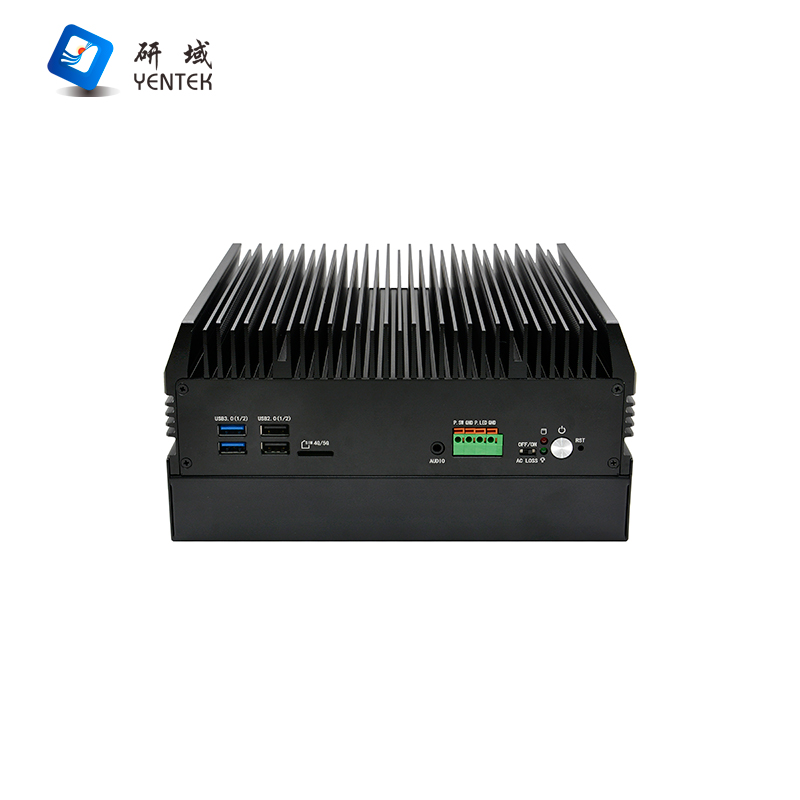

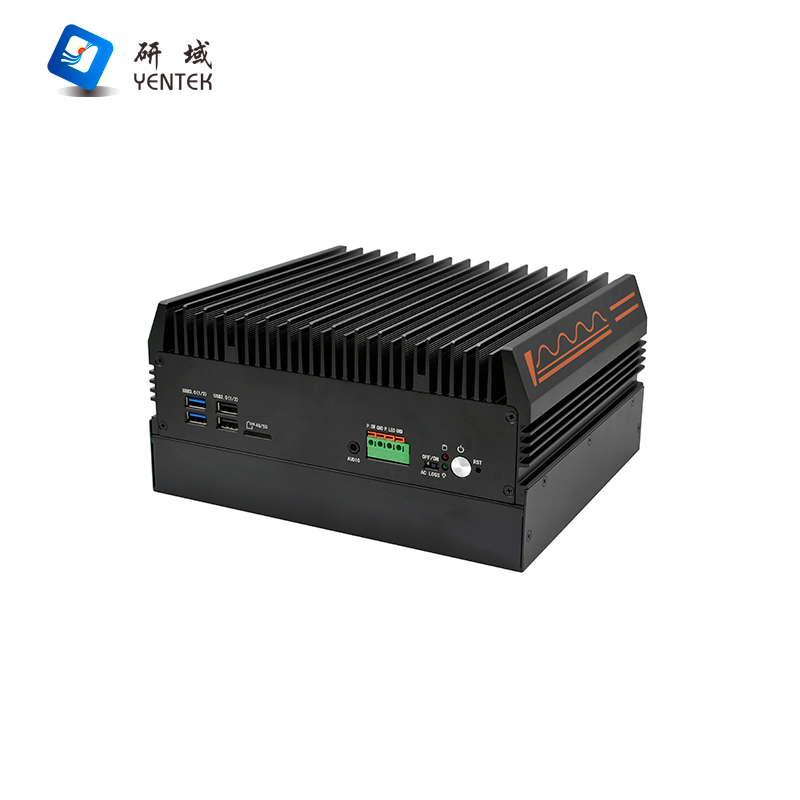

Front panel ports | Power Switch | 1 x Power button, 1 x One-touch restore button, 1 x ACLOSS (power-on DIP switch) |
LED | 1 x Power indicator, 1 x Hard drive indicator |
USB | 2 x USB 3.0, 2 x USB 2.0, 1 x internal USB 2.0 |
Remote Switch | 1 x PWR, 1 x PWRLED (located on 1 x 4-pin Phoenix connector) |
Audio | 1*Audio, combined Line Out and Mic |
SIM | 1*Standard SIM card slot |

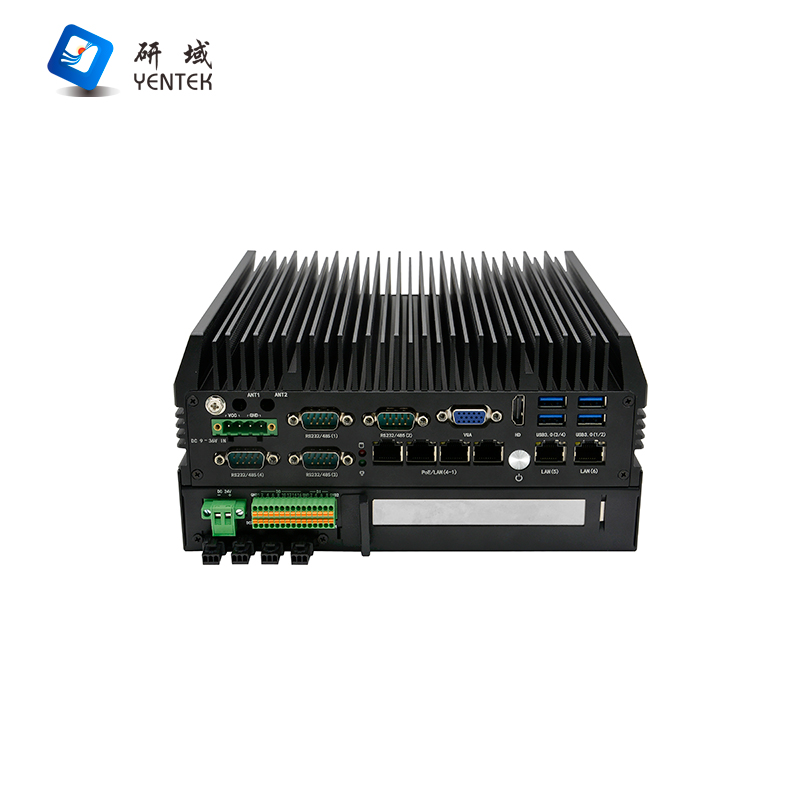

Rear panel ports | Display Interface | 1*HDMI 1.4, 1*VGA, supports dual display |
USB | 4*USB 3.0 |
COM | 4*RS232/485 DB9 serial ports, of which COM3–4 support RS485/CAN functionality (requires CAN module) |
LAN | 6*Intel I210AT Gigabit Ethernet ports, of which 4 support PoE (15W per port) |
DI | 8 x DI (NPN 500mA) |
DO | 16 x DO (NPN 4–20mA) |
Light Source | 1 x Yuanxin optical constant-current light source, 80-step adjustable (0–80mA) |
3 x 512-step PWM-adjustable 24V light sources (24V/48W) |
24V DC power input |
DIP Switches | 4 sets of 6-position DIP switches; COM1-4 RS232/485 switching via DIP switches + BIOS settings |
Power Connector | 1 x 4-pin (P=5.08mm) Phoenix connector, supporting 9–36V wide-voltage input, maximum load 220W |
Storage | MSATA/SSD | 1 x mSATA (3210M only) |
1 x M.2, supports Key-M, 2280, NVMe PCIe 3.0 x4/SATA adaptive SSD (Not supported by 3210M) |
SSD | 1 x M.2, supports Key-M, 2280, SATA SSDs |

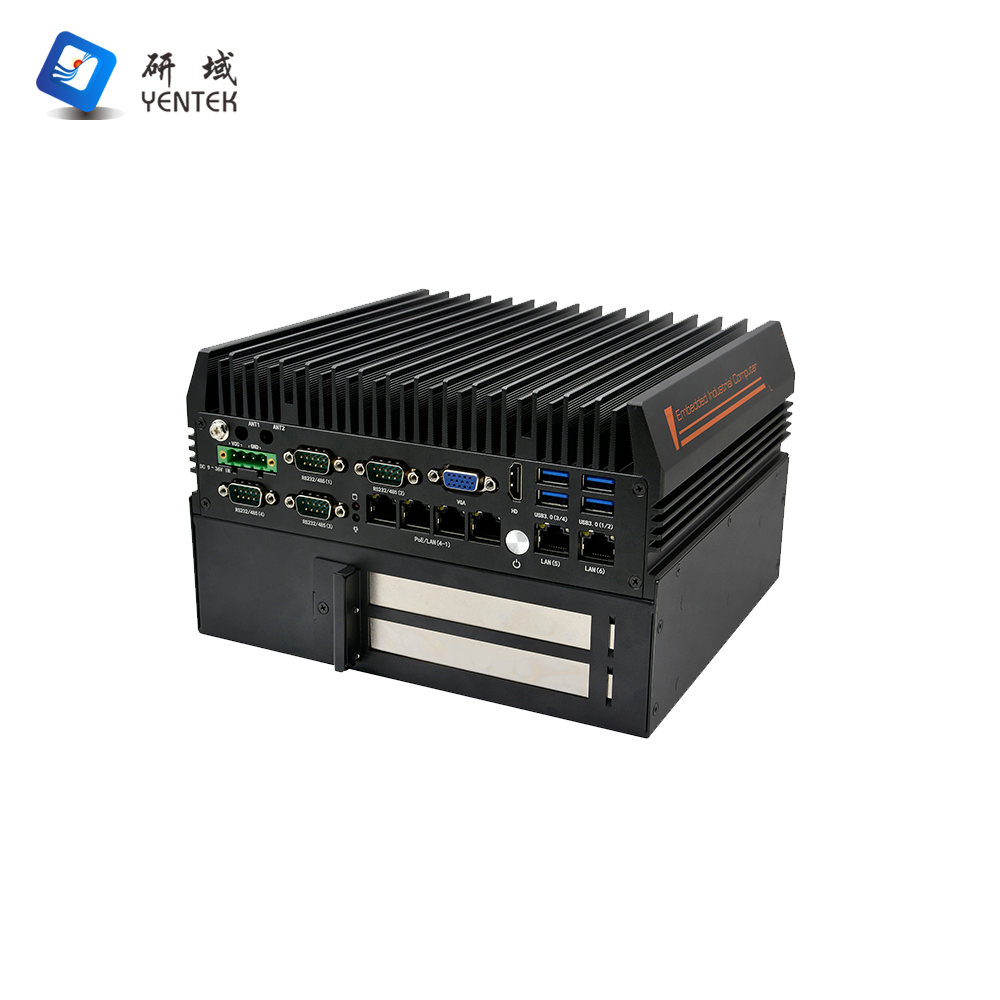

Expansion | PCIe | 1 x PCIe 3.0 x16 (x8 signal) (compatible graphics cards must not exceed 170 x 120 x 30 mm; blade-style graphics cards only) |
WiFi/4G | 1 x Mini PCIe, supports Wi-Fi + Bluetooth or 4G (3210M supports 4G only; other CPUs support Wi-Fi by default) |
WiFi | 1 x M.2, supports Key-E, 2230, Wi-Fi + Bluetooth modules |
5G | 1 x M.2, supports Key-B, 3042/3052, 5G modules (not supported by 3210M) |
System | Windows | Windows 10/11 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power supply type | Power Supply Type | DC 9–36V wide voltage range |
Power Output | AC to DC 90W or above (depending on specific device), maximum load 220W |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
