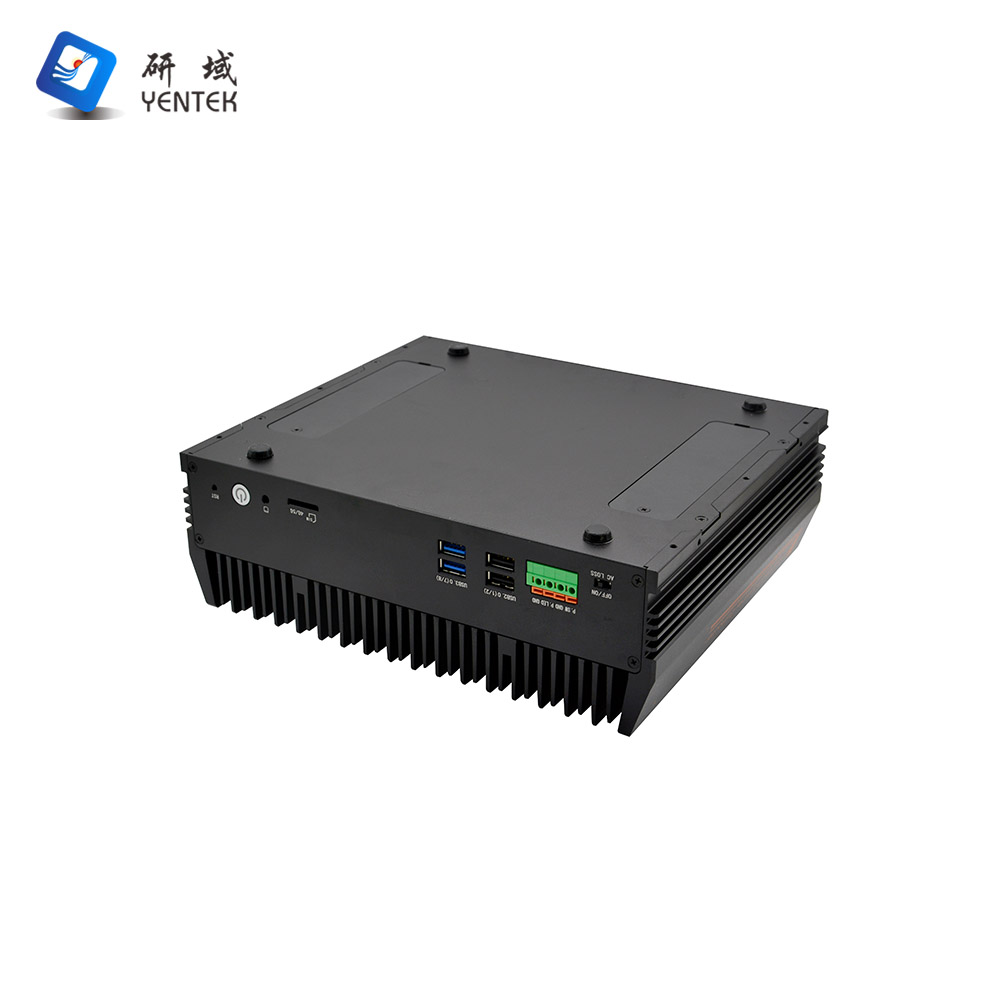

G3750S-C6 V3.0(G391)

Chassis

Material/Construction

Aluminium   alloy + sheet metal construction

Colour

Black

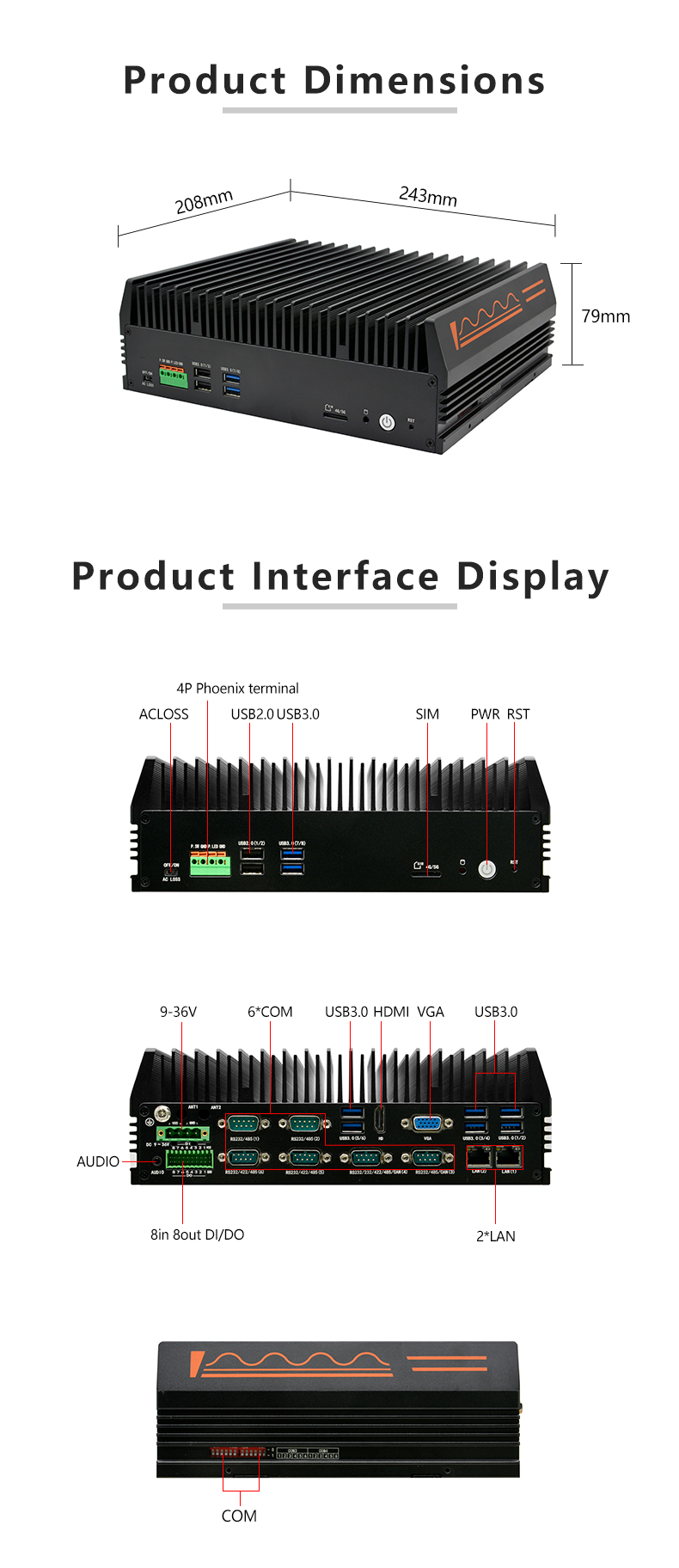

Dimensions   (LxWxH)

243*208*79mm

Weight

KG

Installation

Desktop/built-in/DIN   rail (35mm)

Motherboard

CPU

Intel®   LGA1151 6th 8th 9th generation processors (supports CPUs up to 65W TDP only)

Chipset

Intel®   Z390 chipset

Memory

2x DDR4   slots, supports up to 64GB

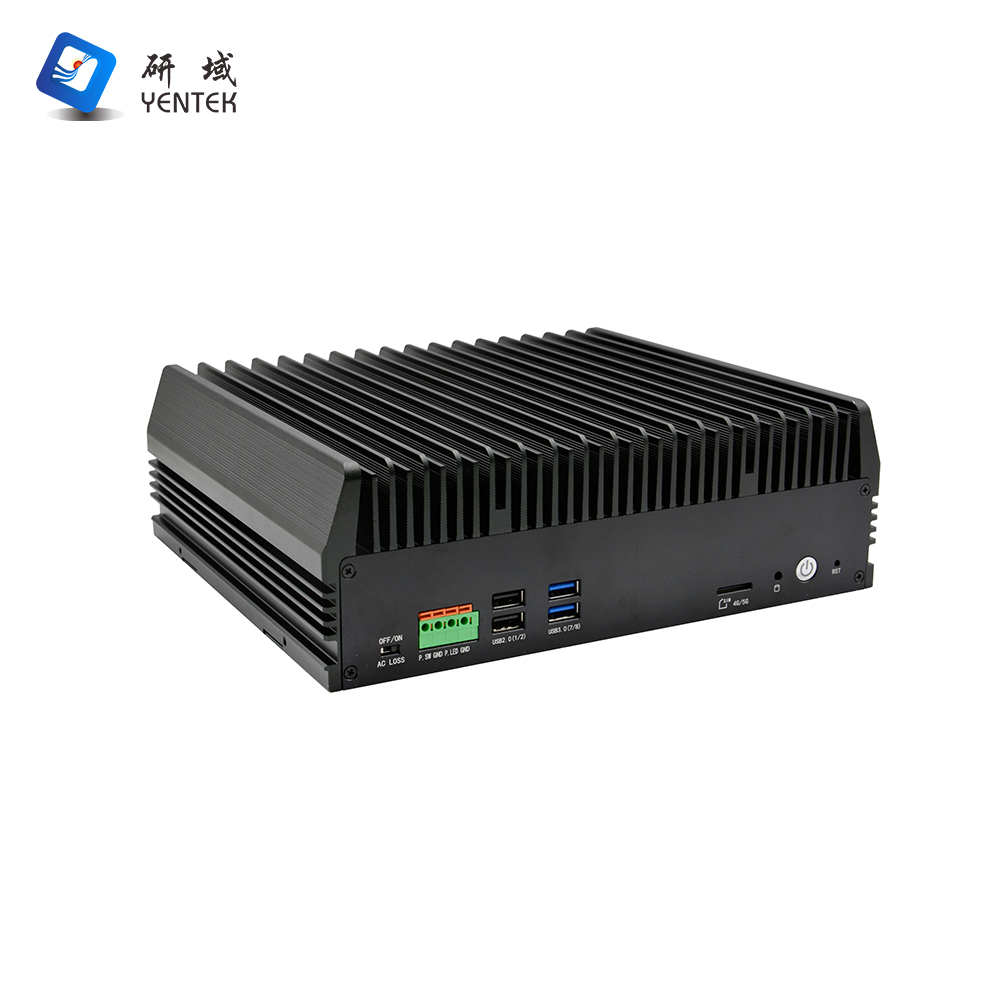

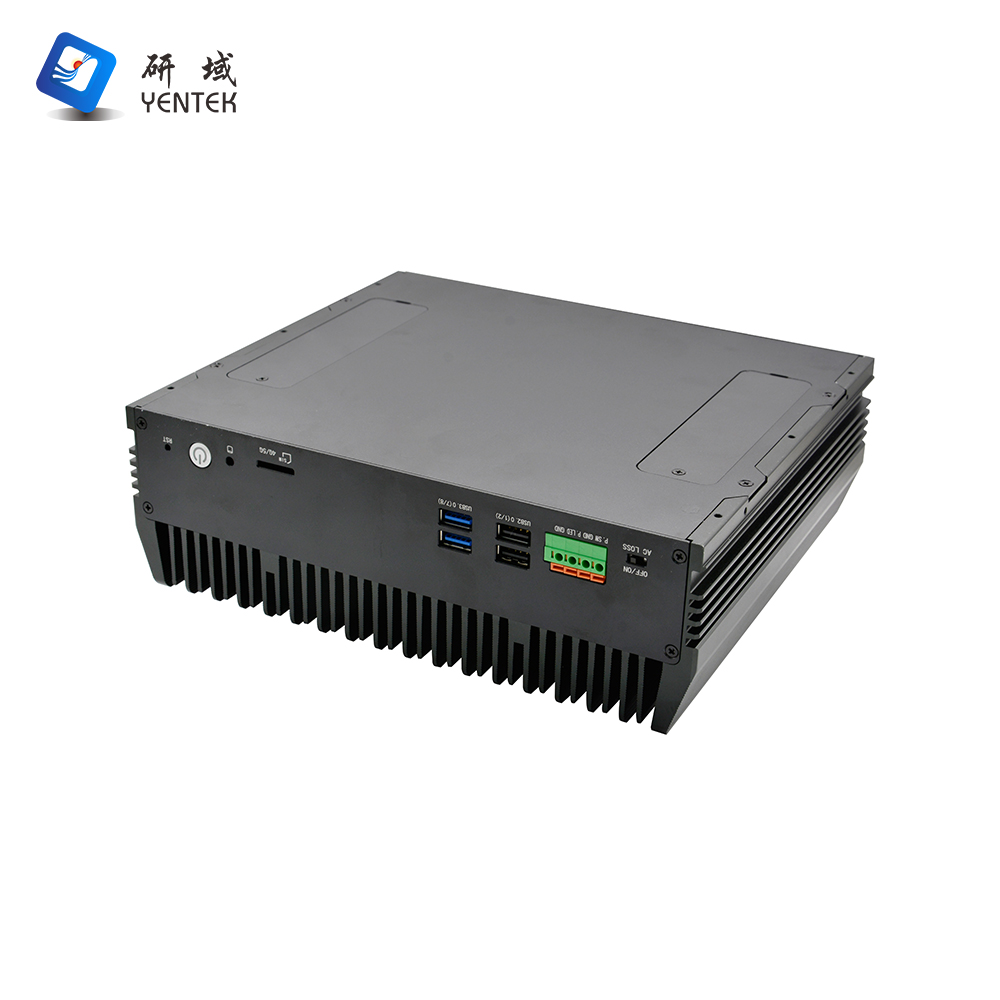

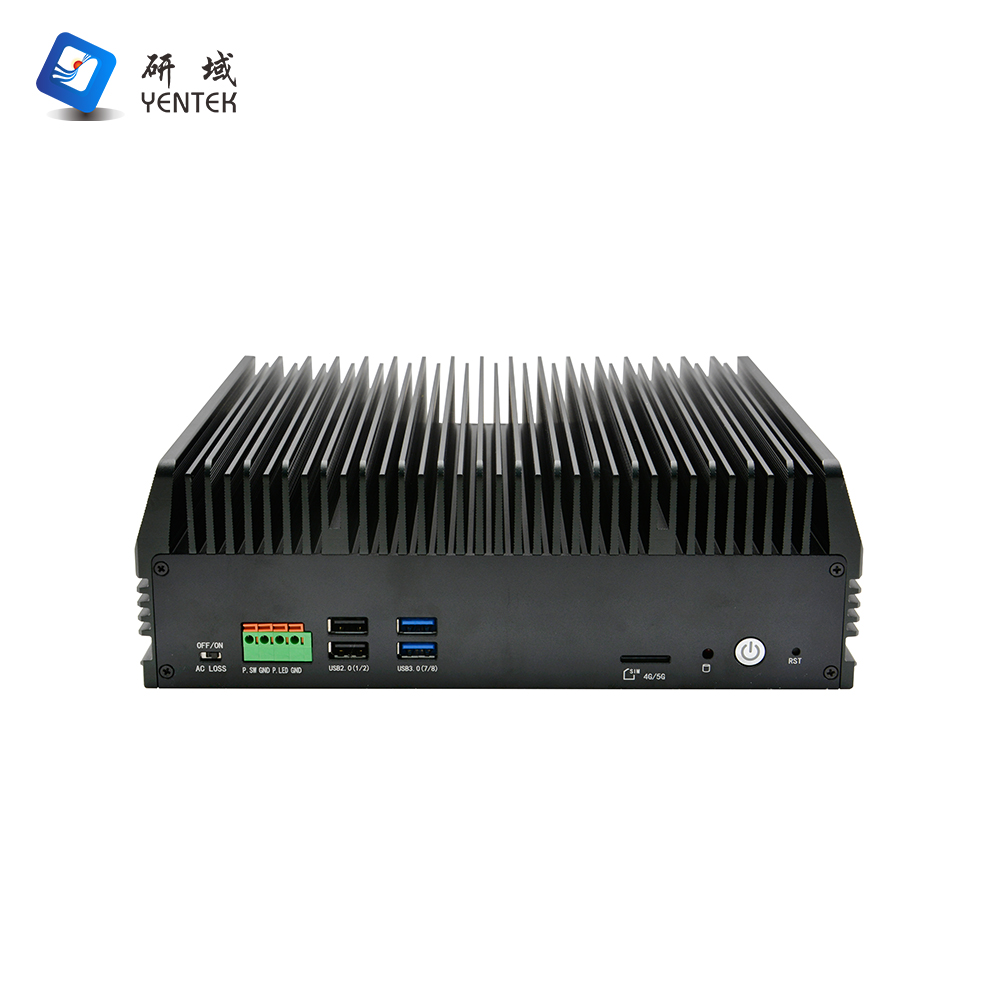

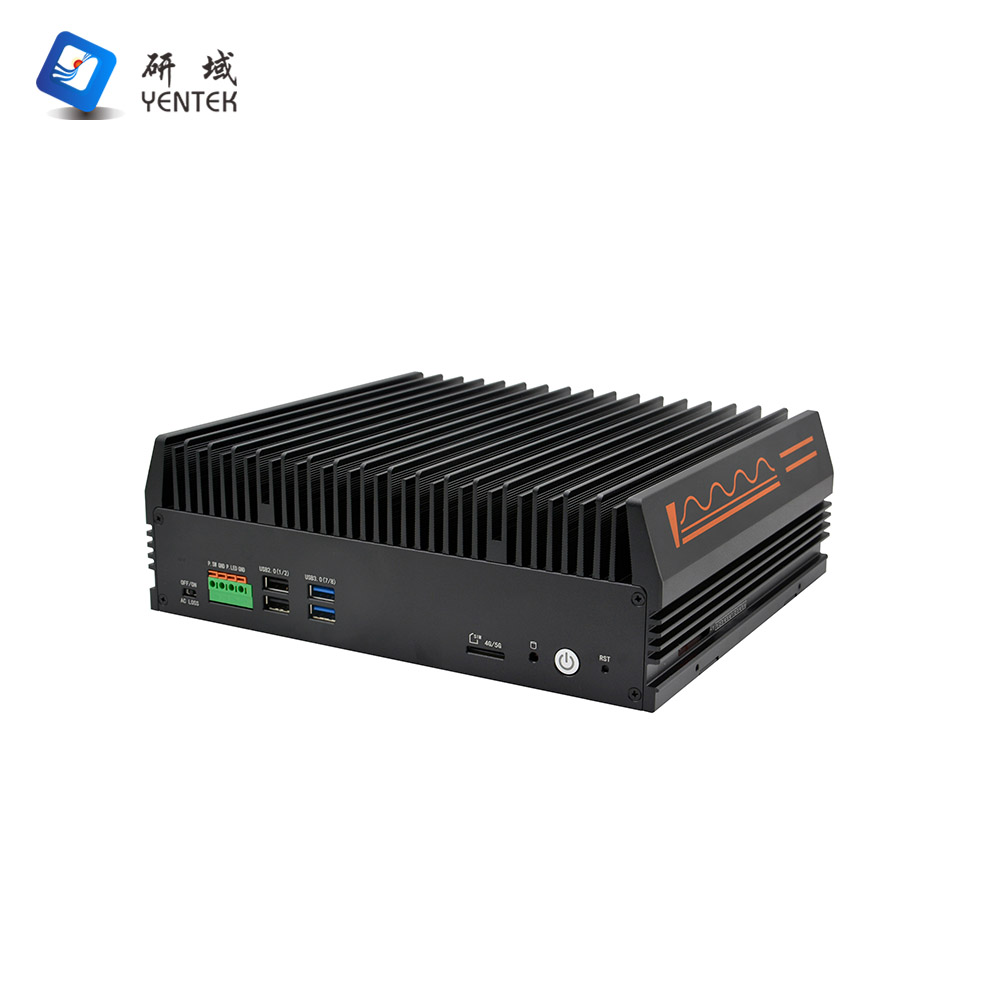

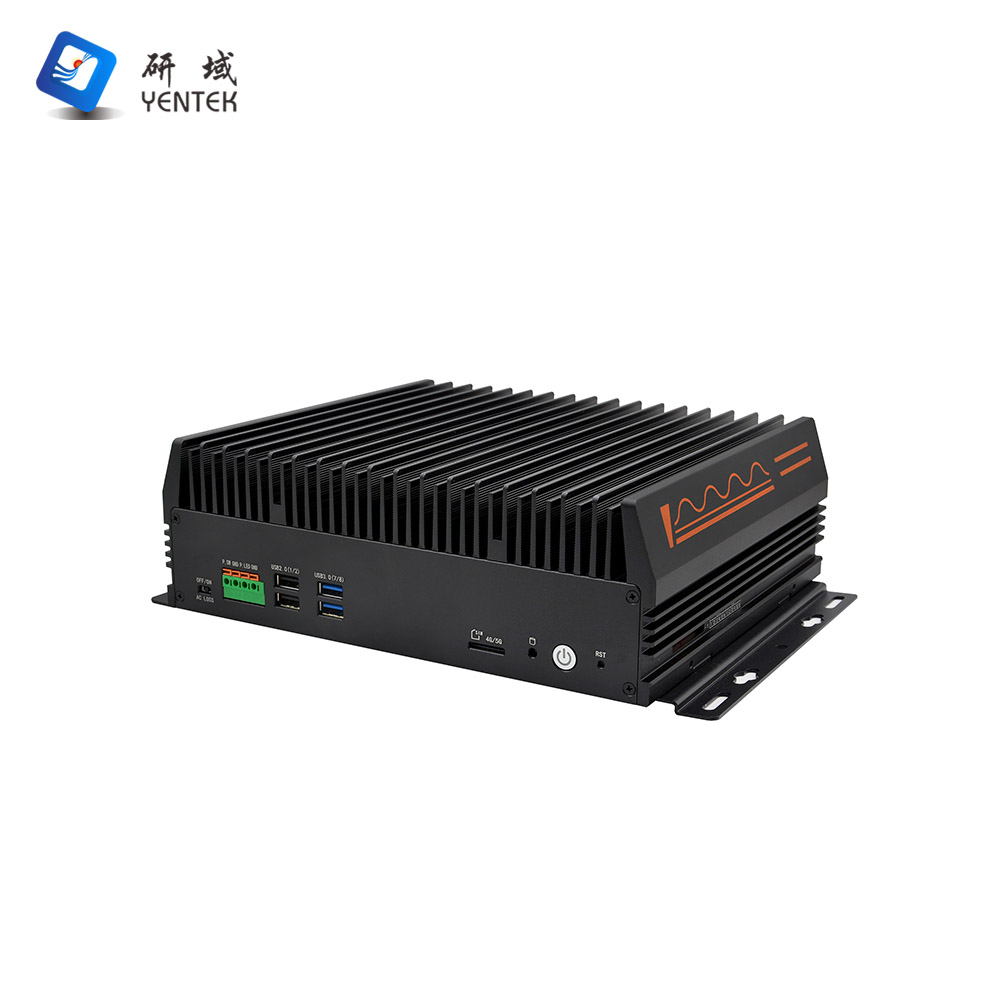

Front   Panel Connectors

Power   Switch

1x Power   button with indicator light, 1x One-touch reset, 1x ACLOSS (power-on DIP   switch)

LED

1x Hard   drive activity light

USB

2x USB   3.0, 2x USB 2.0, 1x internal USB 2.0

Remote   Switch

1x Power   indicator signal, 1x Power switch signal (located on 1x 4-pin Phoenix   connector)

SIM

1x SIM   card slot (default signal M.2 5G)

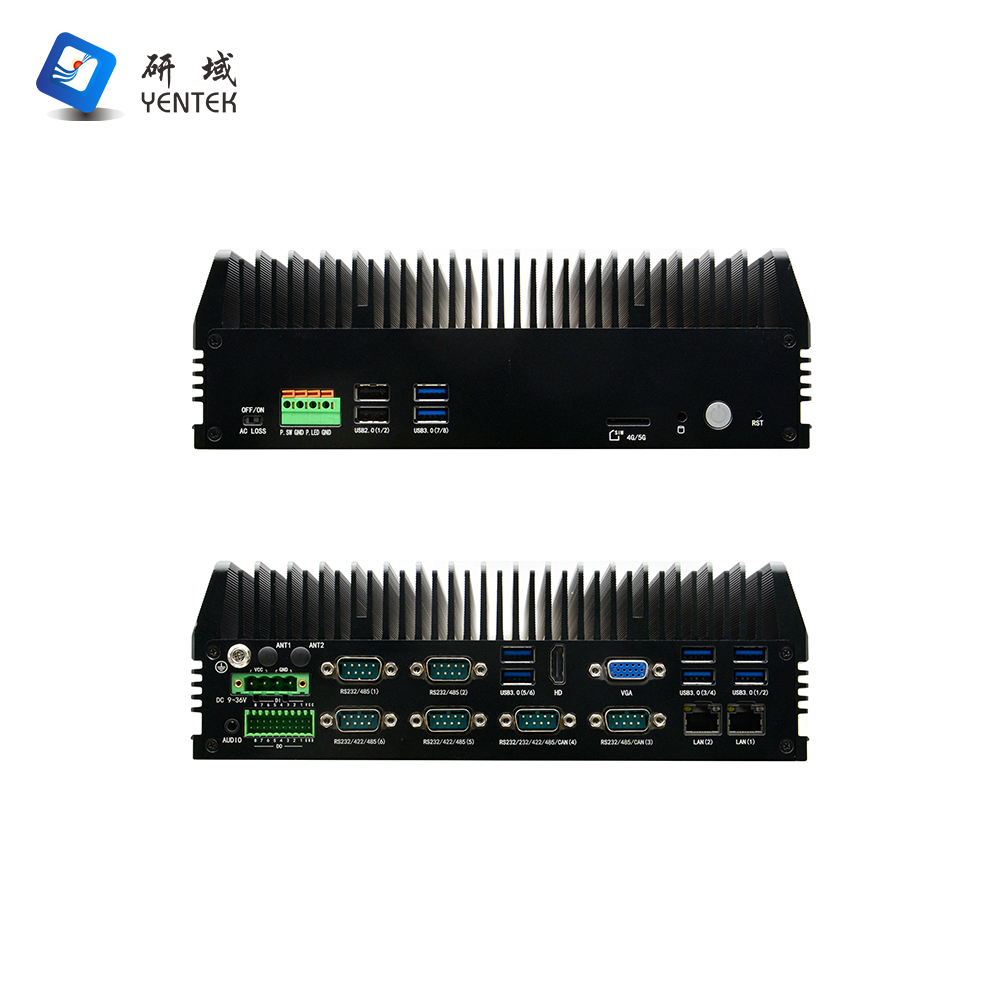

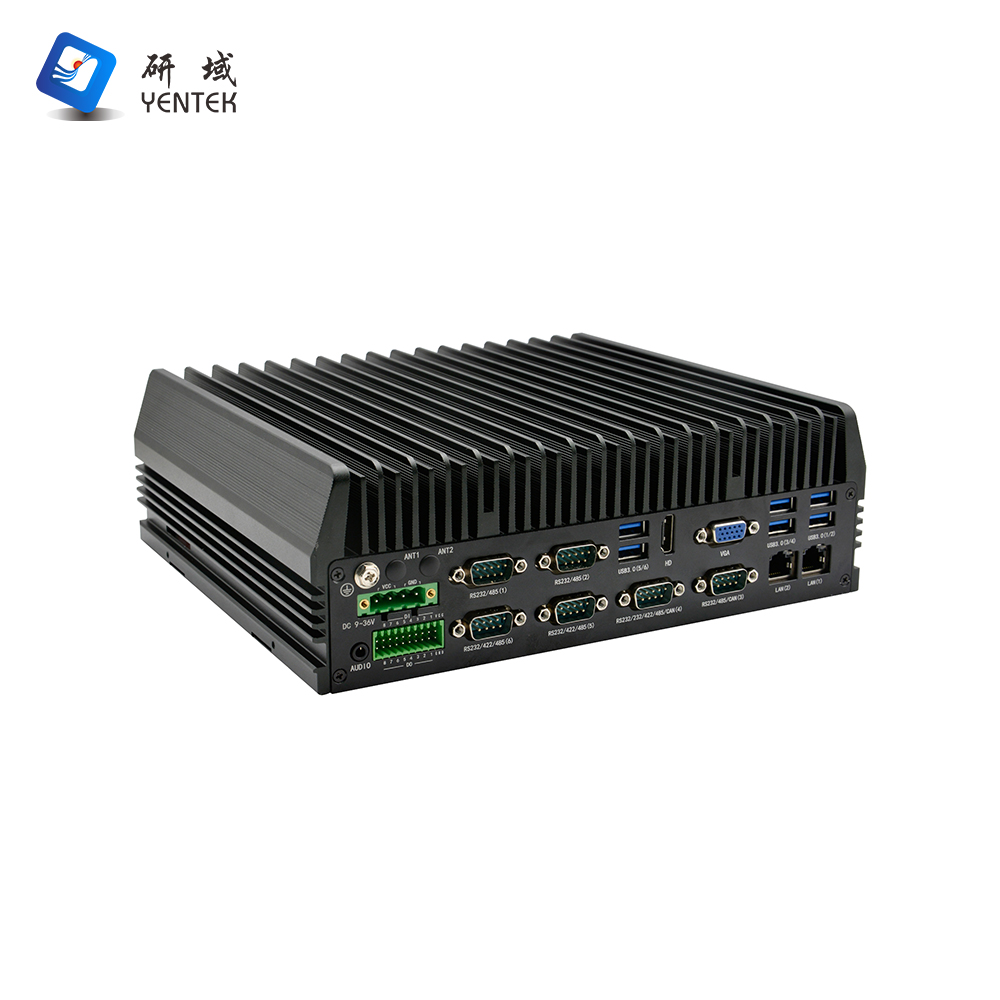

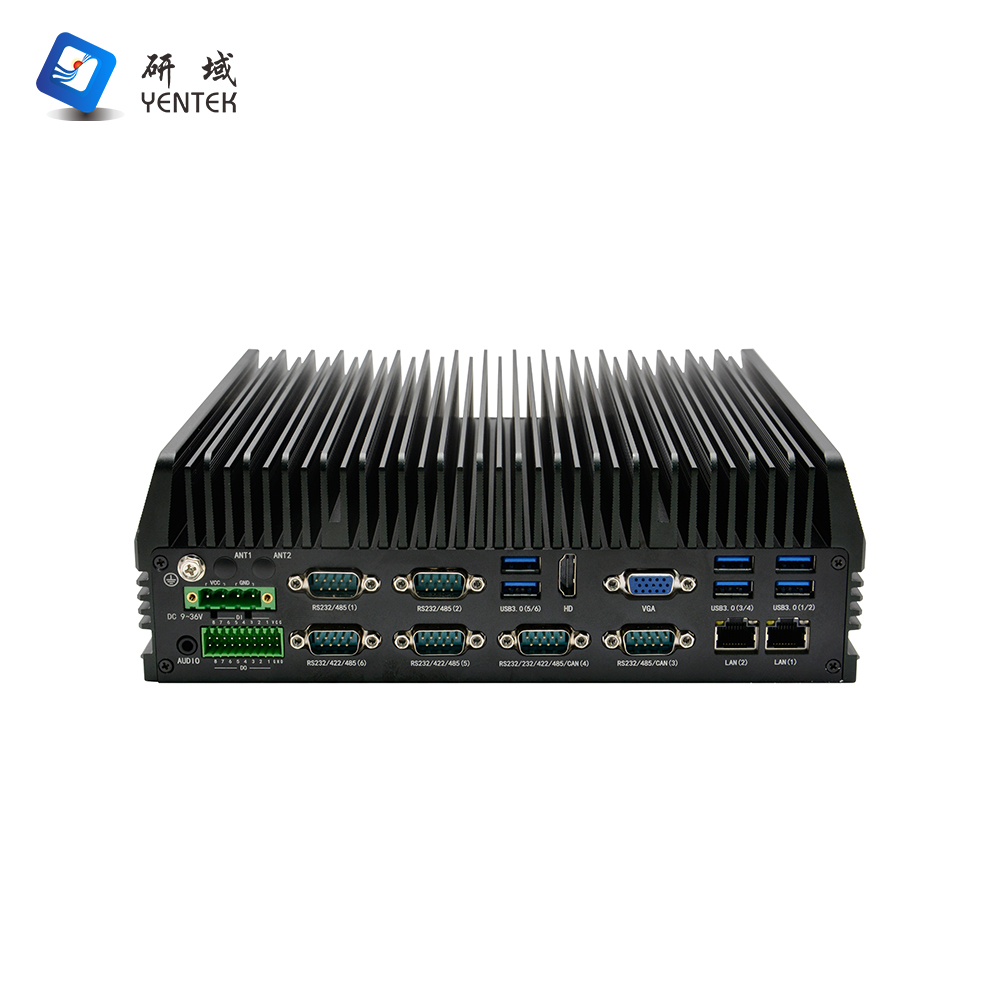

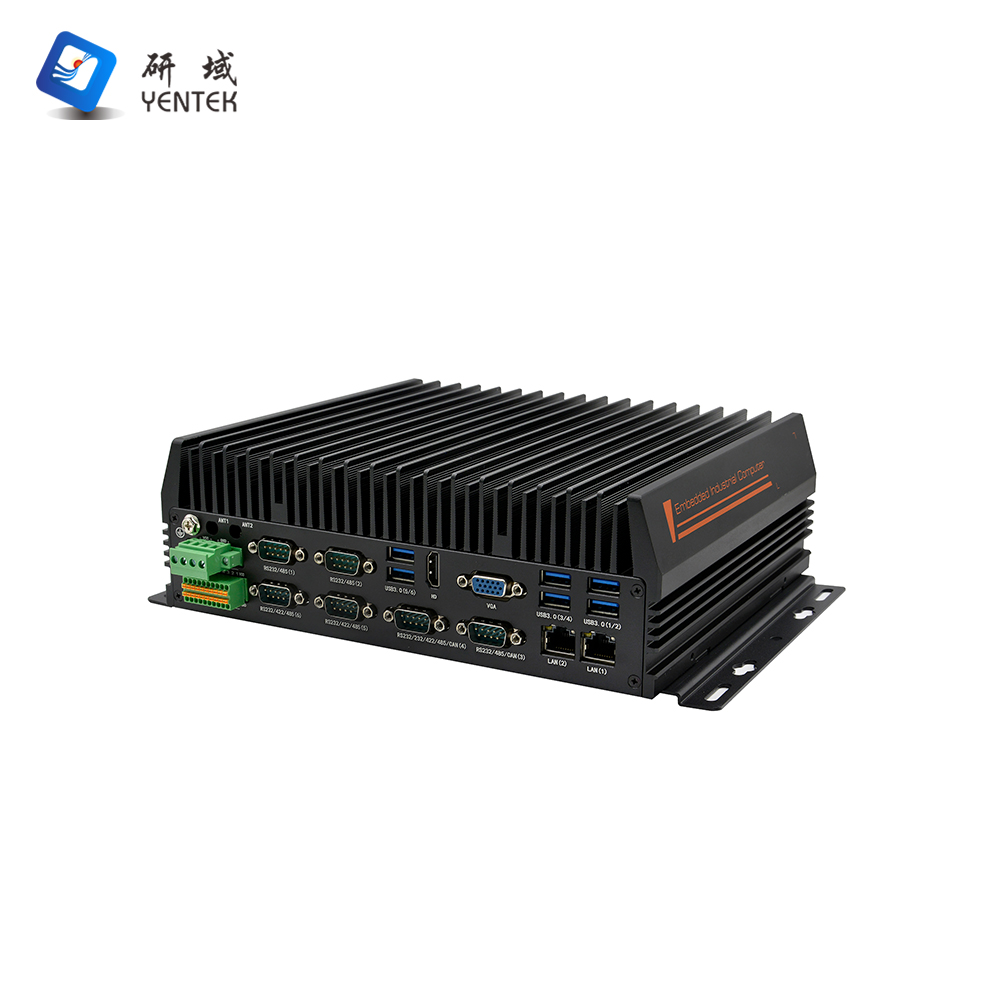

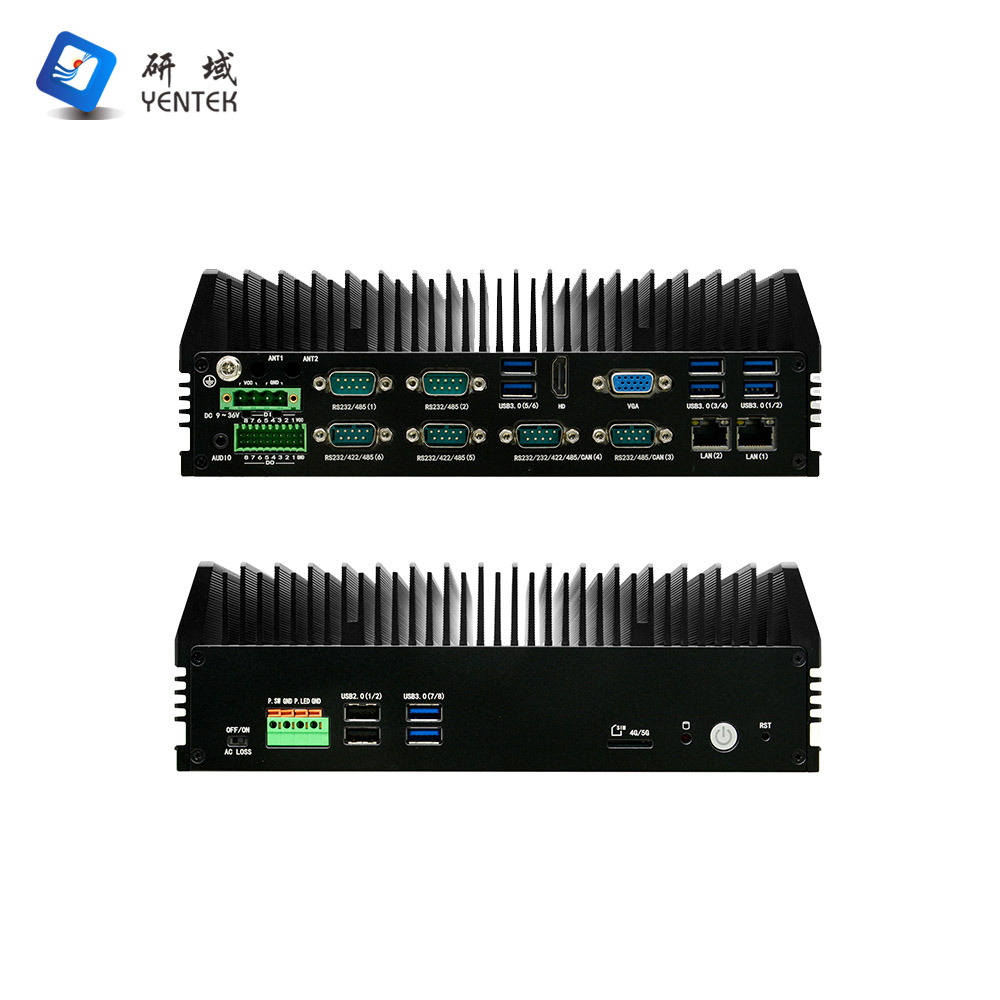

Rear   Panel Connectors

Display   Interface

1x VGA   (1920×1200@60Hz), 1x HDMI 1.4, dual display support

USB

6x USB   3.0

COM

6x   RS232/485 DB9 serial ports, COM4–6 support RS232/422/485, COM3–4 support CAN   functionality (Requires CAN module installation)

LAN

2x Intel   I210AT Gigabit Ethernet ports

DI/DO

8x DI, 8x   DO (located on 2x 10-pin Phoenix connectors)

Audio

1x Audio,   Line out and Mic combined

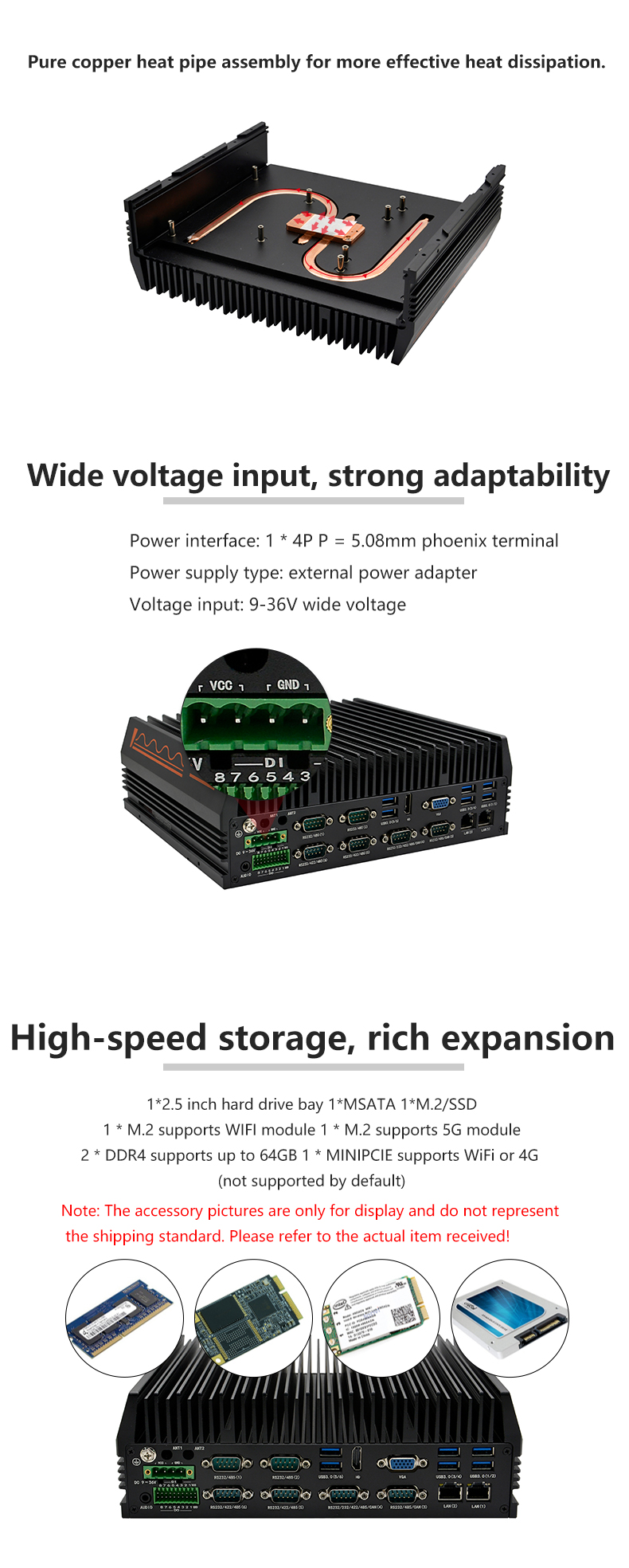

Power   Interface

1x 4-pin   (P=5.08mm) Phoenix connector, supporting 9~36V wide voltage input, maximum   load 220W

Storage

SATA

1 x   2.5-inch HDD bay

mSATA

1 x mSATA

SSD

1 x M.2,   supporting Key-M, 2280, NVMe PCIe x4 SSD

Expansion

WiFi/4G

1 x   Mini-PCIe, supporting WiFi or 4G module (4G shares signal with built-in USB   2.0, 4G not supported by default)

WiFi

1 x M.2,   supporting Key-E, 2230, WiFi module

5G

1x M.2   slot supporting Key-B, 3042/3052, 5G modules

System   Support

Microsoft

Windows   10

Linux

Linux

Power Supply   Type

Power   Supply Type

DC 9-36V   wide voltage input

Power   Output

AC to DC   120W+ (device-dependent), maximum load 220W

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random
