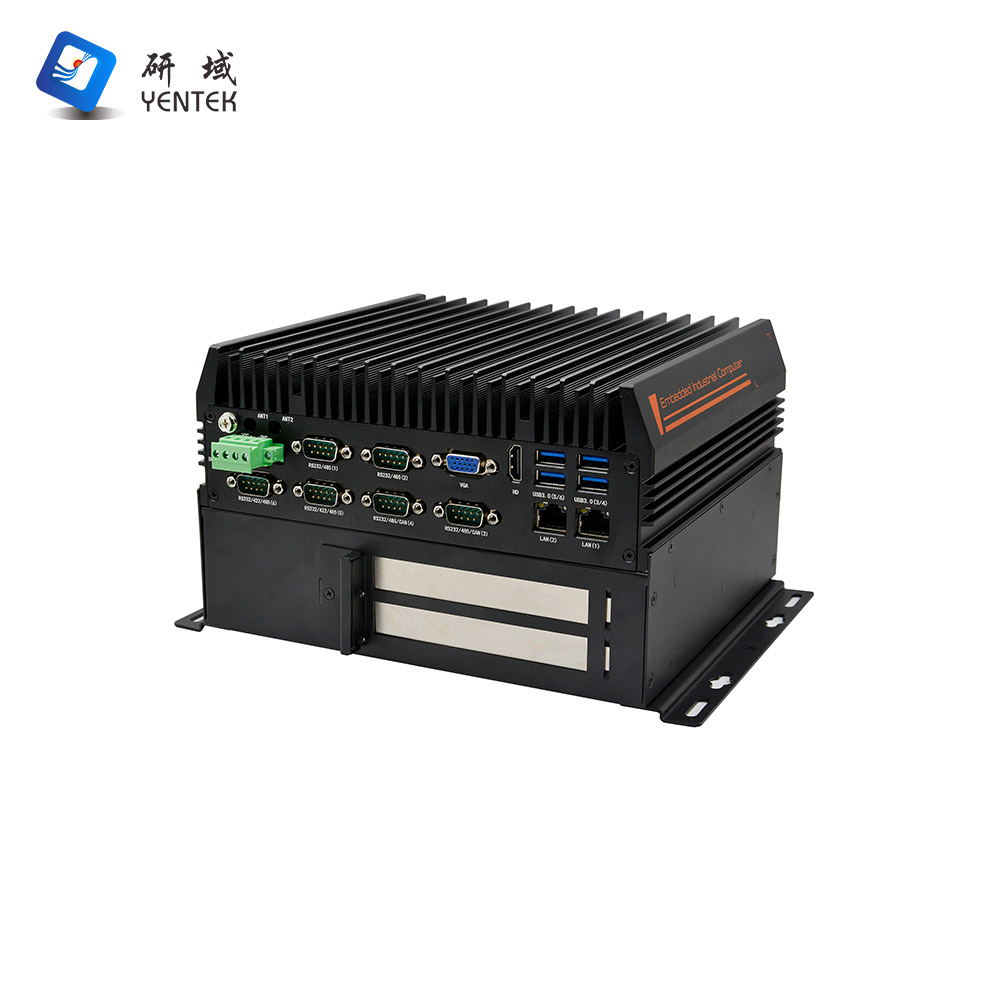

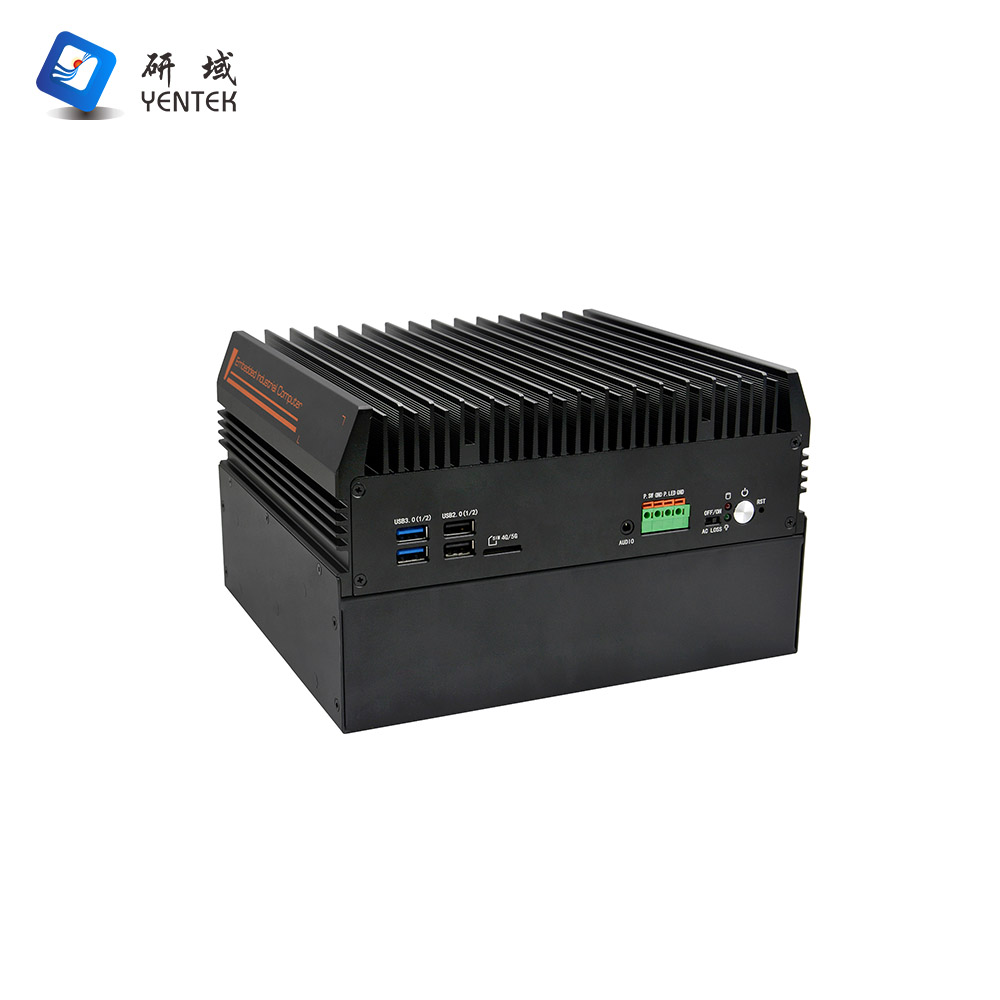

G3280S-C6E2 V3.0

Case

Material/Construction

Aluminium alloy + sheet metal

Colour

Black

Dimensions

219*192*133.3 mm

Weight

4.2 kg

Installation

Desktop/built-in

Motherboard

Chipset

CPU

Integrated Intel i5-8300H/2.30 GHz quad-core, eight-thread processor, TDP 45W

Chipset

Intel HM370

Memory

2 × SODDR4 2666 MHz, supports up to 64 GB

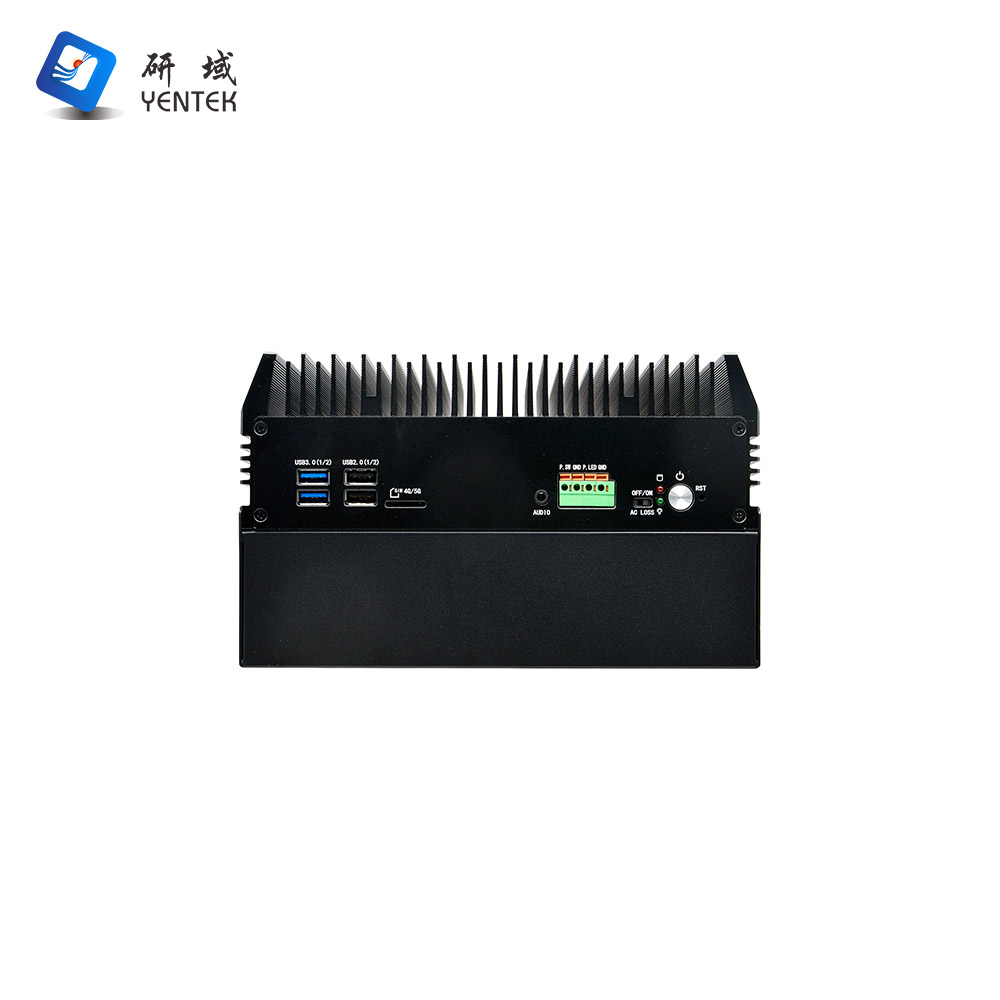

Front panel ports

Power Switch

1 x Power button, 1 x One-touch restore button, 1 x ACLOSS (power-on DIP switch)

LED

1 x Power indicator, 1 x Hard drive indicator

USB

2 x USB 3.0, 2 x USB 2.0, 1 x Internal USB 2.0

Remote Switch

1 x Power indicator signal, 1 x Power switch signal (located on 1 x 4-pin Phoenix connector)

Audio

1 x Audio (combined Line Out and MIC)

SIM

1 x Standard SIM card slot

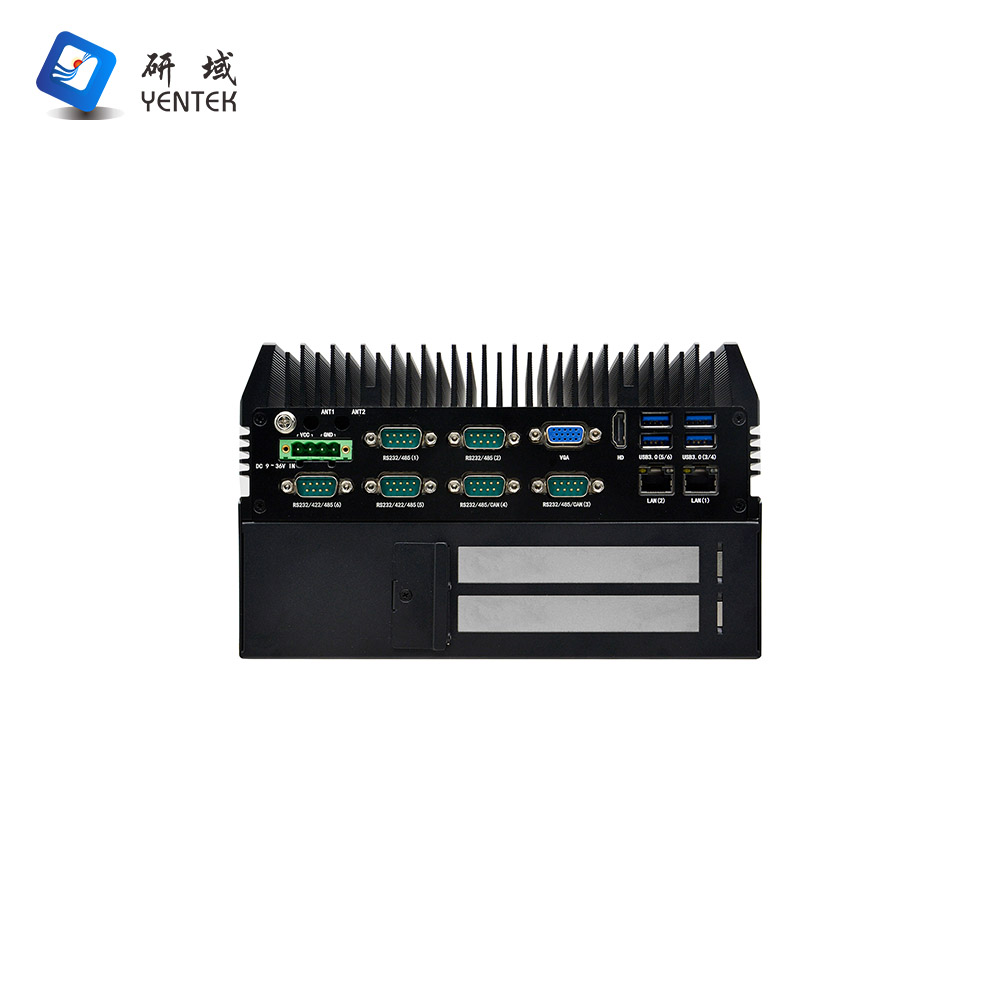

Rear panel ports

Display Interface

1 x VGA, 1 x HDMI 1.4 (4096×2304@30Hz), supports dual display

USB

4 x USB 3.0

COM

6 x RS232/485 DB9 serial ports; COM5–6 support RS422; COM3–4 support CAN functionality (requires CAN module)

LAN

2 x Intel I210AT Gigabit Ethernet ports

Power Connector

1 x 4-pin (P=5.08mm) Phoenix connector, supporting 9–36V wide-voltage input

Storage

SATA

1 x 2.5-inch hard drive bay

mSATA/SSD

1 x mSATA (supported by 3210M only)

1 x M.2, supporting Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (Not supported on 3210M only)

Expansion

PCIe

1 x PCIe x16 (x8 signal) (Graphics card dimensions must not exceed 170 x 120 x 30 mm; blade-style graphics cards only)

1 x PCIe x8 (x1 signal)

Wi-Fi/4G

1 x Mini PCIe, supports Wi-Fi or 4G (4G and Bluetooth not supported by default)

Wi-Fi

1 x M.2, supports Key-E, 2230, Wi-Fi + Bluetooth module

5G

1 x M.2, supports Key-B, 3042/3052, 5G module

System

Windows

Windows 10

Linux

Ubuntu

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power supply type

Input Voltage

DC 9V–36V wide voltage range

Power Output

AC to DC 90W (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
