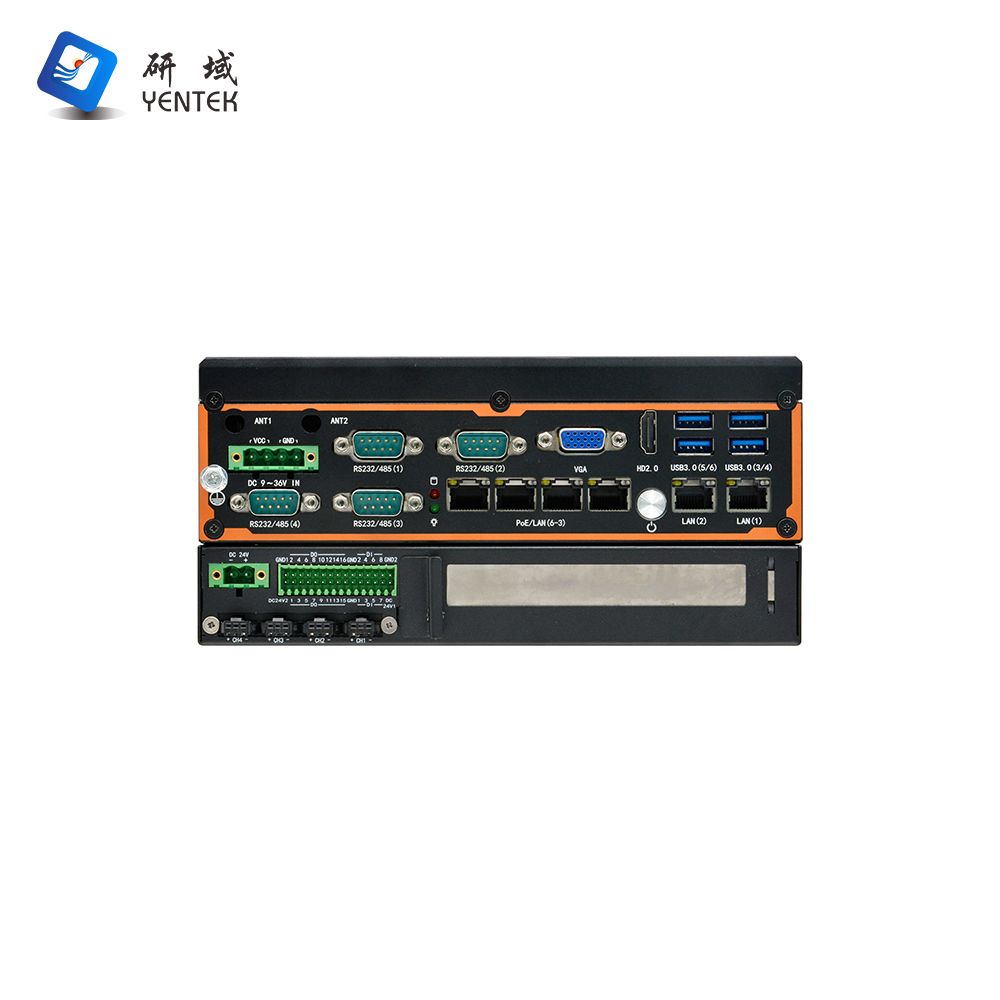

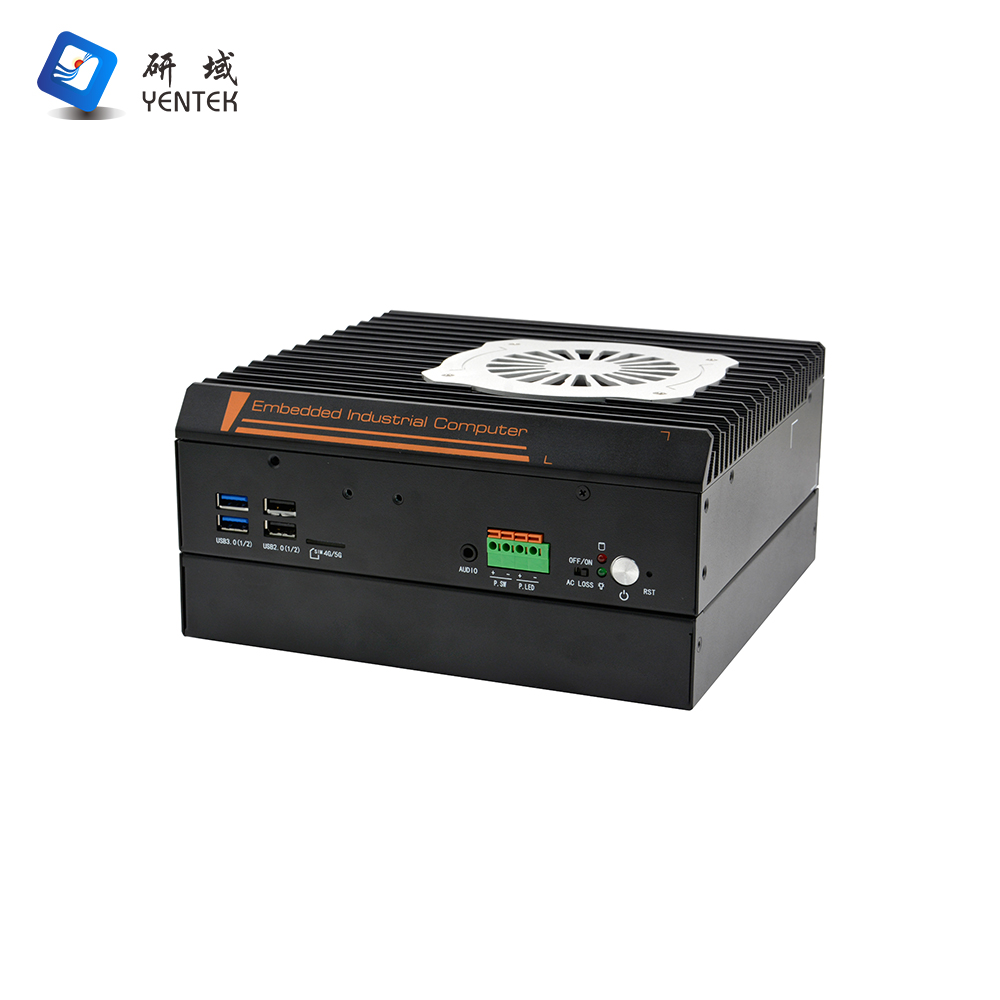

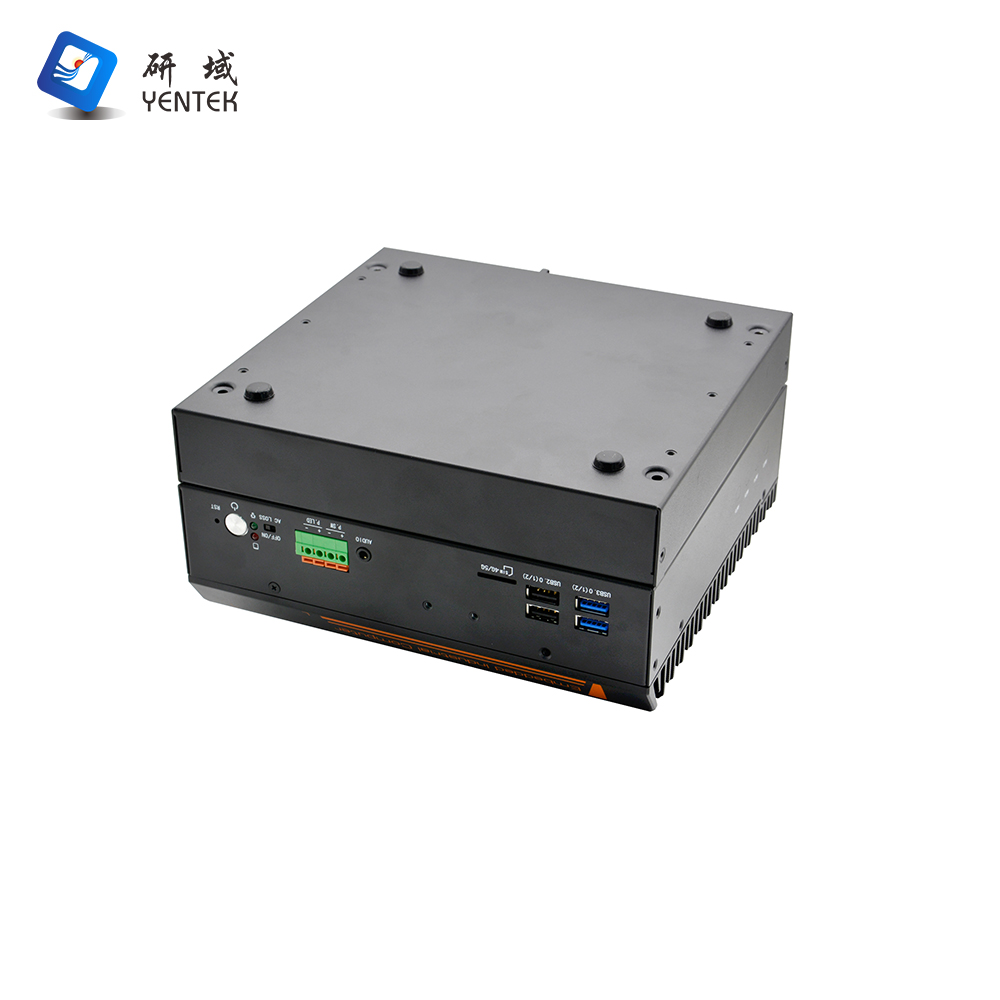

Model | G3260F-L6G4 V2.0(8300H) |
Chassis | Material/structure | Aluminium + Sheet Metal |
Colour | Black + Silver |
Dimensions (LWH) | 205.4*192.2*97.7MM (without stand) |
Weight | 2.4KG |
Installation | Desktop/Embedded/DIN rail (35mm) |
Motherboard | CPU | Integrated Intel ®i5-8300H/2.30GHz Quad-Core 8-Thread Processor, TDP 35W |
System-on-Chip | Intel HM370 |
Memory | 2*SODDR4 2666MHz, Maximum support 64GB |

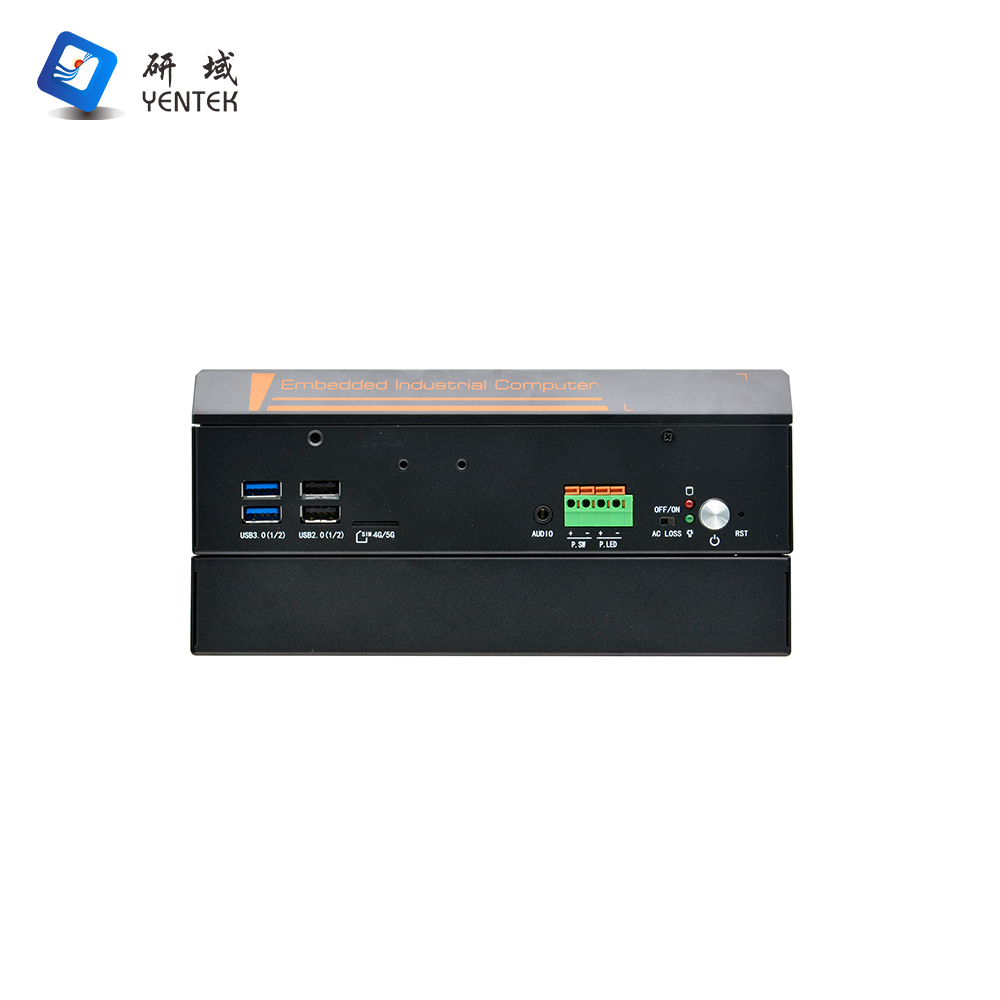

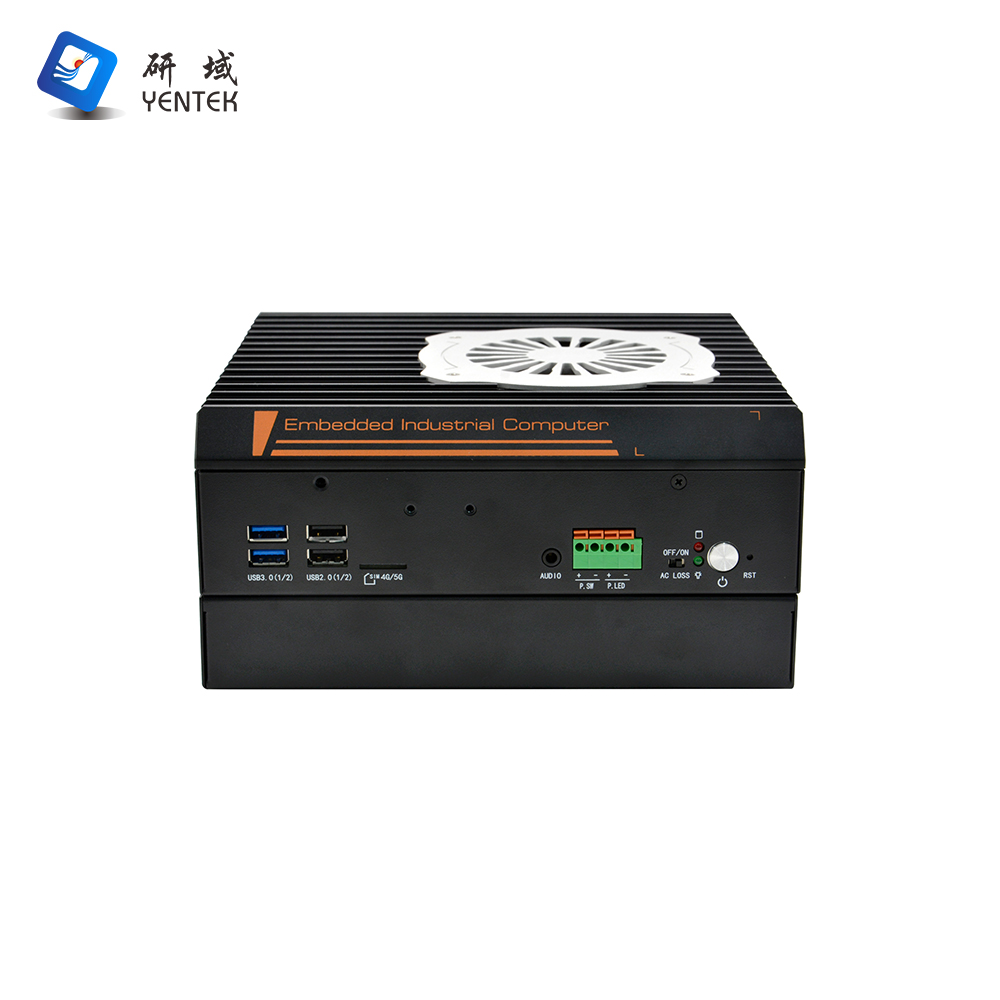

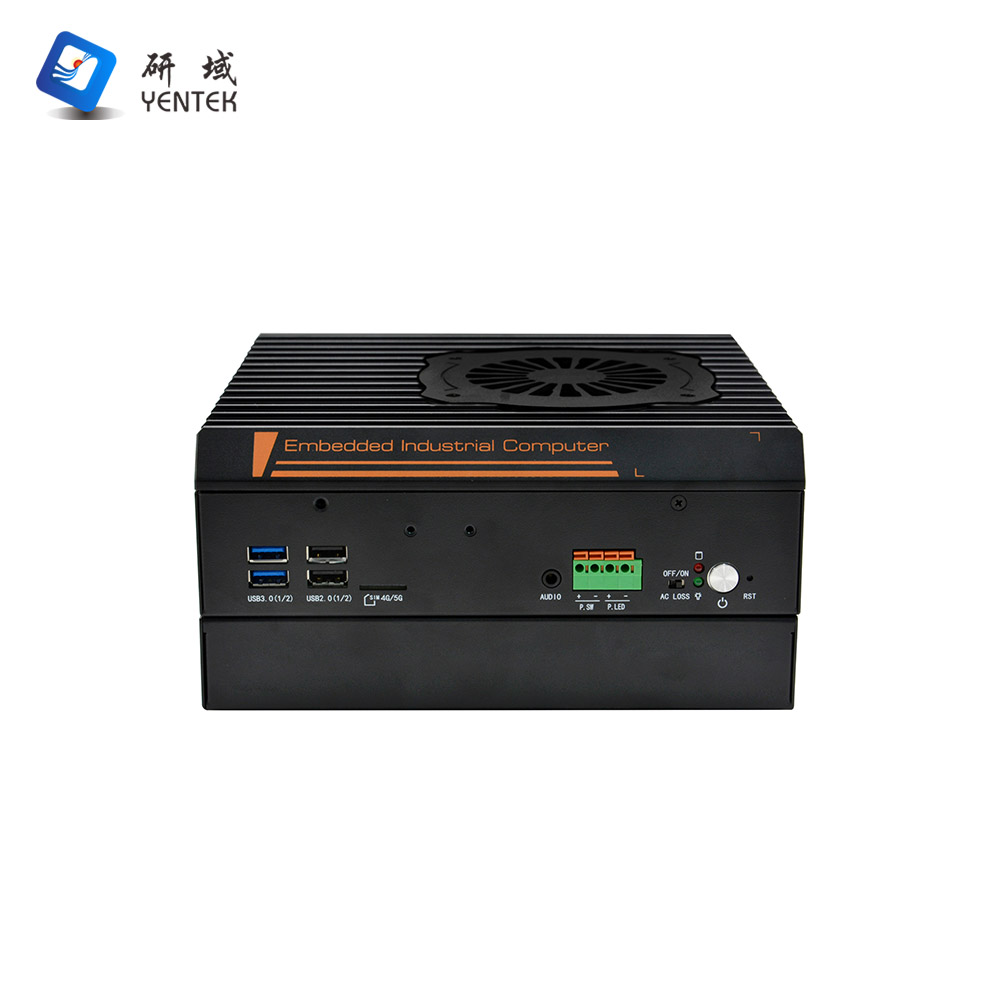

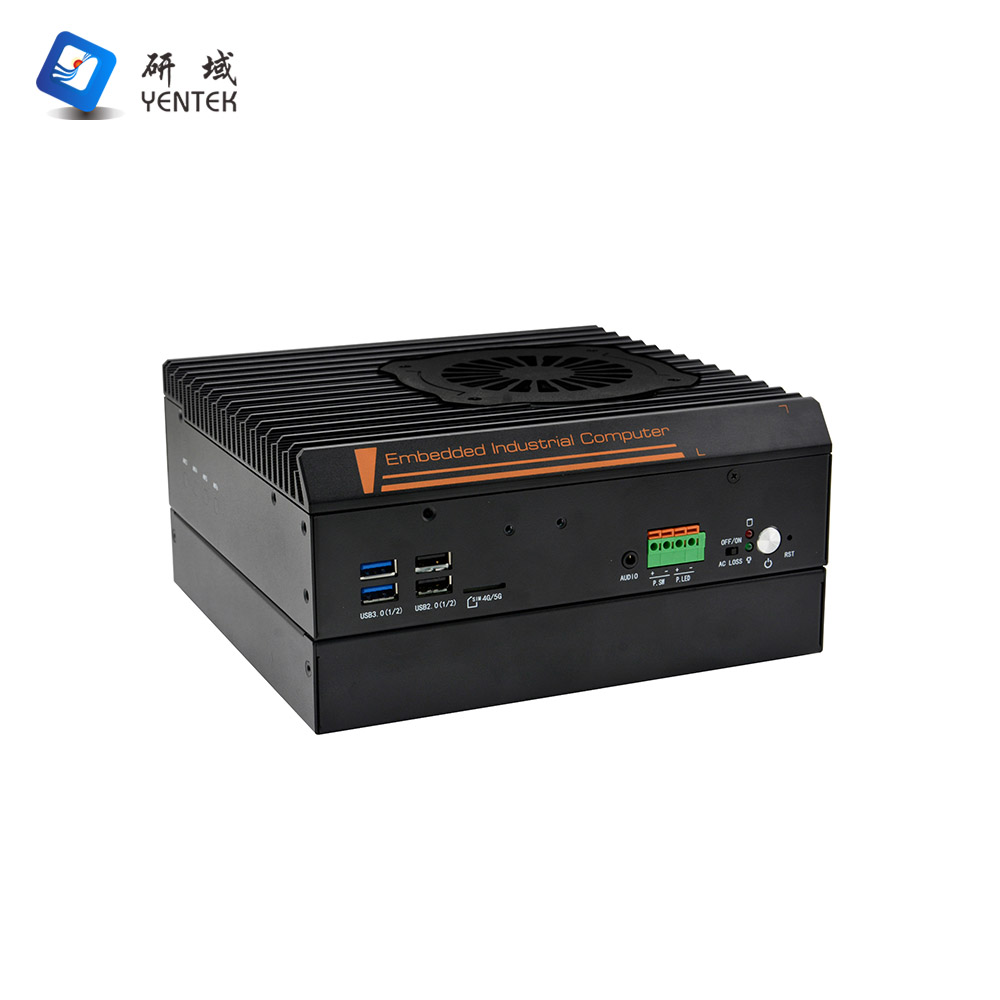

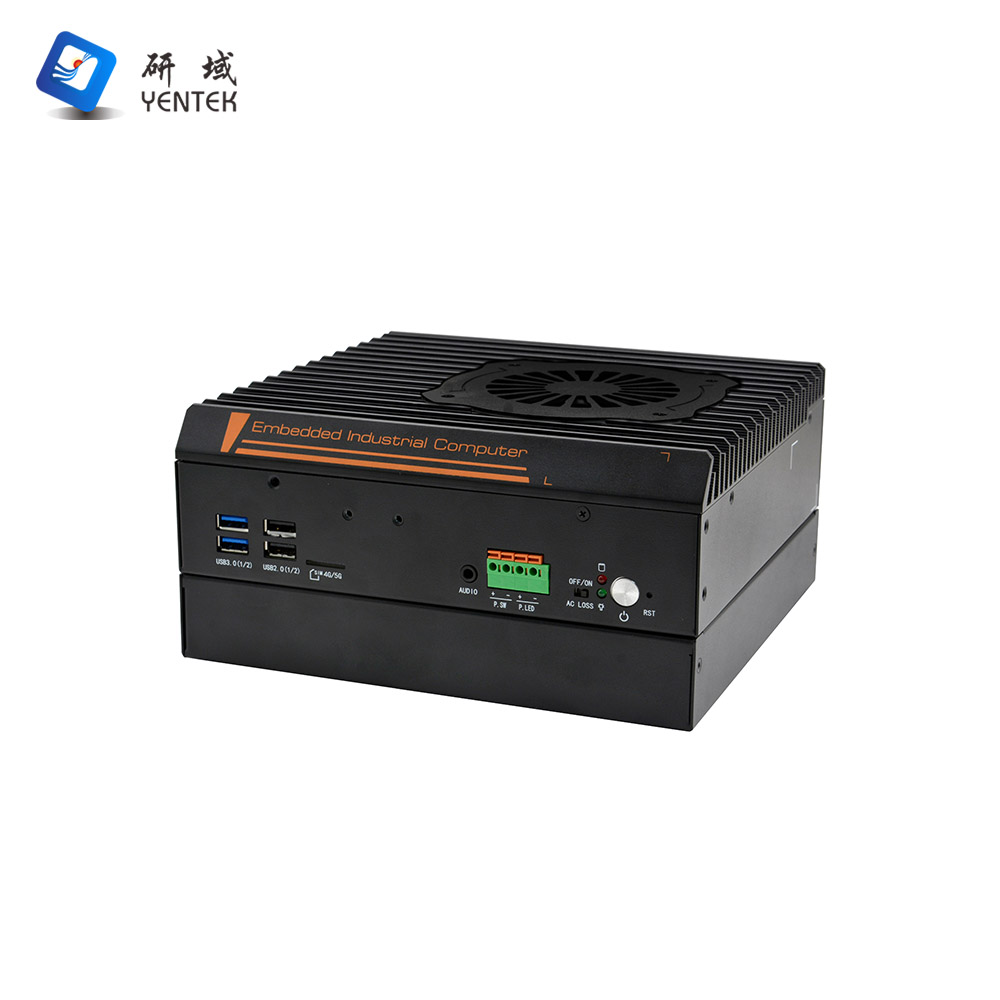

Front Panel Connectors | Switches | 1*Boot Button, 1*One-Key-Restore, 1*ACLOSS (Power On and Off DIP Switches) |
LED | 1* Power Indicator, 1* HDD Indicator |
USB | 2*USB3.0, 2*USB2.0, Built-in 1*USB2.0 |
Remote switches | 1*PWR, 1*PWRLED (Located on 1*4P Phoenix Terminal) |
Audio | 1*Audio, Line out and Mic 2-in-1 |
SIM | 1*SIM Standard Card Slot |

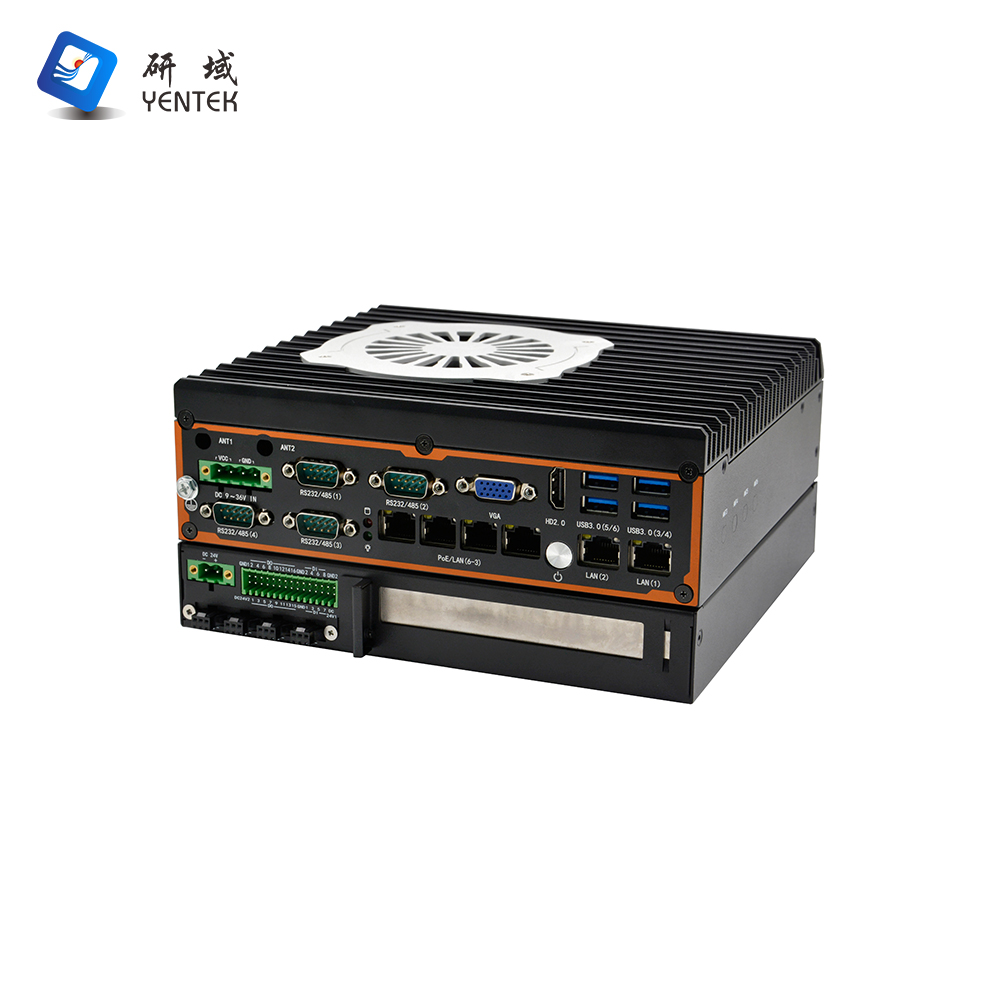

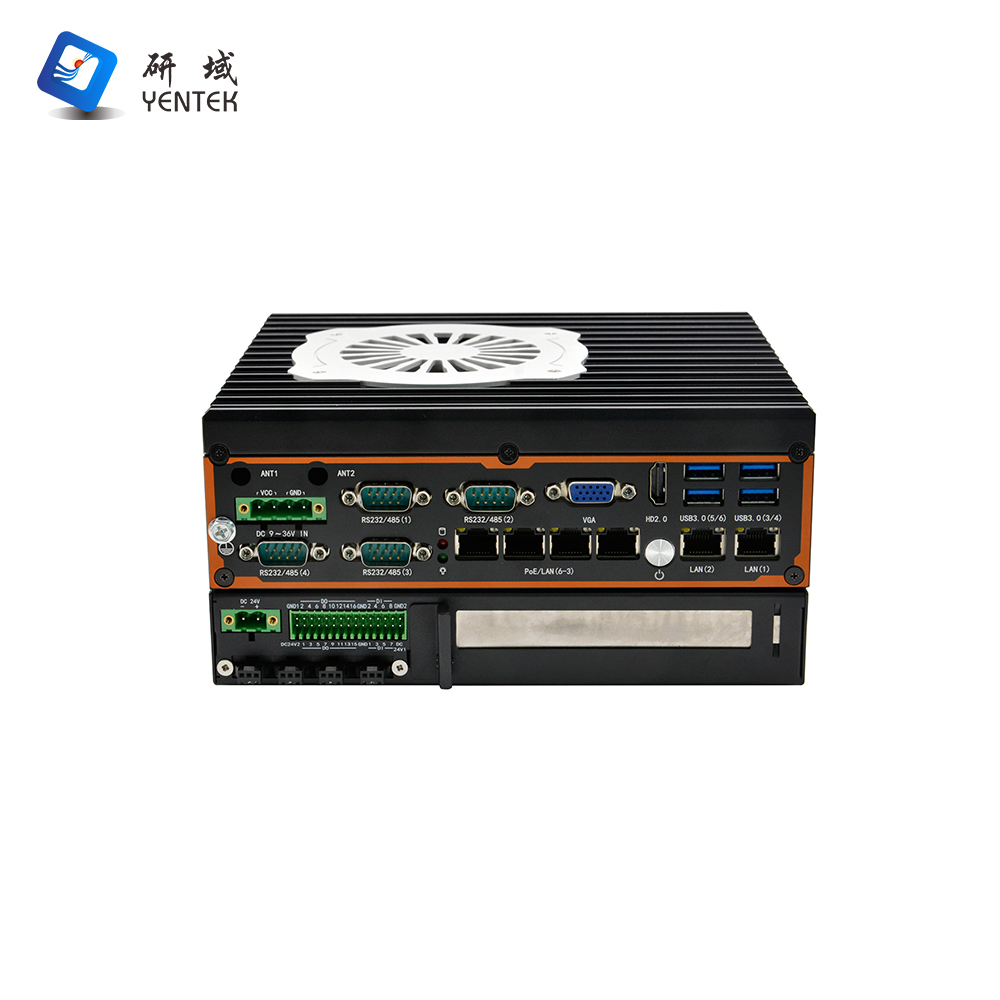

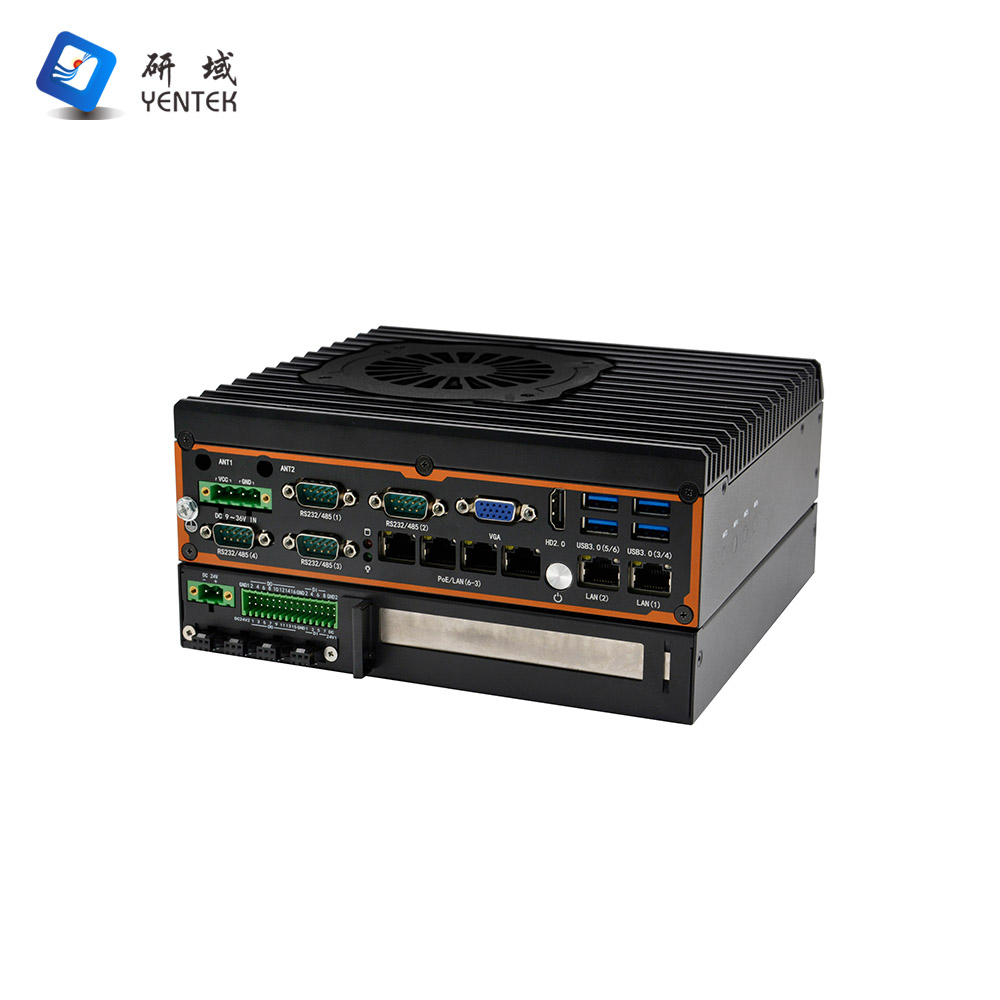

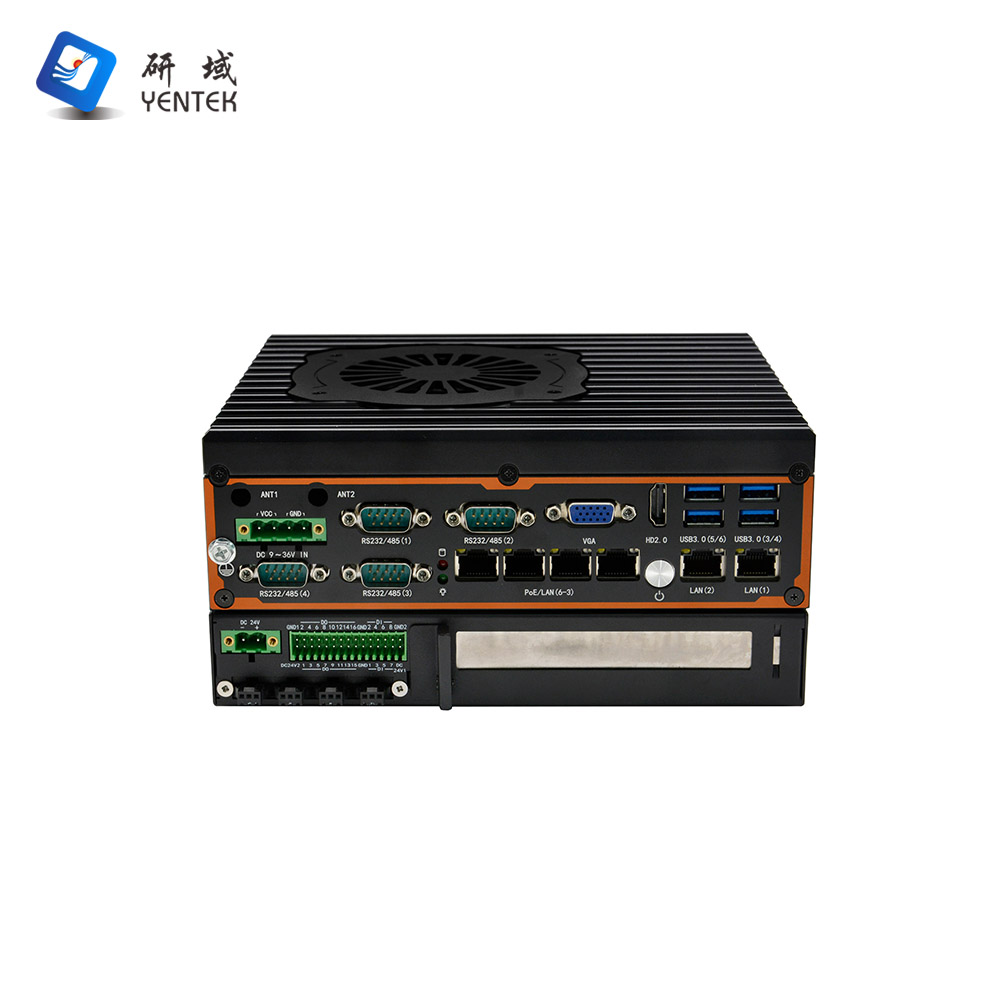

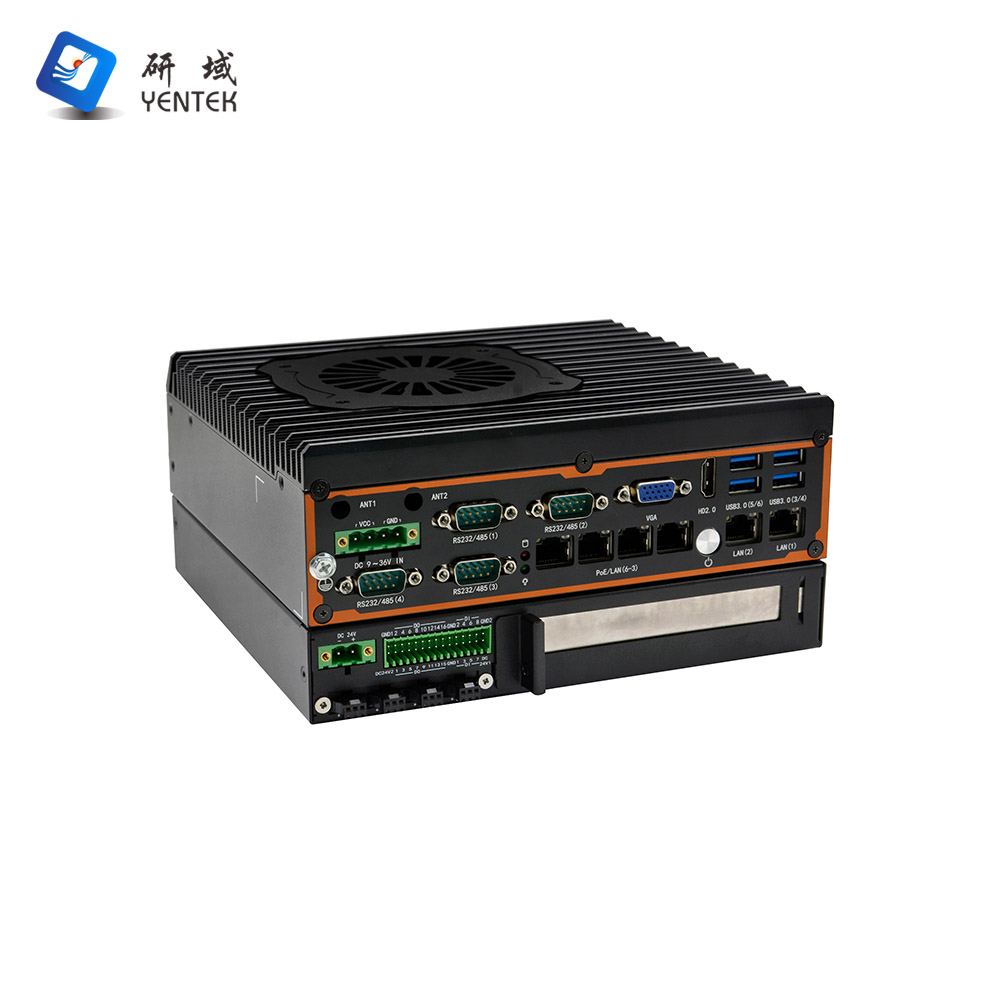

Rear Panel Interface | Display interface | 1*HDMI1.4, 1*VGA, Support Dual Display |
USB | 4*USB3.0 |
COM | 4* RS232/485 DB9 serial port |
LAN | 6*Intel I210AT Gigabit power ports, 4 of which support POE (single port 15W) |
DI | 8*DI (NPN 500mA) |
DO | 16*DO (NPN 4-20mA) |
Light source | 1-way far core light constant current light source 80-level adjustable (0-80mA) |
3-way 512-level PWM adjustable 24V light source (24V/48W) |
DC24V power input |
DIP Switch | 4 sets of 6-position dip switches, COM1-4 RS232/485 switching is achieved by dip switches + BIOS settings |
Power Interface | 1*4P(P=5.08mm) Phoenix terminal, support 9~36V wide voltage input, max load 220W |
Storage | MSATA/SSD | 1*MSATA(only supported by 3210M CPU) |
1*M.2, support Key-M, 2280. NVME PCIEx4/SATA Adaptive SSD(except 3210M,other CPU is M.2) |
SSD | 1*M.2, support Key-M, 2280, SATA SSD |
Expansion | PCIE | 1*PCIE3.0 x8 |
WiFi/4G | 1*MINIPCIE, support WiFi+BT or 4G |
5G | 1*M.2, support Key-B, 3042/3052, 5G module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type | Power Type | DC 9-36V 90W or more, max load 220W |
Environment | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
