G3280F-L6E2

Chassis

Material/Structure

Aluminium   alloy + sheet metal + fan cooling

Colour

Black +   silver

Dimensions   (L x W x H)

205 x   192.5 x 121.6 mm

Weight

3.45 kg

Installation

Desktop/Embedded

Motherboard

CPU

Integrated   Intel i5-8300H/2.30 GHz quad-core eight-thread processor, TDP 45W

System   Chip

Intel   HM370

Memory

2x SODDR4   2666MHz, supports up to 64GB

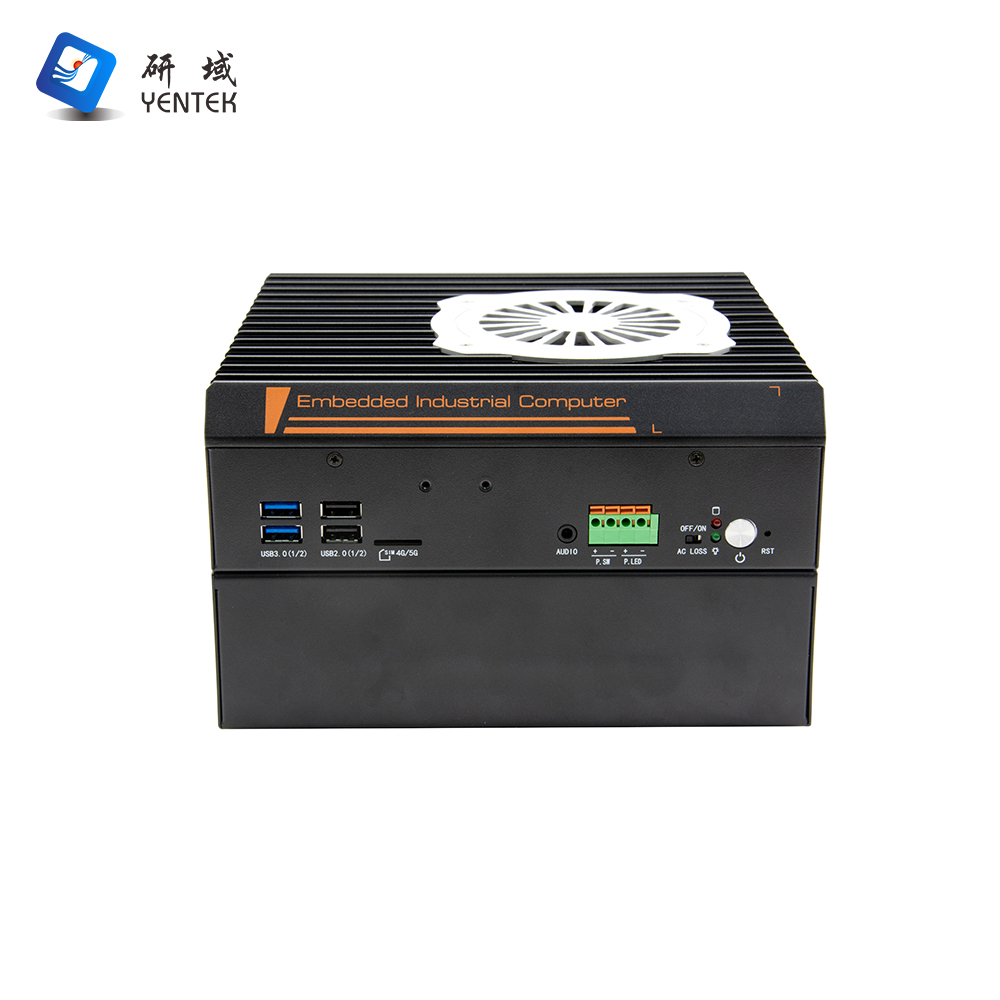

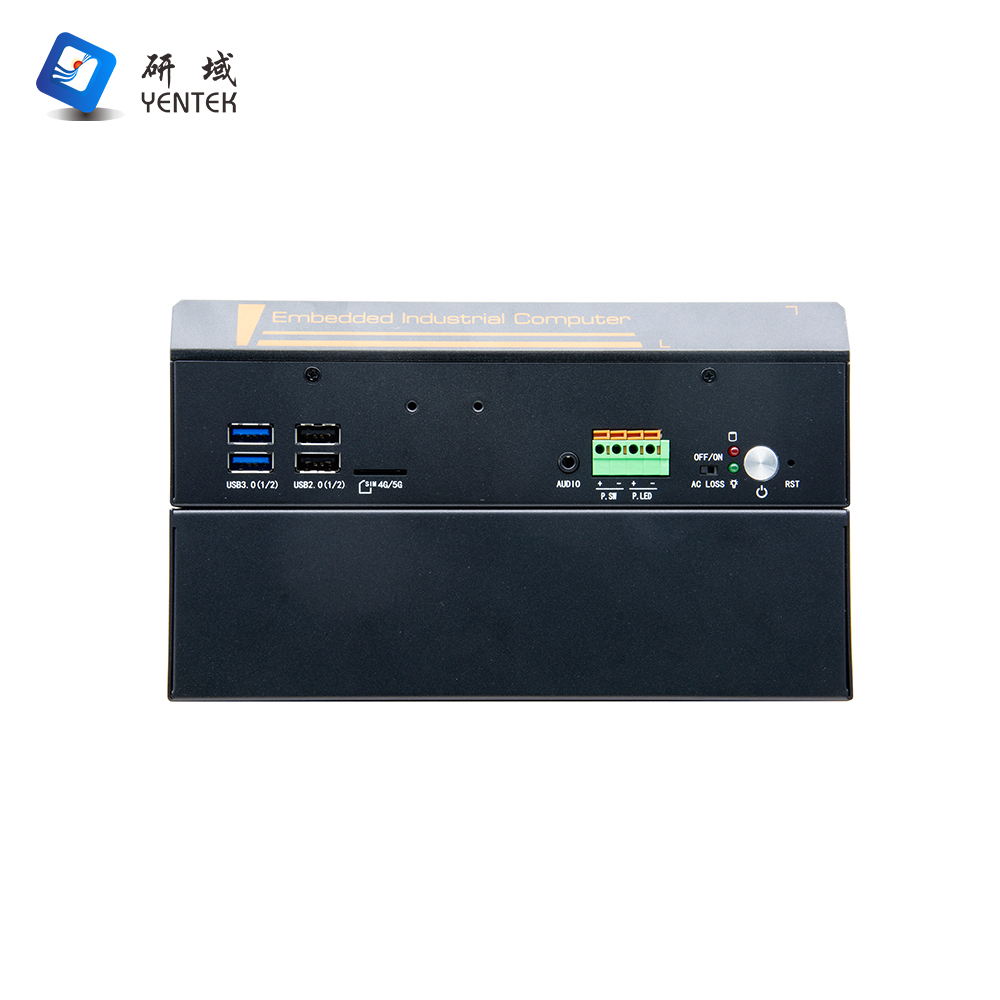

Front   panel interfaces

Switch

1x Power   button, 1x One-click restore, 1x ACLOSS (power-on boot dip switch)

LED

1x Power   indicator light, 1x Hard drive indicator light

USB

2x USB   2.0, 2x USB 3.0 (3210M no signal), built-in 1x USB 2.0 (3210M no signal)

Remote   Switch

1x Power   indicator signal, 1x Power switch signal (located on the 1x 4-pin Phoenix   connector)

Audio

1x Audio,   Line out and MIC combo

SIM

1x SIM   card slot (signal defaults to M.2 5G)

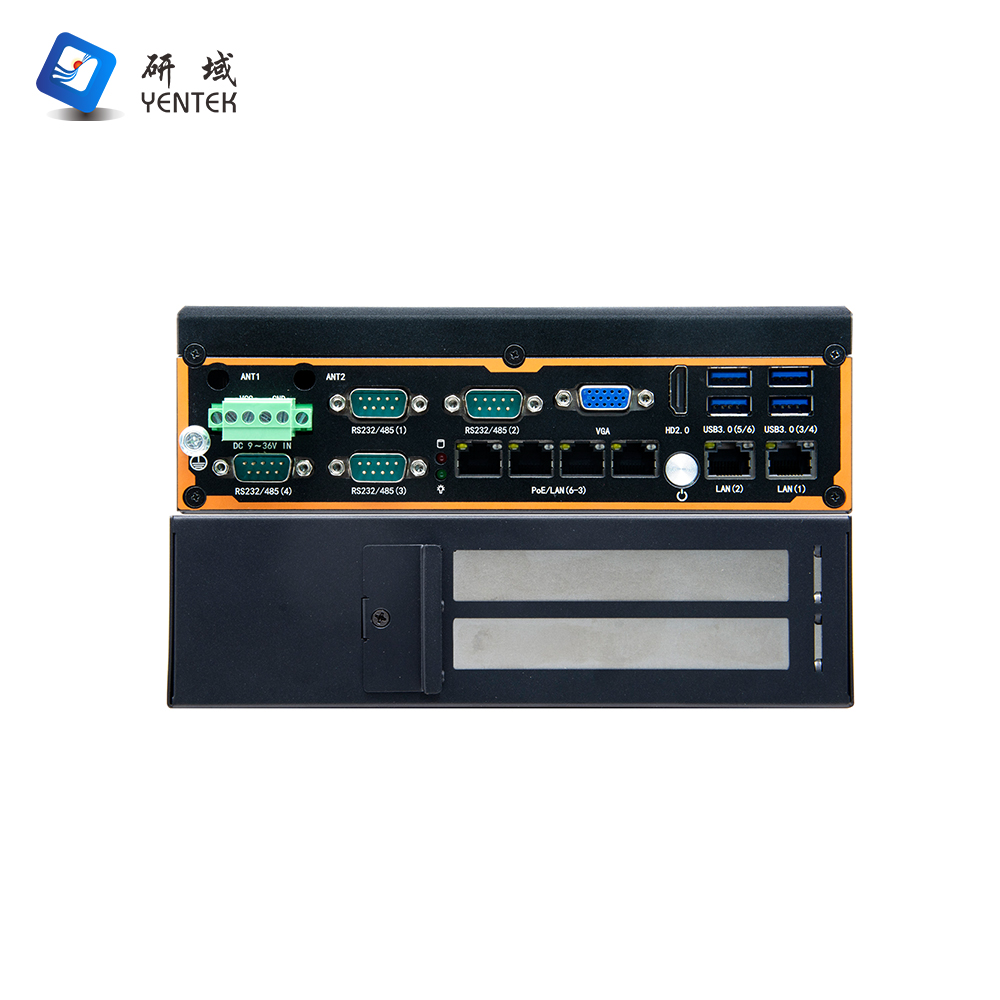

Rear   panel interfaces

Display   Interface

1x VGA,   1x HDMI 1.4 (4096x2304@30Hz), supports dual display

USB

4x USB   3.0

COM

4x RS232   DB9 serial ports, with COM3-4 supporting RS485/CAN functionality (requires   CAN module installation)

LAN

6x Intel   I210AT Gigabit Ethernet ports, with 4 supporting POE/15W per port

Dip   Switch

2 sets of   6-position DIP switches, COM3-4 RS232/485 switching via DIP switches

Power   Interface

1x4P   (P=5.08mm) Phoenix connector, supporting 9-36V wide voltage input

Storage

MSATA/SSD

1xMSATA   (only supported by 3210M)

1xM.2,   supporting Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (except 3210M, which   does not support)

SSD

1x M.2,   supports Key-M, 2280, NVMe PCIe SSD (except 3210M; other CPUs only support   M.2 SSD)

Expansion

PCIE

1x PCIe   x16 (x8 signal)

1x PCIe   x8 (x1 signal)

WiFi/4G

1x Mini   PCIe, supports WiFi+BT or 4G (only 3210M supports 4G or WiFi; other CPUs   default to WiFi)

5G

1x M.2,   supports Key-B, 3042/3052, 5G module (not supported by 3210M)

Power   supply type

Voltage   Input

DC 9V-36V   wide voltage

Power   Requirements

AC to DC   90W or above (depending on the specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5% to 95%   relative humidity, no condensation

Vibration

0.5g   rms/5-500HZ/random
