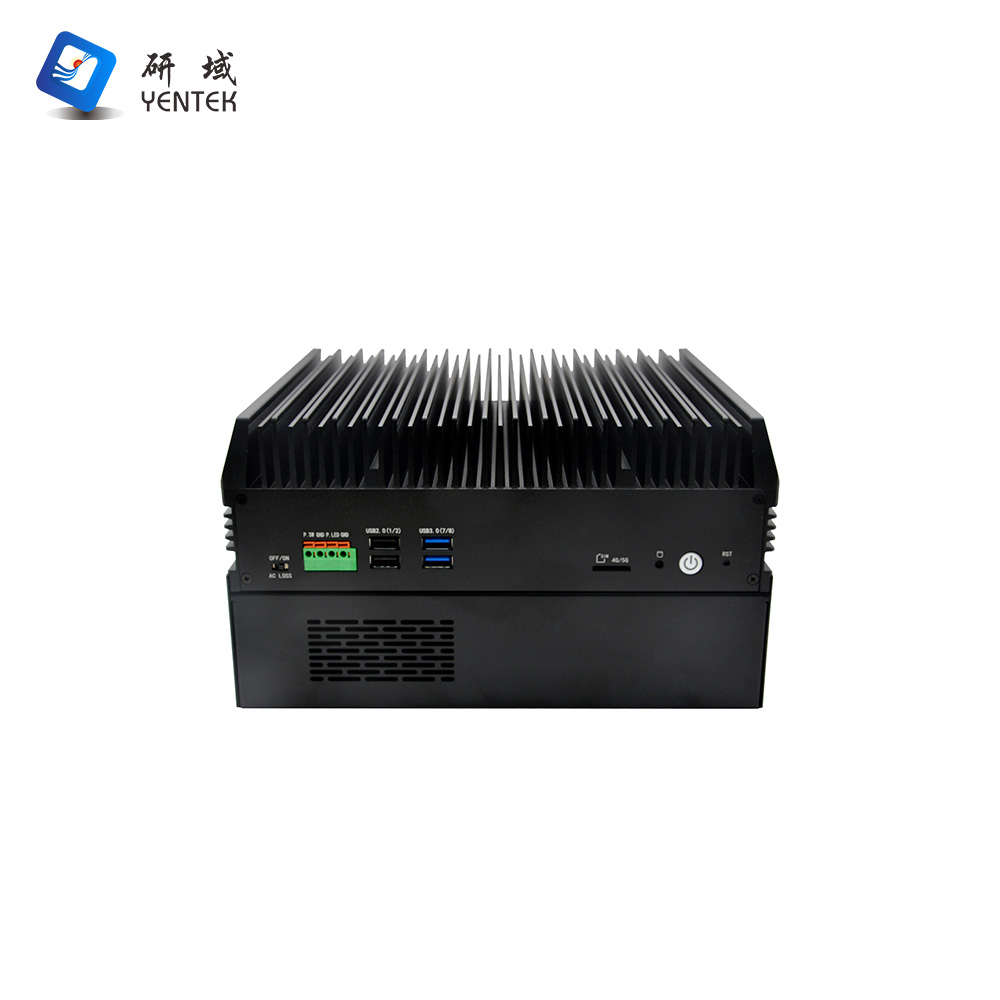

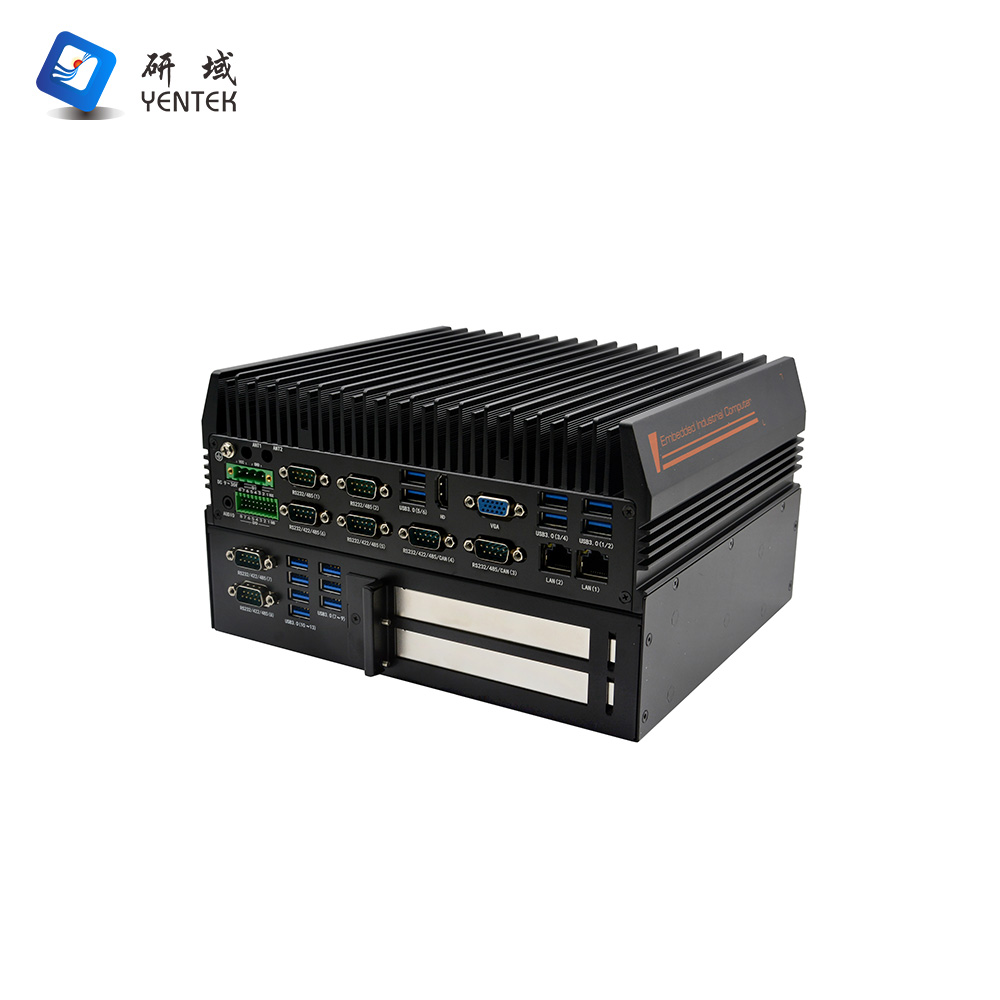

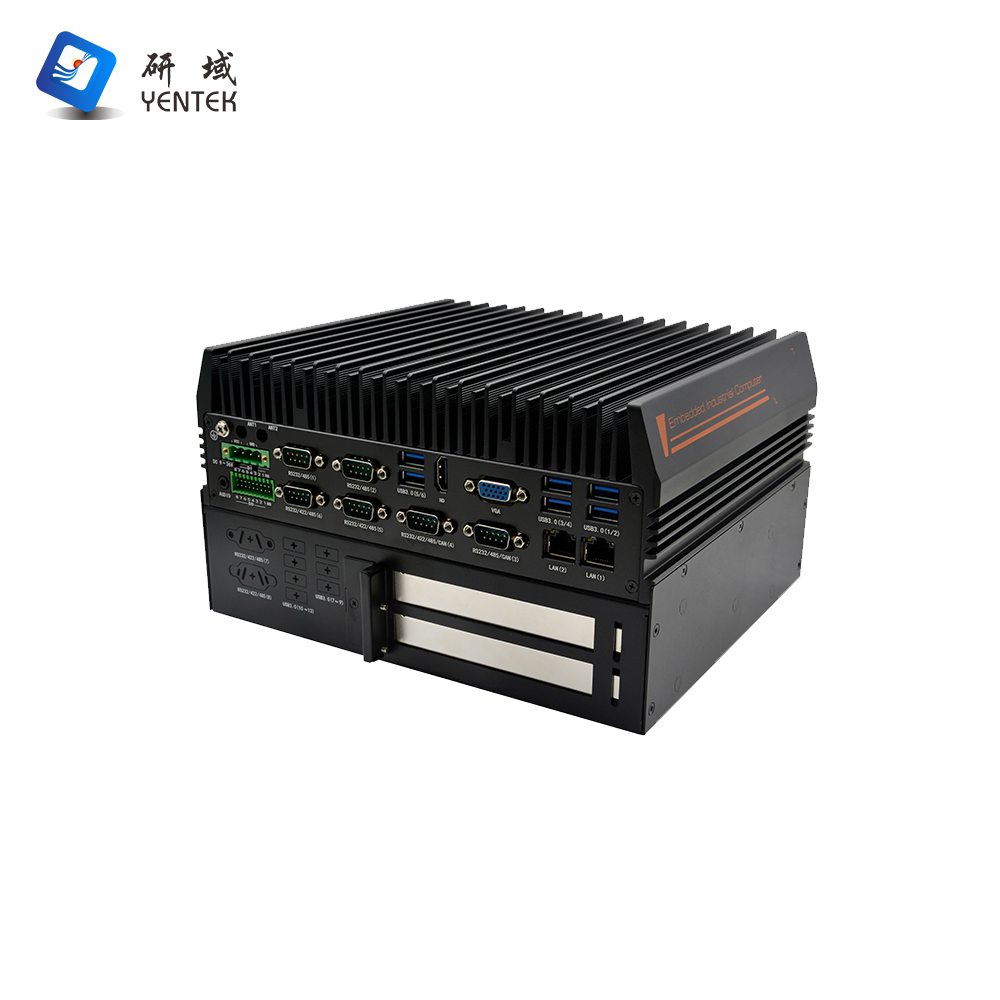

G3780S-C8E2 V3.0

Chassis

Material/Construction

Aluminum alloy

Color

Black

Dimensions

**mm

Weight

kg

Installation

Desktop/Built-in

Motherboard

CPU

Intel® LGA1151 / 8th–9th Gen Low-Power Processors (Supports only CPUs under 45W; models ending in “T” or “TE”)

System-on-Chip

Intel® Z390

Memory

2x SODDR4, supports up to 64GB

Front Panel Connectors

Power Switch

1* Power button with indicator light, 1* One-click restore, 1* ACLOSS (power-on DIP switch)

LED

1* Hard drive indicator light

USB

2* USB 3.0, 2* USB 2.0, 1* internal USB 2.0

Remote Switch

1* Power indicator signal, 1* Power switch signal (located on 1* 4-pin Phoenix connector)

SIM

1* SIM card slot (default signal: M.2 5G)

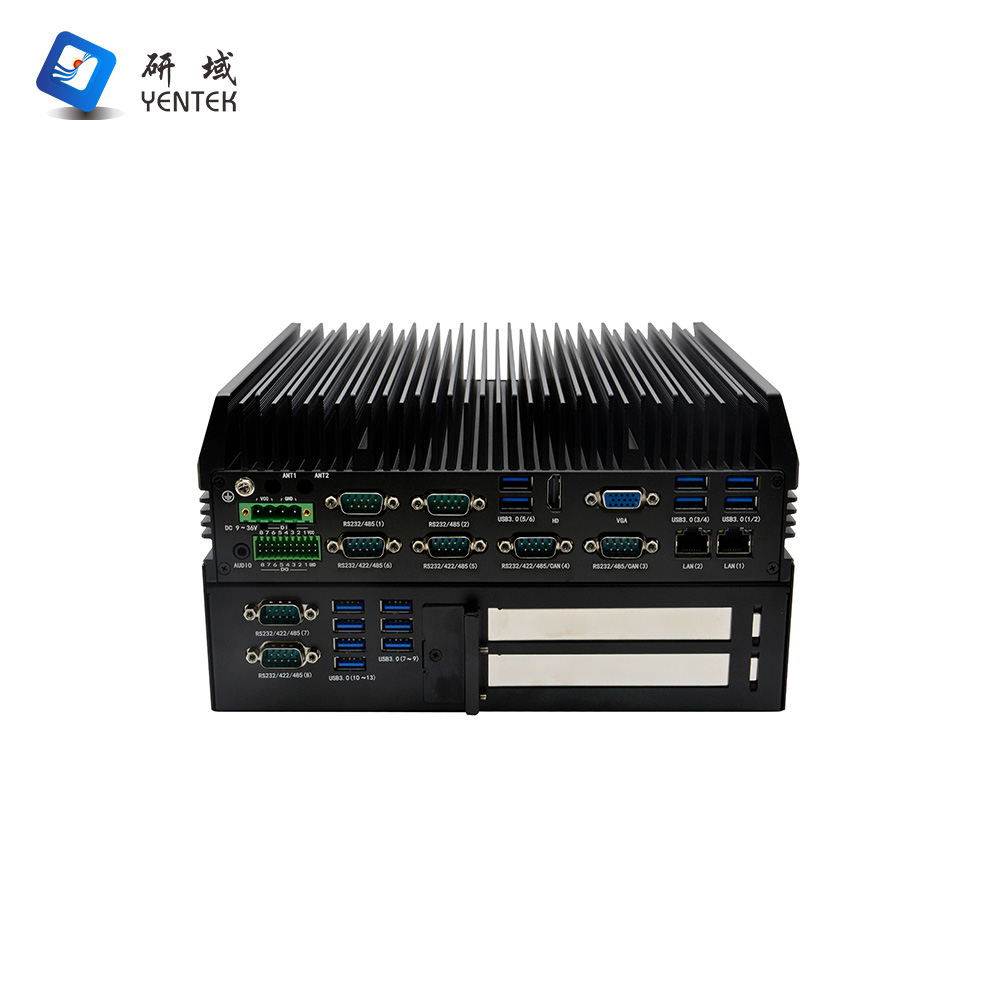

Rear Panel Connectors

Display Interface

1* VGA (1920×1200@60Hz), 1* HDMI 1.4

COM

8* RS232/485 DB9 serial ports; COM4–6 support RS232/422/485; COM3–4 support CAN functionality (requires CAN module)

LAN

2* Intel I210AT Gigabit Ethernet ports

USB

13* USB 3.0

DI/DO

8* DI, 8* DO (located on 2* 10-pin Phoenix connectors)

Audio

1* Audio, combined Line Out and Mic

DIP Switch

2 sets of 6-position DIP switches; RS232/485 switching via DIP switches + jumper caps + BIOS settings

Power Connector

1 x 4-pin (P=5.08mm) Phoenix connector, supports 9–36V DC wide-voltage input

Storage

SATA

1 x 2.5-inch HDD bay (I/O panel side)

mSATA

1 x mSATA (I/O panel side)

SSD

1 x M.2, supports Key-M, 2280, NVMe PCIe x4 SSD (motherboard side)

Expansion

PCIe

1*PCIe 3.0 x16 (x8 signal)

1*PCIe 3.0 x8 (x8 signal)

WiFi

1*Mini PCIe, supports Wi-Fi or 4G (4G/BT shares the same signal as the built-in USB 2.0; 4G/BT not supported by default)

WiFi

1*M.2, supports Key-E, 2230, Wi-Fi module

5G

1*M.2, supports Key-B, 3042/3052, 5G module

System

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Power Type

DC 9-36V wide voltage range

Power Output

AC to DC 90W or higher (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
