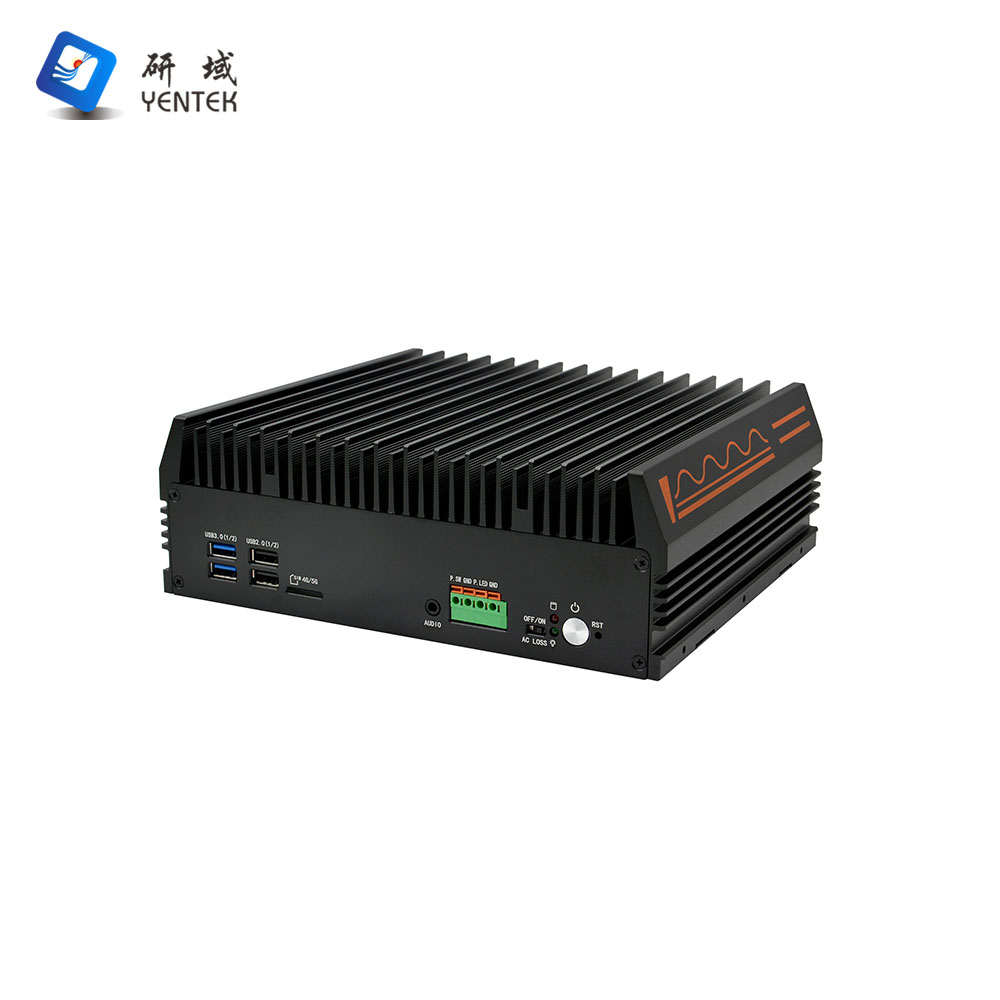

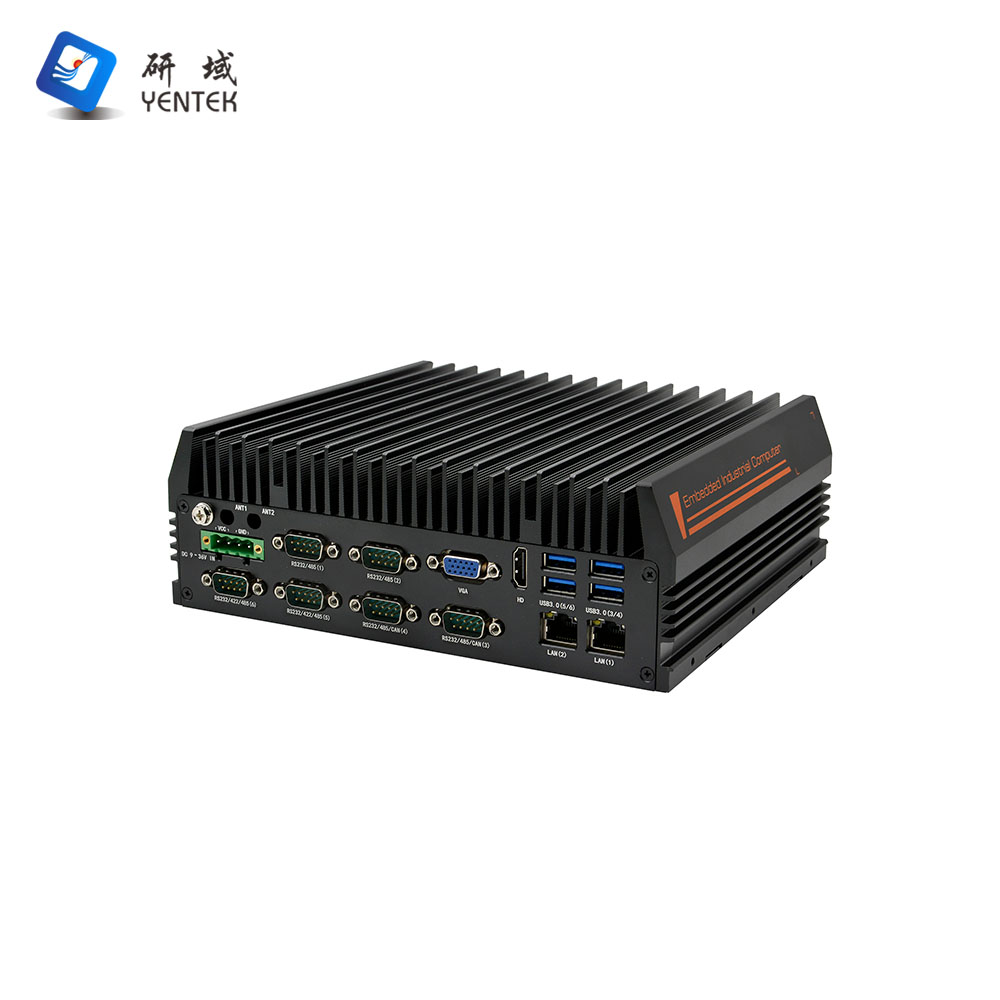

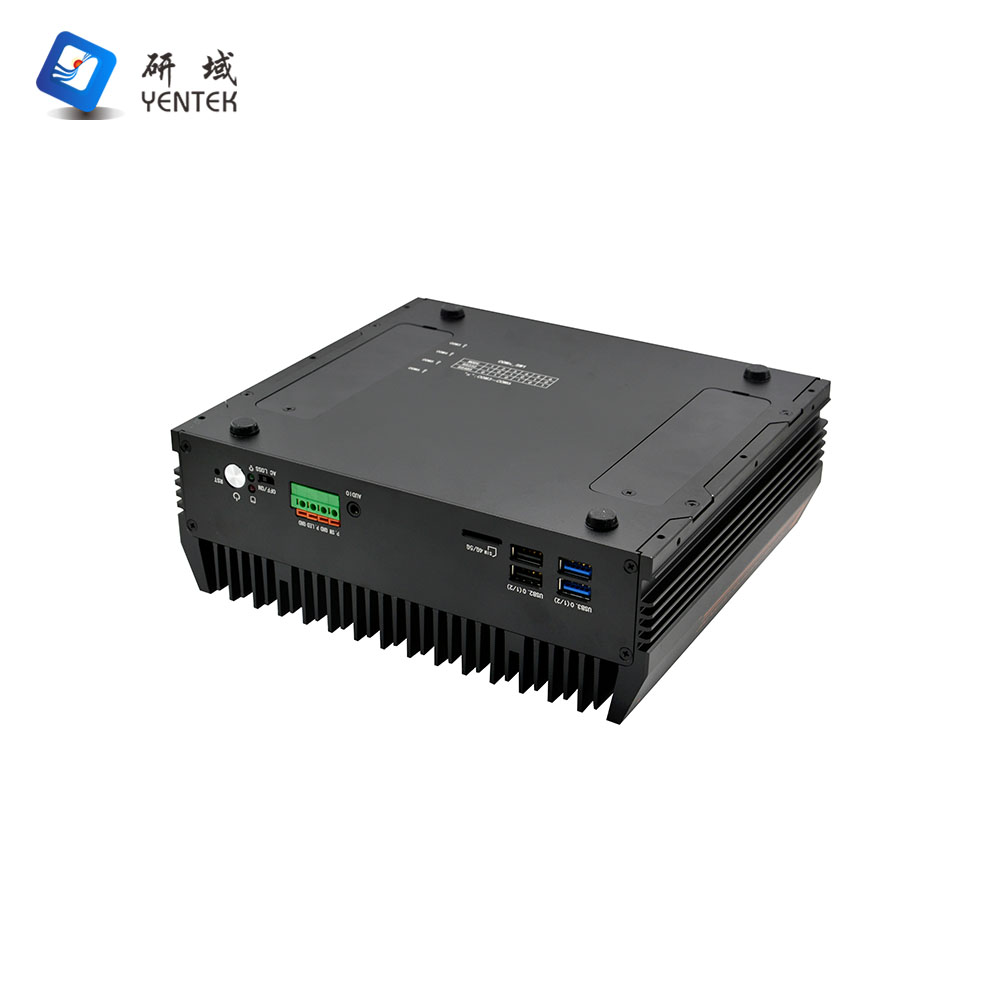

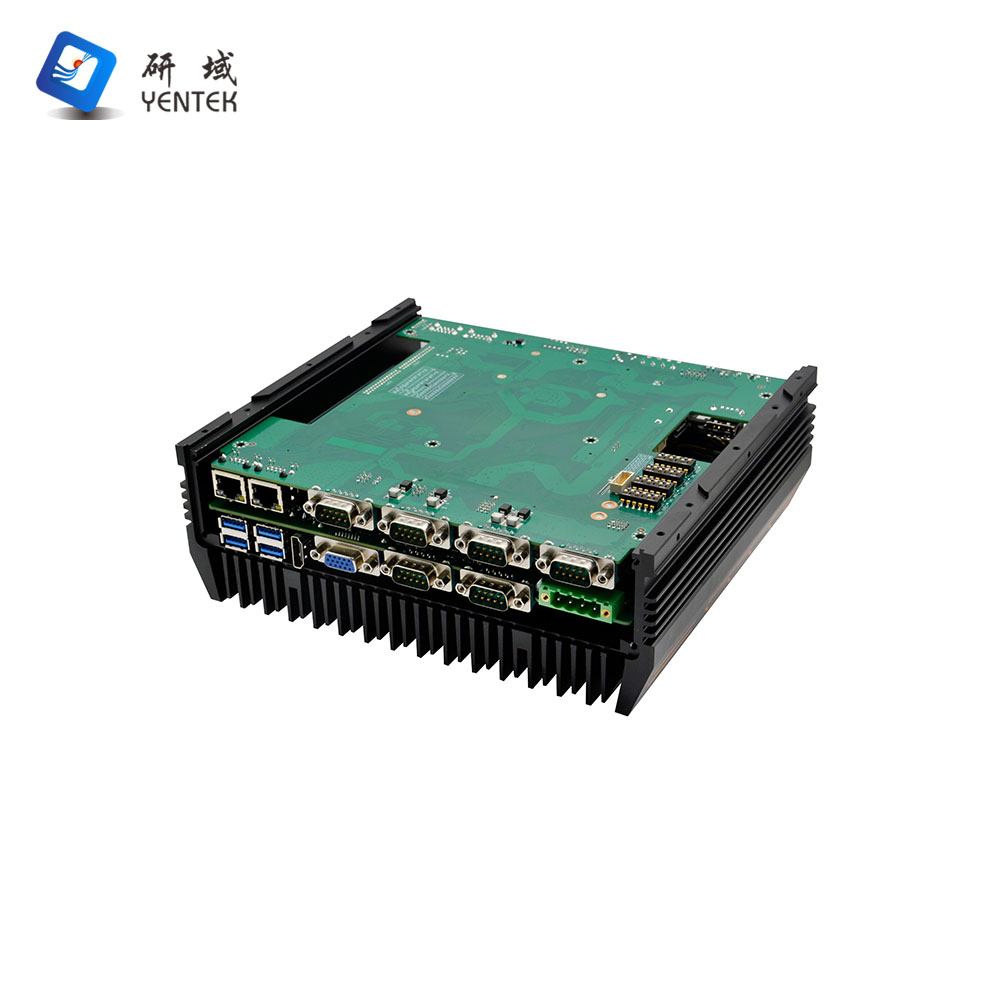

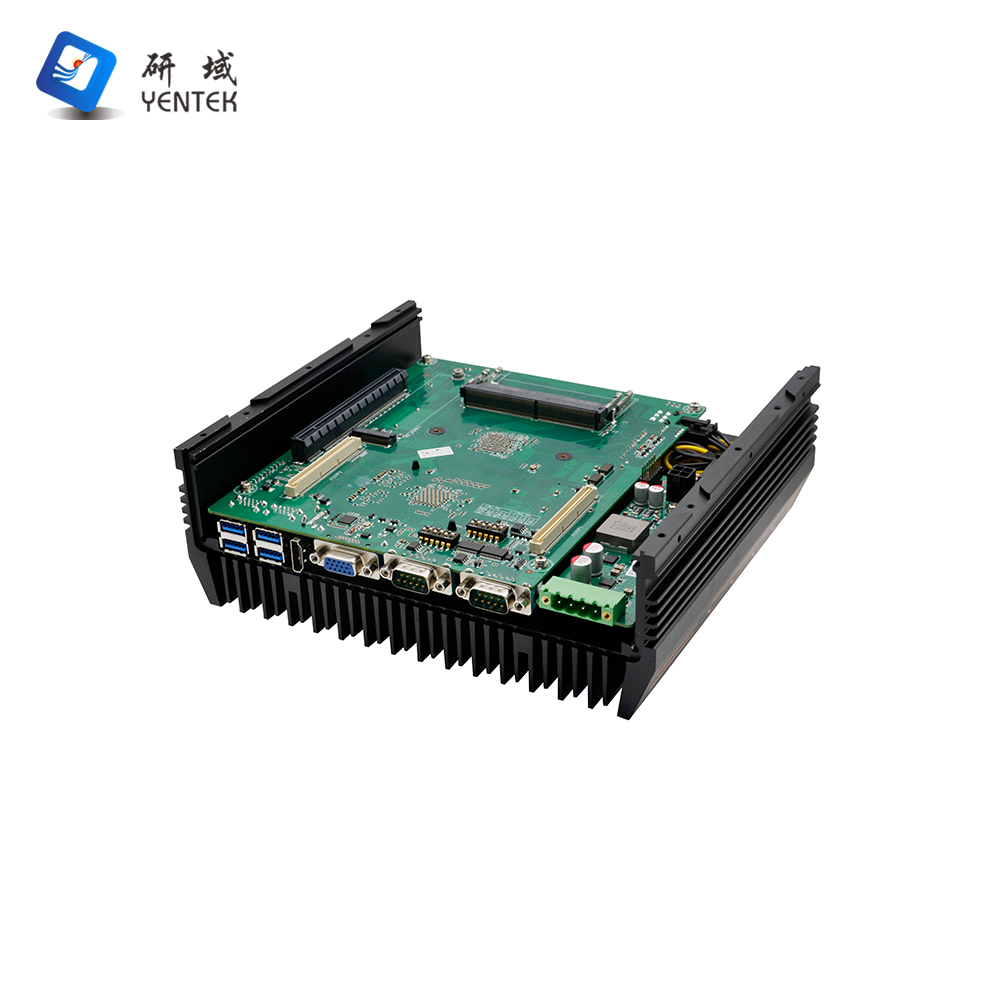

G3250S-C6 V3.0

Chassis

Material/Construction

Aluminum alloy + sheet metal

Color

Black

Dimensions (L x W x H)

219 x 192.6 x 75 mm

Weight (Net Weight)

3.1 kg

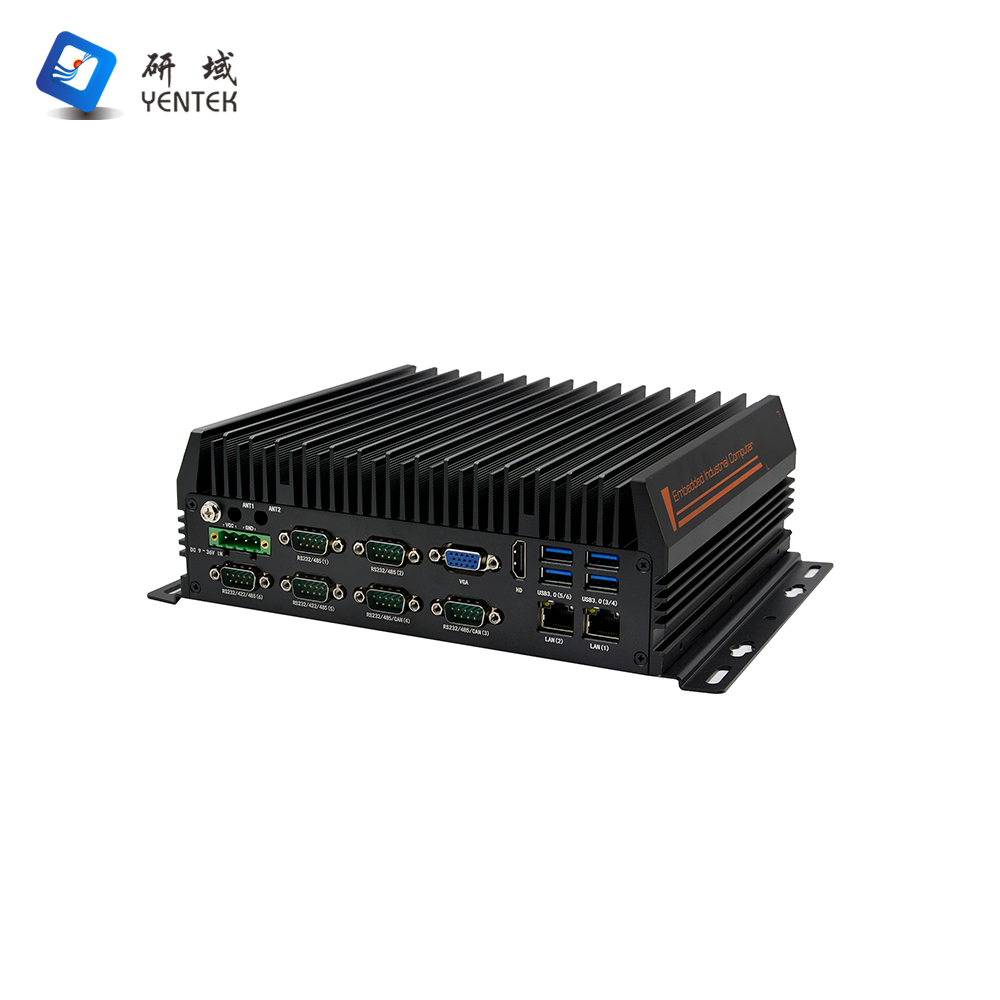

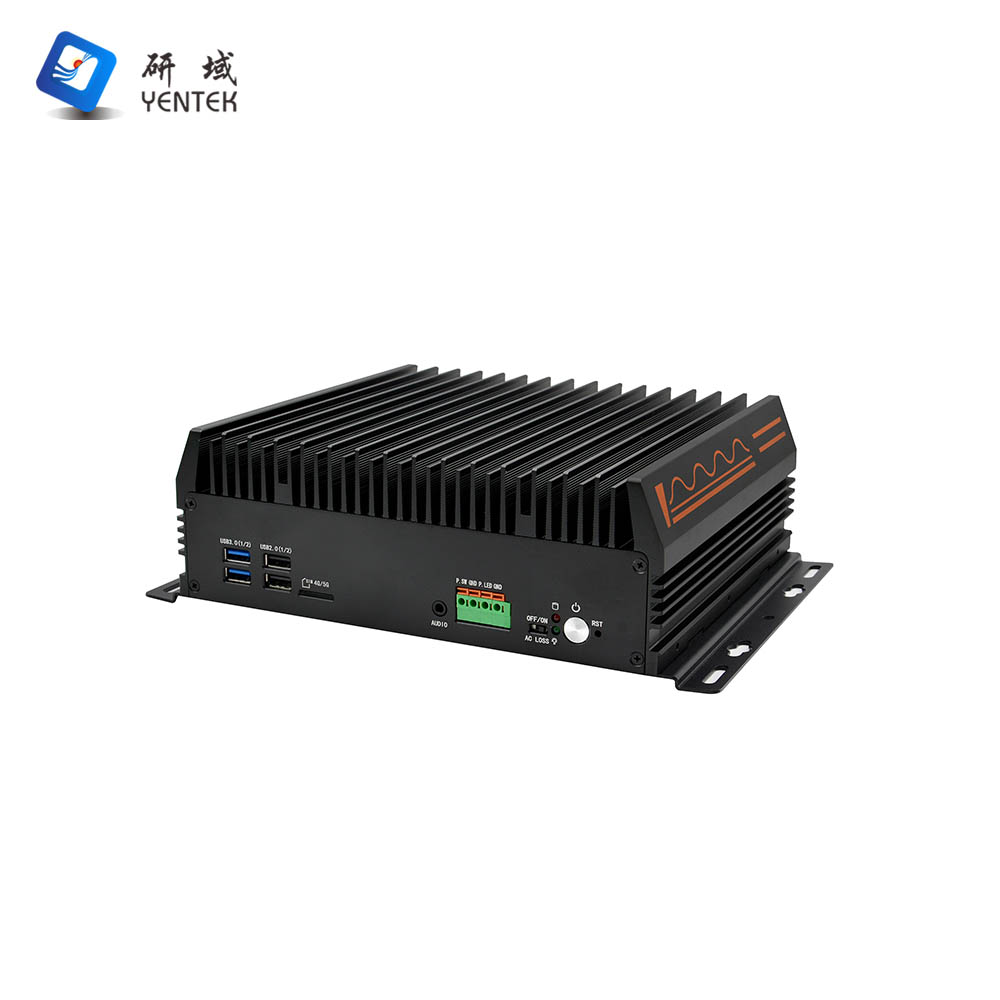

Installation

Desktop/Wall-mount

Motherboard

CPU

Integrated Intel i5-3210M/2.4 GHz dual-core, quad-thread processor, TDP 35W

System-on-Chip

SOC

Memory

2 x SODDR3, supports up to 16 GB

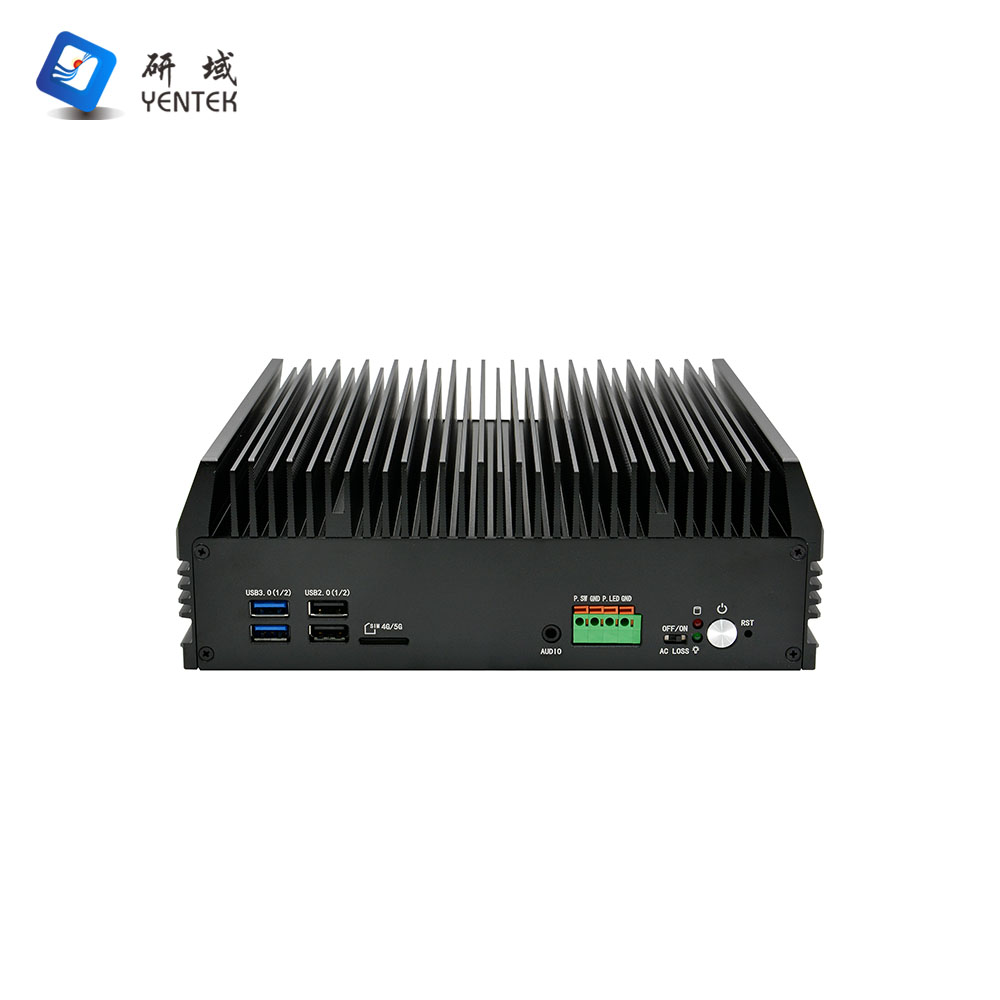

Front Panel Connectors

Power Button

1 x Power button, 1 x One-click restore, 1 x ACLOSS (power-on DIP switch)

LED

1 x Power indicator, 1 x Hard drive indicator

USB

2 x USB 3.0, 2 x USB 2.0, 1 x Internal USB 2.0

Remote Switch

1 x Power-on signal, 1 x Power indicator signal (located on 1 x 4-pin Phoenix connector)

Audio

1*Audio, combined Line Out and Mic

SIM

1*Standard SIM card slot

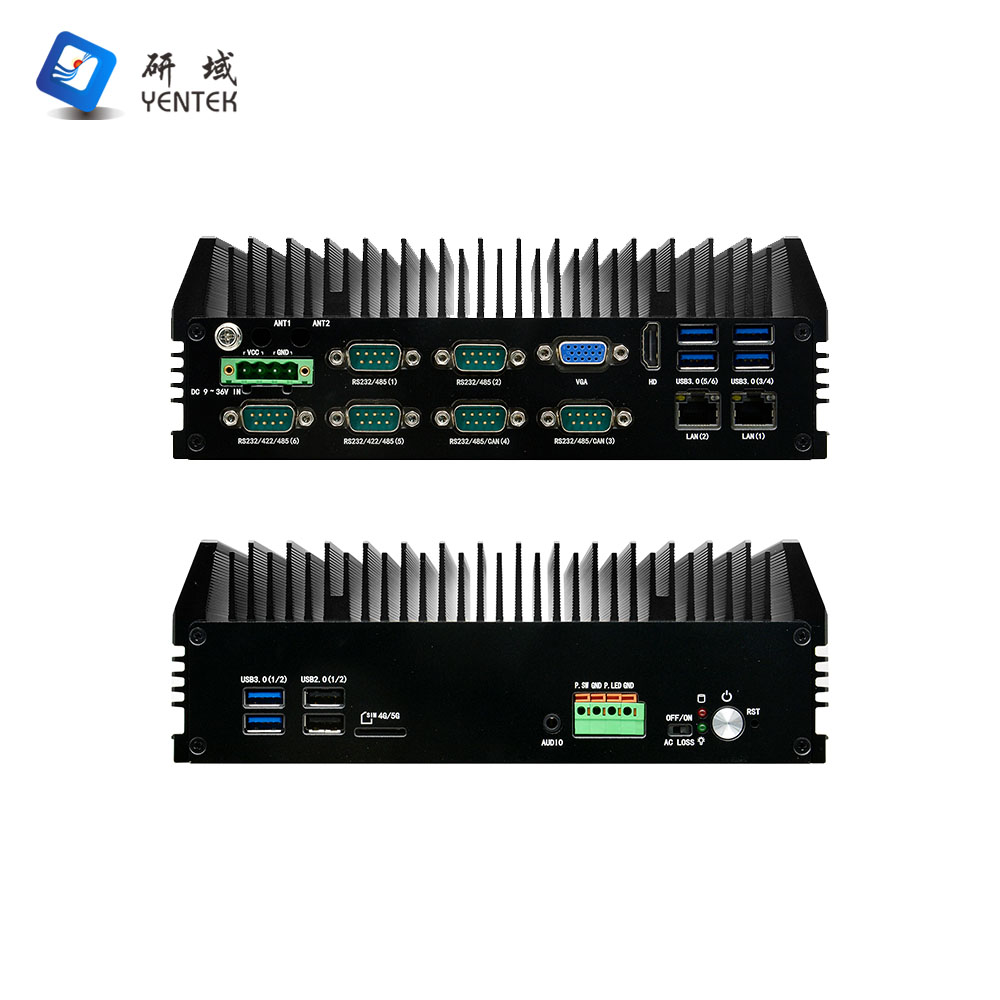

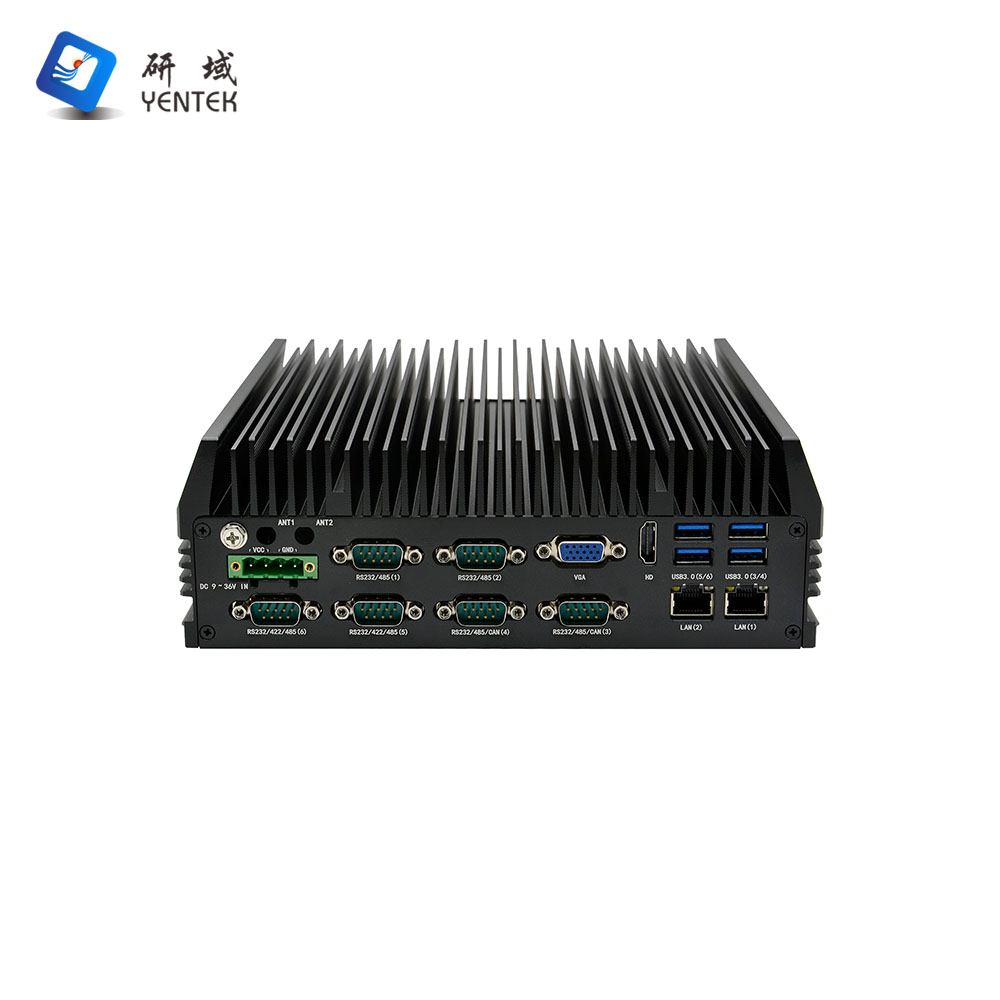

Rear Panel Connectors

Display Interface

1*HDMI 1.4 (3840×2160@60Hz), 1*VGA, supports dual display

USB

4*USB 3.0

COM

6*RS232/485 DB9 serial ports, COM5–6 support RS422, COM3–4 support CAN functionality (requires CAN module)

LAN

2* Intel I210 Gigabit Ethernet ports

Power Connector

1* 4-pin (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input

Storage

SATA

1* 2.5-inch hard drive bay

mSATA

1* mSATA (3210M only)

SSD

1* M.2, supports Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (Not supported by 3210M)

Expansion

Wi-Fi/4G

1 x Mini PCIe, supports Wi-Fi + Bluetooth or 4G (4G and Bluetooth are not supported by default)

Wi-Fi

1 x M.2, supports Key-E, 2230, Wi-Fi 6 + Bluetooth module

5G

1 x M.2, supports Key-B, 3042/3052, 5G module

System Compatibility

OS

Kylin/Linux/Windows 10/11

Power Supply Type

Power Type

DC 9–36V wide voltage range

Power Output

AC to DC 90W or higher (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
