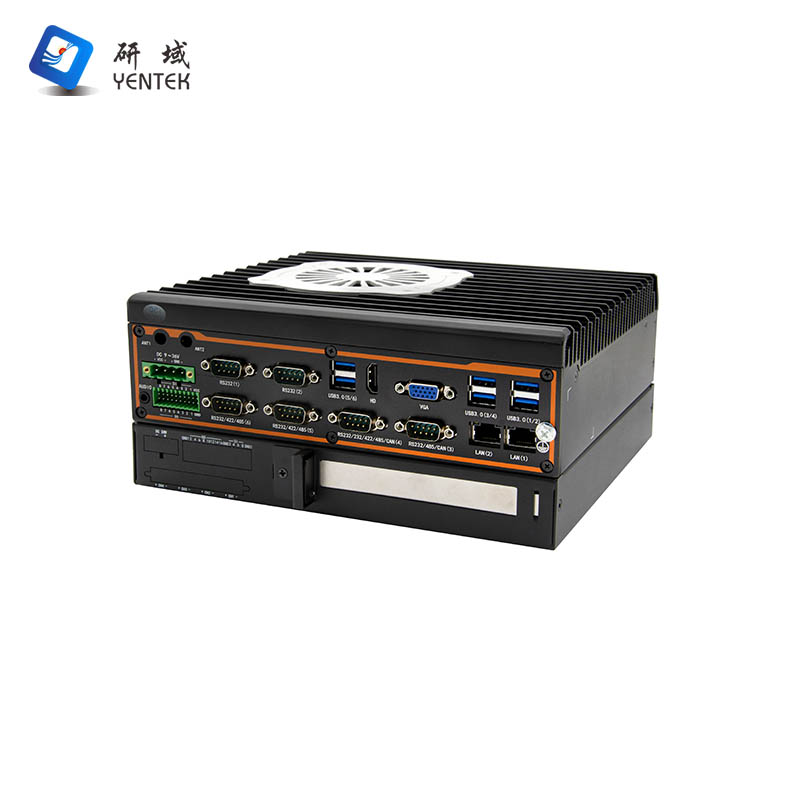

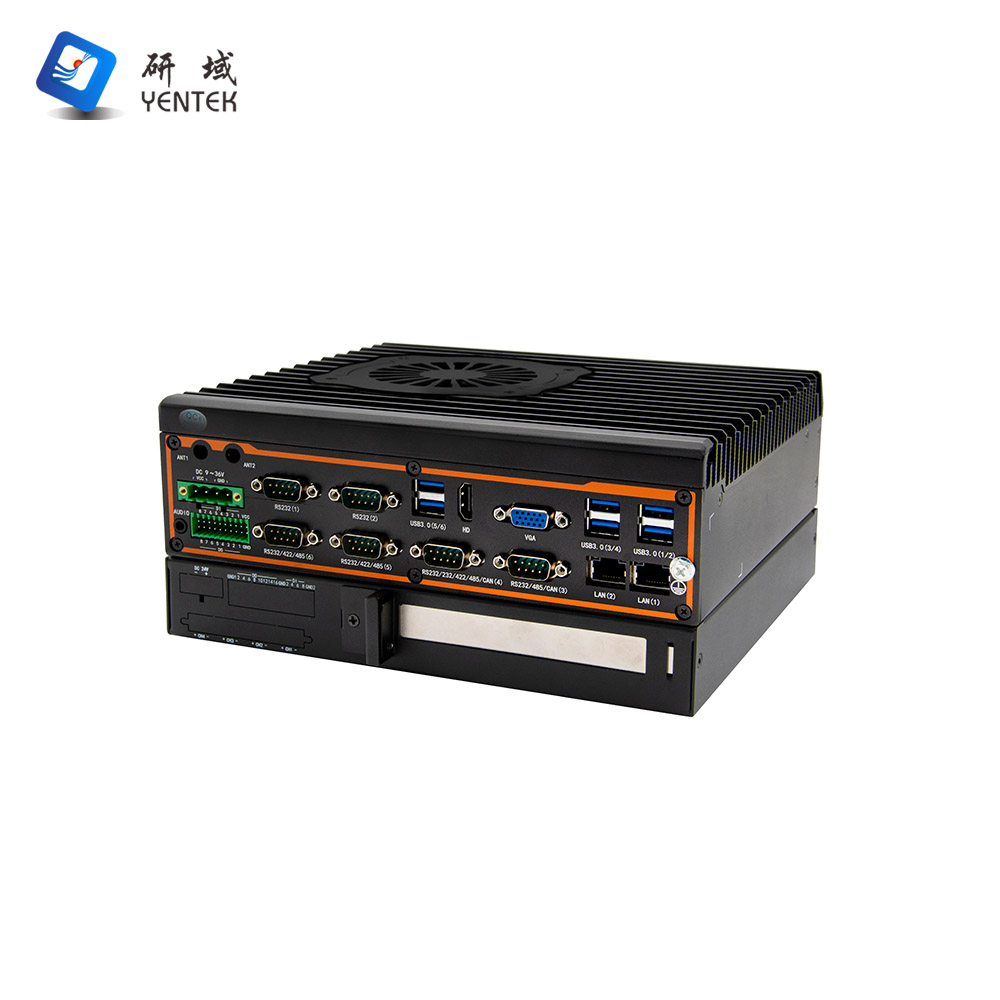

G3760F-C6E1 V2.0

Case

Material/Construction

Aluminium alloy + sheet metal construction; fan-cooled

Colour

Black

Dimensions

229 × 209   × 101.7 mm

Weight

3.6 kg

Installation

Desktop/Built-in/DIN rail (35 mm)

Motherboard

CPU

Intel® LGA1700 / 12th–14th Gen processors

System-on-Chip

Intel® H770

Memory

2 x SODDR4, supports up to 64GB

Front panel

ports

Power Switch

1 x Power button with indicator light, 1 x One-touch reset, 1 x ACLOSS (power-on jumper   switch)

LED

1 x Hard   drive indicator light

USB

2 x USB   3.0, 2 x USB 2.0, 1 x internal USB 2.0

Remote Switch

1 x Power   switch, 1 x Power indicator light (located on 1 x 4-pin Phoenix connector)

SIM

1 x SIM   card slot (default signal: M.2 5G)

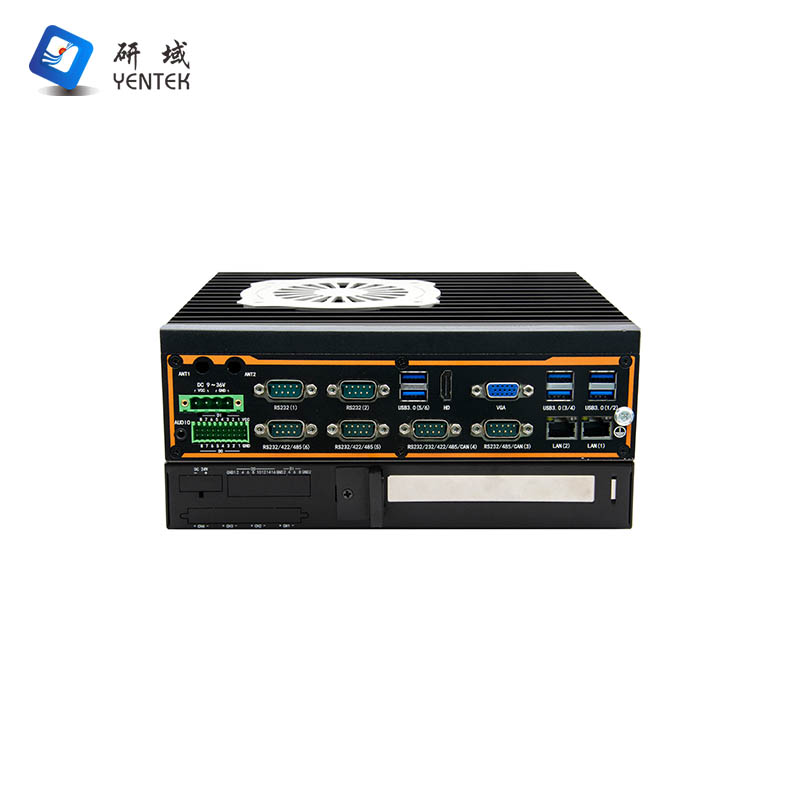

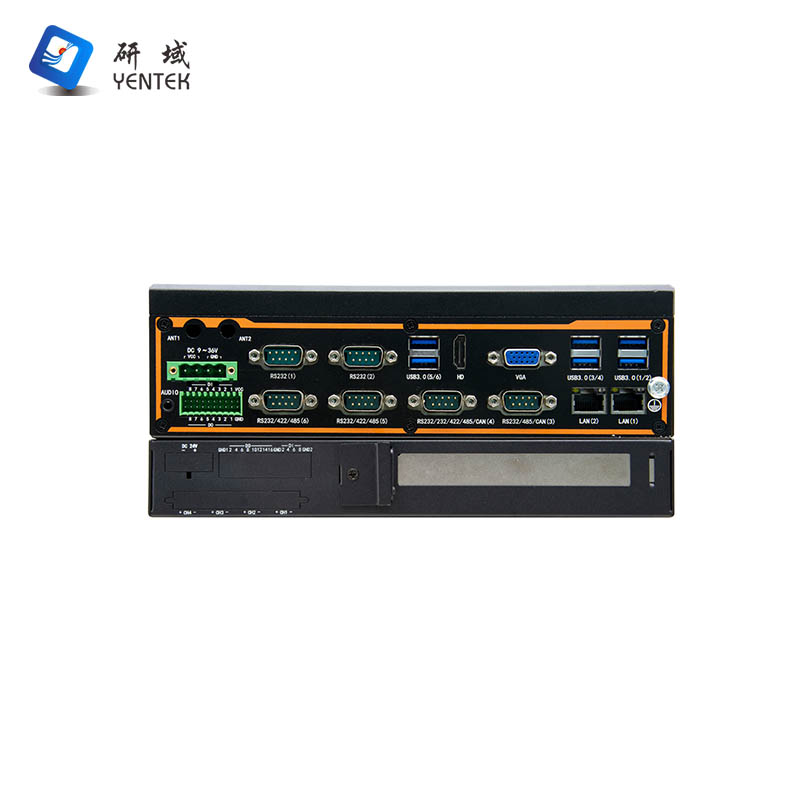

Rear panel

ports

Display Interface

1 x VGA   (1920×1200@60Hz), 1 x HDMI 1.4

COM

6 x RS232   DB9 serial ports; COM3–6 support RS232/485, COM4–6 support RS232/422/485,   COM3–4 support CAN functionality (Requires CAN module to be installed)

LAN

2 x Intel   I210AT Gigabit Ethernet ports

USB

6 x USB   3.0

DI/DO

8 x DI, 8   x DO (PNP, located on 2 x 10-pin Phoenix connectors)

Audio

1 x   Audio, combined Line Out and Mic

DIP Switch

2 sets of   6-position DIP switches; RS232/485 switching via DIP switches + jumper caps +   BIOS settings

Power Connector

1 x 4-pin   (P=5.08mm) Phoenix connector, supports 9–36V DC wide-voltage input

Storage

SATA

1 x   2.5-inch hard drive bay

mSATA

1 x mSATA

SSD

1 x M.2,   supports Key-M, 2280, NVMe PCIe x4 SSD

Expansion

PCIe

1 x PCIe   3.0 x16 (x8 signal) 1 x PCIe 3.0 x16 (Supports half-height graphics cards   only)

WiFi/4G

1 x Mini   PCIe, supports Wi-Fi or 4G (4G shares the same signal as the built-in USB   2.0; 4G is not supported by default)

Wi-Fi

1 x M.2,   supports Key-E, 2230, Wi-Fi module

5G

1 x M.2,   supports Key-B, 3042/3052, 5G modules

System

compatibility

Microsoft

Windows   10

Linux

Linux

Power supply

type

Power Supply Type

External   power adapter

Input   Voltage

DC 9–36 V   wide voltage range, maximum load 220 W

Environment

Operating

Temperature

–10 °C to 50 °C

Storage

Temperature

–20 °C to 70 °C

Relative   Humidity

5%–95%   relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

G3760F-C6E1   V2.0(G250)

LGA1151

6~9th

2*SODDR4

G250

Q250

G370-C4/G370-PW/G250-E1

2.5+MSATA+M.2(NVME/SATA)

X16

8/8

2*I210

6

8

3

9-36V

2

G3760F-C6E1   V2.0(G670)

LGA1700

12~14th

2*SODDR4

G670

H770

G370-C4/G370-PW/G250-E1

2.5+MSATA+M.2(NVME/SATA)

X16

8/8

2*I210

6

8

3

9-36V
