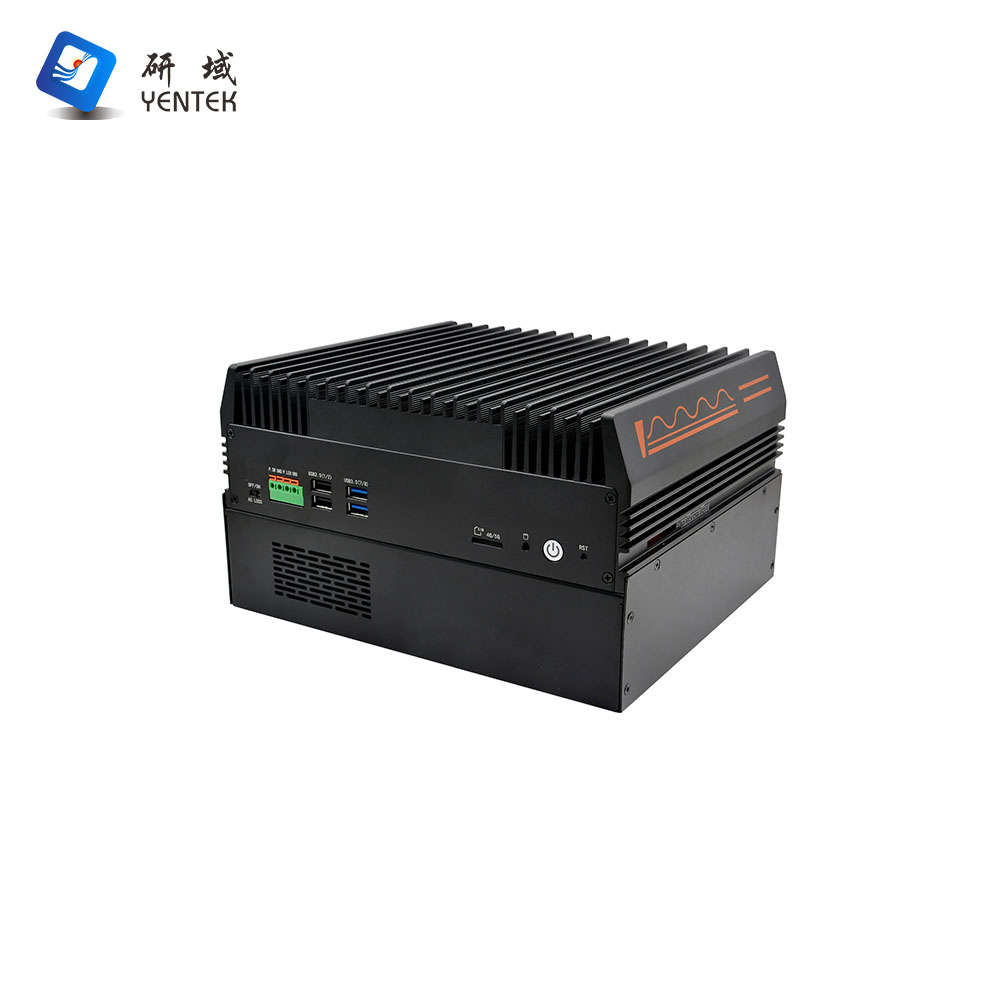

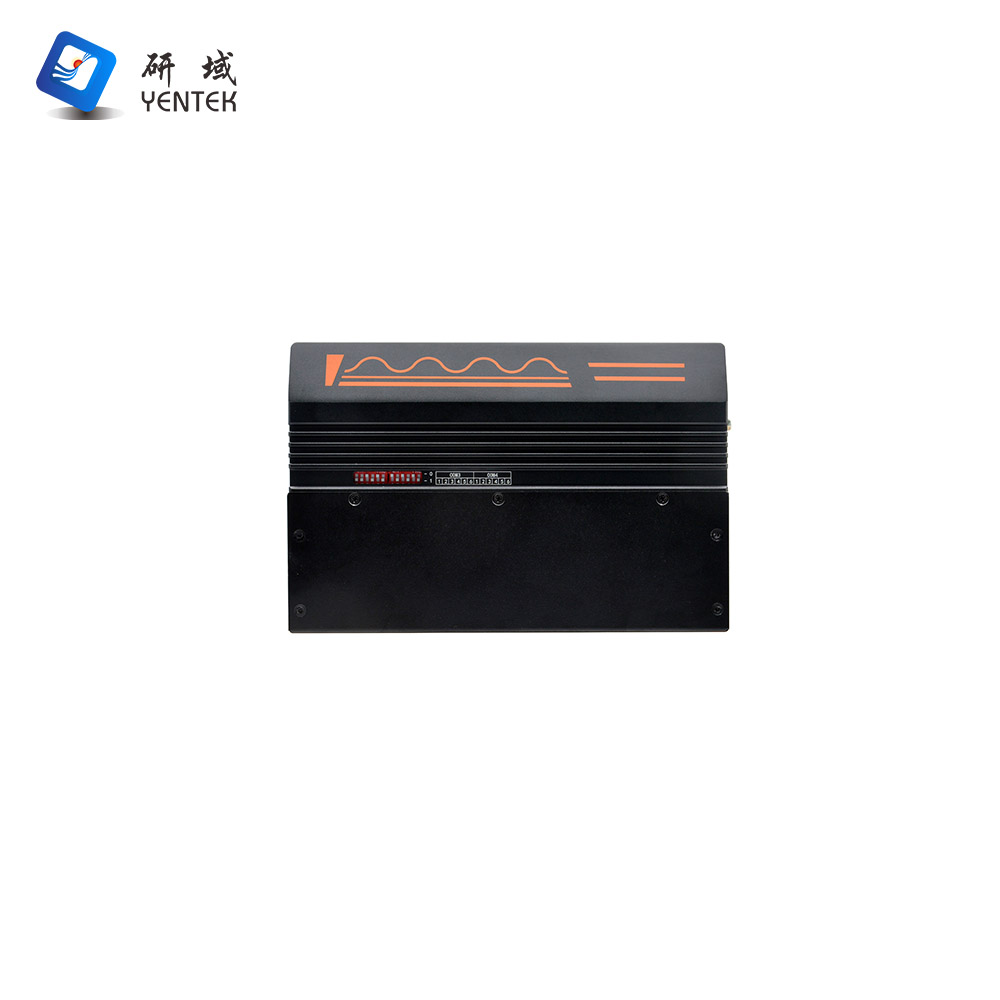

Model | G3780F-L6E2 V3.0(G391) |
Case | Material/Construction | Aluminum alloy + sheet metal construction; fan cooling |
Color | Black |
Dimensions (L x W x H) | 243 × 208.5 × 142.3 mm |
Weight | 3.6 kg |

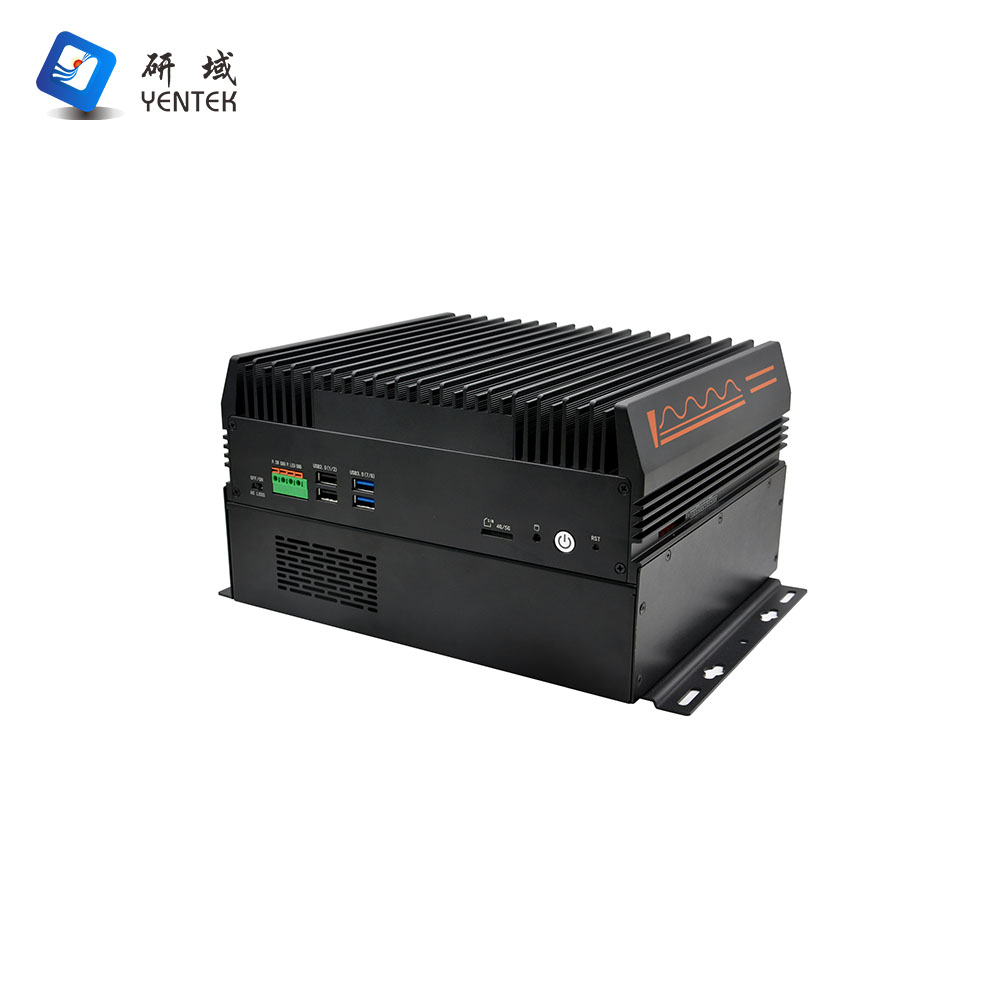

Installation | Desktop / Built-in / DIN Rail (35 mm) |
Motherboard | CPU | Intel® LGA1151 / 6th, 7th, and 8th Gen Processors |
System-on-Chip | Intel® Z390 |
Memory | 2 x SODDR4, supports up to 64 GB |

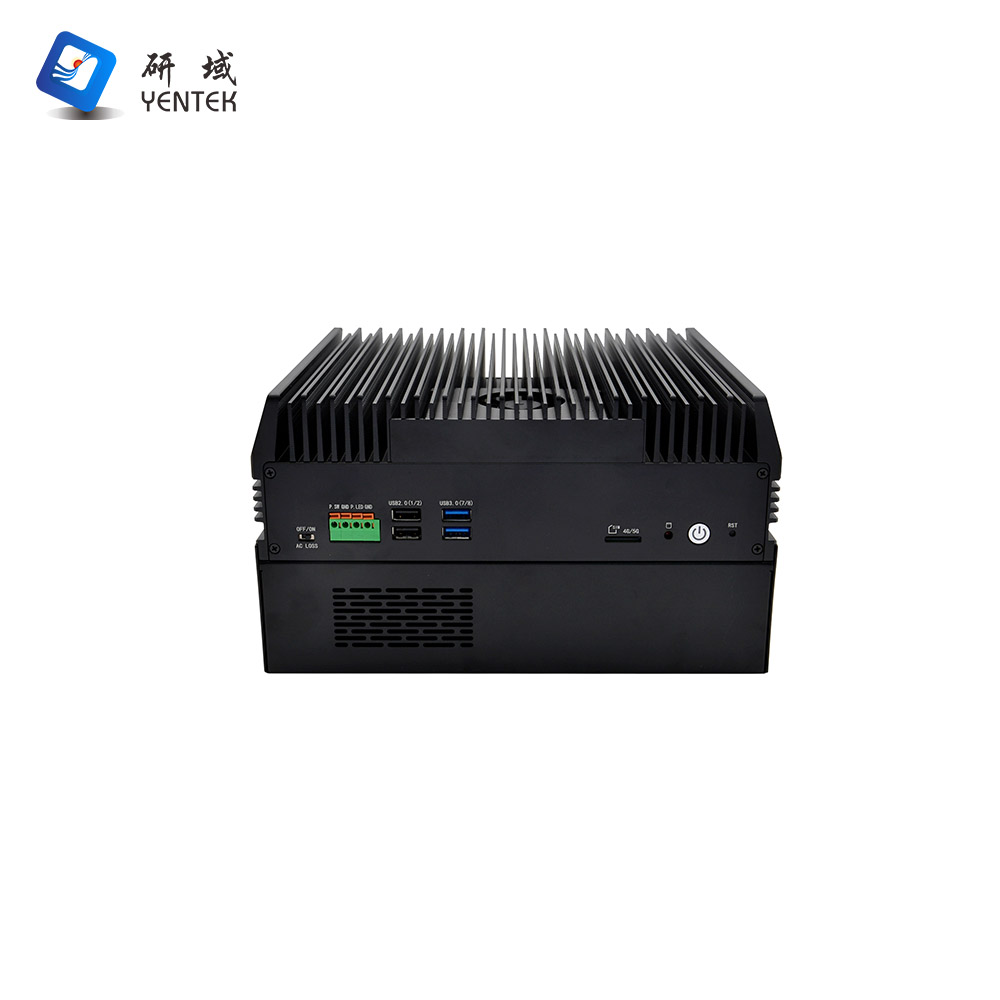

Front Panel Connectors | Power Switch | 1 x Power Button with LED Indicator, 1 x One-Click Restore, 1 x ACLOSS (Power-On DIP Switch) |
LED | 1 x HDD indicator light |
USB | 2 x USB 3.0, 2 x USB 2.0, 1 x internal USB 2.0 |
Phoenix Connector | 1 x 4-pin Phoenix connector (1 x power indicator signal, 1 x power switch signal) |
SIM | 1 x standard SIM card slot (default signal: M.2 5G) |

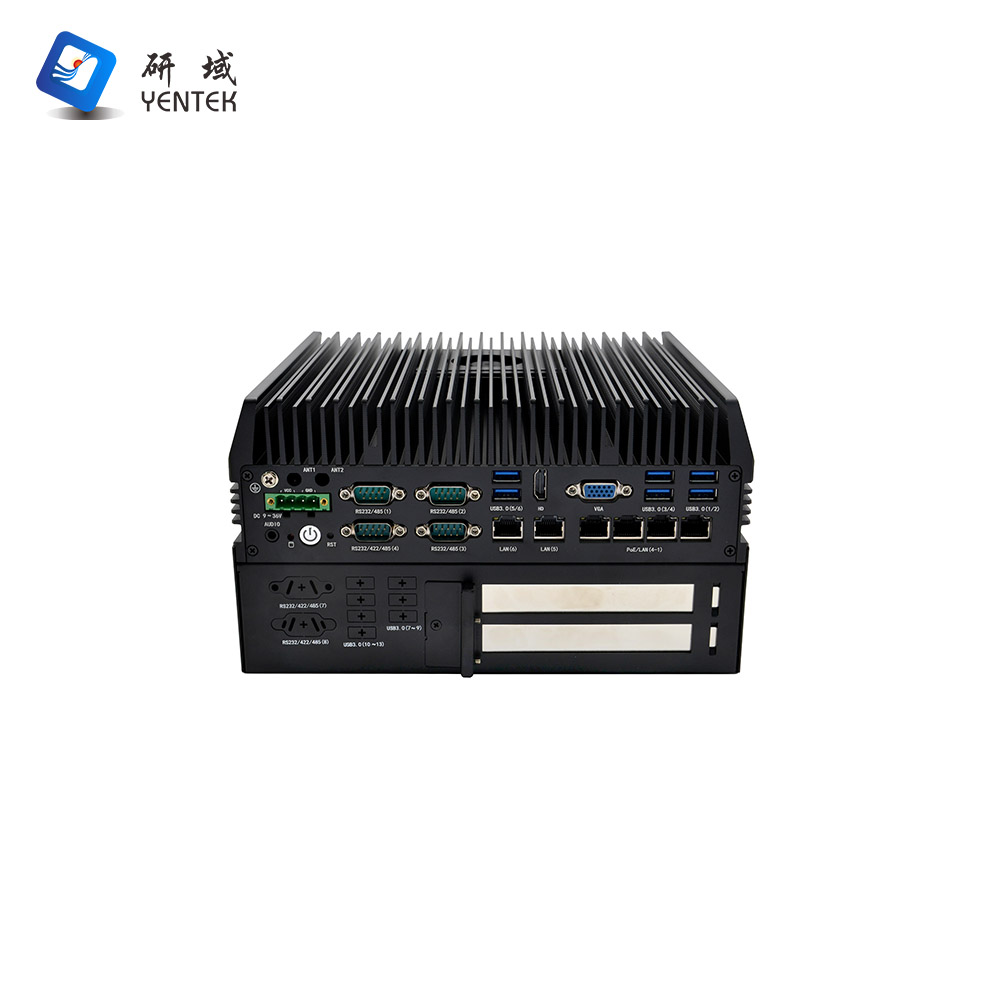

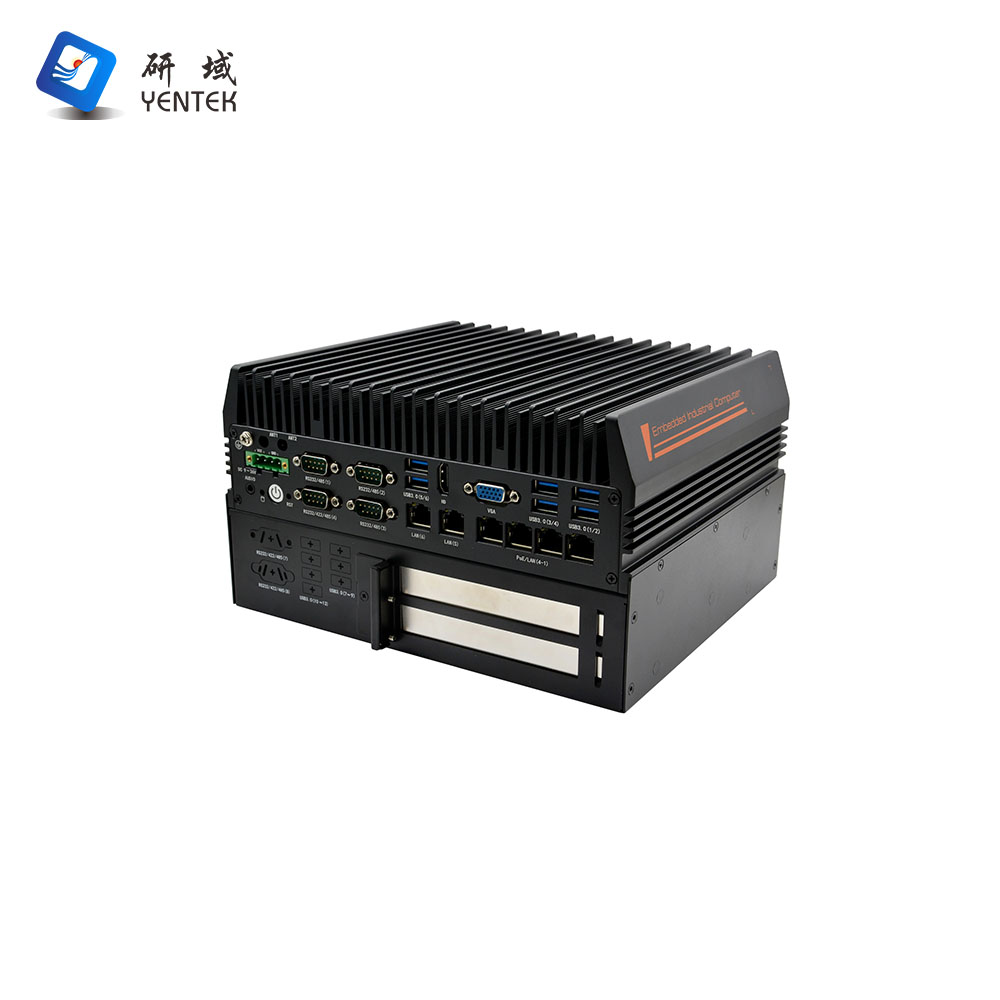

Rear Panel Connectors | Display Interface | 1 x VGA (1920×1200@60Hz), 1 x HDMI 1.4 |
COM | 4× RS232 DB9 serial ports supporting RS232/485; COM4 supports RS232/422/485 |
LAN | 6× Intel I210AT Gigabit Ethernet ports; LAN1–4 support PoE; PoE is disabled by default but can be enabled via jumper settings |
USB | 6× USB 3.0 |
Power Switch | 1× Power Switch, 1× One-Button Restore |
LED | 1× Hard Drive Power Connector |
Audio | 1* Audio, combined Line Out and Mic |
DIP Switch | 2 sets of 6-position DIP switches; RS232/485 switching is configured via DIP switches + jumper caps + BIOS settings |
Power Connector | 1* 4-pin Phoenix connector (P=5.08mm), supports 9–36V DC wide-voltage input |
Storage | SATA | 1* 2.5-inch hard drive bay (on the I/O board) |
mSATA | 1* mSATA (on the I/O board) |
SSD | 1* M.2 slot, supports M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSD |
Expansion | PCIe | 1* PCIe 3.0 x16 (x8 signal) |
1* PCIe 3.0 x8 (x8 signal) |
Wi-Fi/4G | 1 x Mini PCIe, supports Wi-Fi or 4G (4G shares the same signal as the built-in USB 2.0; 4G is not supported by default) |
Wi-Fi | 1 x M.2, supports Key-E, 2230, Wi-Fi module |
5G | 1 x M.2, supports Key-B, 3042/3052, 5G module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type | Power Supply Type | External Power Adapter |
Input Voltage | DC 9–36 V wide voltage range, maximum load 220 W |
Output Power | AC to DC 120 W or higher (depending on specific device) |
Environment | Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
