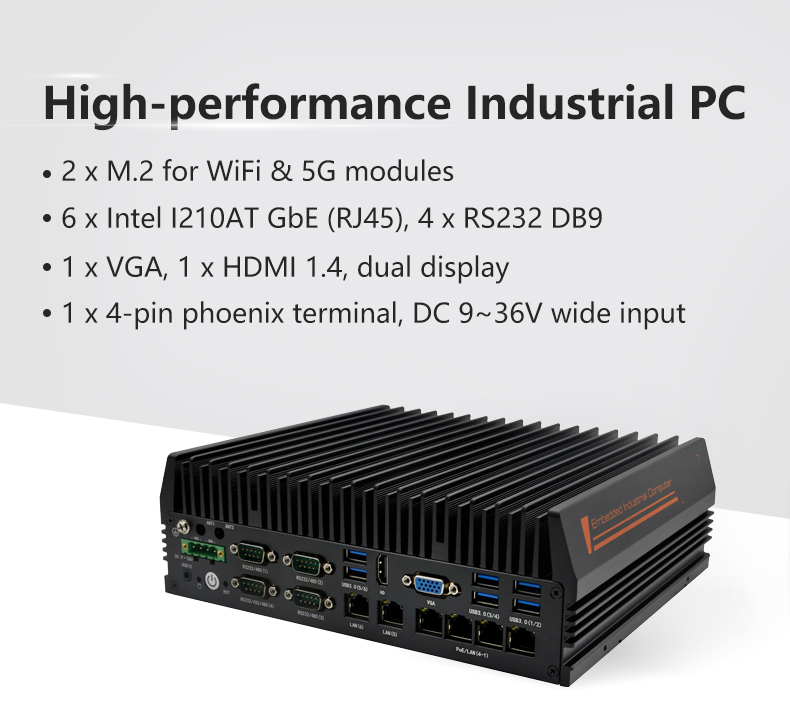

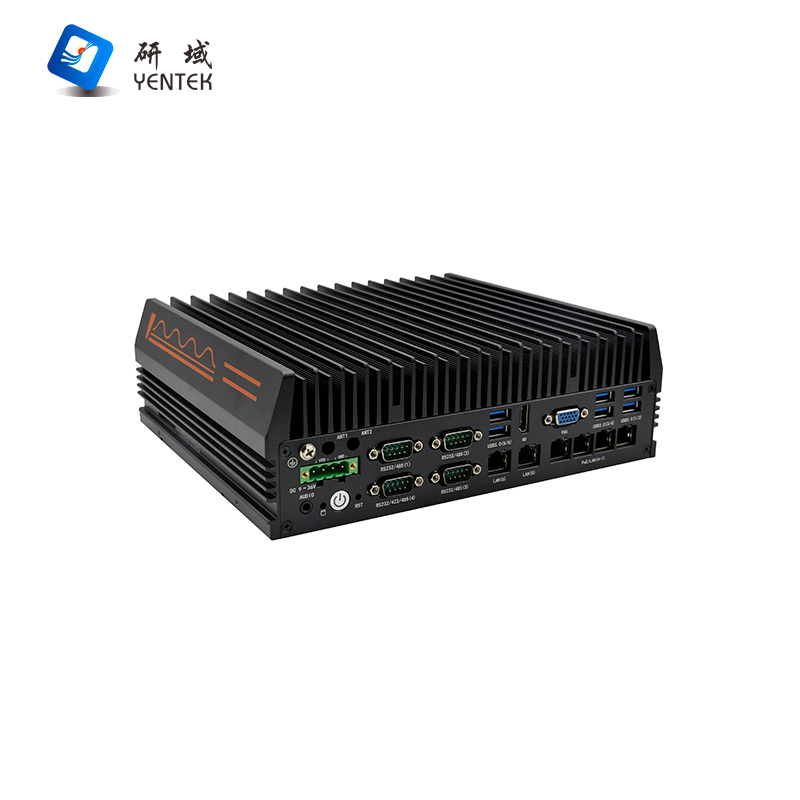

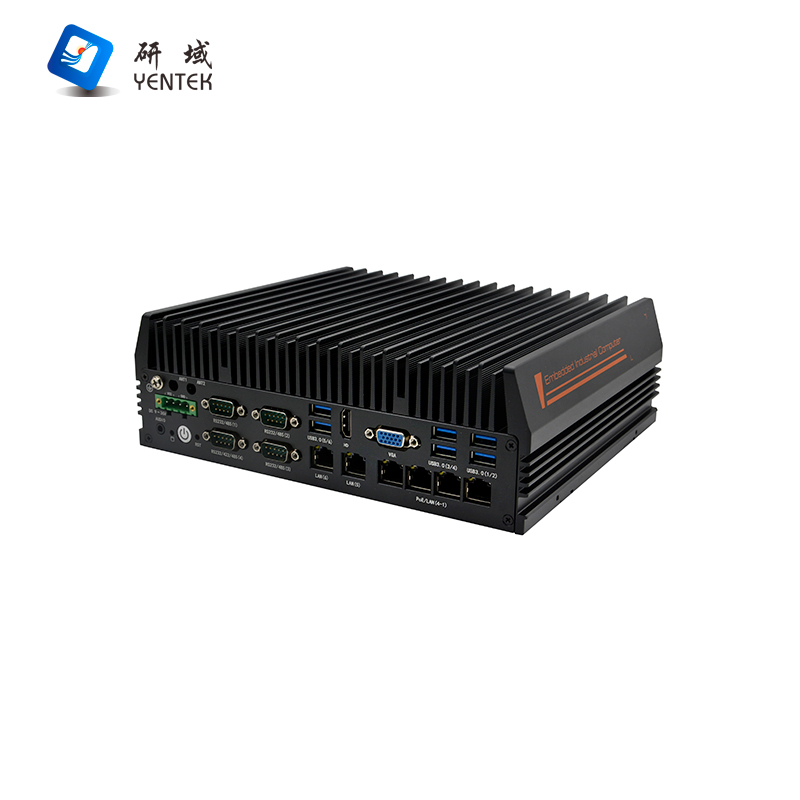

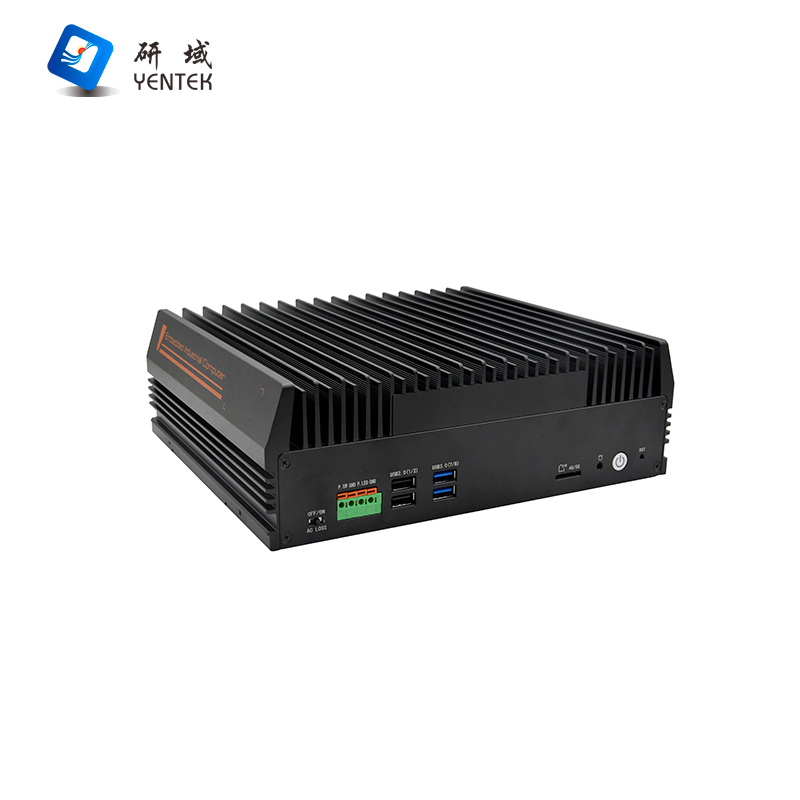

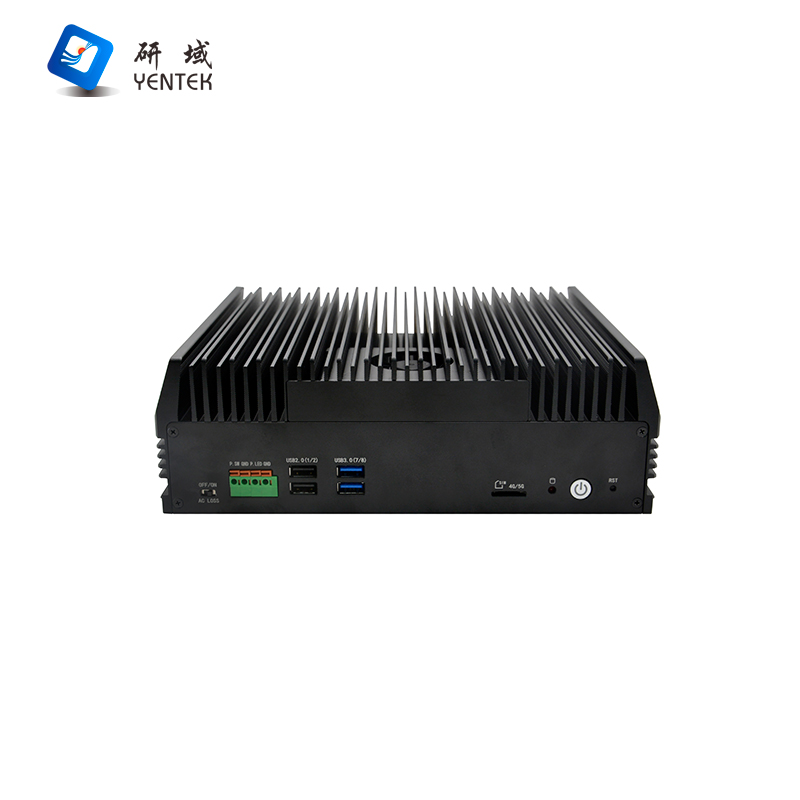

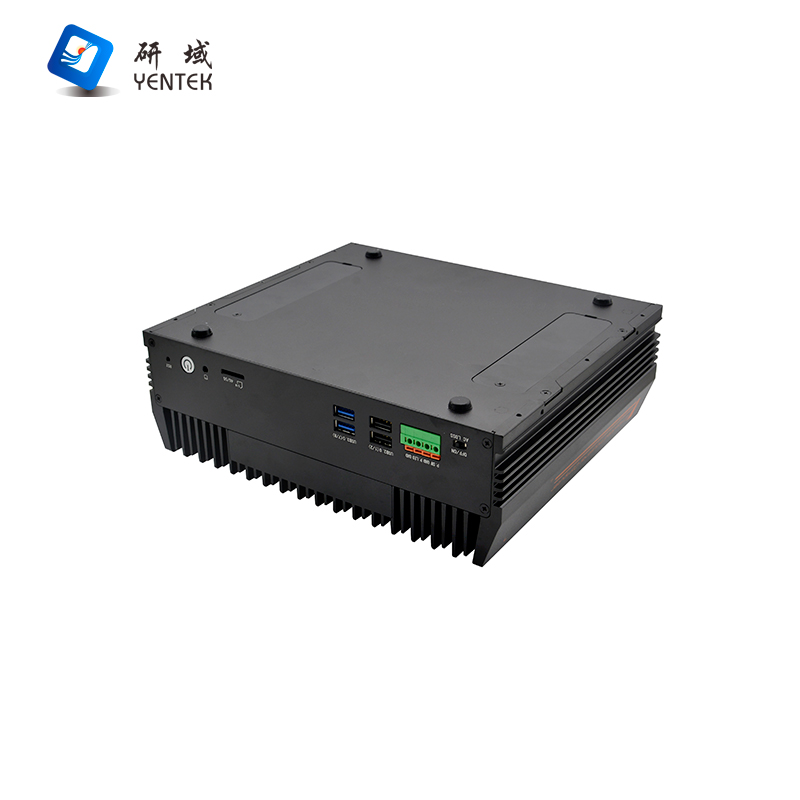

G3750F-L6 V3.0

Case

Material/Construction

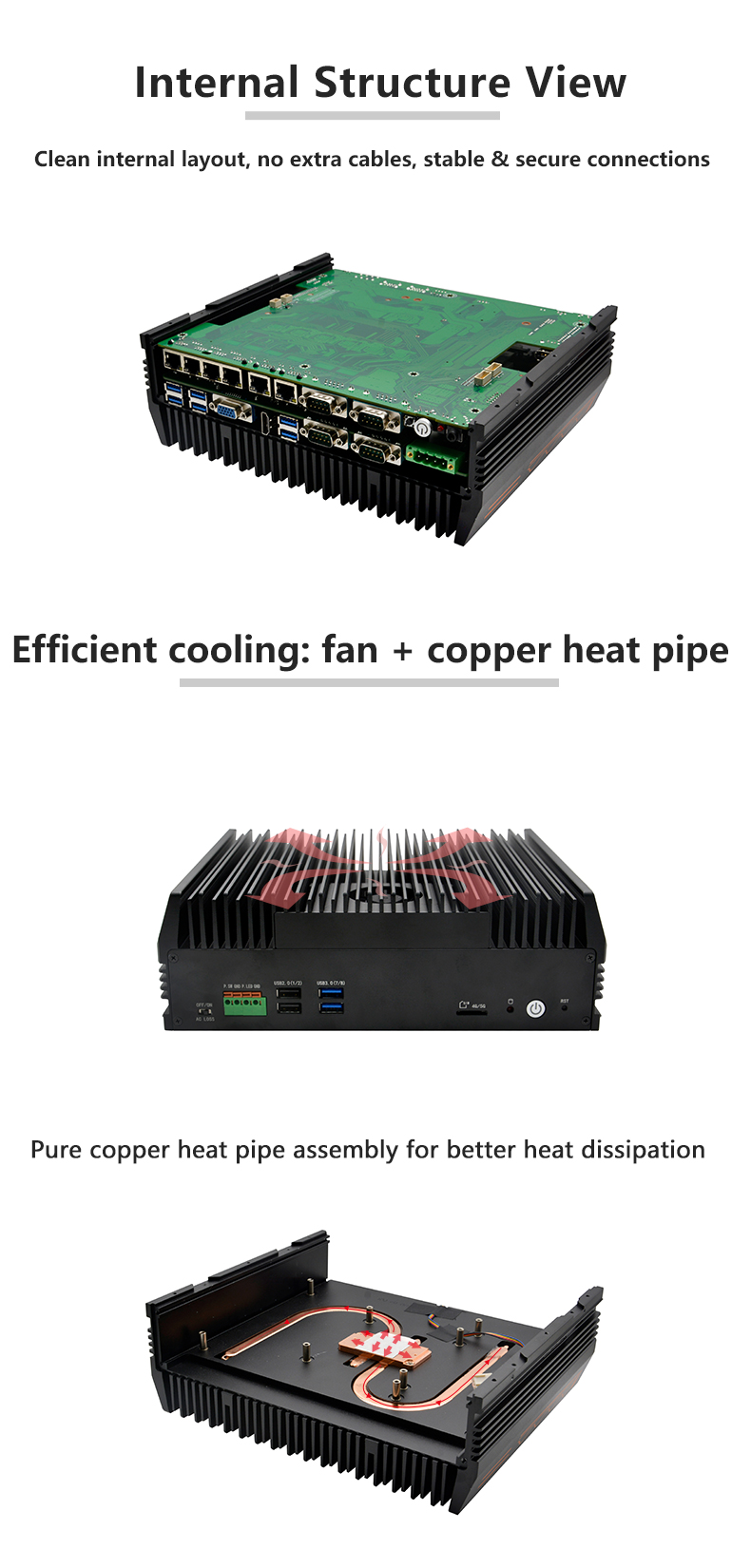

Aluminum alloy, fan cooling

Color

Black

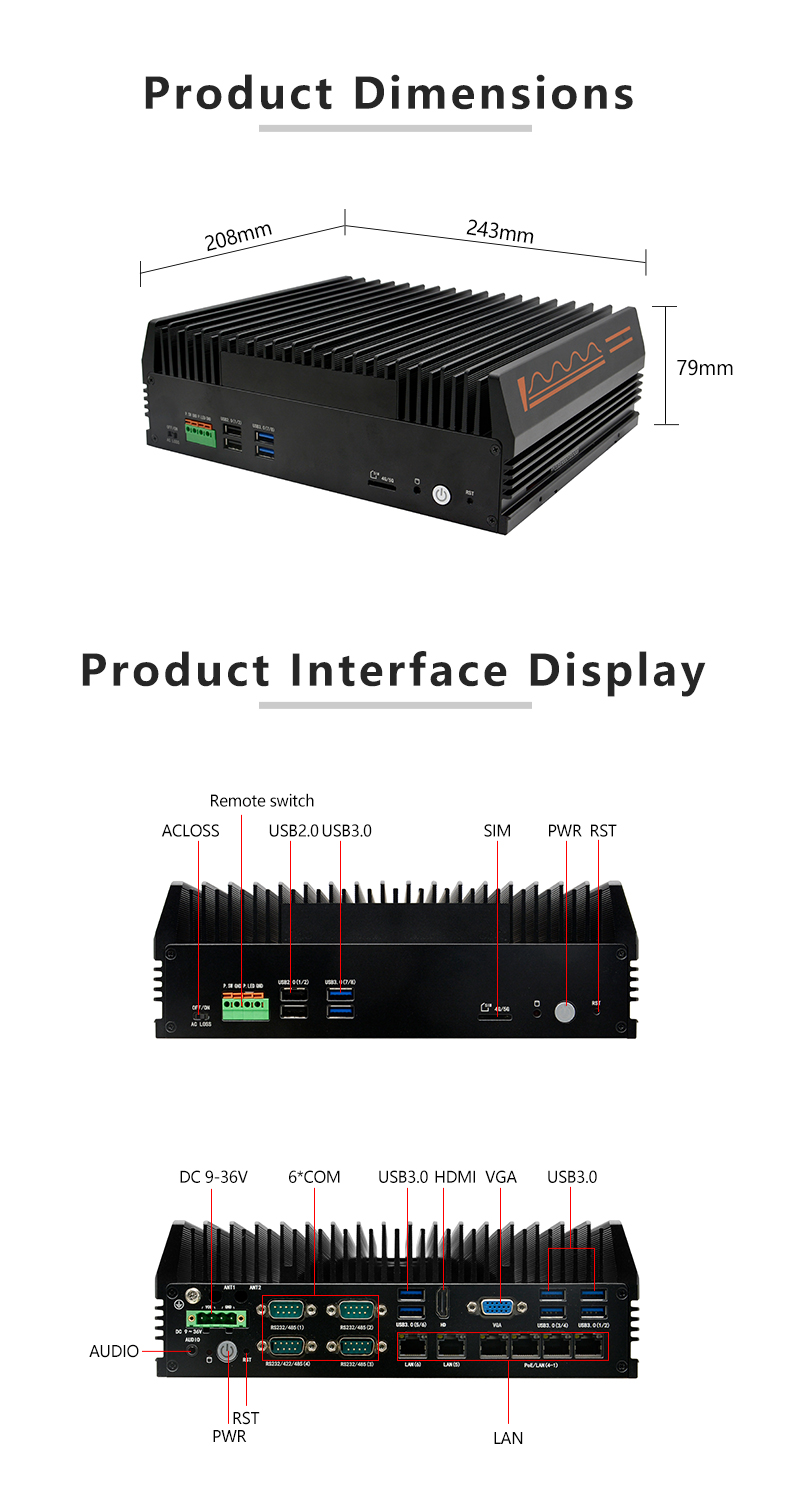

Dimensions

243 x 208 x 79 mm

Weight

3.9 kg

Installation

Desktop/Rackmount

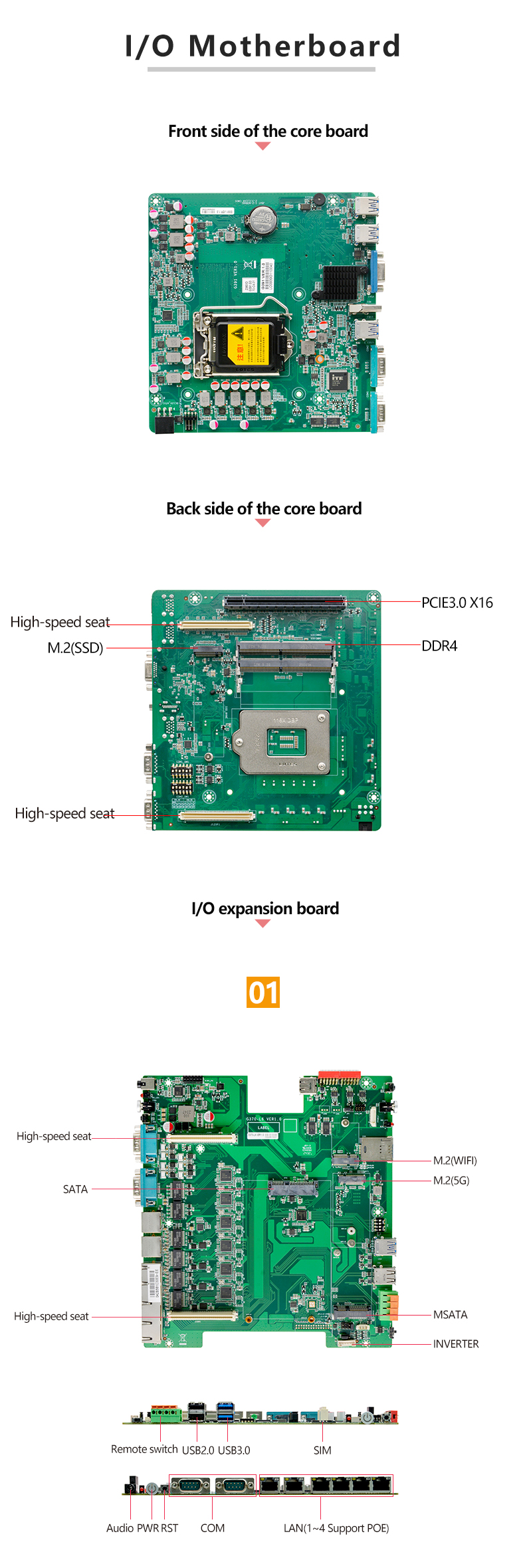

Motherboard

CPU

Intel® LGA1151 / 6th, 8th, and 9th Gen processors

Chipset

Intel® Z390

Memory

2 x SODIMM slots, supports up to 64 GB

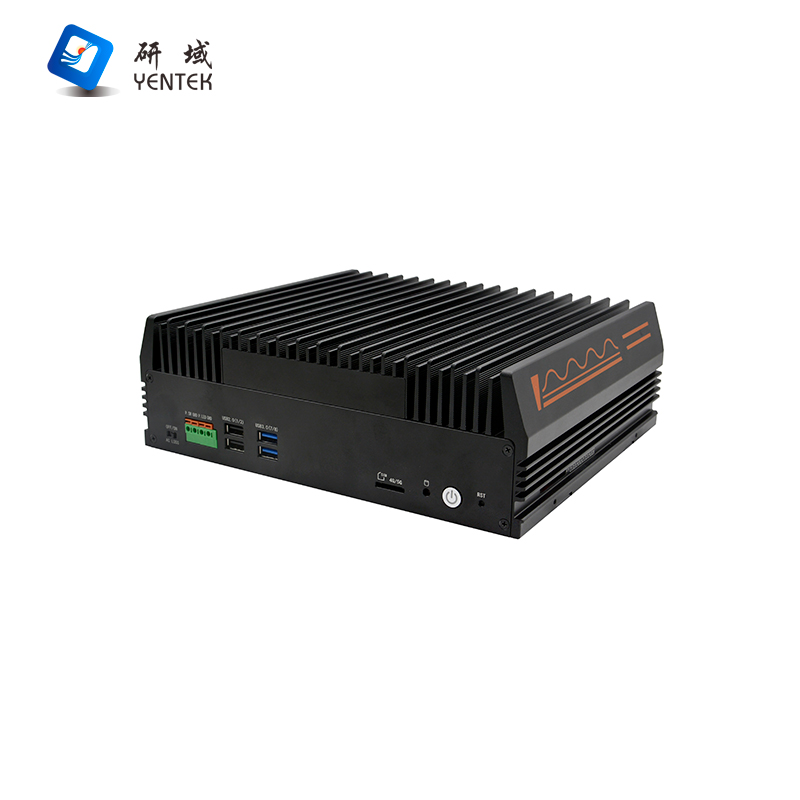

Front Panel Connectors

Power Switch

1 x Power button with indicator light, 1 x One-Click Restore button, 1 x ACLOSS (Power-on DIP switch)

LED

1 x HDD indicator

USB

2 x USB 3.0, 2 x USB 2.0, 1 x internal USB 2.0

Remote Switch

1 x Power indicator signal, 1 x Power switch signal (located on 1 x 4-pin Phoenix connector)

SIM

1* Standard SIM card slot

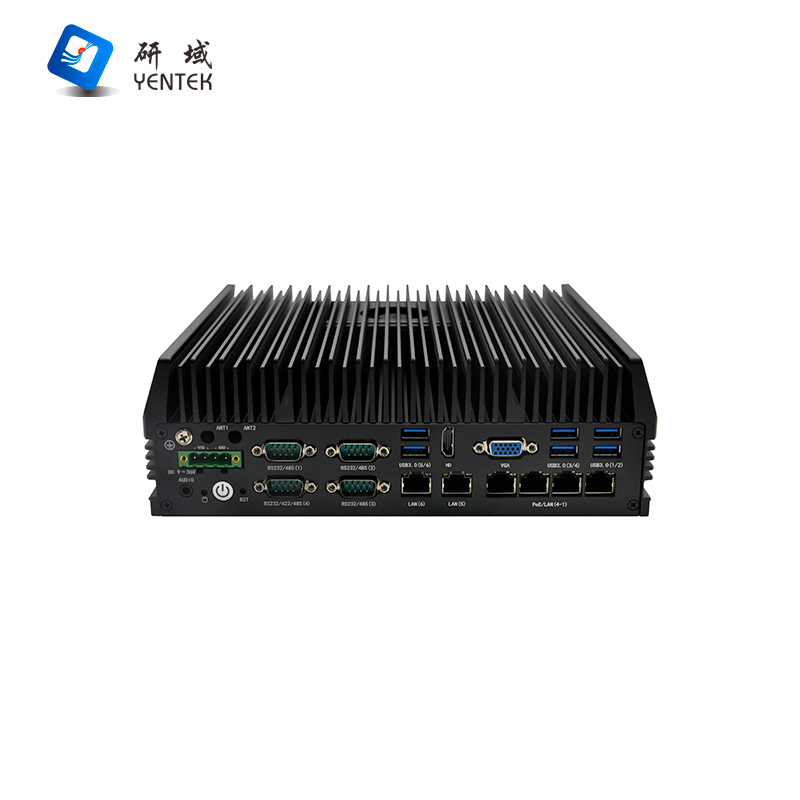

Rear Panel Connectors

Power Switch

1* Power button with indicator light, 1* One-touch restore button

LED

1* Hard drive indicator light

Display Interface

1* VGA (1920×1200@60Hz), 1* HDMI 1.4, supports dual display

USB

6* USB 3.0

COM

4* RS232/485 DB9 serial ports, COM4 supports RS232/422/485

LAN

6x Intel I210AT Gigabit Ethernet ports, 4 of which support POE

Audio

1x Audio, combined Line Out and MIC

DIP Switch

2 sets of 6-position DIP switches; RS232/422/485 switching via DIP switches + jumper caps + BIOS settings

Power Connector

1x 4-pin (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input

Storage

SATA

1 x 2.5-inch HDD bay (on I/O board)

mSATA

1 x mSATA (on I/O board)

SSD

1 x M.2/SSD, supports Key-M, 2280, NVMe PCIe x4 SSD (on motherboard)

Expansion

Wi-Fi

1 x M.2, supports Key-E, 2230, Wi-Fi module

5G

1*M.2, supports Key-B, 3042/3052, 5G modules

System

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Power Supply Type

DC 9–36V wide voltage range, maximum load 220W

Power Output

AC to DC 120W or higher (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random

1

G3750F-L6 V2.0(G391)

LGA1151

6/8/9th

2*SODDR4

G391

Z390

G370-L6/G370-PW

2.5+msata+M.2(NVME)

6*I210

4

3

8

 9-36V

2

G3750F-L6 V2.0(G671)

LGA1700

12~14th

2*SODDR5

G671

Q670

G370-L6/G370-PW

2.5+msata+M.2(NVME)

6*I210

4

3

8

 9-36V
