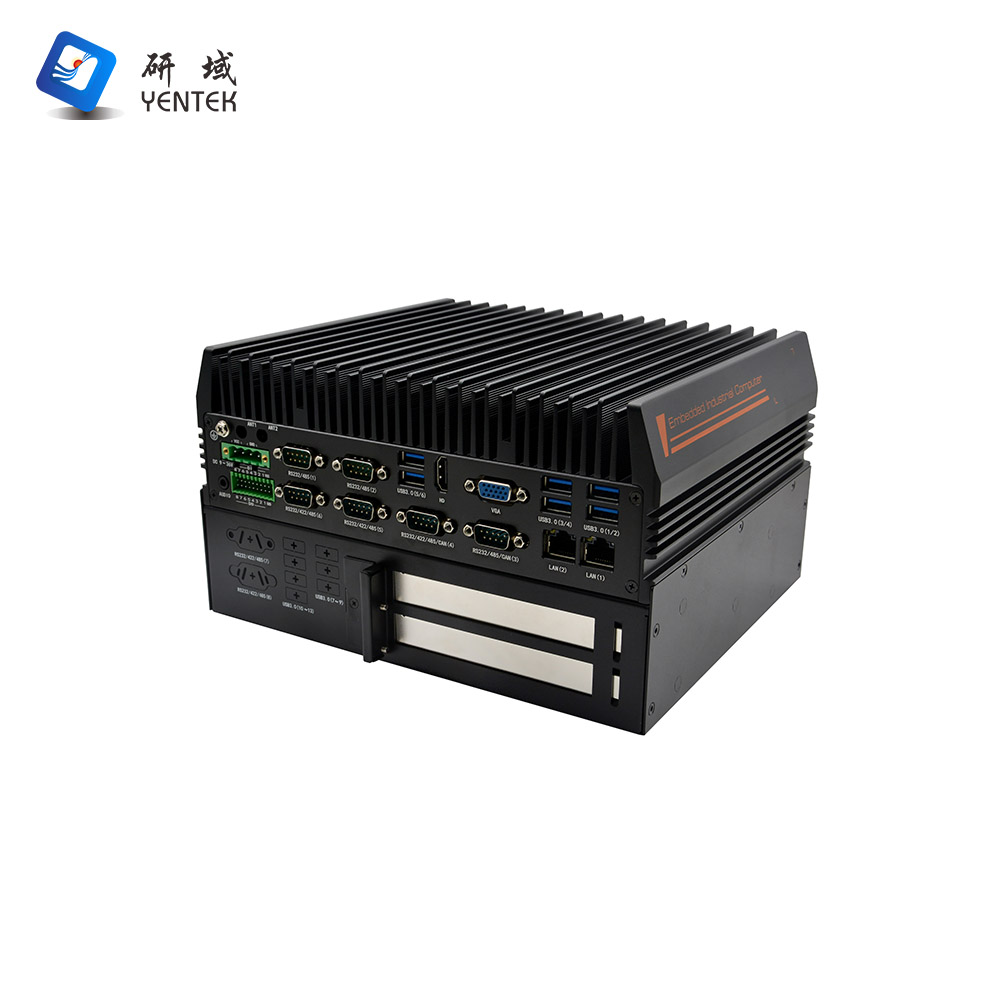

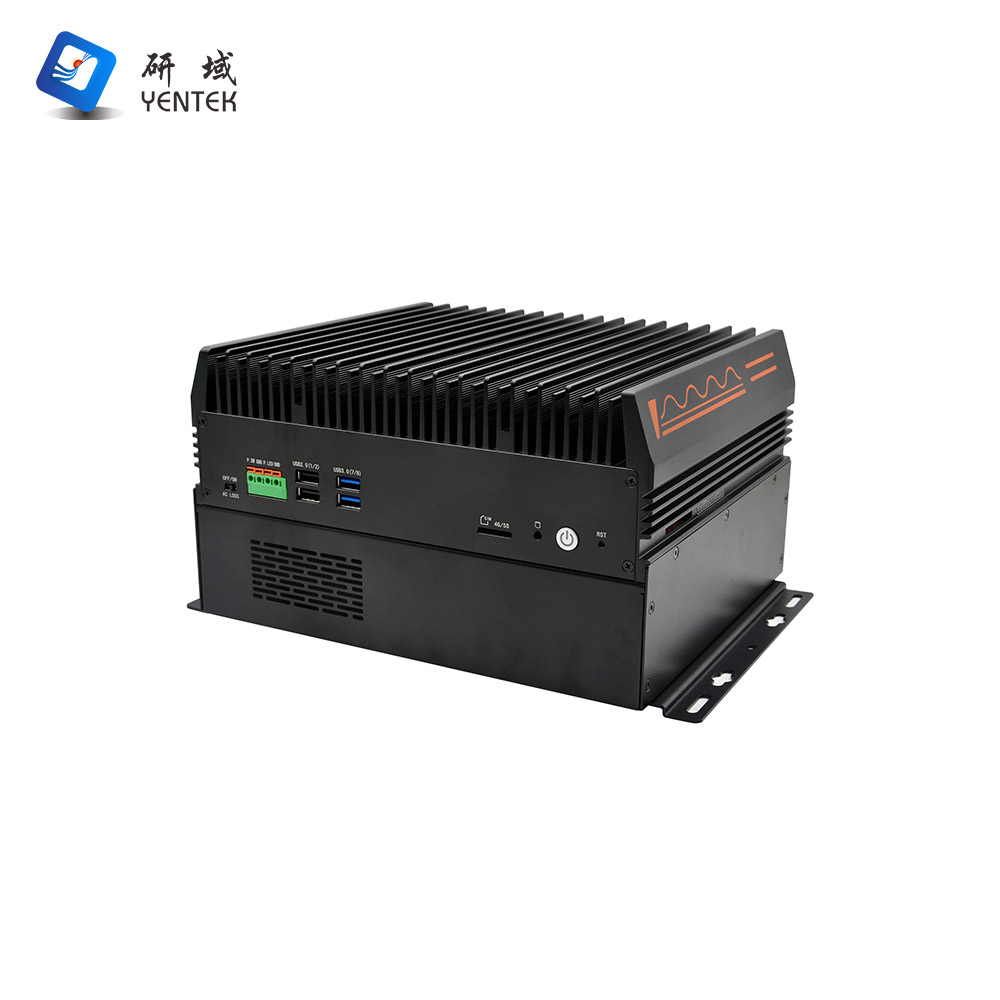

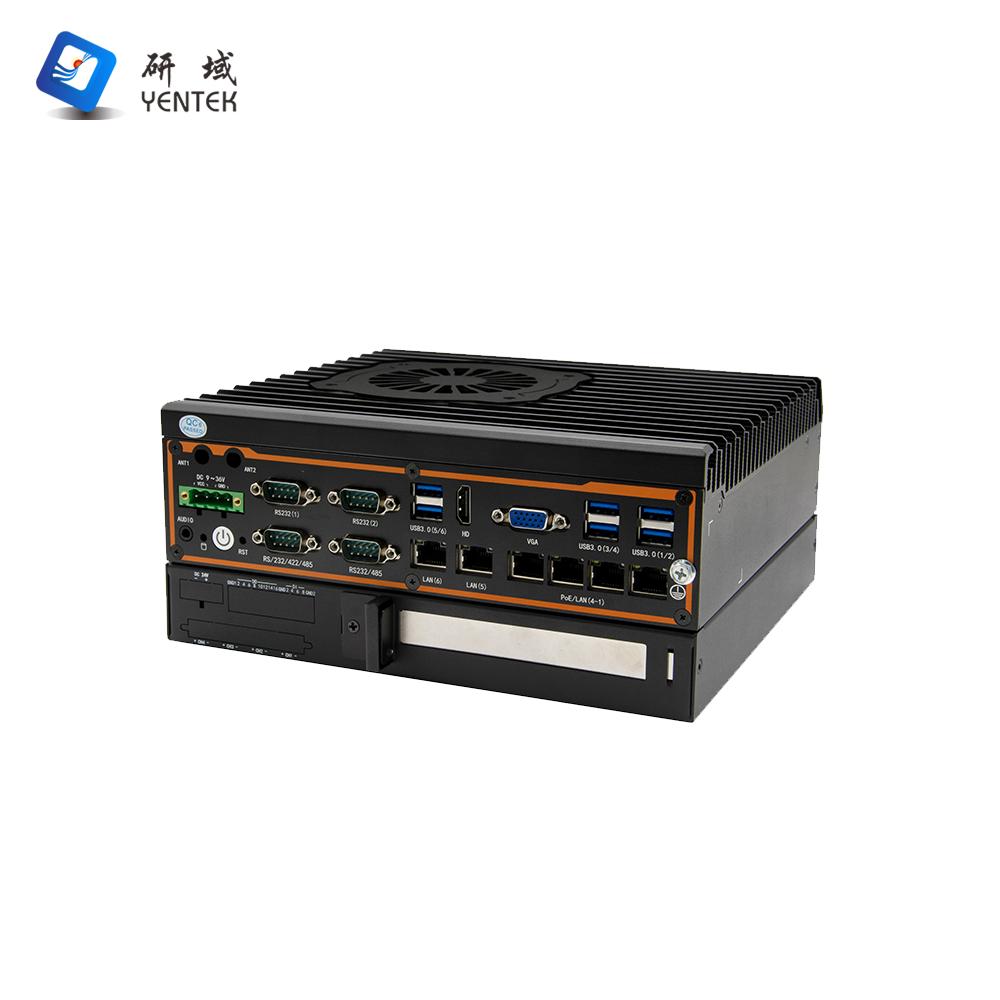

G3780S-C6E2 V3.0

Case

Material/Construction

Aluminum alloy + sheet metal construction; fan cooling

Color

Black + silver

Dimensions

243 x 208.5 x 142.3 mm

Weight

4.75 kg

Installation

Desktop/built-in

Motherboard

CPU

Supports LGA1151 6th/8th/9th Gen low-power processors (supports only CPUs under 45W; CPUs ending in T or TE)

System-on-Chip

Intel® Z390

Memory

2x SODDR4, supports up to 64GB

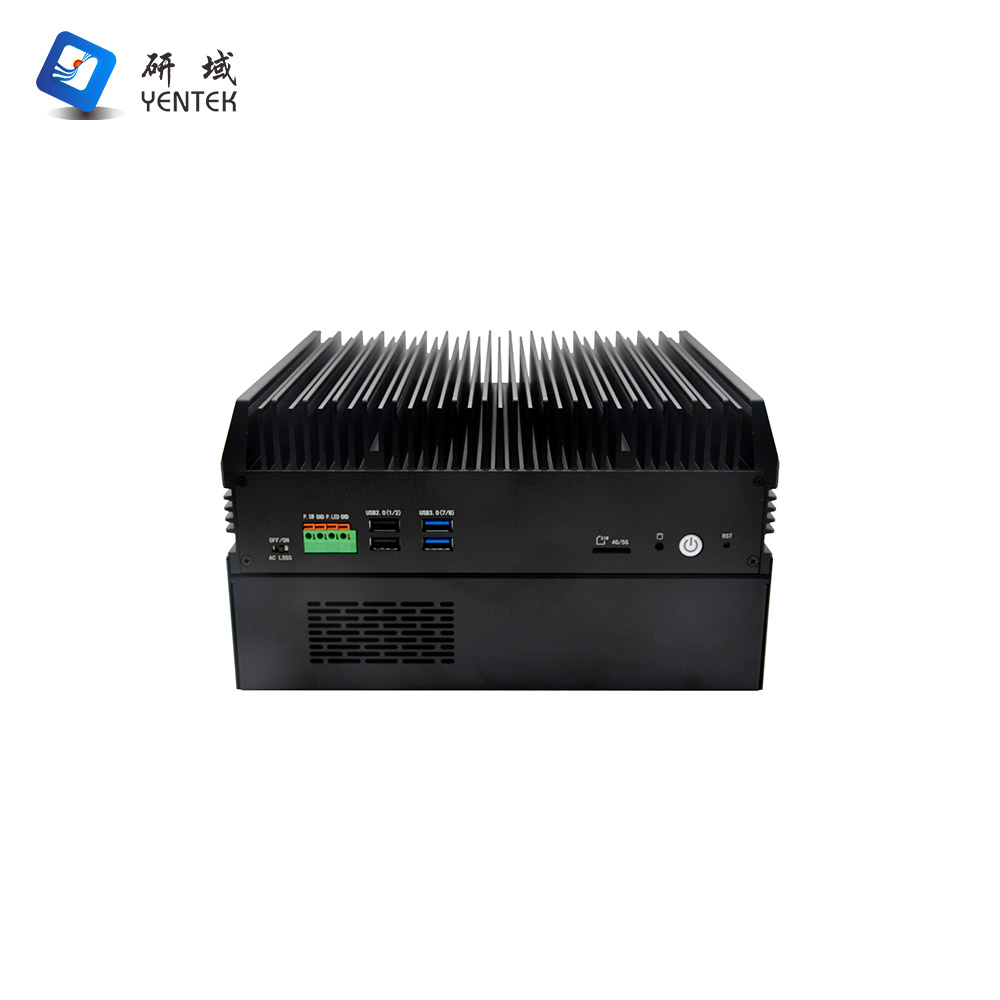

Front Panel Connectors

Power Switch

1x Power Button, 1x One-Click Restore, 1x ACLOSS (Power-On DIP Switch)

LED

1x Hard Drive Indicator Light

USB

2x USB 2.0, 2x USB 3.0

Remote Switch

1x Power Indicator Signal, 1x Power Switch Signal (located on 1x 4-pin Phoenix connector)

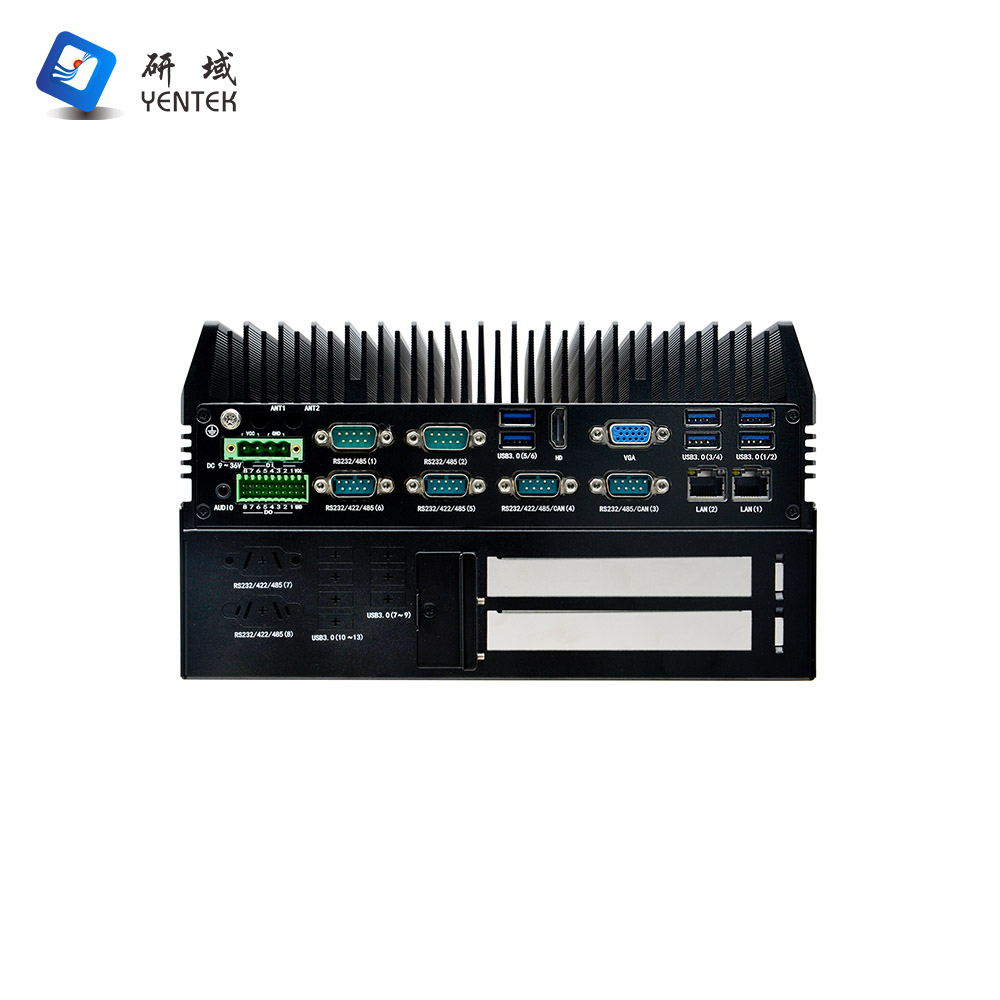

Rear Panel Connectors

Display Interface

1× VGA (1920×1200 @ 60Hz), 1× HDMI 1.4

COM

6× RS232/485 DB9 serial ports; COM4–6 support RS422, and COM3–6 support CAN (requires a Mini-PCIe CAN module)

LAN

2× Intel I210AT Gigabit Ethernet ports

USB

6× USB 3.0

Audio

1*Audio, combined Line Out and MIC

DIP Switch

2 sets of 6-position DIP switches; RS232/485 switching via DIP switches + jumper caps + BIOS settings

Power Connector

1*4-pin (Pitch=5.08mm) Phoenix connector, supports 9–36V DC wide-voltage input, maximum load 220W (powered by the motherboard)

GPIO

1 x Phoenix connector, 2 x 10-pin, PH=2.54mm, supports 8-in/8-out GPIO functionality, 500mA output power

Storage

SATA

1 x 2.5-inch HDD bay

mSATA

1 x mSATA slot

SSD

1 x M.2 slot, supports M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSD

Expansion

PCIe

1* PCIe x16 slot (x8 signal), 1* PCIe x8 slot

Wi-Fi/4G

1* Mini PCIe, supports Wi-Fi or 4G (4G shares the same signal as the built-in USB 2.0; built-in USB 2.0 is enabled by default)

WiFi

1* M.2, supports Key-E, 2230, Wi-Fi 6 + Bluetooth module

5G

1x M.2, supports Key-B, 3042/3052, 5G module

System

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Input Voltage

DC 9V–36V wide voltage range

Power Output

AC to DC 120W or higher (depending on specific device), maximum load 220W

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
