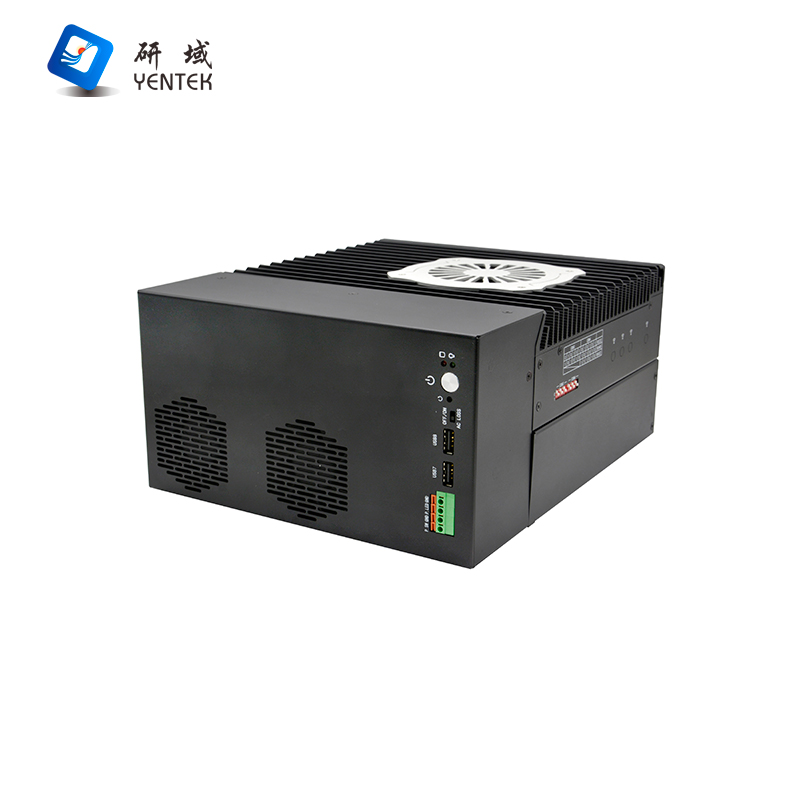

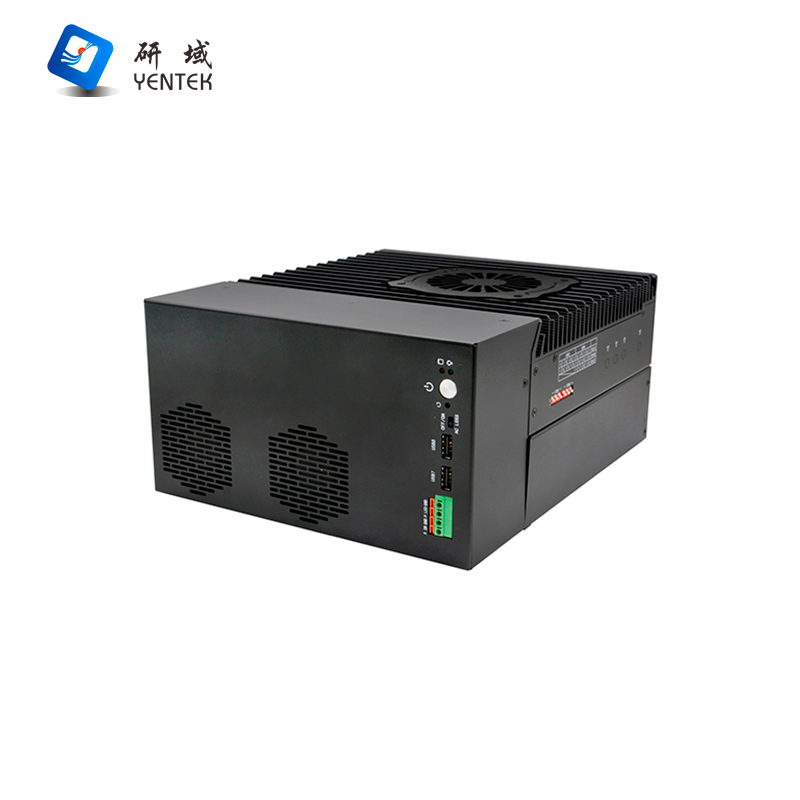

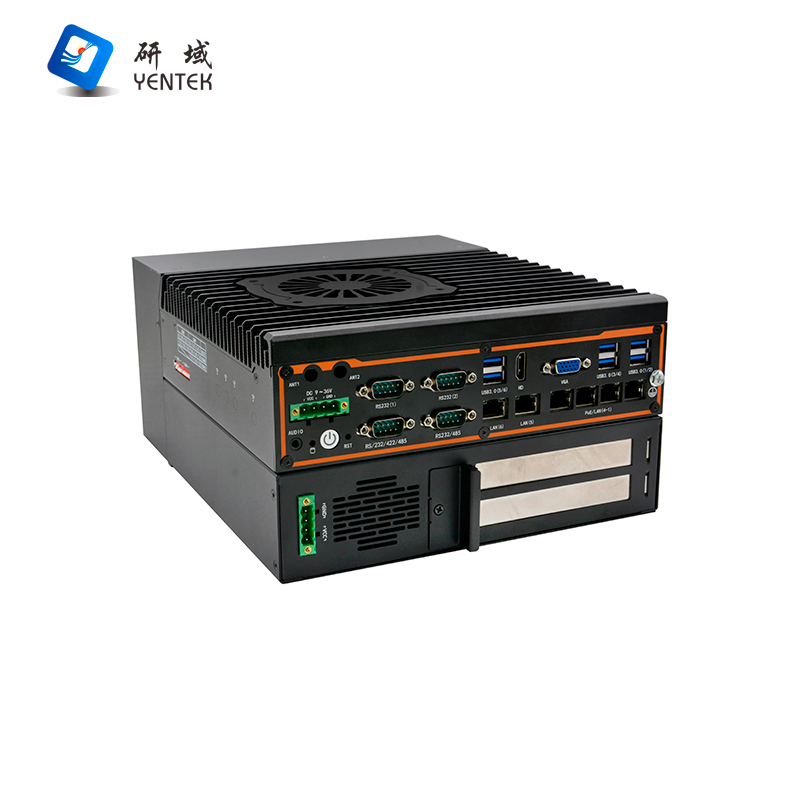

G3781F-L6E2 V2.0

Case

Material/Construction

Aluminum alloy + sheet metal construction; fan-cooled

Color

Black + Silver

Dimensions

229 × 275 × 125 mm

Weight

5.25 kg

Installation

Desktop / Built-in

Motherboard

CPU

Intel® LGA1151 / 6th, 8th, and 9th Gen processors

System-on-Chip

Intel® Z390

Memory

2x SODDR4, supports up to 64GB

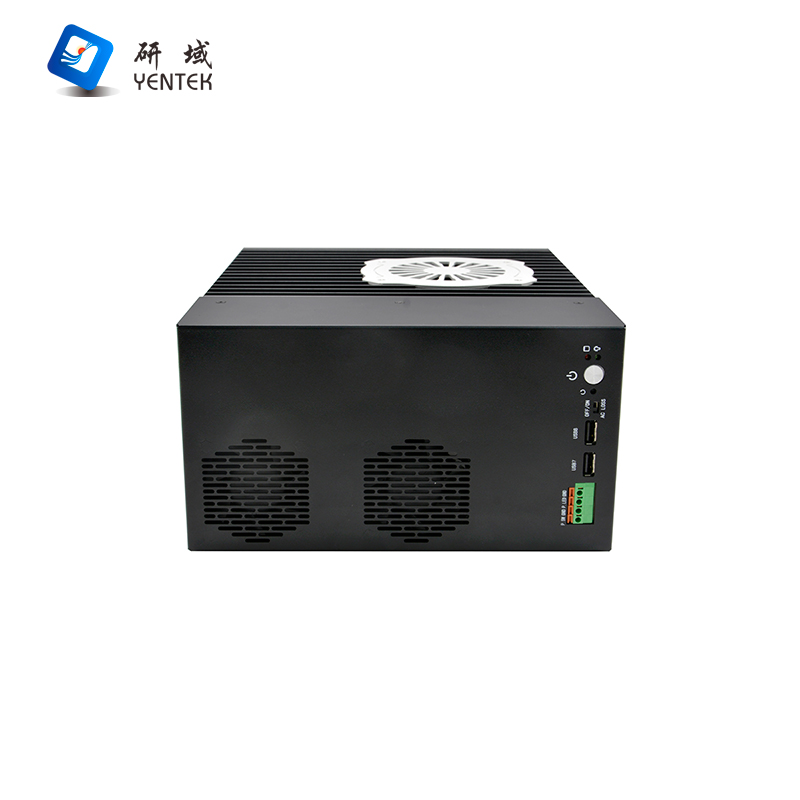

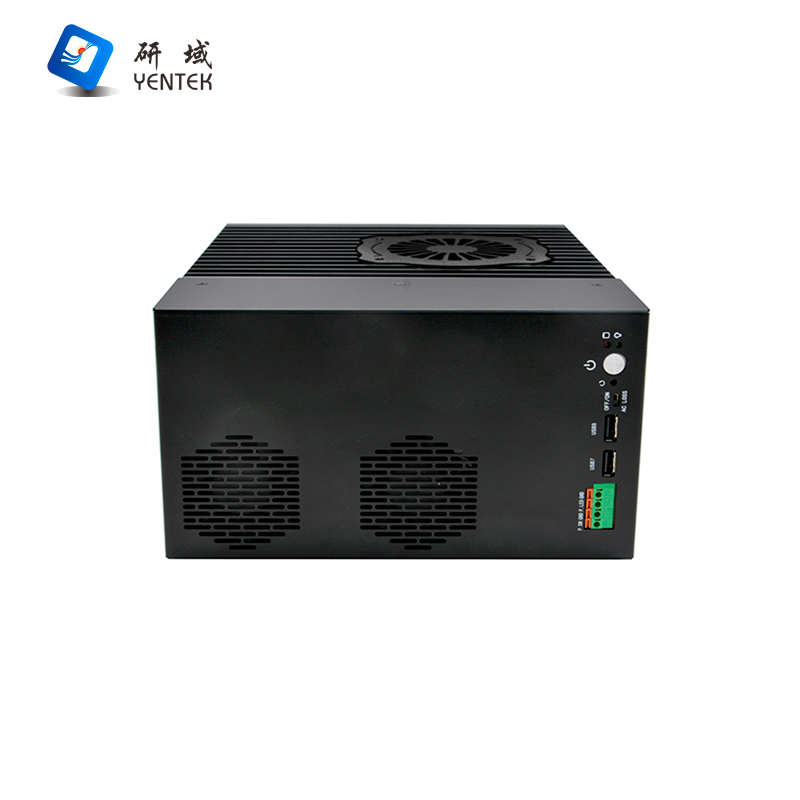

Front Panel Connectors

Power Switch

1x Power Button with LED indicator, 1x One-Click Restore, 1x ACLOSS (Power-On DIP Switch)

LED

1x Power LED, 1x HDD LED

USB

2x USB 2.0, 1x Internal USB 2.0

Remote Switch

1x Power LED signal, 1x Power Switch signal (located on 1x 4-pin Phoenix connector)

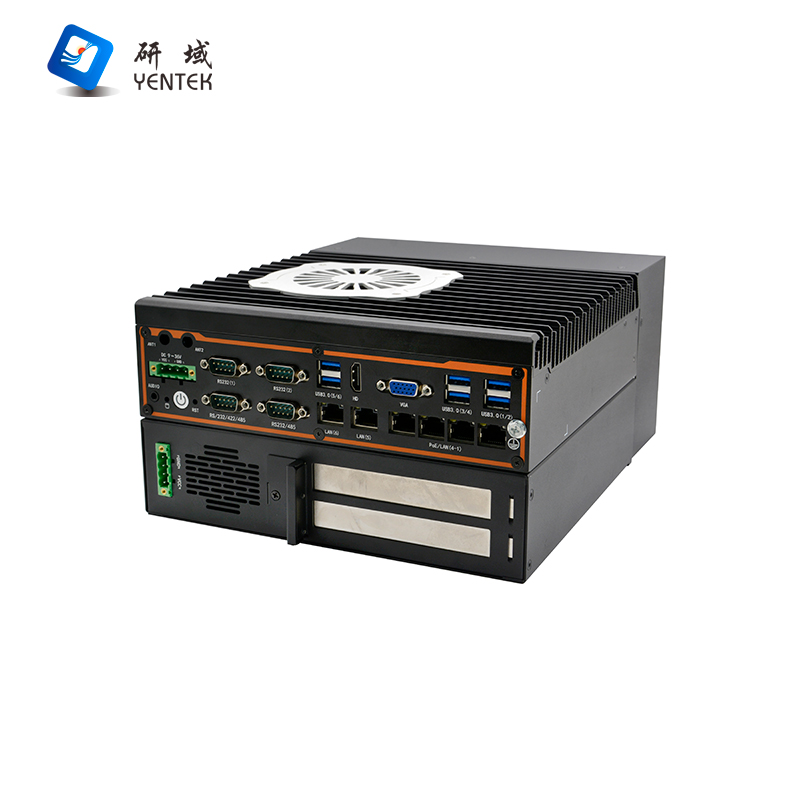

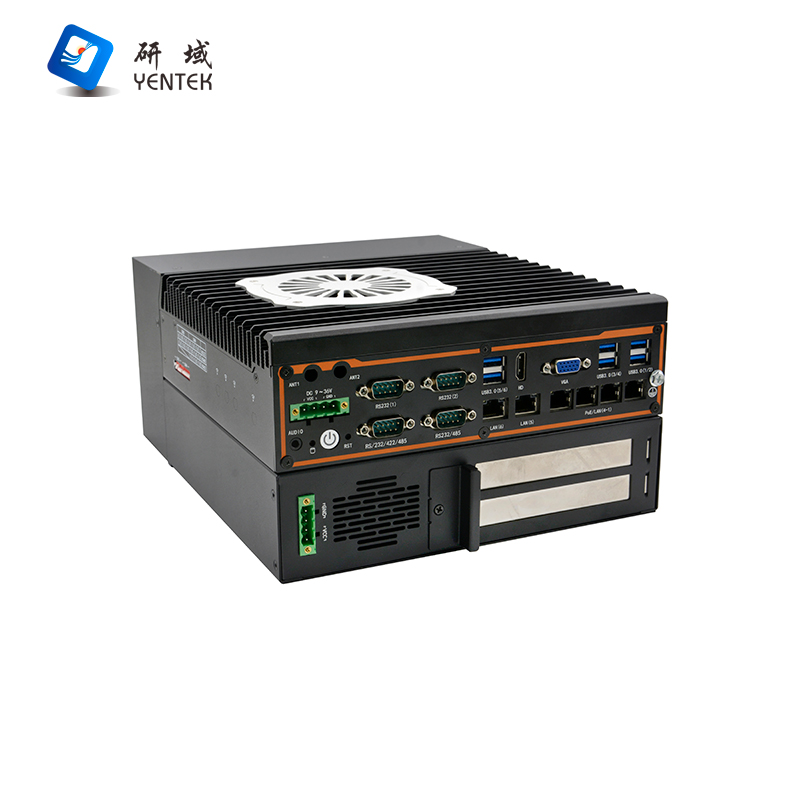

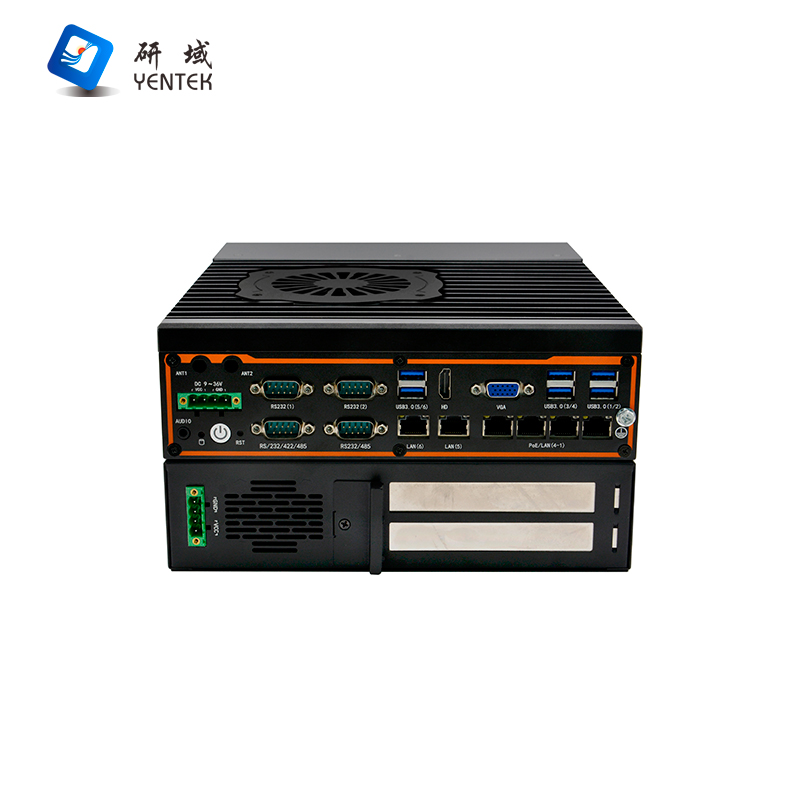

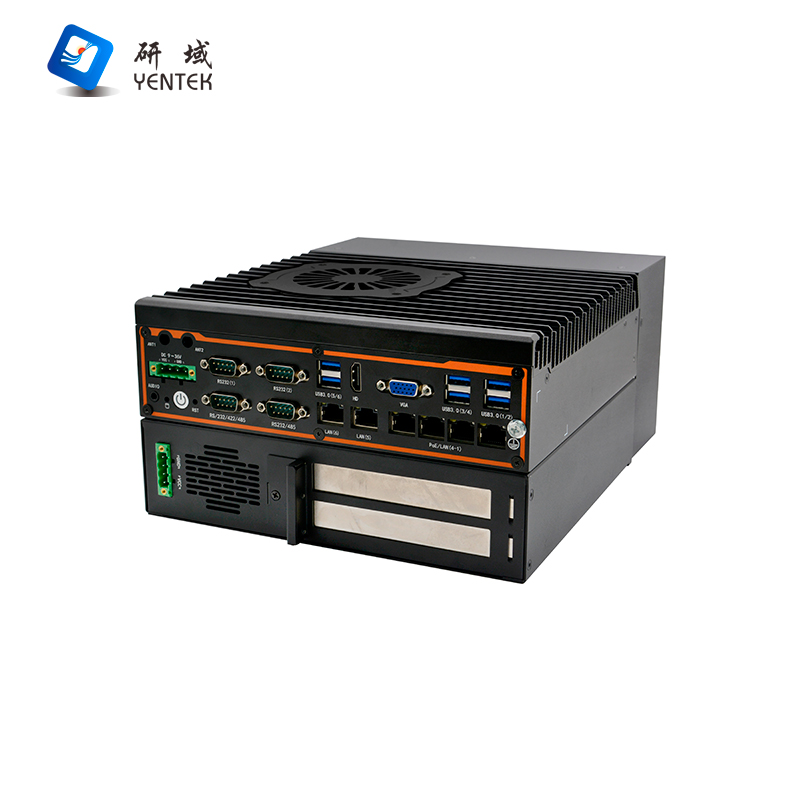

Rear Panel Connectors

Display Interface

1× VGA (1920×1200@60Hz), 1× HDMI 1.4

COM

4× RS232 DB9 serial ports; COM3 supports RS232/485, and COM4 supports RS232/422/485

LAN

6* Intel I210AT Gigabit Ethernet ports, 4 of which support PoE; PoE is disabled by default and can be enabled or disabled using jumper caps

USB

6* USB 3.0

Audio

1* Audio, combined line out and mic

DIP Switch

2 sets of 6-position DIP switches; RS232/485 switching is configured via DIP switches + jumper caps + BIOS settings

Power Connector

1 x 4-pin (P=5.08mm) Phoenix connector, supports 9–36V DC wide-voltage input, maximum load 220W

Storage

SATA

1 x 2.5-inch hard drive bay

mSATA

1 x mSATA

SSD

1 x M.2, supports Key-M, 2280, NVMe PCIe x4 SSD

Expansion

PCIe

1 x PCIe 3.0 x16 (x8 signal), 1 x PCIe 3.0 x8 slot

Wi-Fi/4G

/

Wi-Fi

1 x M.2, supports Key-E, 2230, Wi-Fi 6 + Bluetooth module

5G

1 x M.2, supports Key-B, 3042/3052, 5G module

System Support

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Input Voltage

DC 9V–36V wide-voltage input

Output Power

AC to DC 120W or higher (depending on specific device), maximum load 220W

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
