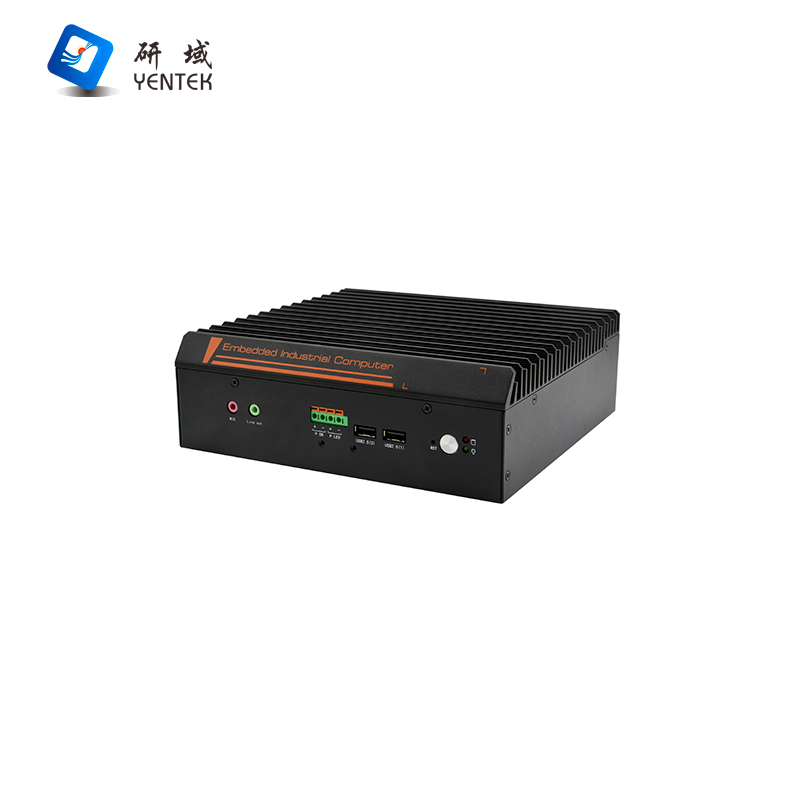

G3060S-L3 V2.0

Case

Material/Construction

Aluminium alloy and sheet metal construction, fanless cooling

Colour

Black

Dimensions (L x W x H)

243 × 192 × 73.3 mm

Weight

2.2 kg

Installation

Desktop/wall-mounted

Motherboard

CPU

Integrated 12th Gen Intel® Alder Lake i7-1255U processor with 10 cores and 12 threads, TDP 15W

Display

Integrated Intel® Iris® Xe Graphics, compatible with DirectX 12.1 and OpenGL 4.6, supports 4K

Memory

2 × SODDR4 3200 MHz, supports up to 64 GB

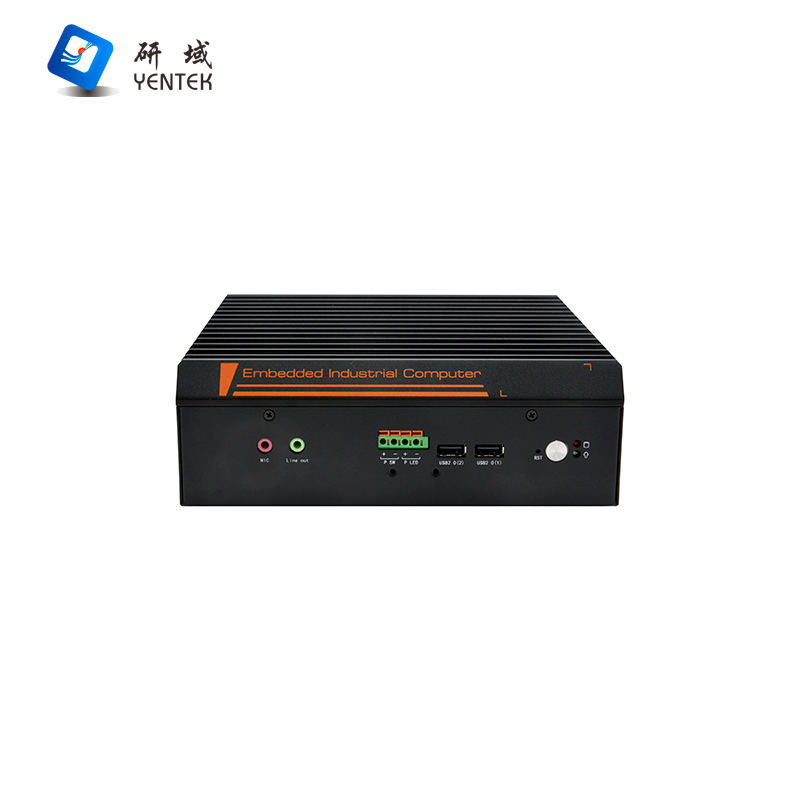

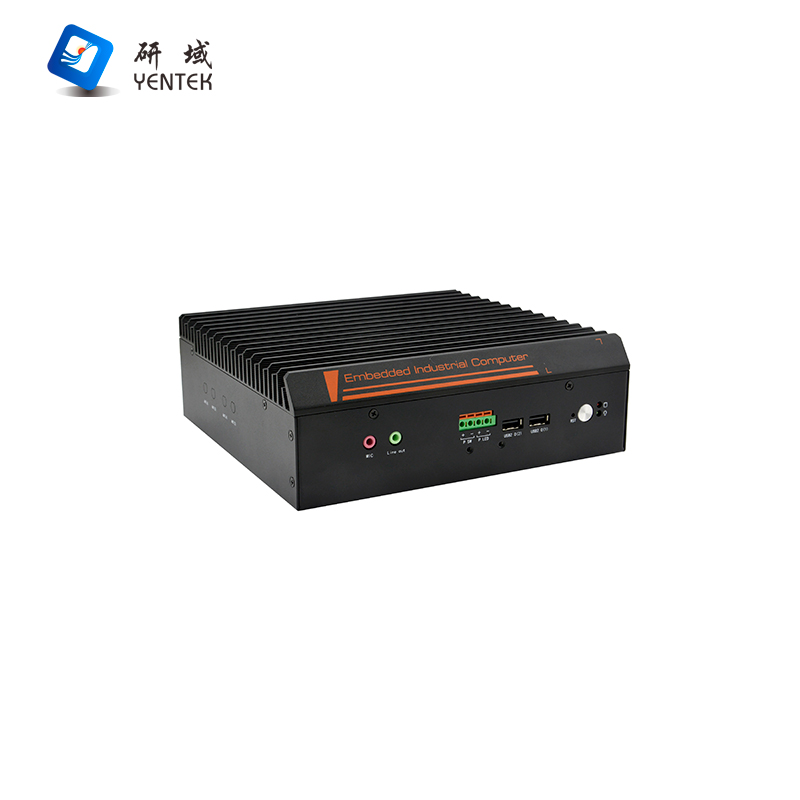

Front panel ports

Power Switch

1 × Power button, 1 × Reset button

LED

1 × Power indicator light, 1 × Hard drive indicator light

USB

2 × USB 2.0 Type-A ports

Audio

1 × Line out, 1 × Mic

Phoenix Terminals

1 × 4-pin connector (1 × Power-on signal / 1 × Power indicator signal)

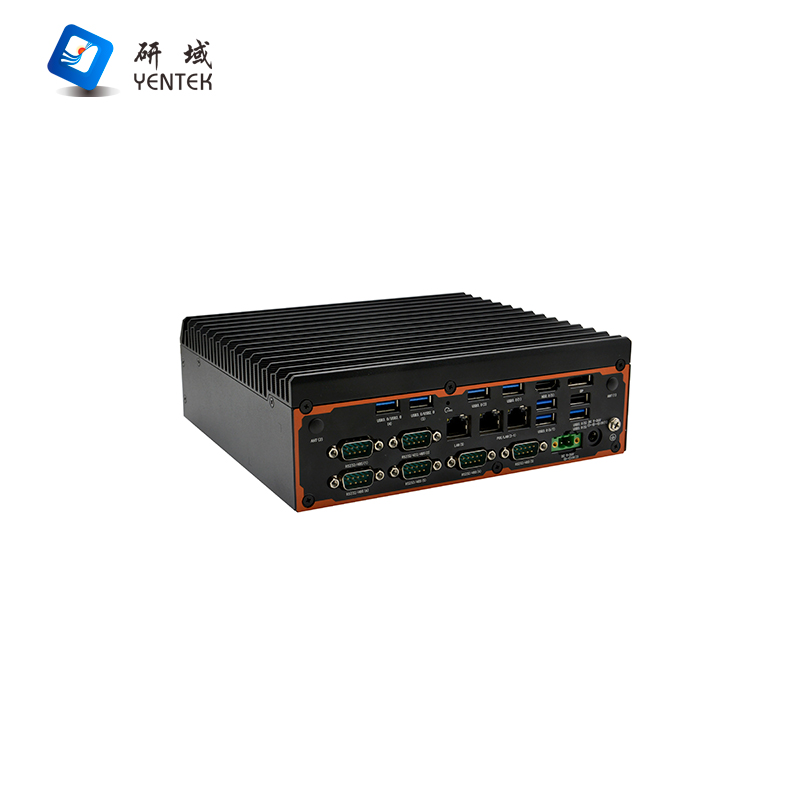

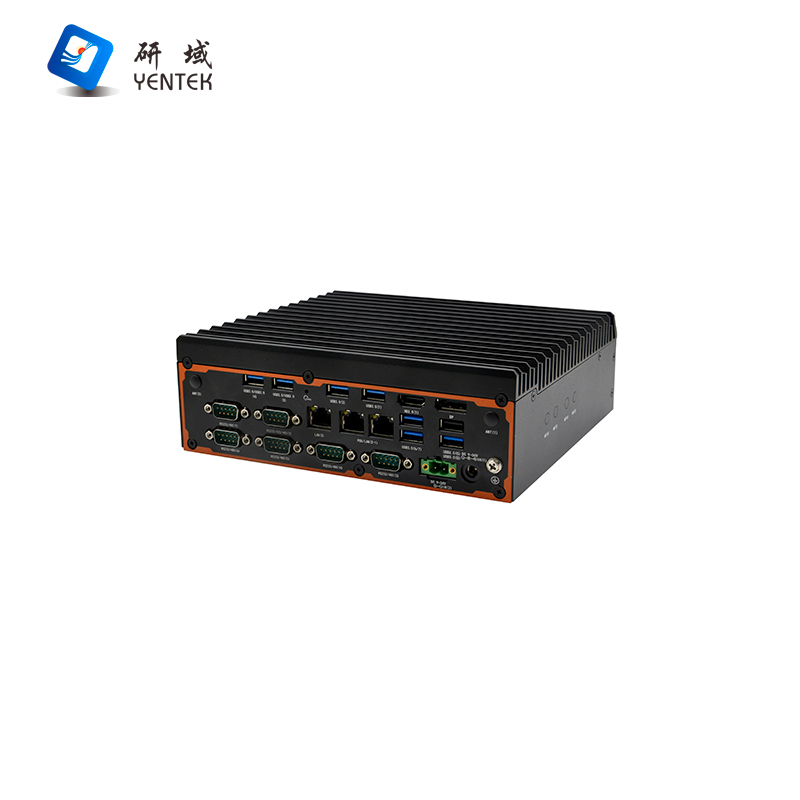

Rear panel ports

Power Switch

1 × CMOS reset button

Display Ports

1 × DP 1.4 (4096 × 2304 @ 60 Hz), 1 × HDMI 2.0 (4096 × 2304 @ 60 Hz)

LAN

3 × Intel I210AT Gigabit Ethernet ports, with LAN 2 and 3 supporting PoE (15 W per port)

COM

6 × RS232/485 DB9 serial ports, with COM2 also supporting RS422

USB

7 × Type-A USB 3.0 ports, 1 × Type-A USB 2.0 port

DIP Switches

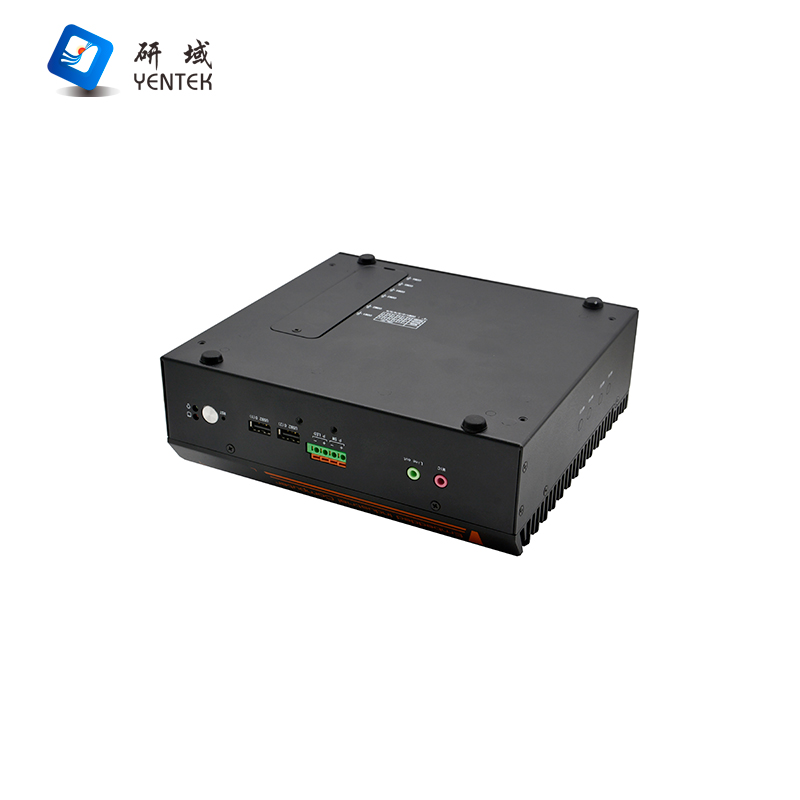

6 sets of 6-position DIP switches for RS232/485 mode selection (located on the underside)

Power Connector

1 × DC connector or 1 × 2-pin (P = 5.08 mm) Phoenix connector, supporting wide-voltage DC 9–36 V power input

Storage

SATA

/

mSATA

1 × mSATA, supporting SSDs compliant with the Intel protocol

SSD

1 × M.2 slot, supporting M.2 2280 NVMe PCIe 4.0 x4 standard SSD

Expansion

5G

1 × M.2, supporting Key-B, 3042/3052 5G modules

Wi-Fi

1 × M.2 slot, supporting M.2 Key E 2230 Wi-Fi modules

System

Microsoft

Windows 10/11

Linux

Linux

Power supply type Input

Power Supply Type

External power adaptor

Input Voltage

DC 9–36 V wide-range voltage

Output Power

AC to DC 60 W or above (depending on the specific device)

Environment

Operating Temperature

–10 °C to 50 °C

Storage Temperature

–20 °C to 70 °C

Relative Humidity

5%–95% relative humidity, non-condensing

Operating Vibration

0.5g rms/5-500HZ/random/operating
