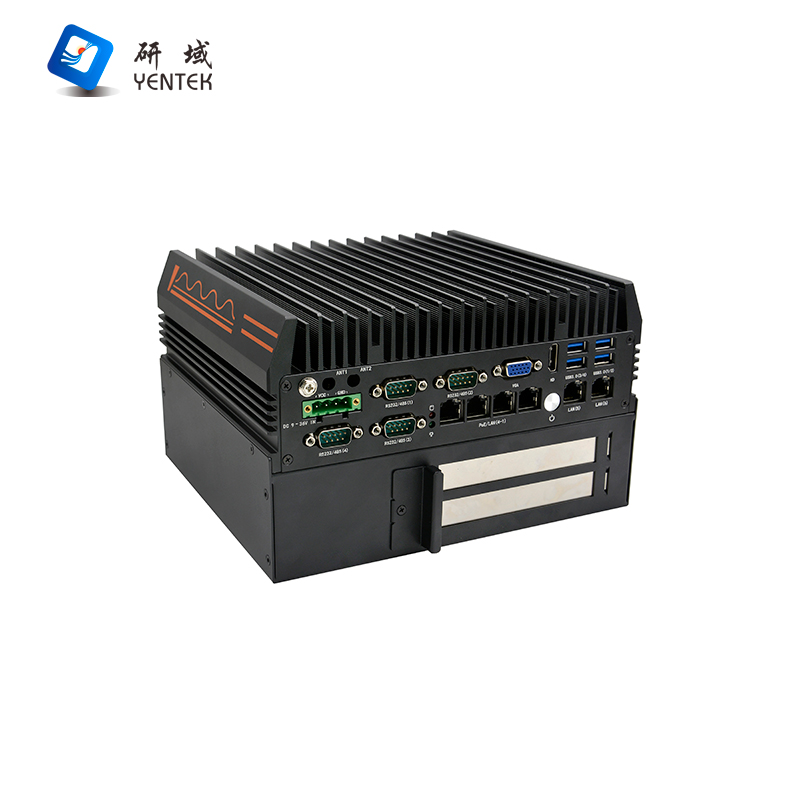

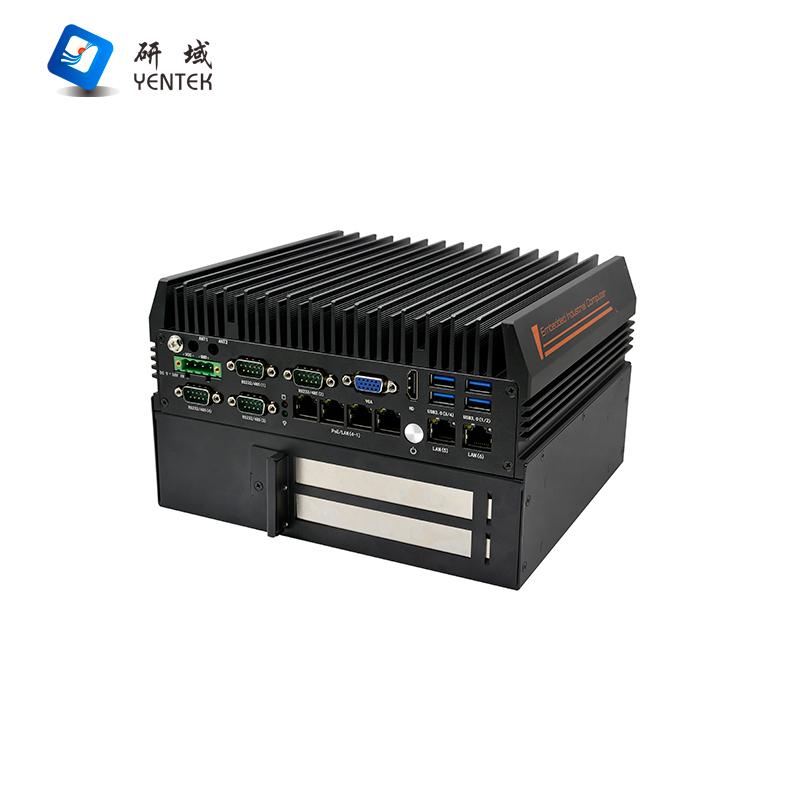

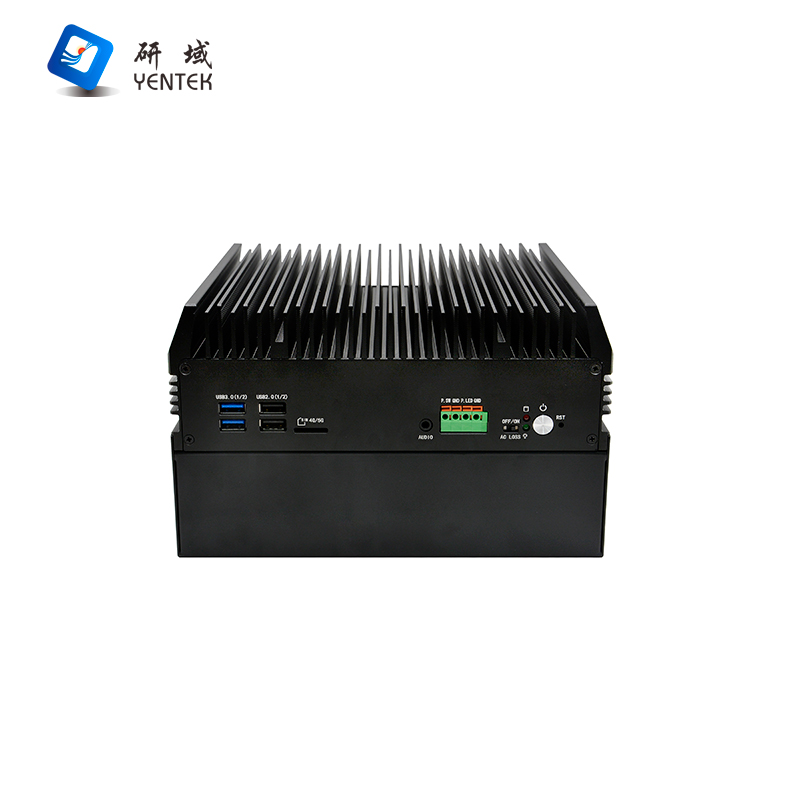

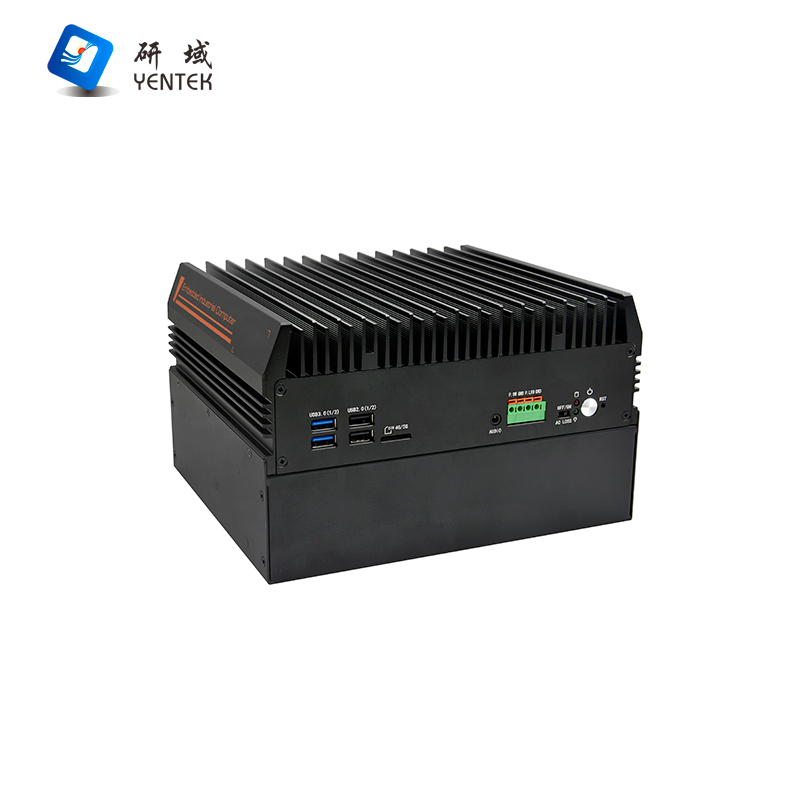

Model | G3280S-L6E2 V2.0(8300H) |
Case | Material/Construction | Aluminum alloy + sheet metal |
Color | Black |

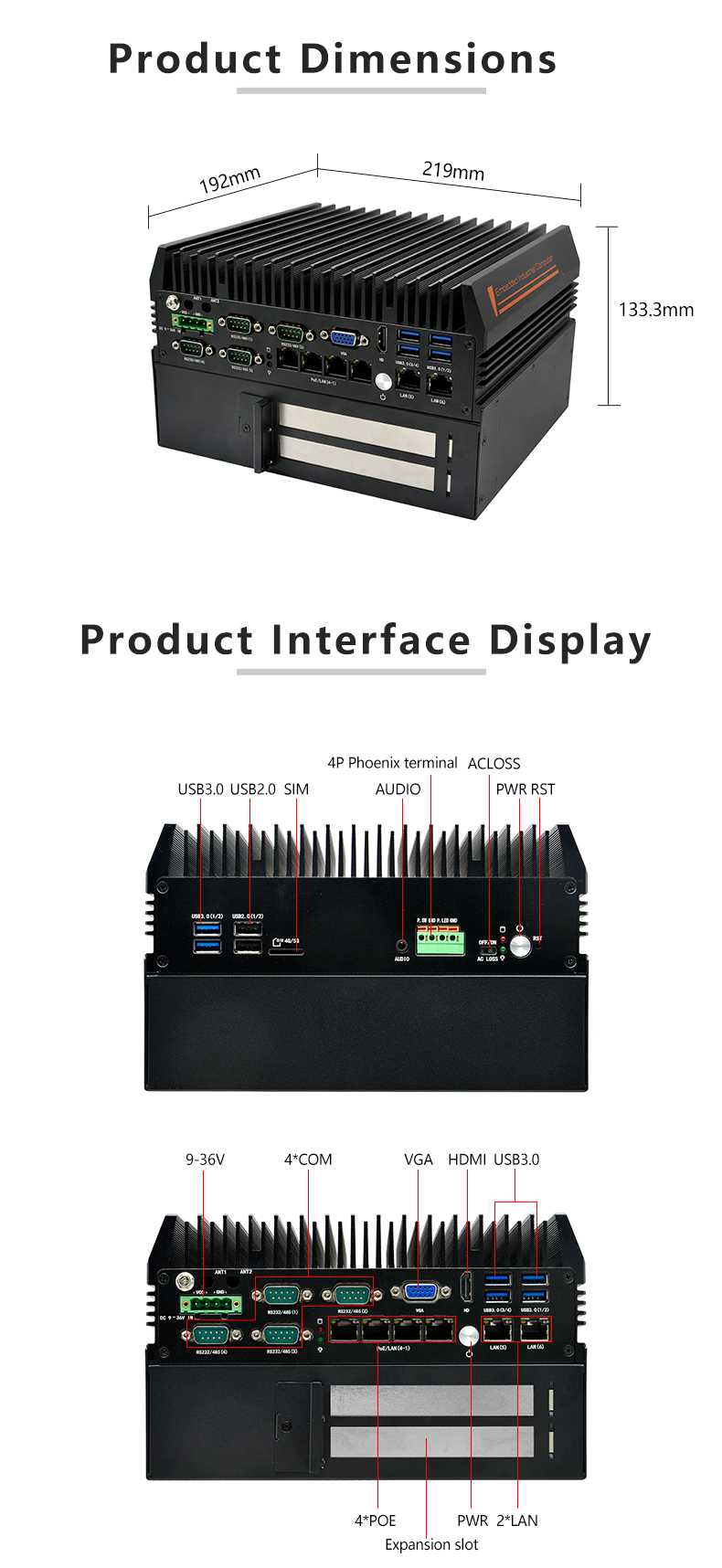

Dimensions | 219 x 192 x 133.3 mm |
Weight | 4.5 kg |
Installation | Desktop/Embedded |

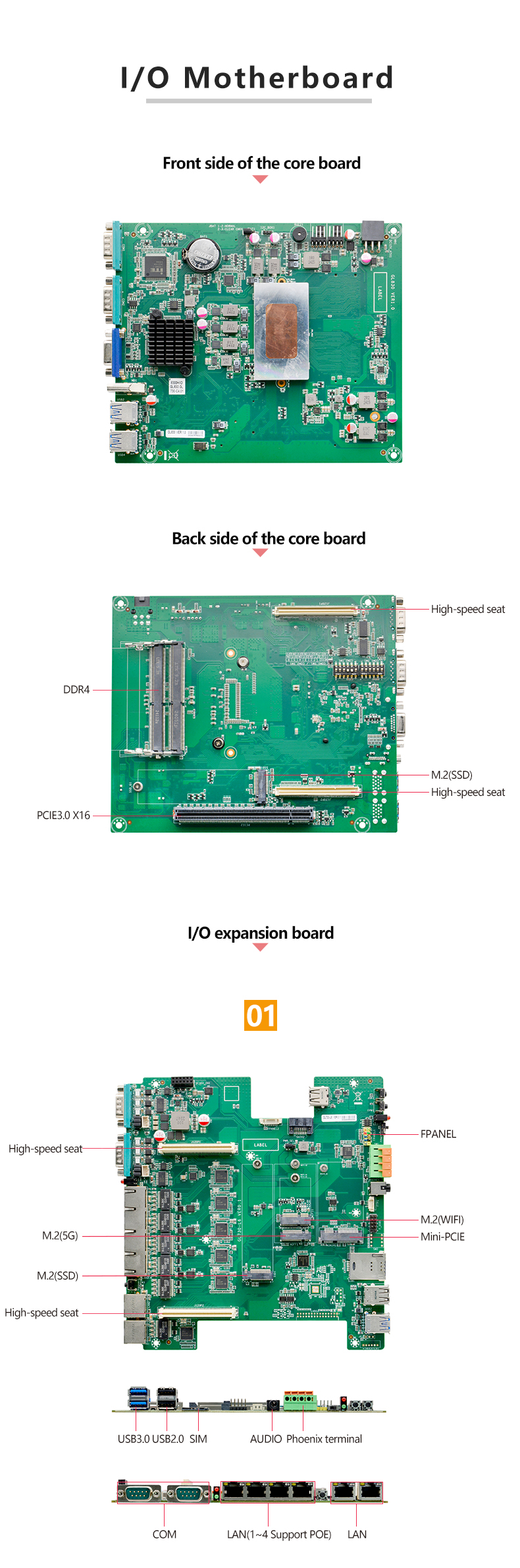

Motherboard | CPU | Integrated Intel i5-8300H/2.30 GHz quad-core, eight-thread processor, TDP 45W |
Chipset | Intel HM370 |
Memory | 2 x SODDR4 2666 MHz, supports up to 64 GB |

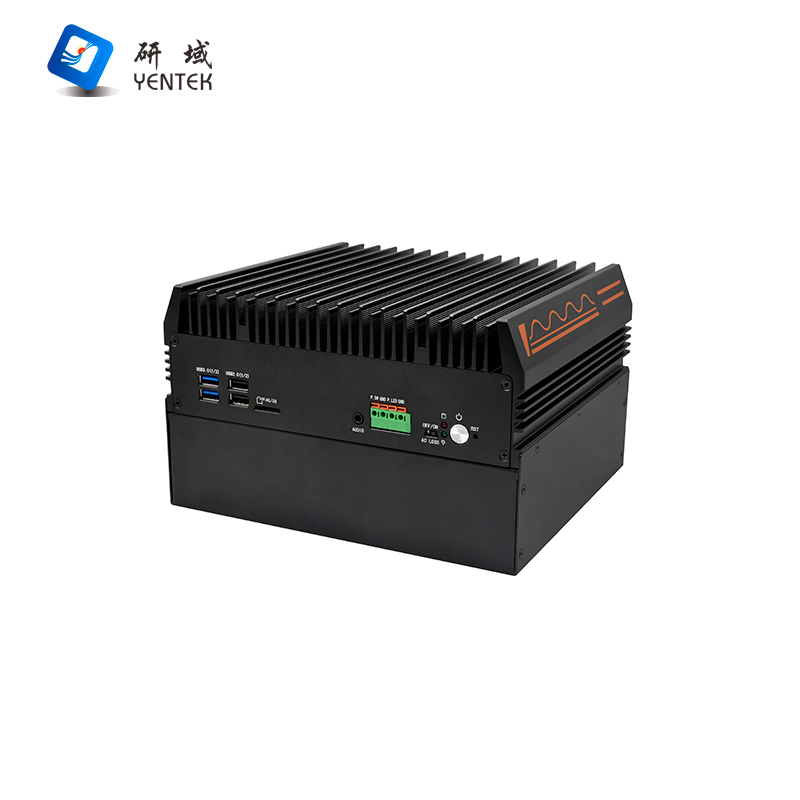

Front Panel Connectors | Power | 1 x Power button, 1 x One-click restore, 1 x ACLOSS (power-on DIP switch) |
LED | 1 x Power indicator, 1 x Hard drive indicator |
USB | 2 x USB 2.0, 2 x USB 3.0, 1 x Internal USB 2.0 (no signal on some CPU) |
Remote Switch | 1 x Power switch signal, 1 x Power indicator signal (located on 1 x 4-pin Phoenix connector) |
Audio | 1* Audio, combined Line Out and MIC |
SIM | 1* Standard SIM card slot (default signal: M.2 5G) |

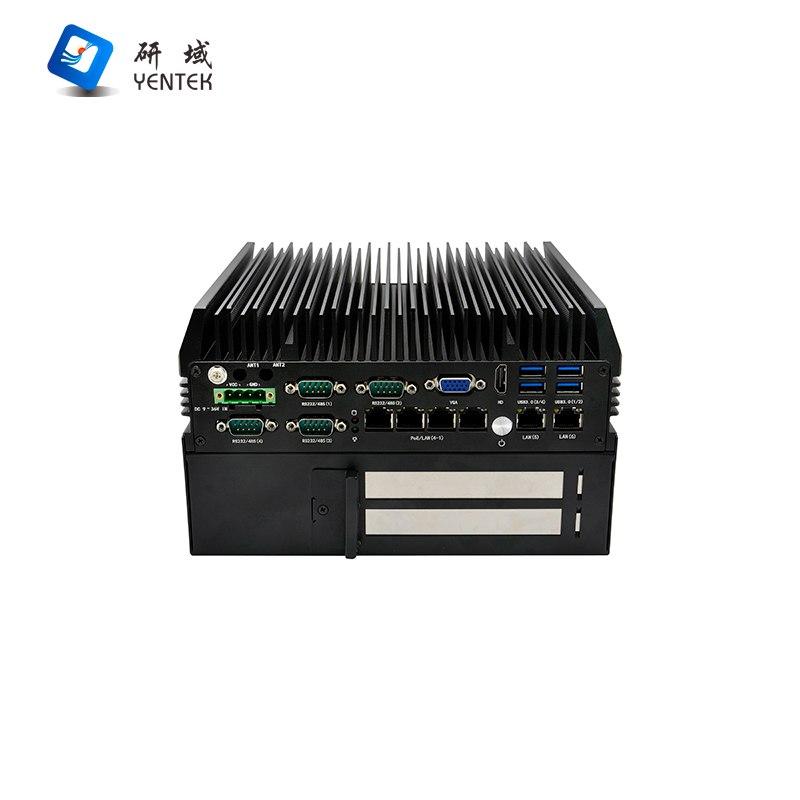

Rear Panel Connectors | Display Interface | 1* VGA, 1* HDMI 1.4 (4096×2304@30Hz), supports dual displays |
USB | 4* USB 3.0 |
COM | 4* RS232 DB9 serial ports, of which COM3–4 support RS485/CAN functionality (requires CAN module) |
LAN | 6* Intel I210AT Gigabit Ethernet ports, 4 of which support POE (15W per port) |
DIP Switch | 2 sets of 6-position DIP switches; COM3-4 RS232/485 switching via DIP switches |

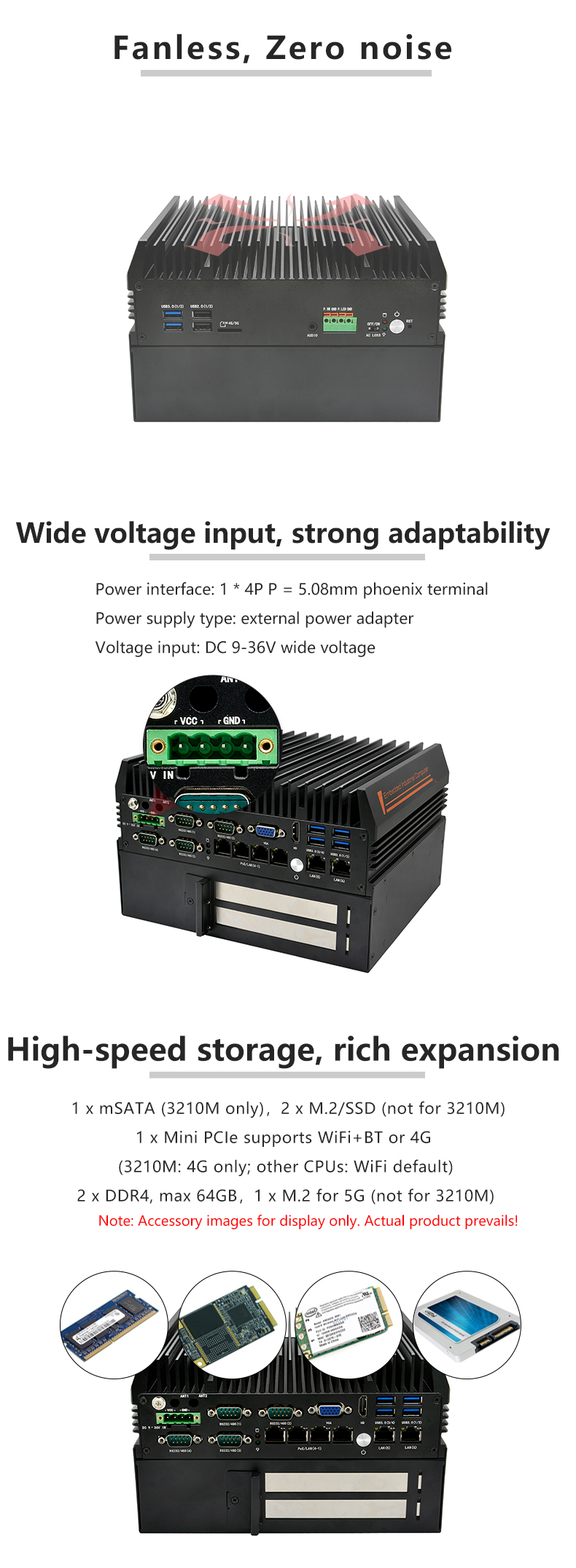

Power Connector | 1* 4-pin (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input |
Storage | MSATA/SSD | 1* mSATA (supported only by 3210M) |
1 x M.2, supports Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (not supported on 3210M) |
SSD | 1 x M.2, supports Key-M, 2280, NVMe PCIe SSD (except for 3210M; other CPUs only support M.2 SSD) |

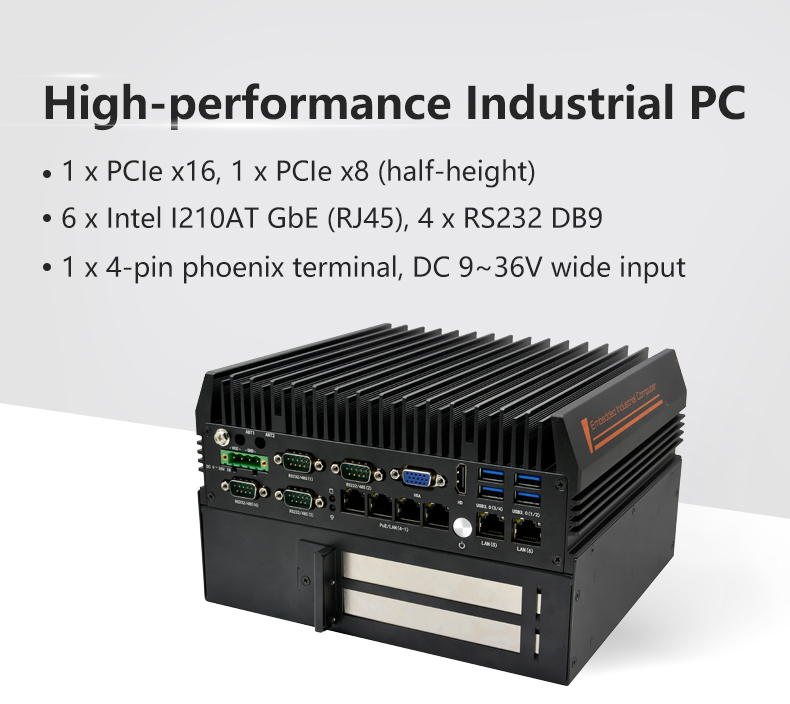

Expansion | PCIe | 1 x PCIe x16 (x8 signal) (graphics card dimensions not exceeding 170 x 120 x 30 mm) |
1 x PCIe x8 (x1 signal) |
Wi-Fi/4G | 1 x Mini-PCIe, supports Wi-Fi + Bluetooth or 4G (3210M supports 4G only; other CPU default to Wi-Fi) |
5G | 1 x M.2, supports Key-B, 3042/3052, 5G modules (Not supported by 3210M) |
System | Windows | Windows 10 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Supply Type | Input Voltage | DC 9V–36V wide voltage range |
Power Requirements | AC to DC 90W or higher (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
