G Series (New Design)

G3780F-P4E2

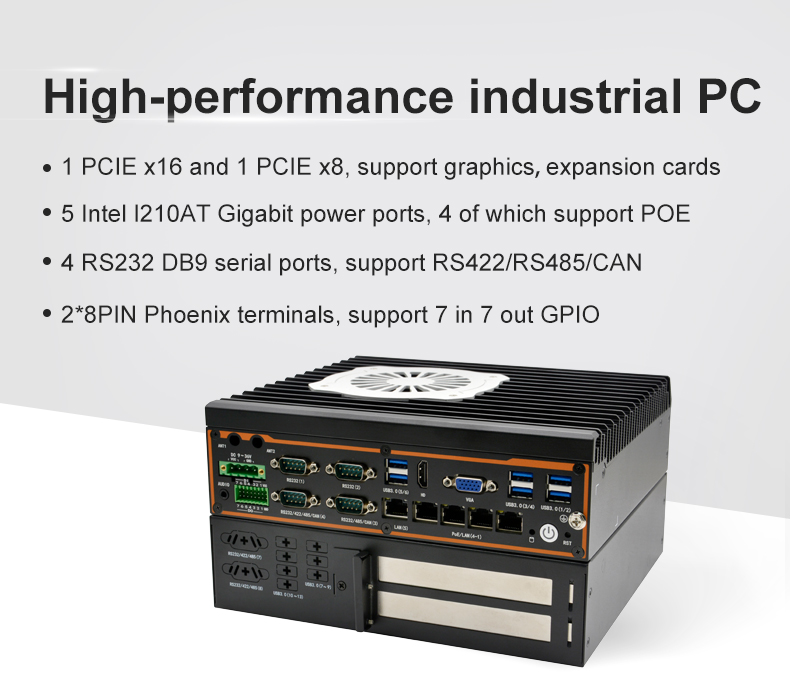

FEATURES

Product Characteristics:

● Intel LGA1151 / 8th~9th generation processor series

● 2*SODDR4, supports up to 64GB

● Intel Z390

● 5*Intel I210AT, 4 of them support POE

● 4*RS232 DB9 serial ports, COM3~4 support CAN (CAN module needs to be loaded)

● 8*USB3.0, 2*USB2.0, built-in 1*USB2.0

● support DIO 7 in 7 out with isolation

● 1*PCIE x16(x8 signal), 1*PCIE x8(x8 signal)

● Support DC 9~36V wide voltage (1*4P Phoenix terminal)


Product description

Model

G3780F-P4E2   V2.0(G390)



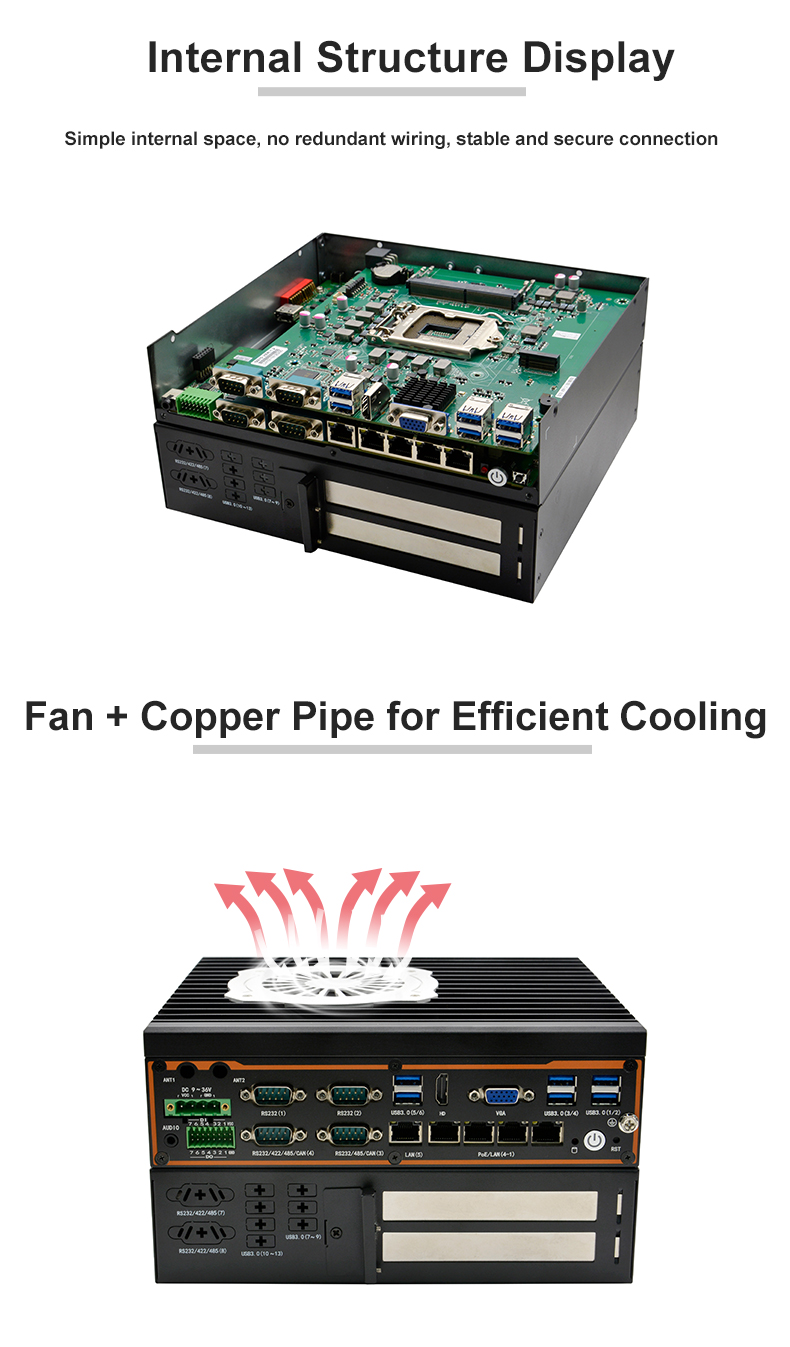

Chassis



Material/Construction

Aluminium   alloy + sheet metal material Fan cooling

Colour

Black

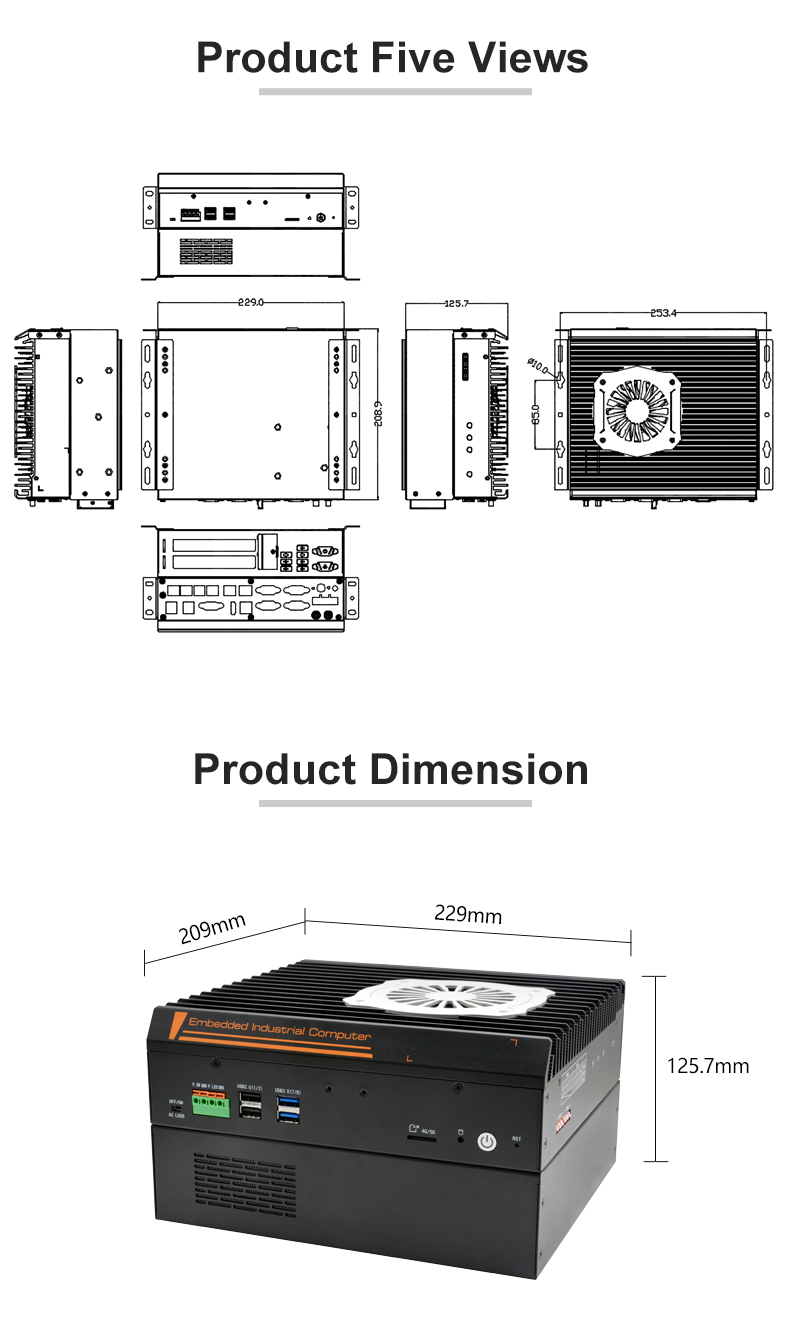

Dimensions   (LWH)

229*209*125.7MM

Weight

4.47KG

Installation

Desktop/Embedded/DIN   rail(35mm)

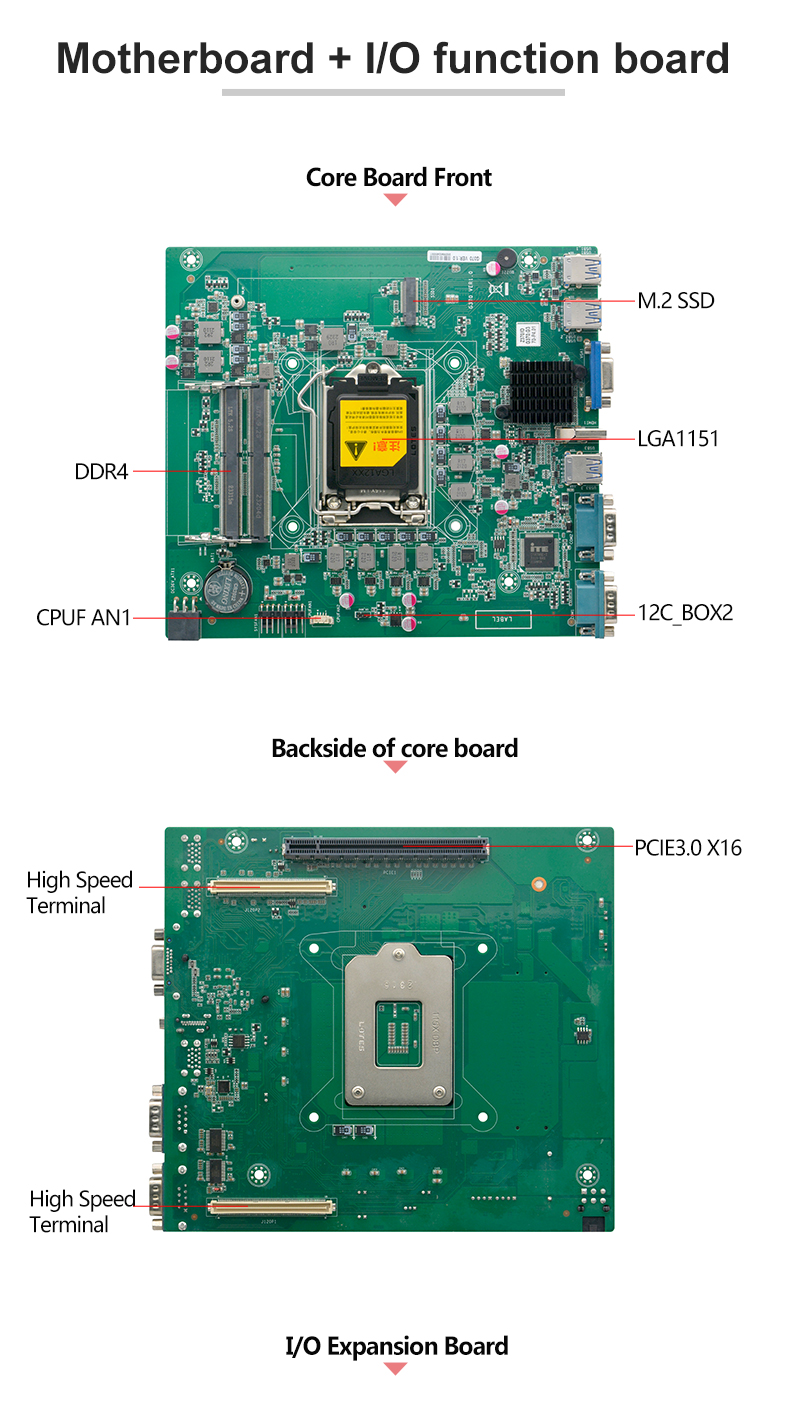

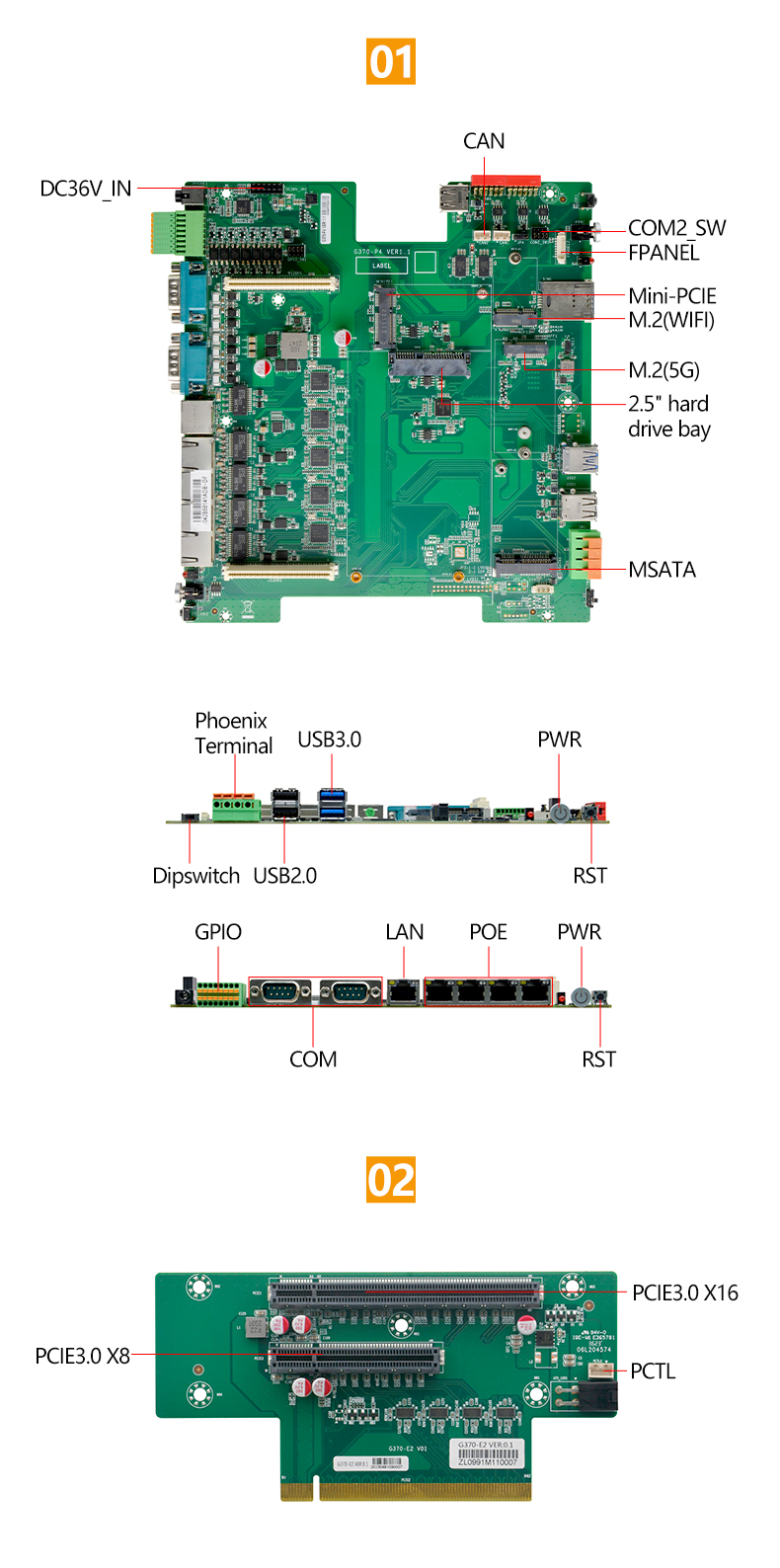

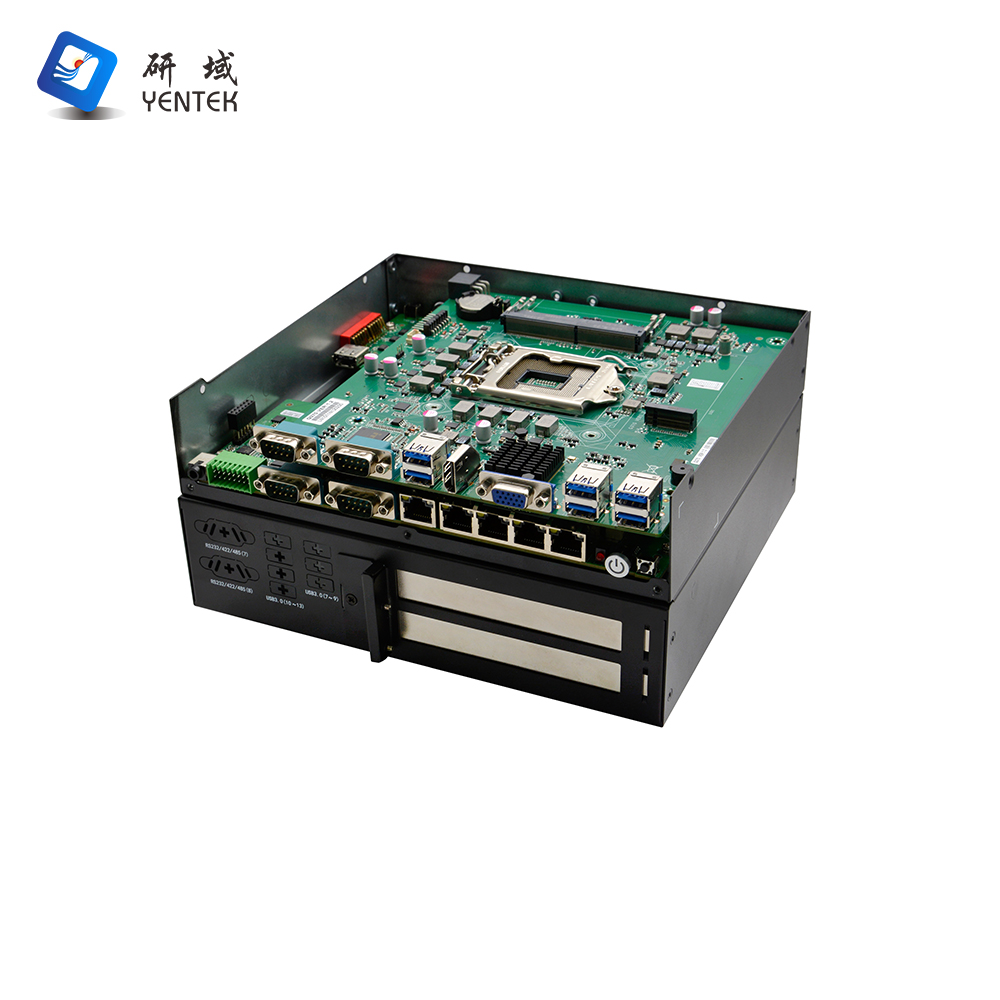

Motherboard



CPU

Intel®LGA1151   /8~9th Generation series processor

System-on-Chip

Intel®Z390

Memory

2*SODDR4,   Maximum support 64GB

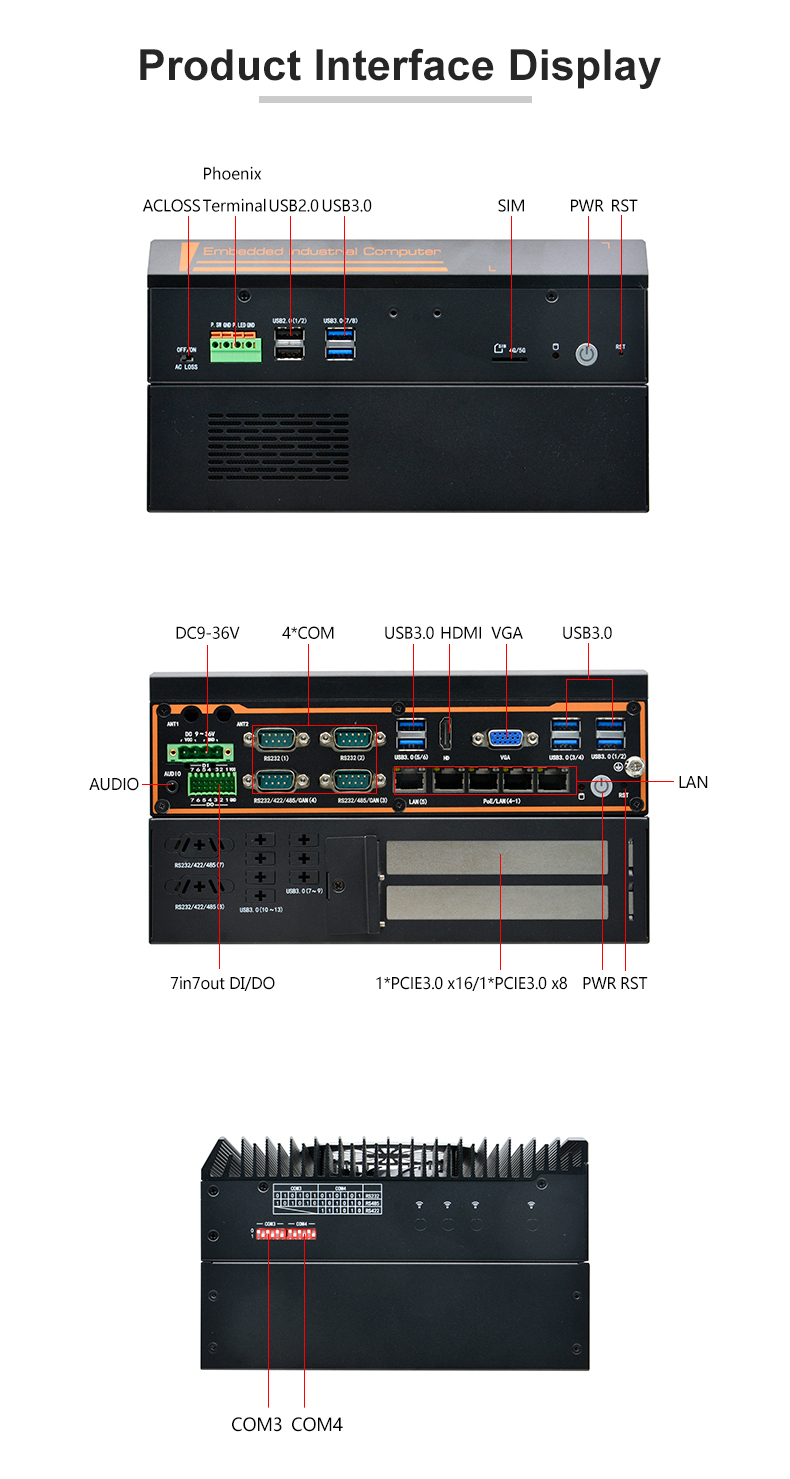

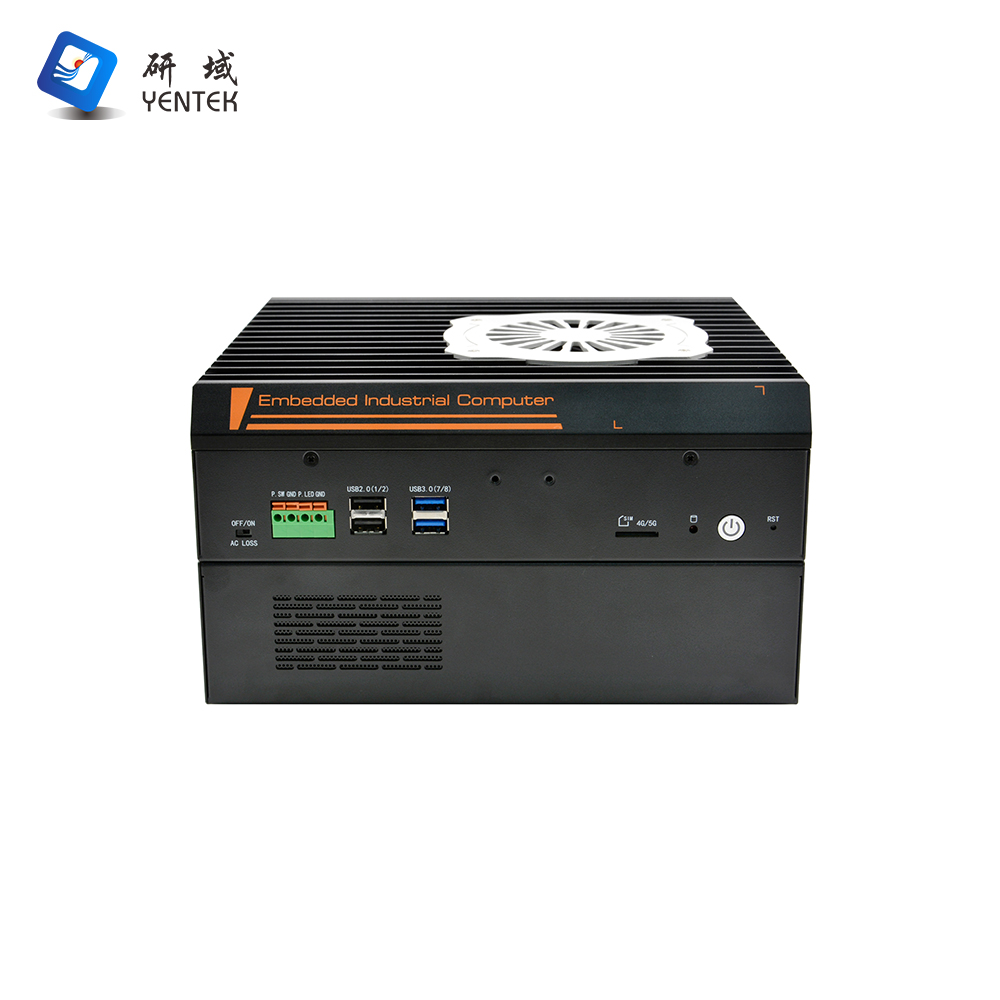

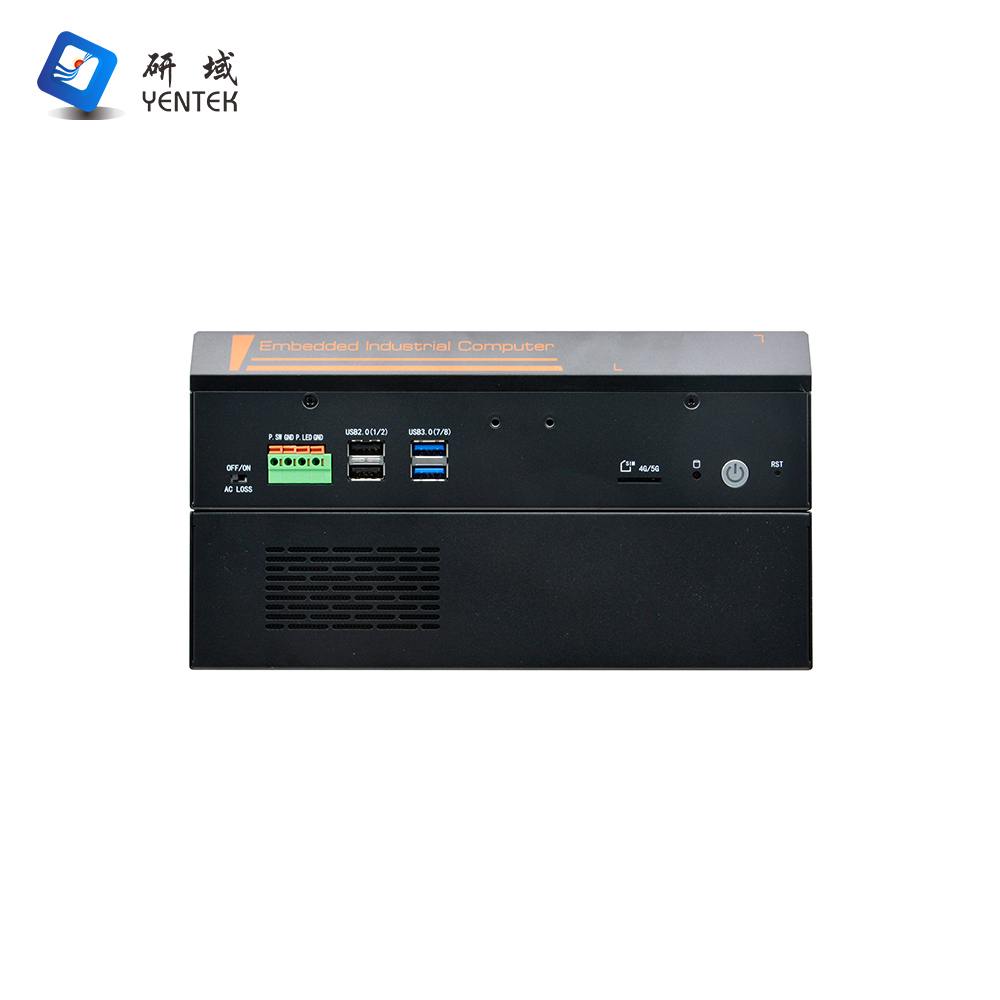

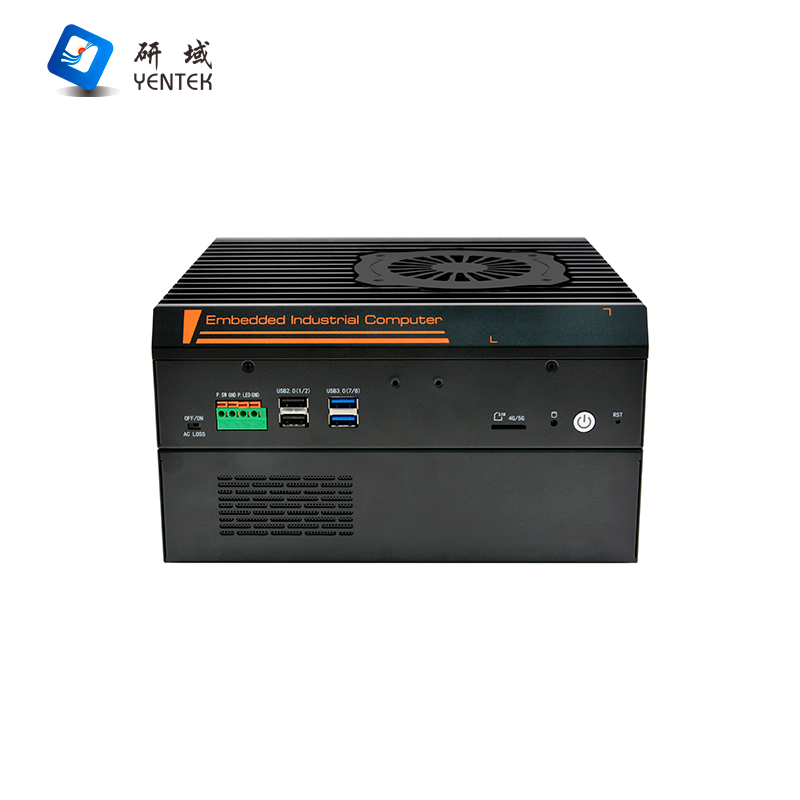

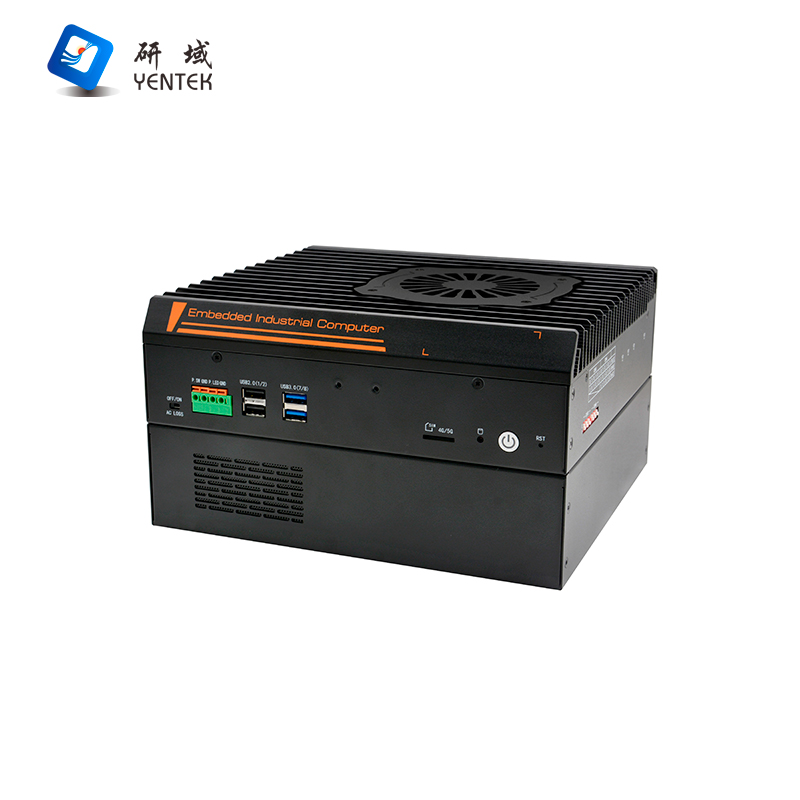

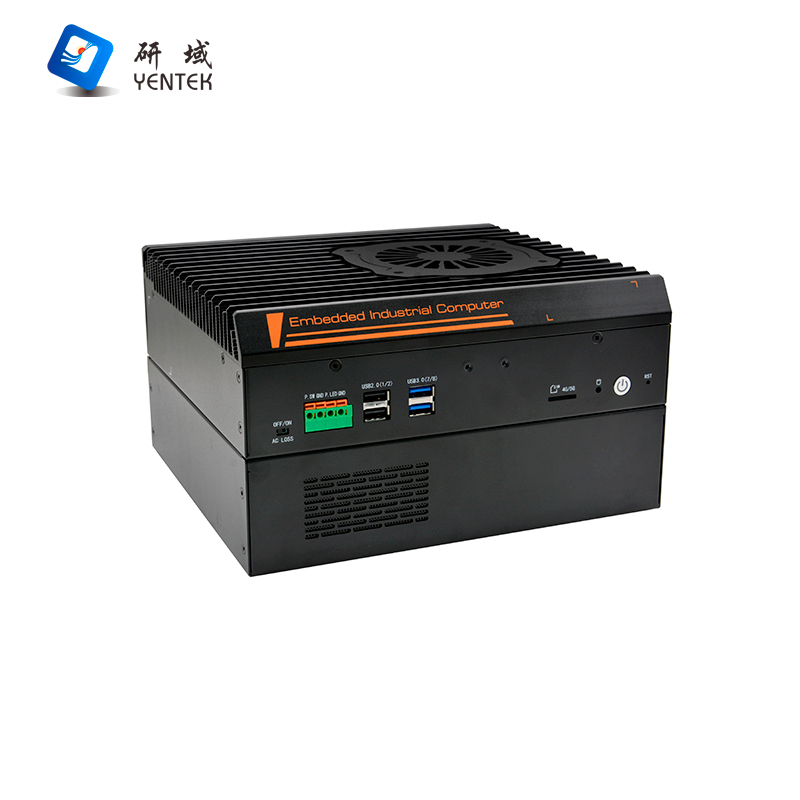

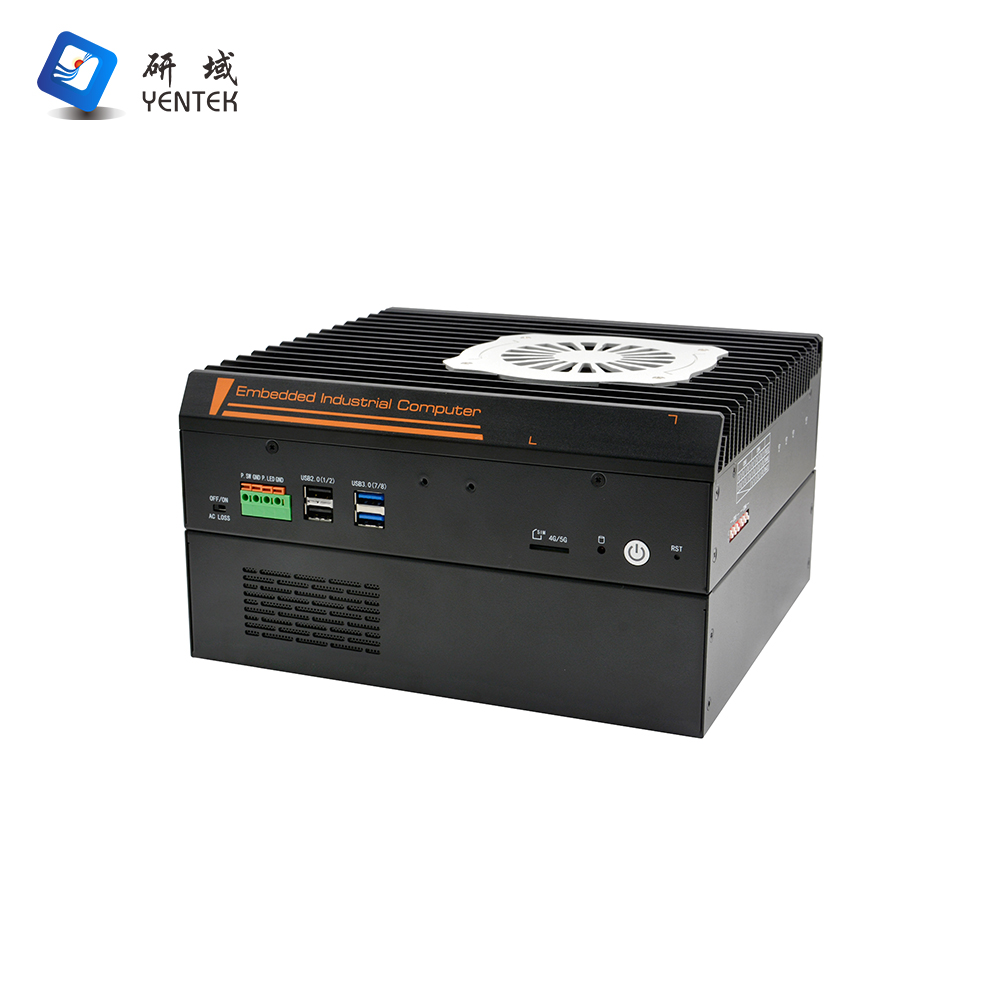

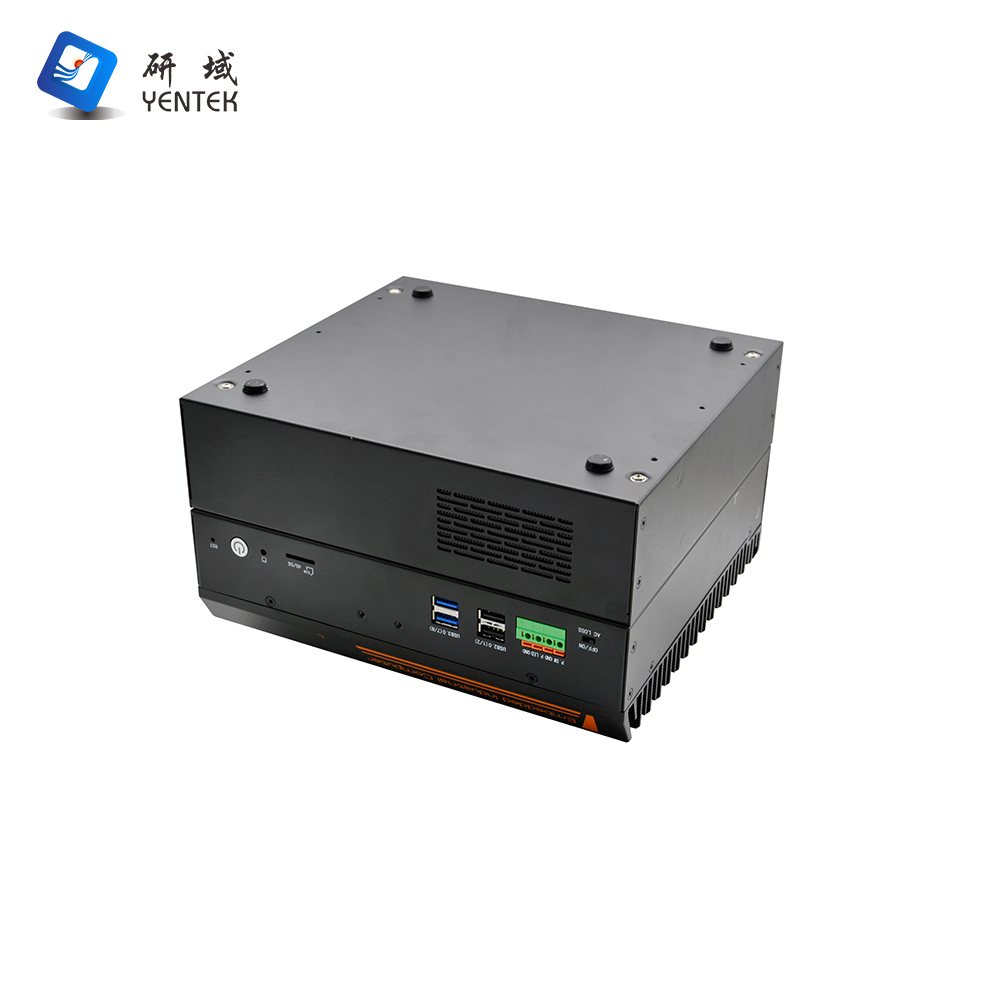

Front   Panel  Interface



Switches

1*Boot   button with indicator, 1*One-Key Restore, 1*ACLOSS ( Power on DIP Switch)

LED

1*Hard   Drive Indicator

USB

2*USB3.0,   2*USB2.0, Built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix Terminal (1*Power Indicator Signal, 1*Power On/Off Signal)

SIM

1*SIM   Standard Card Slot (Signal Default M.2 5G)

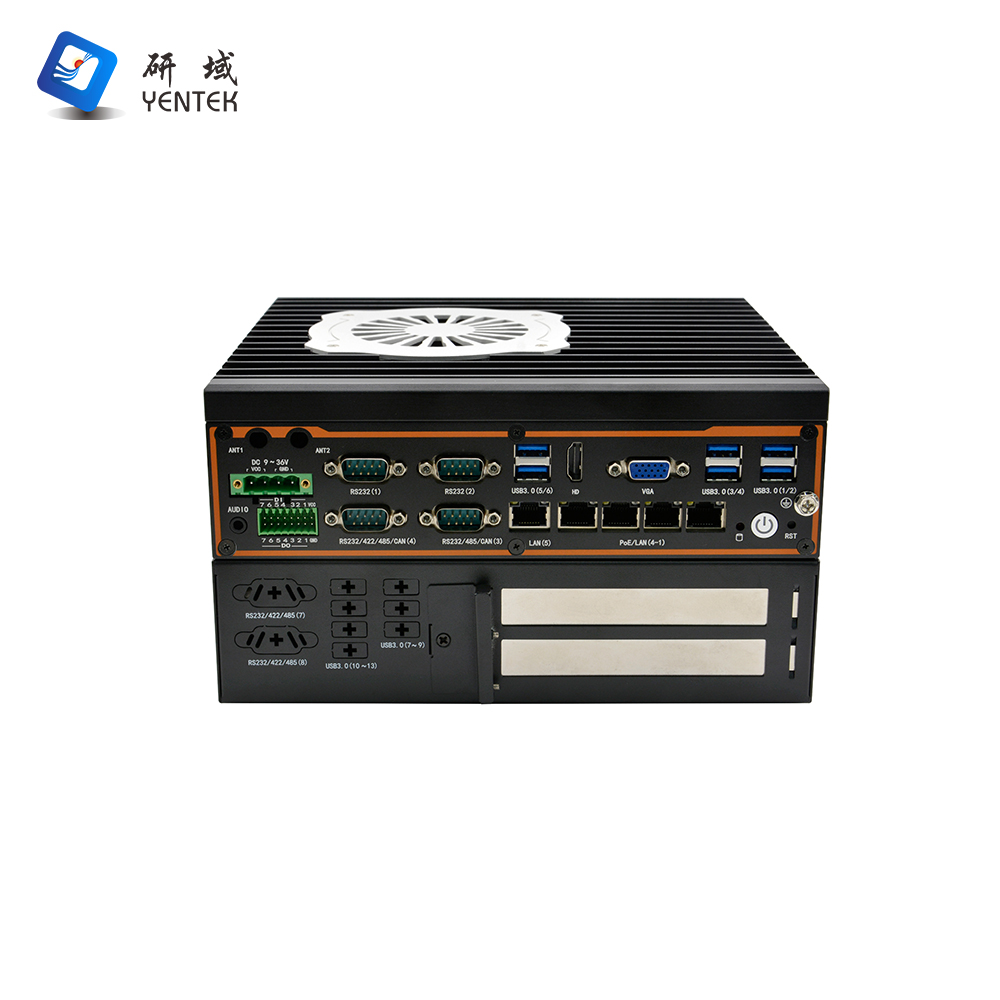

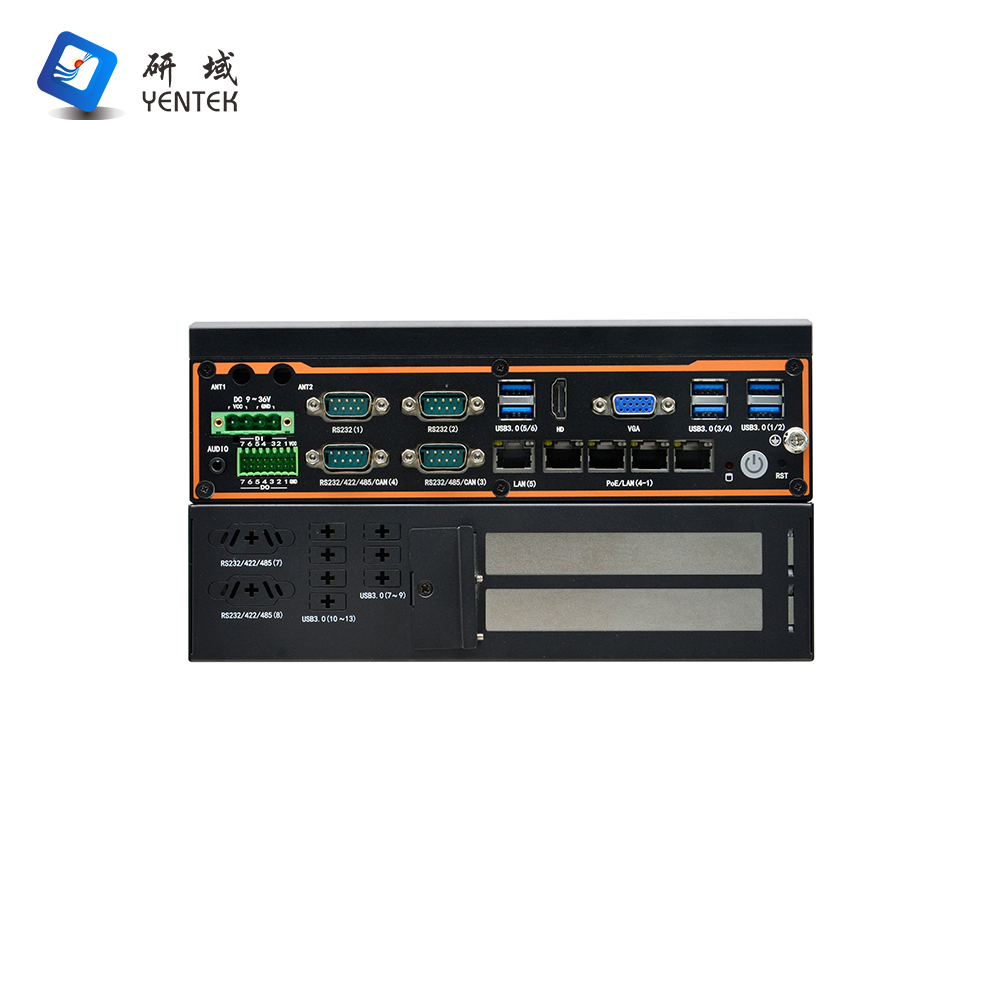

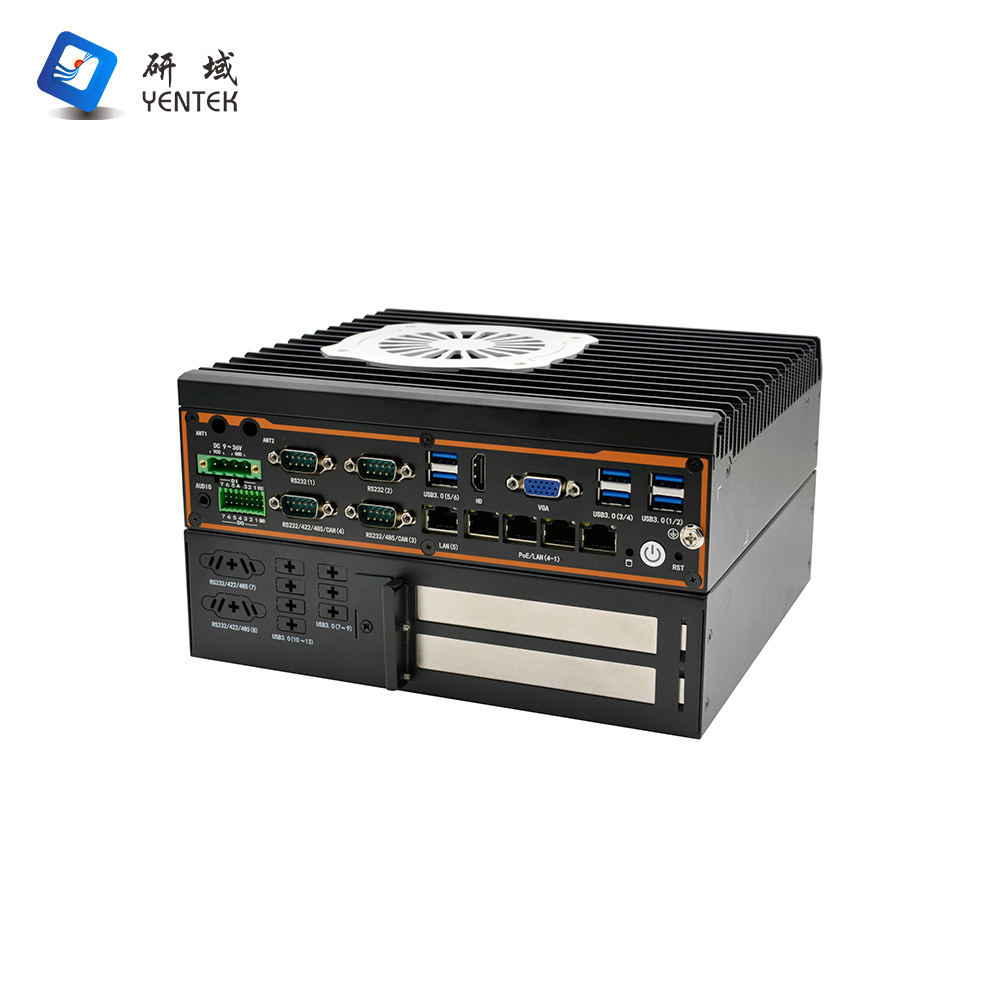

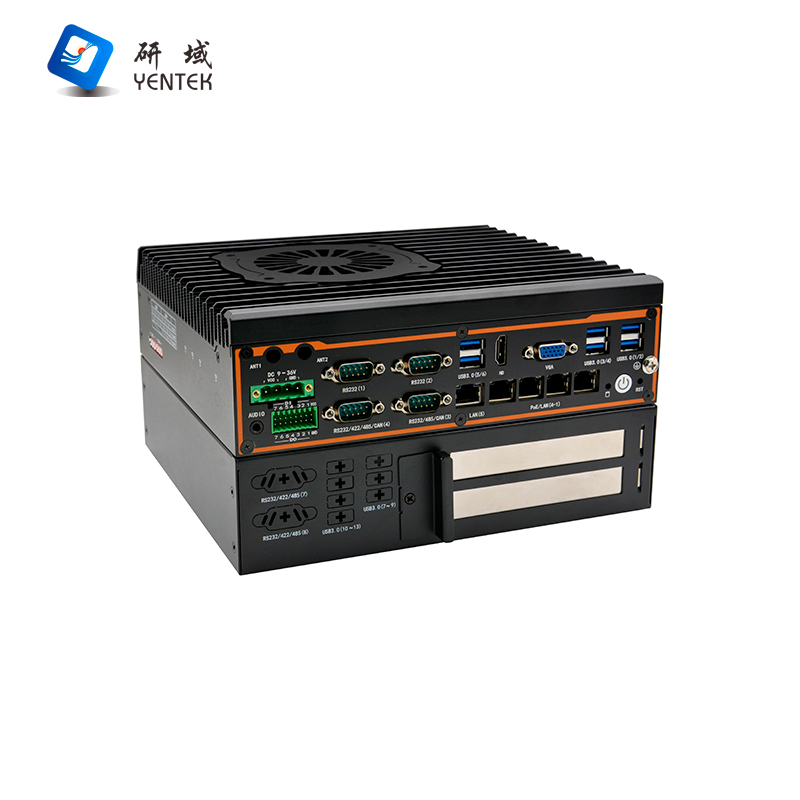

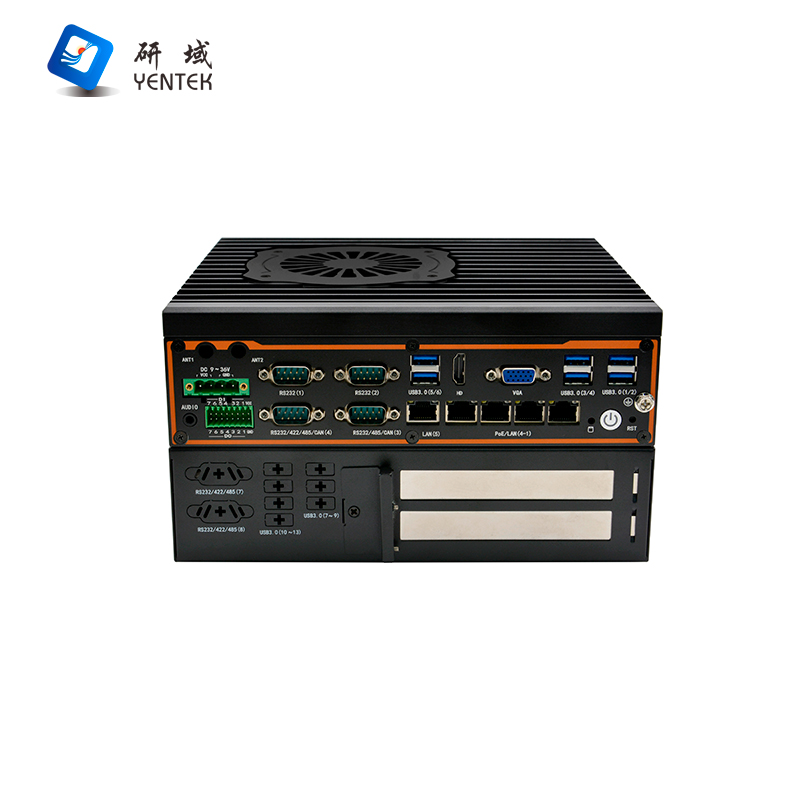

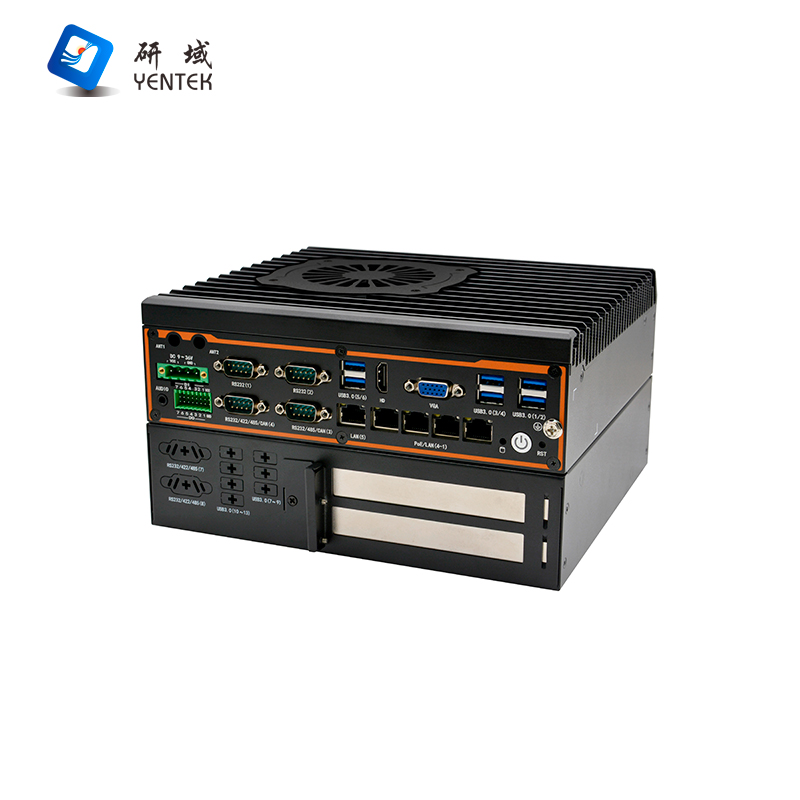

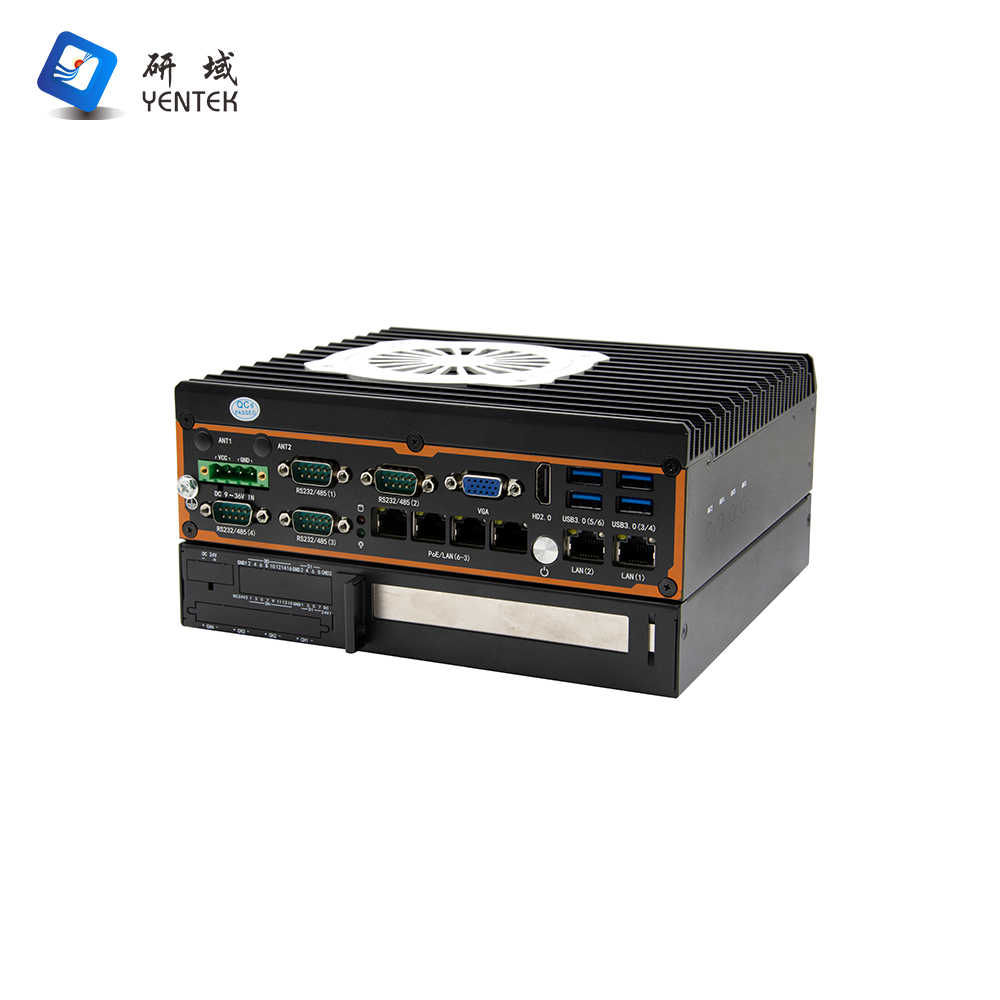

Rear   Panel Interface



Switches

1*Power   on Button with Indicator, 1*One-Touch Restore

LED

1*Hard   Drive Indicator

Display   Interface

1*VGA   (1920*1200 @60Hz), 1*HDMI1.4

COM

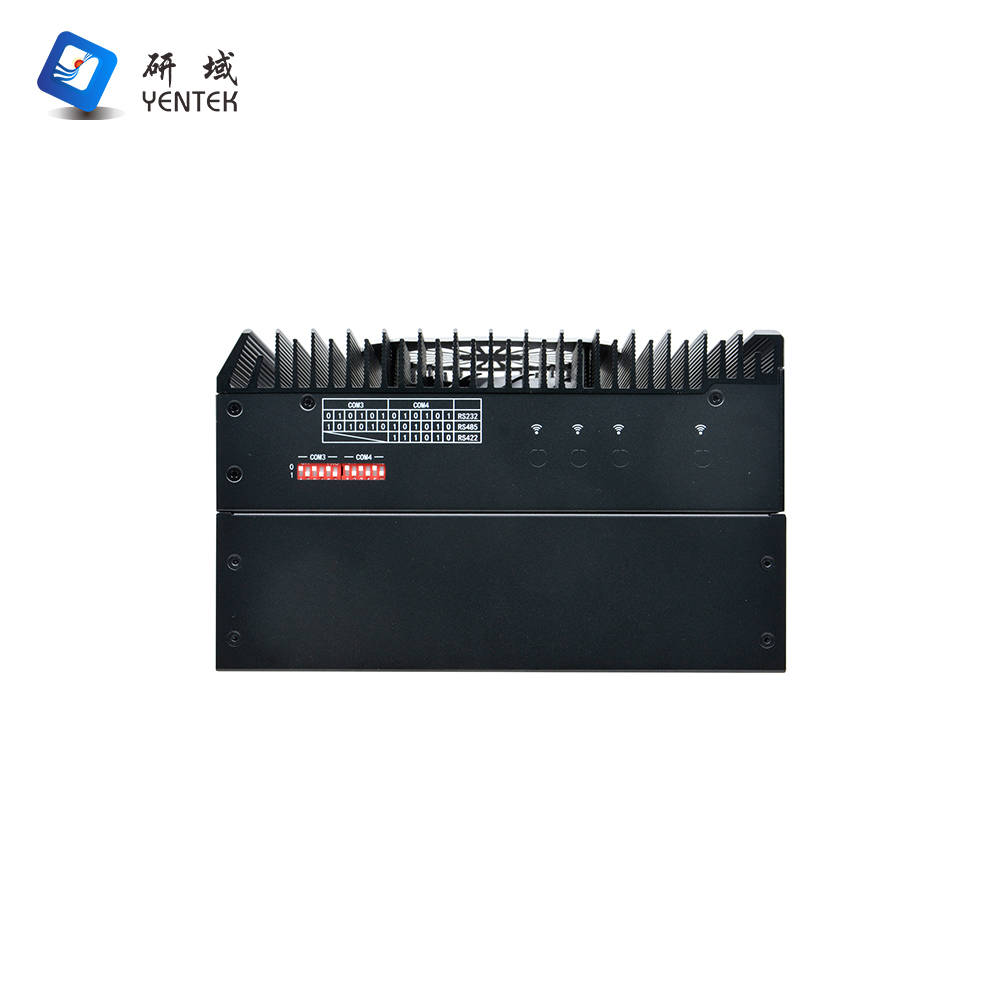

4*RS232   DB9 serial port, COM3~4 support RS485, COM4 support RS422, COM3~4 support CAN   function (need to load CAN module )

LAN

5*Intel   I210AT Gigabit Ethernet ports, 4 of them support POE

USB

6*USB3.0

DI/DO

7*ID,   7*DO (PNP, located on 2*8P Phoenix terminal)

Audio

1*Audio,   Line out and Mic 2-in-1

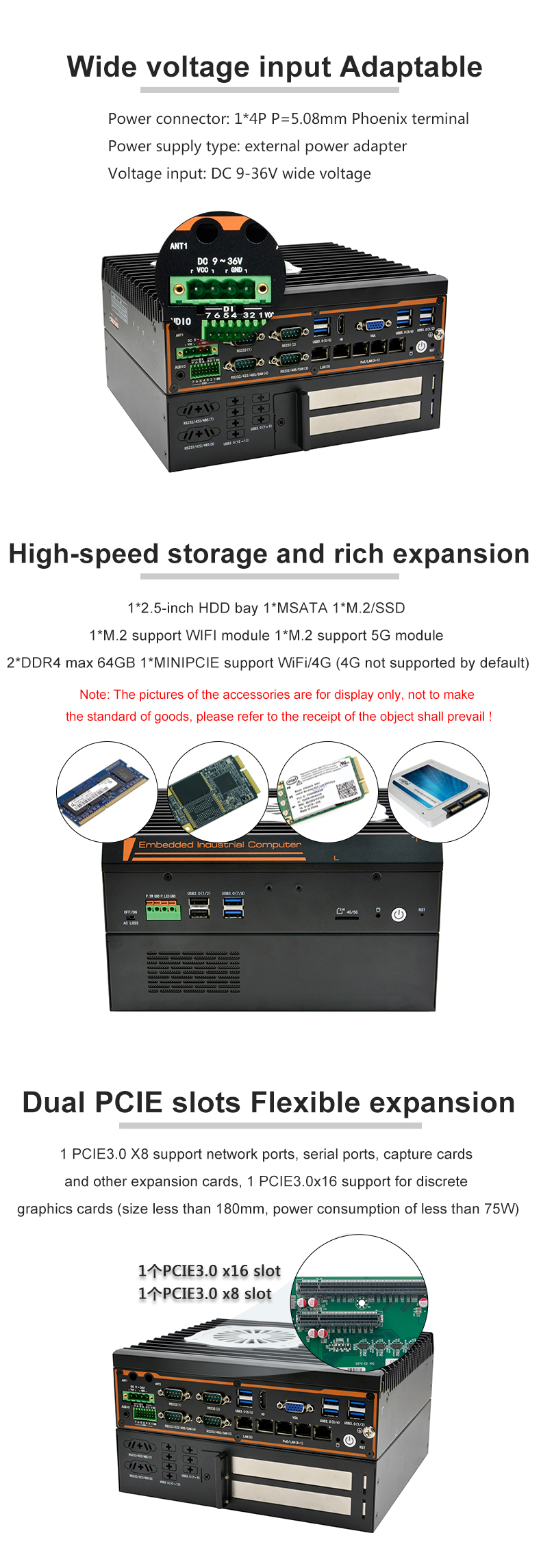

Power   Interface

1*4P   (P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage input

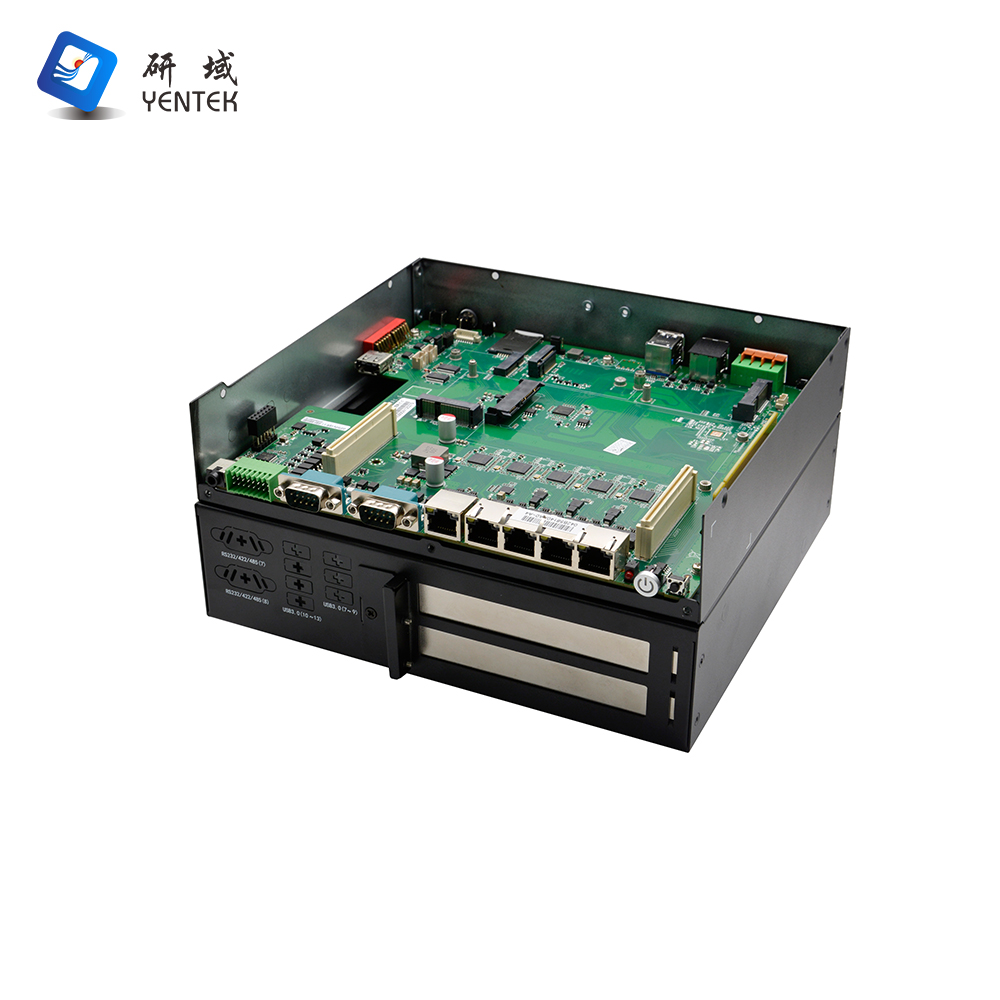

Storage



SATA

1*2.5-inch   hard disk space (IO board side)

MSATA

1* MSATA   (IO board side)

SSD

1*M.2,   support Key-M, 2280, NVME PCIEx4 SSD (motherboard side)

Expansion



PCIE



1*PCIE3.0   x16 (x8 signals)

1*PCIE3.0   x8 (x8 signals) (x1 signals only for 6th-7th generation CPU)

WiFi/4G

1*MINIPCIE,   support WiFi/4G (4G default not support)

WiFi

1*M.2,   support Key-E, 2230, WiFi module

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support



Microsoft

Windows   10

Linux

Linux

Power   Supply Type



Power   type

External   power adapter

Voltage   input

DC 9-36V   wide voltage, max load 220W

Environment

Operating   temperature

-10℃~50℃

Storage   temperature

-20℃~70℃

Relative   humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random

Order information

No.

Model

CPU

Memory

Motherboard

Chipset

IO Board

HDD

PCIE

DI/DO

LAN

COM

CAN

USB3.0

USB2.0

power

1

G3780F-P4E2   V2.0(G250)

LGA1151

6~9th

2*SODDR4

G250

Q250

G370-P4/G370-PW/G370-E2

1*2.5+1*MSATA+1*M.2(NVME/SATA)

x8+x1

7in7out

5*I210

4

2

8

3

9-36V

2

G3780F-P4E2   V2.0(G390)

LGA1151

8~9th

2*SODDR4

G390

Z390

G370-P4/G370-PW/G370-E2

1*2.5+1*MSATA+1*M.2(NVME/SATA)

x8+x8

7in7out

5*I210

4

2

8

3

9-36V

3

G3780F-P4E2   V2.0(G670)

LGA1700

12~14th

2*SODDR4

G670

H770

G370-C6/G370-PW/G370-E2

1*2.5+1*MSATA+1*M.2(NVME/SATA)

x8+x8

7in7out

5*I210

4

2

8

3

9-36V
