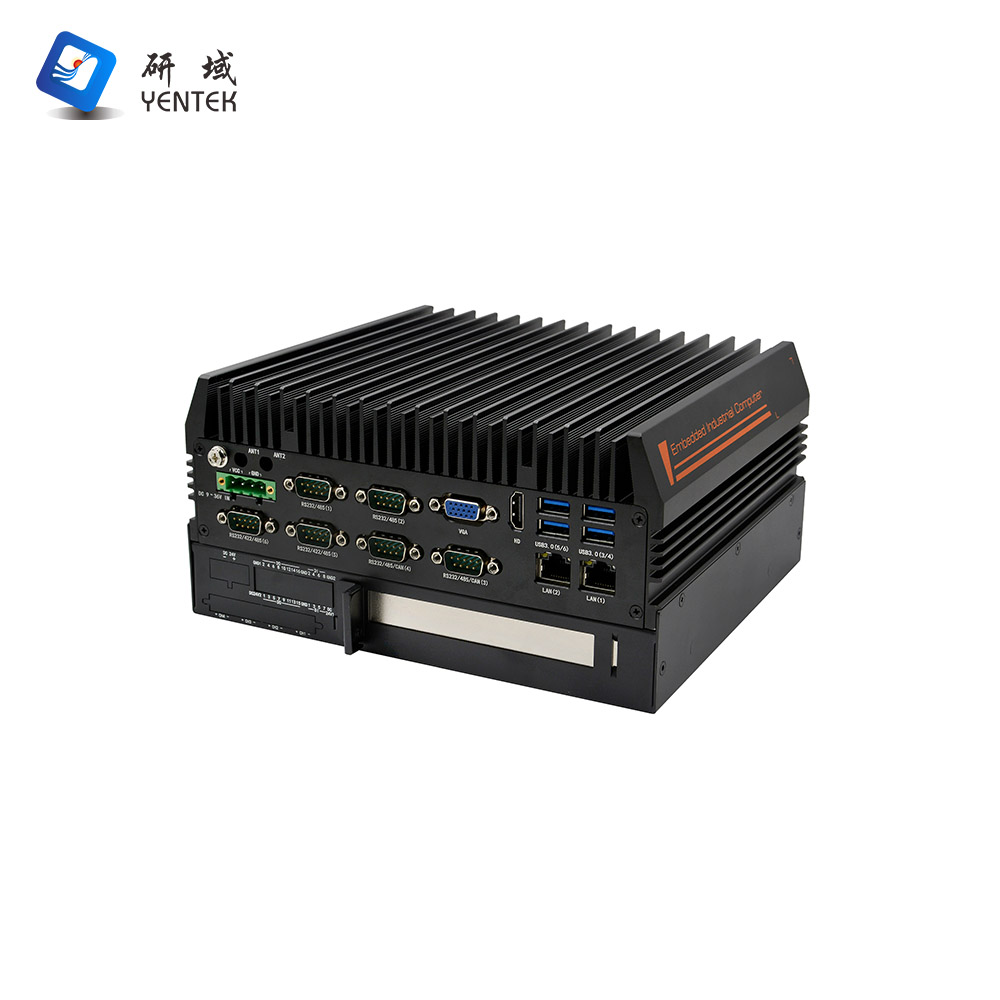

Model | G3260S-C6E1 V3.0(3210M) |
Case | Material/Construction | Aluminum alloy + sheet metal |
Color | Black |
Dimensions | 219 x 192.6 x 109.5 mm |
Weight | 3.3 kg |
Installation | Desktop/Wall-mount |
Motherboard | CPU | Integrated Intel i5-3210M processor (2.4 GHz, Turbo Boost up to 3.10 GHz), dual-core, quad-thread, TDP 35W |
Chipset | SoC |
Memory | 2 x SODDR3, supports up to 16 GB |

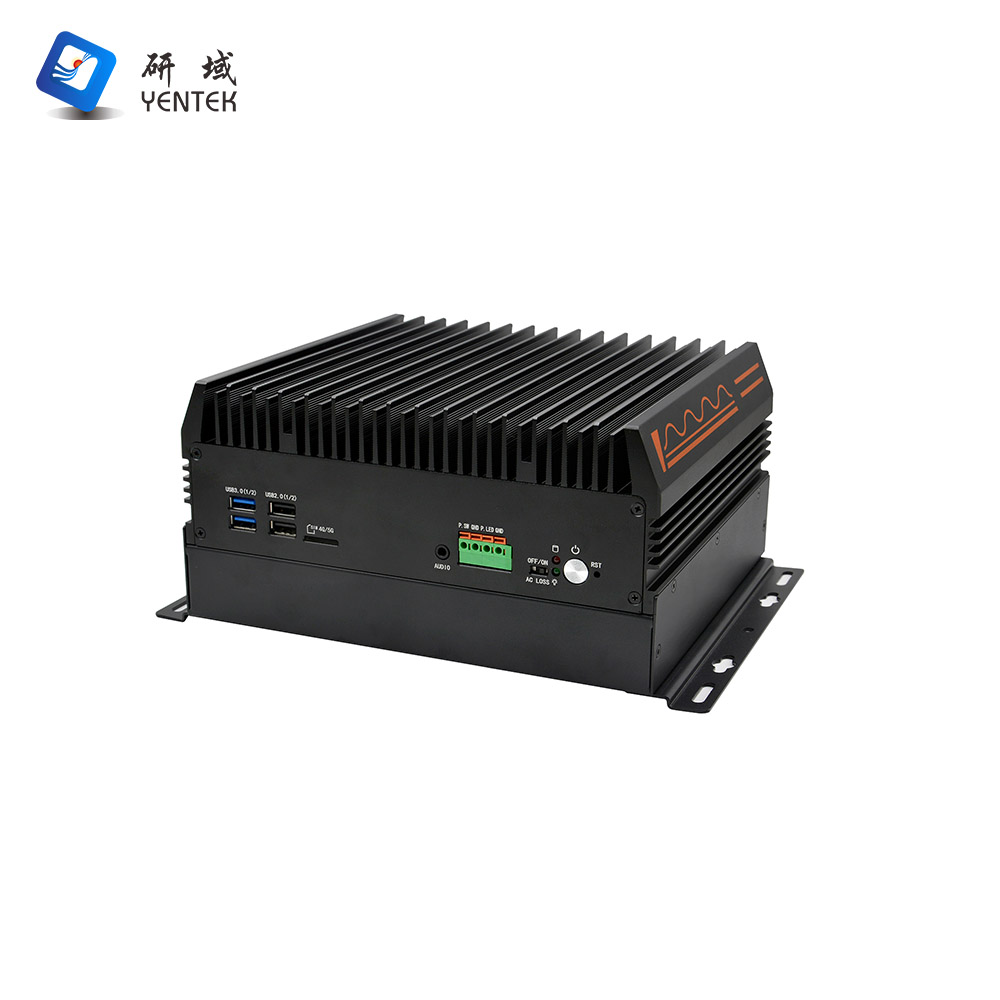

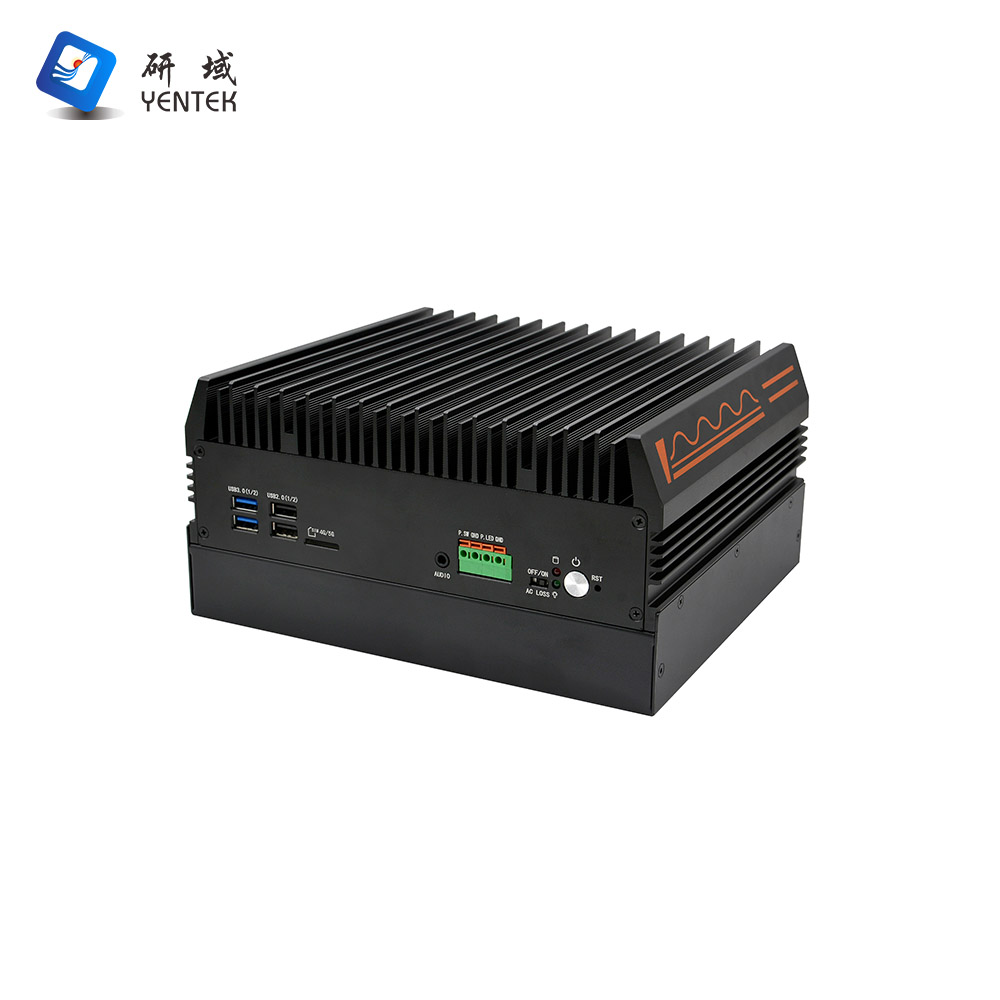

Front Panel Connectors | Power Switch | 1 x Power button, 1 x One-click restore, 1 x ACLOSS (power-on DIP switch) |
LED | 1 x Power indicator, 1 x Hard drive indicator |
USB | 2 x USB 3.0, 2 x USB 2.0, 1 x Internal USB 2.0 |
Remote Switch | 1 x Power-on signal, 1 x Power indicator signal (located on 1 x 4-pin Phoenix connector) |
Audio | 1*Audio, combined Line Out and Mic |
SIM | 1*Standard SIM card slot |

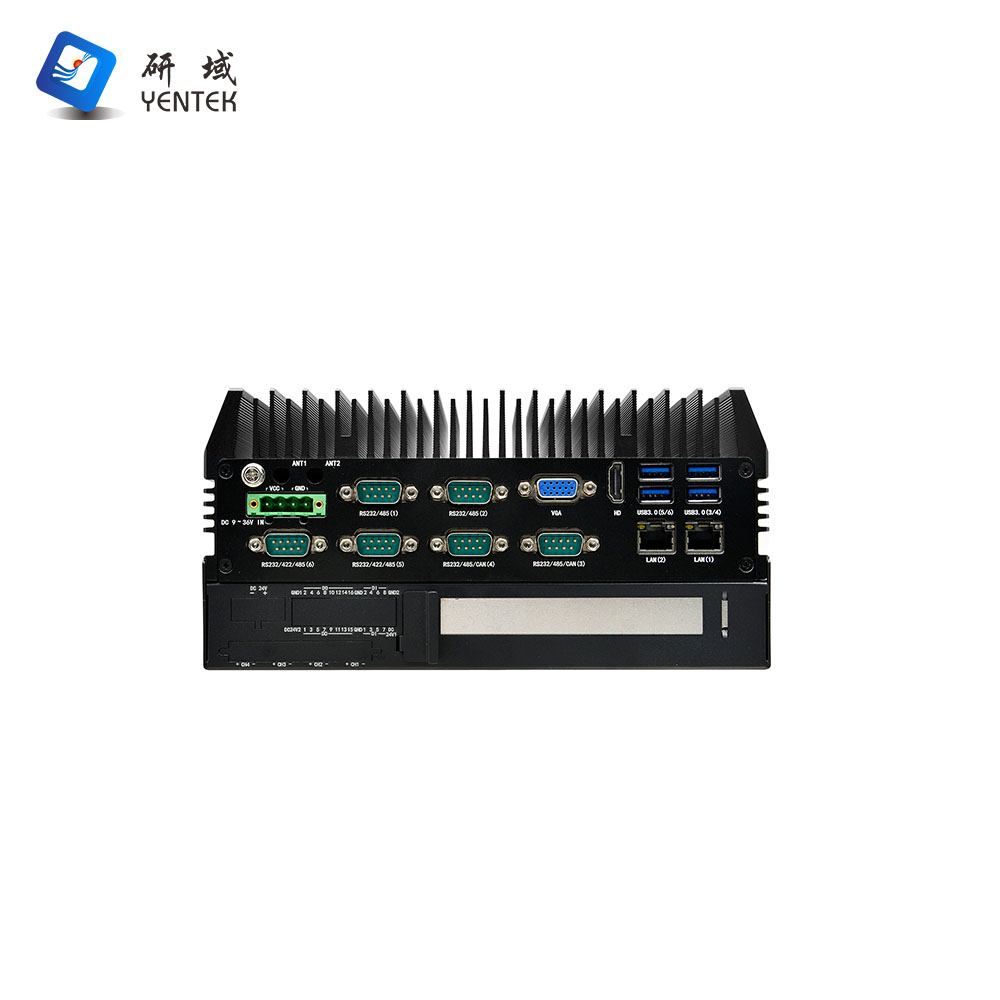

Rear Panel Connectors | Display Interface | 1*HDMI 1.4 (3840×2160@60Hz), 1*VGA, supports dual display |
USB | 4*USB 3.0 |
COM | 6*RS232/485 DB9 serial ports, COM5–6 support RS422, COM3–4 support CAN functionality (requires CAN module) |
LAN | 2* Intel I210 Gigabit Ethernet ports |
Power Connector | 1* 4-pin (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input |
Storage | SATA | 1* 2.5-inch hard drive bay |
mSATA | 1* mSATA (3210M only) |
SSD | 1*M.2, supports Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (not supported by 3210M) |
Expansion | PCIe | 1*PCIe 3.0 x8 (supports blade-style graphics cards only, dimensions not exceeding 170 x 120 x 30 mm) |
WiFi/4G | 1 x Mini PCIe, supports Wi-Fi + Bluetooth or 4G (4G and Bluetooth not supported by default) |
WiFi | 1 x M.2, supports Key-E, 2230, Wi-Fi + Bluetooth module |
5G | 1 x M.2, supports Key-B, 3042/3052, 5G module |
System | Windows | Windows 7 |
Linux | Ubuntu |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Power Supply Type | Power Supply Type | DC 9–36V wide voltage range |
Power Output | AC to DC 90W or higher (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
