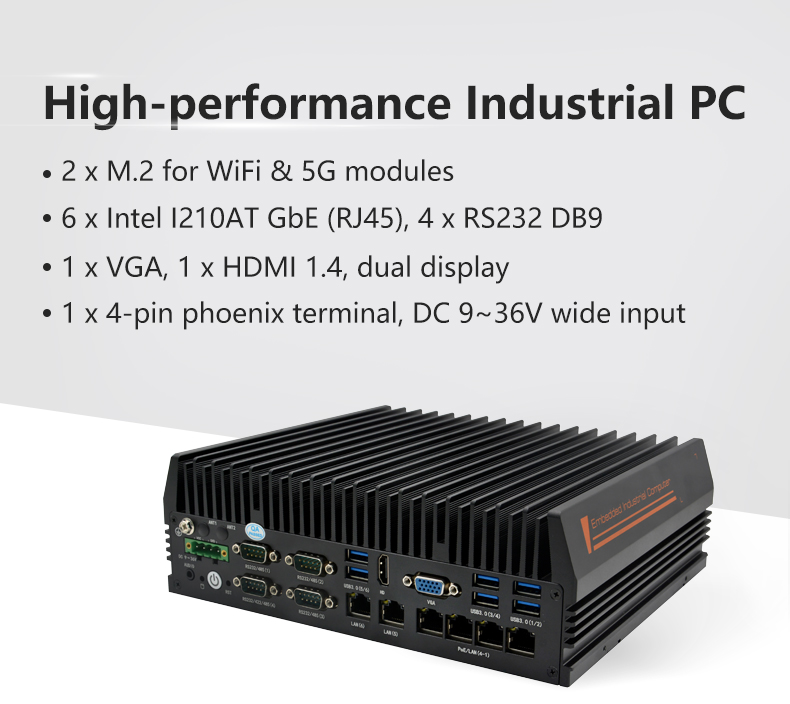

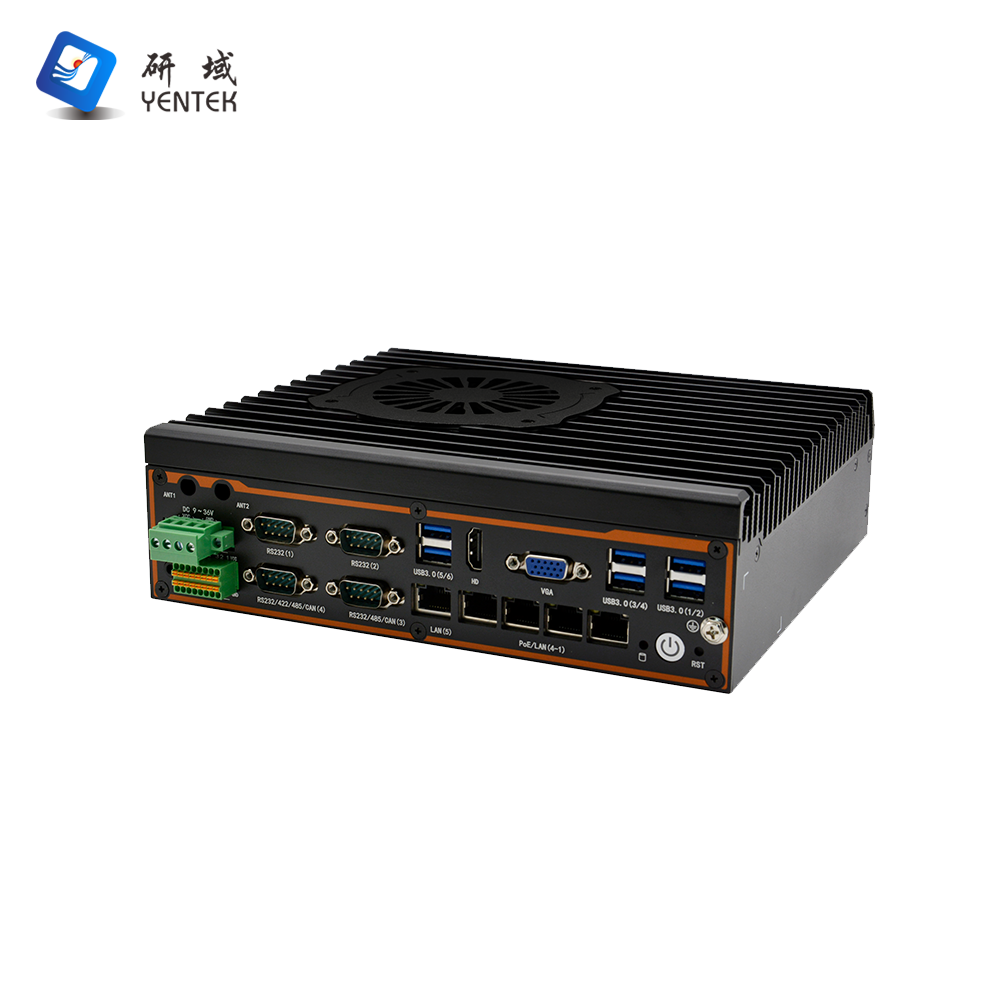

G3750S-L6 V3.0(G391)

Case

Material/Construction

Aluminum   alloy

Color

Black

Dimensions

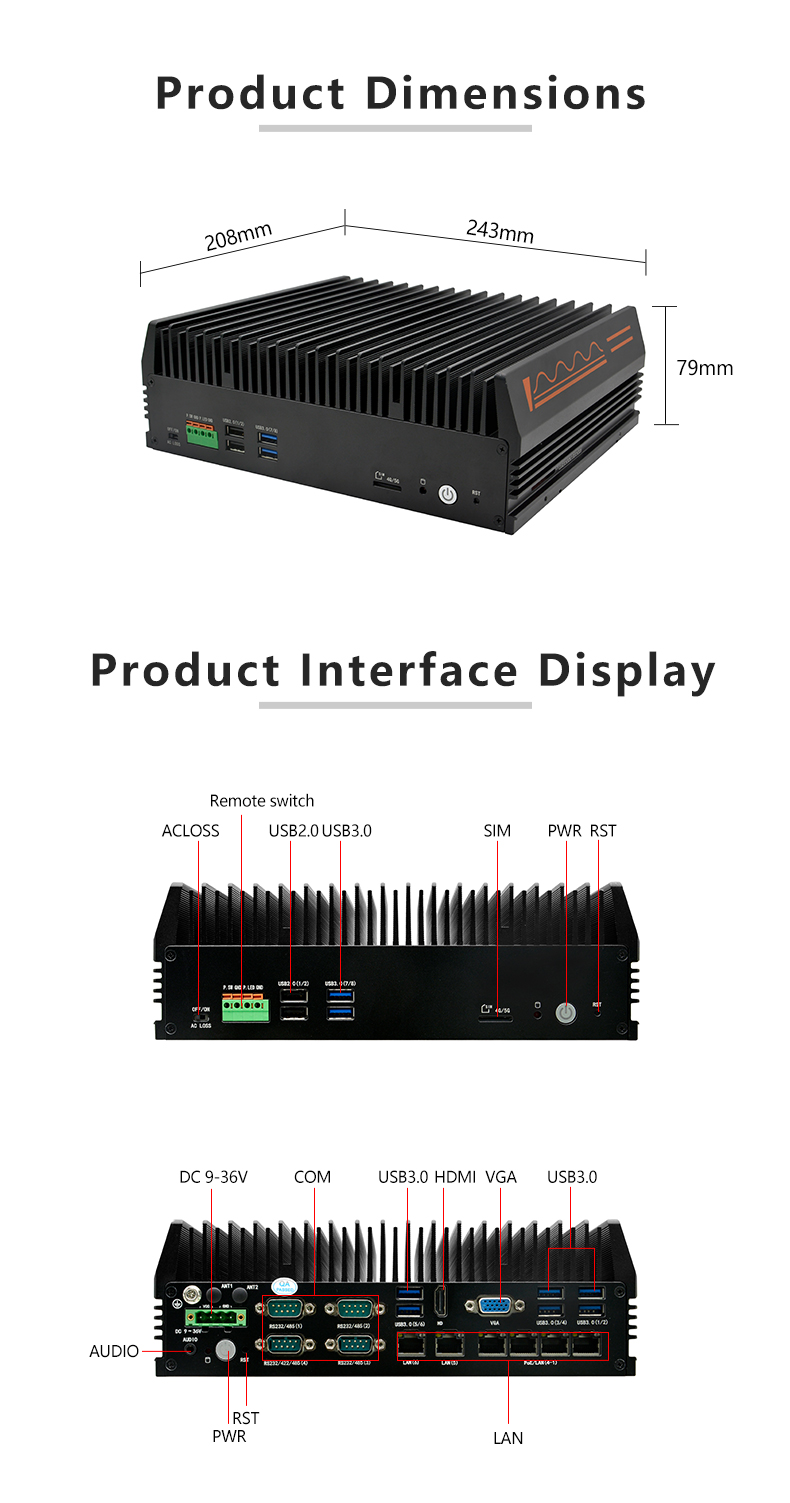

243 x 208   x 79 mm

Weight

3.9 kg

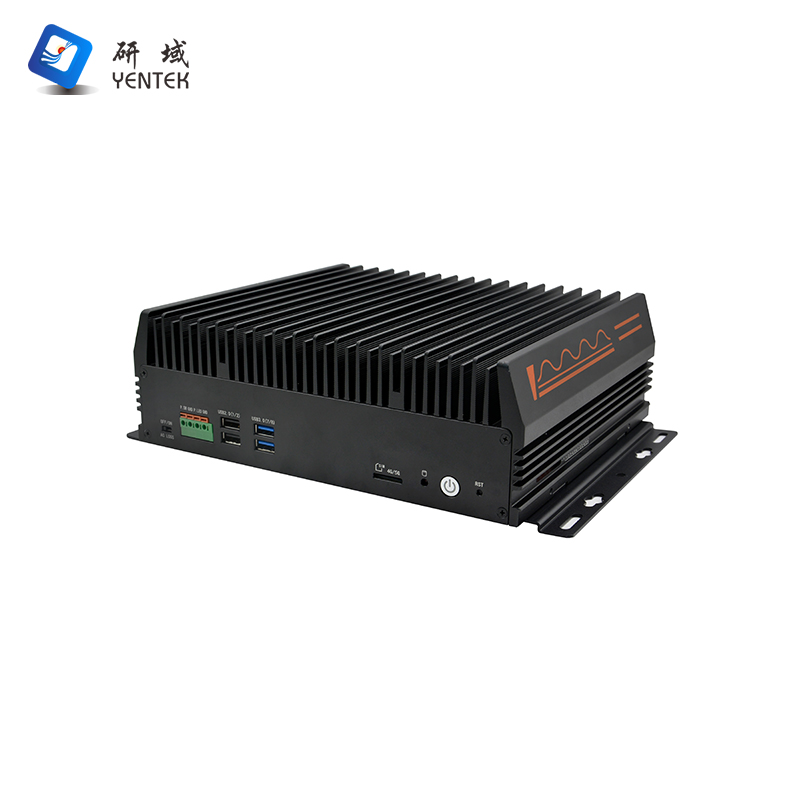

Installation

Desktop/Built-in

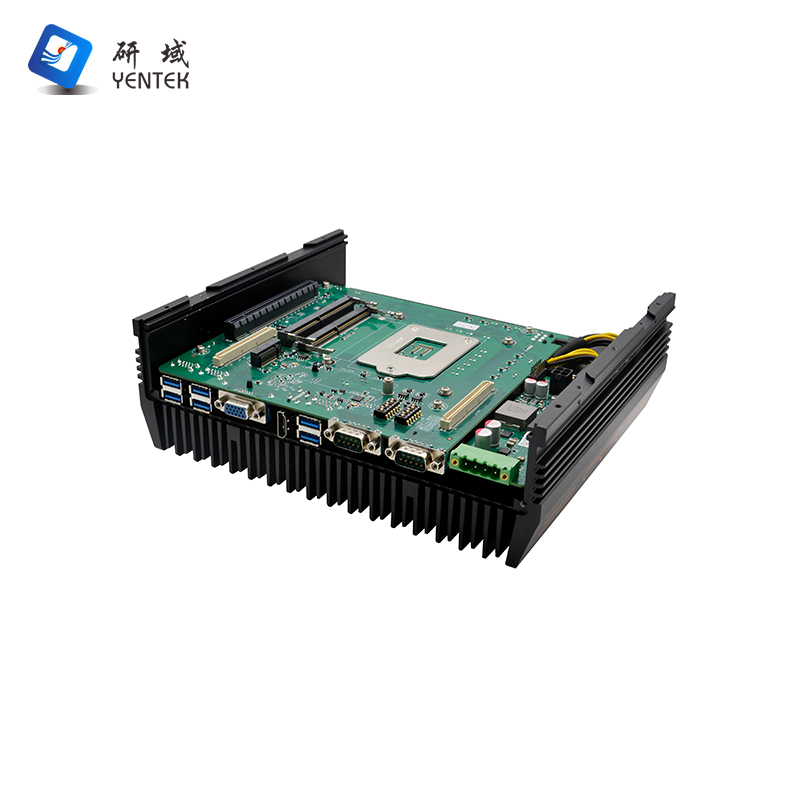

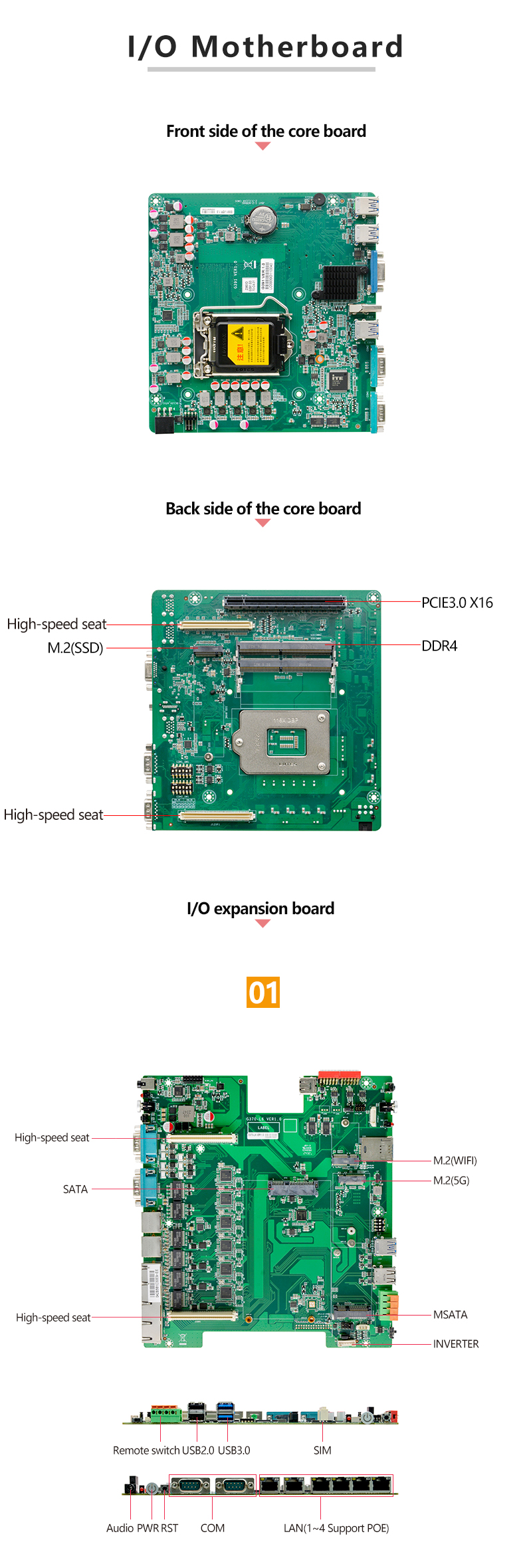

Motherboard

CPU

Intel®   LGA1151 / 6th, 8th, and 9th Gen low-power processors (supports only CPUs   under 45W; CPUs ending in “T” or “TE”)

Chipset

Intel®   Z390

Memory

2 x   SODDR4, supports up to 64GB

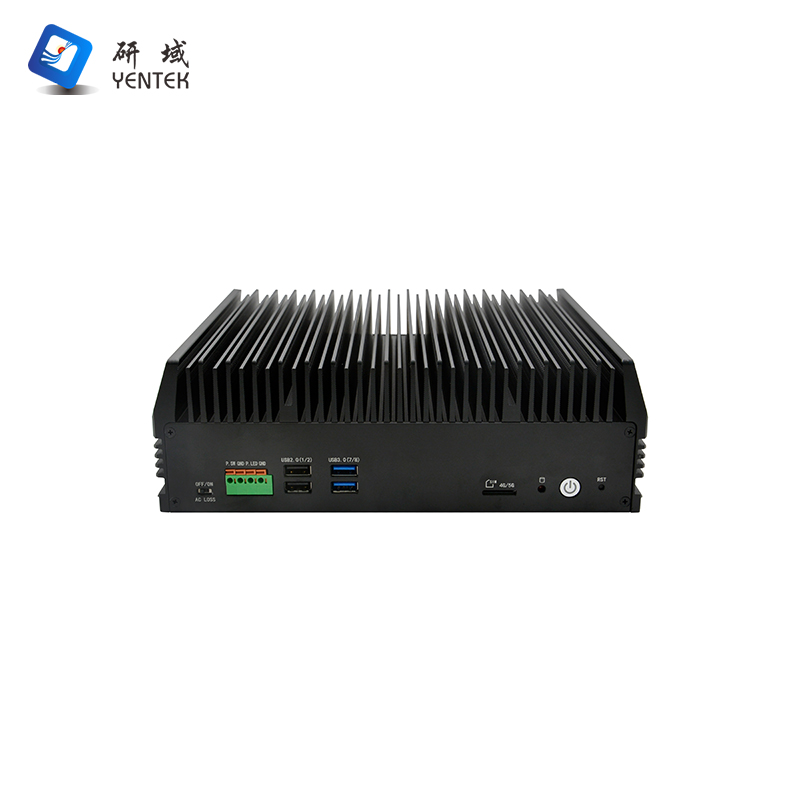

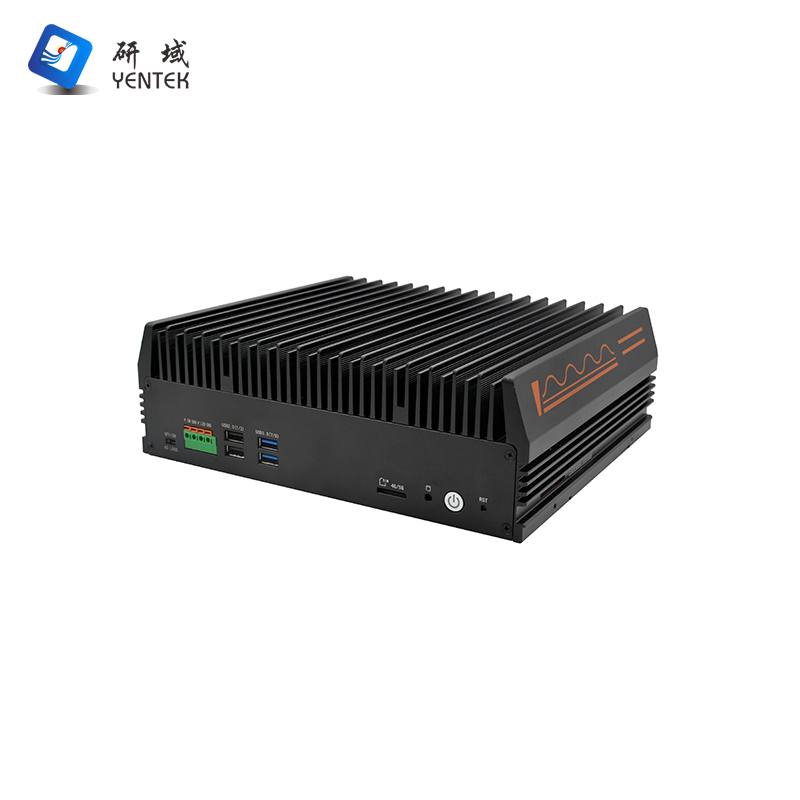

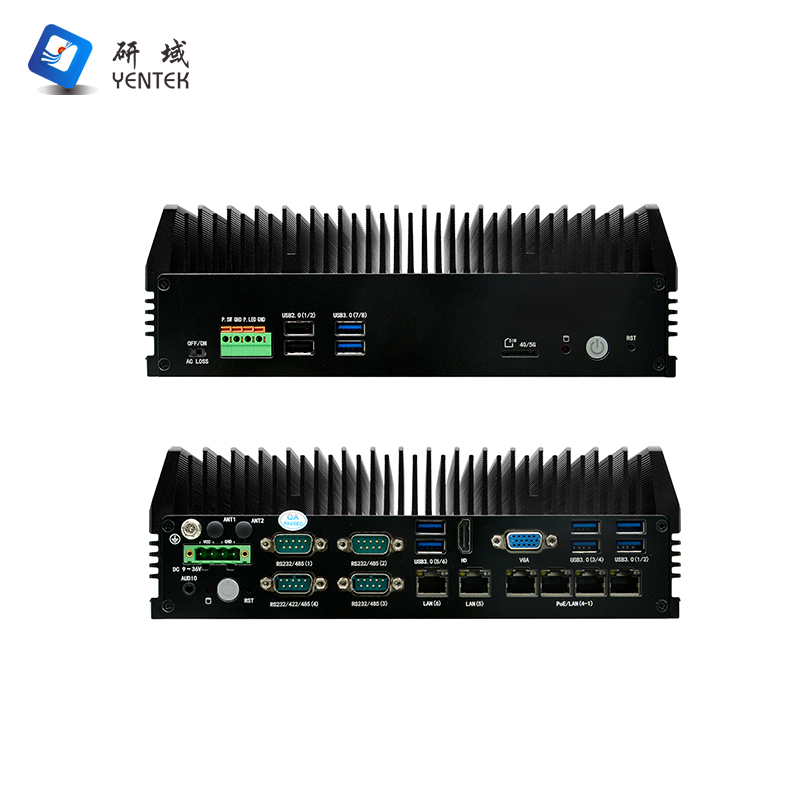

Front   Panel Connectors

Power   Switch

1 x Power   Button with LED, 1 x Reset Switch, 1 x ACLOSS (Power-On DIP Switch)

LED

1 x HDD   LED

USB

2 x USB   3.0, 2 x USB 2.0, 1 x Internal USB 2.0

Remote   Switch

1 x Power   LED Signal, 1 x Power Switch Signal (located on 1 x 4-pin Phoenix connector)

SIM

1*   Standard SIM card slot

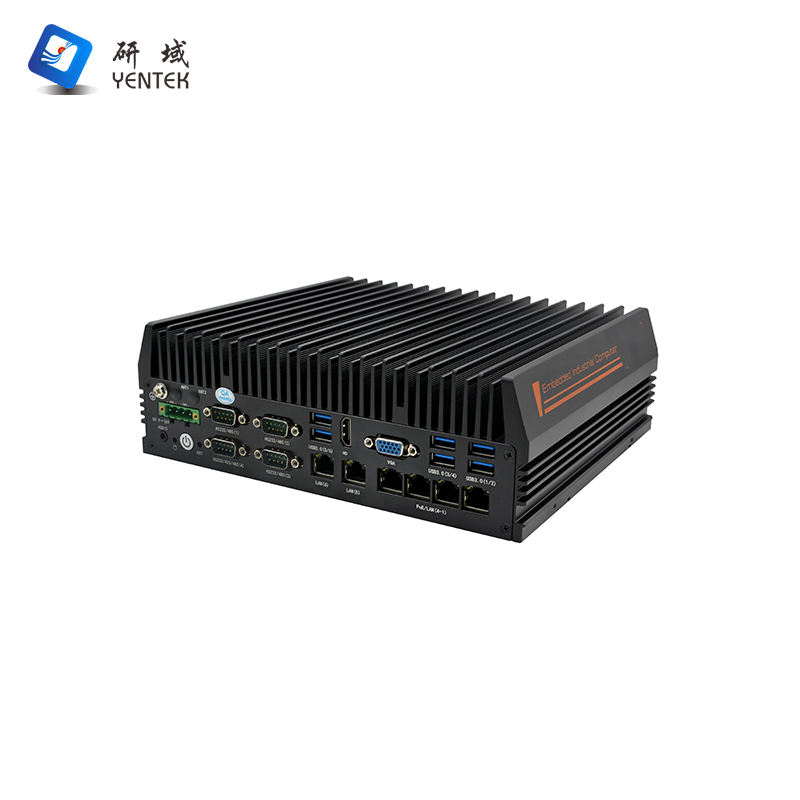

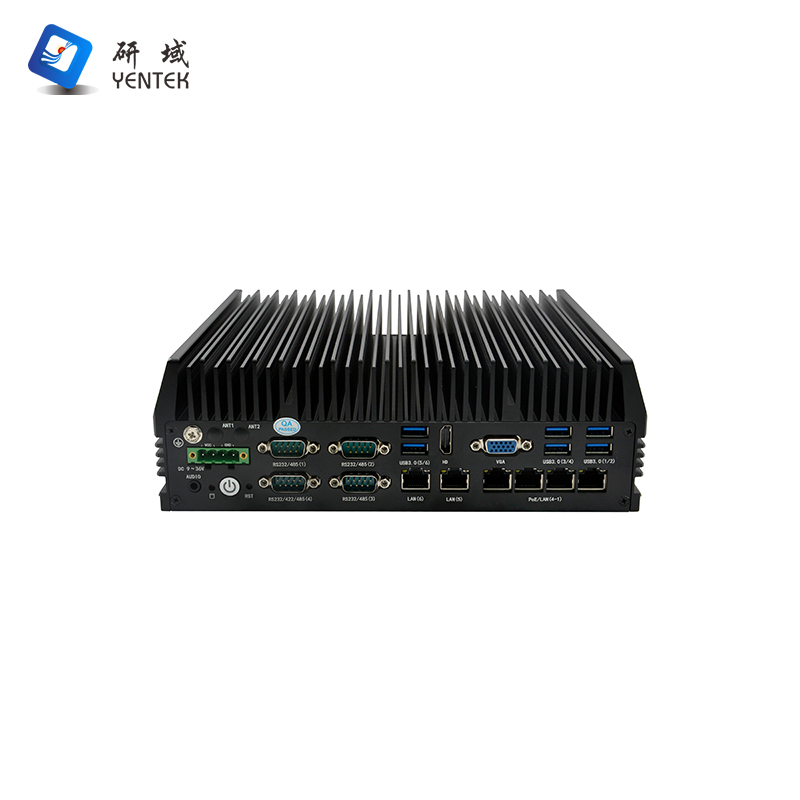

Rear   Panel Connectors

Power   Switch

1* Power   button with indicator light, 1* Reset switch

LED

1* Hard   drive indicator light

Display   Interface

1* VGA   (1920×1200@60Hz), 1* HDMI 1.4, supports dual display

USB

6* USB   3.0

COM

4*   RS232/485 DB9 serial ports, COM4 supports RS232/422/485

LAN

6x Intel   I210AT Gigabit Ethernet ports, 4 of which support POE/15W (POE disabled by   default)

Audio

1x Audio,   combined Line Out and MIC

DIP   Switch

2 sets of   6-position DIP switches; RS232/422/485 switching via DIP switches + jumper   caps + BIOS settings

Power   Connector

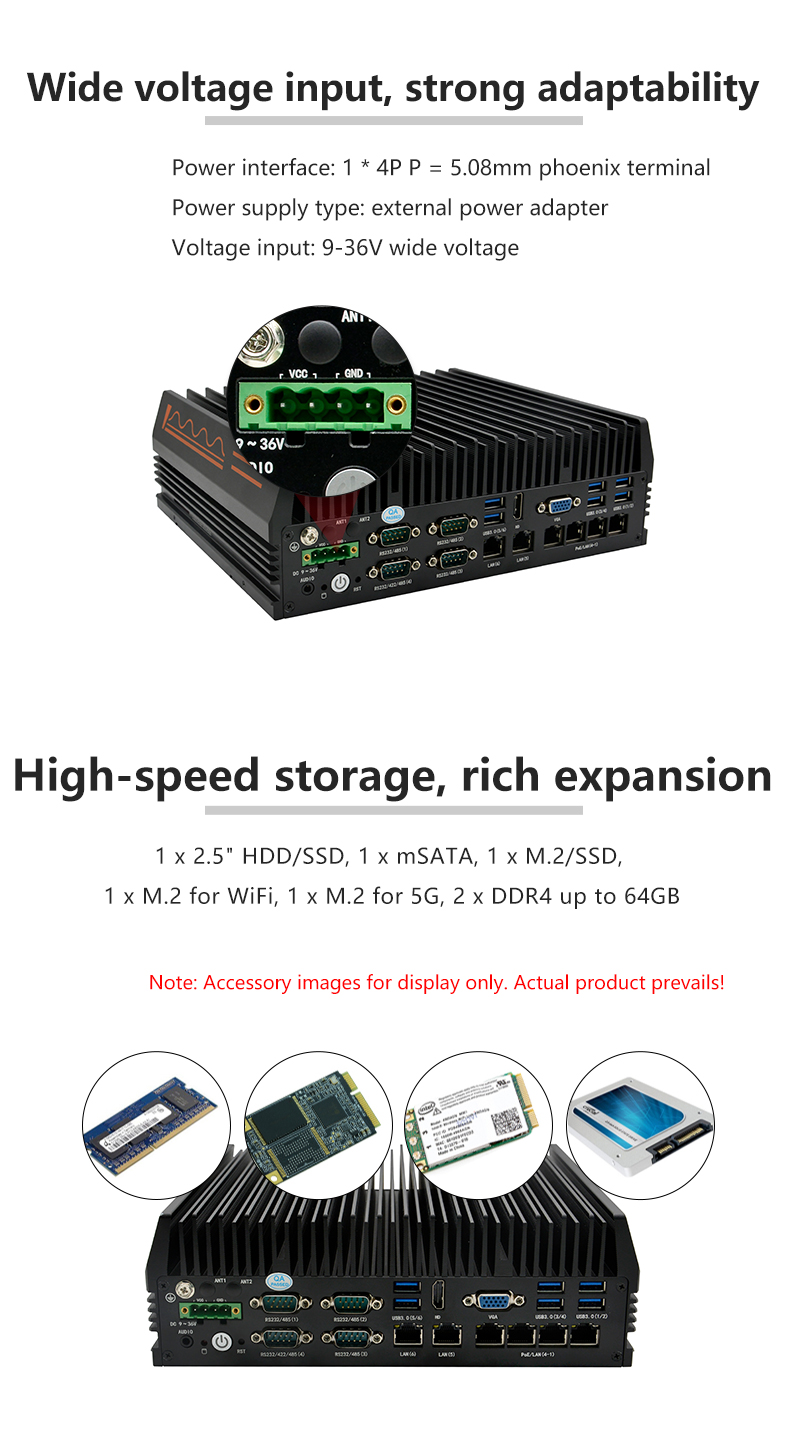

1x 4-pin   (P=5.08mm) Phoenix connector, supports 9-36V wide-voltage input, max 220W

Storage

SATA

1x   2.5-inch HDD bay (on I/O board)

mSATA

1x mSATA   (on I/O board)

SSD

1x   M.2/SSD, supports Key-M, 2280, NVMe PCIe x4 SSD (on motherboard)

Expansion

Wi-Fi

1x M.2, supports   Key-E, 2230, Wi-Fi module

5G

1 x M.2,   supports Key-B, 3042/3052, 5G modules

System   Compatibility

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Supply Type

DC 9–36V   wide voltage range, maximum load 220W

Power   Output

AC to DC 120W   or higher (depending on specific device)

Environmental   Requirements

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%–95%   relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
