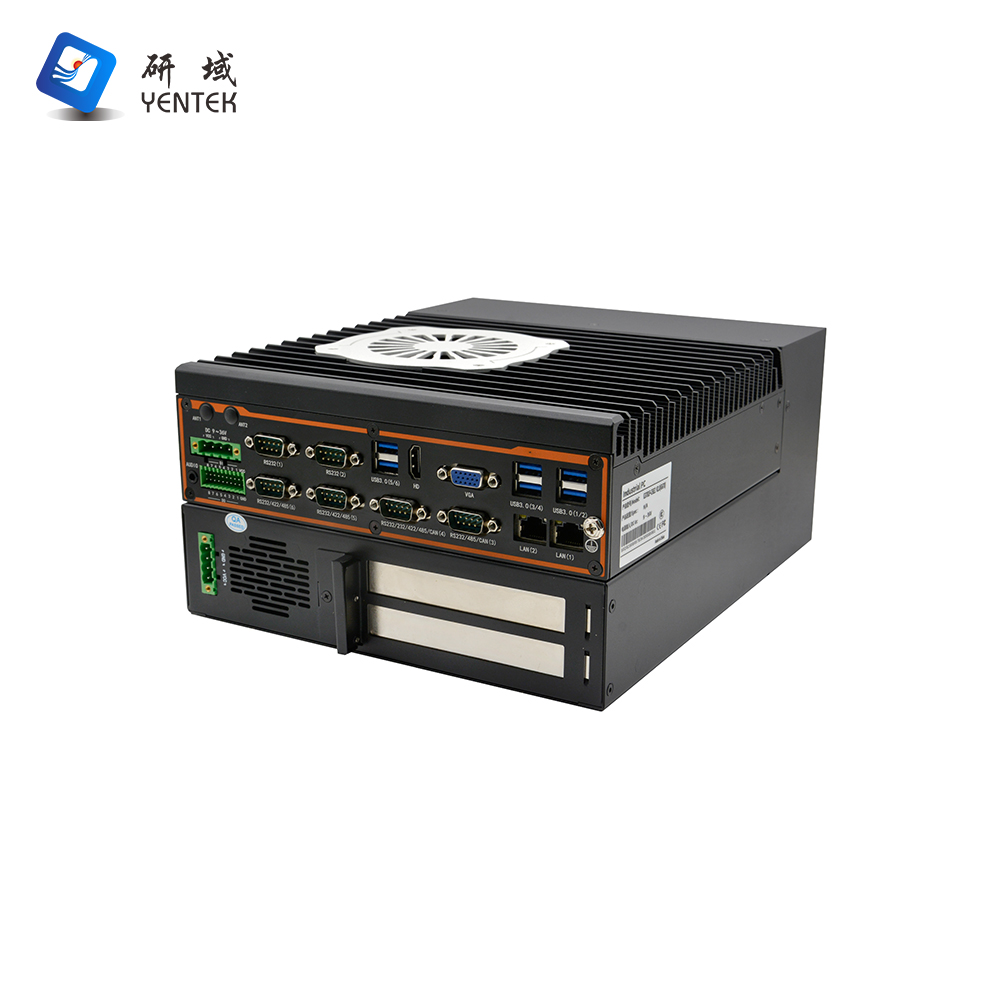

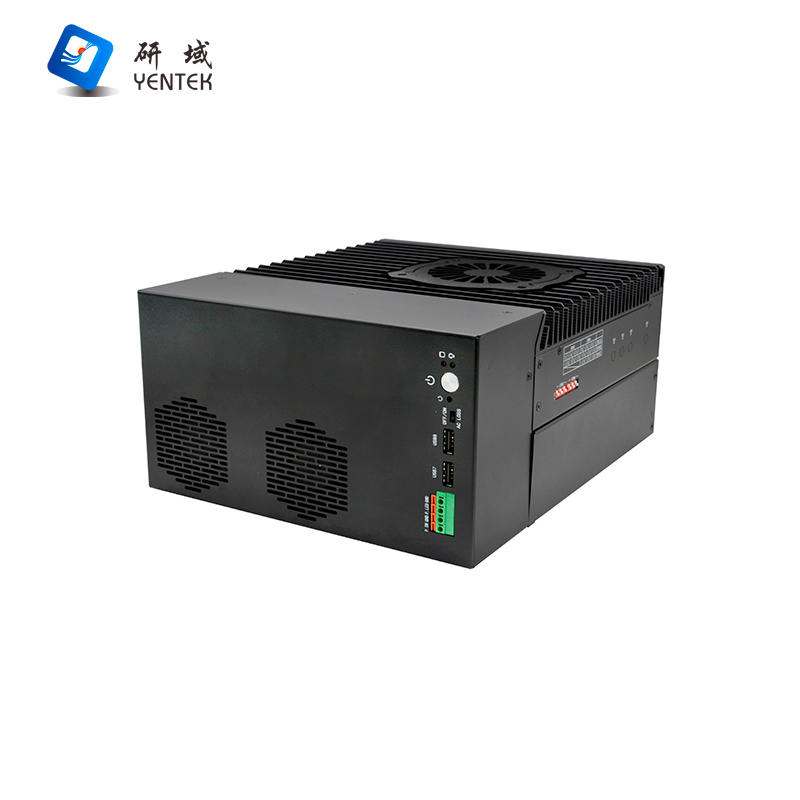

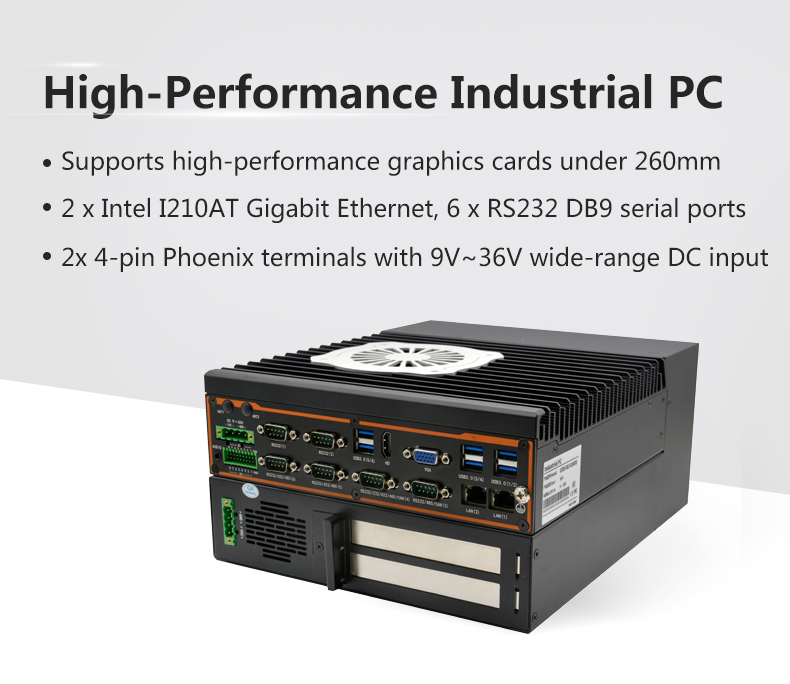

G3781F-C6E2

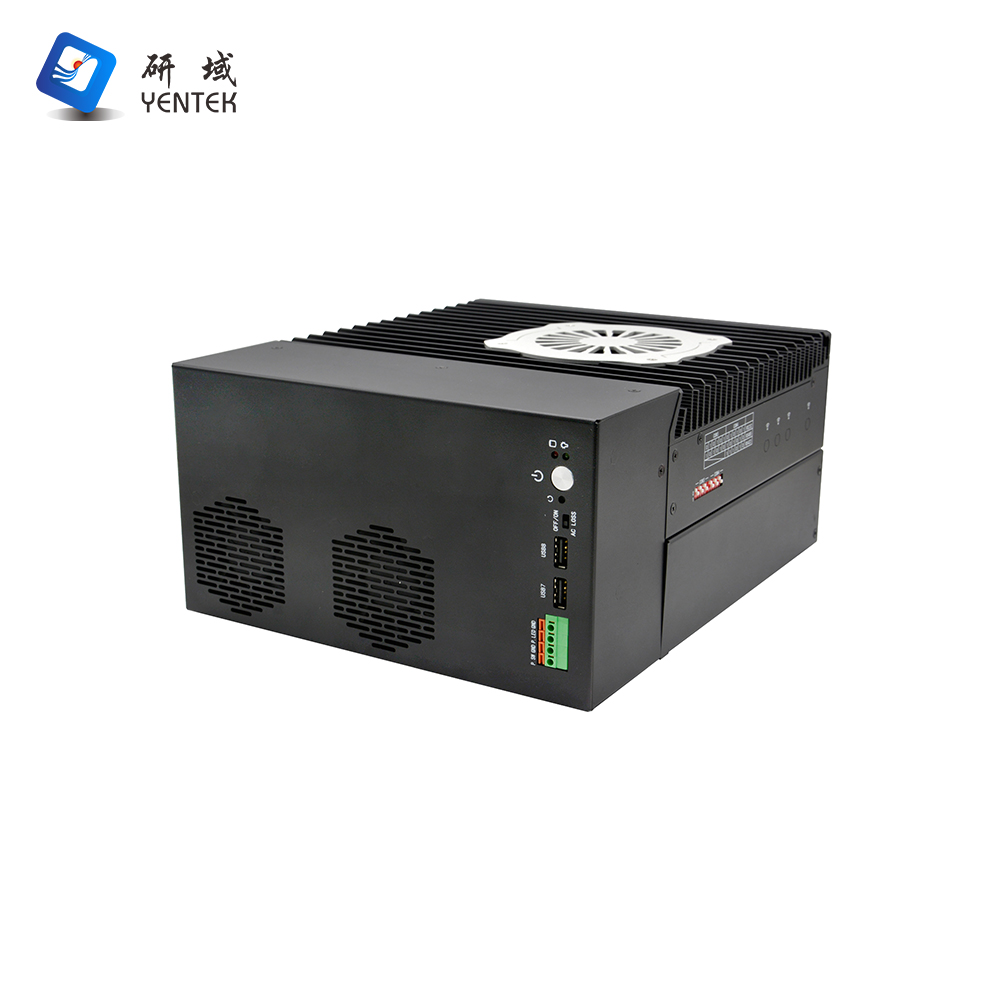

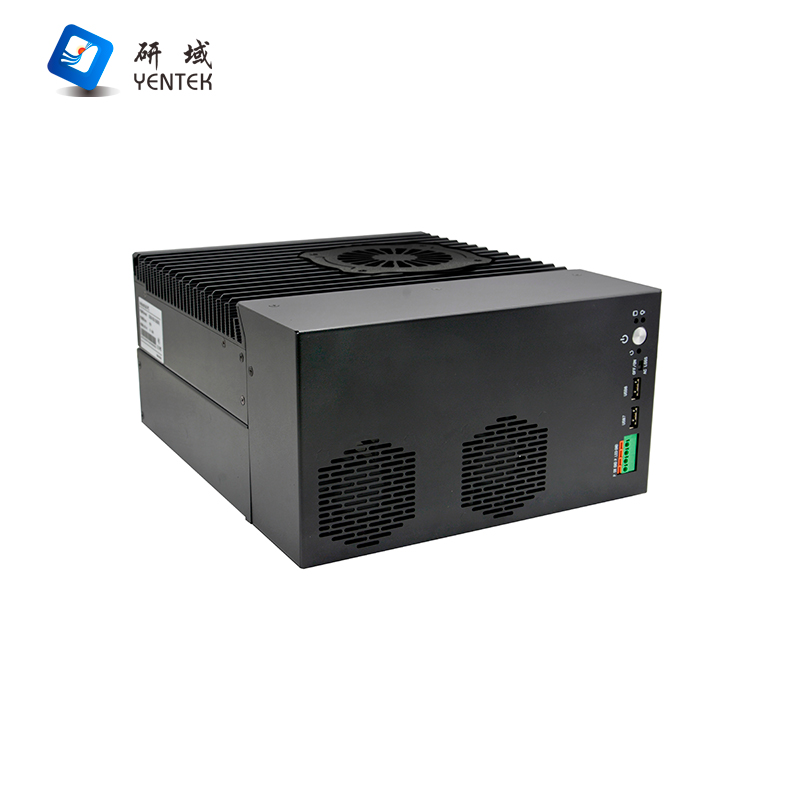

Chassis

Material/Structure

Aluminum   alloy + sheet metal construction Fan cooling

Color

Black +   silver

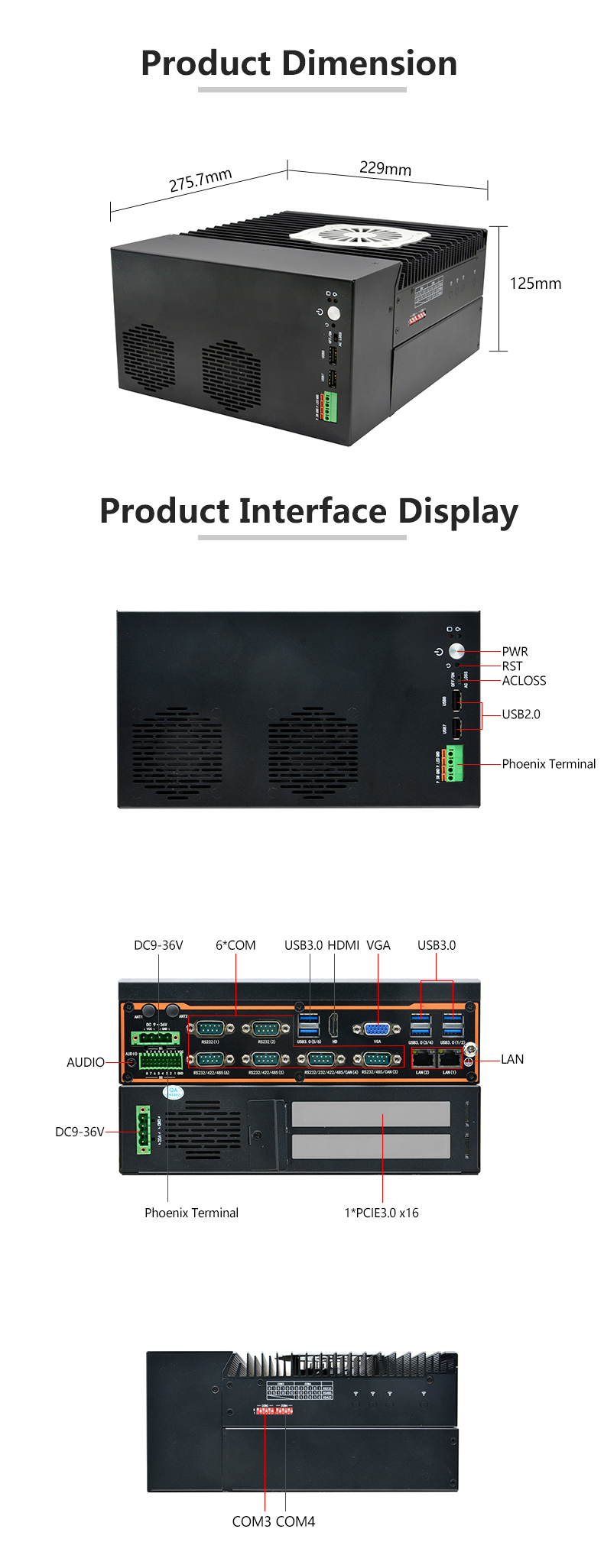

Dimensions   (LxWxH)

229*275.7*125MM

Weight

5.25KG

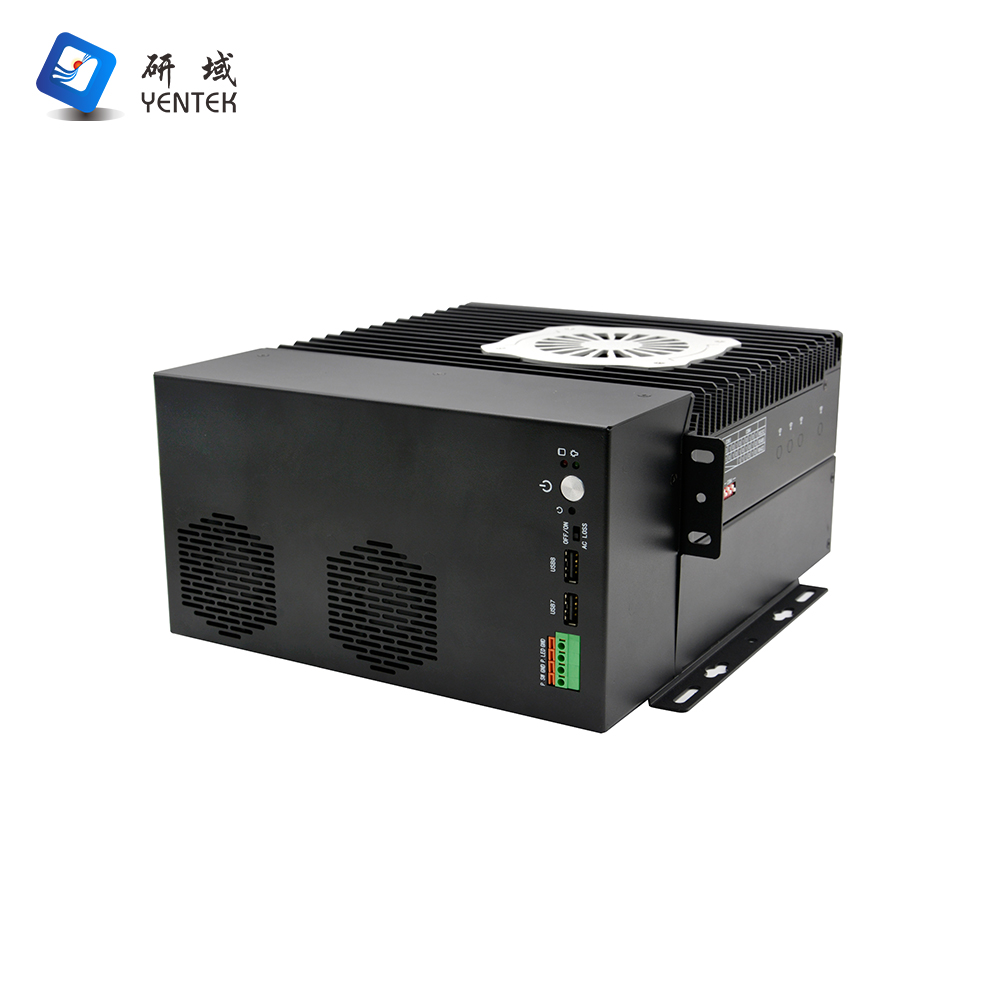

Installation

Desktop/built-in

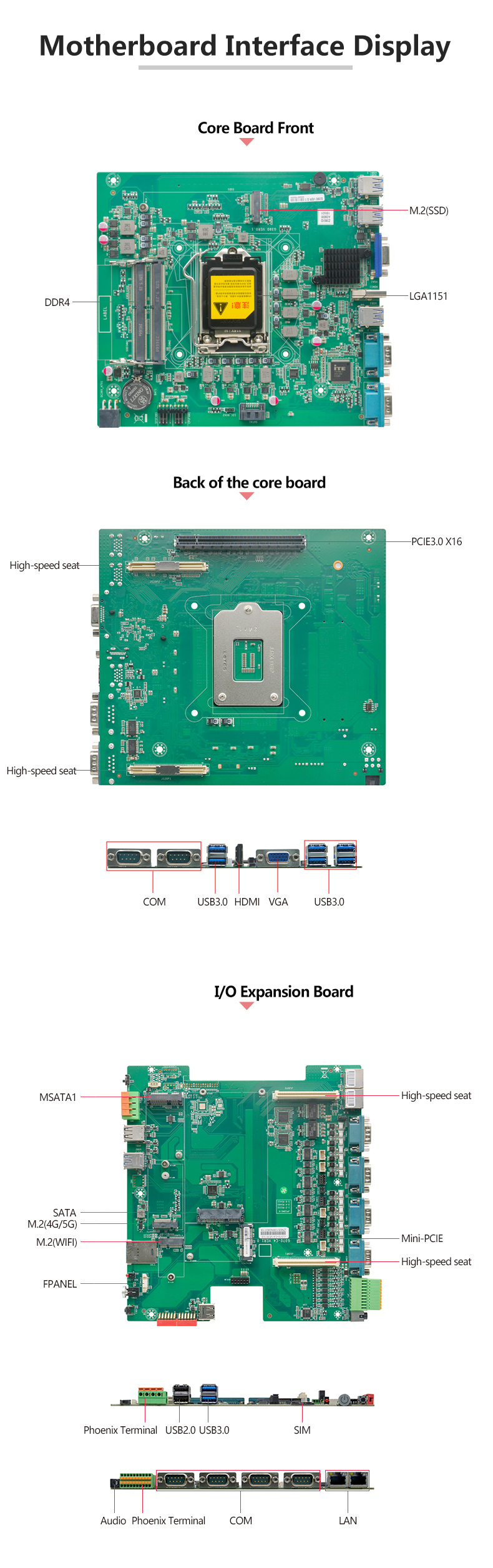

Motherboard

CPU

Intel®   LGA1151 / 8th-9th Gen processors

System-on-Chip

Intel®   Z390

Memory

2x DDR4   slots, supports up to 64GB

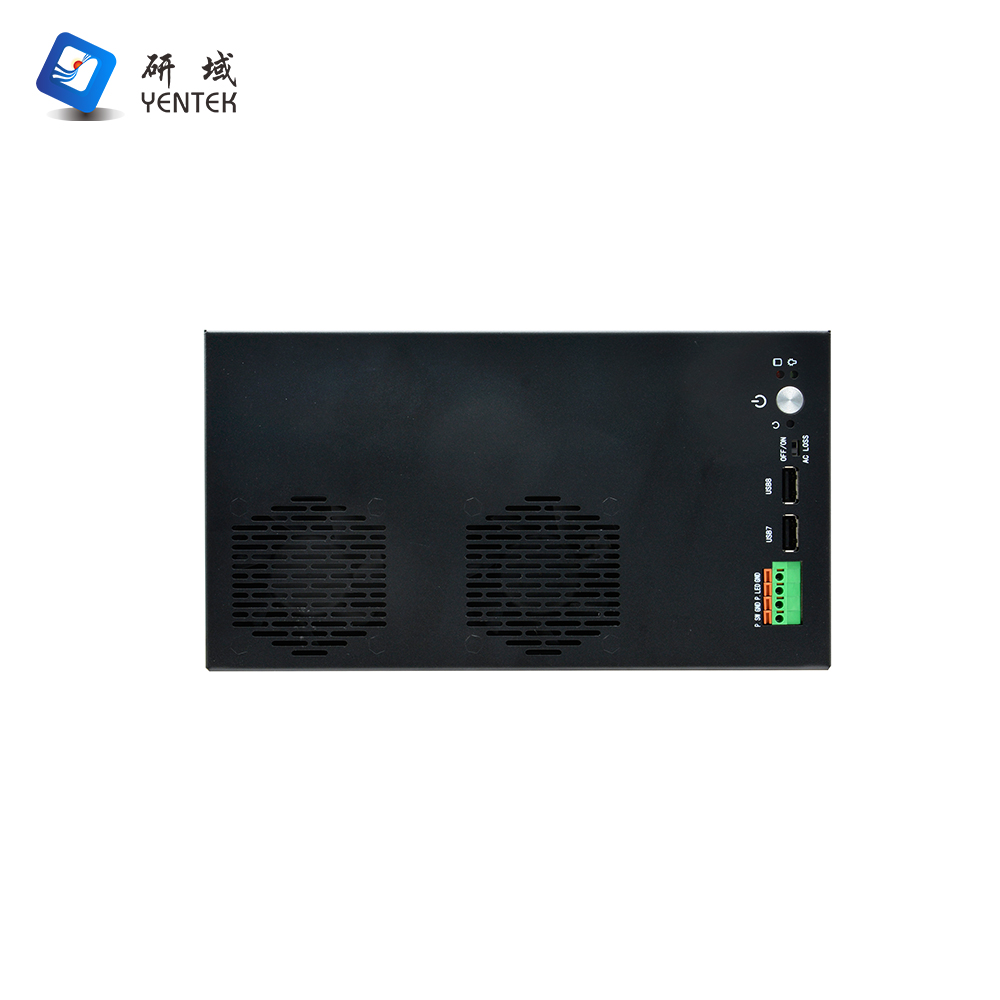

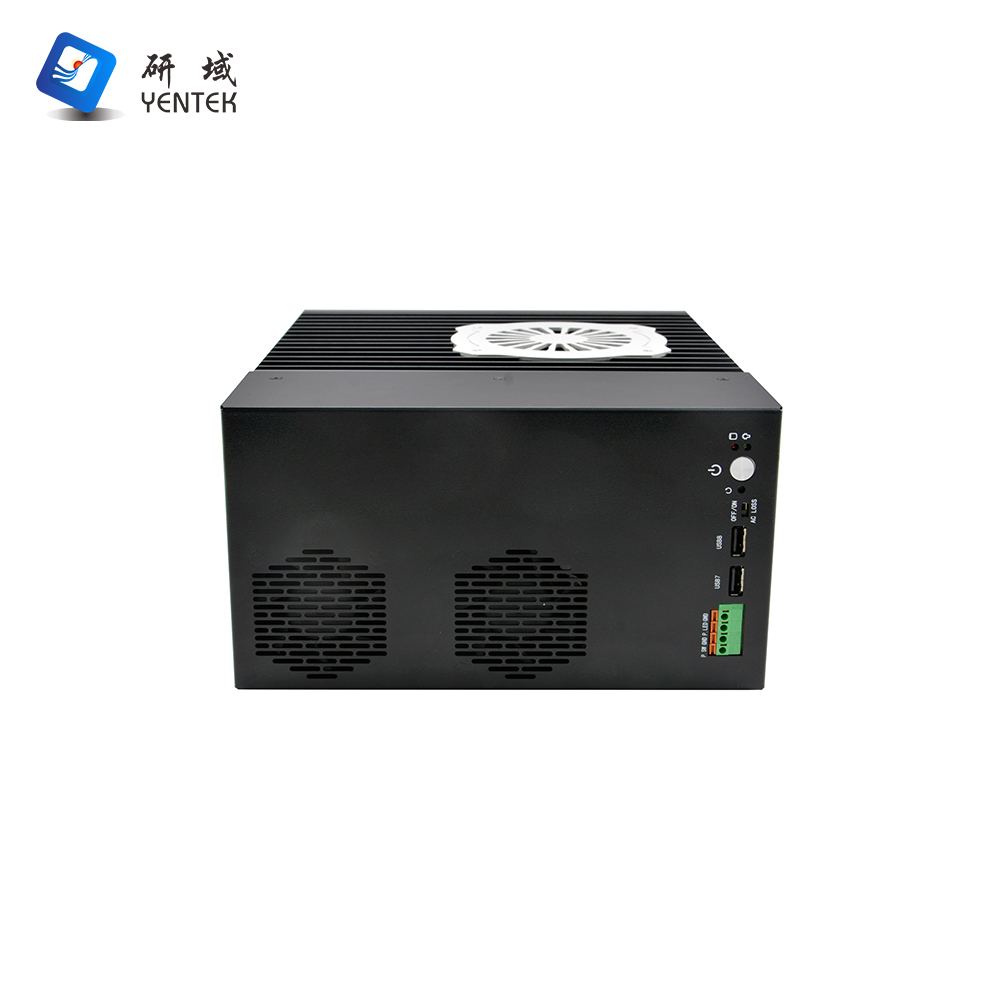

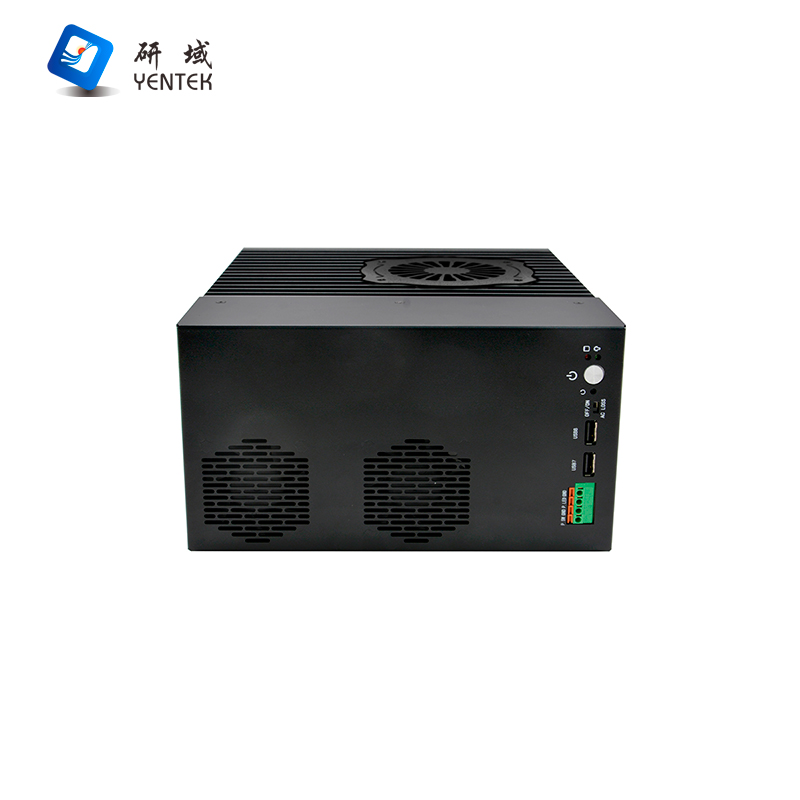

Front   Panel Connectors

Power   Switch

1x Power   button, 1x One-touch reset, 1x ACLOSS (power-on DIP switch)

LED

1x Power   indicator, 1x HDD activity indicator

USB

2x USB   2.0 ports, 1x internal USB 2.0 port

Remote   Switch

1x Power   indicator signal, 1x Power switch signal (on 1x 4-pin Phoenix connector)

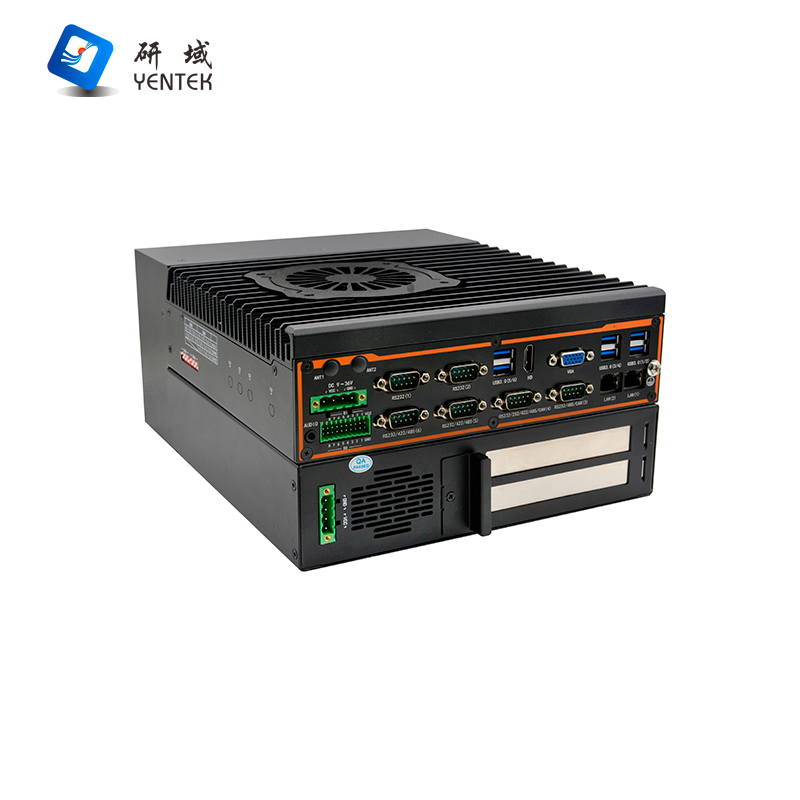

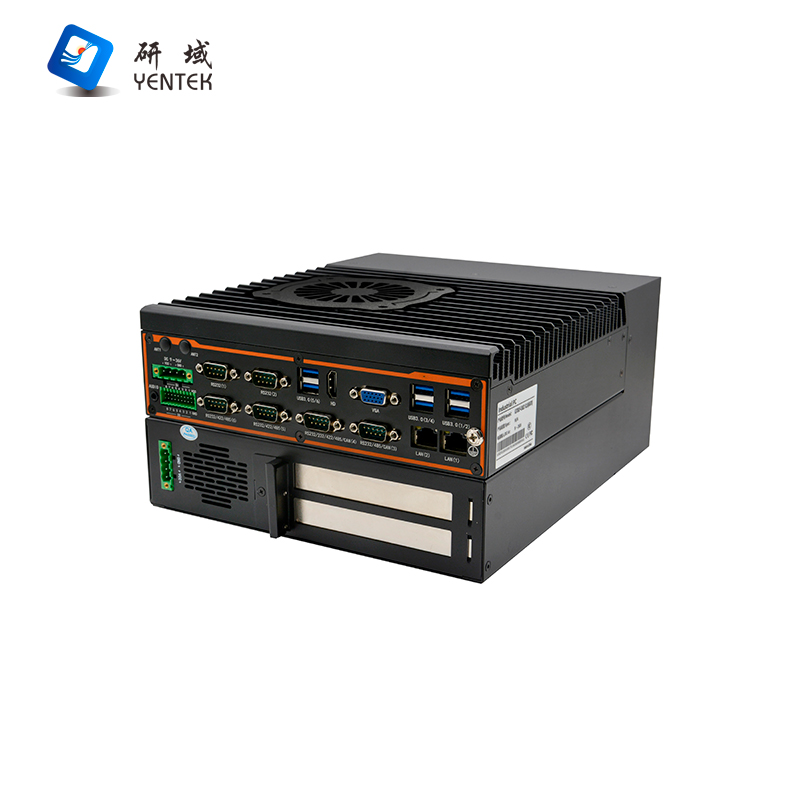

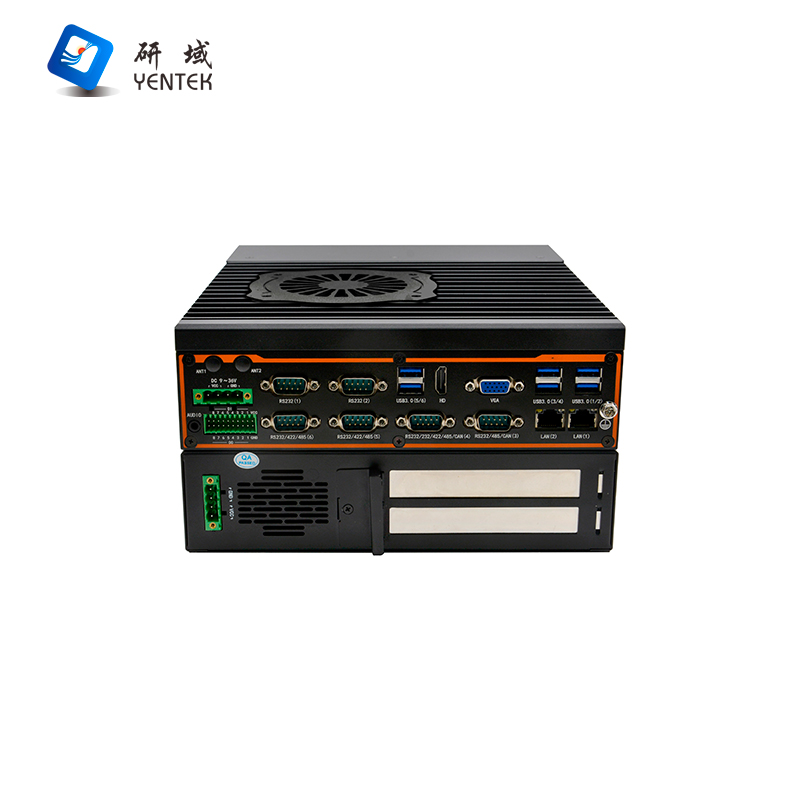

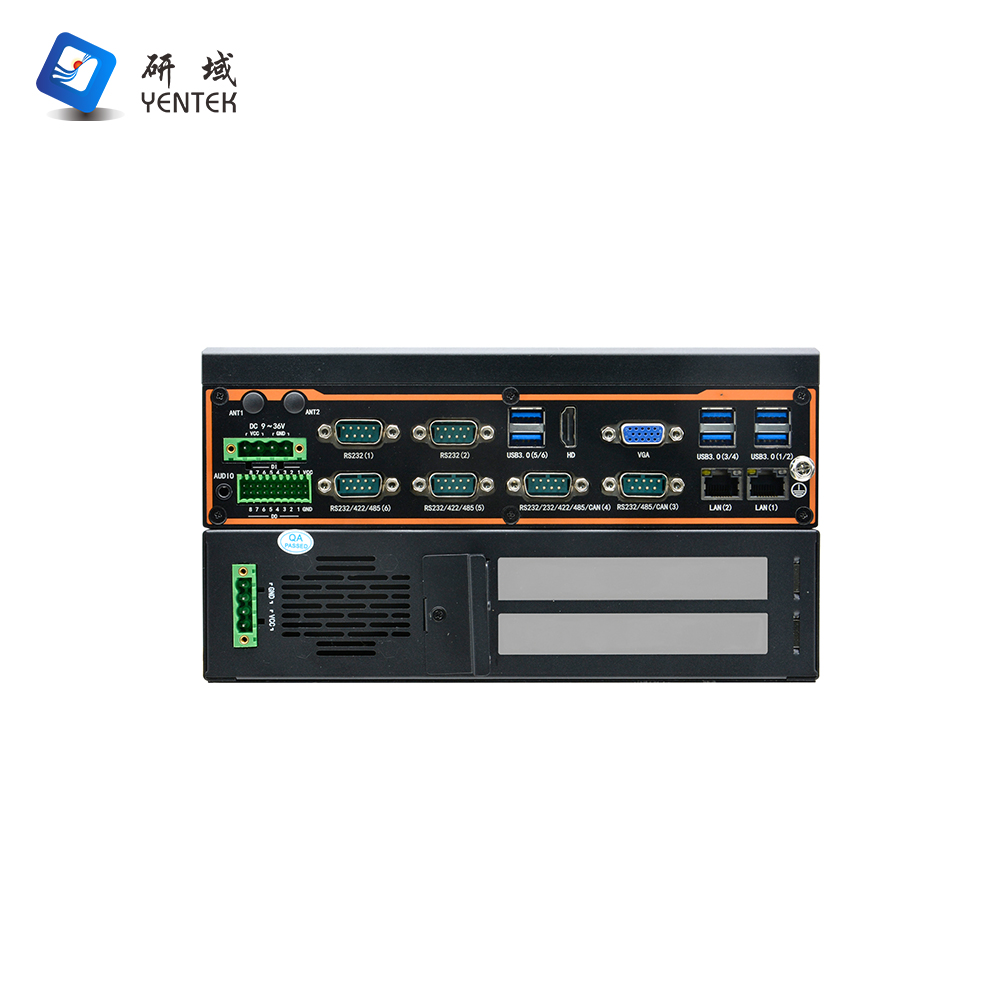

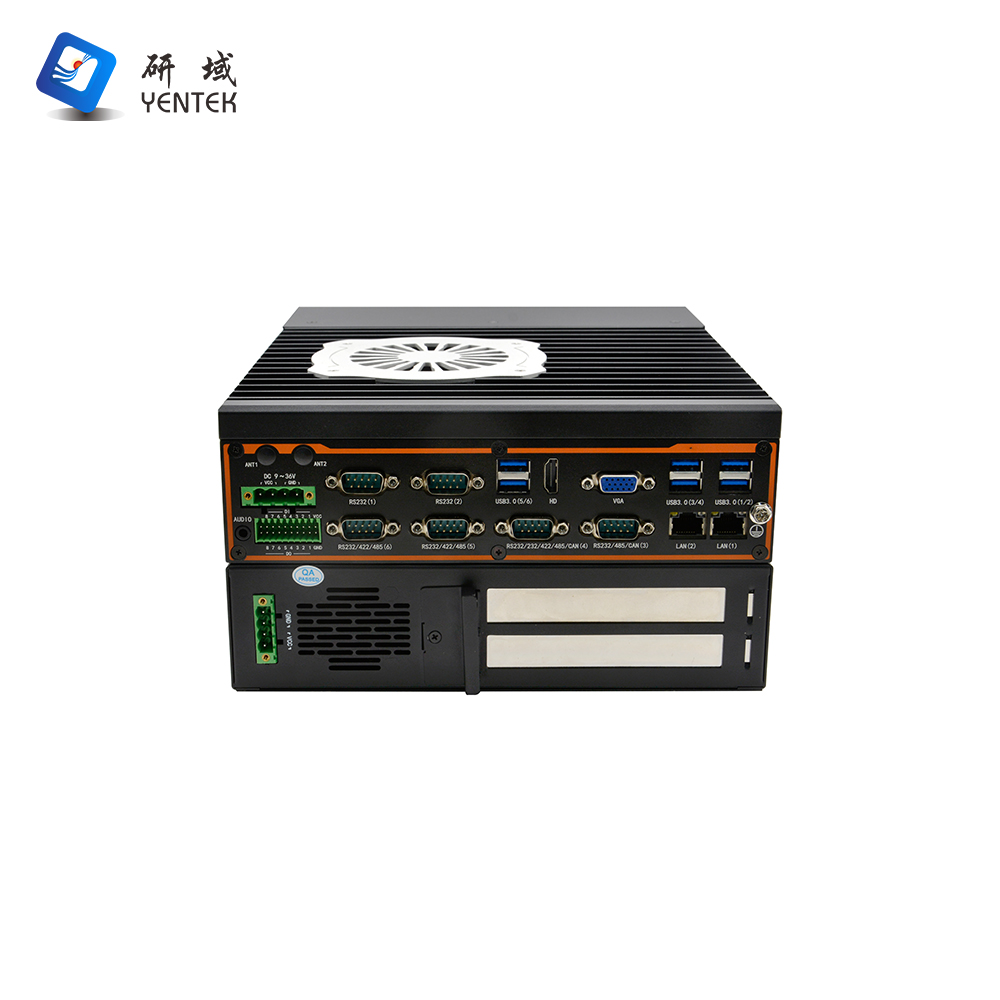

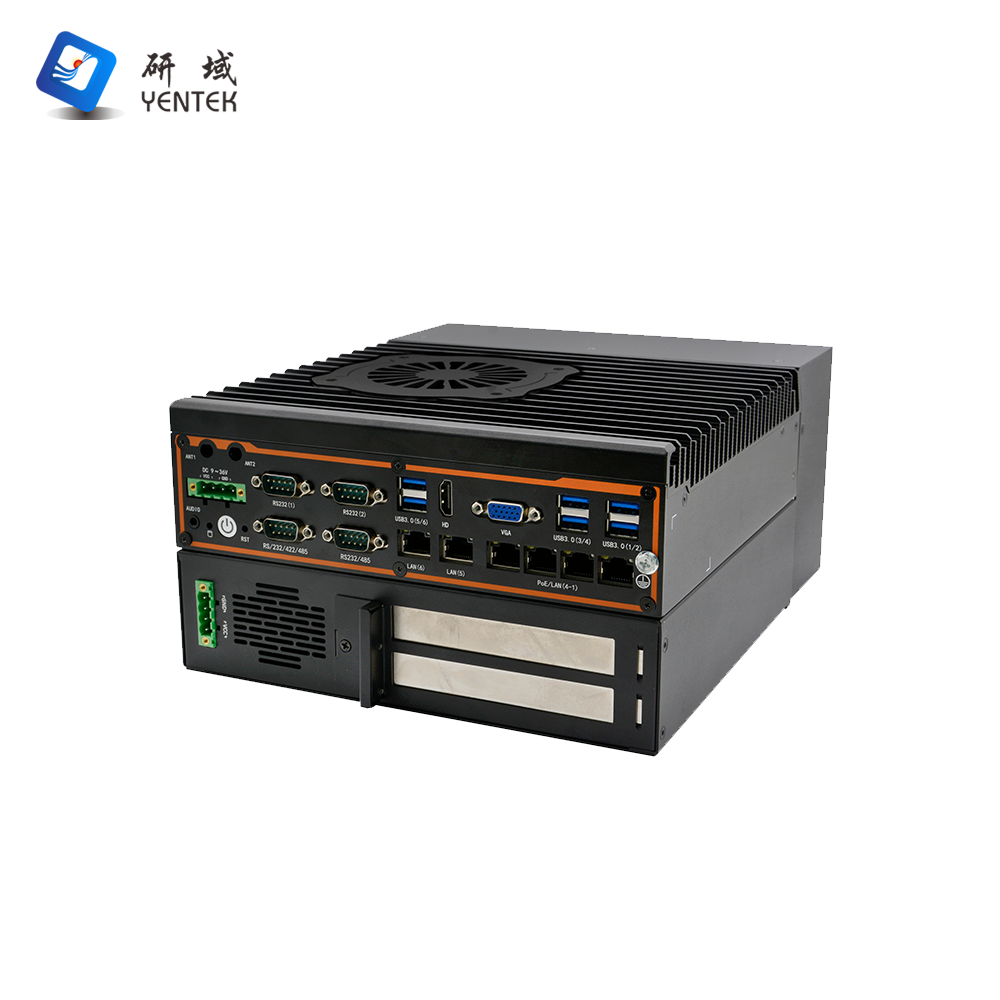

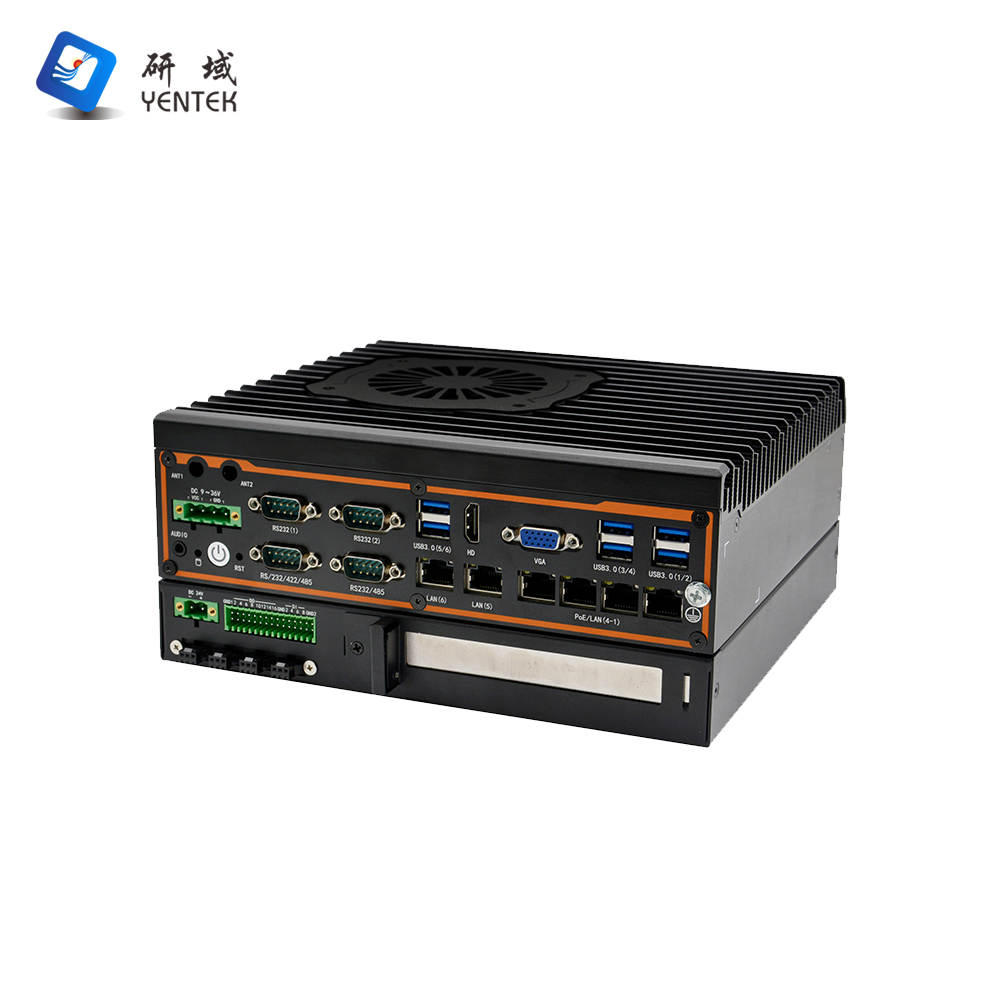

Rear   Panel Connectors

Display   Interface

1x VGA   (1920x1200@60Hz), 1x HDMI 1.4

COM

6x RS232   DB9 serial ports: COM3-6 support RS485, COM4-6 support RS422, COM3-4 support   CAN (requires MINIPIECE CAN module)

LAN

2x Intel   I210AT Gigabit Ethernet ports

USB

6x USB   3.0

Audio

1*Audio,   Line out and MIC combo

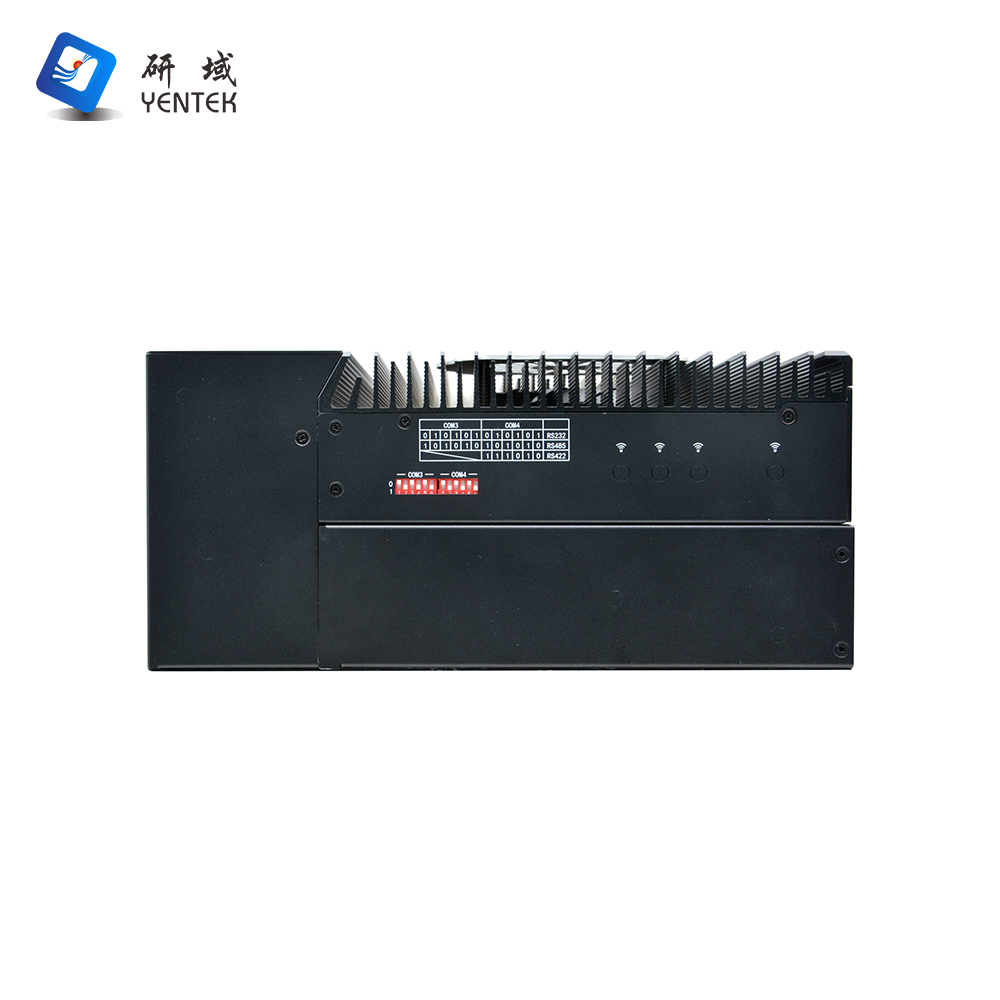

DIP   Switch

2 sets of   6-position DIP switches, RS232/485 switching via DIP switch + jumper + BIOS   settings

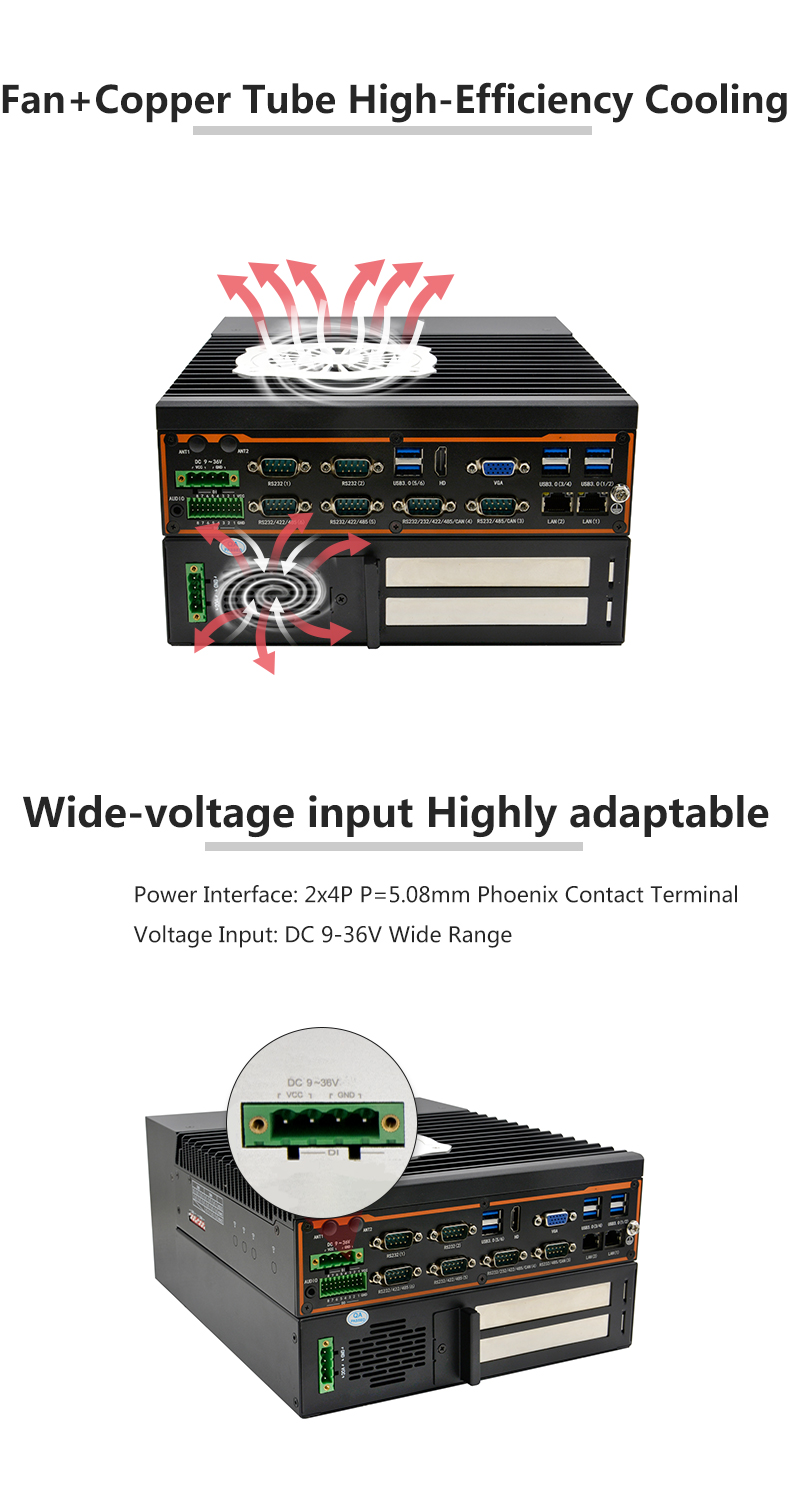

Power   Interface

1*4P   (P=5.08mm) Phoenix connector, supports DC 9~36V wide voltage input, max load   220W (motherboard-side power supply)

1x 4P   (P=5.08mm) Phoenix connector, supports DC 9~36V wide voltage input, max load   220W (GPU-side power supply)

Storage

SATA

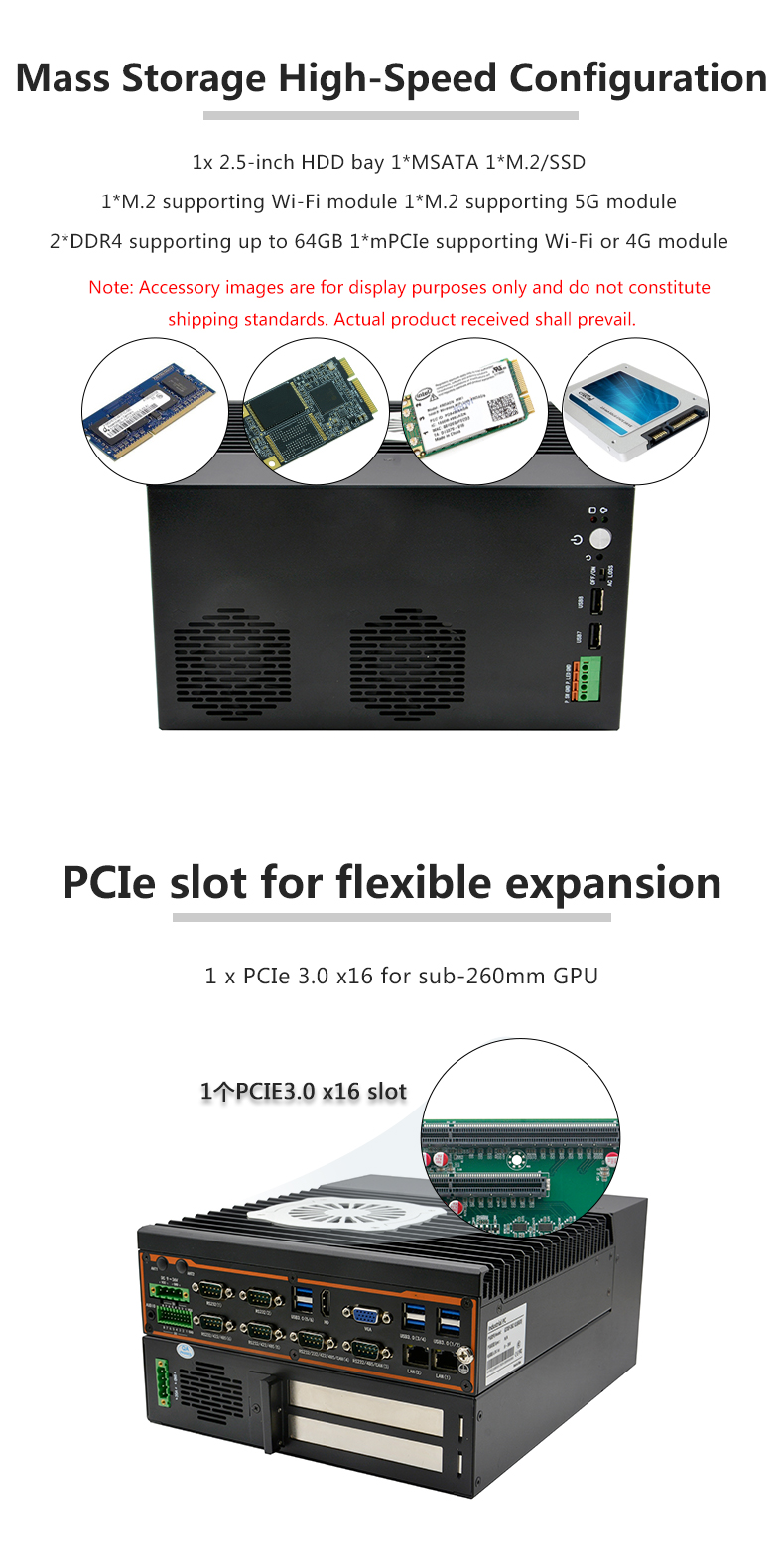

1x   2.5-inch HDD bay

mSATA

1x mSATA

SSD

1x M.2,   supports Key-M, 2280, NVMe PCIe x4 SSD

Expansion

PCIe

1x PCIe   3.0 x16 (Supported GPU length ≤ 260mm)

WiFi/4G

1x Mini   PCIe, supports WiFi or 4G (4G shares signal with built-in USB 2.0; defaults   to USB 2.0)

WiFi

1x M.2,   supports Key-E, 2230, WiFi 6 + BT module

5G

1x M.2,   supports Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Input   Voltage

DC 9V~36V   wide voltage

Output   Power

AC to DC   120W+ (depending on specific device), max load 220W

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random

1

G3781F-L6E2   V2.0(G390)

LGA1151

8~9th

2*SODDR4

G370

Z390

G370-C4/G370-PW/G371-E2/IPC505-SW

2.5+MSATA+M.2

1x16

2*I210

6

8/8

8

3

9-36V

3

G3781F-L6E2   V2.0(G670)

LGA1700

12~14th

2*SODDR4

G670

H770

G370-C4/G370-PW/G371-E2/IPC505-SW

2.5+MSATA+M.2

1x16

2*I210

6

8/8

8

3

9-36V
