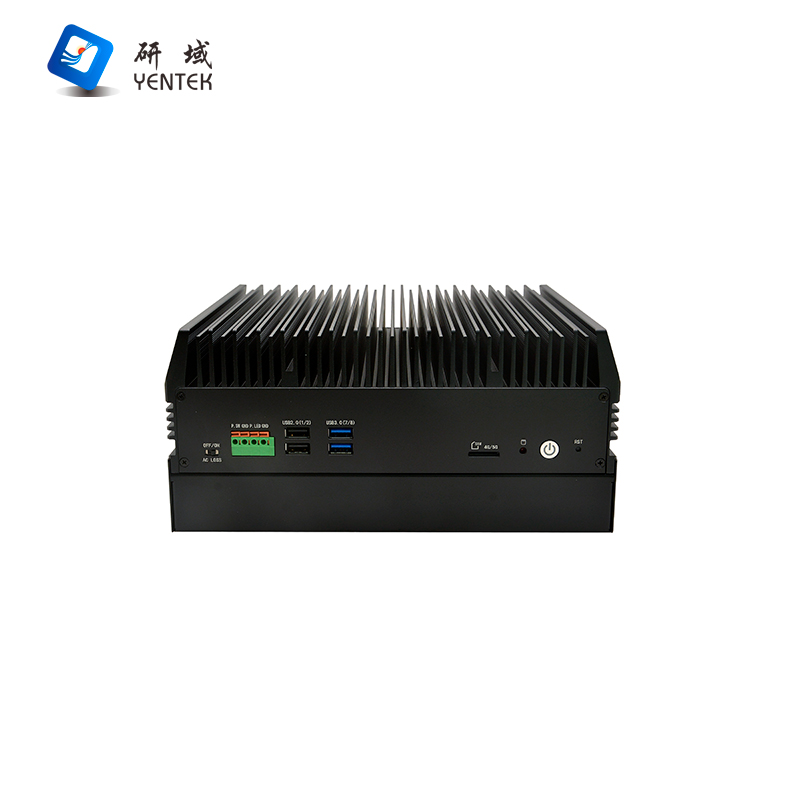

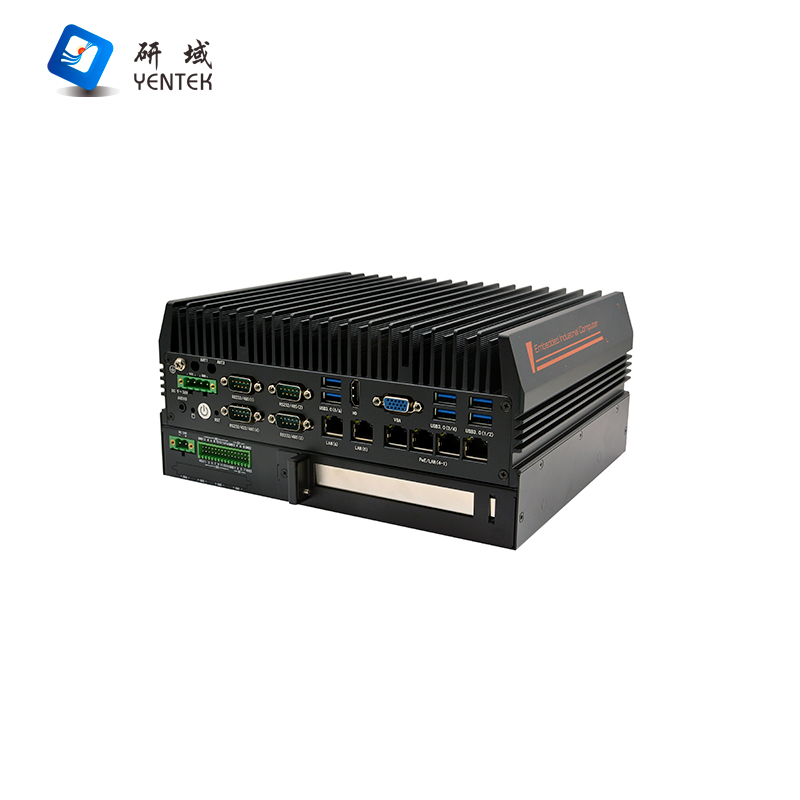

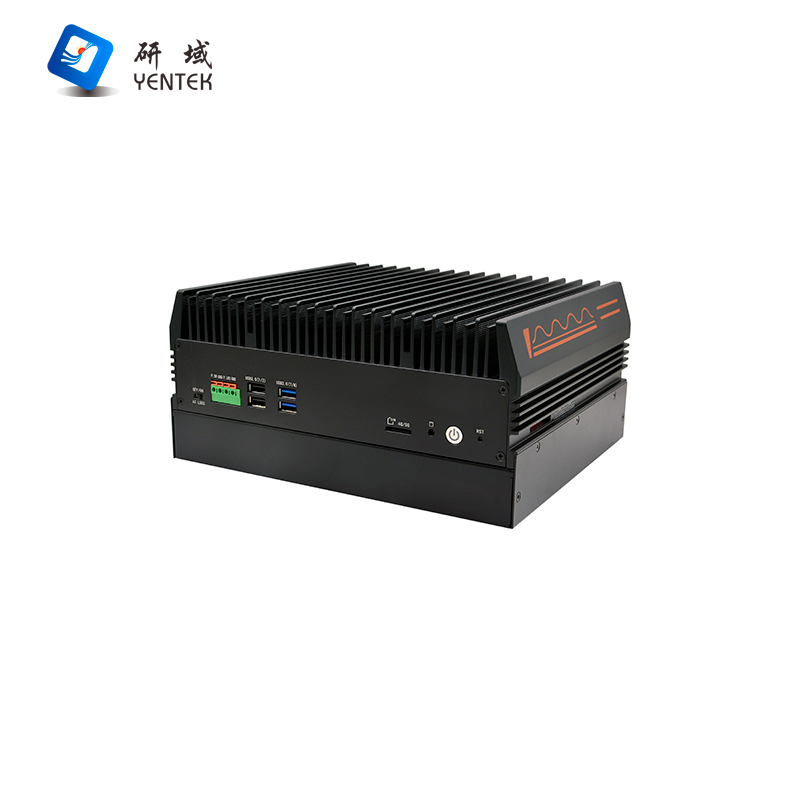

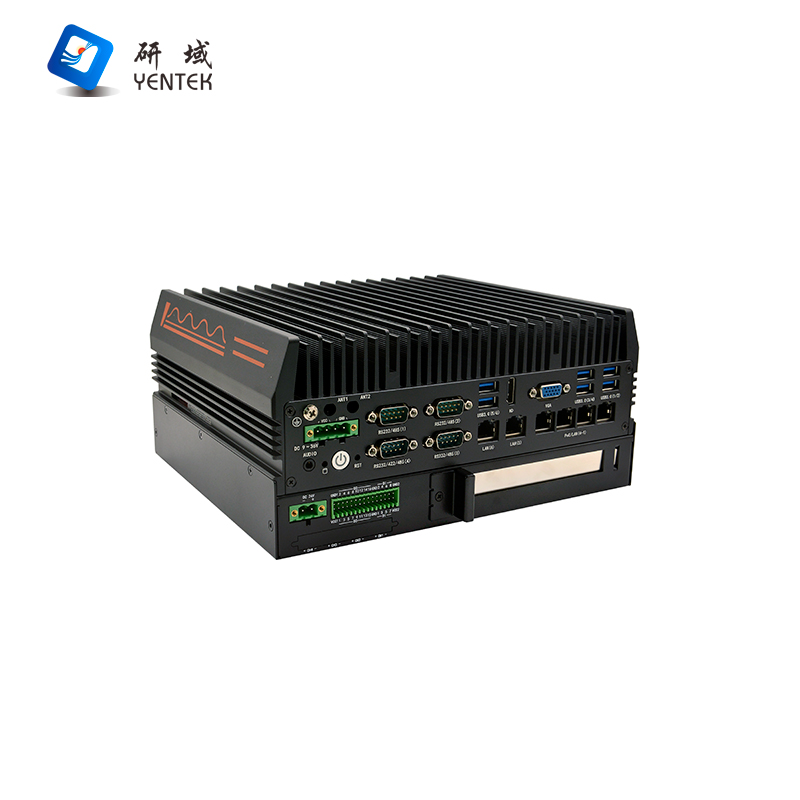

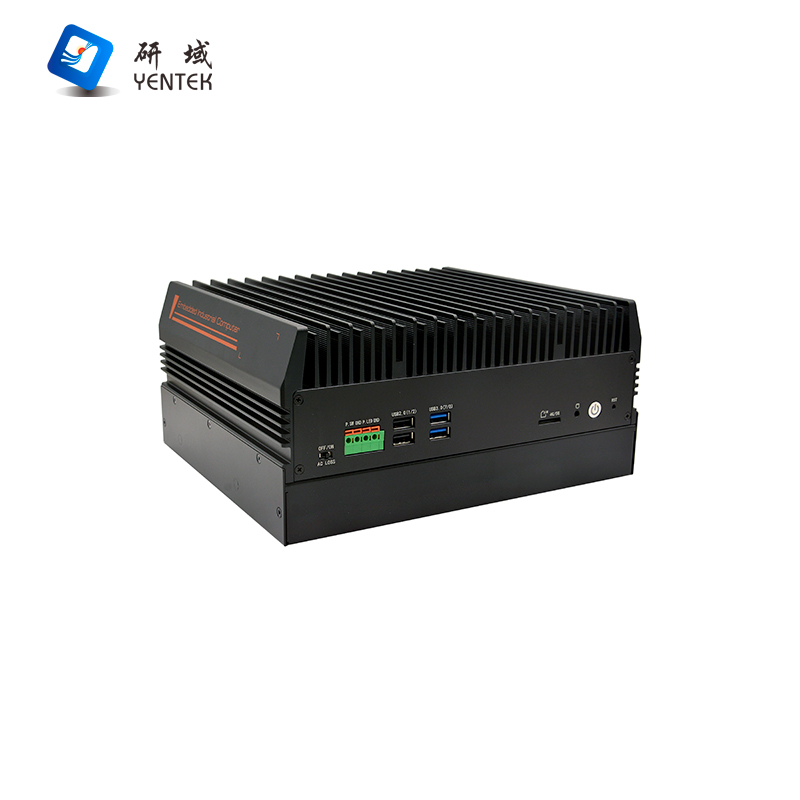

Model | G3760S-L6G4 V3.0(G391) |
Case | Material/Construction | Aluminium alloy + sheet metal |
Colour | Black |
Dimensions | 243 × 208.5 × 118.5 mm |
Weight | 4.6 kg |
Installation | Desktop / Built-in |
Motherboard | CPU | Intel® LGA1151 / 6th, 8th and 9th generation processors (supports TDP of 45W or below only) |
System-on-Chip | Intel® Z390 |
Memory | 2 × SODDR4, supports up to 64 GB |
Front panel ports | Power Switch | 1 × Power button with indicator light, 1 × One-touch restore button, 1 × ACLOSS (power-on DIP switch) |
LED | 1 × Hard drive indicator light |
USB | 2 × USB 3.0, 2 × USB 2.0, 1 × internal USB 2.0 |
Remote Switch | 1 × Power switch, 1 × Power indicator light (located on the 4-pin Phoenix connector) |
SIM | 1 × standard SIM card slot |

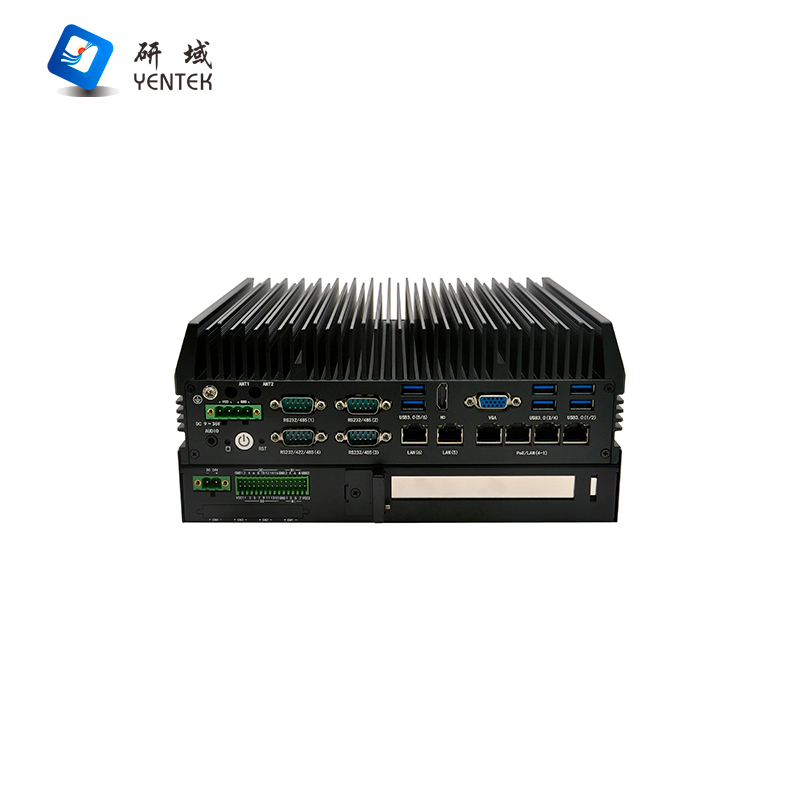

Rear panel ports | Display Interface | 1 × VGA (1920 × 1200 @ 60 Hz), 1 × HDMI 1.4 |
COM | 4 × RS232 DB9 serial ports; COM1–3 support RS232/485, COM4 supports RS232/422/485 |
LAN | 6 × Intel I210AT Gigabit Ethernet ports, of which LAN1–4 support PoE; PoE is disabled by default. |
USB | 6 × USB 3.0 |
Audio | 1 × Audio, combined line-out and mic |
DIP Switch | 2 sets of 6-position DIP switches; RS232/485 switching via DIP switches + jumper caps + BIOS settings |
Power Connector | 1 × 4-pin (P = 5.08 mm) Phoenix connector, supporting wide-voltage DC 9–36 V input, maximum load 220 W |
Power Switch | 1 × illuminated power switch, 1 × one-touch reset button |
LED | 1 × hard drive indicator light |
Light Source | 1 × Yuanxin optical constant-current light source, adjustable in 80 steps (0–80 mA) |
3 channels of 24V light sources, adjustable via 512-level PWM (24V/48W) |
DC 24V power input (1 × 2-pin Phoenix connector) |
8 × DI, 16 × DO (2 × 15-pin Phoenix connectors) |
Storage | SATA | 1 × 2.5-inch hard drive bay |
mSATA | 1 × mSATA |
SSD | 1 × M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSD |
Expansion | PCIe | 1 × PCIe 3.0 x16 (supports graphics cards up to 180 mm in length, including blade-style graphics cards) |
Wi-Fi | 1 × M.2, supporting Key-E, 2230, Wi-Fi modules |
5G | 1× M.2, supporting Key-B, 3042/3052, 5G modules |
System | Windows | Windows 10/11 |
Linux | Linux |
Power supply type | Power Supply Type | DC 9–36 V wide-voltage range |
Input Voltage | AC to DC 120 W or above (depending on specific device), maximum load 220 W |
Environmental requirements | Operating Temperature | –10 °C to 50 °C |
Storage Temperature | –20 °C to 70 °C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
