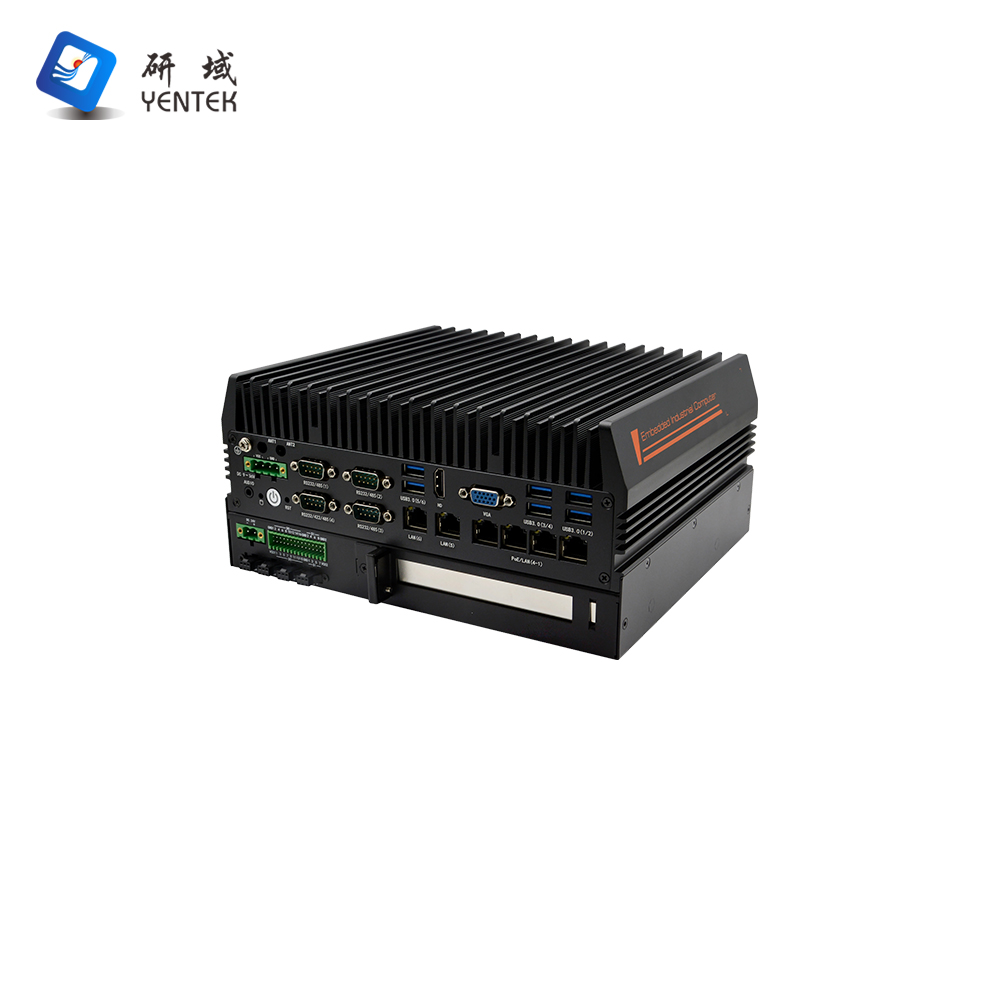

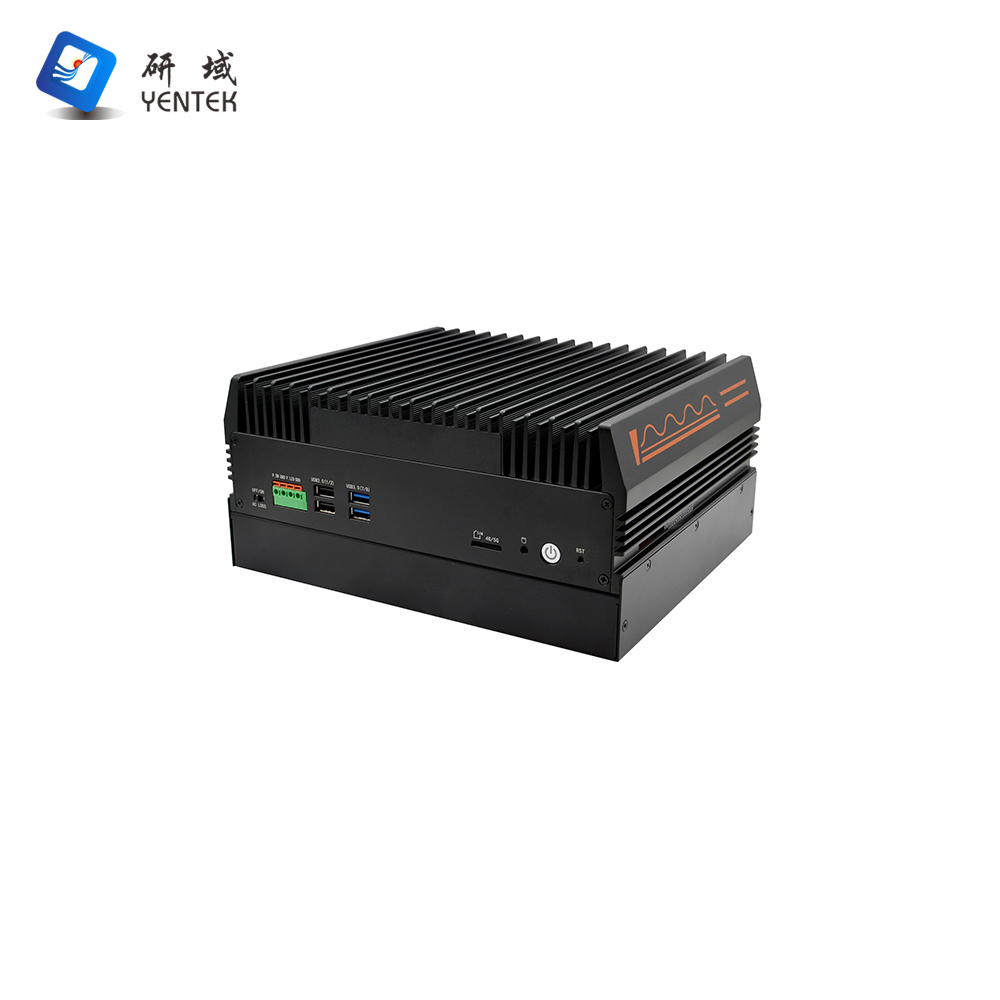

Model | G3760F-L6G4 V3.0 |
Case | Material/Construction | Aluminium alloy + sheet metal construction; fan-cooled |
Colour | Black |
Dimensions | 243 × 208.5 × 118.5 mm |
Weight | 3.7 kg |
Installation | Desktop/built-in/DIN rail (35 mm) |
Motherboard | CPU | Supports LGA1700 12th, 13th and 14th generation processors | Supports LGA1151 6th/8th/9th generation processors |
System-on-Chip | Intel® Q670 | Intel® Z390 |
Memory | 2 x SODDR5 memory slots, supporting up to 64GB | 2 x SODDR4 memory slots, supporting up to 64GB |

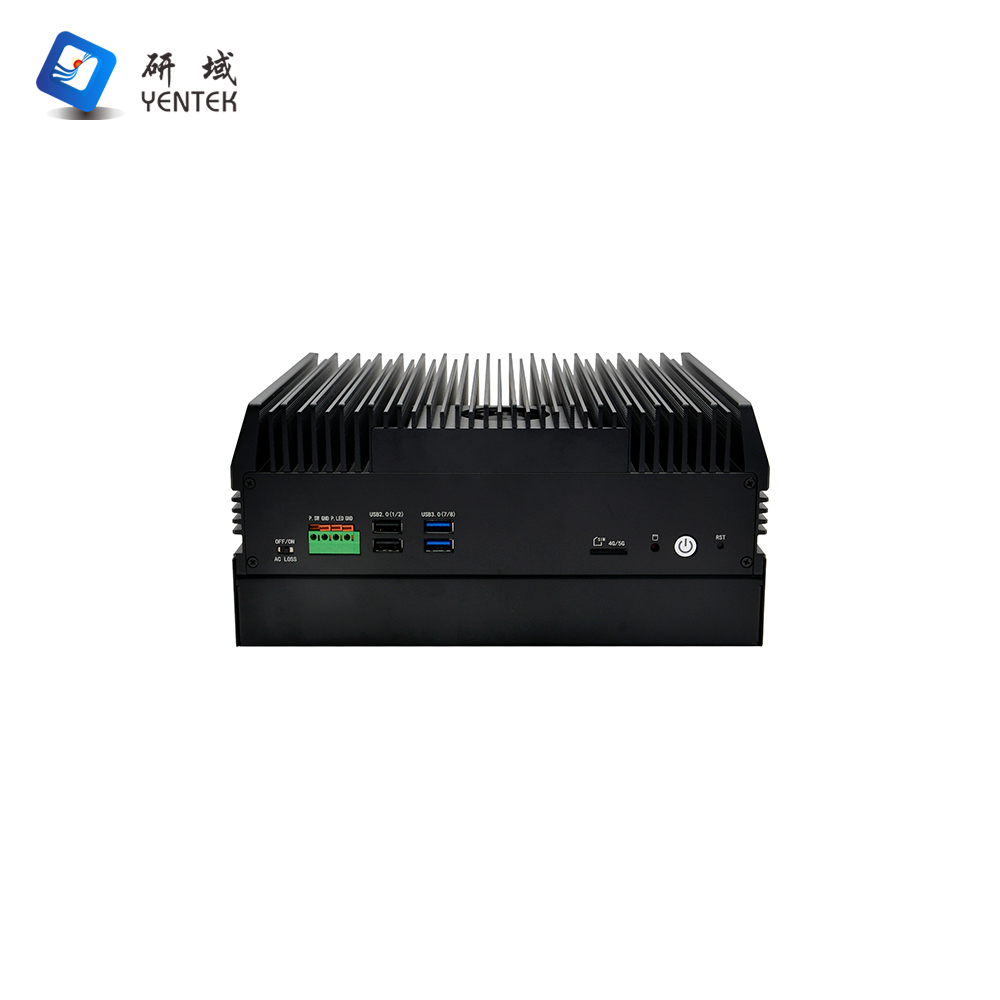

Front panel ports | Power Switch | 1 × Power button with indicator light, 1 × One-click restore, 1 × ACLOSS (power-on DIP switch) |
LED | 1 × Hard drive indicator light |
USB | 2 × USB 3.0 Type-A, 2 × USB 2.0 Type-A, 1 × internal USB 2.0 |
Remote Power Switch | 1 × Power indicator signal, 1 × Power switch signal (located on 1 × 4-pin Phoenix connector) |
SIM | 1 × standard SIM card slot (default signal: M.2 5G) |

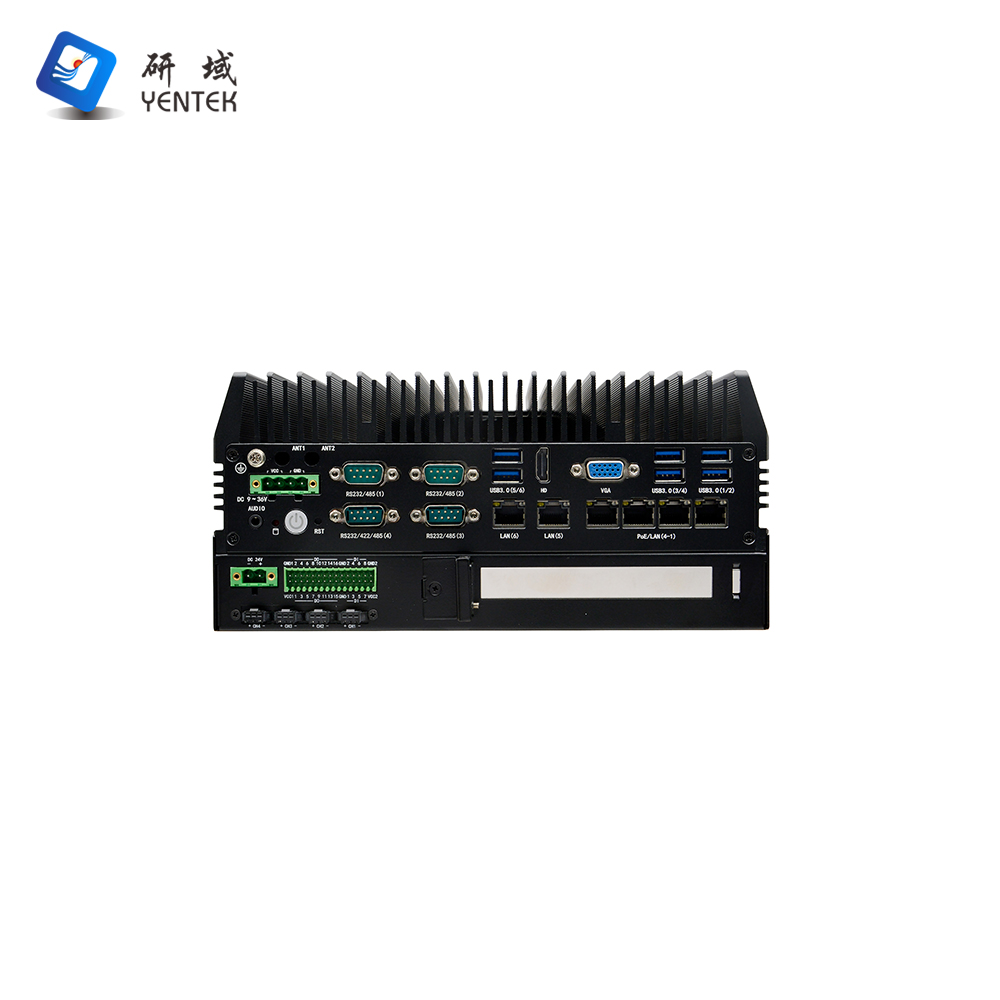

Rear panel ports | Display Interface | 1 × VGA (1920 × 1200 @ 60 Hz), 1 × HDMI 1.4 |
Power Switch | 1 × power button with indicator light, 1 × one-touch restore |
LED | 1 × hard drive indicator light |
COM | 4 × RS232 DB9 serial ports, of which COM1–3 support RS232/485, and COM4 supports RS232/422/485 |
LAN | 6 × Intel I210AT Gigabit Ethernet ports, of which 4 support PoE (15W per port); PoE is disabled by default |
USB | 6 × Type-A USB 3.0 |
Audio | 1 × Audio, combined line-out and microphone jack |
Power Connector | 1 × 4-pin (P = 5.08 mm) Phoenix connector, supporting wide-voltage DC 9–36 V input, maximum load 220 W |
Light Source | 1 × Yuanxin Guang constant-current light source, adjustable in 80 steps (0–80 mA) |
3 × 24 V light sources, adjustable via 512-step PWM (24 V/48 W) |
24V DC power input |
DIP Switches | 2 sets of 6-position DIP switches; COM3–4 RS232/485 switching is achieved via DIP switches and BIOS settings |
Storage | SATA | 1 × 2.5-inch hard drive bay |
mSATA | 1 × mSATA, supporting Intel-protocol SSD |
SSD | 1 x M.2, supporting PCIe 4.0 x4/SATA adaptive standard SSD | 1 x M.2, supporting PCIe 3.0 x4/SATA adaptive standard SSD |
Expansion | PCIe | 1 x PCIe 4.0 x16 (supports half-height graphics cards only) | 1 x PCIe 3.0 x16 (supports half-height graphics cards only) |
Wi-Fi | 1× M.2, supports Key-E, 2230, Wi-Fi module |
5G | 1× M.2, supports Key-B, 3042/3052, 5G module |
System compatibility | Microsoft | Windows 10/11 |
Linux | Linux |
Power supply type | Power Supply Type | DC 9V–36V wide-voltage range |
Power Output | DC 9V–36V, 90W or above (depending on the specific device), maximum load 220W |
Environmental requirements | Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
