Model | G3780F-C6E2 V3.0(G391) |
Case | Material/Construction | Aluminum alloy + sheet metal construction; fan cooling |
Color | Black |
Dimensions (L x W x H) | 243 × 208.5 × 142.3 mm |
Weight | 3.6 kg |
Installation | Desktop / Built-in / DIN Rail (35 mm) |
Motherboard | CPU | Intel® LGA1151 / 6th, 7th, and 8th Gen Processors |
System-on-Chip | Intel® Z390 |
Memory | 2 x SODDR4, supports up to 64 GB |

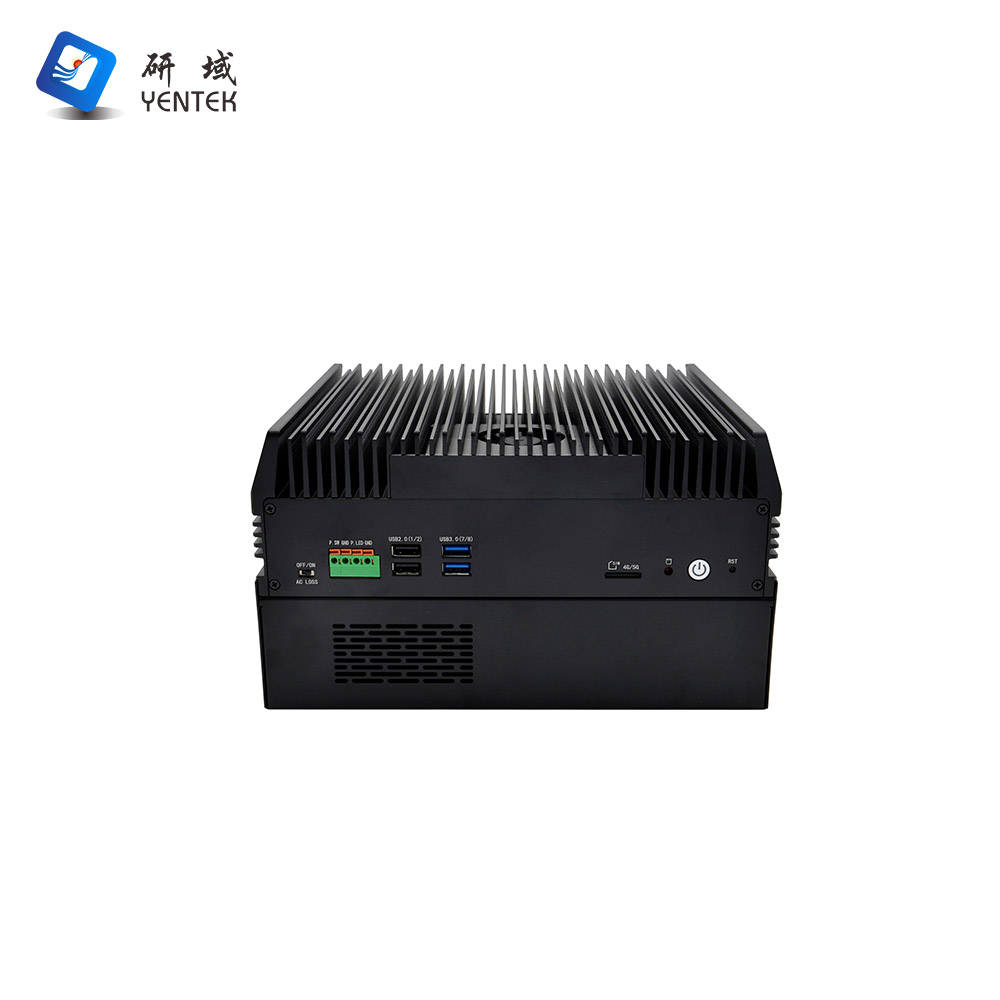

Front Panel Connectors | Power Switch | 1 x Power Button with LED Indicator, 1 x One-Click Restore, 1 x ACLOSS (Power-On DIP Switch) |
LED | 1 × HDD indicator light |
USB | 2 × USB 3.0, 2 × USB 2.0, 1 × internal USB 2.0 |
Phoenix Connector | 1 × 4-pin Phoenix connector (1 × power indicator signal, 1 × power switch signal) |
SIM | 1 × standard SIM card slot (default signal: M.2 5G) |

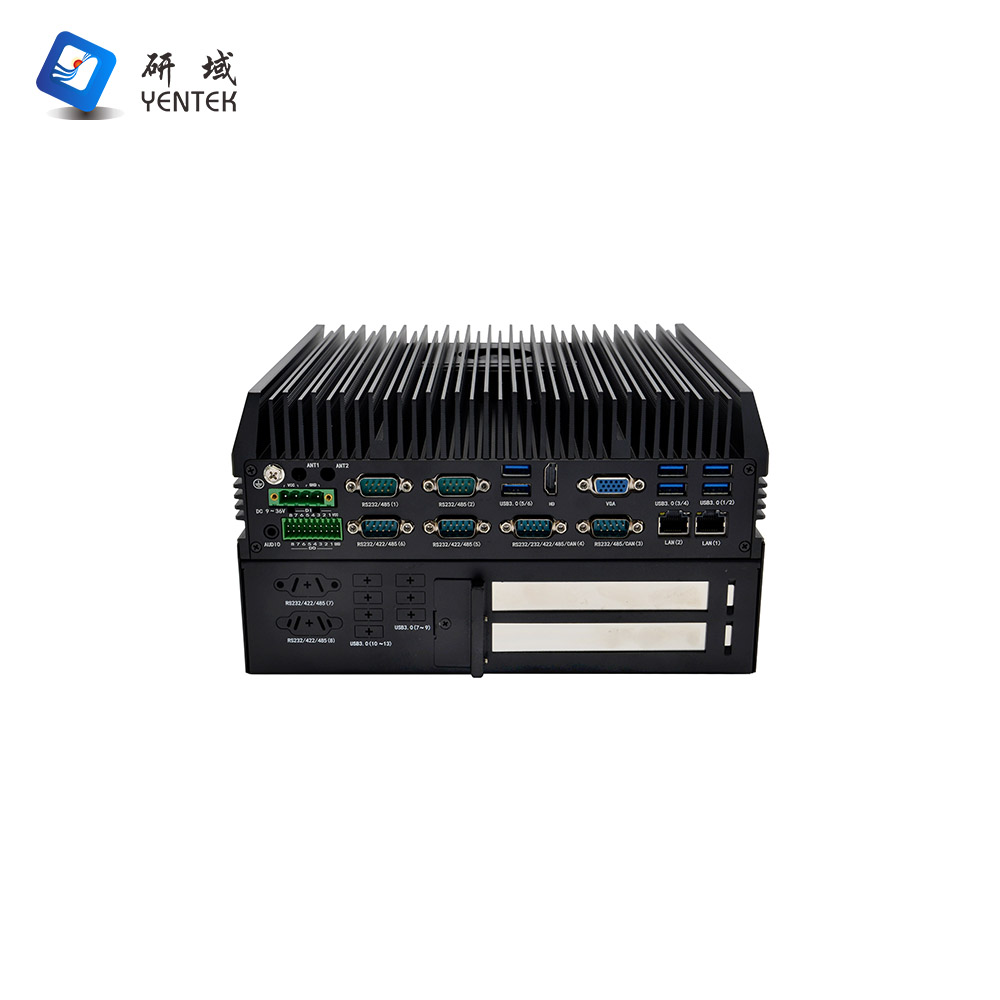

Rear Panel Connectors | Display Interface | 1 × VGA (1920 × 1200 @ 60 Hz), 1 × HDMI 1.4 |
COM | 6× RS232 DB9 serial ports supporting RS232/485; COM4–6 support RS232/422/485; COM3–4 support CAN functionality (requires CAN module) |
LAN | 2× Intel I210AT Gigabit Ethernet ports |
USB | 6× USB 3.0 |
DIO | 8-input, 8-output DIO (located on 2× 10-pin Phoenix connectors) |
Audio | 1× Audio, combined Line Out and Mic |
DIP Switch | 2 sets of 6-position DIP switches; RS232/485 switching via DIP switches + jumper caps + BIOS settings |
Power Connector | 1× 4-pin Phoenix connector (P=5.08 mm), supports 9–36 V DC wide-voltage input |
Storage | SATA | 1× 2.5-inch hard drive bay (on the I/O board) |
mSATA | 1× mSATA (on the I/O board) |
SSD | 1 x M.2 slot, supports M.2 Key M 2280 NVMe PCIe 3.0 x4/SATA adaptive standard SSD |
Expansion | PCIe | 1 x PCIe 3.0 x16 (x8 signal) |
1× PCIe 3.0 x8 (x8 signal) |
Wi-Fi/4G | 1× Mini PCIe, supports Wi-Fi or 4G (4G shares the same signal as the built-in USB 2.0; 4G is not supported by default) |
Wi-Fi | 1× M.2, supports Key-E, 2230, Wi-Fi module |
5G | 1× M.2, supports Key-B, 3042/3052, 5G module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type | Power Supply Type | External Power Adapter |
Input Voltage | DC 9–36 V wide voltage range, maximum load 220 W |
Output Power | AC to DC 120 W or higher (depending on specific device) |
Environment | Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to 70°C |
Relative Humidity | 5%–95% relative humidity, non-condensing |
Operating Vibration | 0.5g rms/5-500HZ/random/operating |
