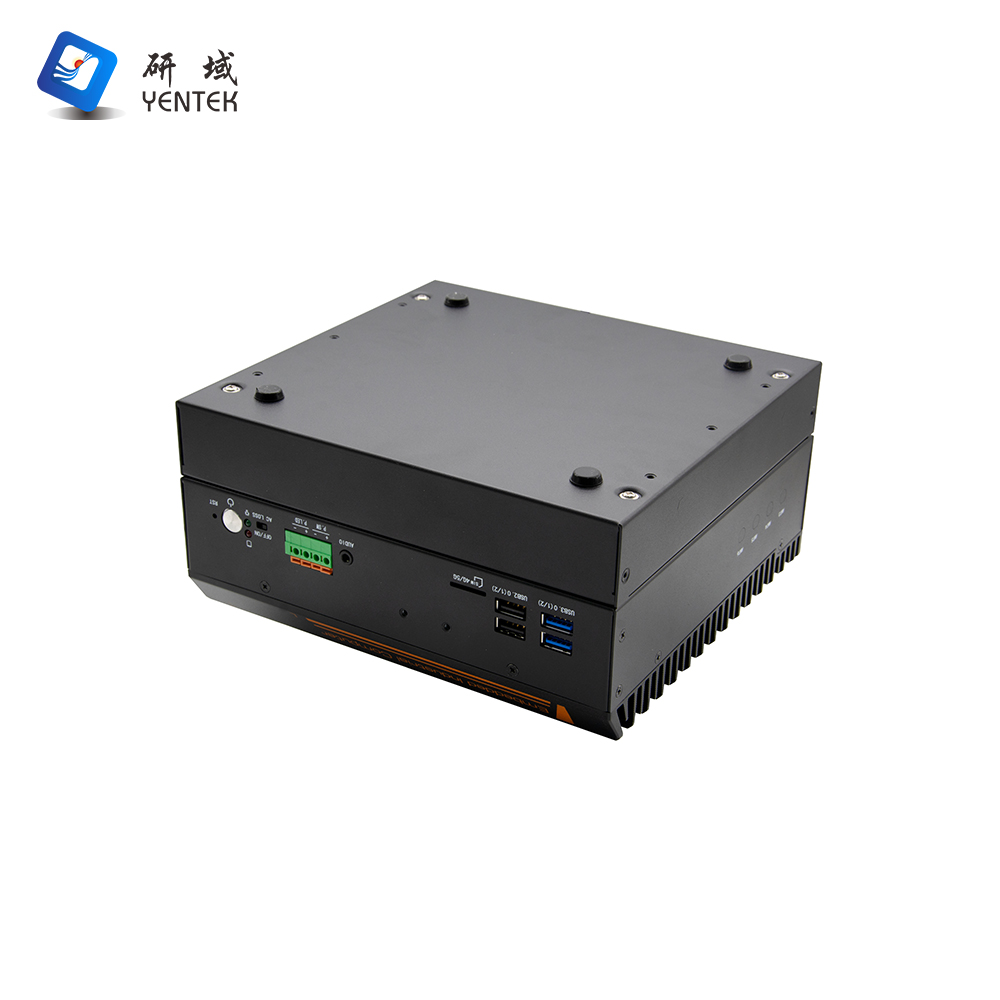

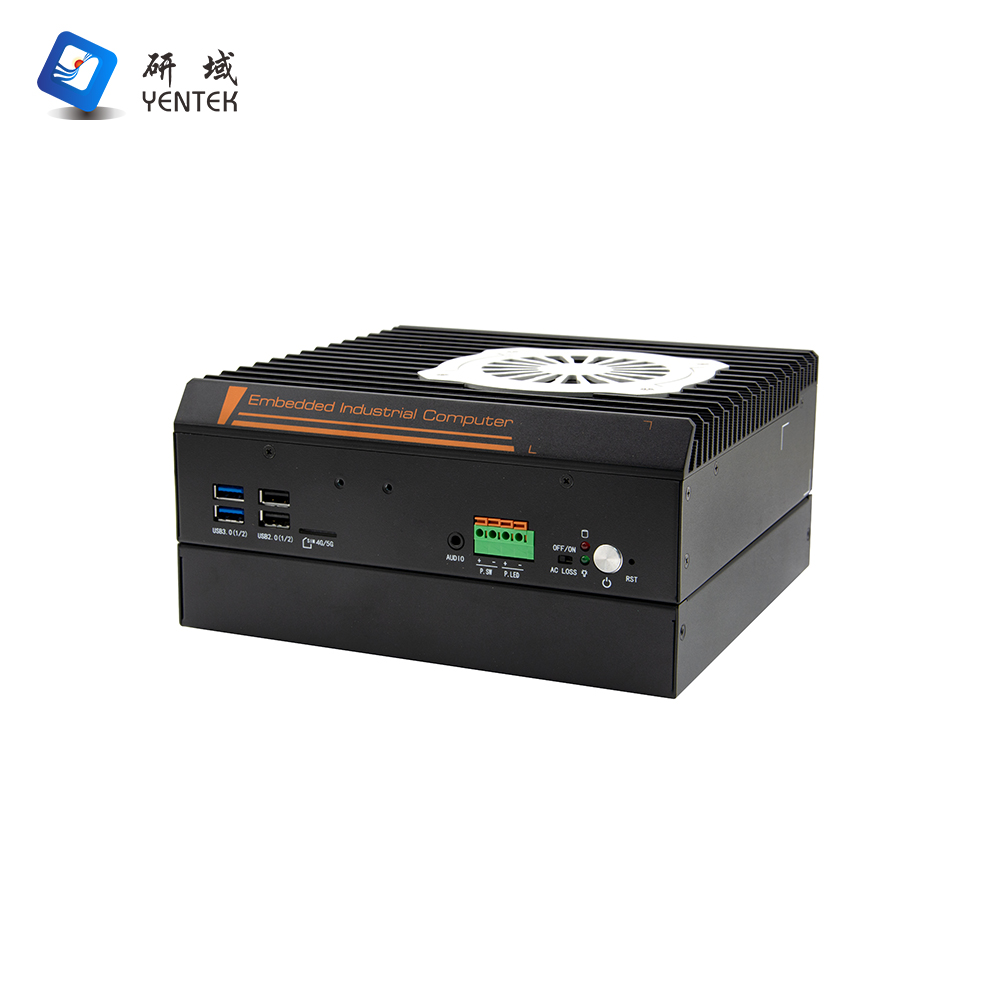

G3260F-L6E1

Chassis

Material/Construction

Aluminium   + sheet metal

Colour

Black +   Silver

Dimensions   (LWH)

205.4*192.2*97.7mm   (without stand)

Weight

2.7KG

Installation

Desktop/Embedded

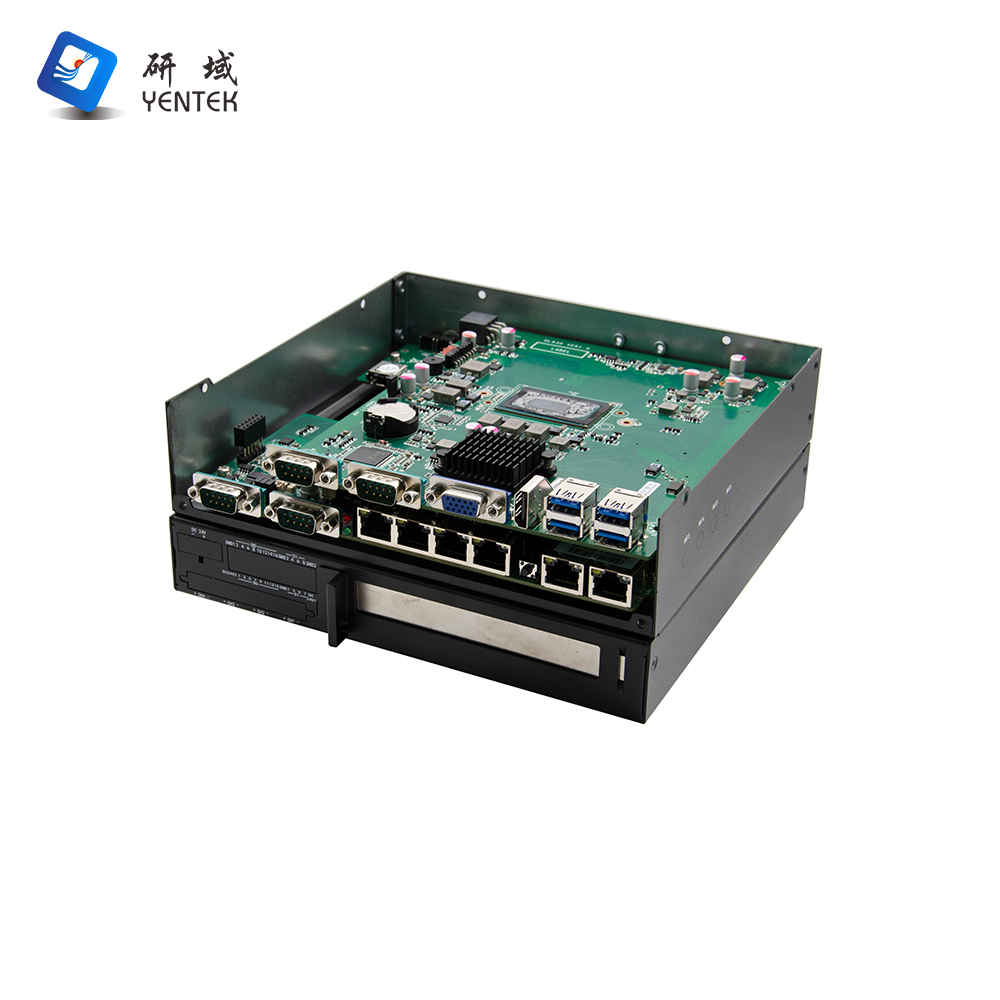

Motherboard

CPU

Integrated   Intel ®i5-12450H/Turbo 4.40GHz, 4PCore,4ECore Octa-Core, 12-Thread Processor,   TDP 45W

System-on-Chip

Intel SOC

Memory

2*SODDR4   3200MHz, Maximum Support 64GB

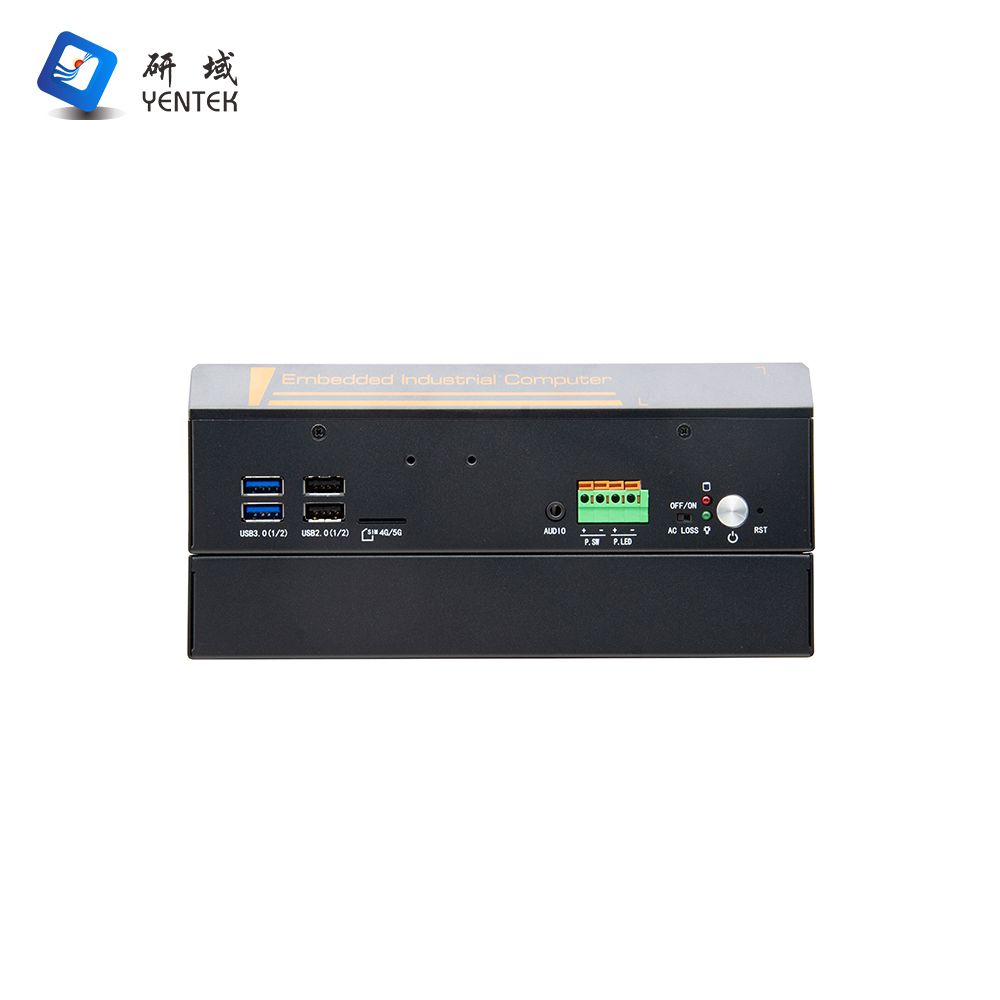

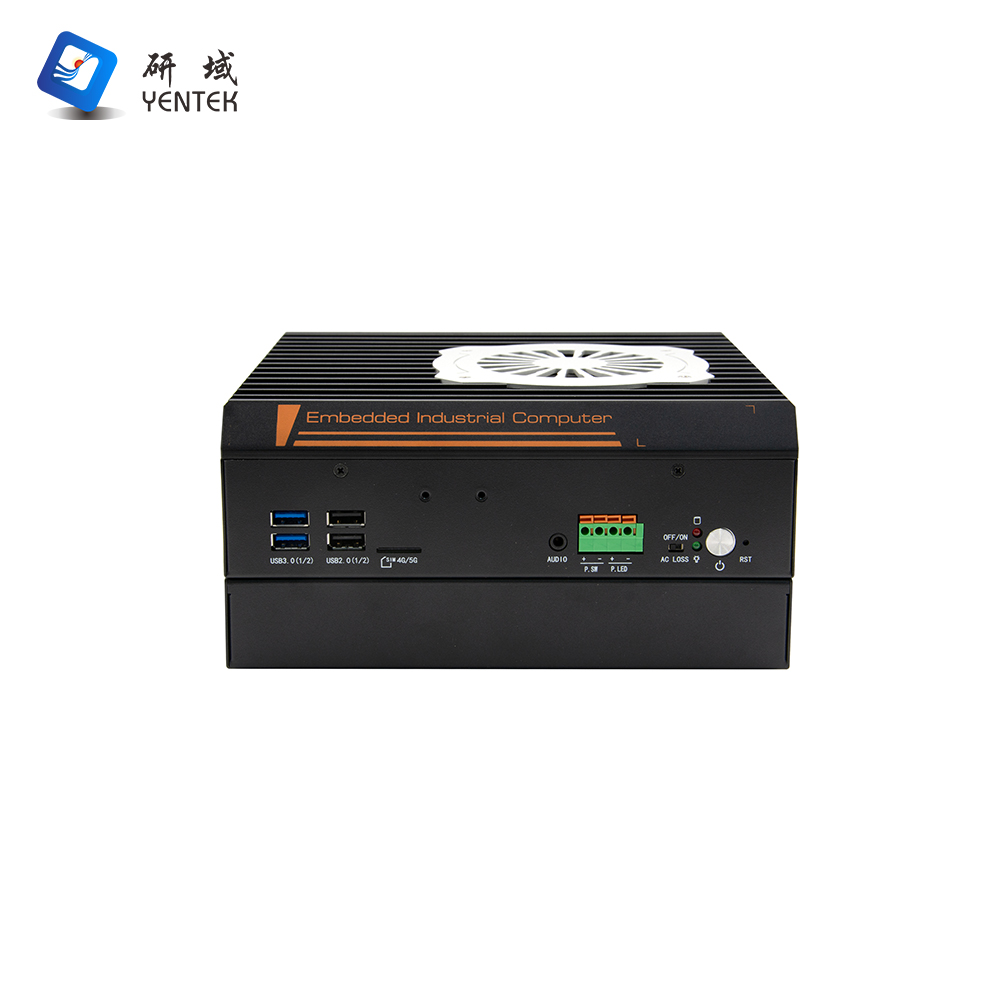

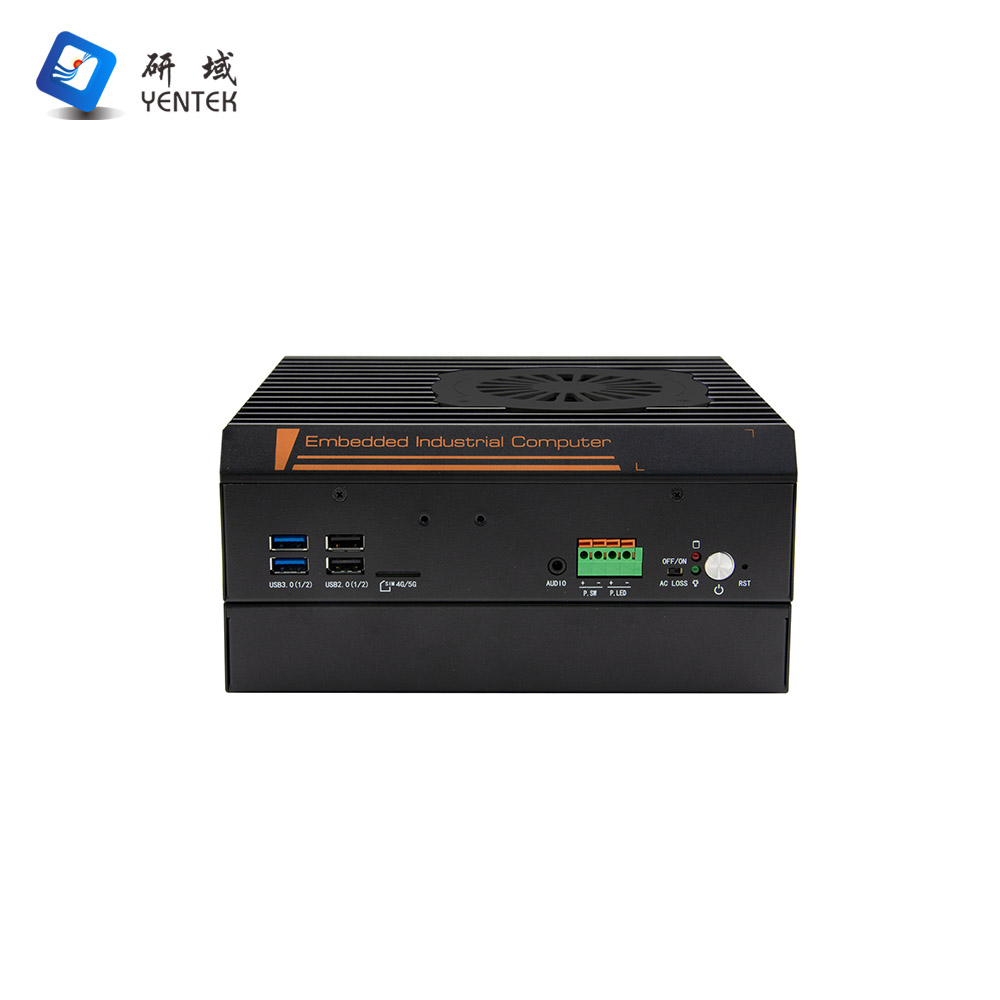

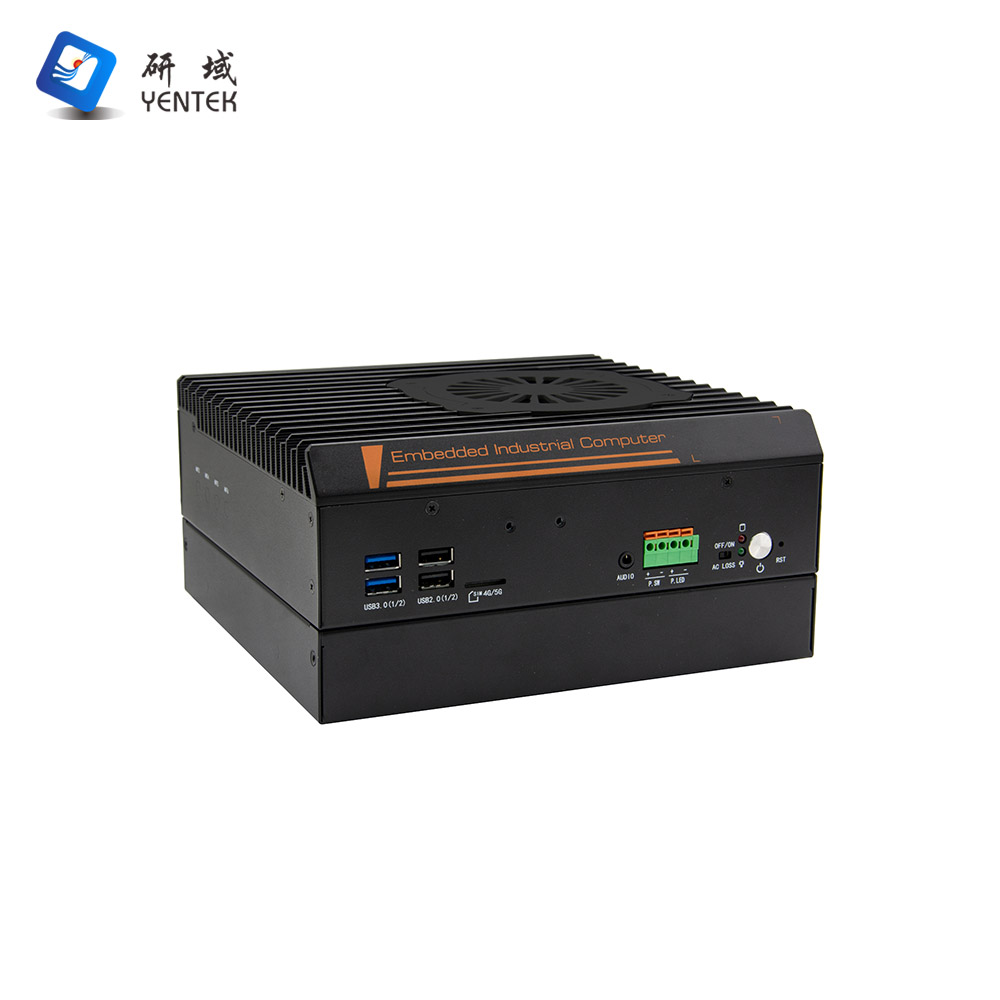

Front   Panel Connectors

Switches

1*Boot   Button, 1*One-Key-Restore, 1*ACLOSS (Power On and Off) DIP Switch)

LED

1*Power   Indicator, 1*Hard Drive Indicator

USB

2*USB3.0,   2*USB2.0, Built-in 1*USB2.0

Phoenix   Terminal

1*4P   Phoenix Terminal (1*Power Indicator, 1*Power Switch)

Audio

1*Audio,   Line out and Mic 2-in-1

SIM

1*SIM   Standard Card Slot

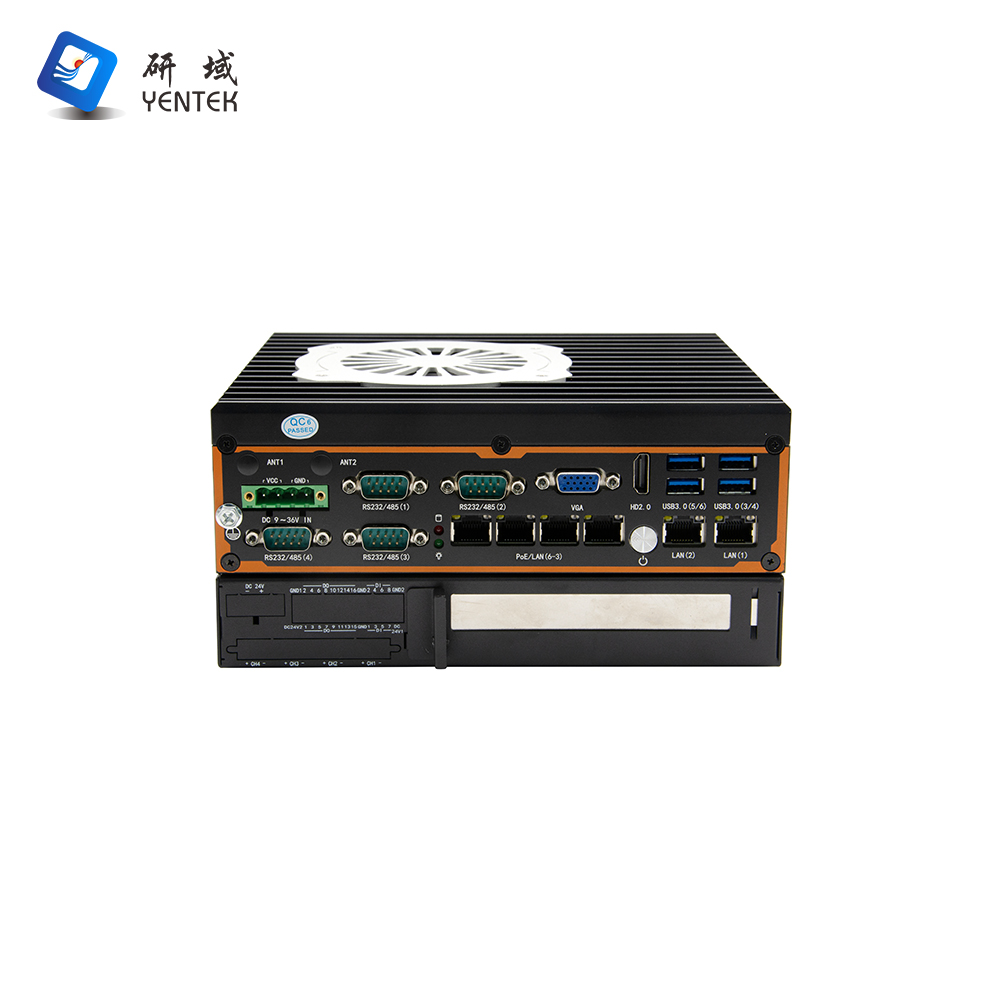

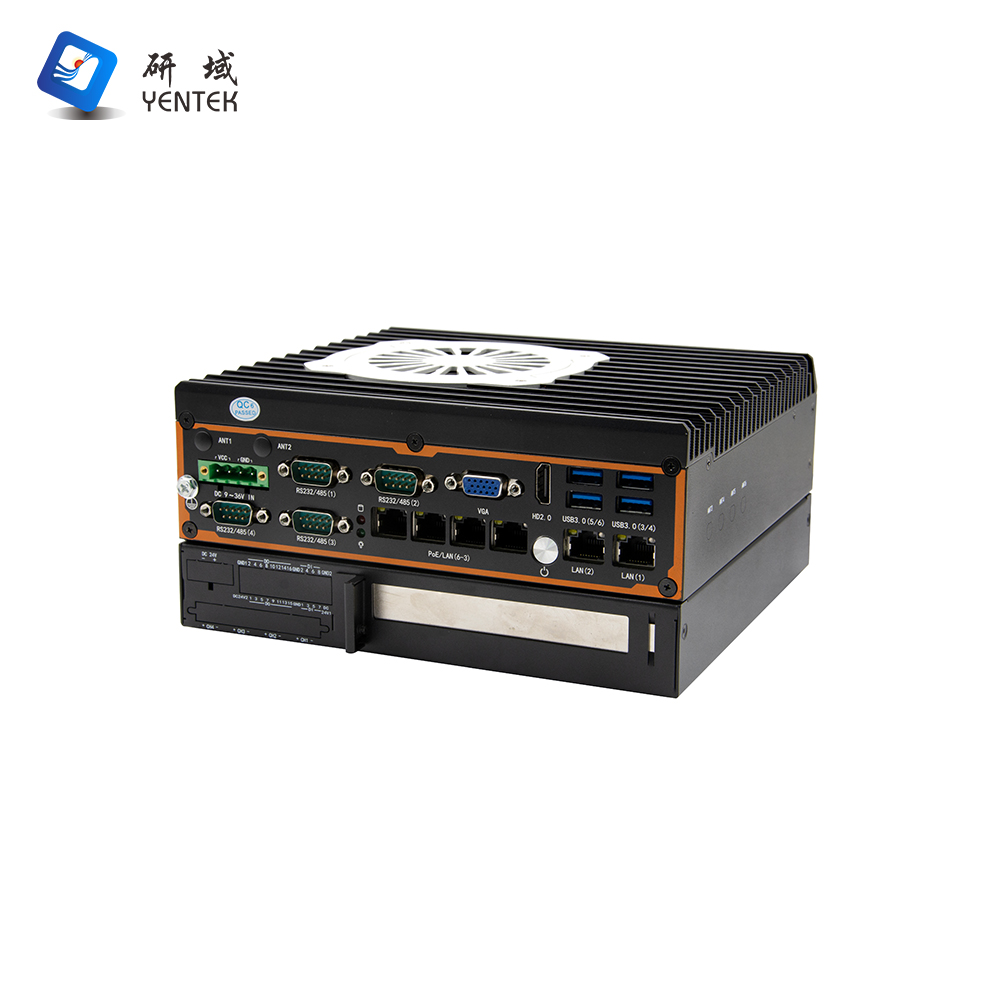

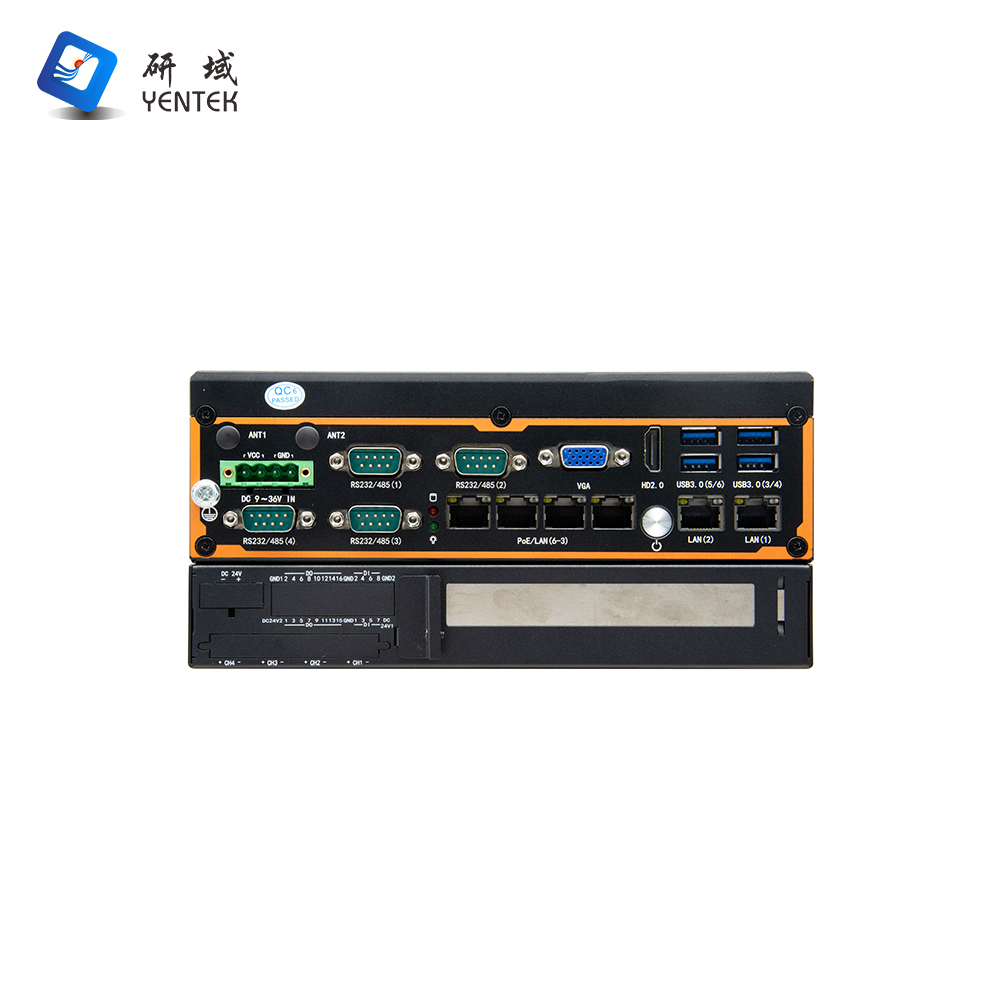

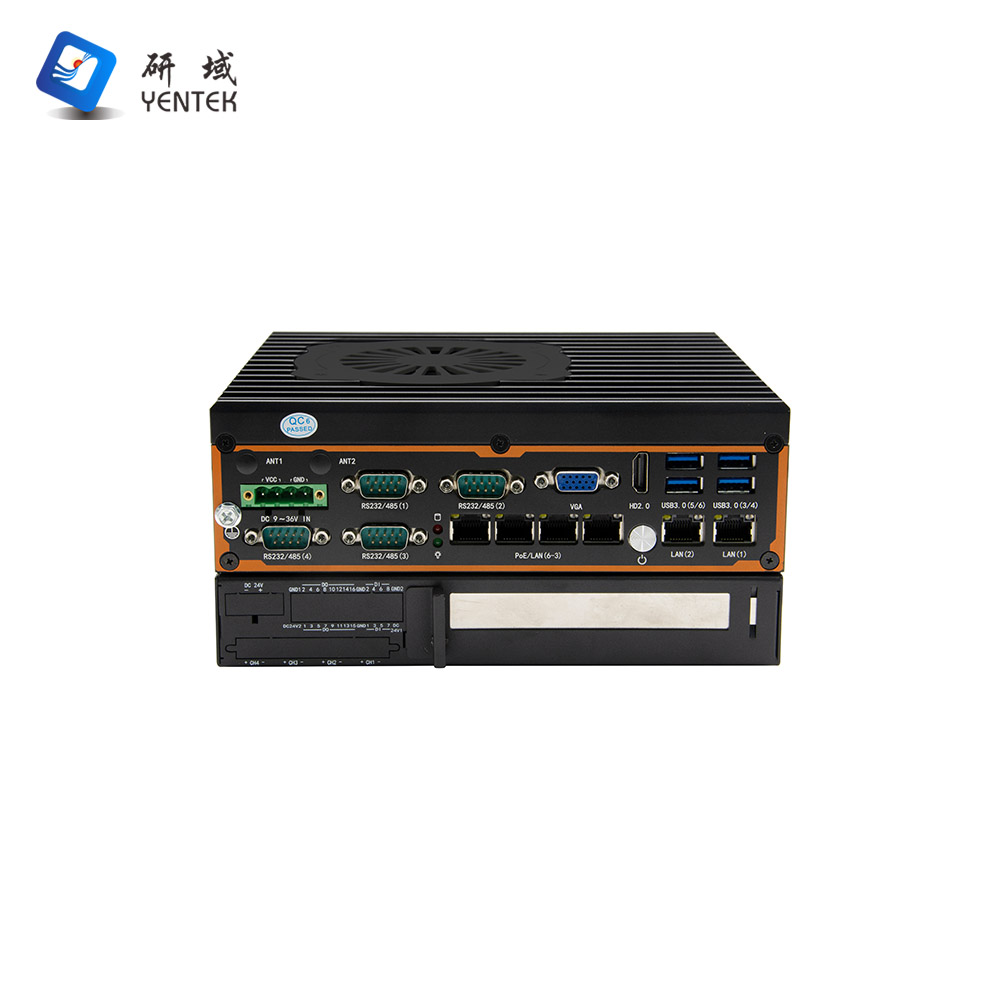

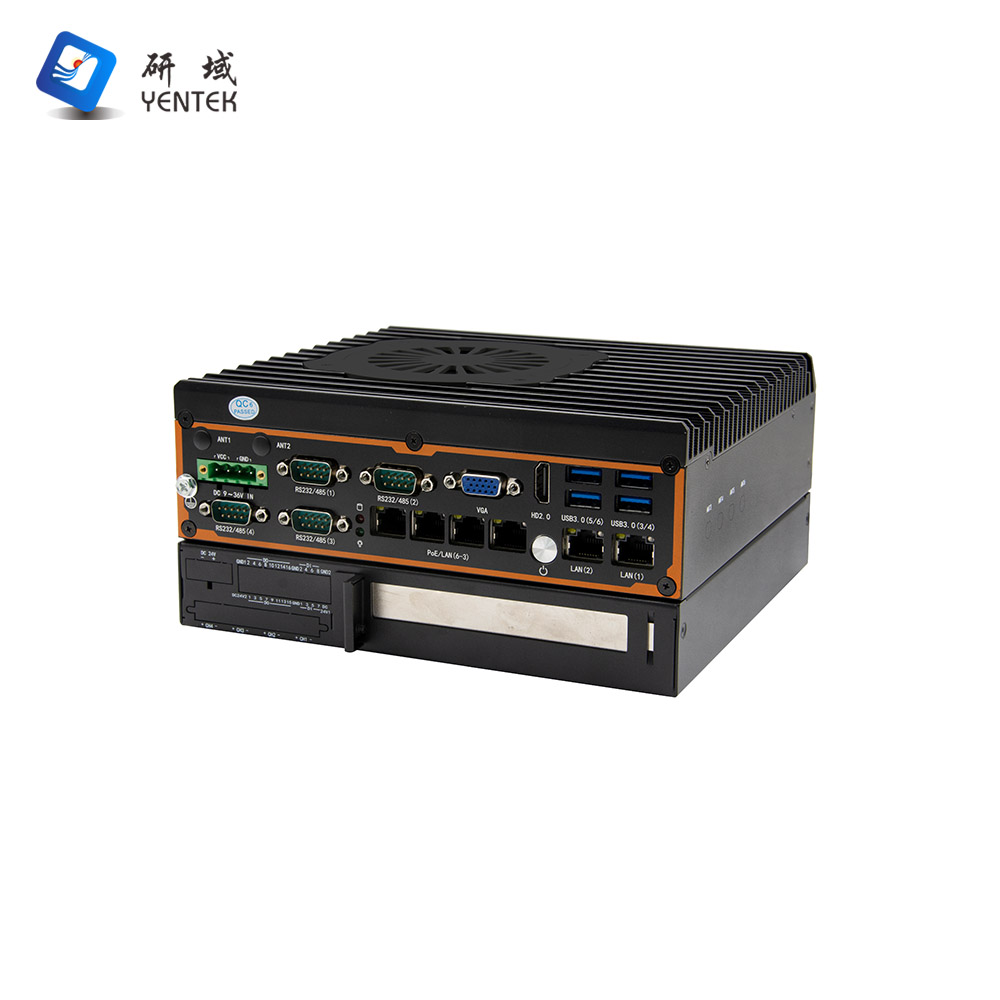

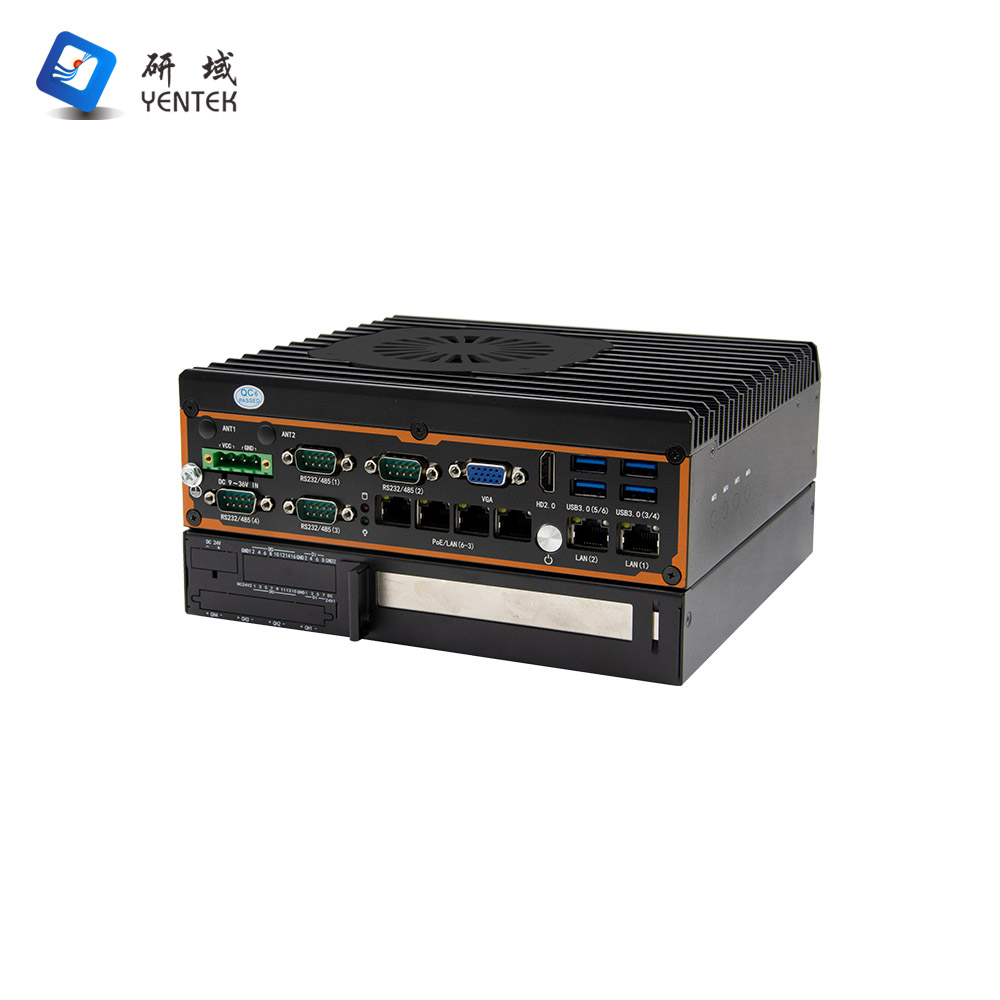

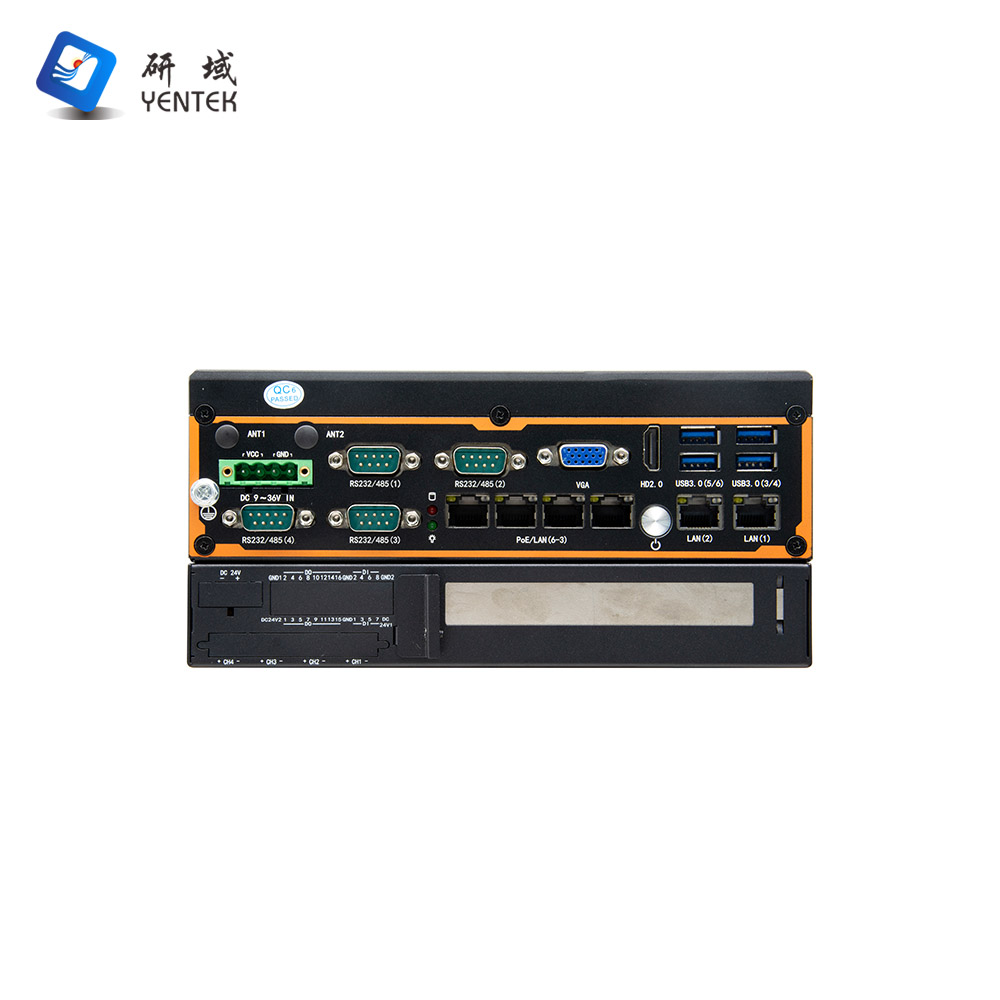

Rear   Panel Interface

Display   Interface

1*HDMI1.4,   1*VGA, support dual display

USB

4* USB3.0

COM

4*RS232/485   DB9 serial port

LAN

6*Intel   I210AT Gigabit power ports, 4 of which support POE (single port 15W)

Dipswitch

4 sets of   6-position dip switches, COM1-4 RS232/485 switching is achieved by dip   switches + BIOS settings

Power   Interface

1*4P   P=5.08mm phoenix terminal, support 9~36V wide voltage input

Storage

MSATA/SSD

1* MSATA   (only supported by 3210M, motherboard side)

1*M.2,   support Key-M, 2280, NVME PCIEx4/SATA Adaptive SSD (M.2 for other CPUs,   motherboard side)

SSD

1*M.2,   support Key-M, 2280, SATA SSD (IO board side)

Expansion

PCIE

1*PCIE3.0   x8

WiFi/4G

1*MINIPCIE,   support WiFi6+BT or 4G

5G

1*M.2,   support Key-B, 3042/3052, 5G module

System   Support

Microsoft

Windows   10

Linux

Linux

Power Supply   Type Input

Power   Type

External   Power Adapter

DC 9-36V   Wide Voltage

Power   Output

AC TO DC   90W or more (depending on specific device)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random
