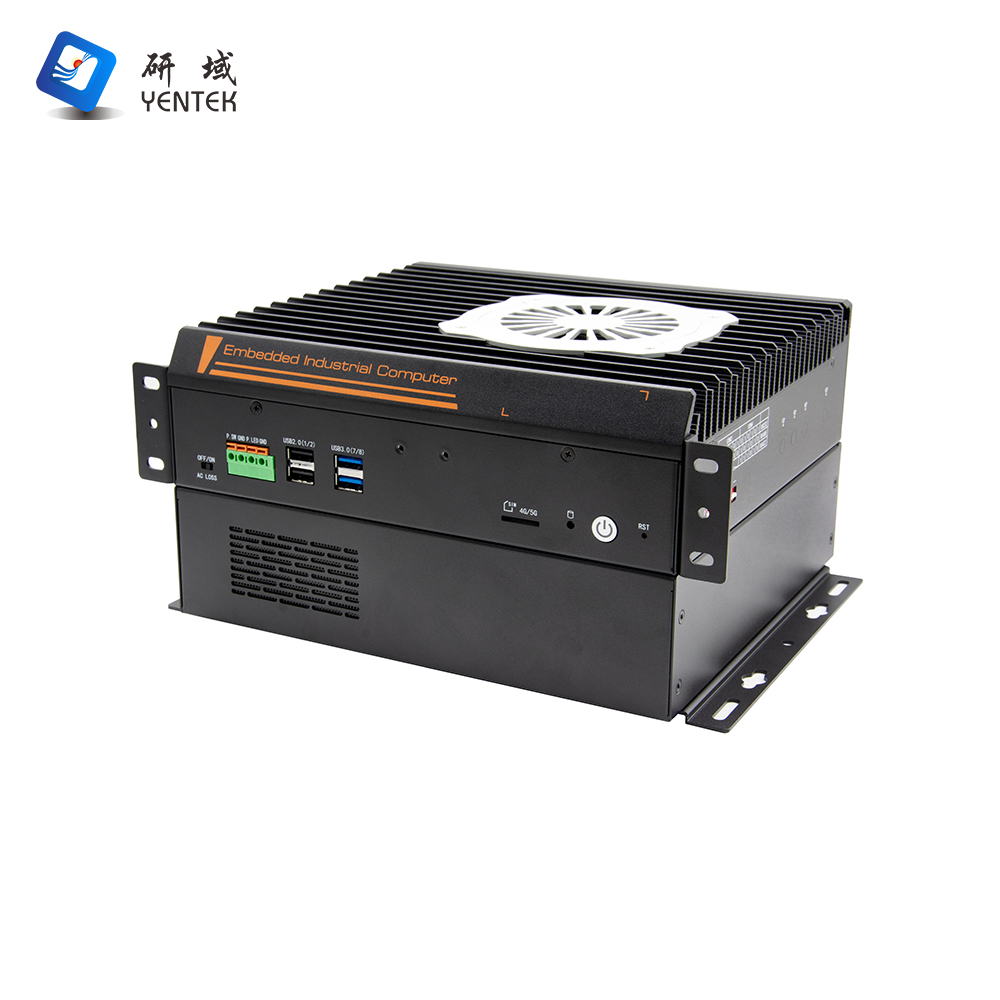

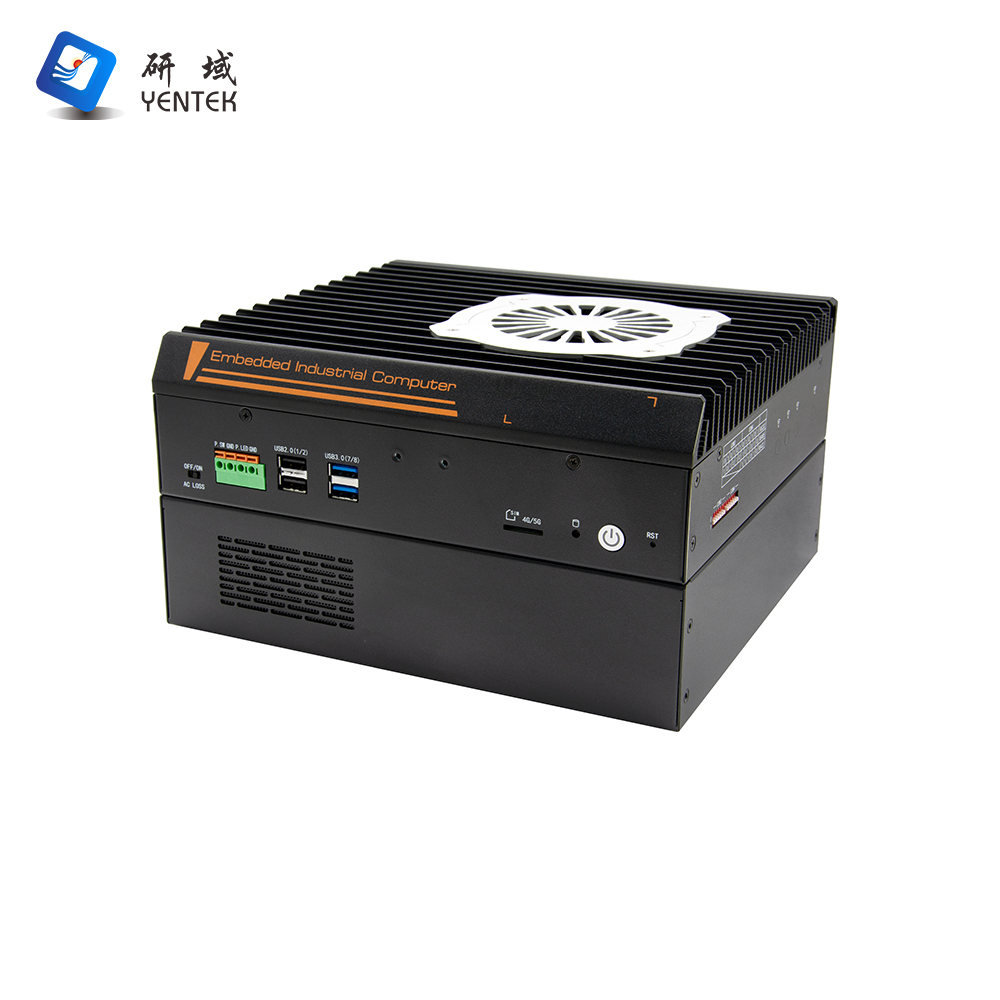

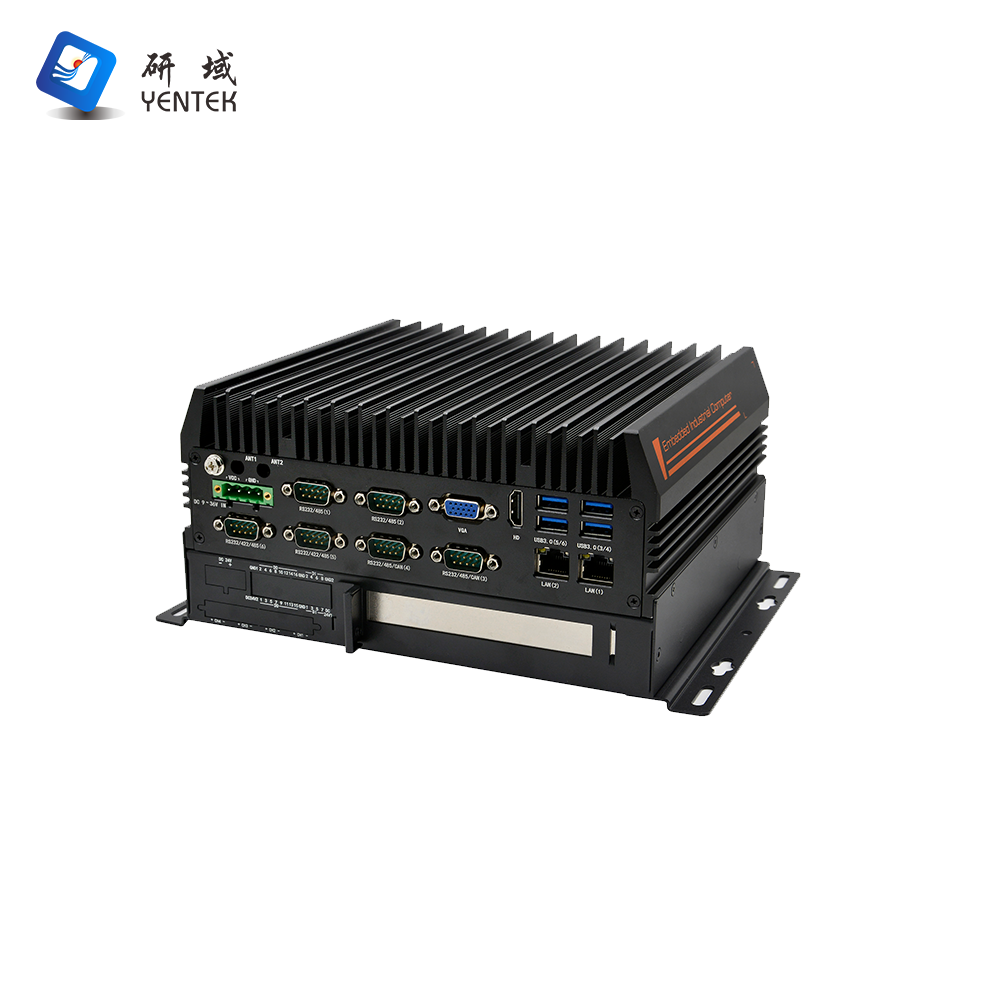

G3780F-C6P2 V2.0

Case

Material/Construction

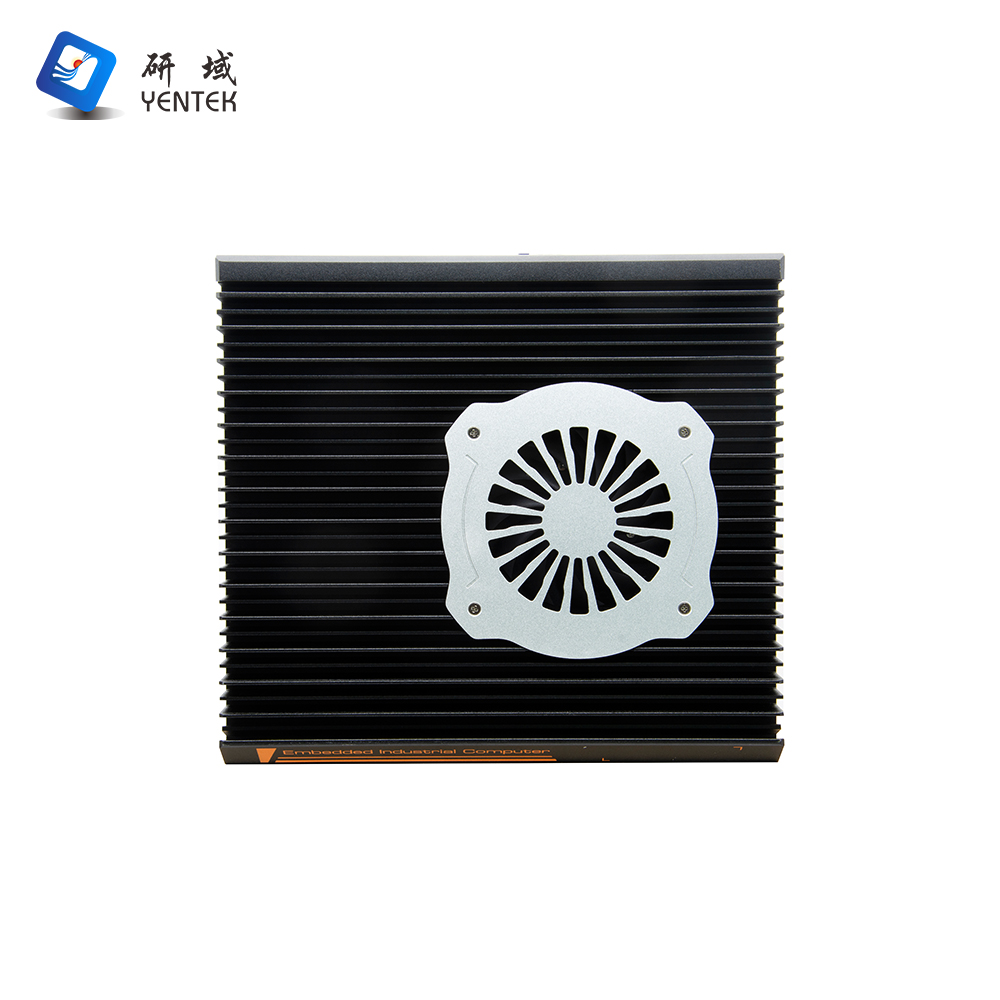

Aluminium   alloy + sheet metal construction; fan-cooled

Colour

Black

Dimensions   (L x W x H)

229 × 209   × 125.7 mm

Weight   (net weight without packaging)

3.6 kg

Installation

Desktop /   Built-in / DIN rail (35 mm)

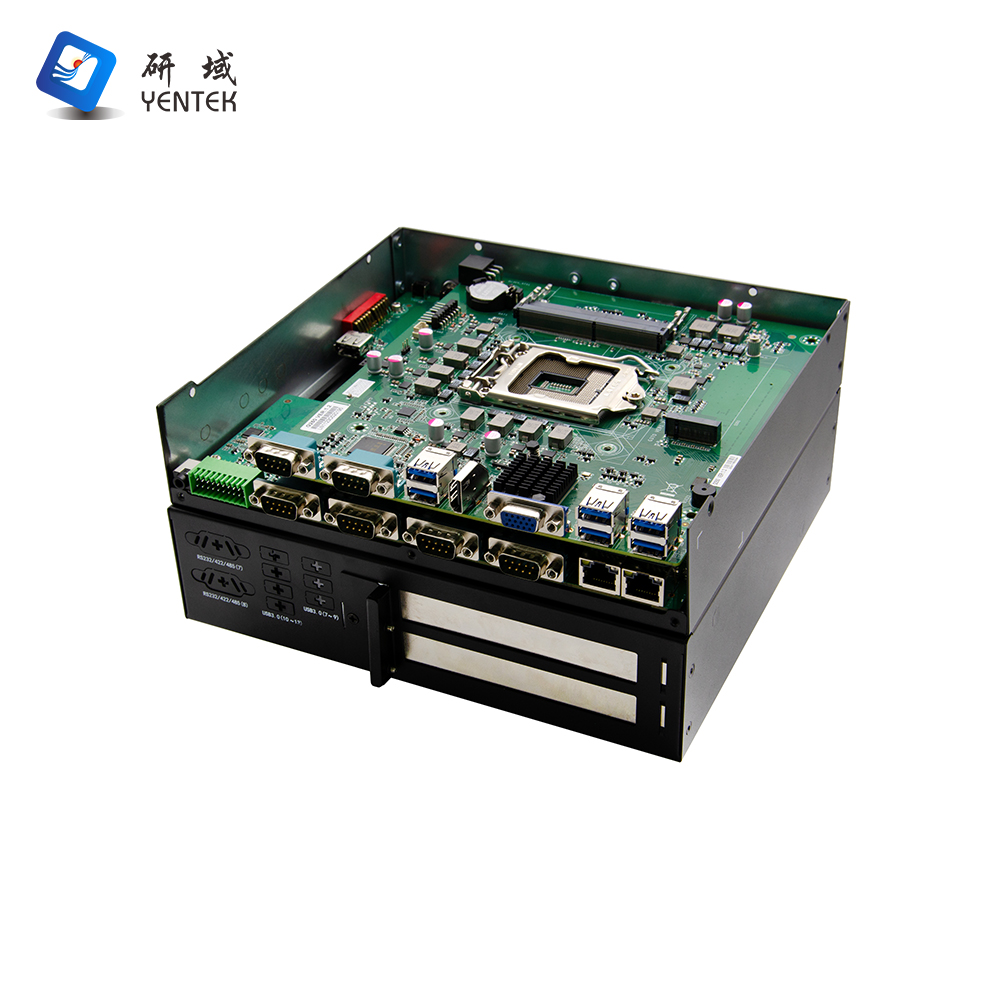

Motherboard

CPU

Intel®   LGA1151 / 8th–9th generation processors (supports only 6-core CPUs with a TDP   of 65W or less)

System-on-Chip

Intel®   Z390

Memory

2 x   SODDR4, supports up to 64GB

Front   panel ports

Power   Switch

1 x Power   button with indicator light, 1 x One-touch reset, 1 x ACLOSS (power-on jumper   switch)

LED

1 x Hard   drive indicator light

USB

2 x USB   3.0, 2 x USB 2.0, 1 x internal USB 2.0

Remote   Switch

1 x Power   indicator signal, 1 x Power switch signal (located on 1 x 4-pin Phoenix   connector)

SIM

1 x SIM   card slot (default signal: M.2 5G)

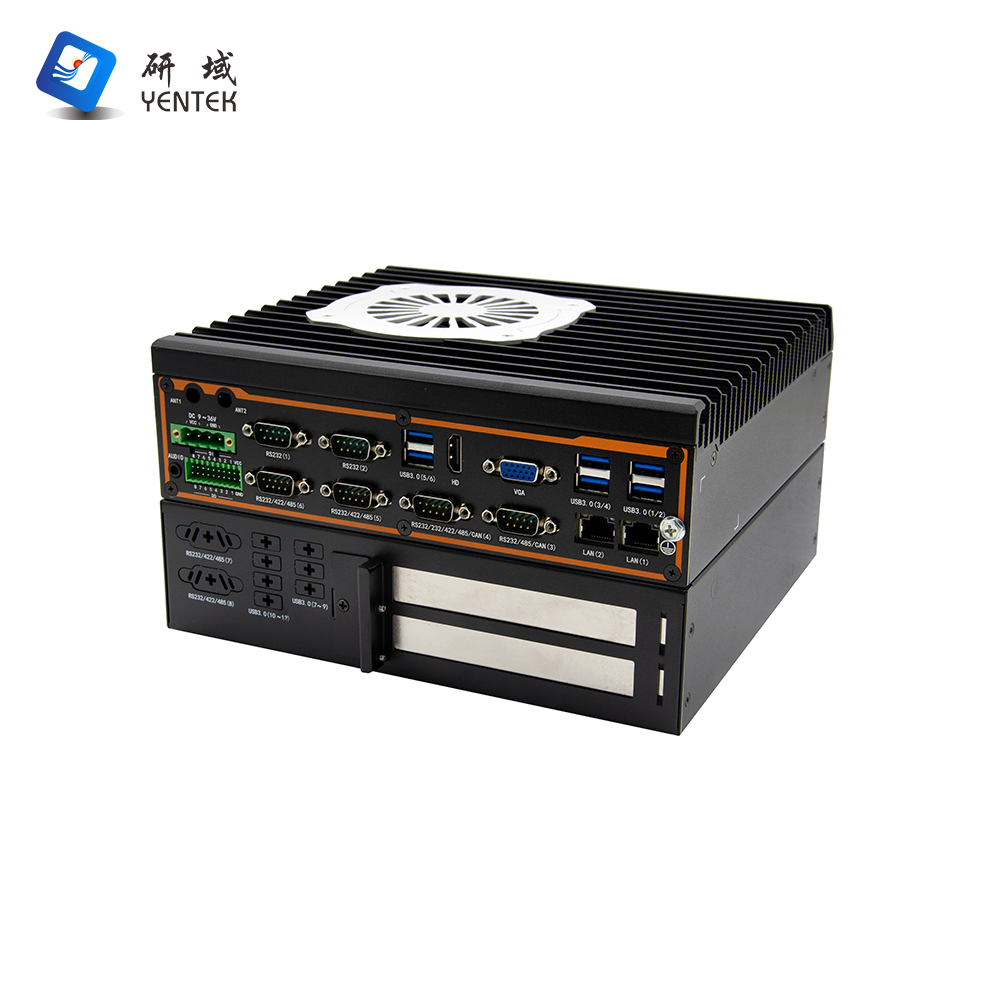

Rear   panel ports

Display   Interface

1 x VGA   (1920×1200@60Hz), 1 x HDMI 1.4

COM

6 x RS232   DB9 serial ports; COM3–6 support RS232/485, COM4–6 support RS232/422/485,   COM3–4 support CAN functionality (Requires CAN module to be installed)

LAN

2 x Intel   I210AT Gigabit Ethernet ports

USB

6 x USB   3.0

DI/DO

8 x DI, 8   x DO (located on 2 x 10-pin Phoenix connectors)

Audio

1 x   Audio, combined Line Out and Mic

DIP   Switch

2 sets of   6-position DIP switches; RS232/485 switching via DIP switches + jumper caps +   BIOS settings

Power   Connector

1 x 4-pin   Phoenix connector (pitch 5.08mm), supports 9–36V DC wide-voltage input

Storage

SATA

1 x   2.5-inch hard drive bay (I/O panel side)

mSATA

1 x mSATA   (I/O panel side)

SSD

1 x M.2,   supports Key-M, 2280, NVMe PCIe x4 SSD (motherboard side)

Expansion

PCI

2 x PCI   (Expansion card length not exceeding 180mm)

WiFi/4G

1 x Mini   PCIe, supports Wi-Fi or 4G (4G shares the same signal as the built-in USB   2.0; 4G is not supported by default)

Wi-Fi

1 x M.2,   supports Key-E, 2230, Wi-Fi module

5G

1 x M.2,   supports Key-B, 3042/3052, 5G module

System   compatibility

Microsoft

Windows   10

Linux

Linux

Power   supply type

Input   Voltage

DC 9V–36V   wide voltage range

Power   Output

AC to DC   120W or above (depending on specific device), maximum load 220W

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%–95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random

1

G3780F-C6P2   V2.0(G250)

LGA1151

6~9th

2*SODDR4

G250

Q250

G370-C4/G370-PW/G250-P2

2.5+MSATA+M.2(NVME/SATA)

2

8/8

2*I210

6

8

3

9-36V

2

G3780F-C6P2   V2.0(G390)

LGA1151

8~9th

2*SODDR4

G390

Z390

G370-C4/G370-PW/G250-P2

2.5+MSATA+M.2(NVME/SATA)

2

8/8

2*I210

6

8

3

9-36V

3

G3780F-C6P2   V2.0(G670)

LGA1700

12~14th

2*SODDR4

G670

H770

G370-C4/G370-PW/G250-P2

2.5+MSATA+M.2(NVME/SATA)

2

8/8

2*I210

6

8

3

9-36V
