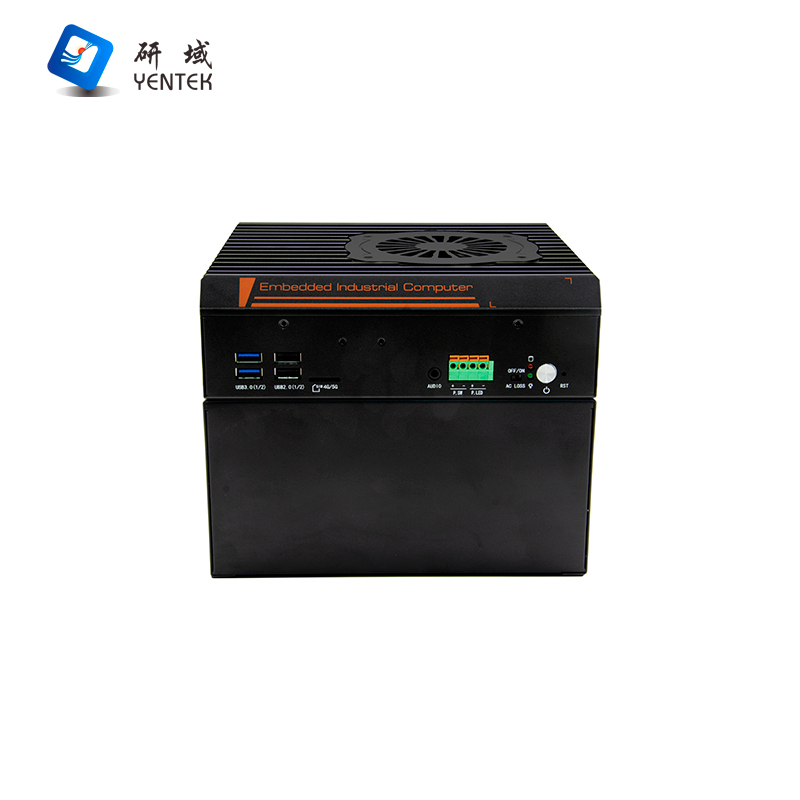

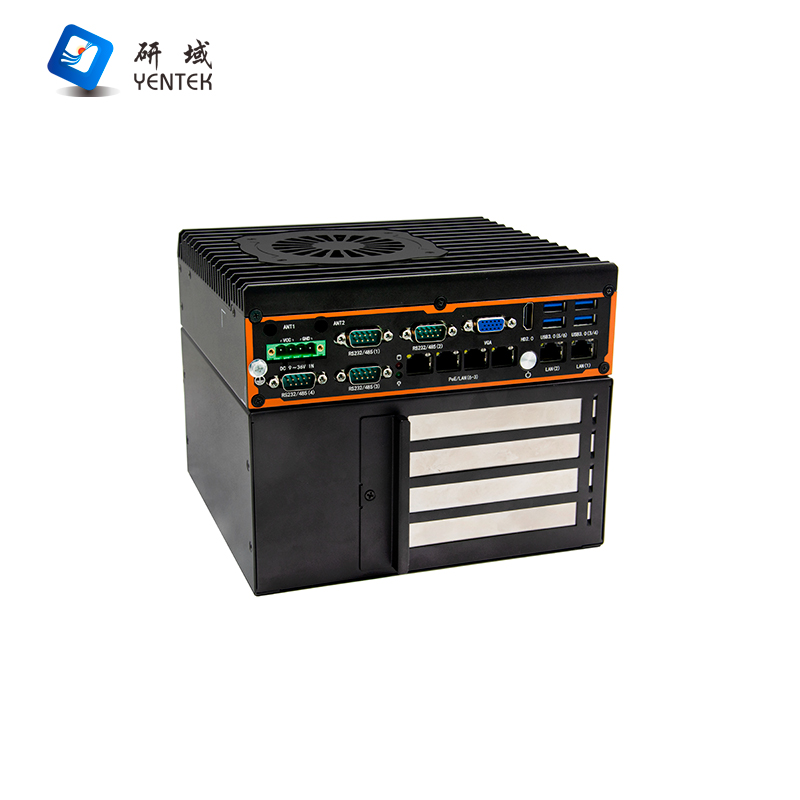

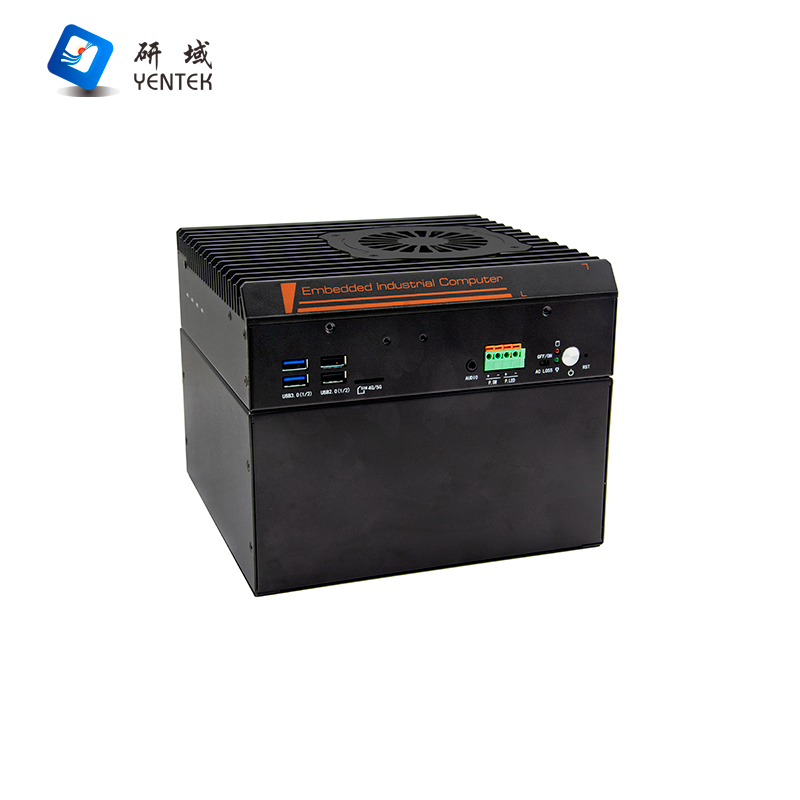

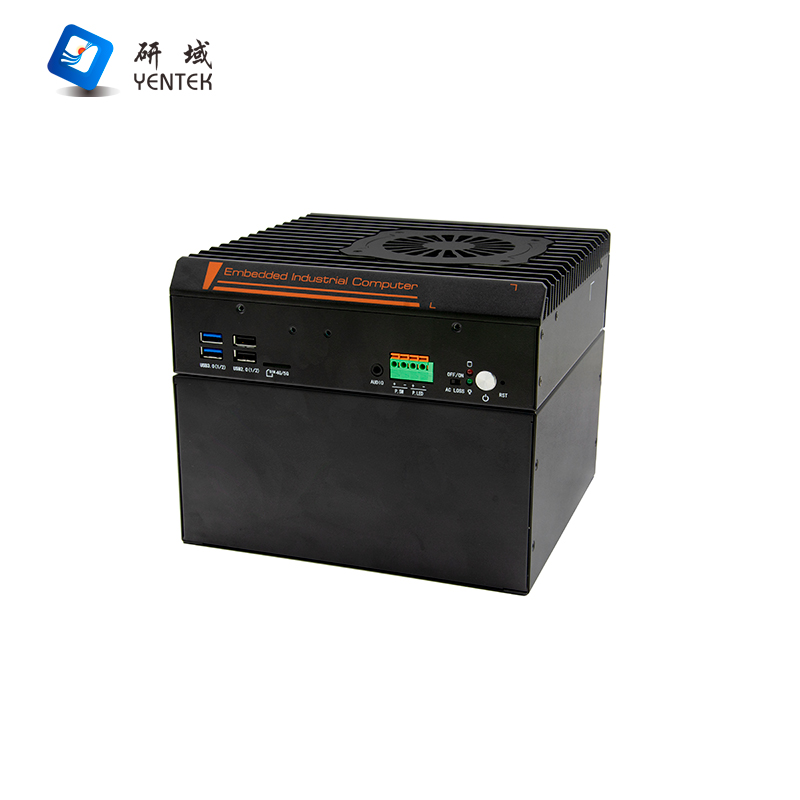

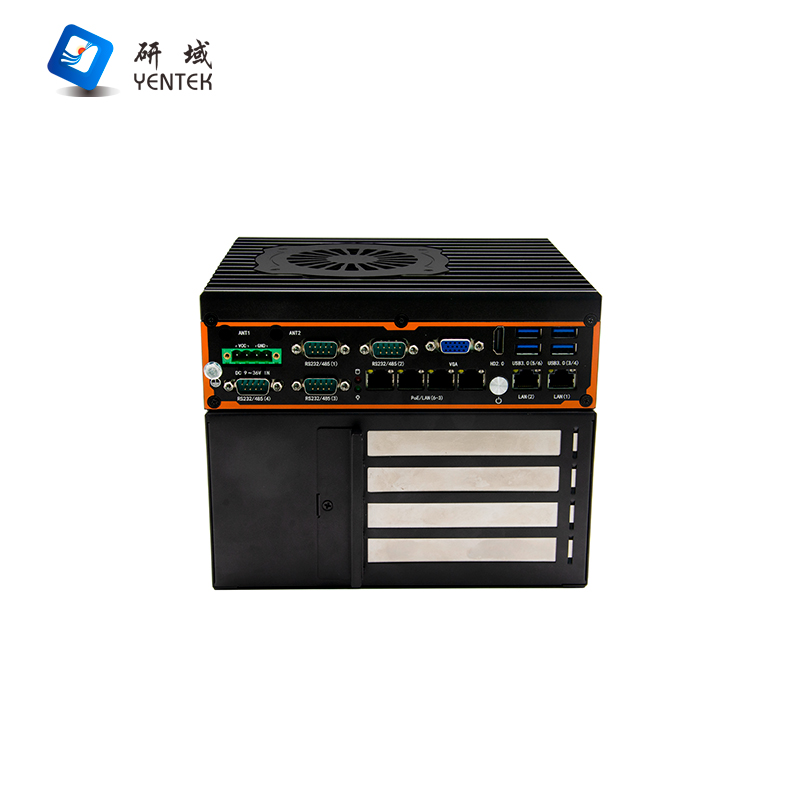

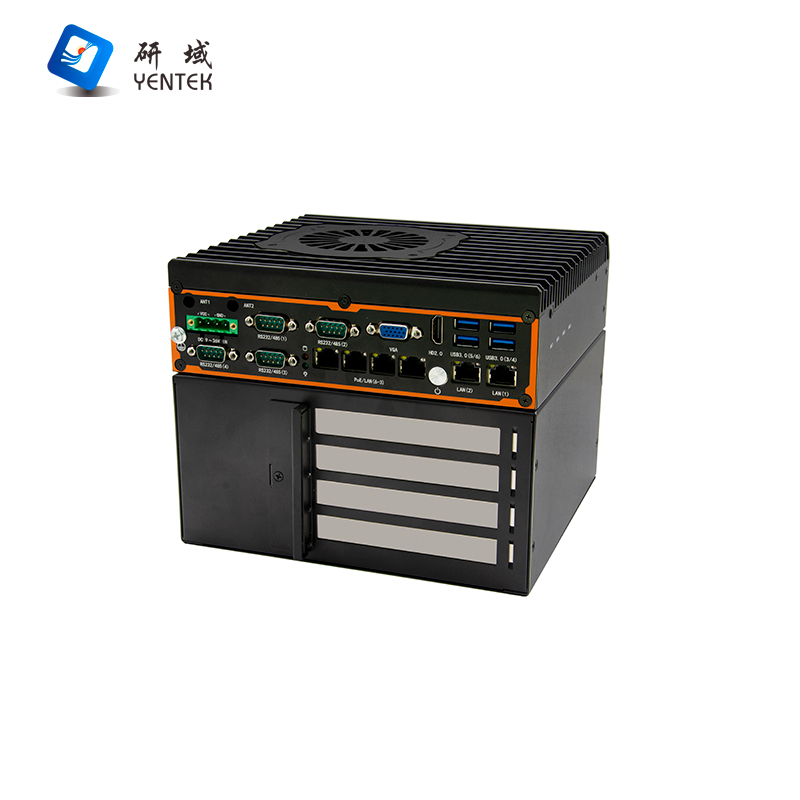

G3290F-L6P3

Chassis

Material/Construction

Aluminium   alloy + sheet metal construction

Colour

Black +   silver

Dimensions   (L x W x H)

205 ×   192.5 × 164.1 mm

Weight

4.2 kg

Mounting

Desktop/built-in

Motherboard

CPU

Integrated   Intel® Core™ i5-8300H processor (2.30GHz quad-core, 8 threads), TDP 45W

System-on-Chip

Intel   Z390

Memory

2x DDR4   2666MHz, supports up to 64GB

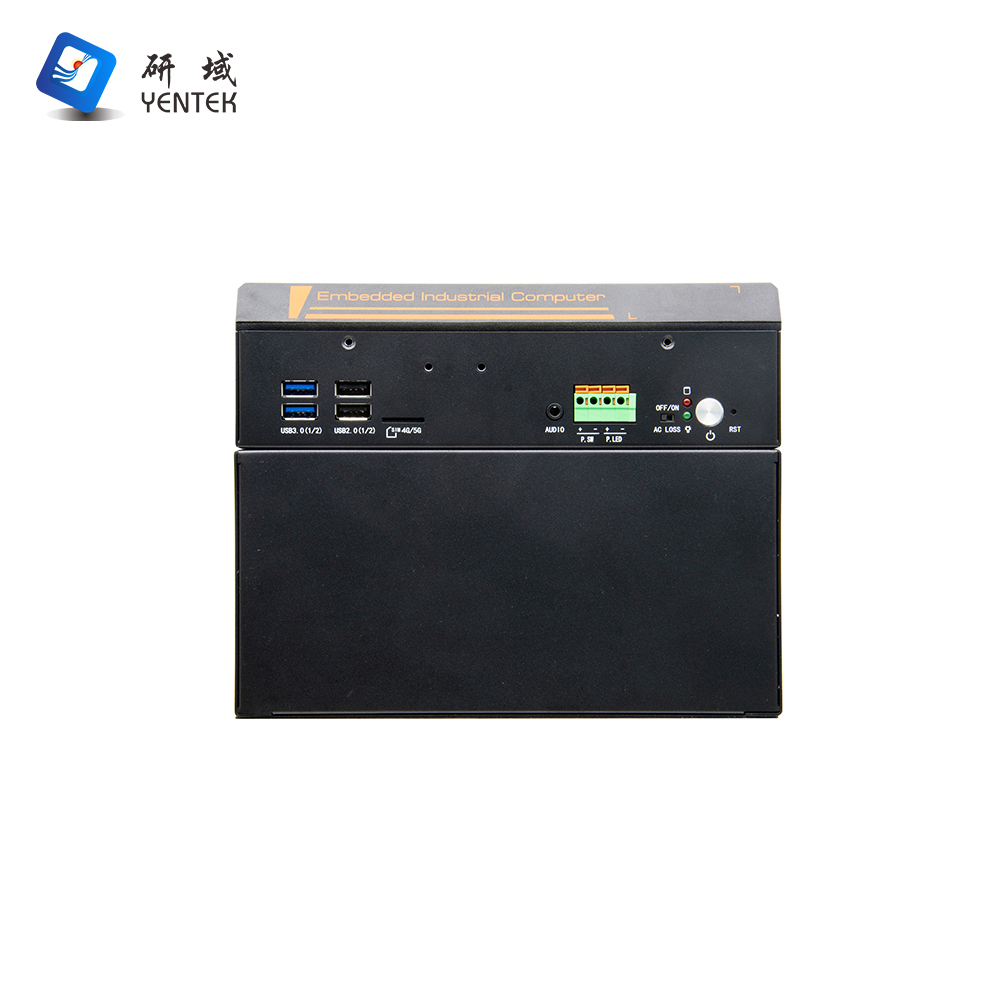

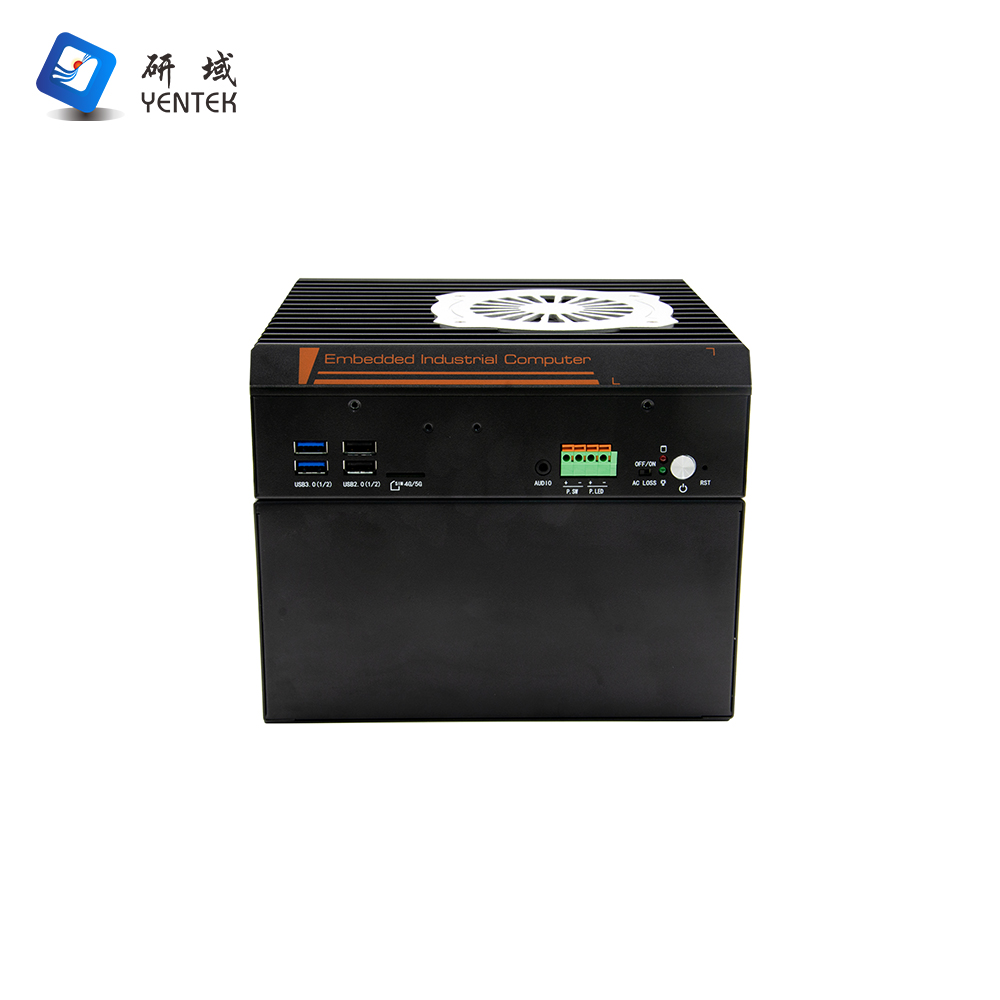

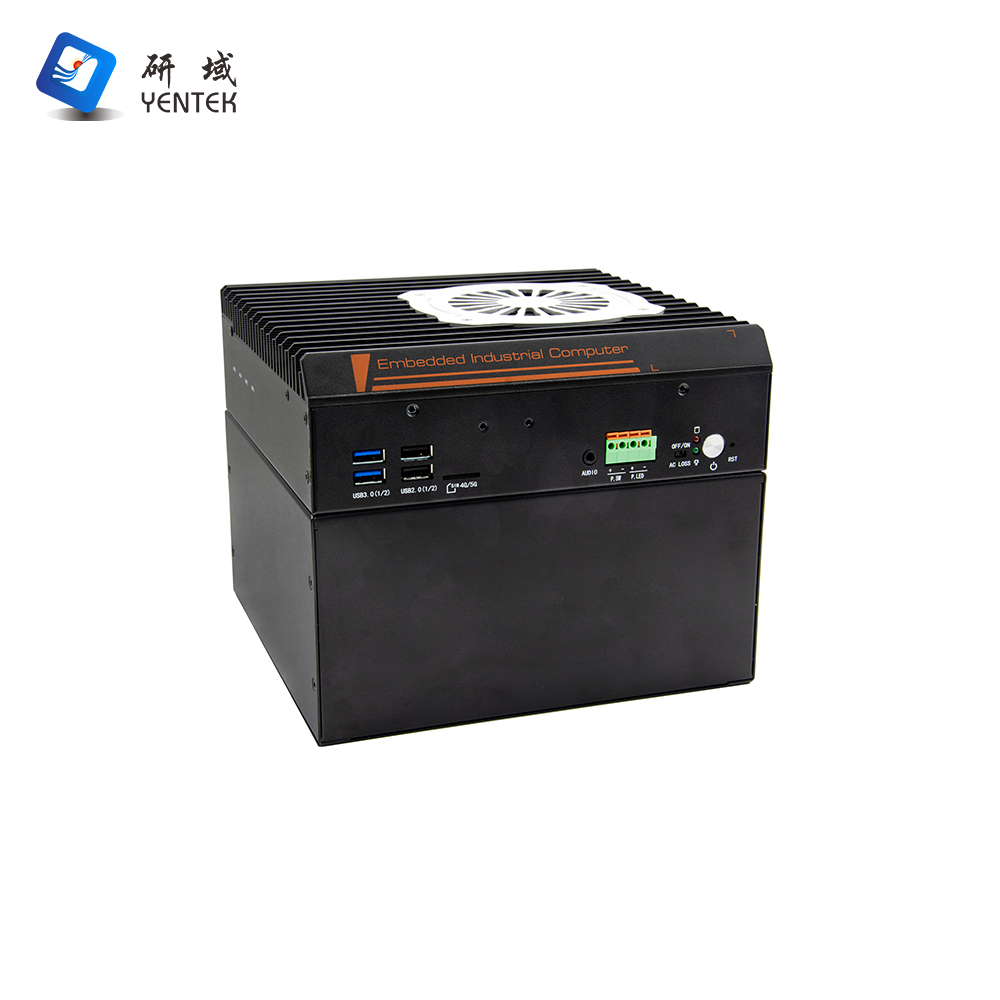

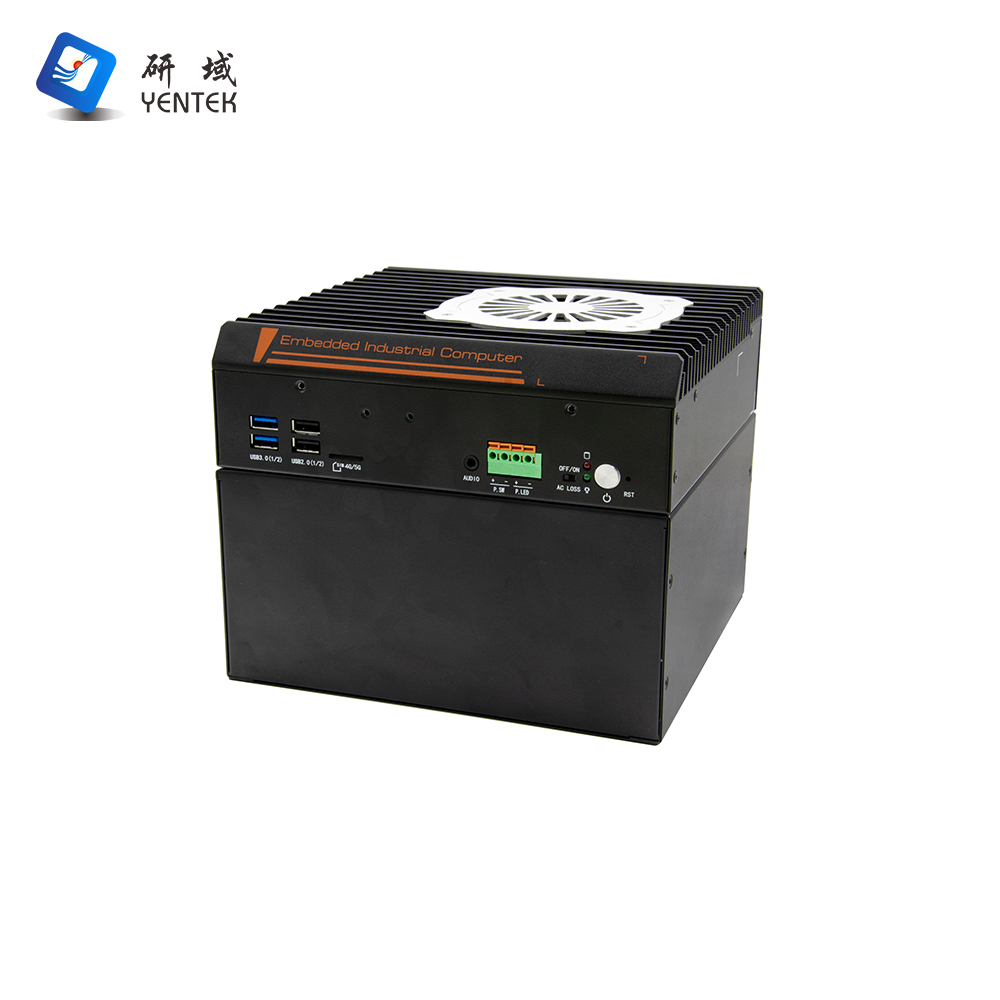

Front Panel   Connectors

Power   Switch

1x Power   button, 1x One-touch reset, 1x ACLOSS (power-on DIP switch)

LED

1x Power   indicator, 1x HDD activity light

USB

2x USB   3.0, 2x USB 2.0, 1x internal USB 2.0

Remote   Switch

1x Power   switch, 1x Power indicator (on 1x 4P Phoenix connector)

Audio

1x Audio,   Line out and MIC combo

SIM

1x SIM   card slot

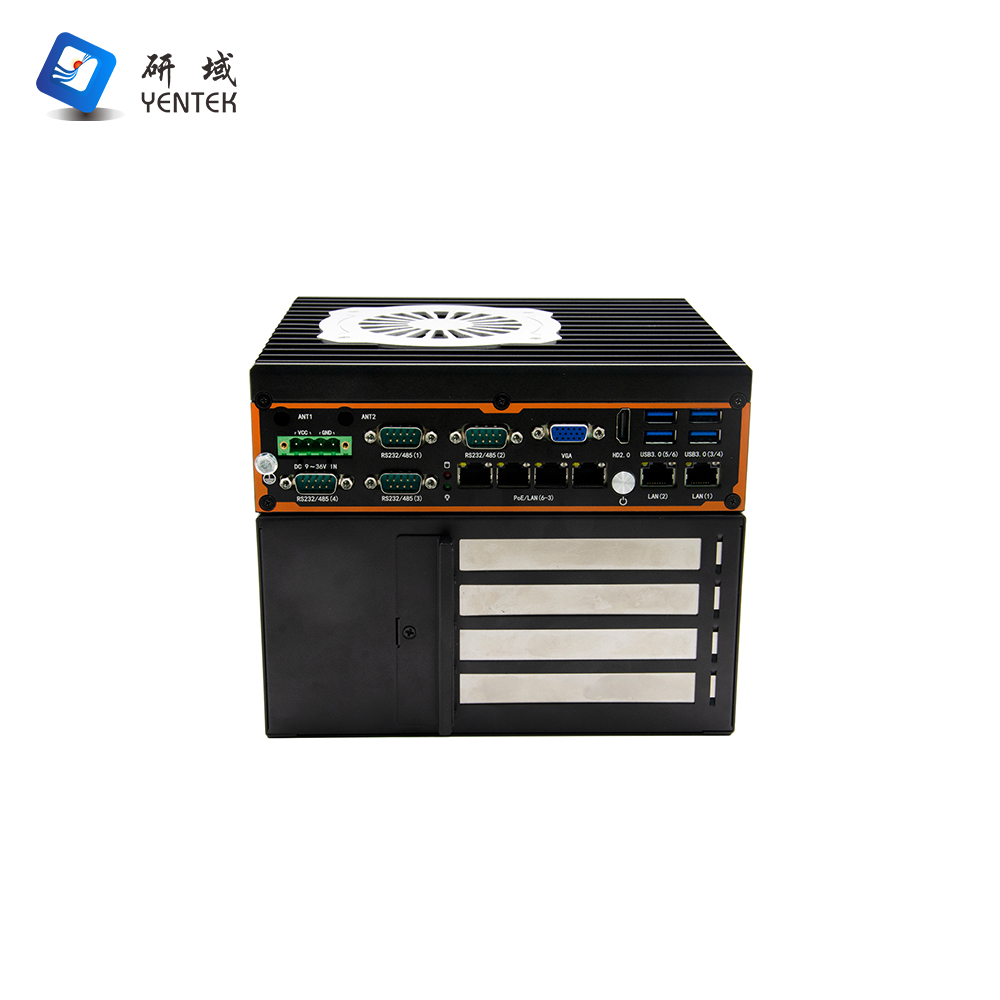

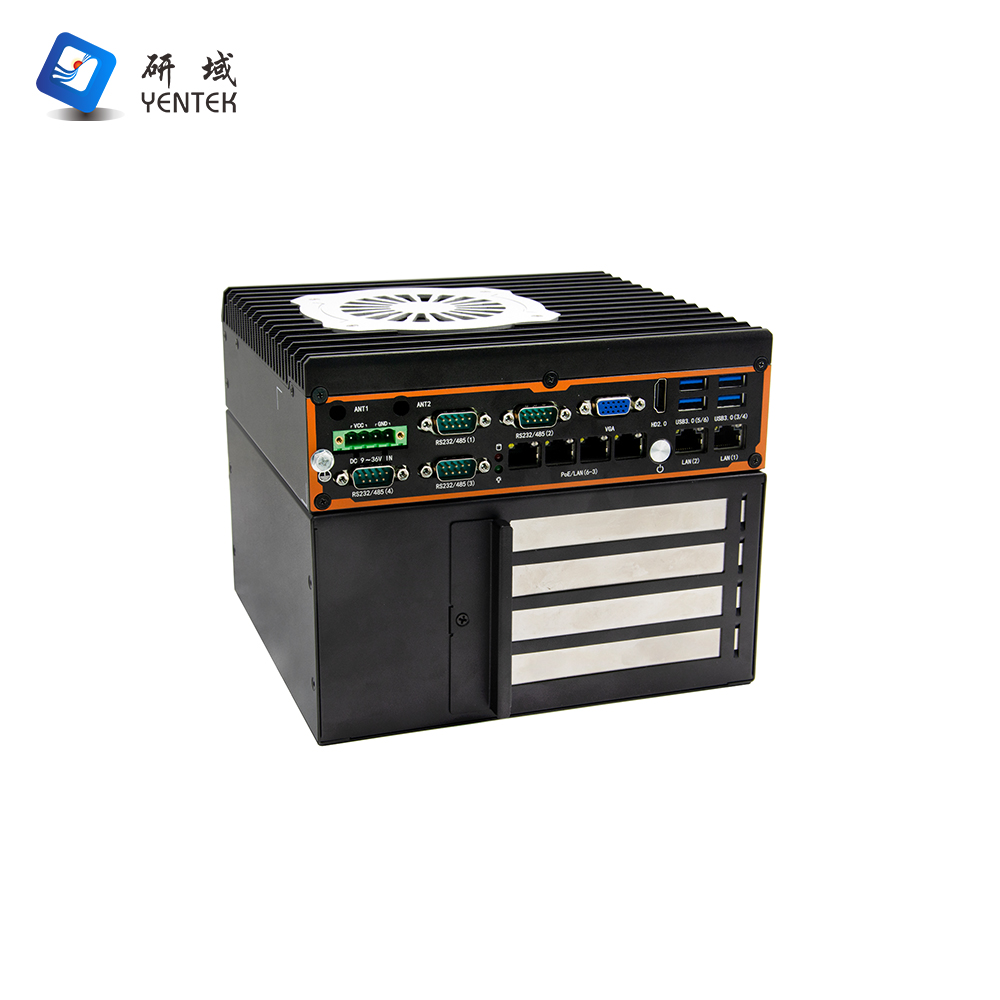

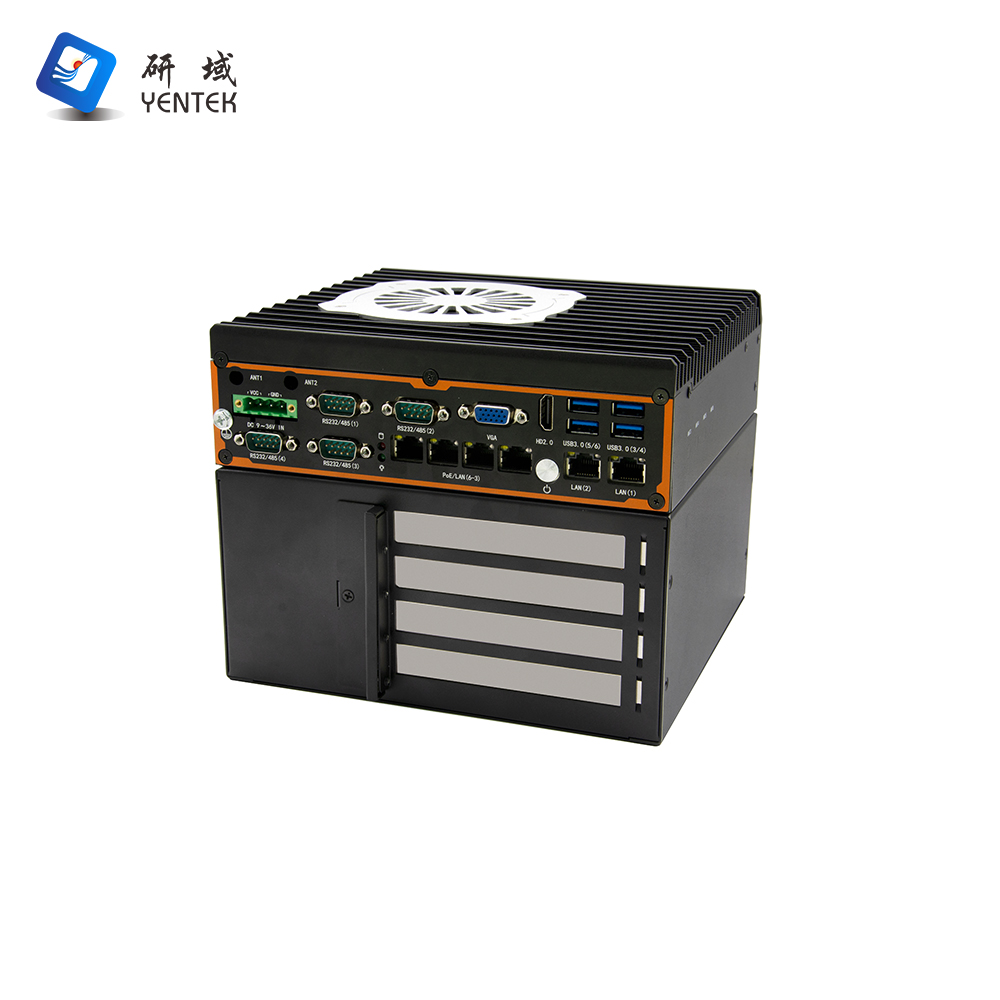

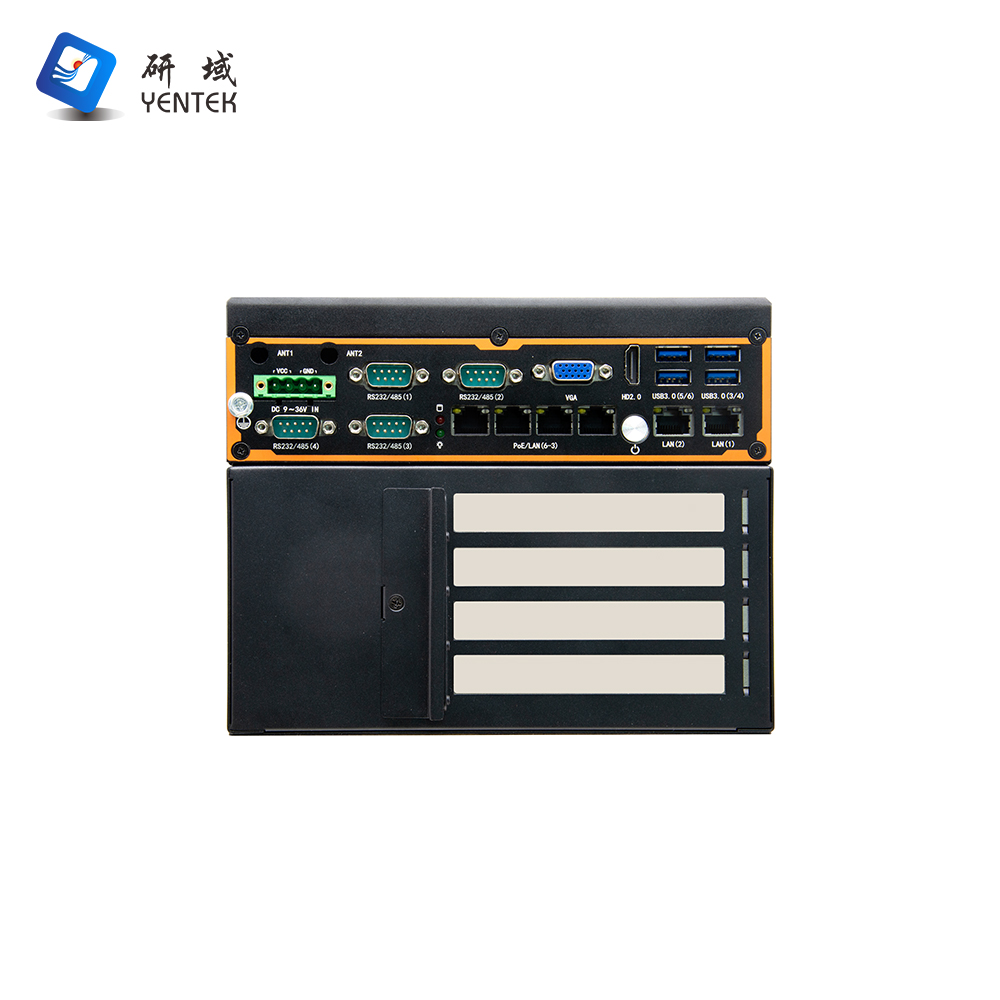

Rear   Panel Connectors

Display   Interface

1x VGA   (1920*1200@60Hz), 1x HDMI 1.4, dual display support

USB

4x USB   3.0

COM

4x   RS232/485 DB9 serial ports

LAN

6x Intel   I210AT Gigabit Ethernet ports, 4 of which support POE (15W per port)

Power   Interface

1x 4P   (P=5.08mm) Phoenix connector, supporting 9~36V wide voltage input

Storage

SATA

1x   2.5-inch hard drive bay

MSATA/SSD

1x M.2   slot, supporting Key-M, 2280 form factor, NVMe PCIe SSD (except 3210M; other   CPUs support M.2 SSD only)

1x mSATA   (3210M only)

Expansion

PCIE/PCI

1x PCIe   x16 (x8 signal)

3x PCI   slots

WiFi

1x mPCIe,   supporting WiFi

WiFi

1x M.2   slot, supporting Key-E, 2230 form factor, WiFi module

5G

1x M.2   slot, supporting Key-B, 3042/3052 form factor, 5G module

Power   Supply Type

Input   Voltage

DC 9V–36V   wide voltage input

Power   Output

AC to DC   60W (depending on specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%–95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random
