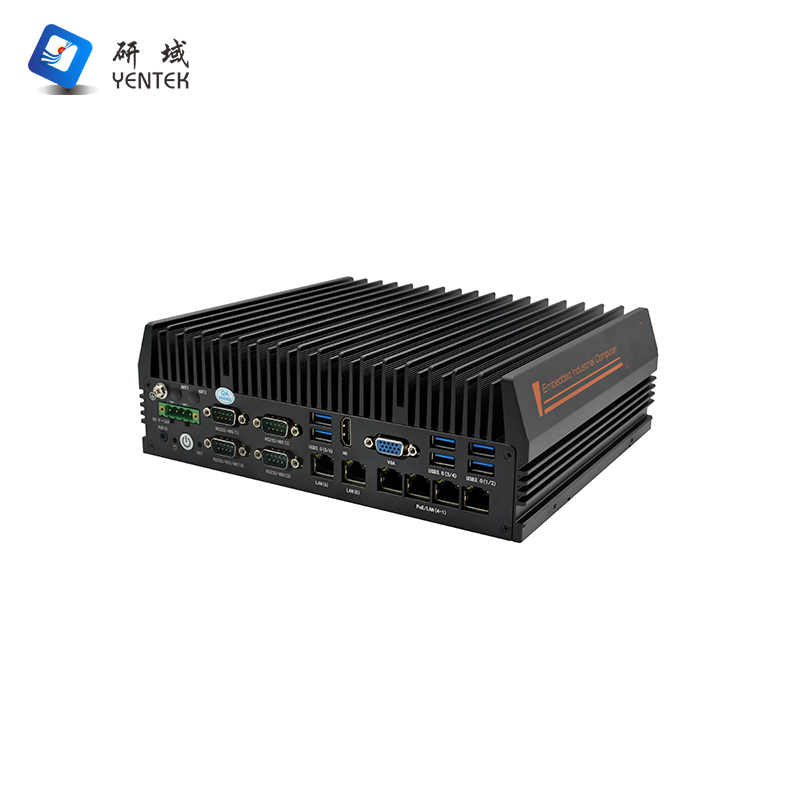

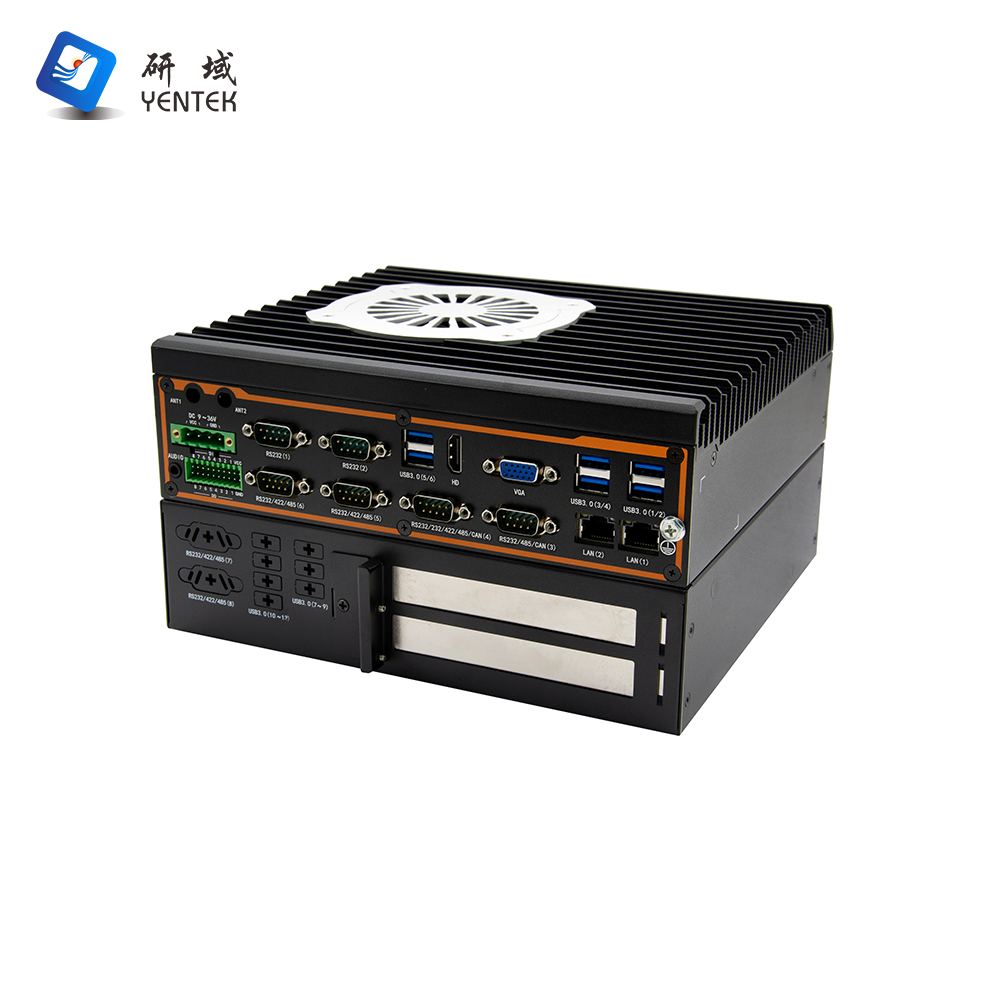

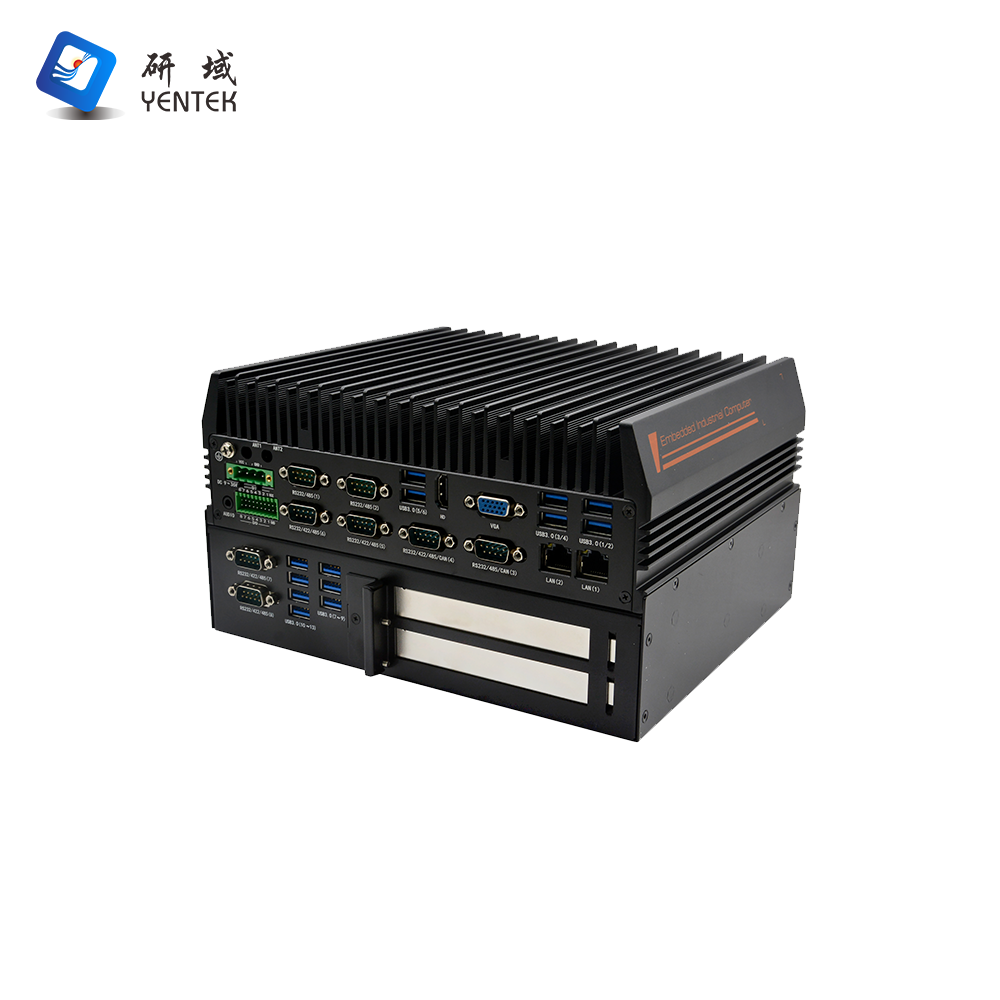

G3280F-C6P2 V2.0

Case

Material/Construction

Aluminium   alloy + sheet metal + fan cooling

Colour

Black +   silver

Dimensions

205 ×   192.5 × 121.6 mm

Weight

3.45 kg

Installation

Desktop/Embedded/DIN   rail (35mm)

Motherboard

CPU

Integrated   Intel i5-7300HQ/2.50GHz quad-core, quad-thread processor, TDP 45W

System-on-Chip

Intel   H270

Memory

2x SODDR4   2400MHz, supports up to 64GB

Front   panel ports

Power   Switch

1x power   button, 1x one-touch restore, 1x ACLOSS (Power-on DIP switch)

LED

1 x Power   indicator, 1 x Hard drive indicator

USB

2 x USB   3.0, 2 x USB 2.0, 1 x Internal USB 2.0

Remote   Switch

1 x Power   switch, 1 x Power indicator (located on 1 x 4-pin Phoenix connector)

Audio

1 x Audio   (combined Line Out and MIC)

SIM

1 x   Standard SIM card slot

Rear   panel ports

Display   Interface

1 x VGA,   1 x HDMI 1.4 (4096×2304@30Hz), supports dual display

USB

4 x USB   3.0

COM

6 x   RS232/485 DB9 serial ports; COM5–6 support RS422; COM3–4 support CAN   functionality (requires CAN module)

LAN

2 x Intel   I210AT Gigabit Ethernet ports

DIP   Switch

6 sets of   6-position DIP switches; COM1–6 RS232/485 switching is achieved via DIP   switches; COM5–6 RS422 requires a COM-SW2 jumper cap + BIOS configuration

Power   Connector

1 x 4-pin   (P=5.08mm) Phoenix connector, supporting 9–36V wide-voltage input

Storage

SATA

1 x   2.5-inch hard drive bay

mSATA

1 x mSATA   (3210M only)

SSD

1 x M.2,   supports Key-M, 2280, NVMe PCIe SSD (except for 3210M; other CPUs support M.2   SSDs only)

Expansion

PCI

2 x PCI

Wi-Fi

1 x   Mini-PCIe, supports Wi-Fi

Wi-Fi

1 x M.2,   supports Key-E, 2230, Wi-Fi modules

5G

1 x M.2,   supports Key-B, 3042/3052, 5G modules

Power   supply type

Input   Voltage

DC 9V–36V   wide voltage range

Output   Power

AC to DC   60W (depending on specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%–95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random
