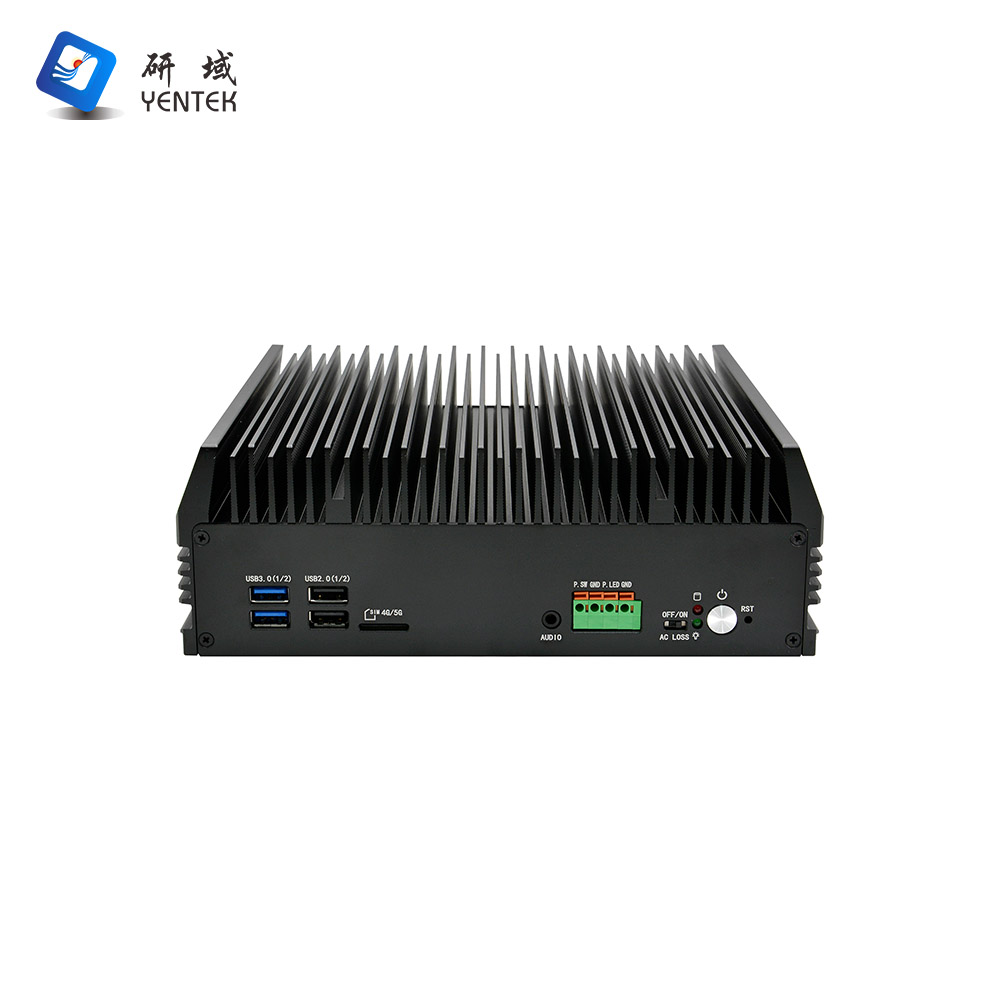

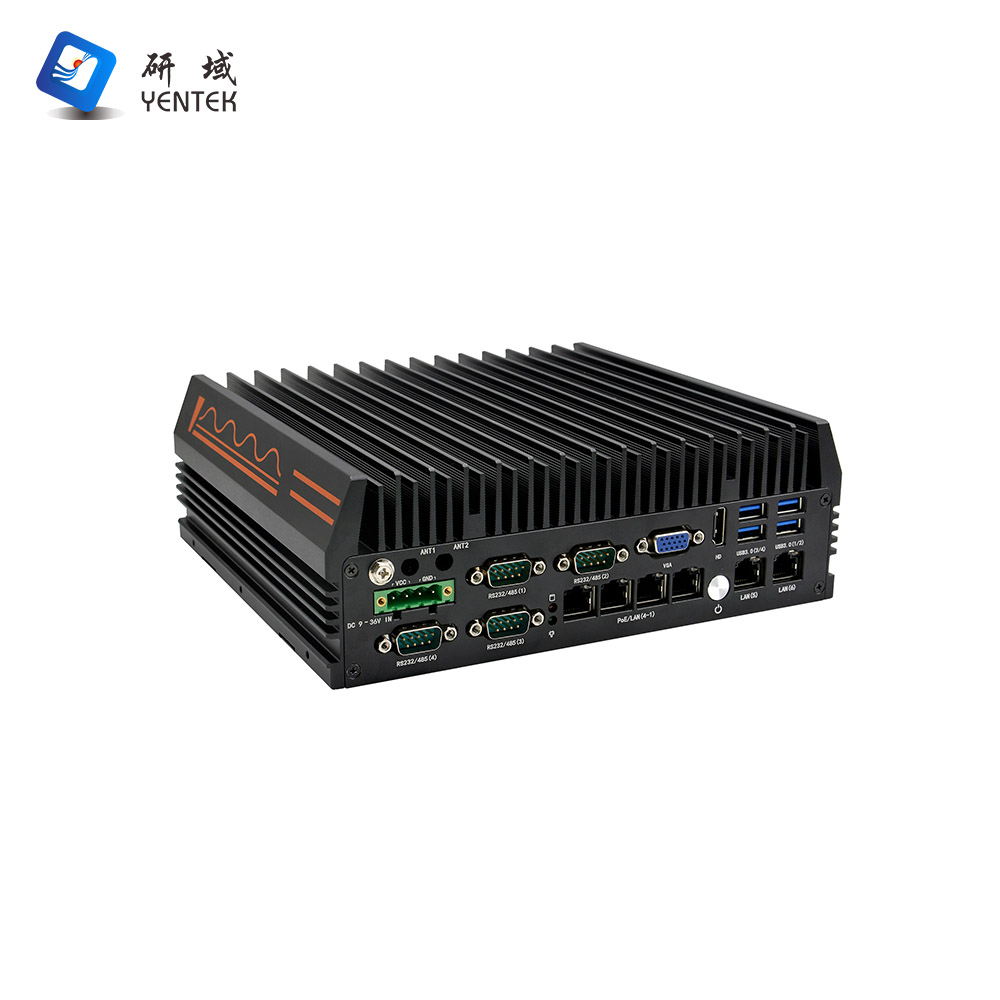

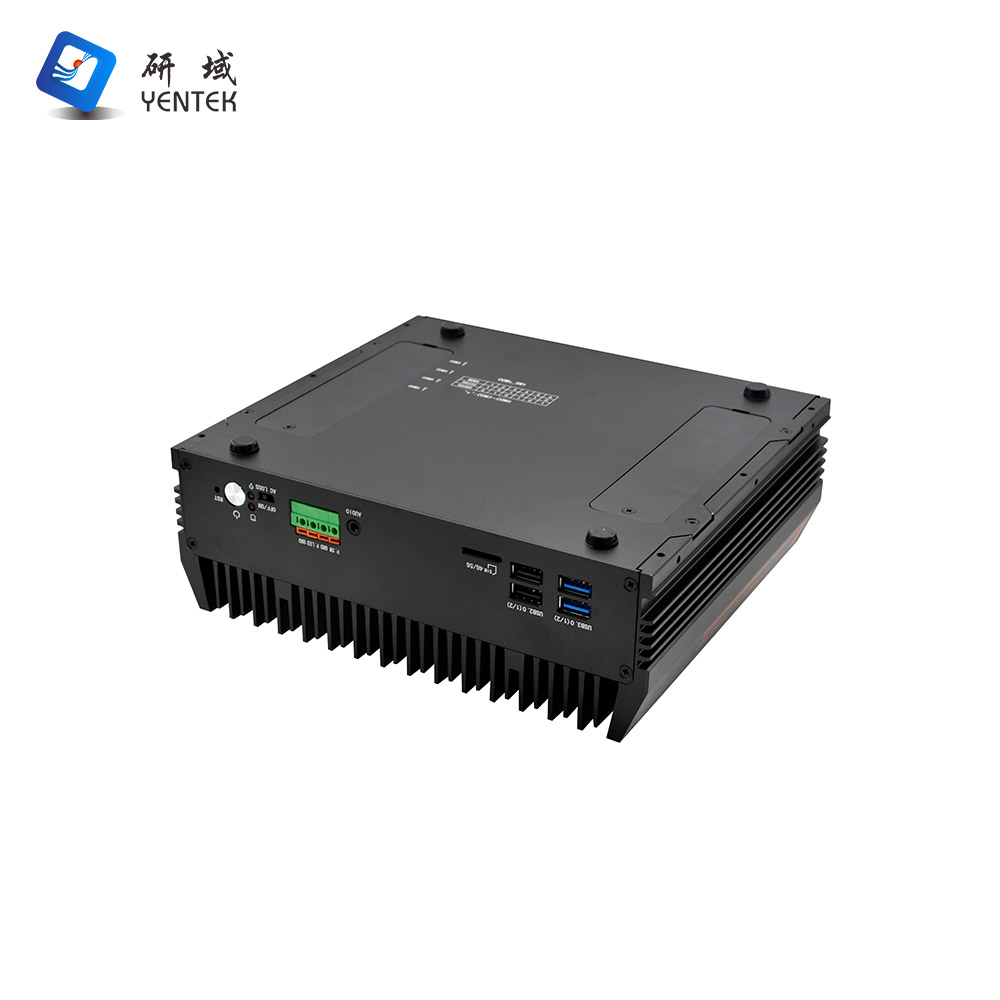

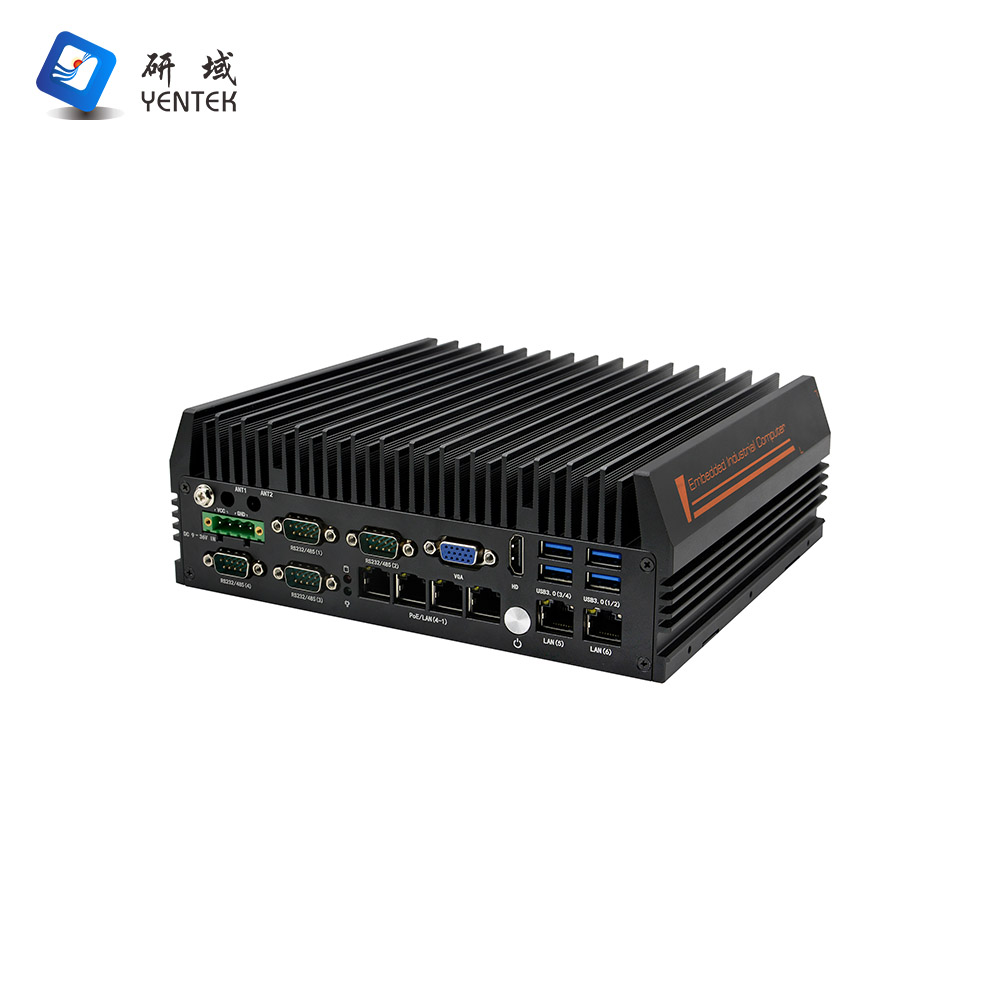

G3250S-L6 V3.0

Case

Material/Construction

Aluminum alloy + sheet metal

Color

Black

Dimensions

219 x 192.6 x 75 mm

Weight

3.2 kg

Installation

Desktop / Built-in

Motherboard

CPU

Integrated Intel i5-8300H/2.30 GHz quad-core, eight-thread processor, TDP 35W

Chipset

Intel HM370

Memory

2 x SODDR4 2666 MHz, supports up to 64 GB

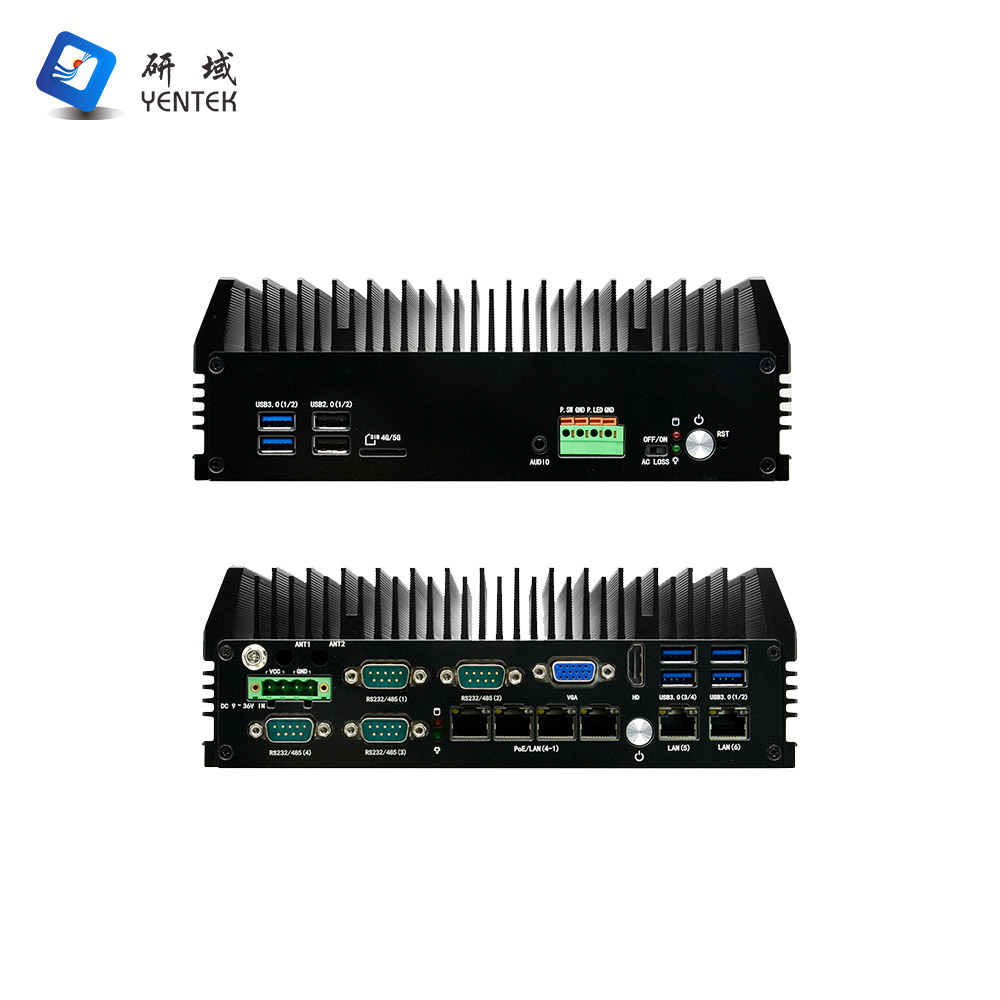

Front Panel Connectors

Power Button

1 x Power button, 1 x One-click restore, 1 x ACLOSS (power-on DIP switch)

LED

1 x Power indicator, 1 x Hard drive indicator

USB

2 x USB 2.0, 2 x USB 3.0, 1 x Internal USB 2.0 (some motherboards may lack USB signal)

Remote Power Switch

1 x Power indicator, 1 x Power switch (located on 1 x 4-pin Phoenix connector)

Audio

1* Audio jack (combined Line Out and Mic)

SIM

1* Standard SIM card slot (default signal: M.2 5G)

Rear Panel Connectors

Display Interface

1* HDMI 1.4, 1* VGA, supports dual displays

USB

4* USB 3.0

COM

4* RS232 DB9 serial ports, of which COM3–4 support RS485/CAN (requires CAN module)

LAN

6x Intel I210AT Gigabit Ethernet ports, 4 of which support POE (15W per port)

DIP Switch

2 sets of 6-position DIP switches; COM3-4 RS232/485 switching via DIP switches

Power Connector

1x 4-pin (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input

Storage

mSATA/SSD

1x mSATA (supported only by 3210M)

1 x M.2, supports Key-M, 2280, NVMe PCIe x4/SATA adaptive SSD (not supported on 3210M)

SSD

1 x M.2, supports Key-M, 2280, SATA SSD

Expansion

Wi-Fi/4G

1 x Mini PCIe, supports WiFi + Bluetooth or 4G (4G or WiFi supported only on 3210M; other CPUs default to WiFi)

5G

1x M.2, supports Key-B, 3042/3052, 5G module (not supported by 3210M)

System

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Power Supply Type

DC 9V–36V wide voltage range

Power Output

AC to DC 90W or higher (depending on specific device)

Environment

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
