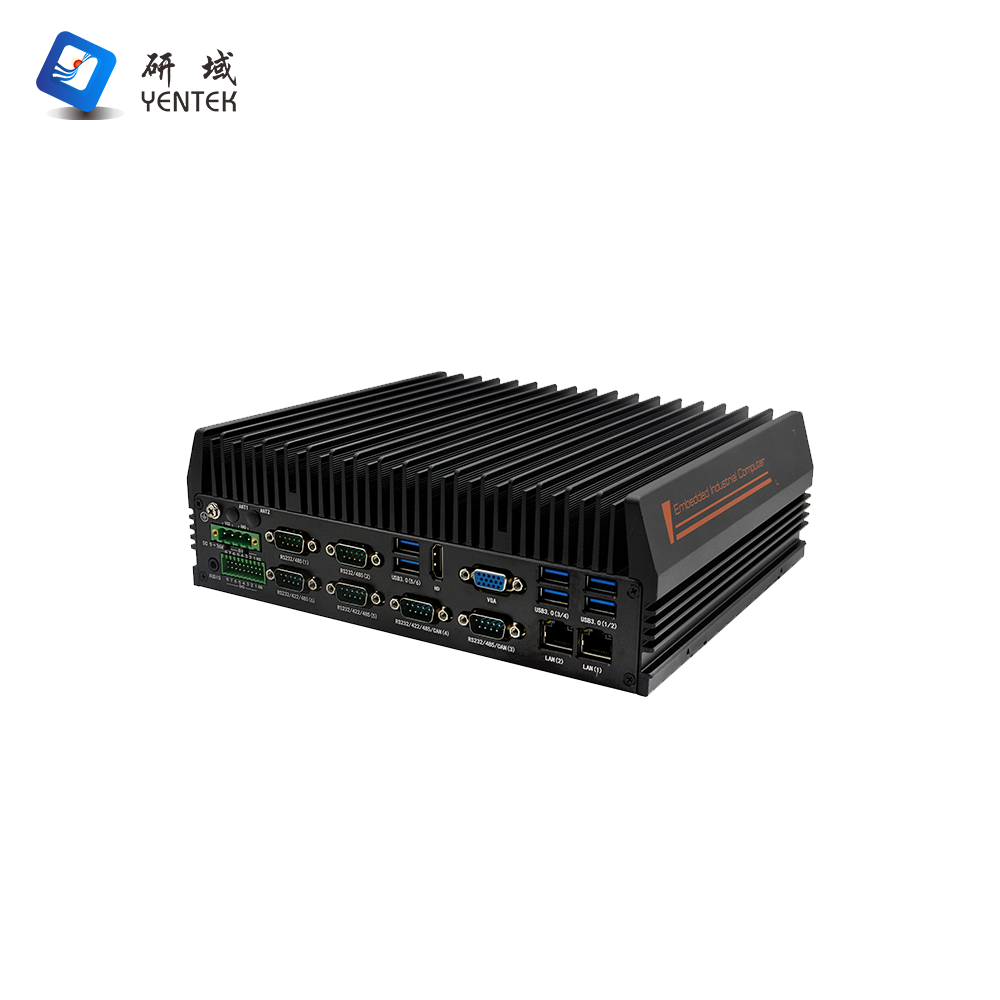

G3750F-C6 V3.0

Chassis

Material/Construction

Aluminum alloy, fan cooling

Color

Black

Dimensions

243 x 208 x 79 mm

Weight

kg

Installation

Desktop/Rackmount

Motherboard

CPU

Intel® LGA1151 / 6th, 8th, and 9th Gen processors

Chipset

Intel® Z390

Memory

2 x SODIMM slots, supports up to 64 GB

Front Panel Connectors

Power Button

1 x Power button with indicator light, 1 x One-Click Restore button, 1 x ACLOSS (Power-on DIP switch)

LED

1 x HDD indicator light

USB

2 x USB 3.0, 2 x USB 2.0, 1 x internal USB 2.0

Remote Power Switch

1 x Power indicator signal, 1 x Power switch signal (located on 1 x 4-pin Phoenix connector)

SIM

1 x Standard SIM card slot (default signal: M.2 5G)

Rear Panel Connectors

Display Interface

1* VGA (1920×1200@60Hz), 1* HDMI 1.4, supports dual display

USB

6* USB 3.0

COM

6* RS232/485 DB9 serial ports; COM4–6 support RS232/422/485; COM3–4 support CAN functionality (requires CAN module)

LAN

2*Intel I210AT Gigabit Ethernet ports

DI/DO

8*Digital Inputs (DI), 8*Digital Outputs (DO) (located on 2*10-pin Phoenix connectors)

Audio

1*Audio, combined Line Out and Mic

Power Connector

1*4-pin (P=5.08mm) Phoenix connector, supports 9–36V wide-voltage input, maximum load 220W

Storage

SATA

1*2.5-inch hard drive bay

mSATA

1 x mSATA

SSD

1 x M.2, supports Key-M, 2280, NVMe PCIe x4 SSD

Expansion

WiFi/4G

1 x Mini-PCIe, supports Wi-Fi or 4G modules (4G and Bluetooth share the same signal as the built-in USB 2.0; 4G is not supported by default)

WiFi

1 x M.2, supports Key-E, 2230, Wi-Fi module

5G

1 x M.2, supports Key-B, 3042/3052, 5G modules

System

Microsoft

Windows 10

Linux

Linux

Power Supply Type

Power Supply Type

DC 9–36V wide voltage range

Power Output

AC to DC 120W or higher (depending on specific device), maximum load 220W

Environmental

Operating Temperature

-10°C to 50°C

Storage Temperature

-20°C to 70°C

Relative Humidity

5%–95% relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random
