N5450Z-HD2

Chassis

Material/Construction

All Aluminium Alloy,Fan Cooling

Colour

Silver

Dimensions (LWH)

155.1*155.1*54MM

Weight (bare net weight)

0.9KG

Installation

Desktop/Wall-mount

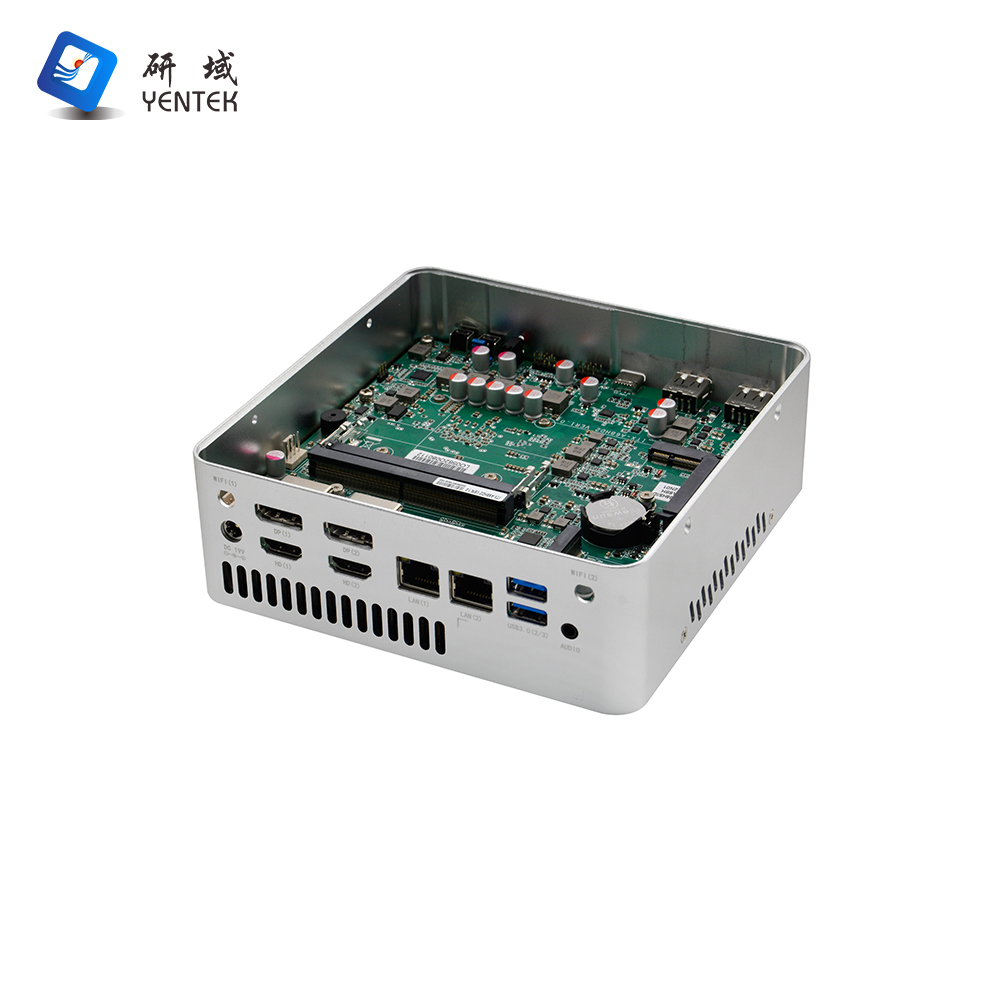

Motherboard

CPU

Integrated AMD ZEN3+   R5-7535HS/3.30GHz 6-core, 12-thread processor, TDP 35W

Display

Integrated AMD Radeon 660M

Memory

2*SODDR5 4800MHz, max. 64GB

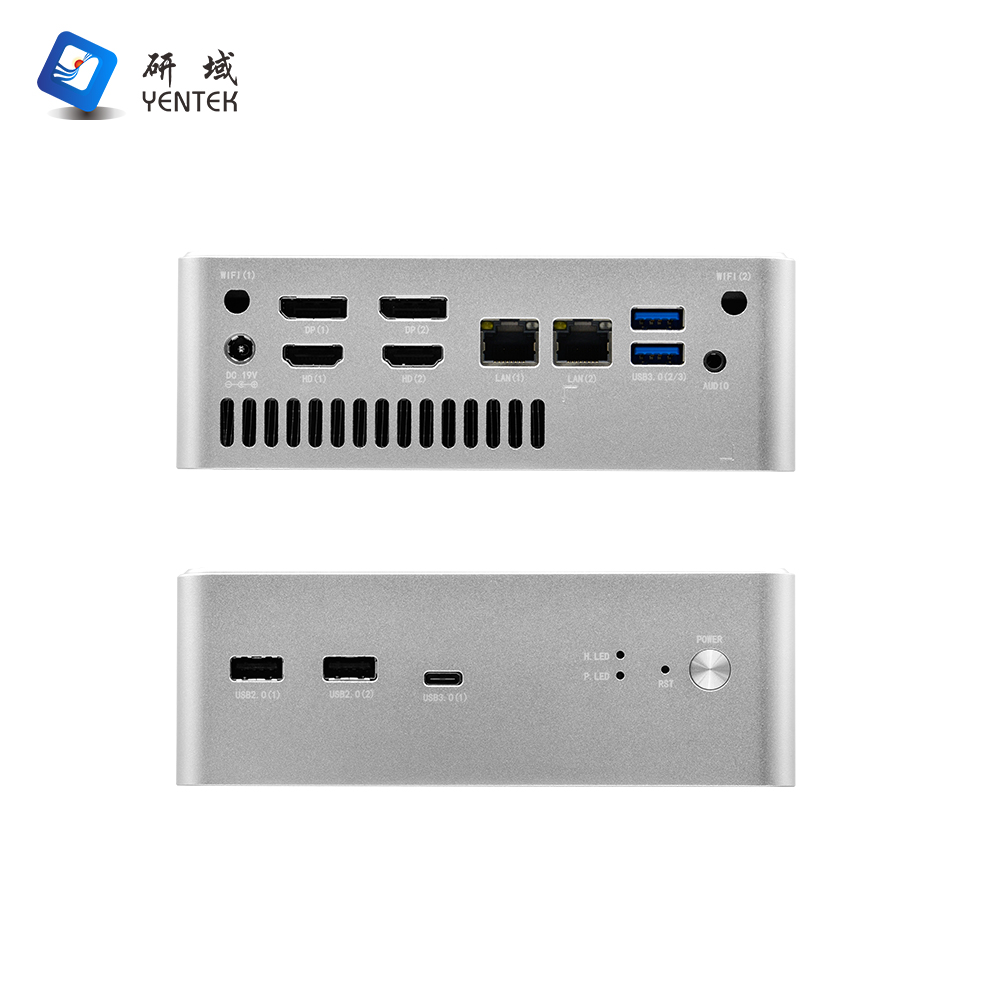

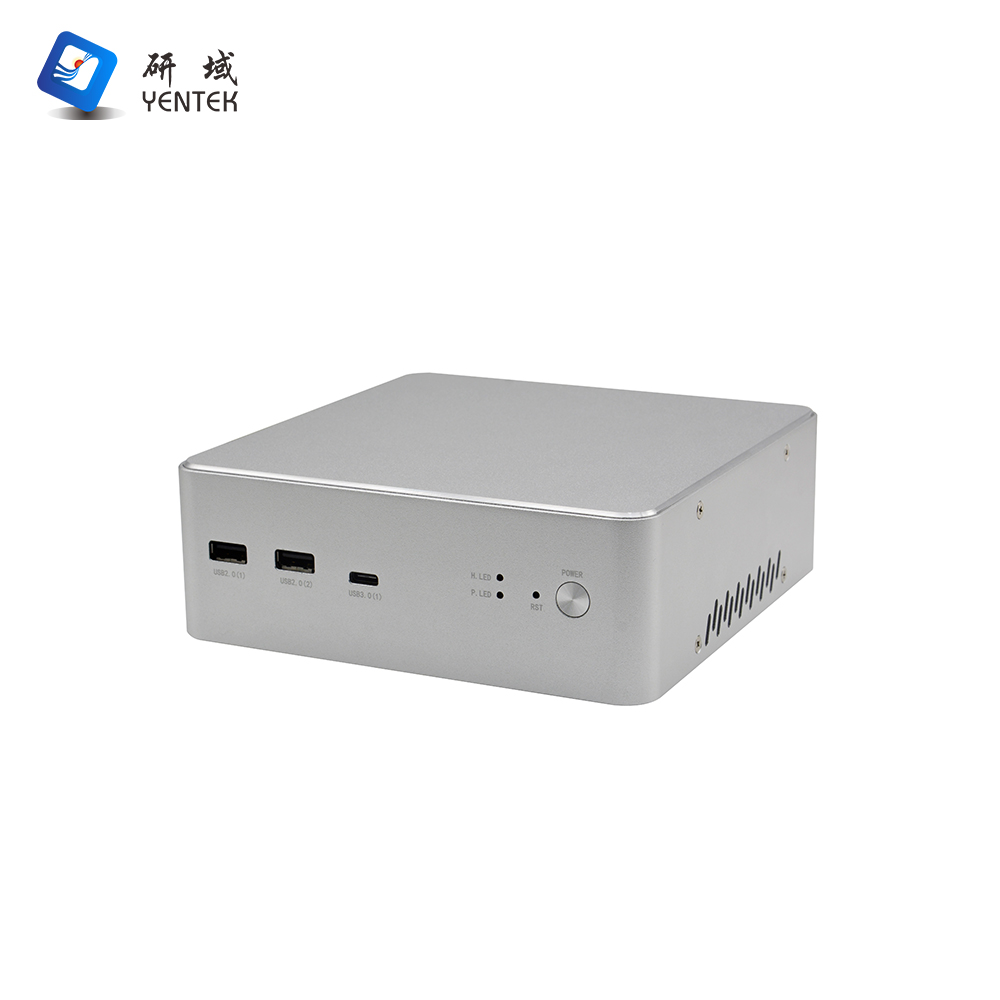

Front Panel Interface

POWER

1*Power switch, 1*Reset switch

LED

1*Power indicator,1* HDD   indicator

USB

2*USB2.0

TYPE-C

1*Type-C (10Gbps)

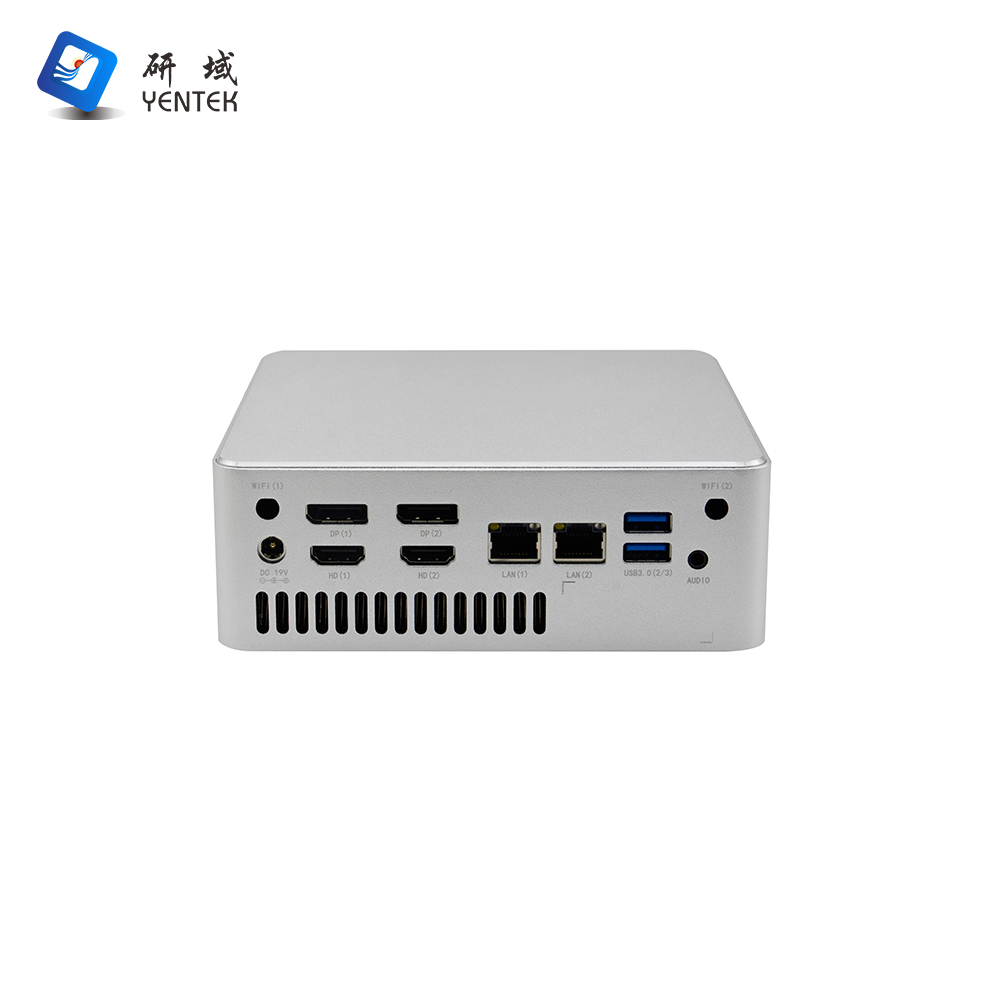

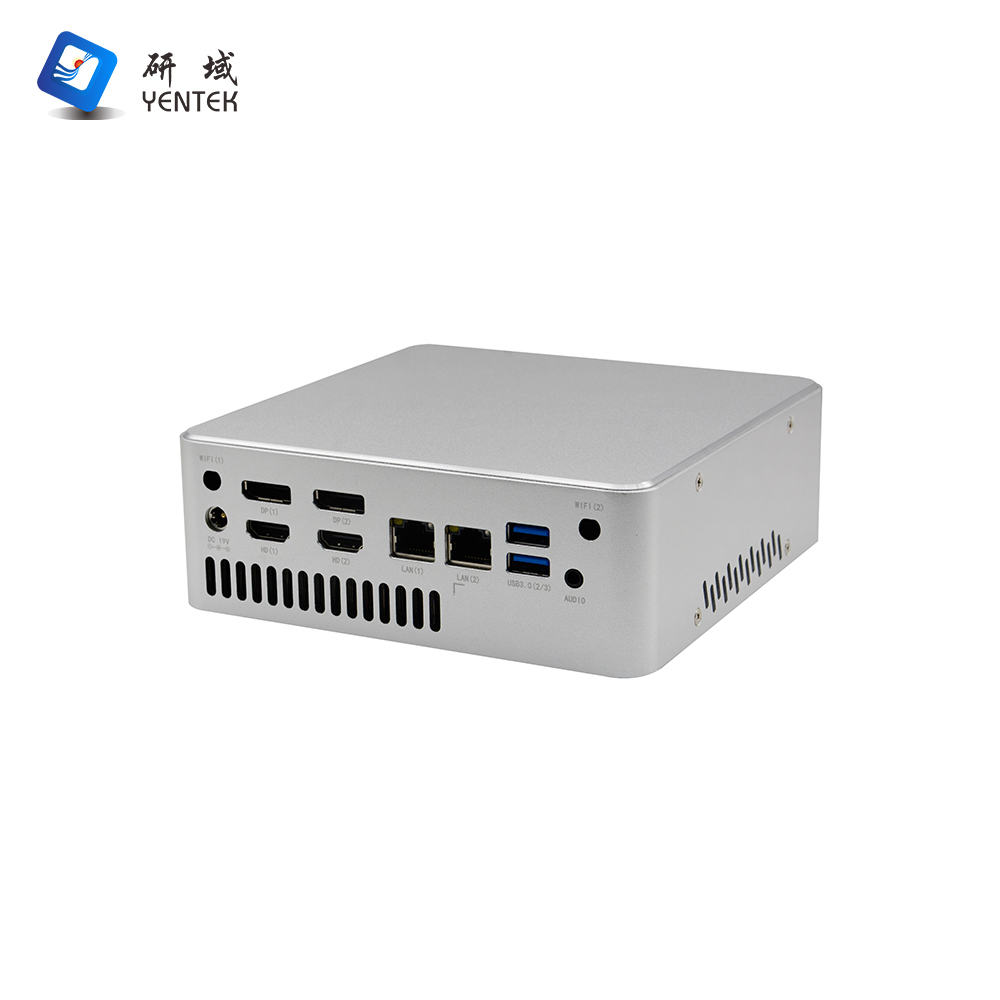

Rear Panel   Interface

Display Interface

2*HDMI2.0, 2*DP++

LAN

2*RTL8125G 2.5G Gigabit NIC,   support Wake-on-Network, PXE function

USB

2*USB3.0

Audio

1*Audio, Line out and MIC 2-in-1

Power Supply

1*DC 19V(5.5*2.5) power   connector

Storage

SSD

1*M.2, support Key-M. 2280, NVME   PCIE x4/SATA Adaptive SSD

Expansion

WiFi/BT

1*M.2, support Key-E, 2230,   WiFi6+BT Module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support Hardware Reset Function   (256 Levels, 0~255 sec)

Power Requirements

Type of Power Supply

DC 19V

Power Output

AC TO DC 90W

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Vibration

0.5g rms/5-500HZ/random
