N8150E-HD

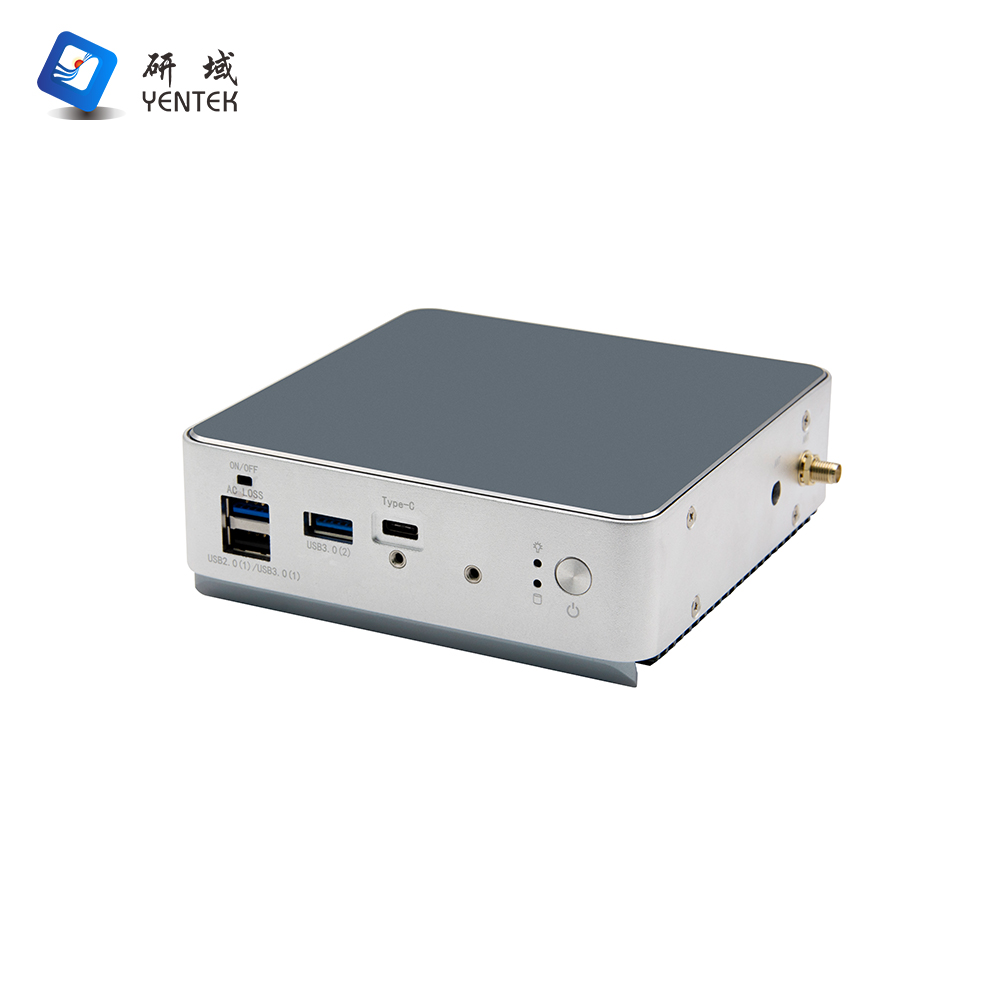

Chassis

Material/structure

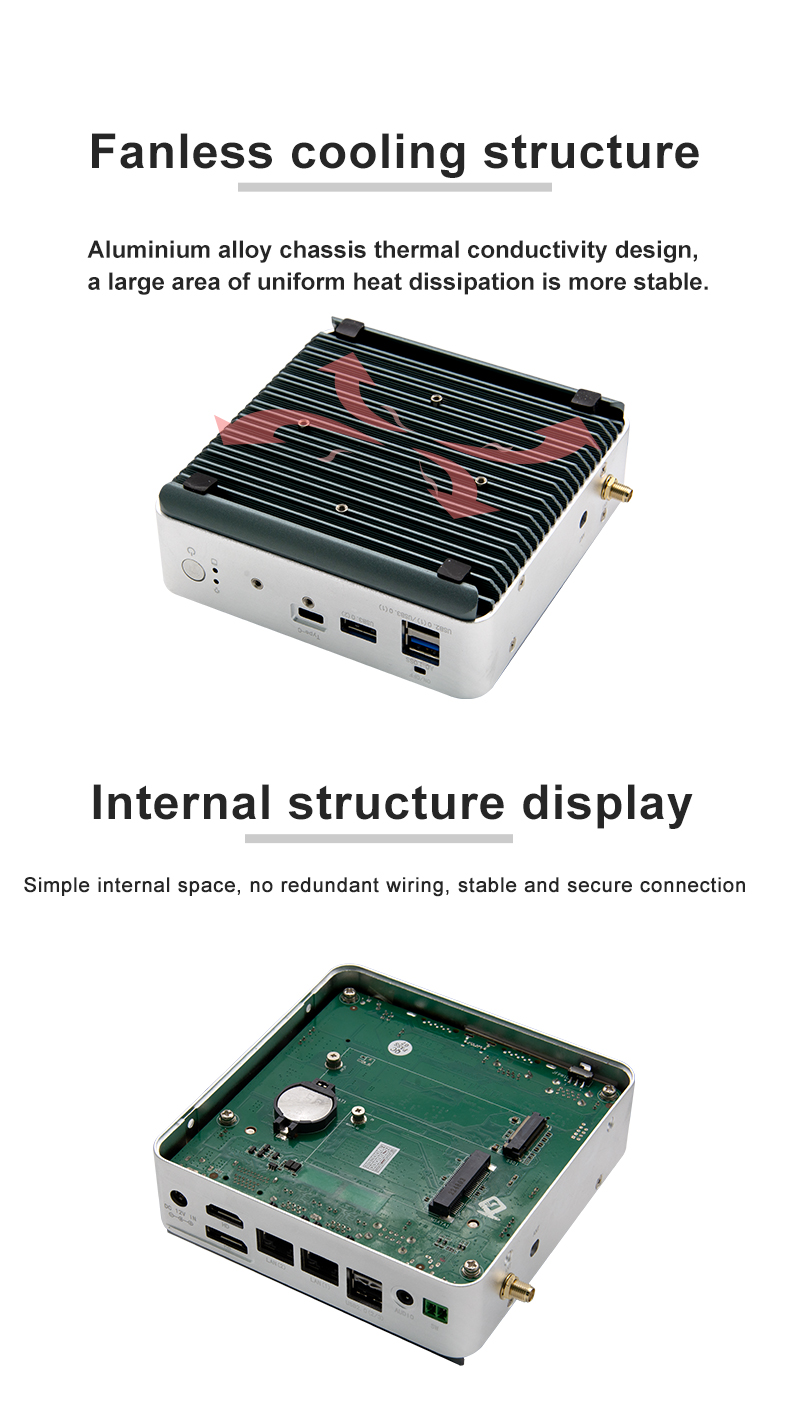

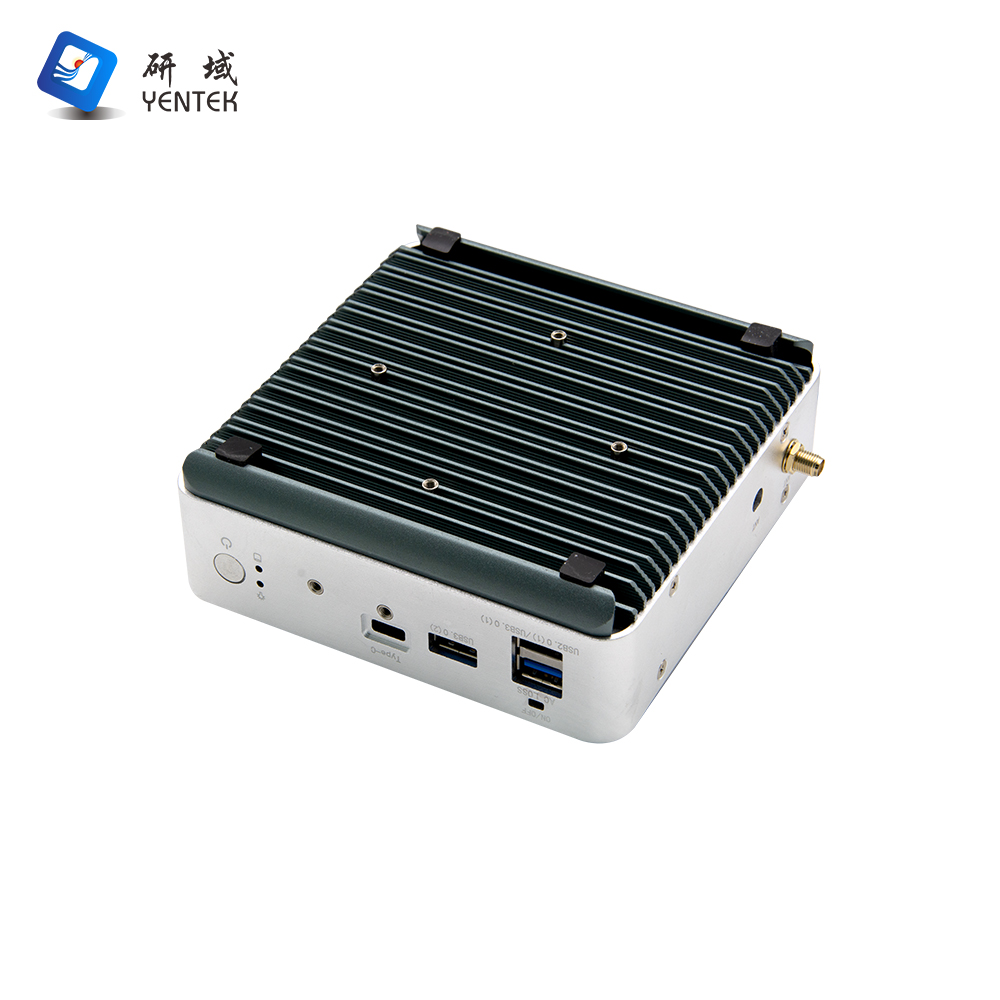

All aluminium alloy + fanless   cooling structure

Colour

Silver + Iron Grey

Dimensions (LWH)

128*128*50.2MM

Weight (bare net weight)

0.7KG

Installation

Desktop/VESA/DIN rail (35mm)

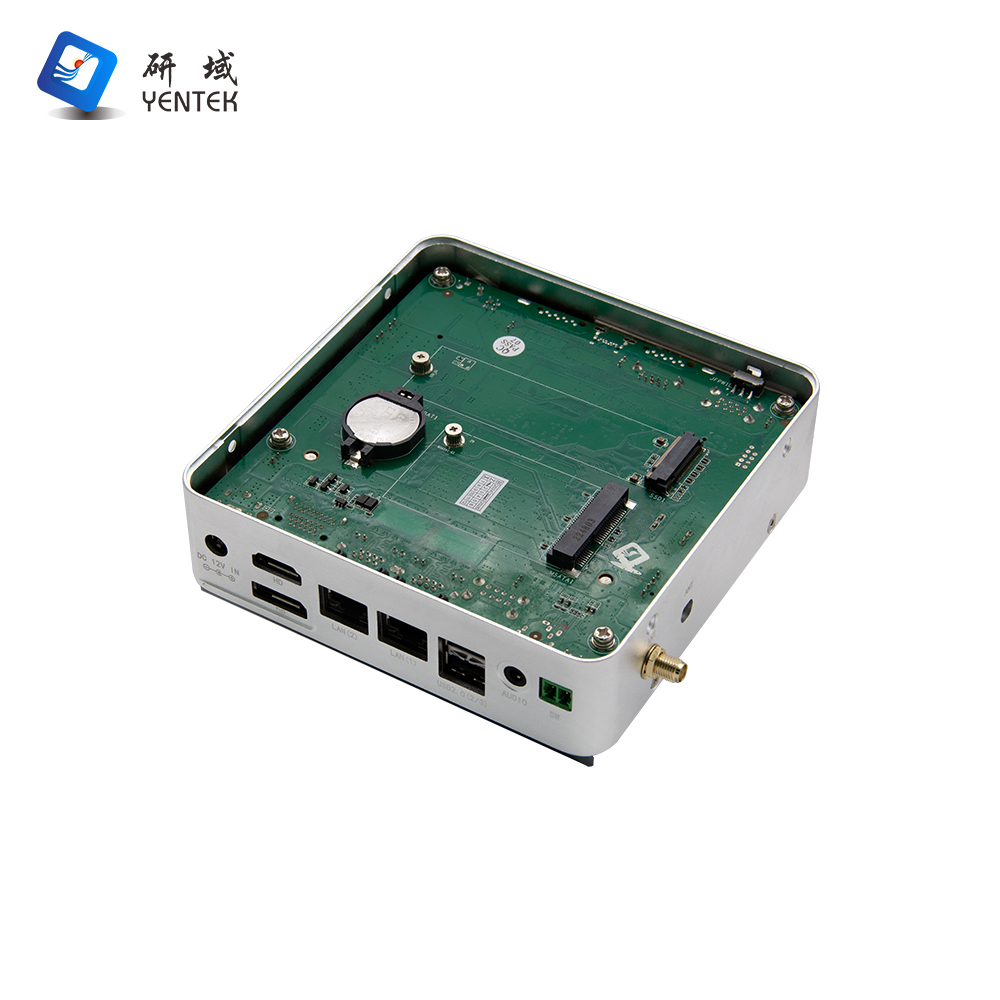

Motherboard

CPU

Integrated Intel®   i5-11357G/2.50GHz Quad-Core 8-Thread Processor, TDP 15W

Integrated Intel®   i5-8265U/1.60GHz Quad-Core 8-Thread Processor. TDP 15W

Memory

Integrated 8G LPDDR4x 4266MHz   memory (1135G7)

Integrated 8G LPDDR3 2133MHz   memory (8265U)

WiFi

Intel® WiFi6 AX201 + Bluetooth   5.1 (1135G7)

Intel® AC 9560 + Bluetooth 5.0   (8265U)

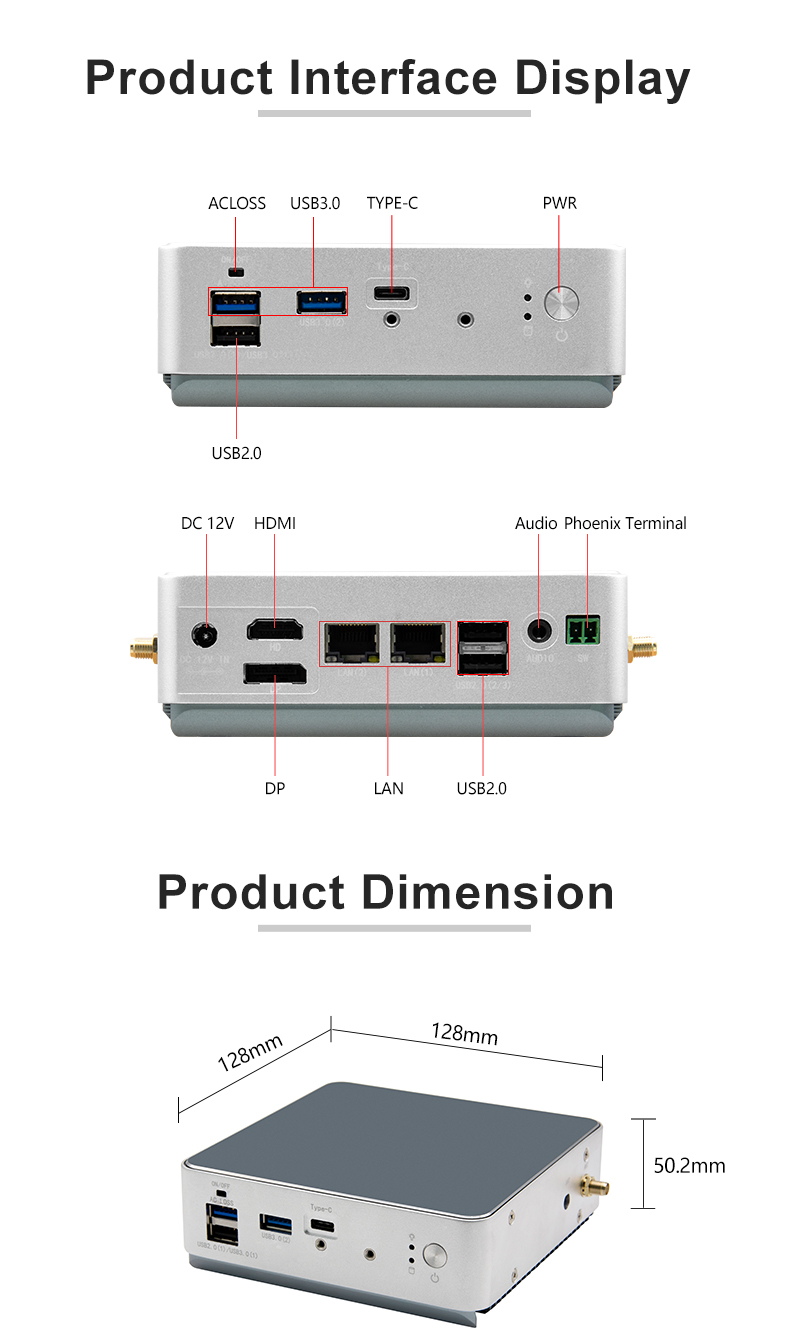

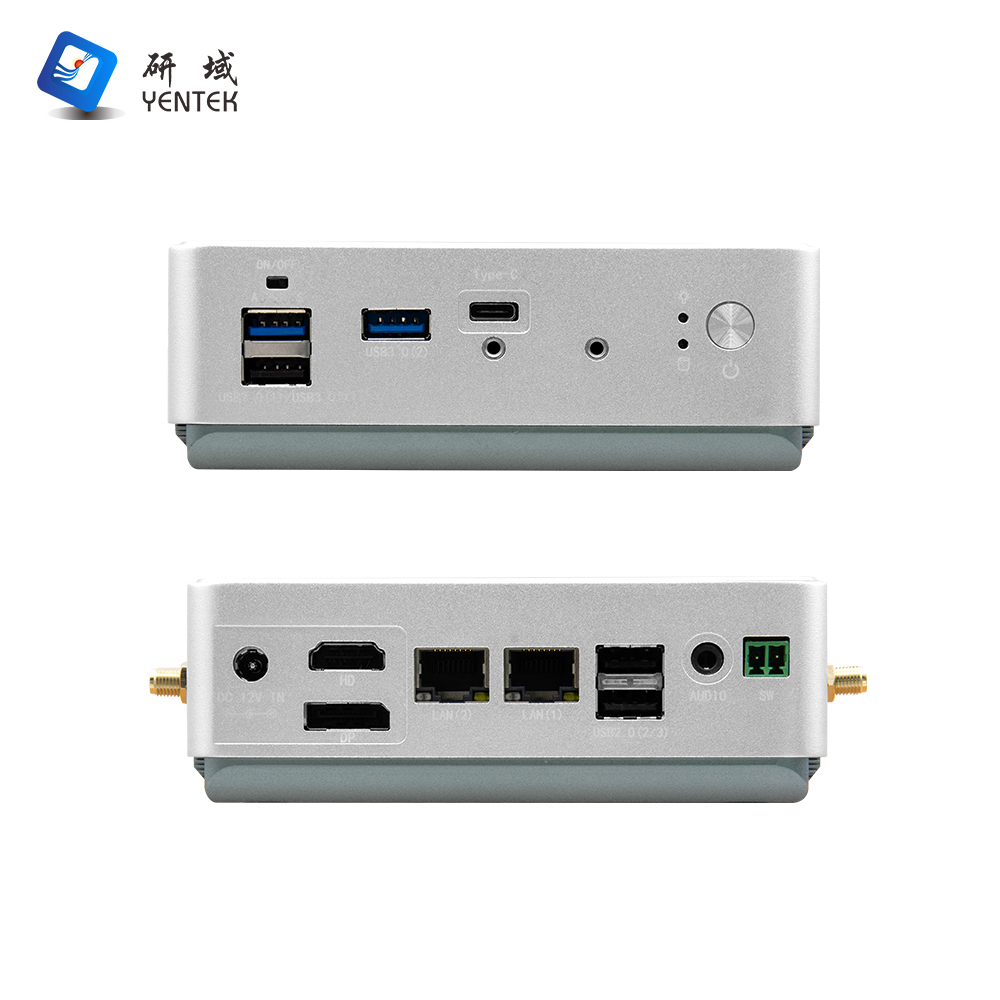

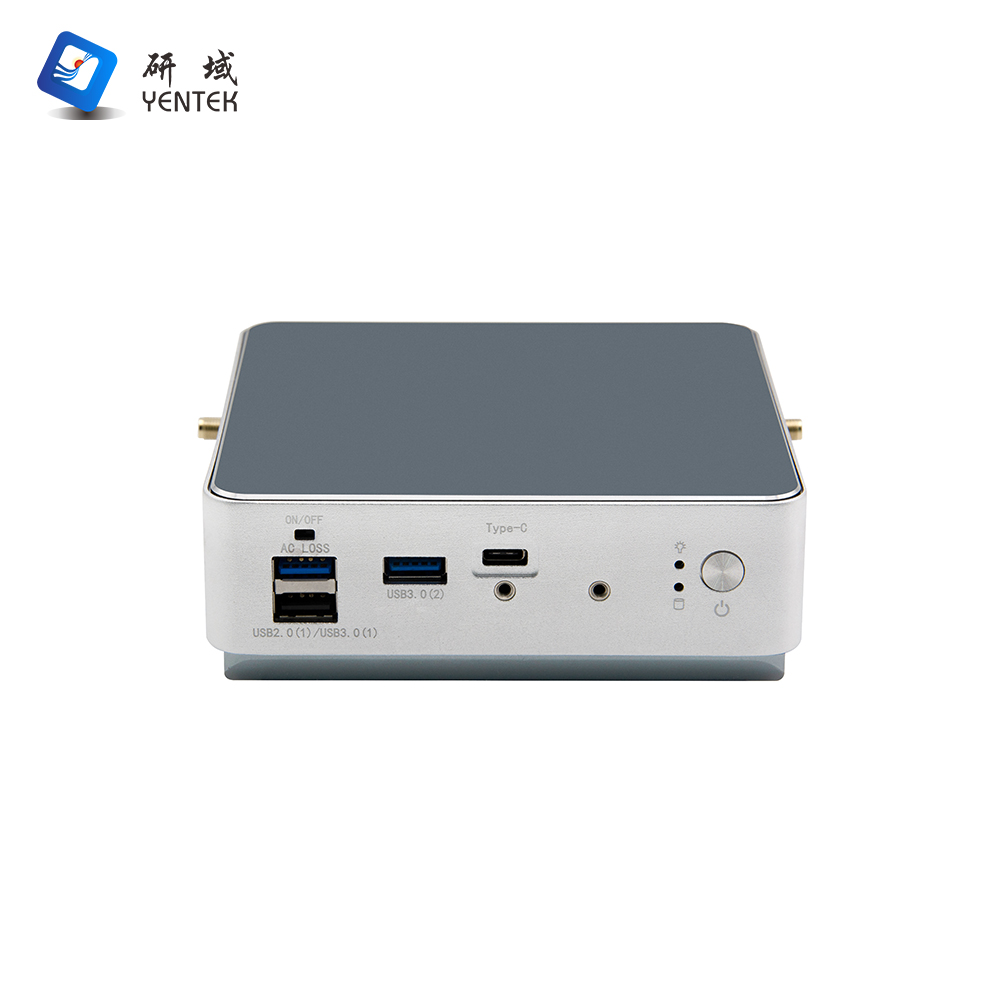

Front Panel Connectors

POWER

1 *Power Switch, 1* ACLOSS   (Power On and Off DIP Switch)

LED

1*Power Indicator, 1* HDD   Indicator

USB

1*USB2.0, 2*USB3.0, 1*TYPE-C(   5Gbps)

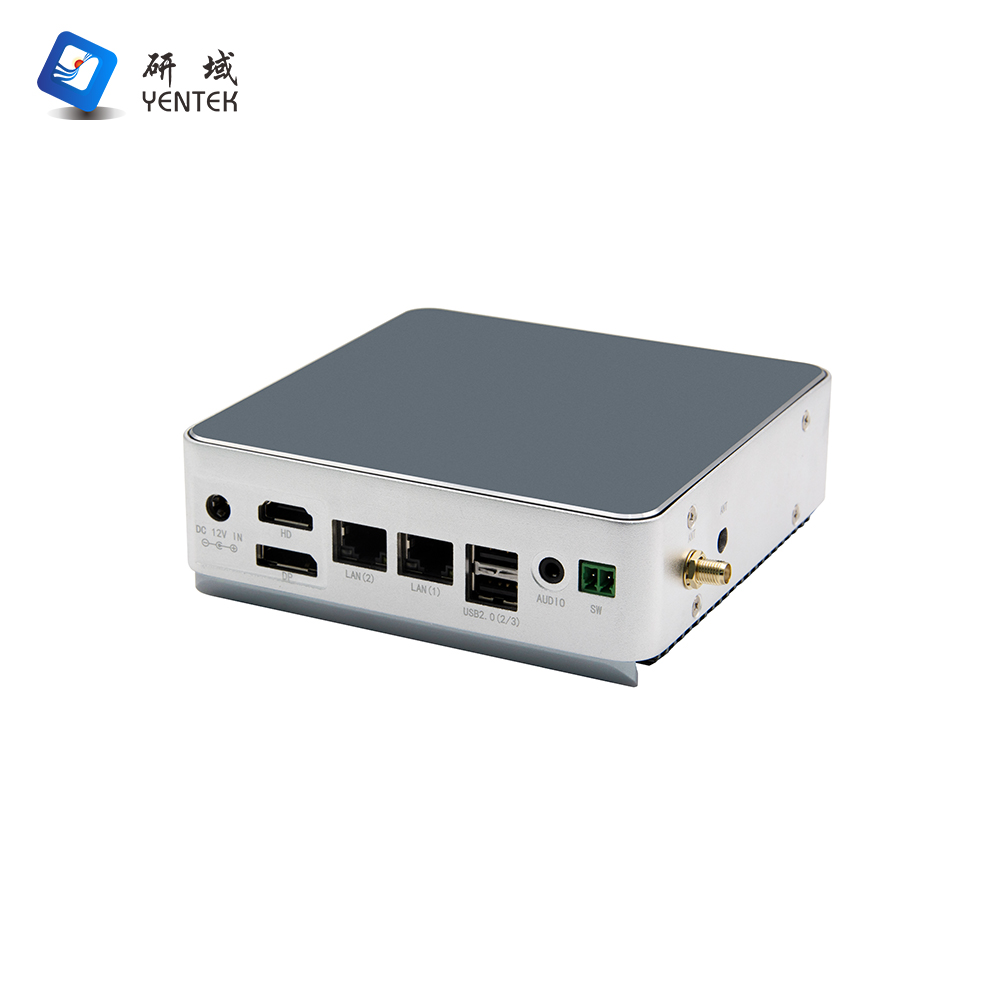

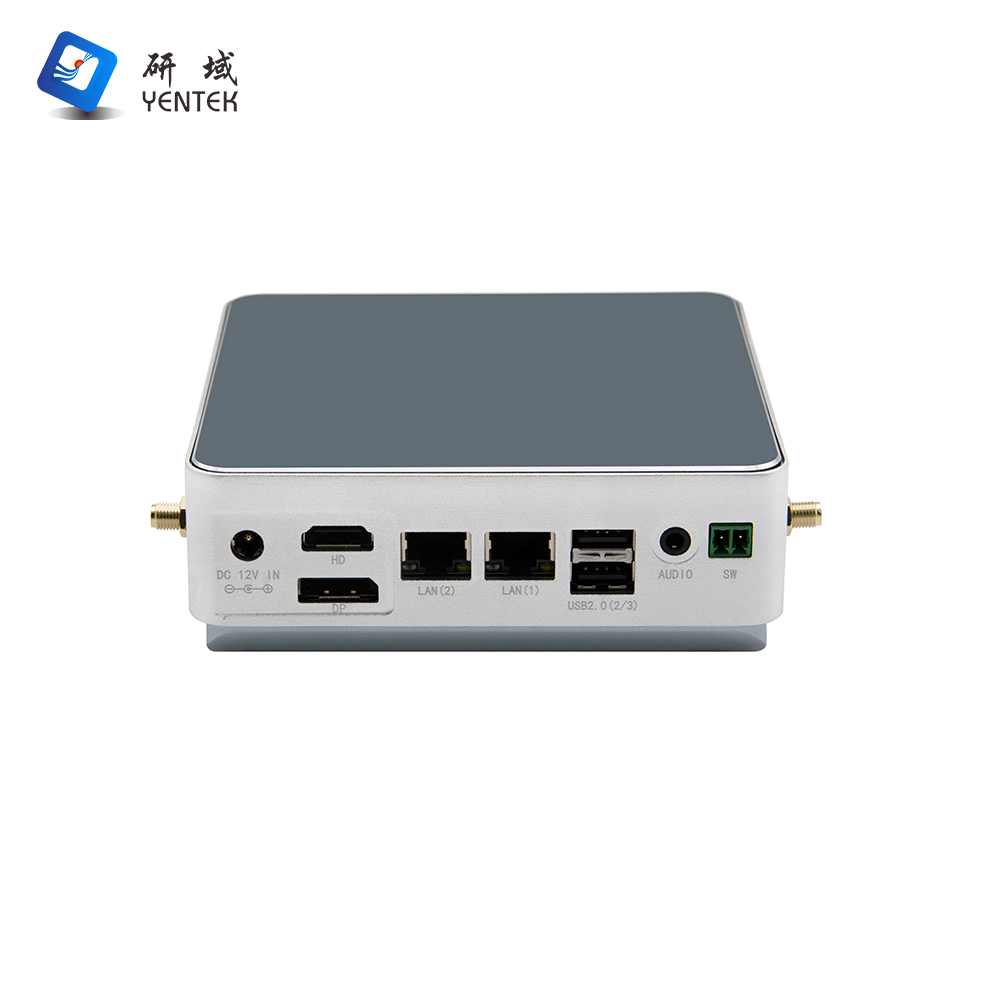

Rear Panel Interface

Display Interface

1*DP, 1*HDMI, support dual   display

LAN

1*Intel I226V Gigabit NIC,   1*Intel I219V, support Wake-on-Network, PXE function

USB

2*USB2.0

Phoenix Terminal

1*2P (power on signal, can be a   remote switch)

Audio

1*Audio, Line out and MIC 2-in-1

Power

1*DC 12V power input

Storage

MSATA

1*MSATA

M.2

1*M.2, support Key-M, 2280, NVME   PCIEx4 SSD

System Support

Microsoft Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~ 255 seconds)

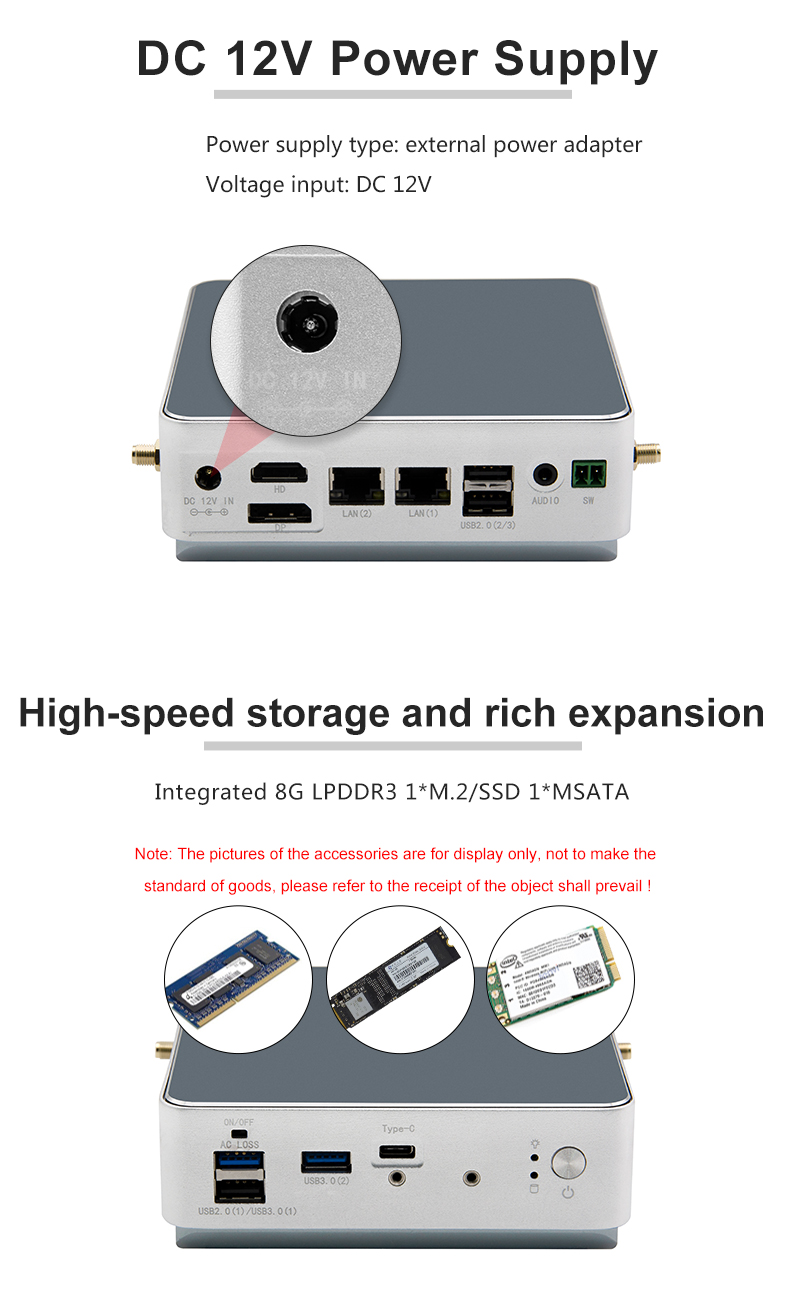

Power Requirements

Power Type

External Power Adapter

Voltage Input

DC 12V

Power Output

AC TO DC 60W or above

Environment

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating

1

N8250E-HD V1.0(8265U)

I5-8265U/1.6G

LPDDR 3 8G

2133MHz

Intel NUC

NFE100-HD

MSATA+M.2

1*226V

1*219V

1

1

3

2

DC 12V

2

N8250E-HD V1.0(1135G7)

I5-1135G7/2.4G

LPDDR4x 8G

4266MHz

Intel NUC

NFE100-HD

MSATA+M.2

1*226V

1*219V

1

1

3

2

DC 12V
