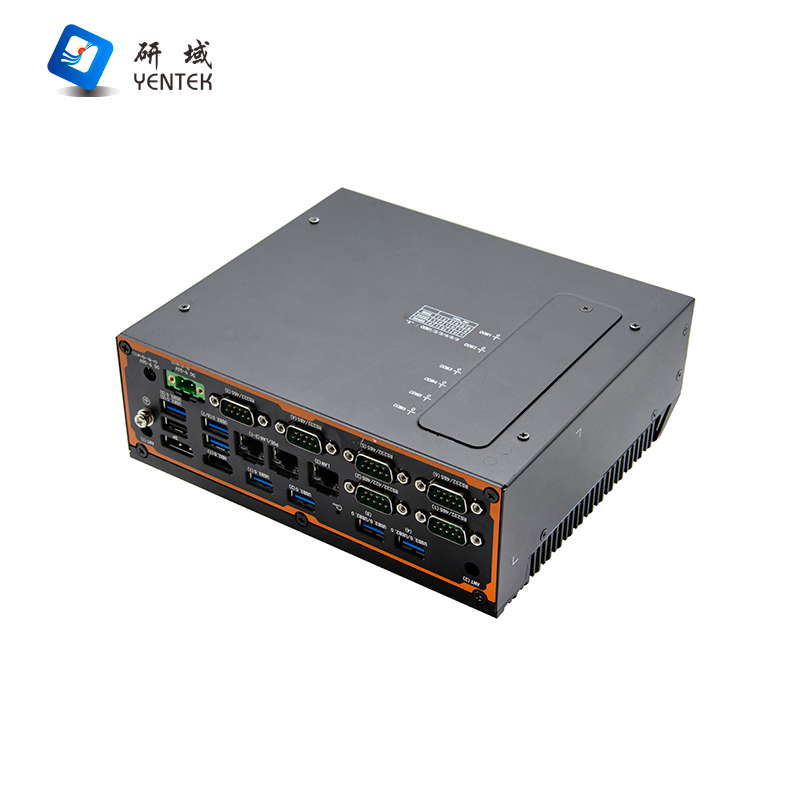

P6760F-L3

Chassis

Material/Construction

Aluminum   + Sheet Metal, Fan Cooling

Color

Black   color

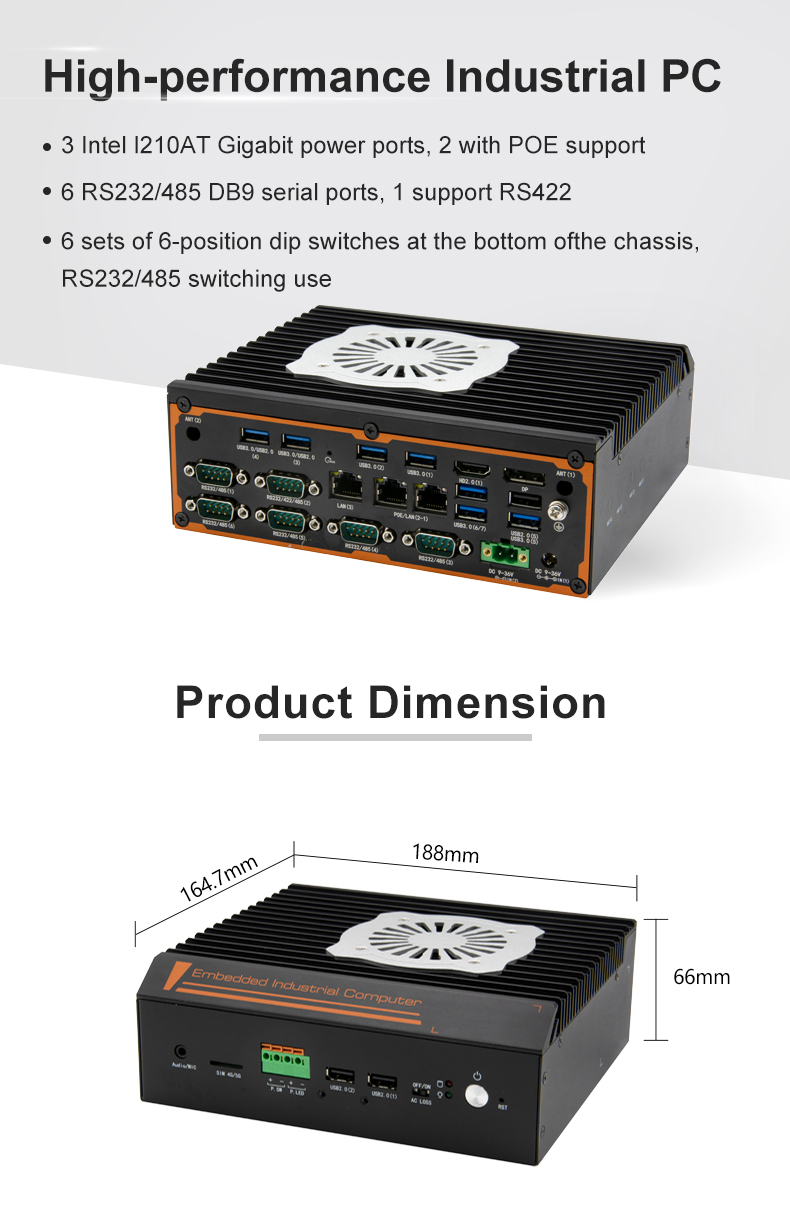

Size   (LWH)

188*164.7*66MM

Weight   (bare net)

1.6KG

Installation

Desktop/Wall   Mount/DIN Rail(35mm)

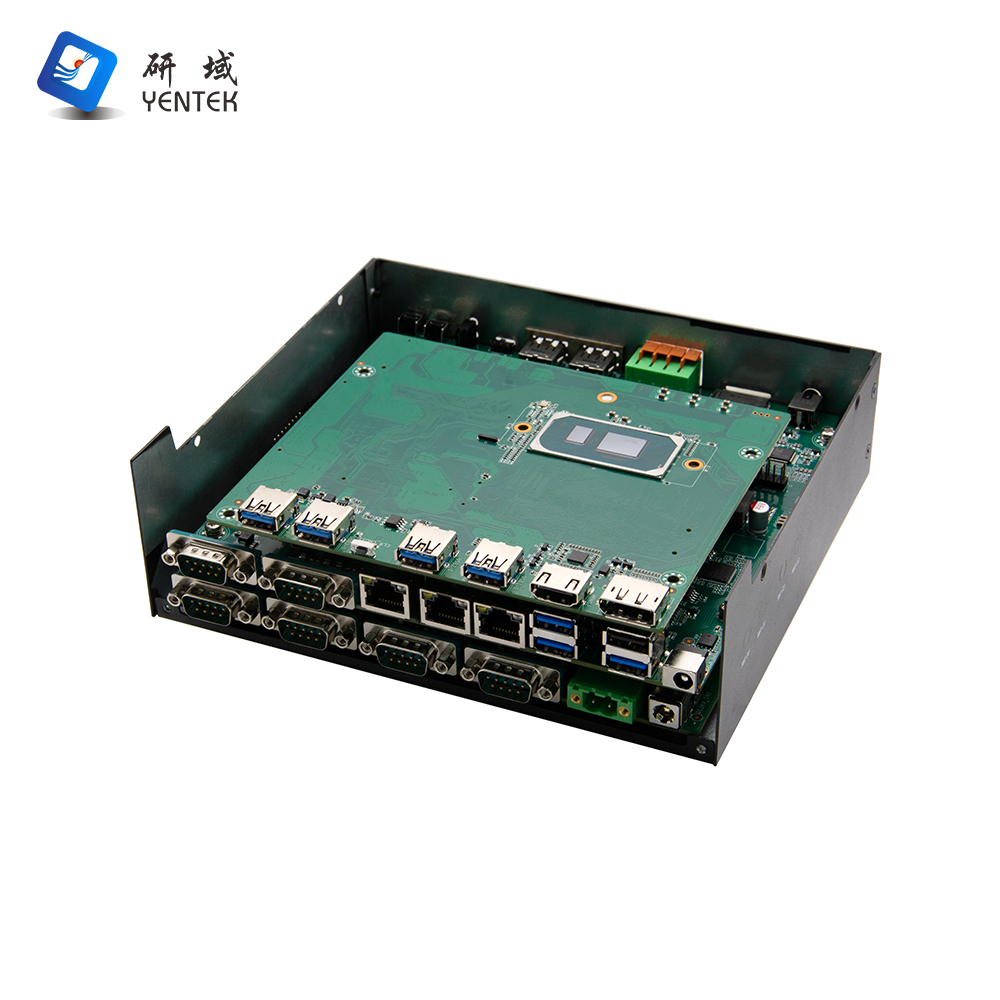

Motherboard

CPU

Intel®i5-1235U/1.3GHz,   Turbo 4.4GHz, 10-core 12-thread processor, TDP 15W

Display

Intel®Iris   Xe Graphics eligible

Memory

2*SODDR4   3200MHz , supports up to 64GB

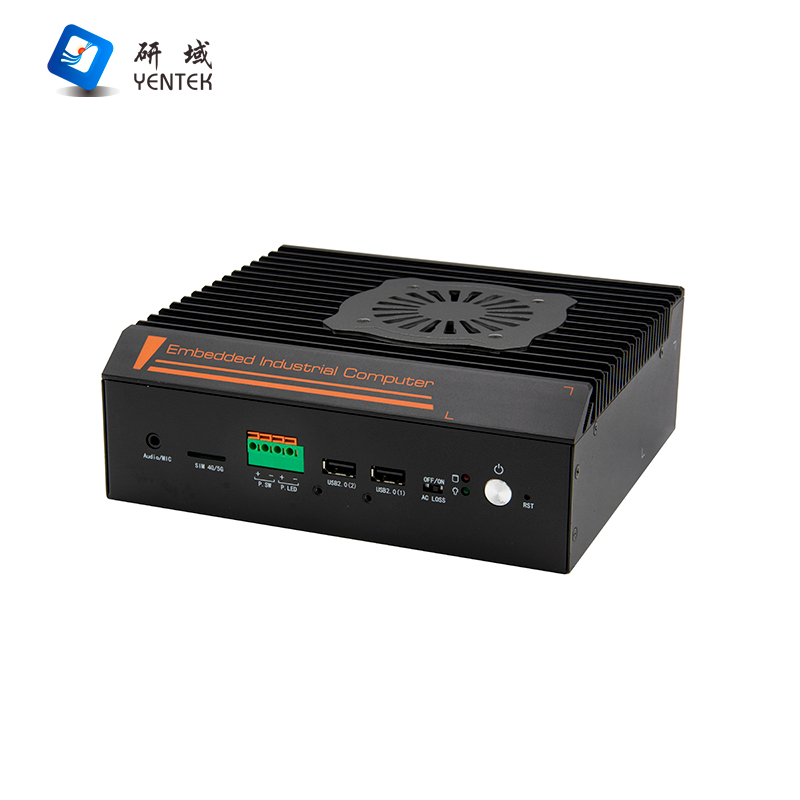

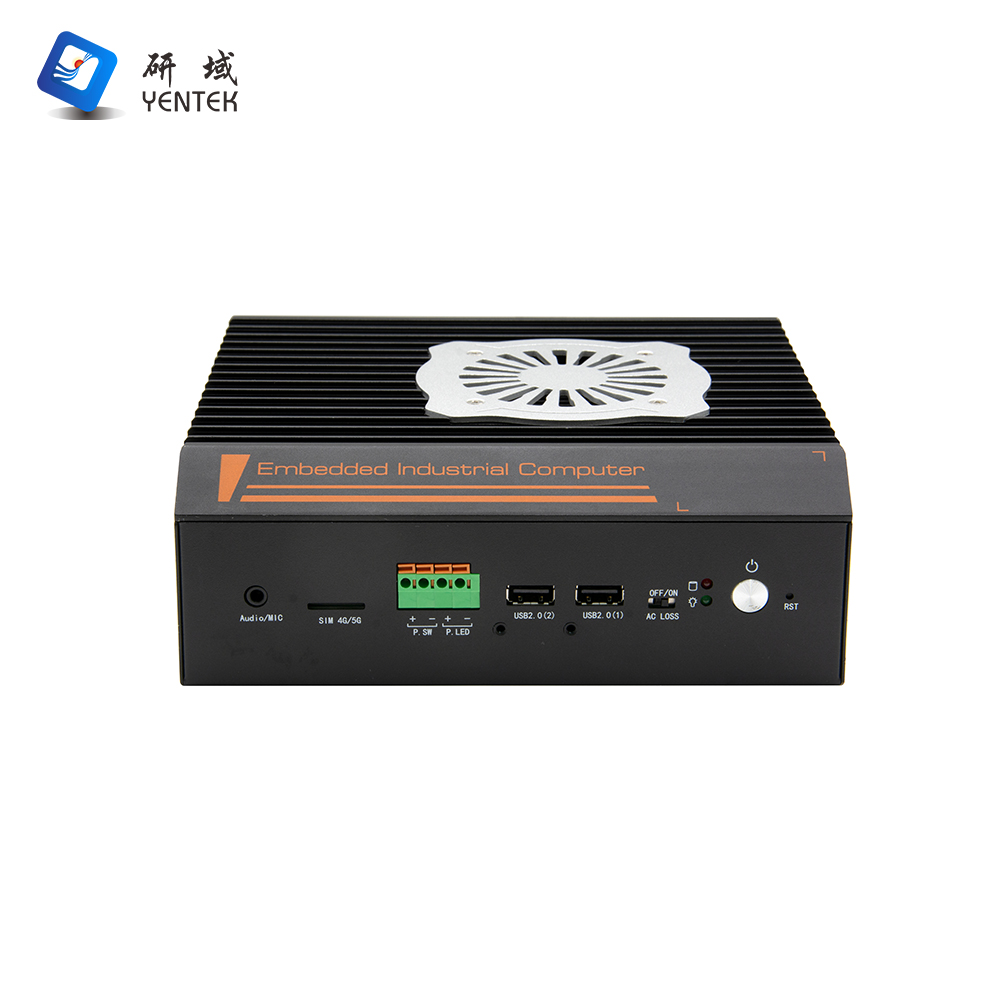

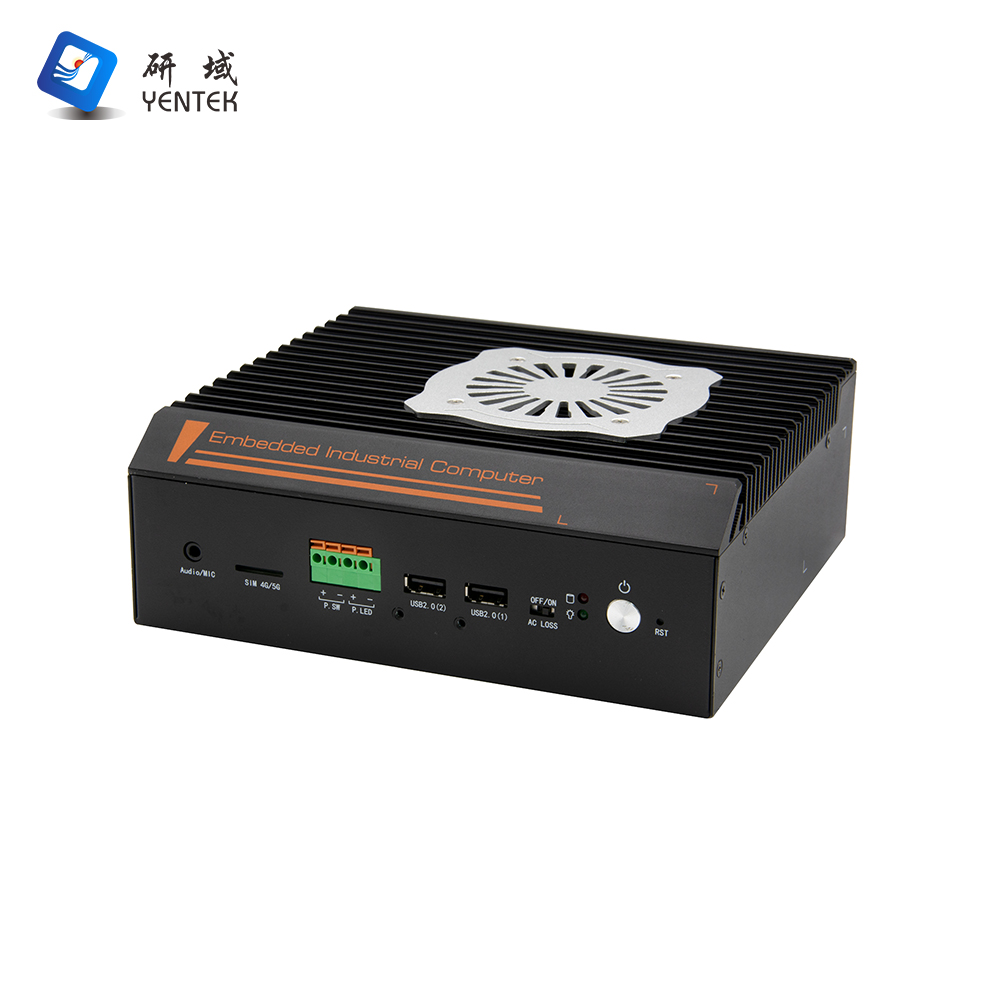

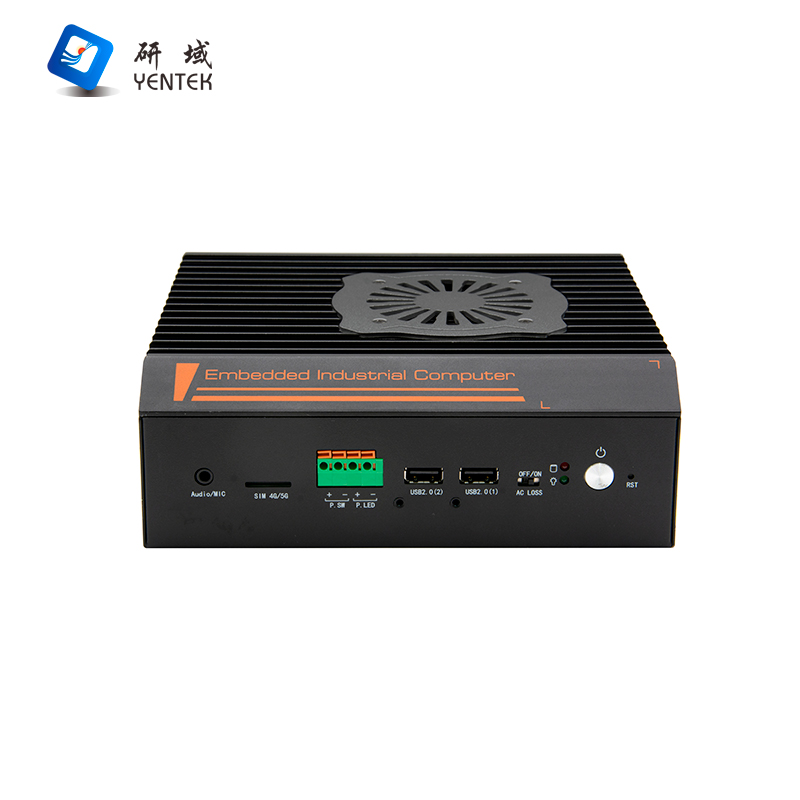

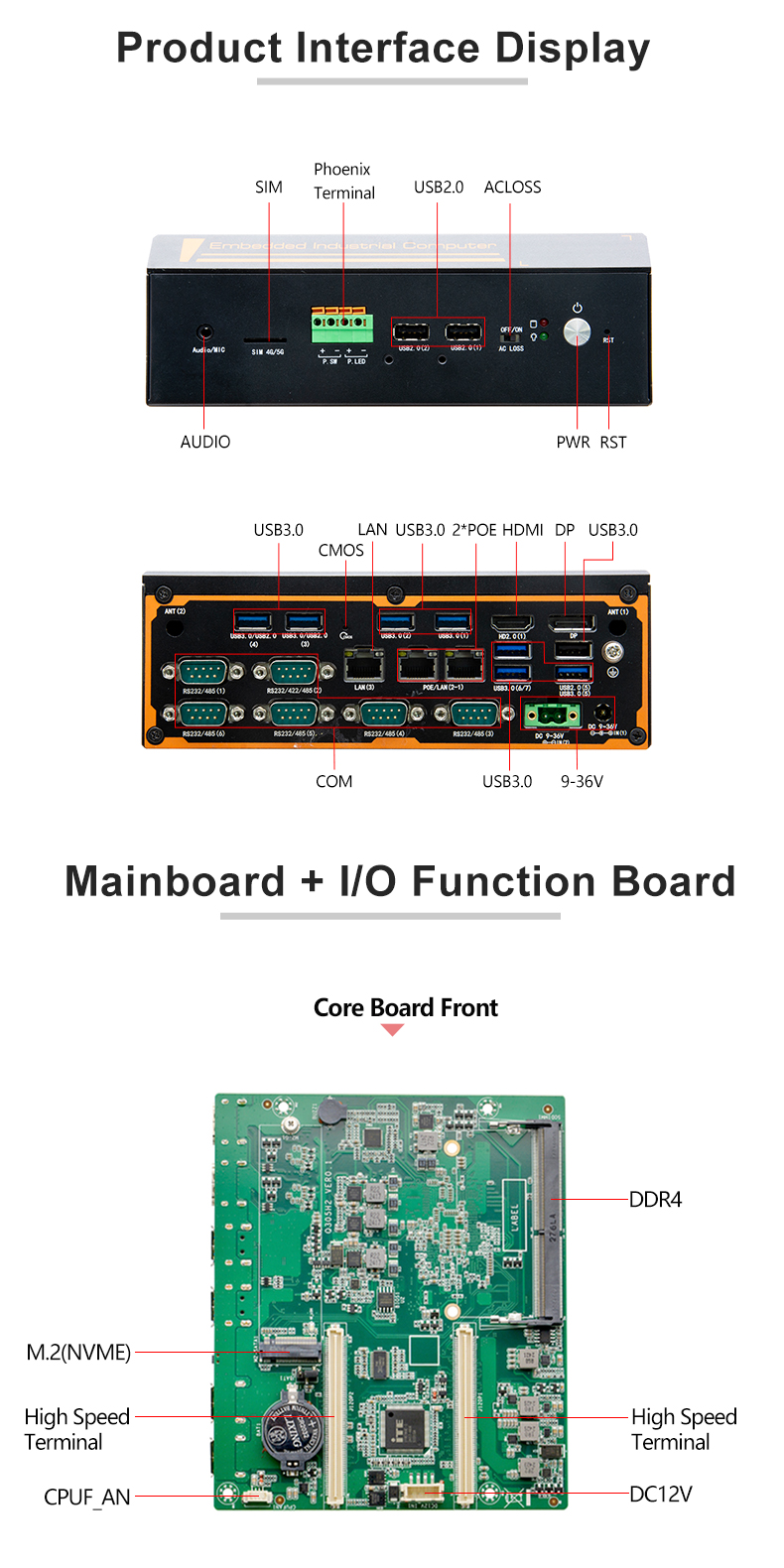

Front   Panel Connectors

Switch

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power On Codec Switch)

LED

1*Power   Indicator, 1*Hard Disk Indicator

USB

2*USB2.0

Audio

1*Audio,   Line out&Mic 2-in-1

Phoenix   Terminal

1*4P   (1*power on signal/1*power indicator signal)

SIM

1*SIM   standard card slot

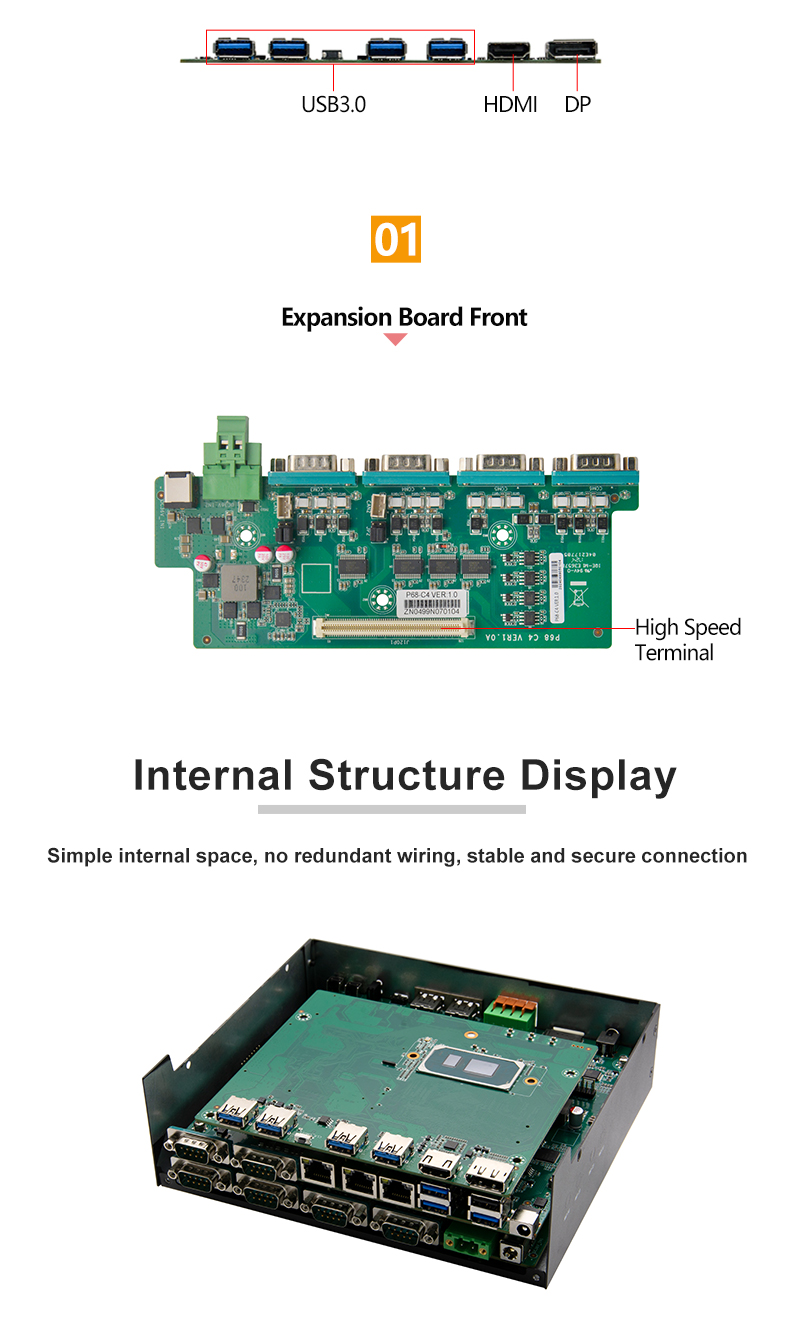

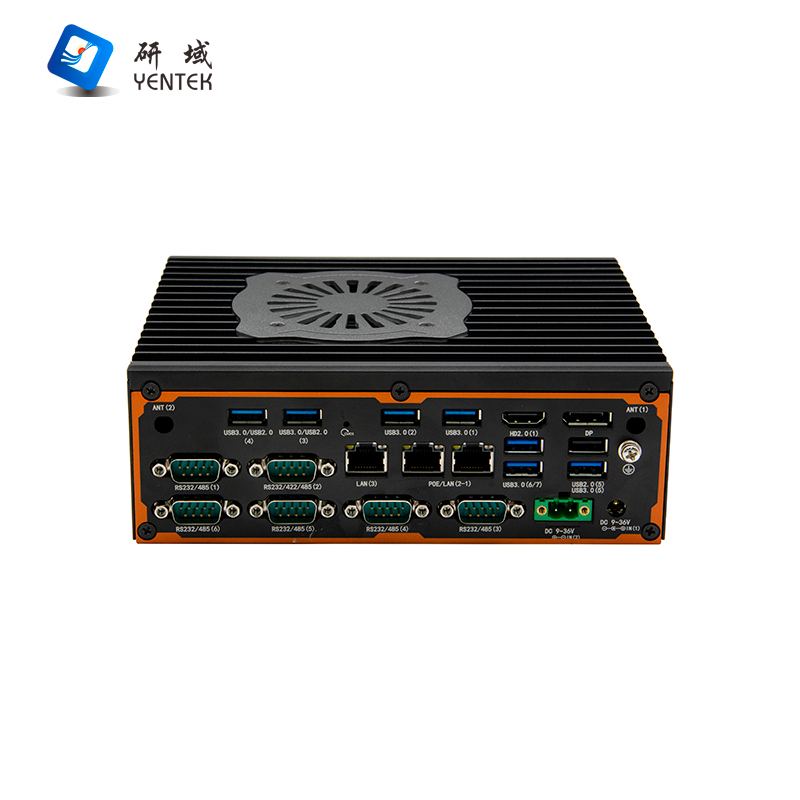

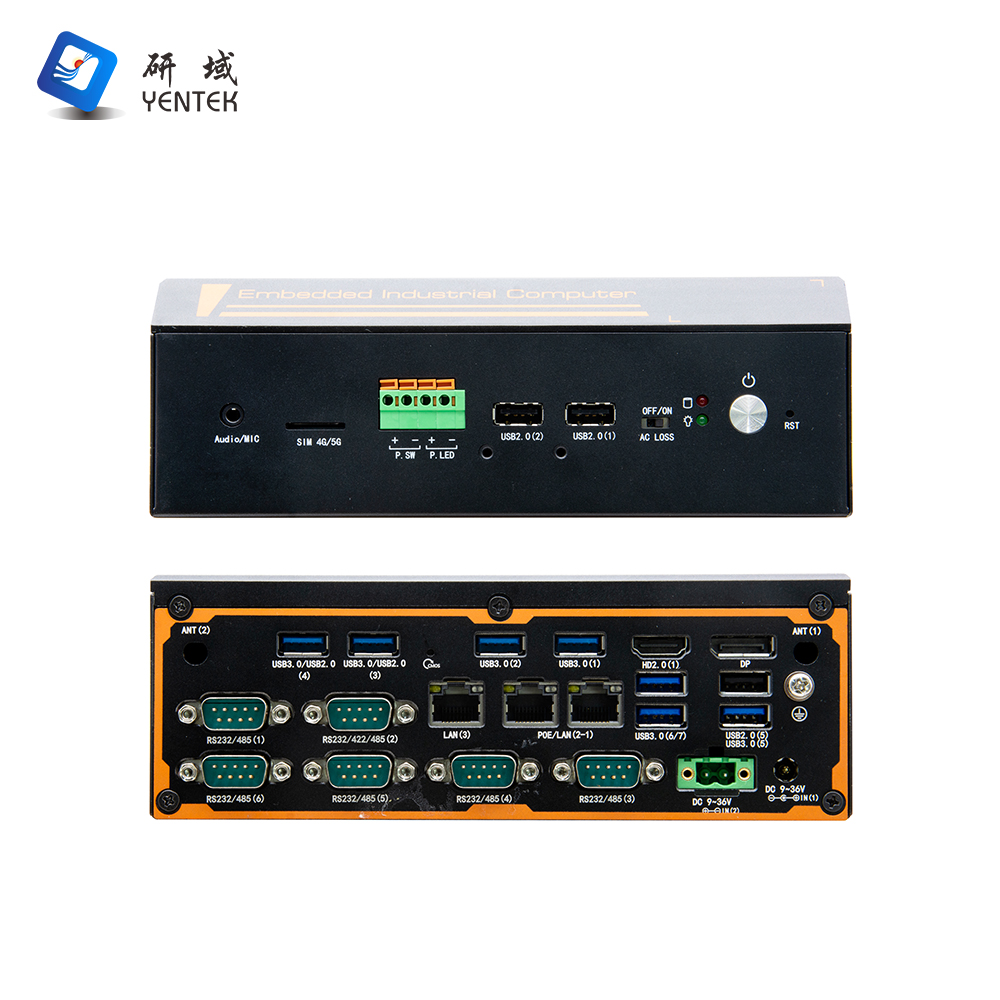

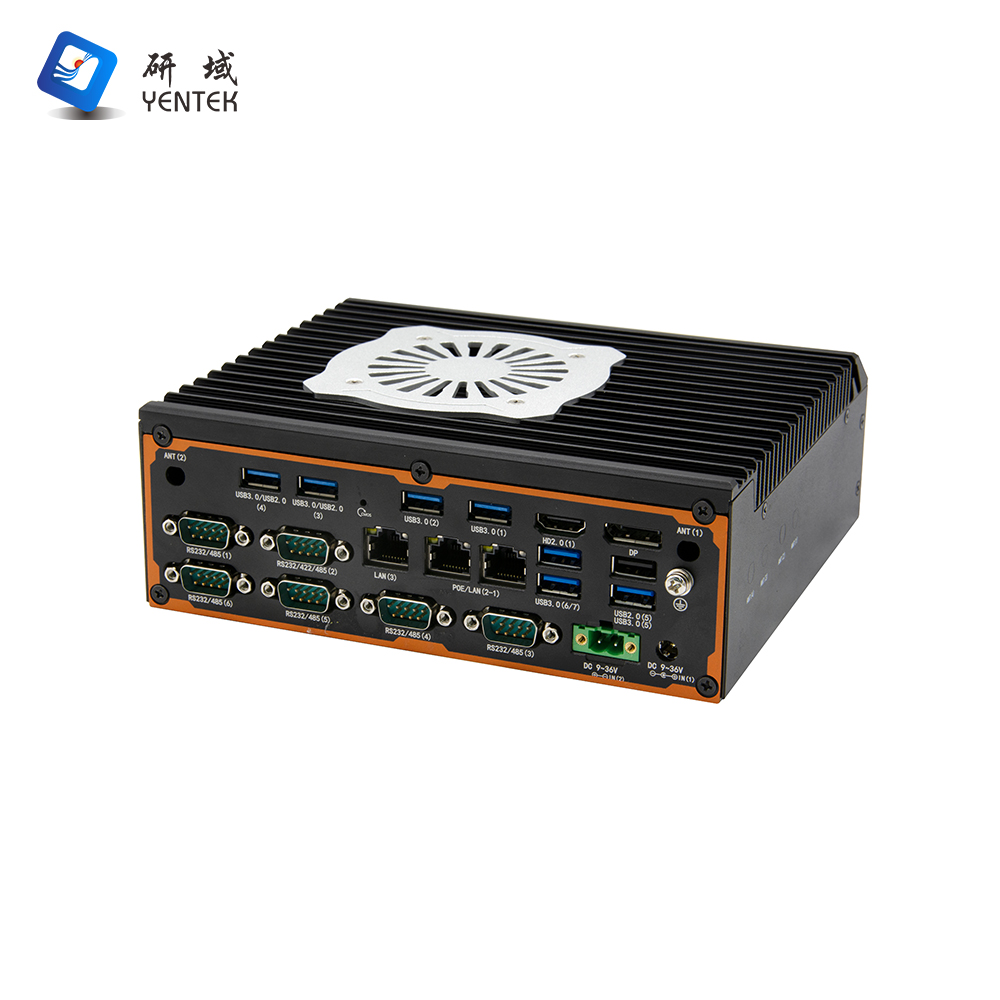

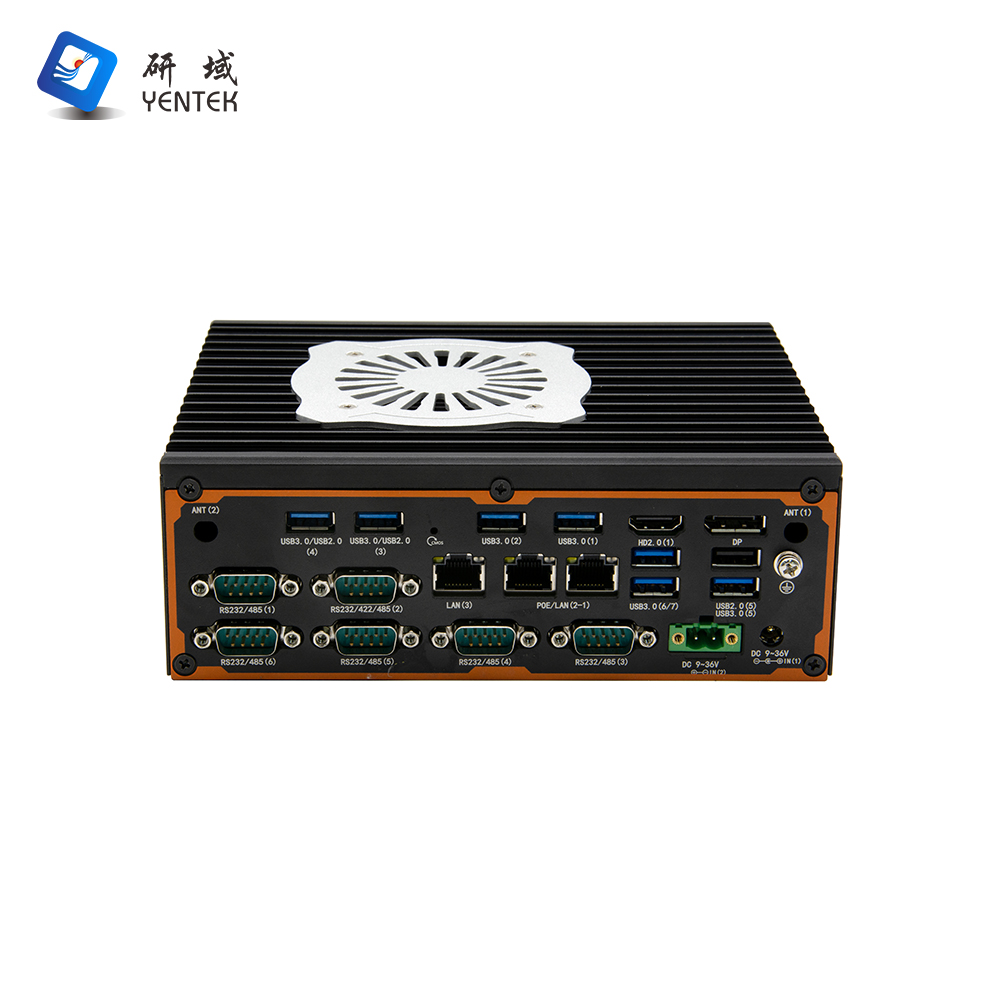

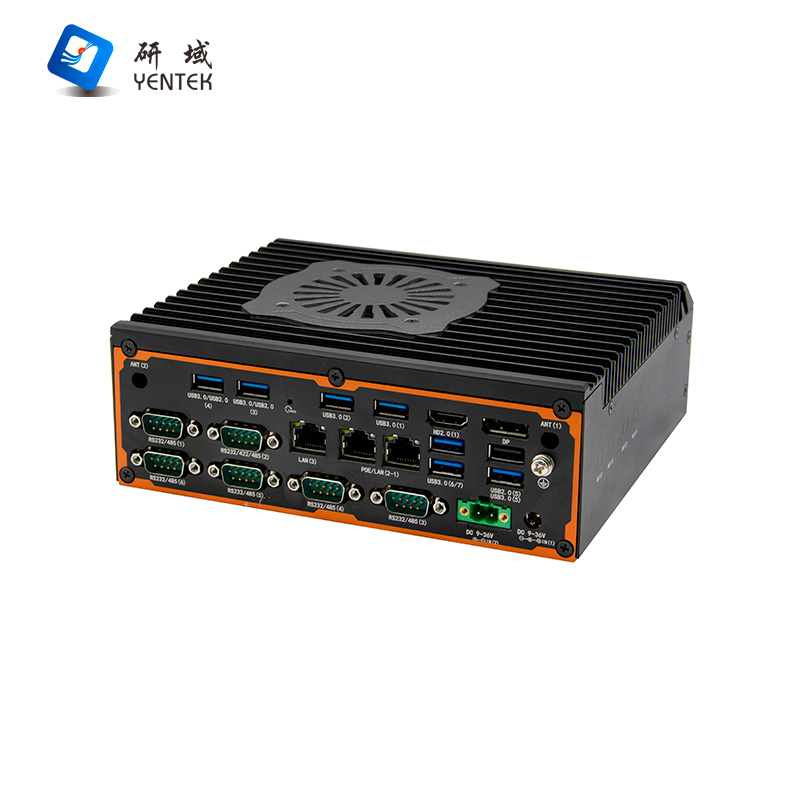

Rear   Panel Connectors

Switch

1*CMOS restore   button

Display   Interface

1*HDMI2.0(4096*2304@60Hz),   1*DP1.4(4096*2304@60Hz), support dual display

COM

6*RS232/485   DB9 serial ports, one of which supports RS422

LAN

3*Intel   I210AT Gigabit power port, 2 of which support POE

USB

5*USB3.0,   1*USB2.0 (the number of USB3.0 according to the motherboard)

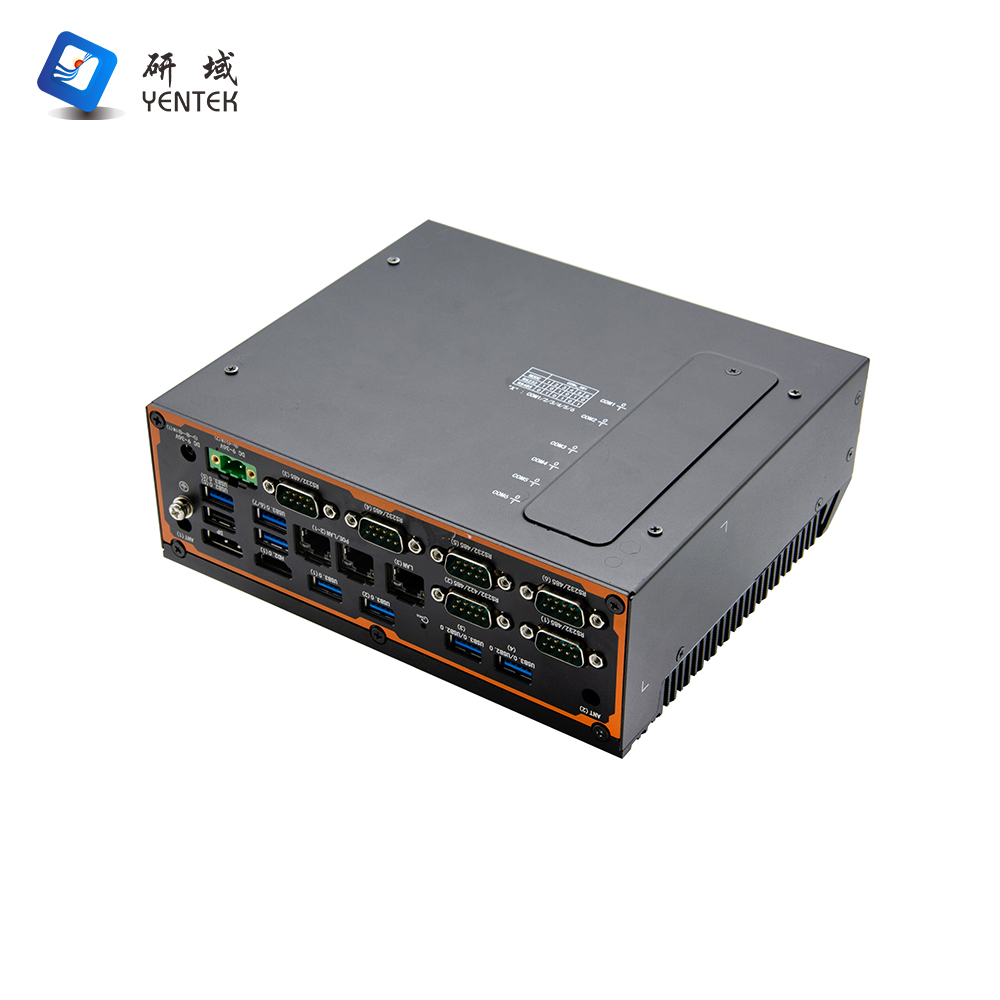

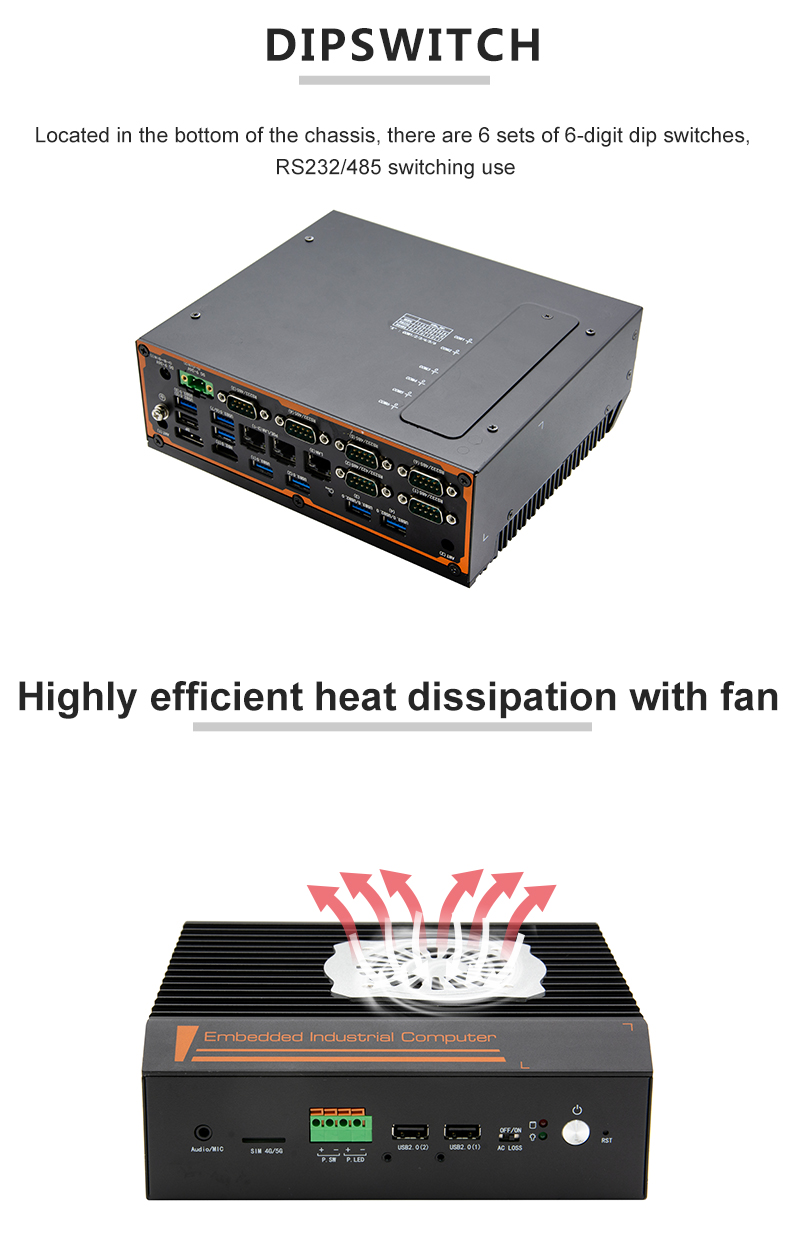

DIP   Switches

6 sets of   6-digit dip switches, RS232/485 switching use (dip switches are located at   the bottom of the chassis)

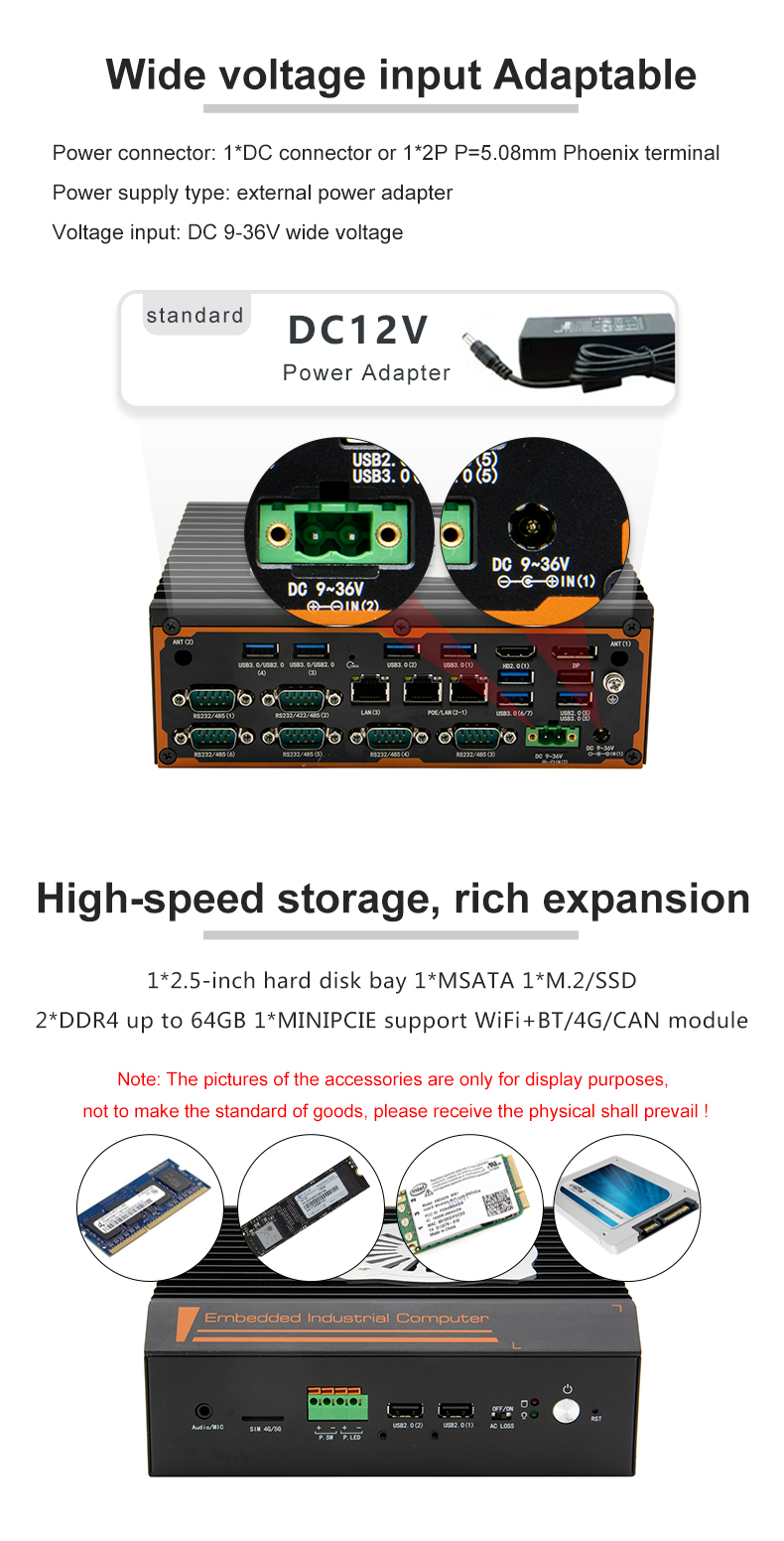

Power   Interface

1*DC   interface or 1*2P (P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage   power input

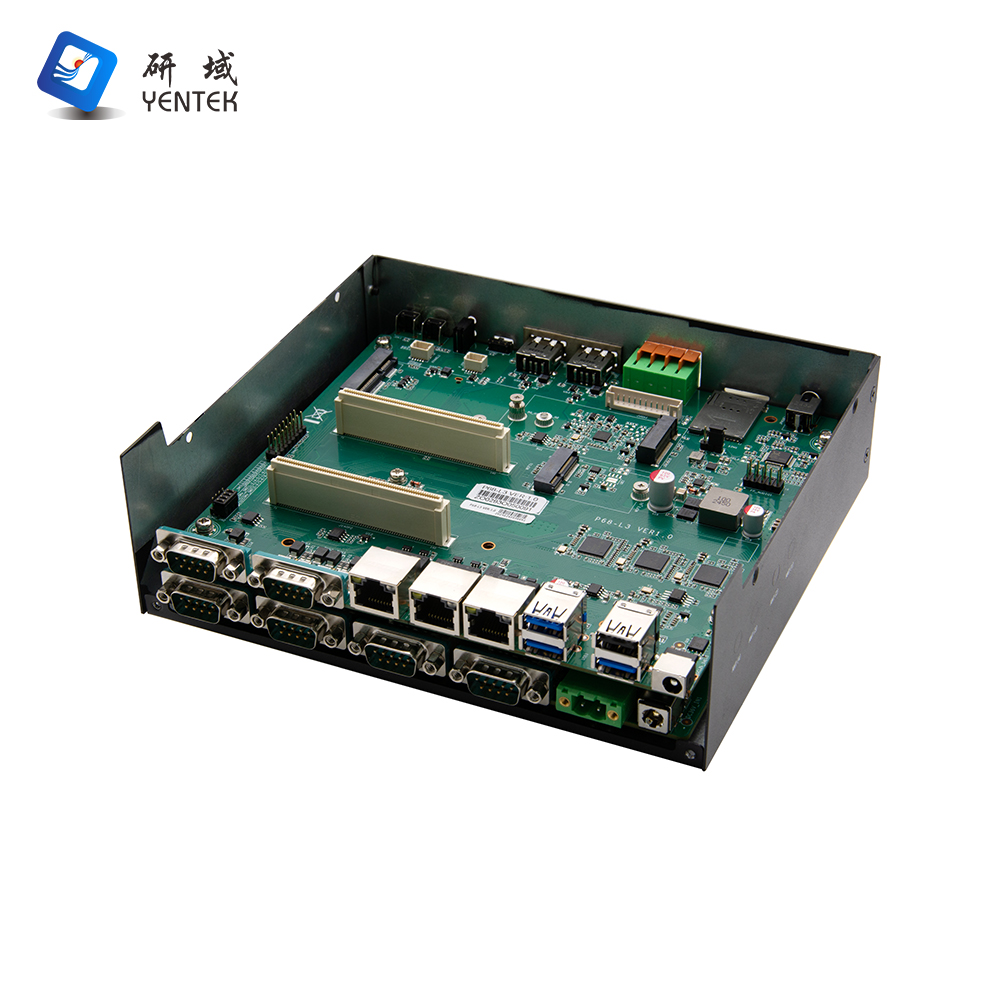

Storage

SATA

1*2.5-inch   hard disk bay

MSATA

1*MSATA

SSD

1*M.2,   support Key-M, 2280, NVME PCIE x4 SSD

Expansion

WiFi/4G

1*MINIPCIE,   support WiFi+BT or 4G module or CAN module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Type

External   Power Adapter

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   90W (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

P6760F-L3 V2.0(1135G7)

I5-1135G7/2.4G

Q112HD1

2*SODDR4

P68-L3/P68-C4

2.5+mSATA+M.2(NVME)

3*I210

6

3

7

 9-36V

2

P6760F-L3 V2.0(1195G7)

I7-1195G7/2.7G

Q112HD1

2*SODDR4

P68-L3/P68-C4

2.5+mSATA+M.2(NVME)

3*I210

6

3

7

 9-36V

3

P6760F-L3 V2.0(1235U)

I5-1235U/1.3G

Q122HD1

2*SODDR4

P68-L3/P68-C4

2.5+mSATA+M.2(NVME)

3*I210

6

3

7

 9-36V

4

P6760F-L3 V2.0(1255U)

I7-1255U/1.7G

Q122HD1

2*SODDR4

P68-L3/P68-C4

2.5+mSATA+M.2(NVME)

3*I210

6

3

7

 9-36V
