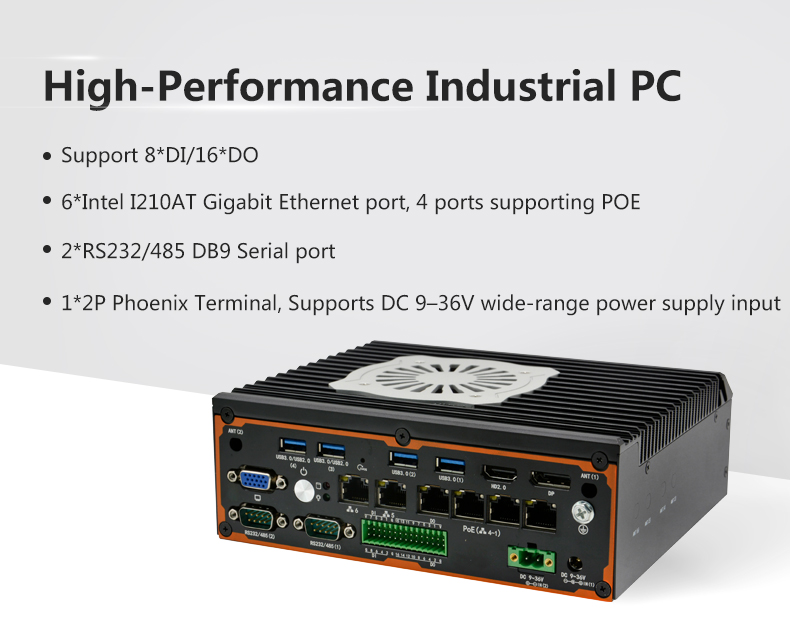

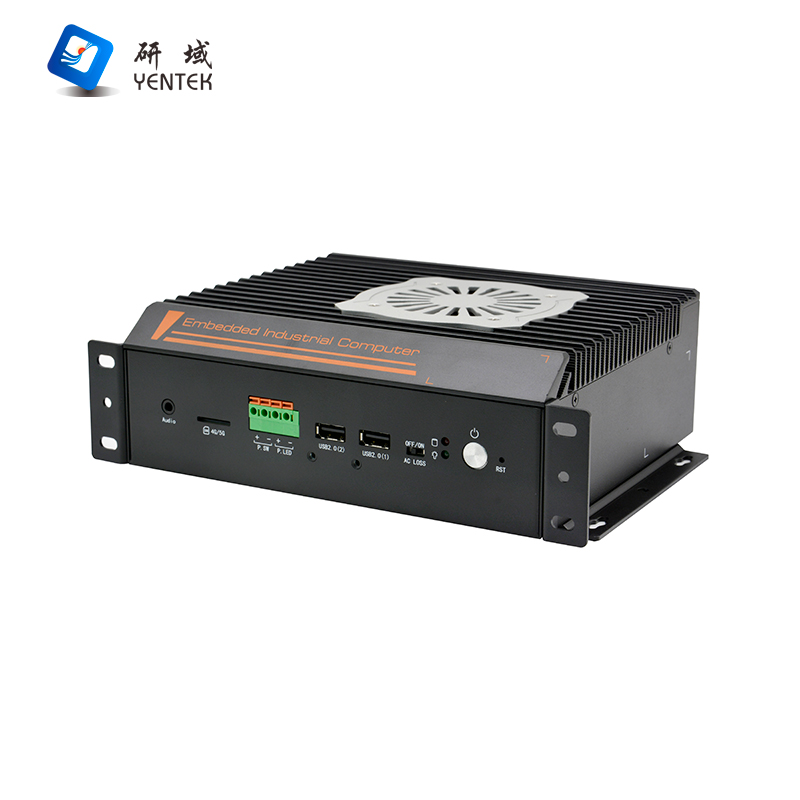

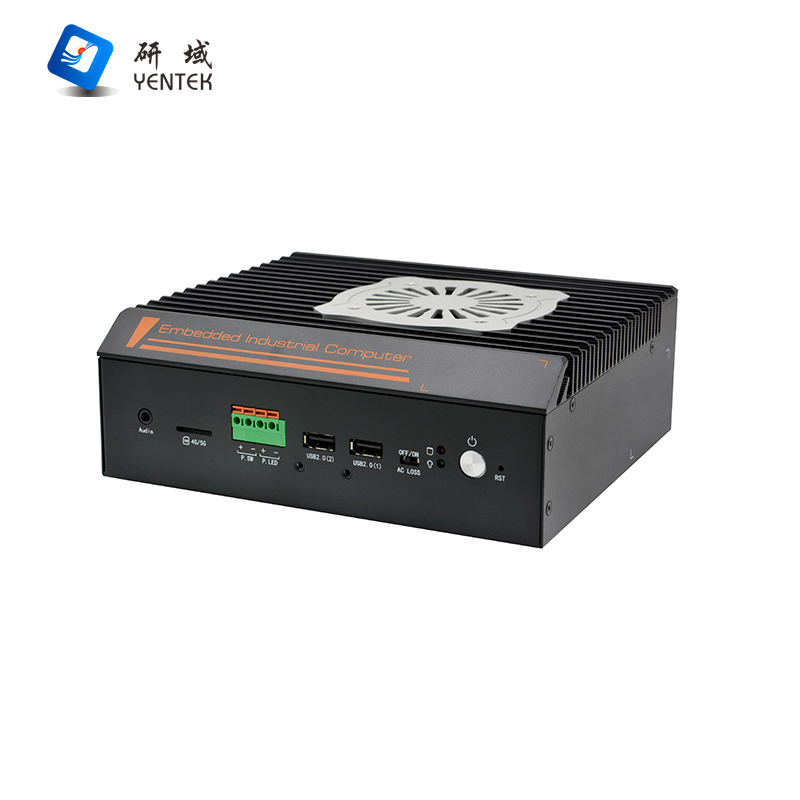

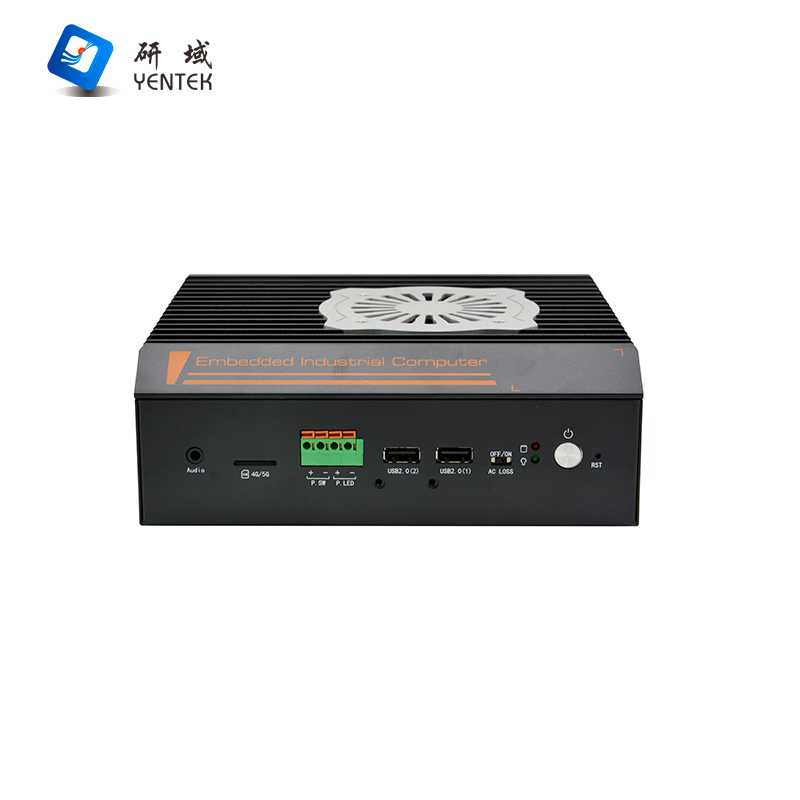

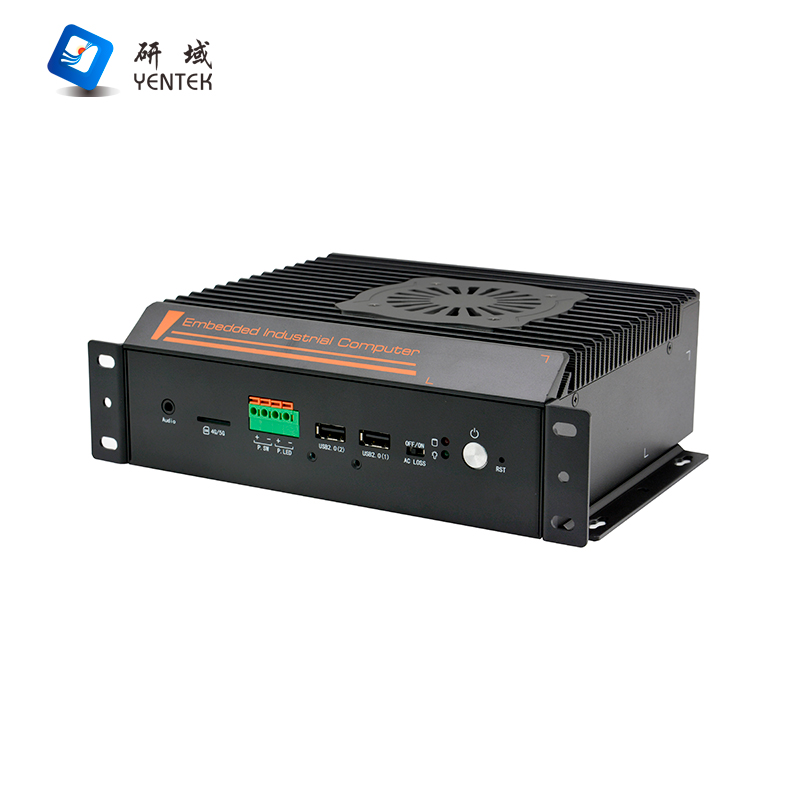

P6760F-GY4

Chassis

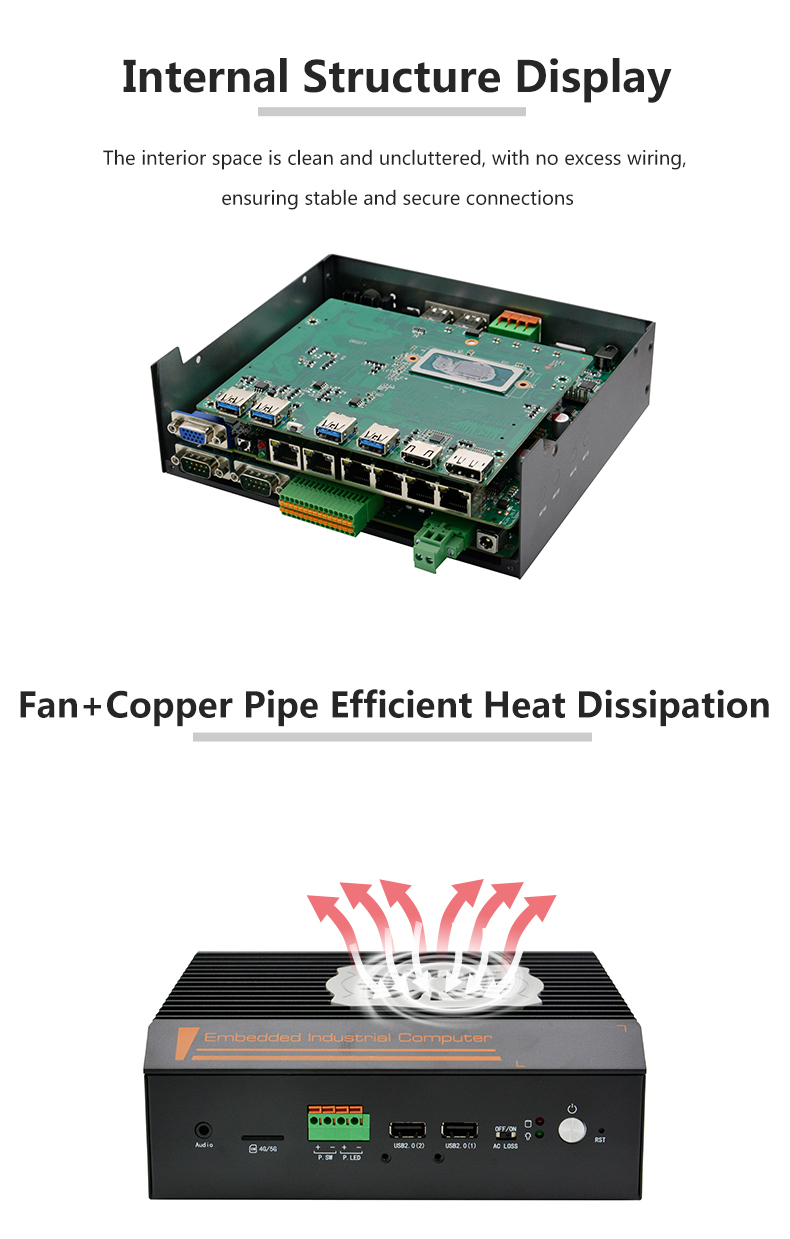

Material/Structure

Aluminum   alloy + sheet metal construction, fan cooling

Color

Black +   silver

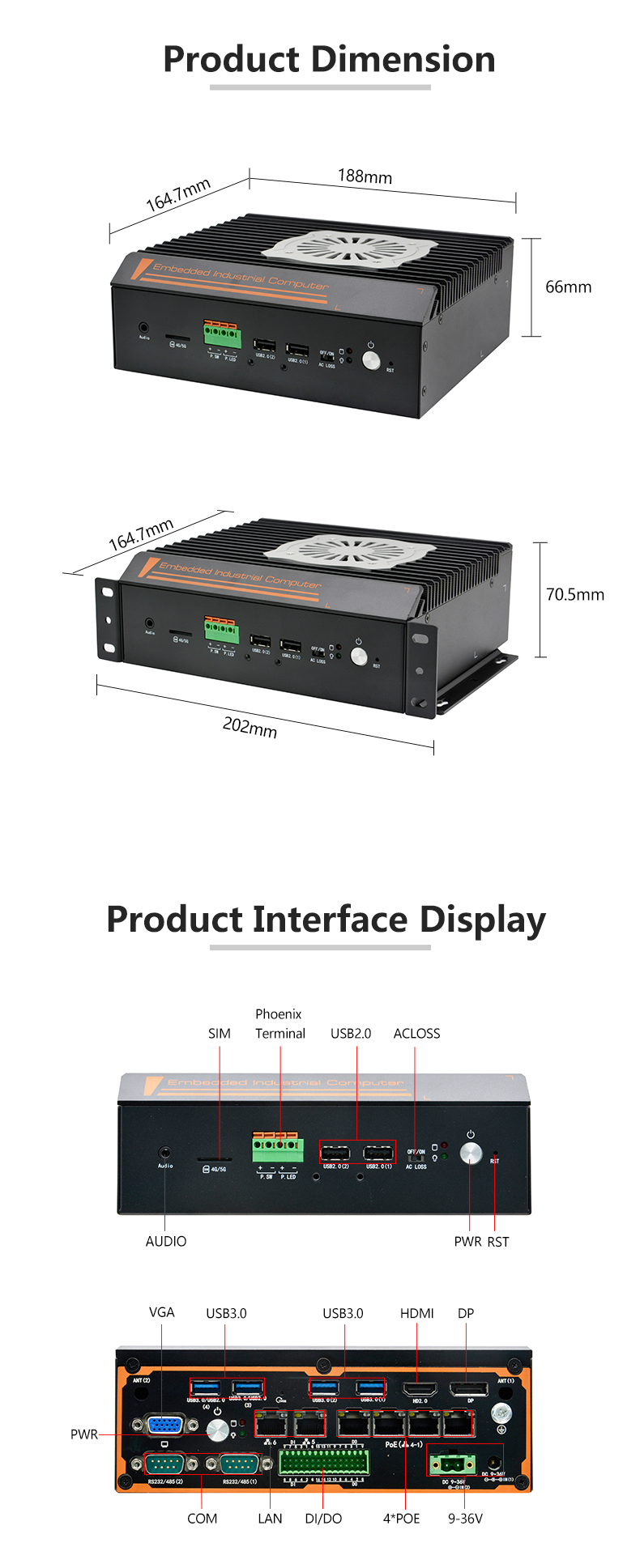

Dimensions   (LxWxH)

188*164.7*66MM

Weight   (Net Weight)

1.6KG

Installation

Desktop/Wall-mount/DIN   rail (35mm)

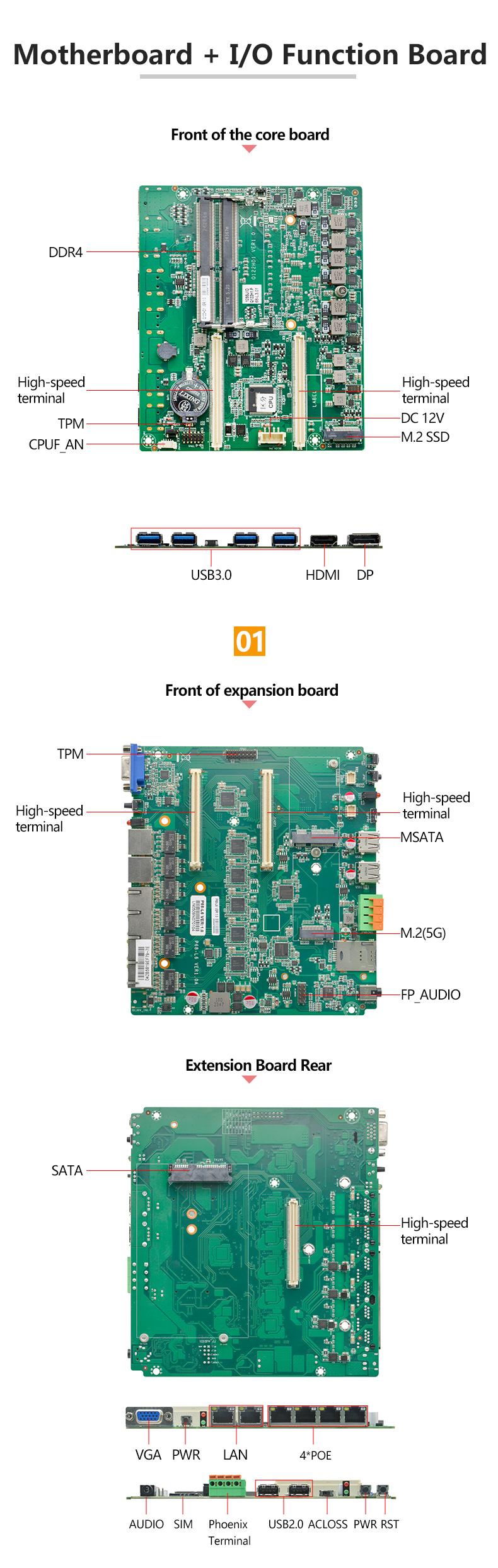

Motherboard

CPU

Intel®   Core i5-1235U/1.30GHz, Turbo 4.4GHz, 10-core 12-thread processor, TDP 15W

Display

Intel®   Iris Xe Graphics capable

Memory

2x DDR4 3200MHz,   supports up to 64GB

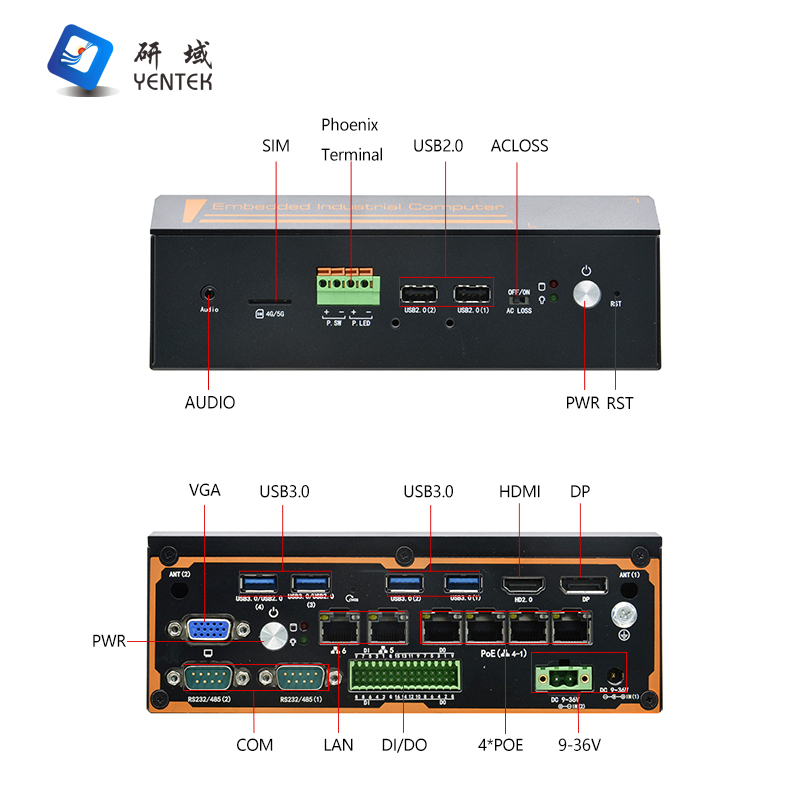

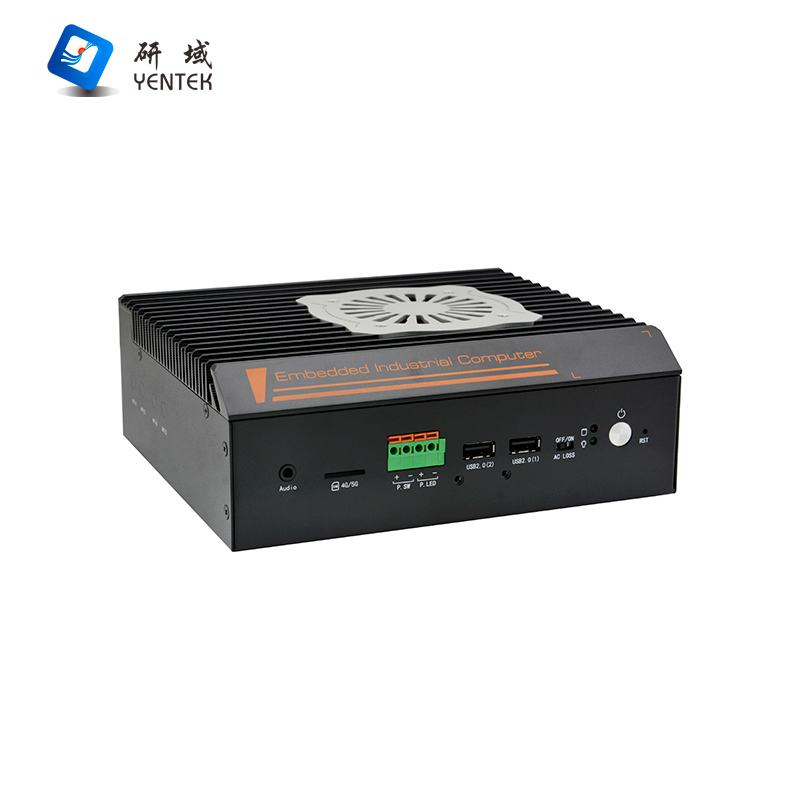

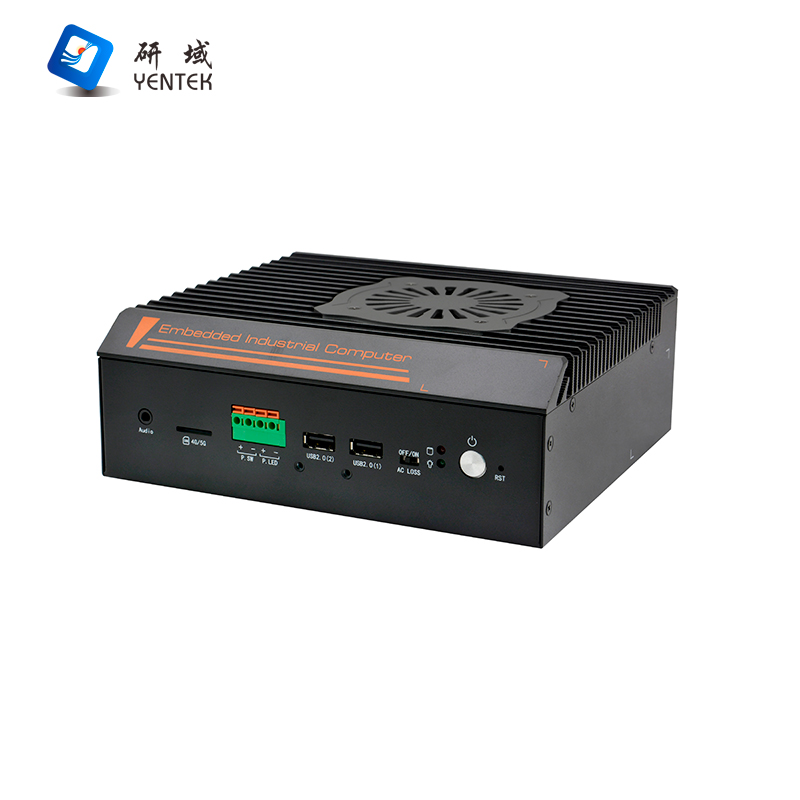

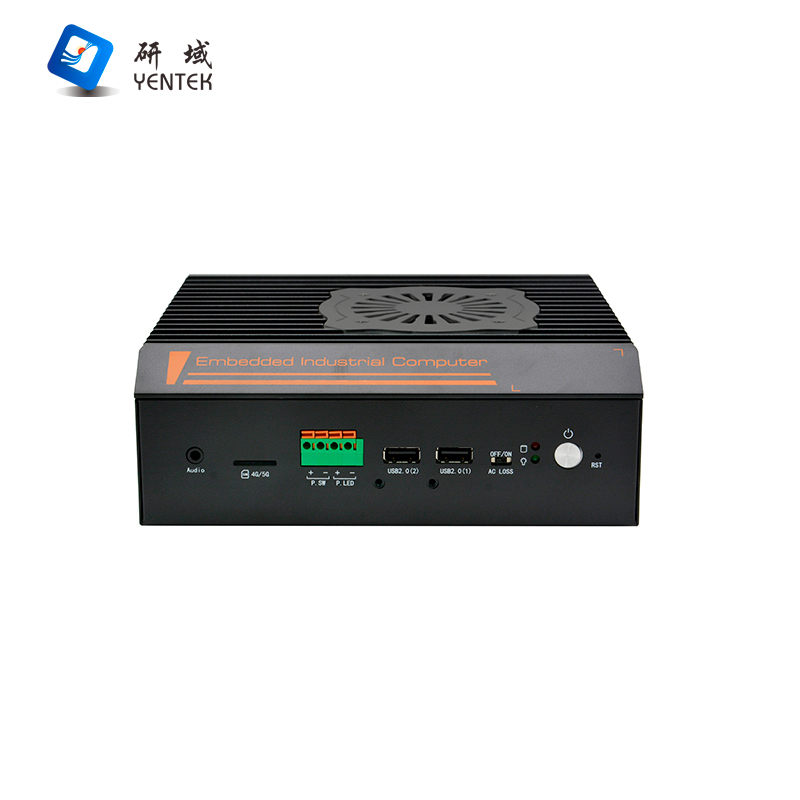

Front   Panel Connectors

Switch

1x Power   button, 1x One-touch reset, 1x ACLOSS (power-on switch)

LED

1x Power   LED, 1x HDD LED

USB

2x USB   2.0

Audio

1x Audio   (Line Out & Mic combo)

Remote   Switch

1x   Power-On Signal, 1x Power LED Signal (on 1x 4P Phoenix connector)

SIM

1x SIM   Card Slot

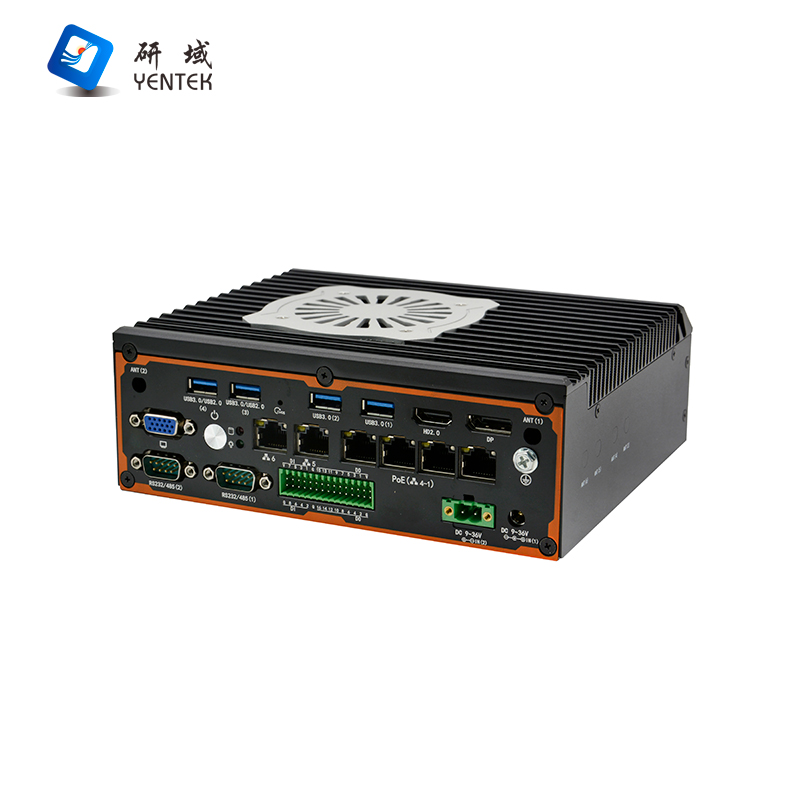

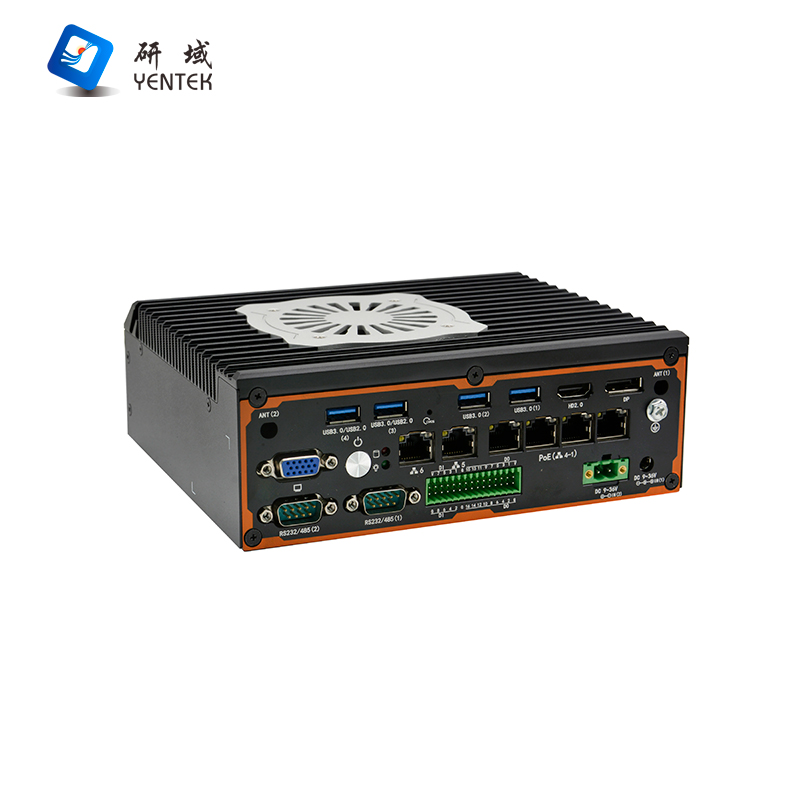

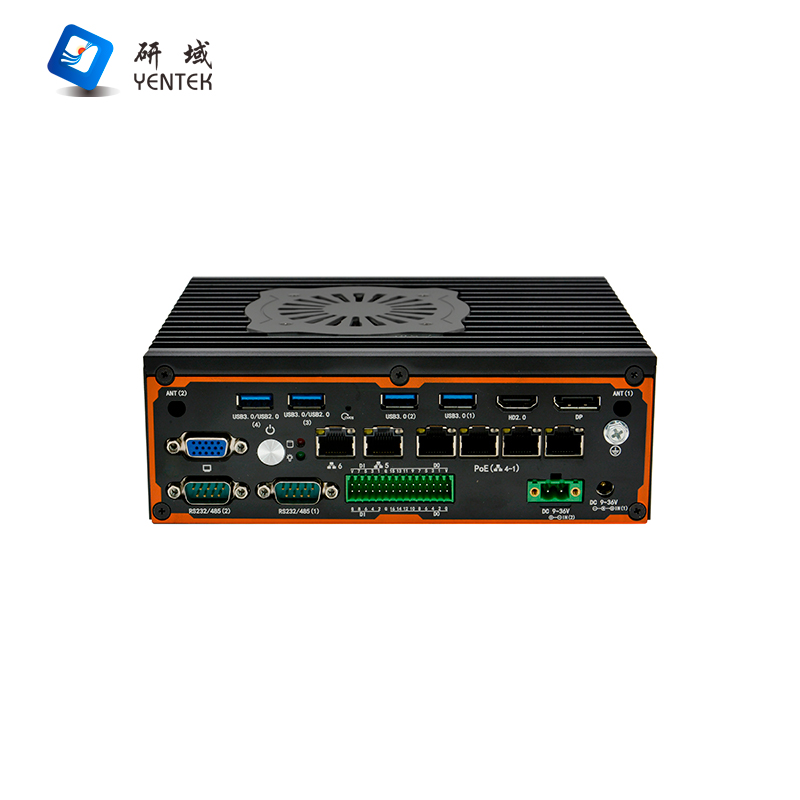

Rear   Panel Connectors

Switch

1x Power   Button, 1x CMOS Reset Button

LED

1*HDD   indicator, 1*HDD indicator

Display   Interface

1*HDMI   2.0 (4096*2160@60Hz), 1*DP 1.4 (4096*2160@60Hz), 1*VGA, supports triple   display

COM

2*RS232/485   DB9 serial ports

LAN

6* Intel   I210AT Gigabit Ethernet ports, 4 of which support POE/15W

DI/DO

8* DI   (NPN 500mA), 16* DO (NPN 4-20mA)

Light   Source Control

1 channel   Yuanxin optical constant-current light source with 80-level adjustment   (0-80mA)

3   channels of 512-level PWM adjustable 24V light sources (24V/48W)

USB

4x USB   3.0 (USB 3.0/2.0 count based on CPU)

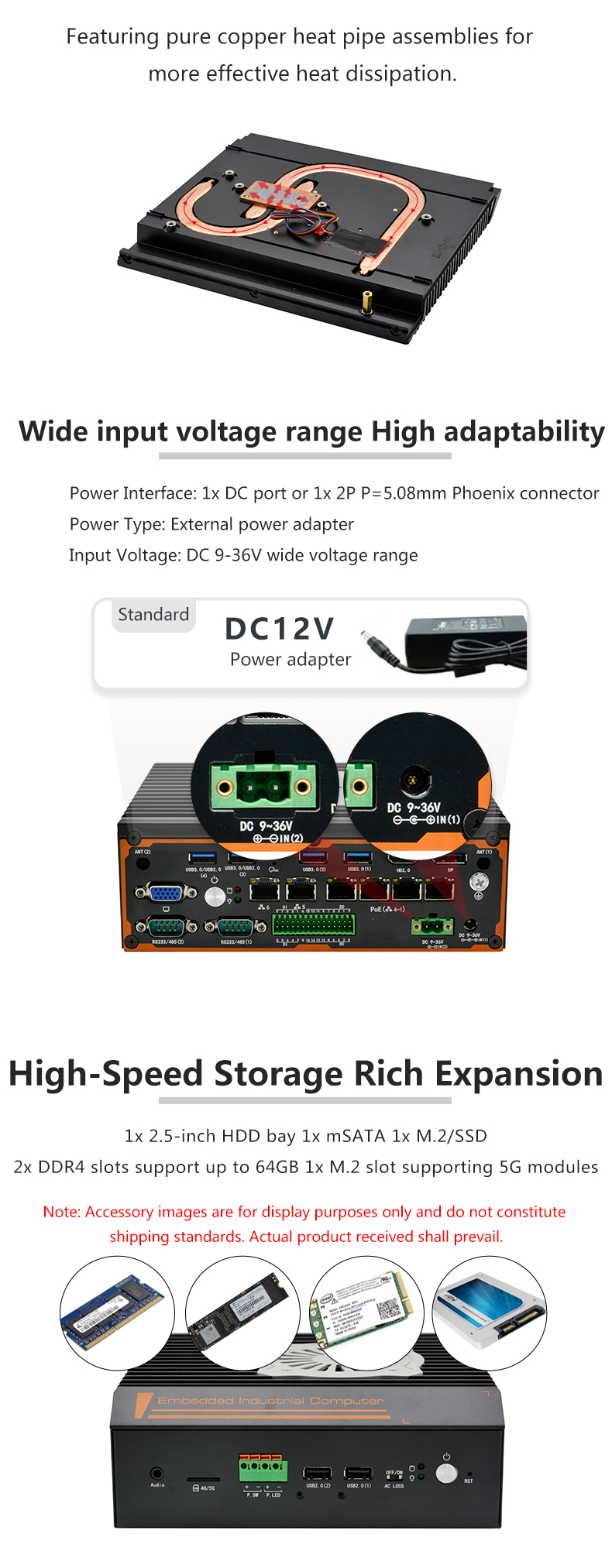

Power   Interface

1x 2P   (P=5.08mm) Phoenix connector, supporting DC 9~36V wide-range power input

Storage

SATA

1x   2.5-inch HDD bay

mSATA

1x mSATA

SSD

1x M.2,   supporting Key-M, 2280, NVMe PCIe x4 SSD

Expansion

5G

1x M.2   slot supporting Key-B, 3042/3052 5G modules

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Type

DC 9-36V   wide voltage

Power   Output

AC to DC   60W+ (depending on specific device)

Environment

Operating   Temperature

-10°C to   50°C

Storage   Temperature

-20°C to   70°C

Relative   Humidity

5%-95%   relative humidity, non-condensing

Operating   Vibration

0.5g   rms/5-500HZ/random/operating

1

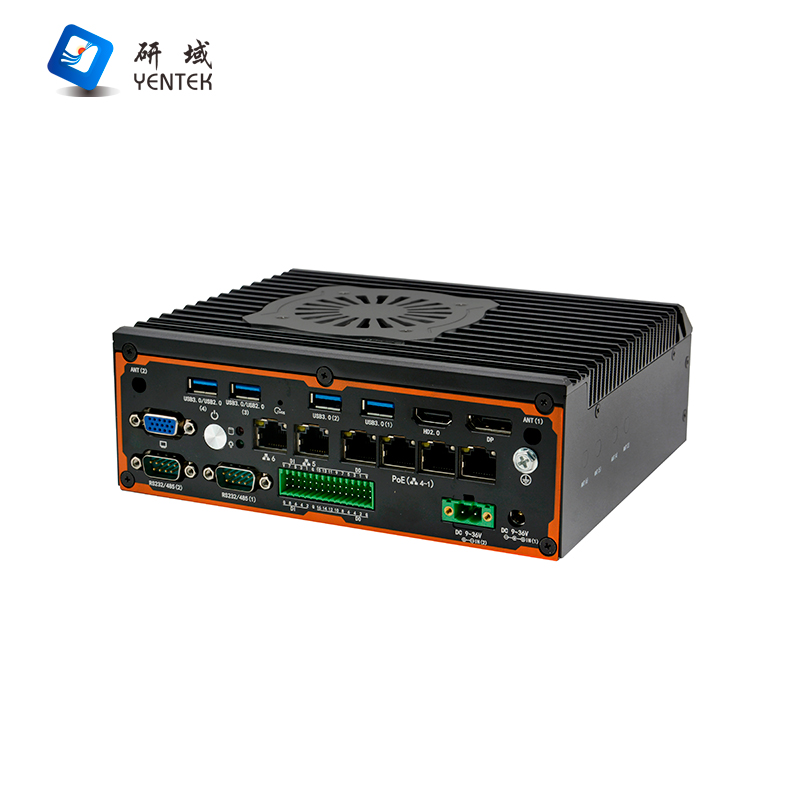

P6760F-GY4   V2.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

Q112HD1

P68-L6/P68-GY4

2.5+MSATA+M.2(NVME)

6*I210

2

8/16

2

4

 9-36V

2

P6760F-GY4   V2.0(1195G7)

I7-1195G7/2.9G

2*SODDR4

Q112HD1

P68-L6/P68-GY4

2.5+MSATA+M.2(NVME)

6*I210

2

8/16

2

4

 9-36V

3

P6760F-GY4   V2.0(1235U)

I5-1235U/1.3G

2*SODDR4

Q122HD1

P68-L6/P68-GY4

2.5+MSATA+M.2(NVME)

6*I210

2

8/16

2

4

 9-36V

4

6760F-GY4   V2.0(1255U)

I7-1255U/1.7G

2*SODDR4

Q122HD1

P68-L6/P68-GY4

2.5+MSATA+M.2(NVME)

6*I210

2

8/16

2

4

 9-36V
