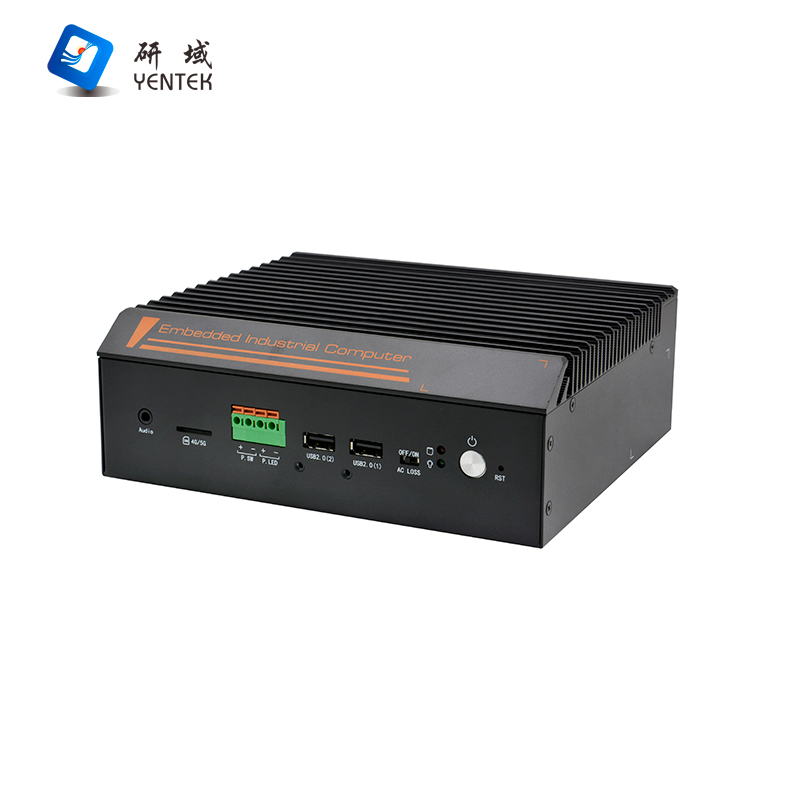

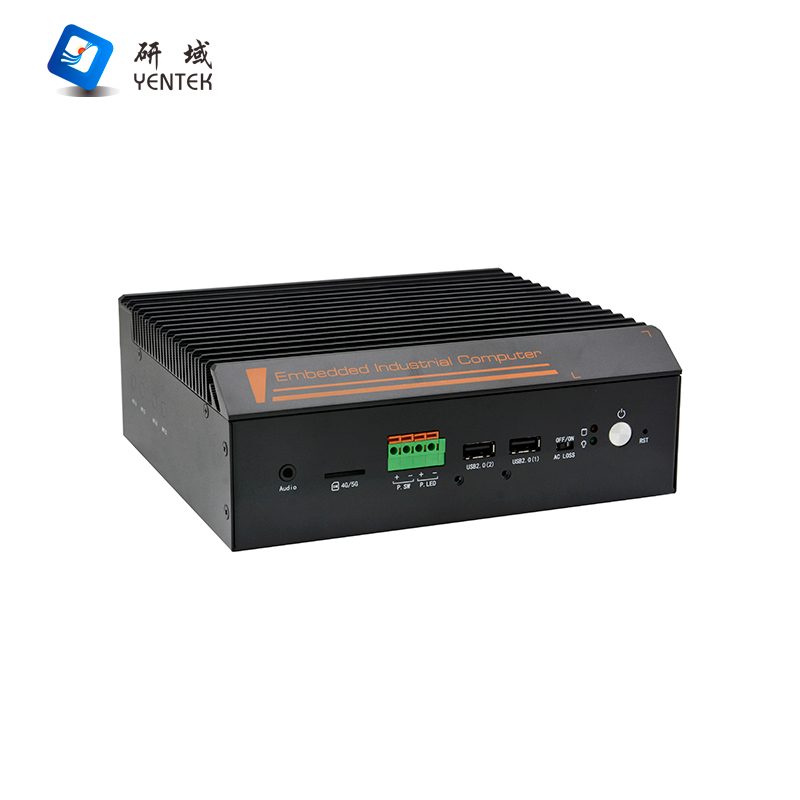

Model | P6760S-GY4 V2.0(N305) |

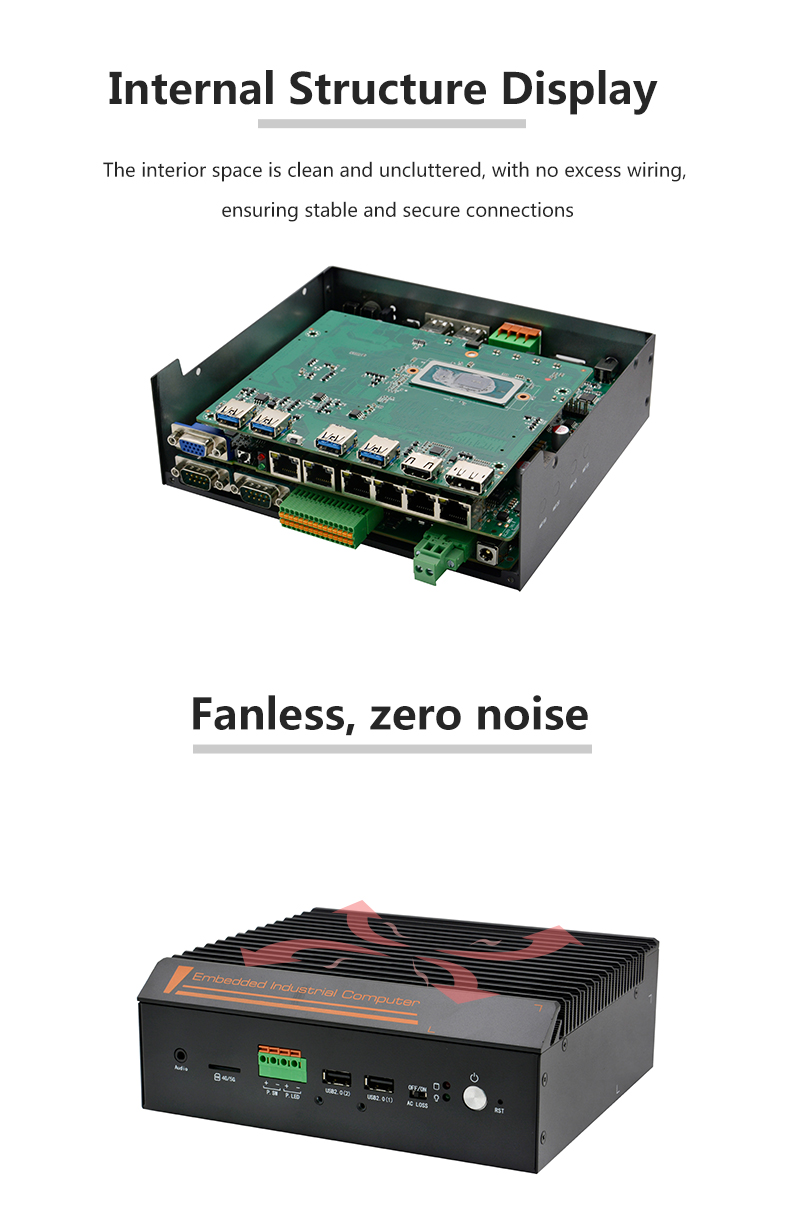

Chassis | Material/Structure | Aluminum alloy + sheet metal construction, fanless cooling |
Color | Black |

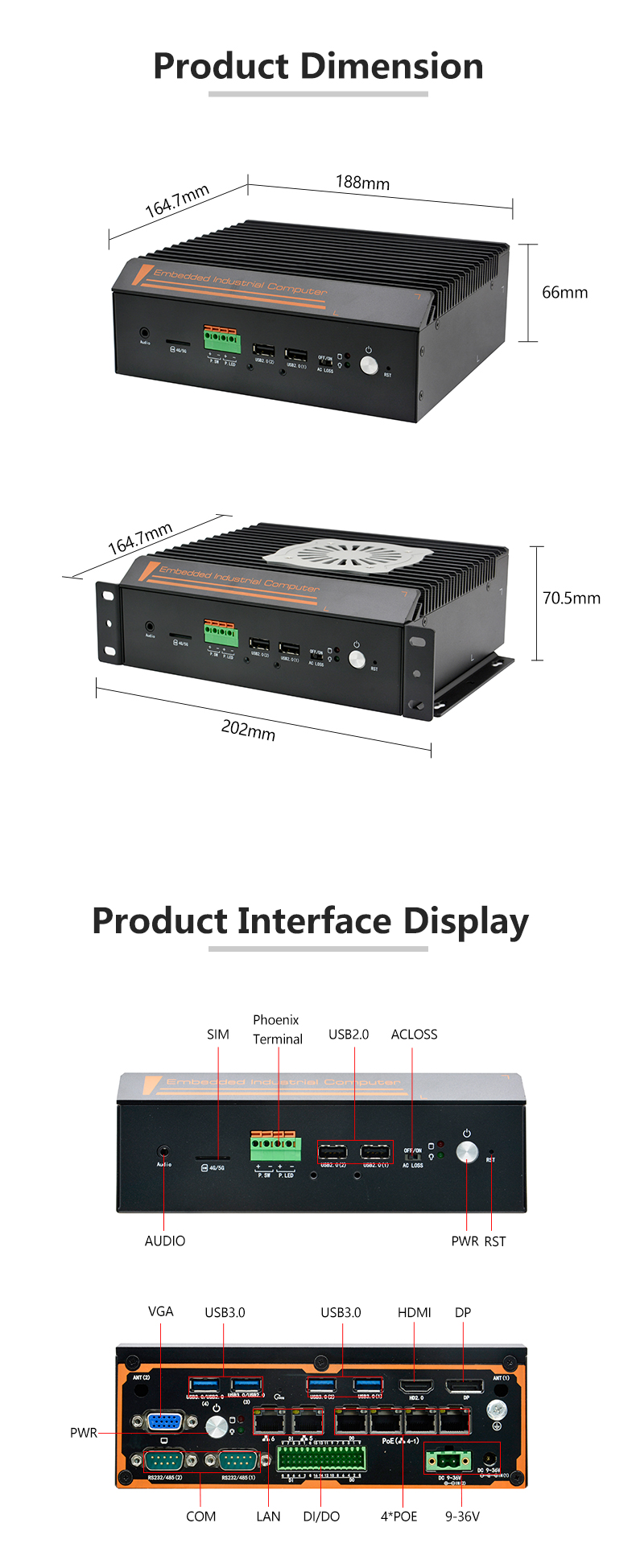

Dimensions (LxWxH) | 188*164.7*66MM |
Weight (Net Weight) | 1.6KG |
Installation | Desktop/Wall-mount/DIN rail (35mm) |
Motherboard | CPU | Intel® Alder Lake-N i3-N305/Turbo 3.8GHz, 8-core 8-thread processor, TDP 15W |
Display | Intel® UHD Graphics |
Memory | 1x DDR4 3200MHz, supports up to 32GB |

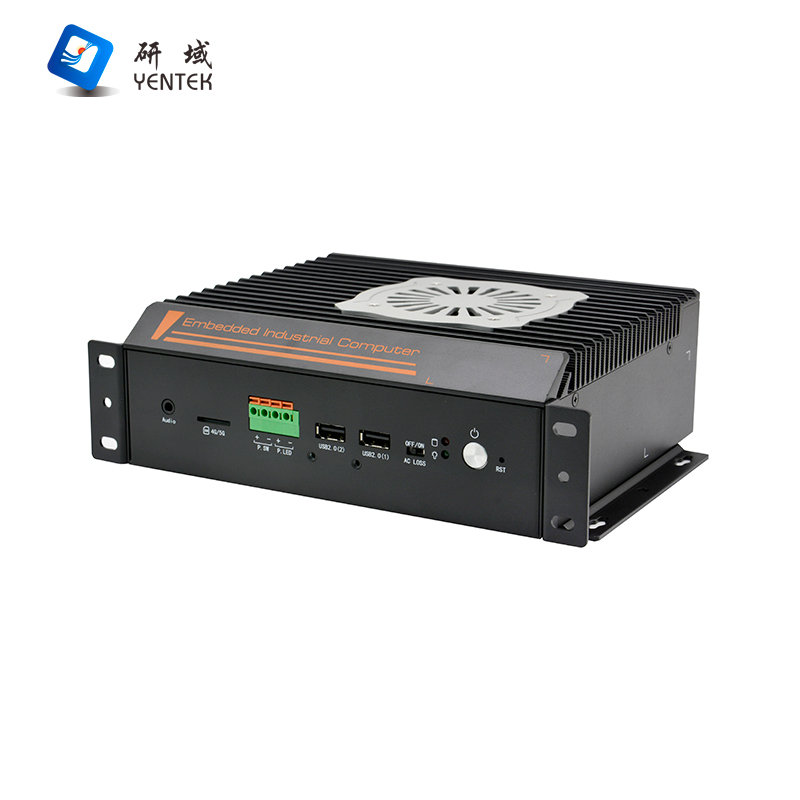

Front Panel Connectors | Switch | 1x Power button, 1x One-touch reset, 1x ACLOSS (power-on DIP switch) |
LED | 1x Power LED, 1x HDD LED |
USB | 2x USB 2.0 |
Audio | 1x Audio (Line Out & Mic combo) |
Remote Switch | 1x Power Signal, 1x Power LED Signal (on 1x 4-pin Phoenix connector) |
SIM | 1x SIM Card Slot |

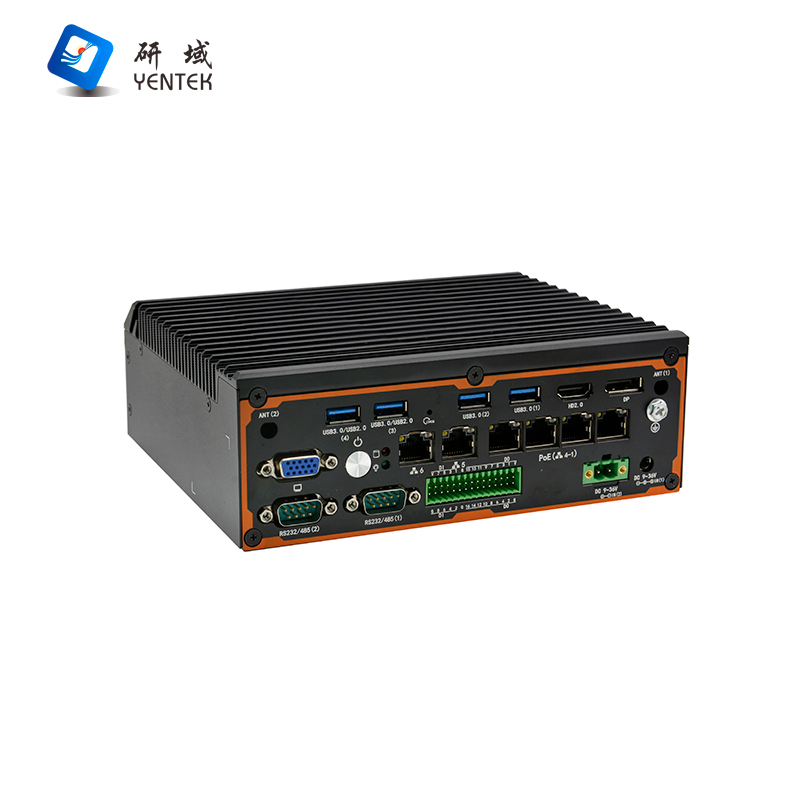

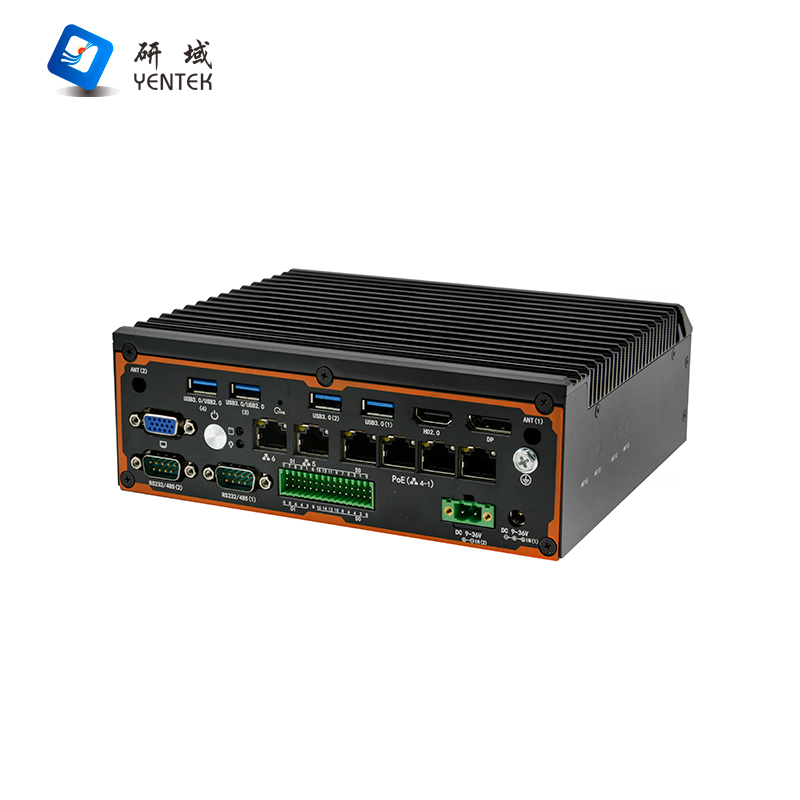

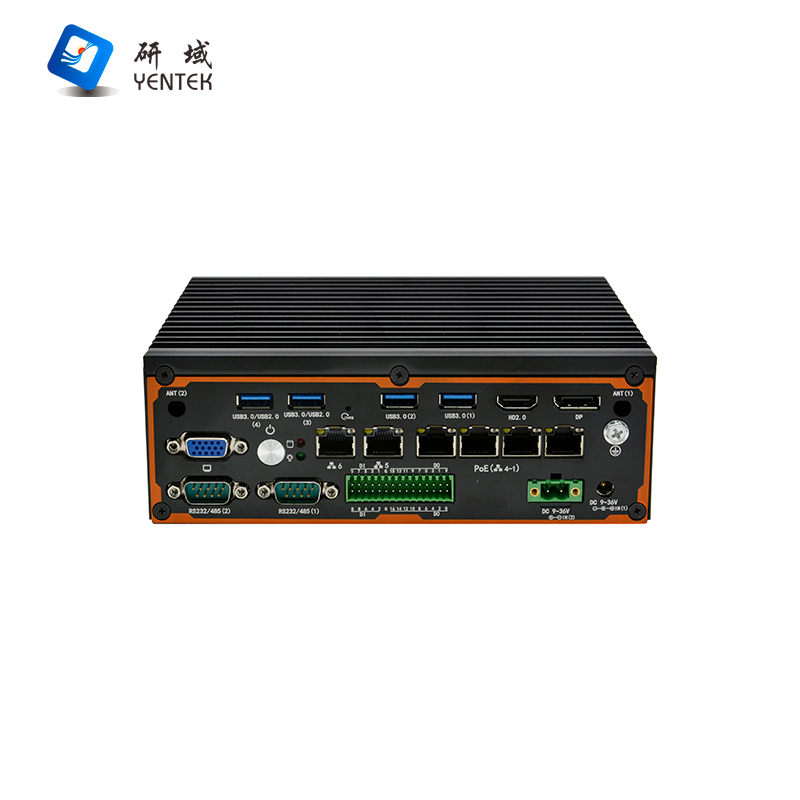

Rear Panel Connectors | Switch | 1x Power Button, 1x CMOS Reset Button |
LED | 1x HDD LED, 1x HDD LED |
Display Interface | 1*HDMI 2.0 (4096*2160@60Hz), 1*DP 1.4 (4096*2160@60Hz), 1*VGA, supports triple display |

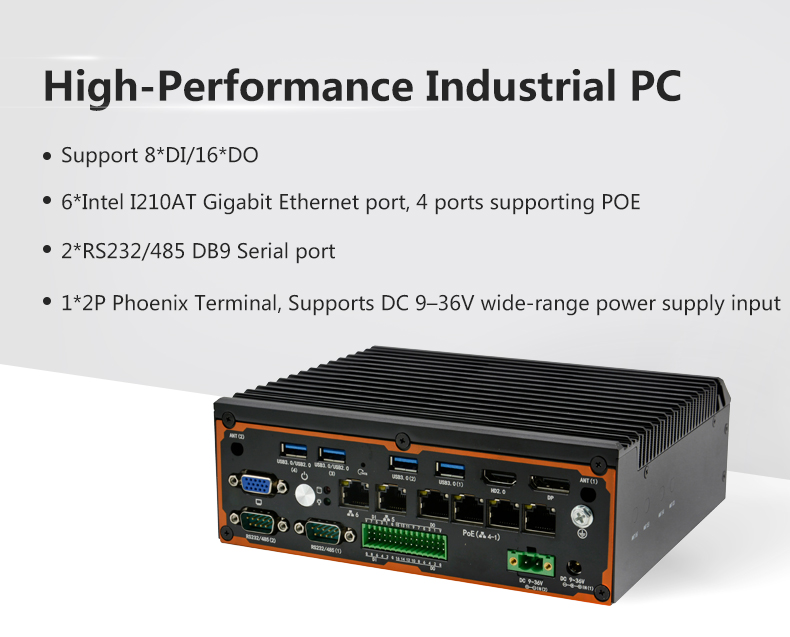

COM | 2*RS232/485 DB9 serial ports |
LAN | 6*Intel I210AT Gigabit Ethernet ports, 4 of which support POE (single port supports 15W) |
DI/DO | 8x DI (NPN 500mA), 16x DO (NPN 4-20mA) |
Light Source Control | 1x Yuanxin optical constant-current light source with 80-level adjustment (0-80mA) |
3x 512-level PWM adjustable 24V light sources (24V/48W) |
USB | 2x USB 3.0, 2x USB 2.0 |

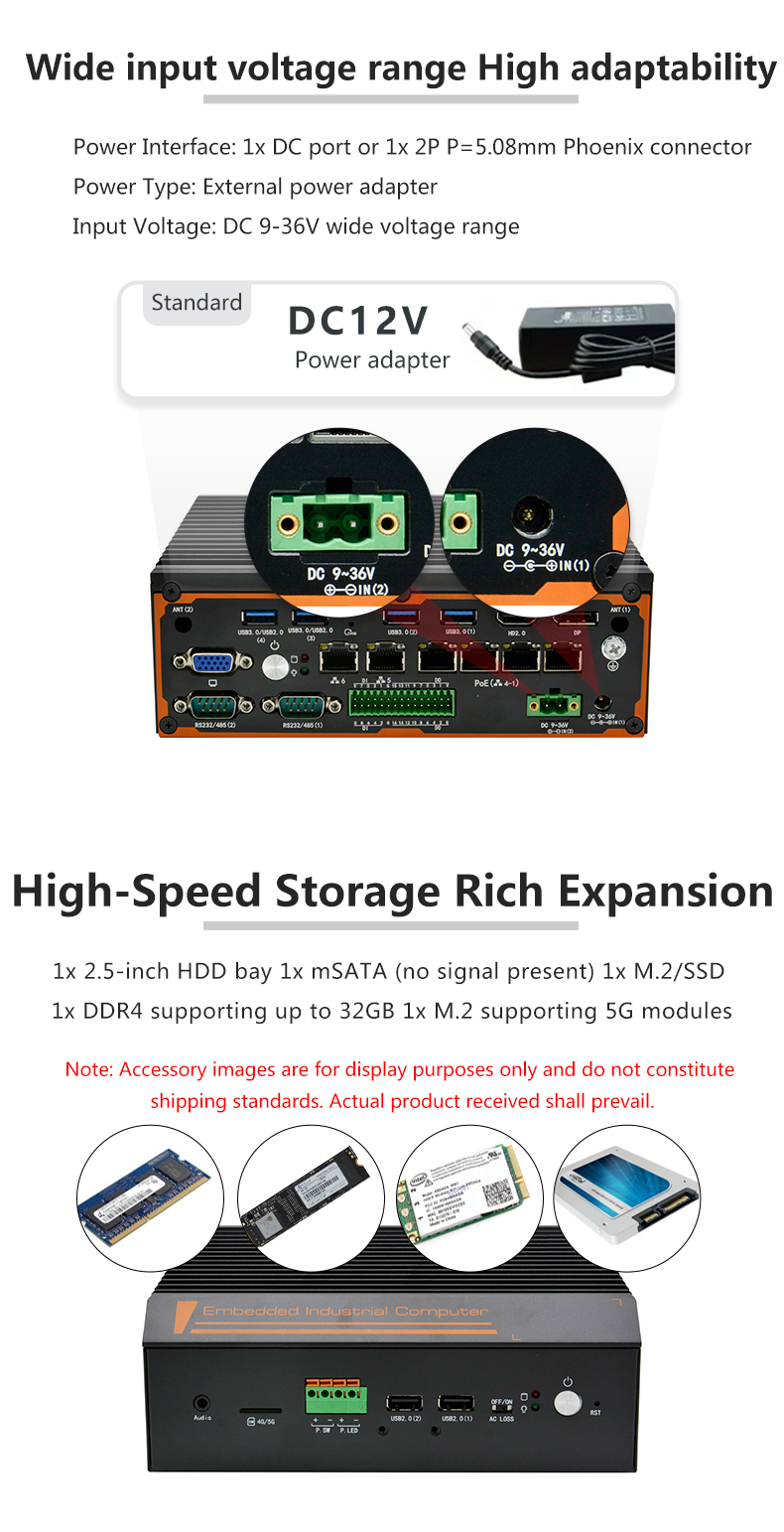

Power Interface | 1x 2P (P=5.08mm) Phoenix connector, supporting DC 9~36V wide-range power input |
Storage | SATA | 1x 2.5-inch HDD bay |
mSATA | 1x mSATA (this interface has no signal) |
SSD | 1x M.2, supporting Key-M, 2280, NVMe PCIe x4 SSD |
Expansion | 5G | 1x M.2, supports Key-B, 3042/3052, 5G module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type | Power Supply Type | DC 9-36V wide voltage |
Power Output | AC to DC 60W+ (depending on specific device) |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
