P6760S-L3

Chassis

Material/Construction

Aluminum   + Sheet Metal, Fanless Cooling

Color

Black   color

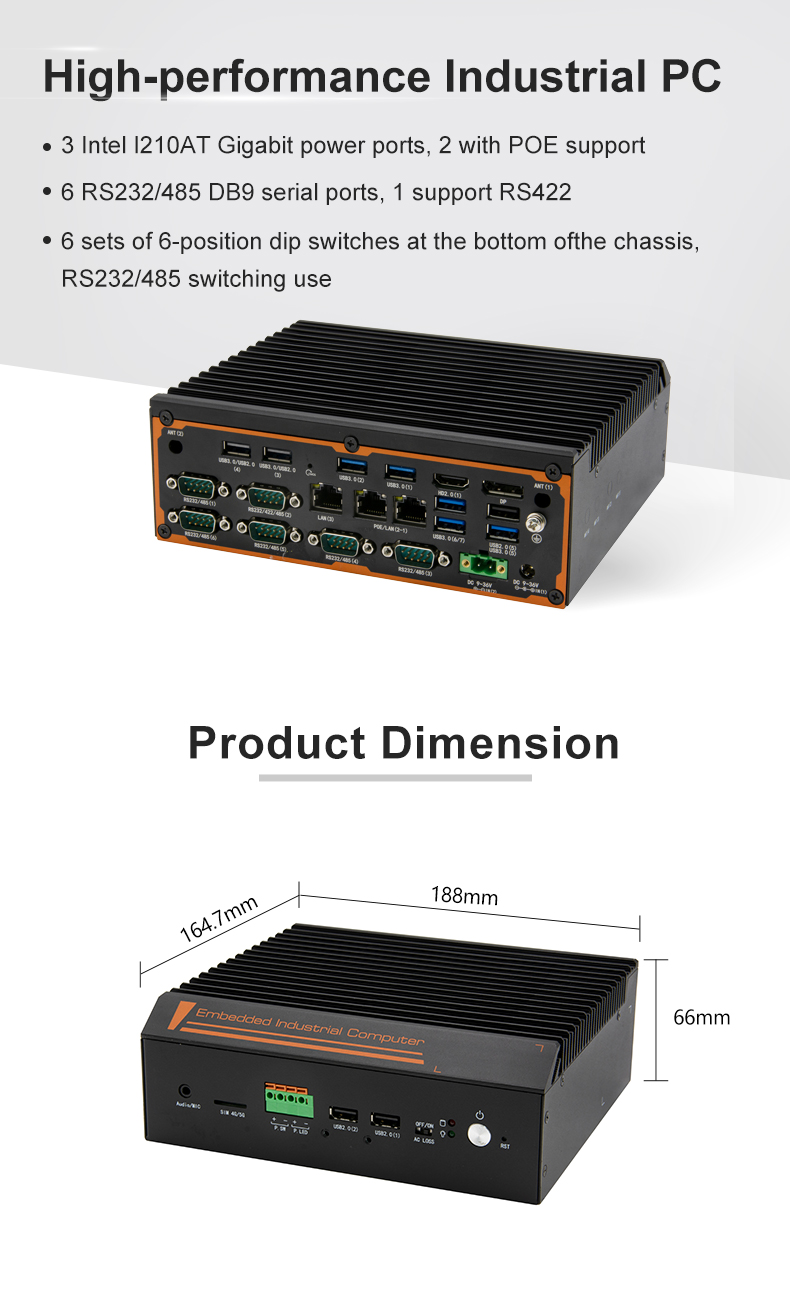

Size   (LWH)

188*164.7*66MM

Weight   (bare net)

1.6KG

Installation

Desktop/Wall   Mount/DIN Rail(35mm)

Motherboard

CPU

Intel®   Alder Lake-N i3-N305/Turbo 3.8GHz, Eight-Core, Eight-Thread Processor, TDP   15W

Display

Intel®UHD   Graphics

Memory

1*SODDR4   3200MHz , supports up to 32GB

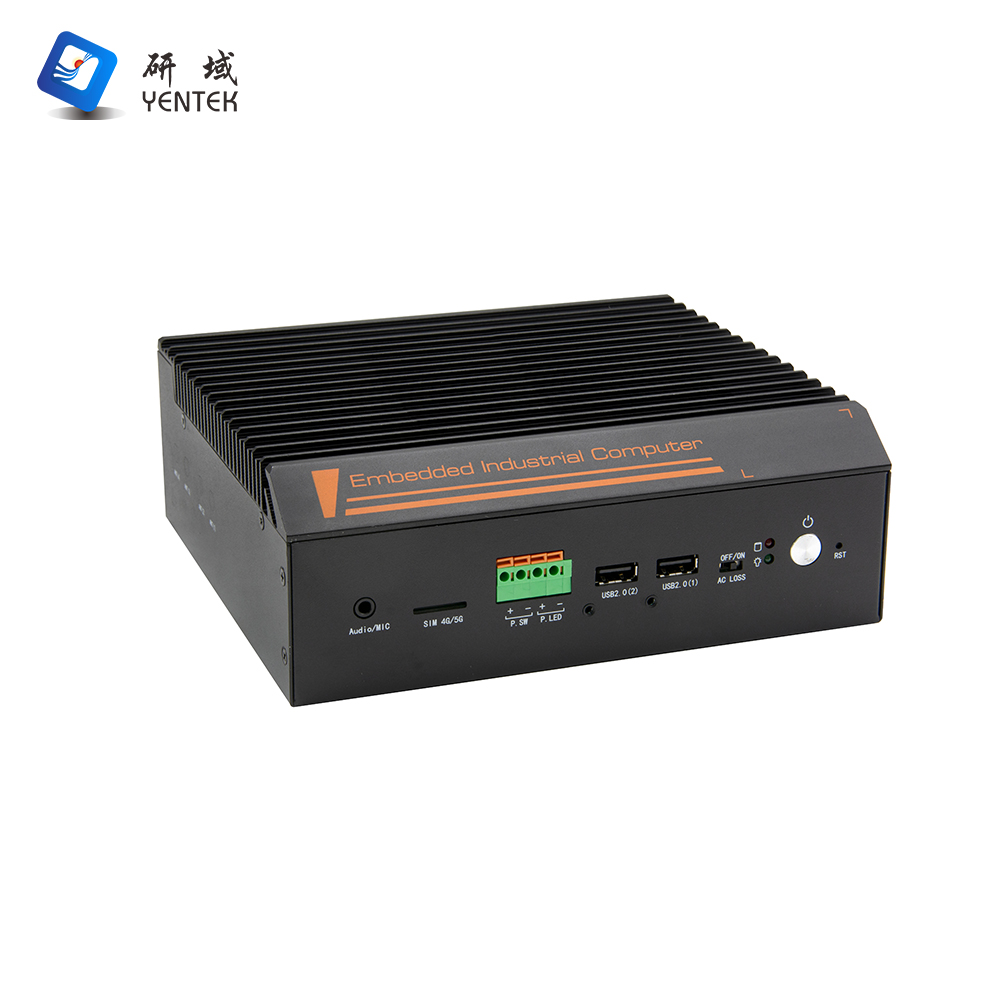

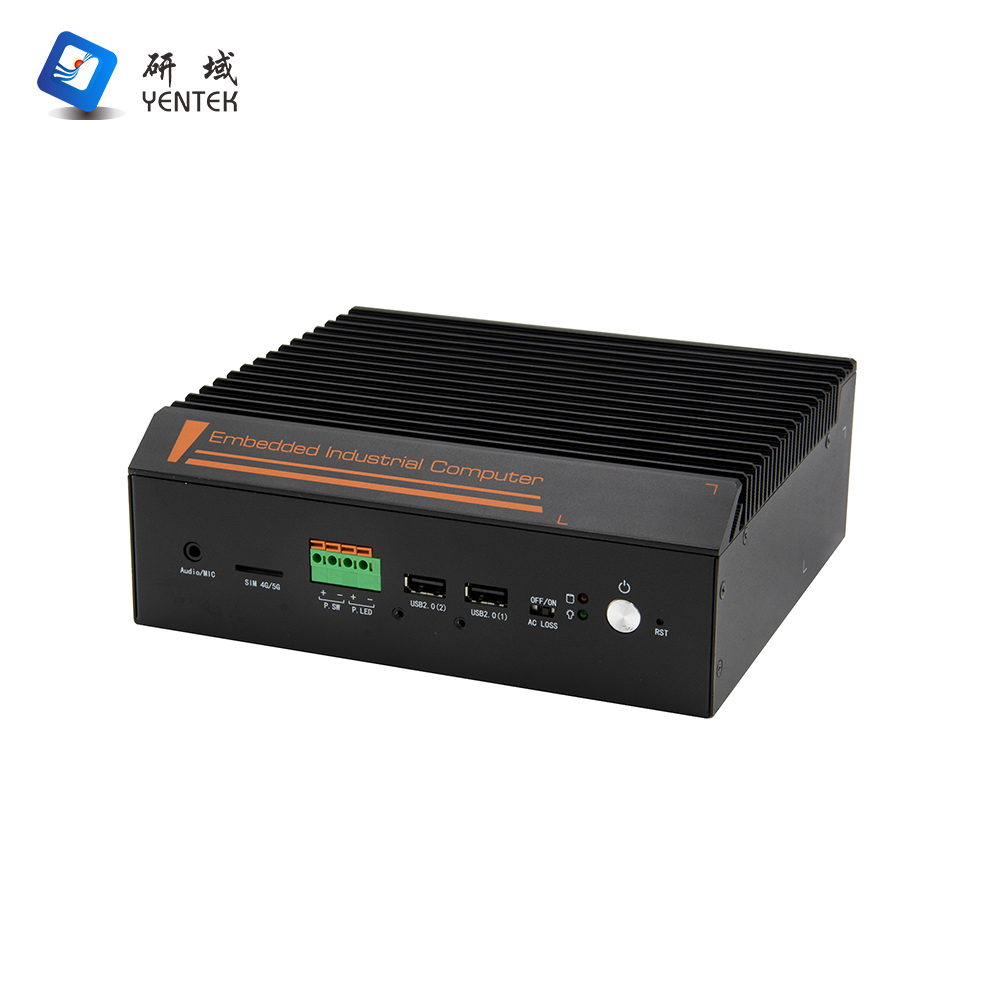

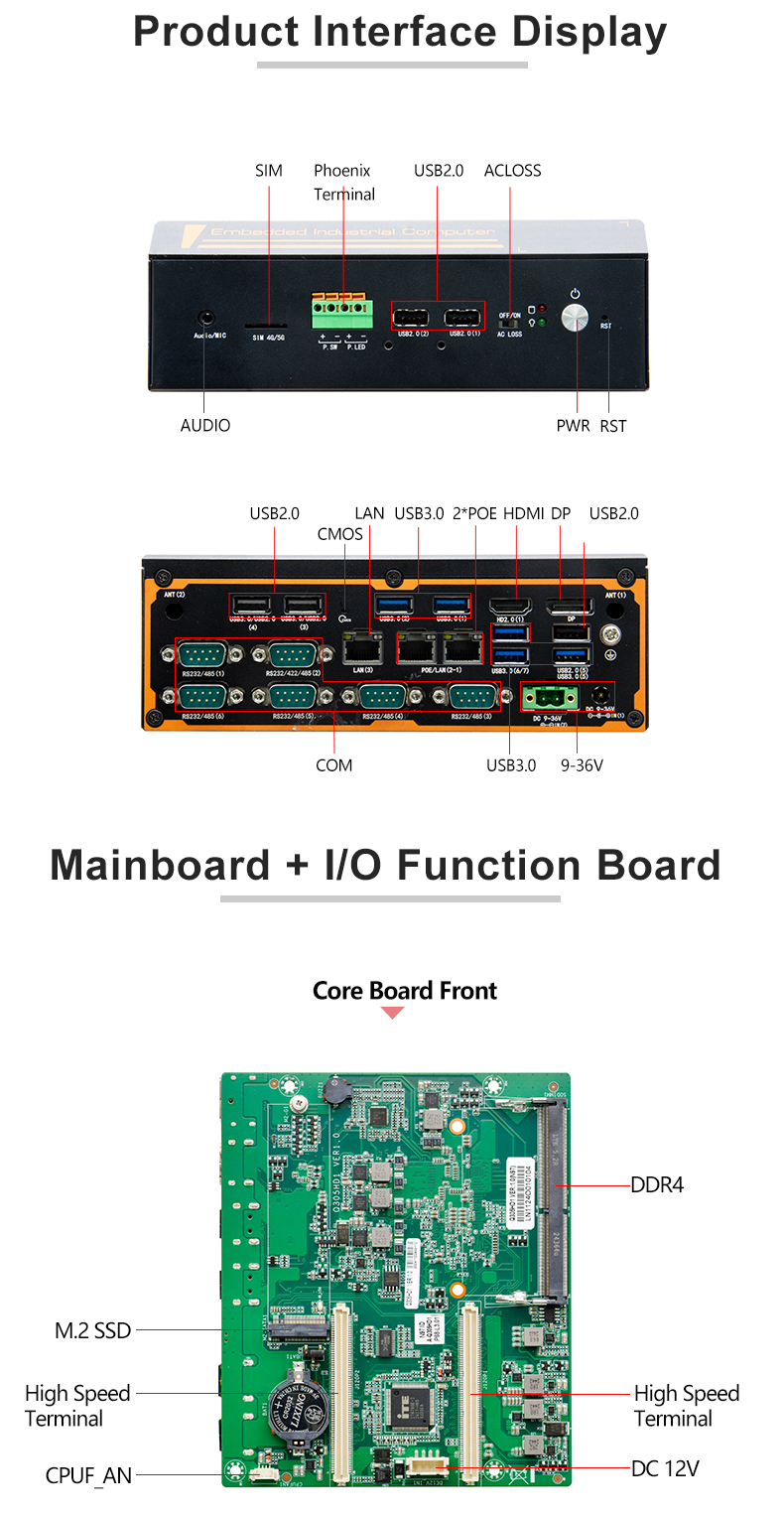

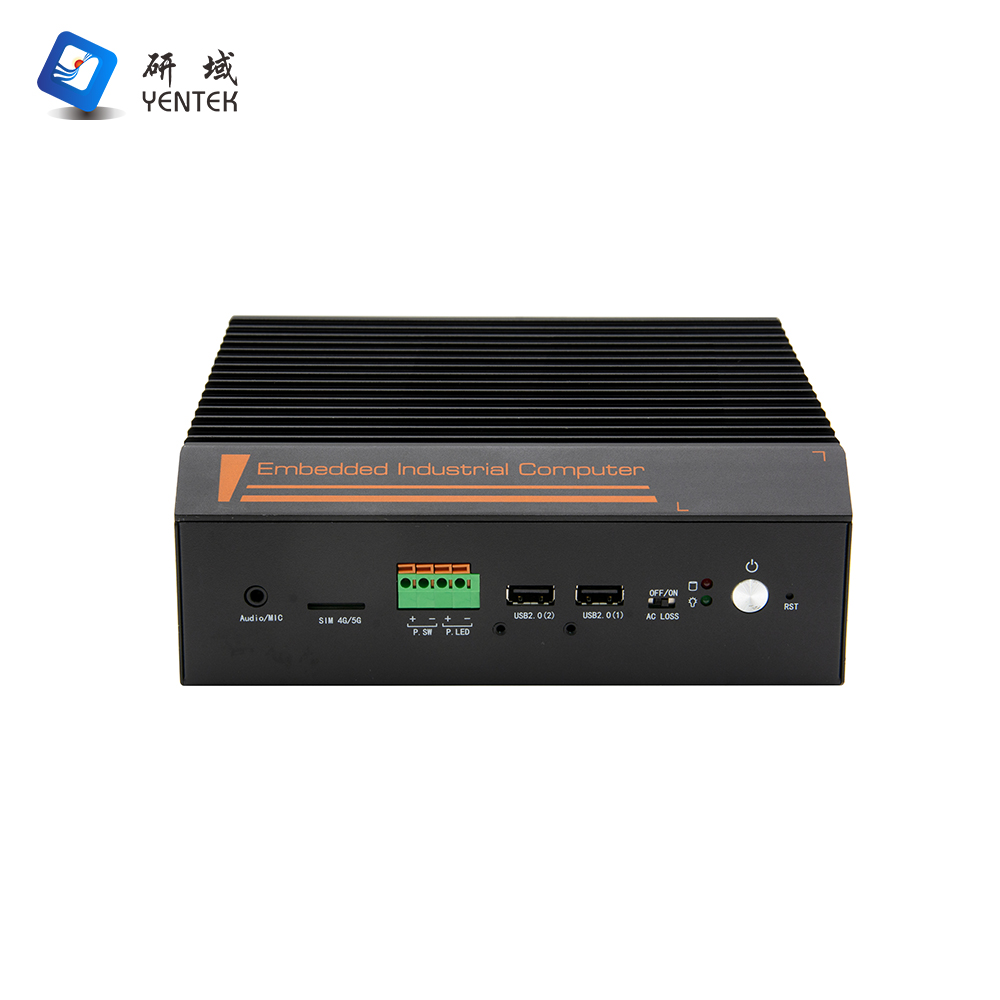

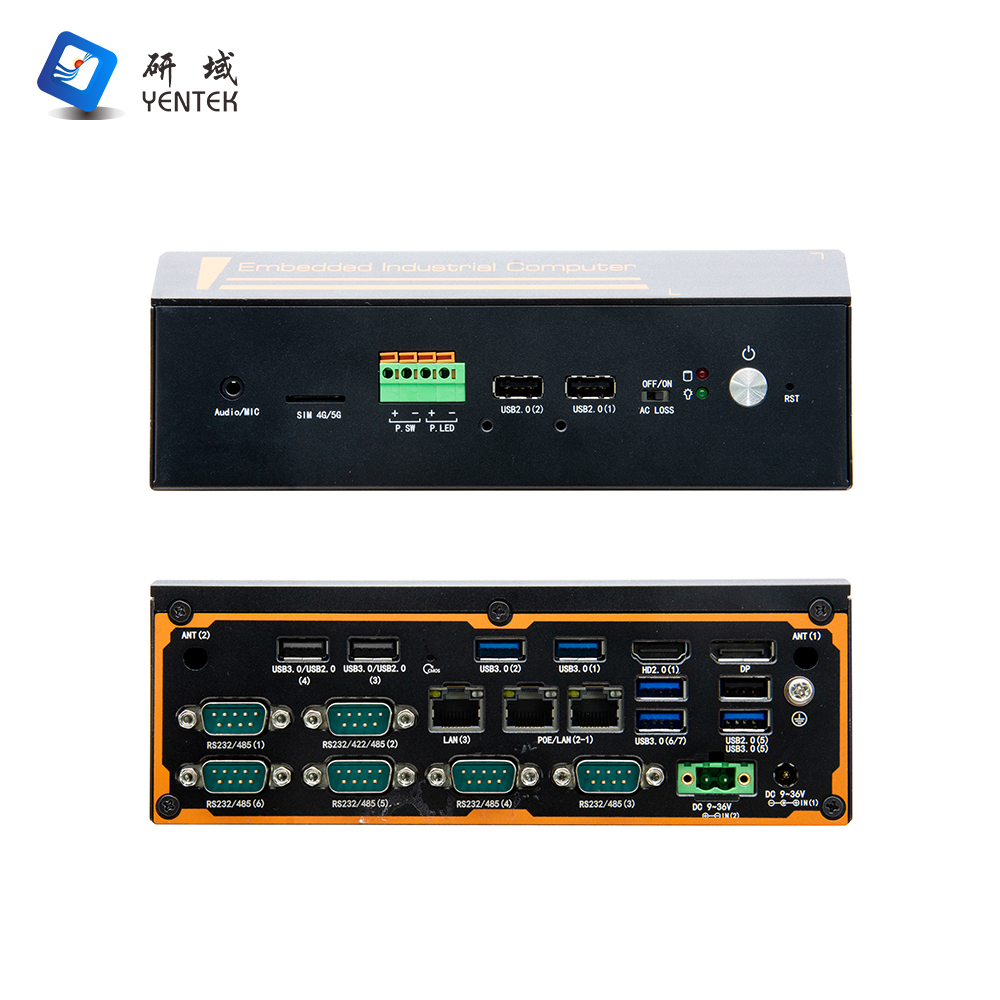

Front   Panel Connectors

Switch

1*Boot   Button, 1*One-Key Restore, 1*ACLOSS (Power-On DIP Switch)

LED

1*Power   Indicator, 1*Hard Disk Indicator

USB

2*USB2.0

Audio

1*Audio,   Line out&Mic 2-in-1

Phoenix   Terminal

1*4P   (1*power on signal/1*power indicator signal)

SIM

1*SIM   standard card slot

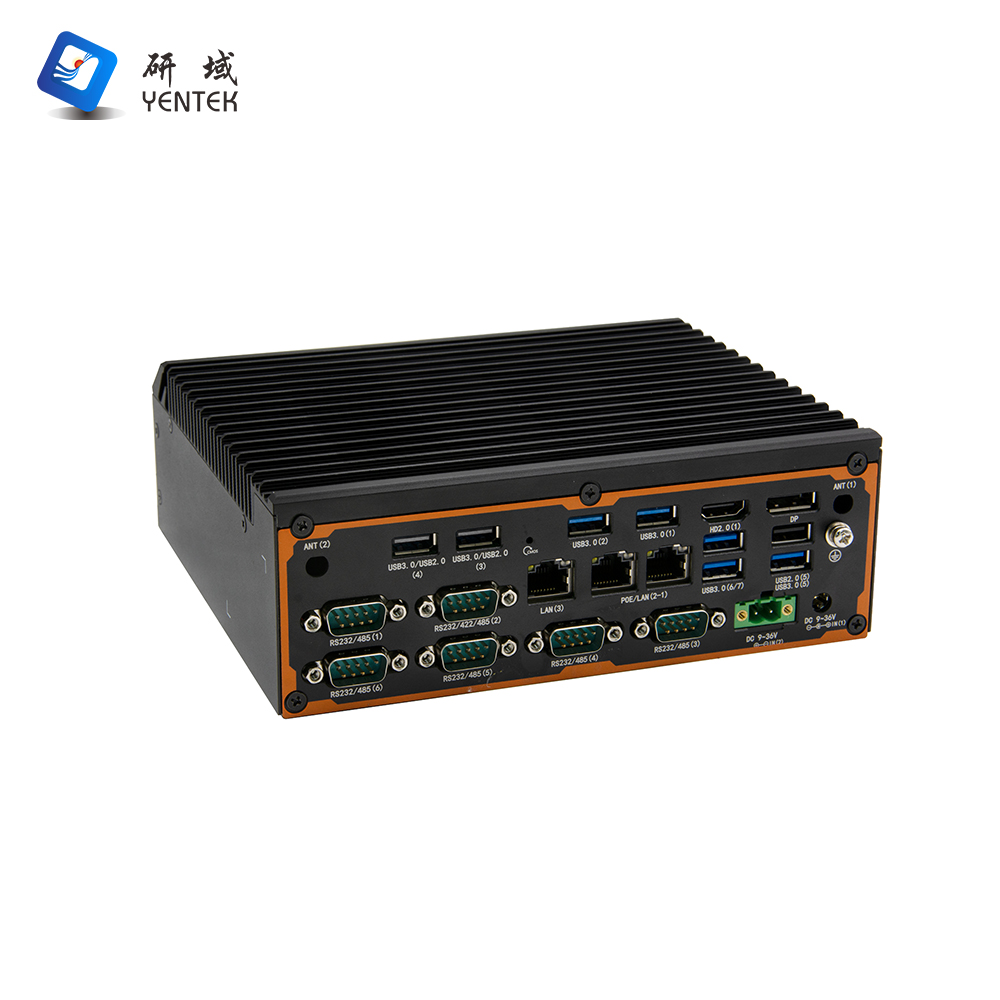

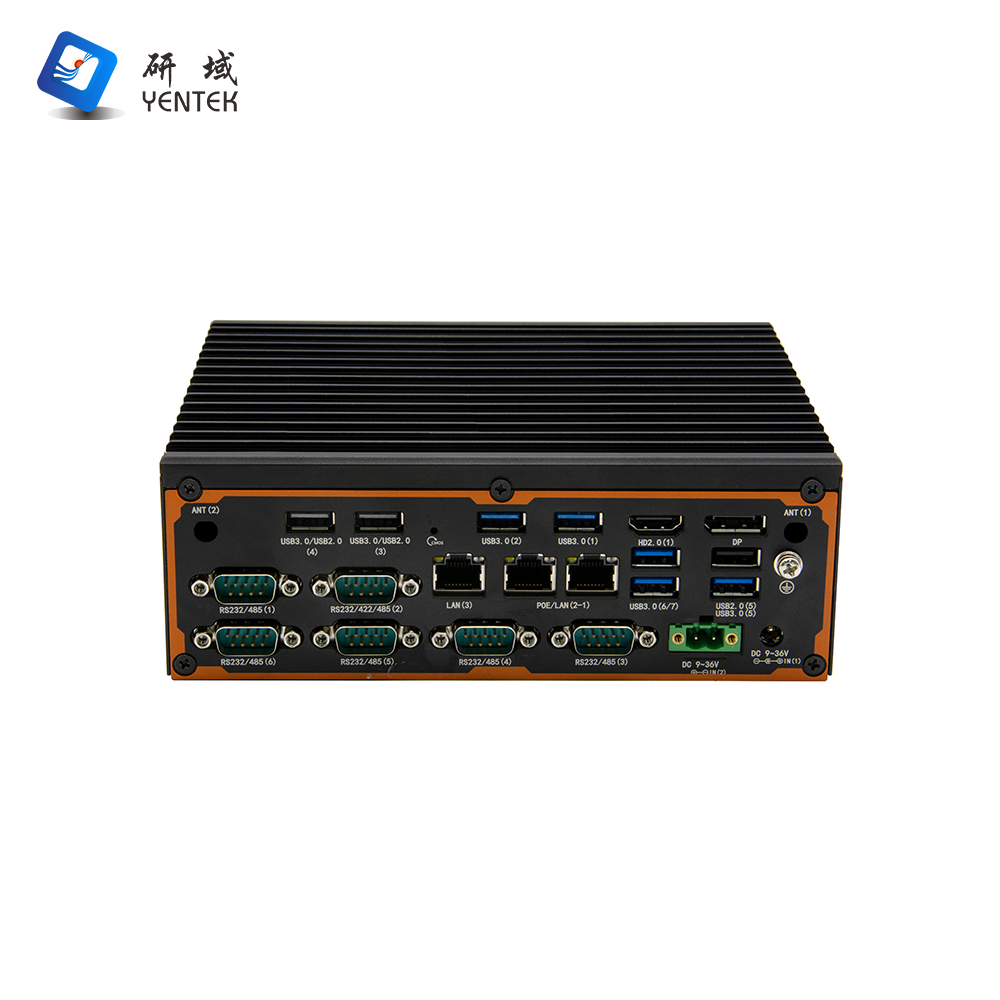

Rear   Panel Connectors

Switch

1*CMOS   restore button

Display   Interface

1*HDMI2.0(4096*2160@60Hz),   1*DP1.4(4096*2160@60Hz), support dual display

COM

6*RS232/485   DB9 serial port, one of which supports RS422

LAN

3*Intel   I210AT Gigabit power port, 2 of which support POE (single port 15W)

USB

5*USB3.0,   3*USB2.0

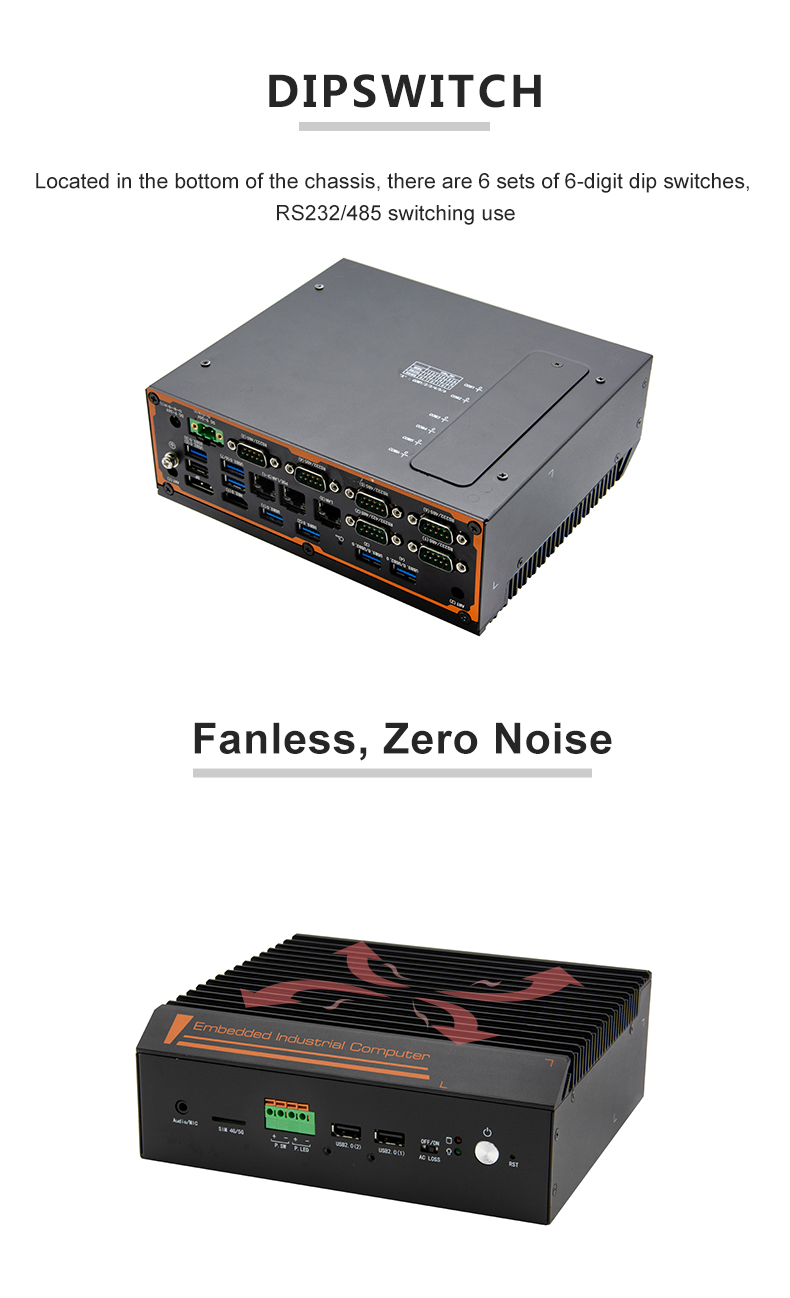

DIP   Switches

6 sets of   6-position dip switches, RS232/485 switching use (dip switches are located at   the bottom of the chassis)

Power   Interface

1*DC   interface or 1*2P(P=5.08mm) Phoenix terminal, support DC 9~36V wide voltage   power input

Storage

SATA

1*2.5-inch   hard disk bay

MSATA

1*MSATA   (no signal on this connector)

SSD

1*M.2,   support Key-M, 2280, NVME PCIE x2/SATA adaptive SSD

Expansion

4G/WiFi

1*MINIPCIE,   support WiFi+BT or 4G module or CAN module

System   Support

Microsoft

Windows   10

Linux

Linux

Power   Supply Type

Power   Type

External   Power Adapter

Voltage   Input

DC 9-36V   wide voltage

Power   Output

AC TO DC   60W or more (depending on specific equipment)

Environment

Operating   Temperature

-10℃～50℃

Storage   Temperature

-20℃～70℃

Relative   Humidity

5%-95%   relative humidity, non-condensing

Vibration

0.5g   rms/5-500HZ/random

1

P6760S-L3 V2.0(N97)

N97/Turbo

3.6G

Q305HD1

1*SODDR4

P68-L3/P68-C4

2.5+M.2(NVME)

3*I210

6

5

5

 9-36V

2

P6760S-L3 V2.0(N305)

I3-N305/   Turbo 3.8.0G

Q305HD1

1*SODDR4

P68-L3/P68-C4

2.5+M.2(NVME)

3*I210

6

5

5

 9-36V
