Model | P6750S-D2 V2.0(N305) |
Chassis | Material/Construction | Aluminium alloy + sheet metal, fanless cooling |
Colour | Black |

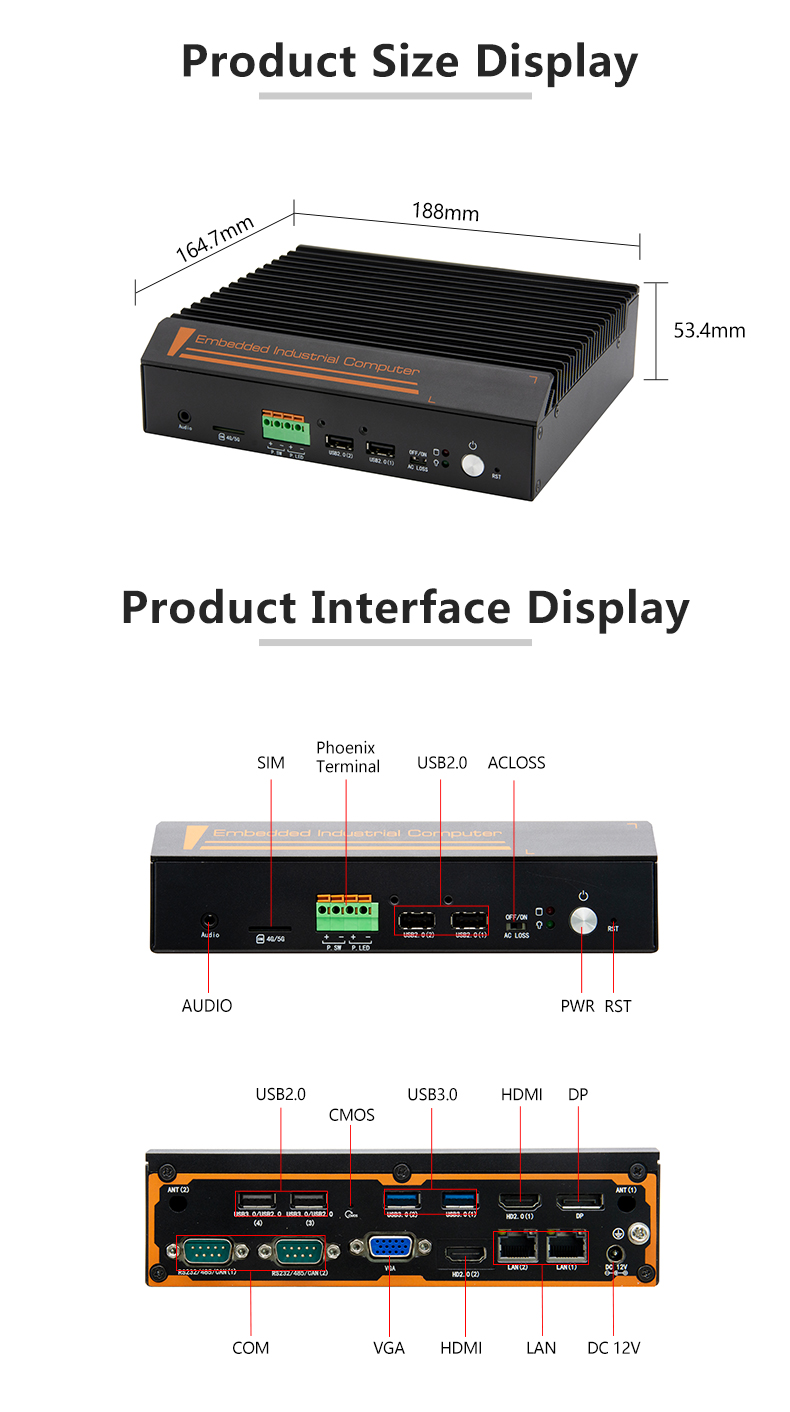

Dimensions (LWH) | 188*164.7*53.4MM |
Weight (bare net weight) | 1.5KG |
Installation | Desktop/Wall-mounted/DIN rail (35mm) |

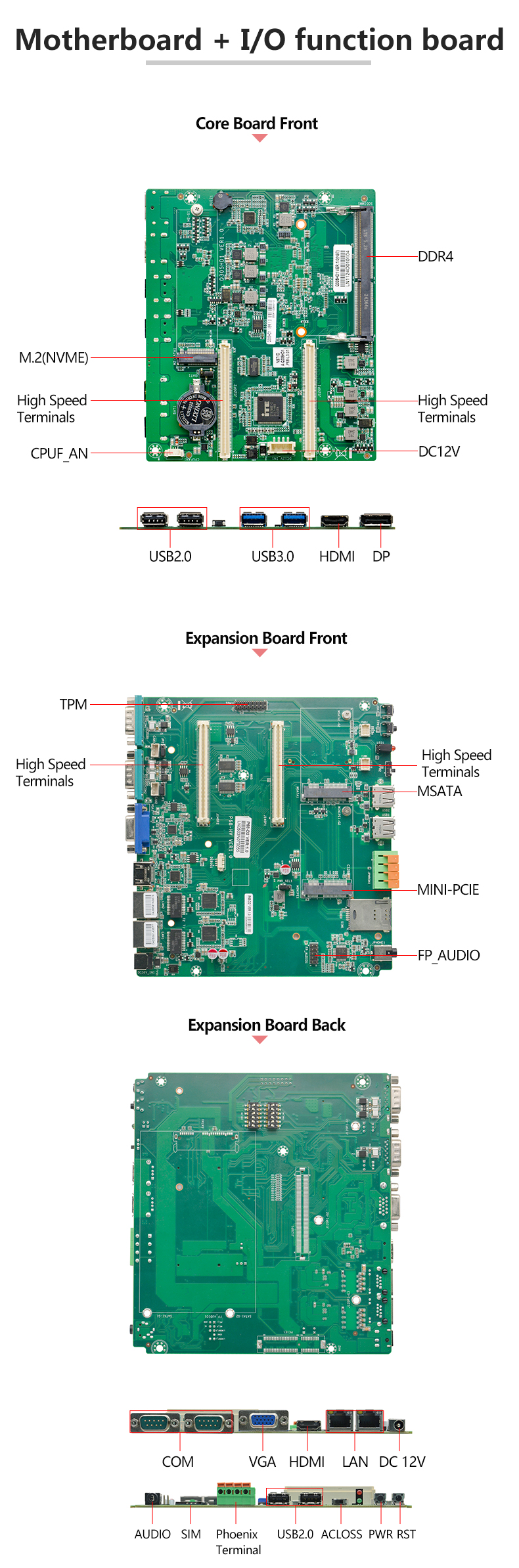

Motherboard | CPU | Intel®Alder Lake-N i3-N305/Turbo 3.8GHz, Octa-Core, Octa-Threaded Processor, TDP 15W |
Display | Intel® UHD Graphics |
Memory | 1* SODDR4 3200MHz , support up to 16GB |

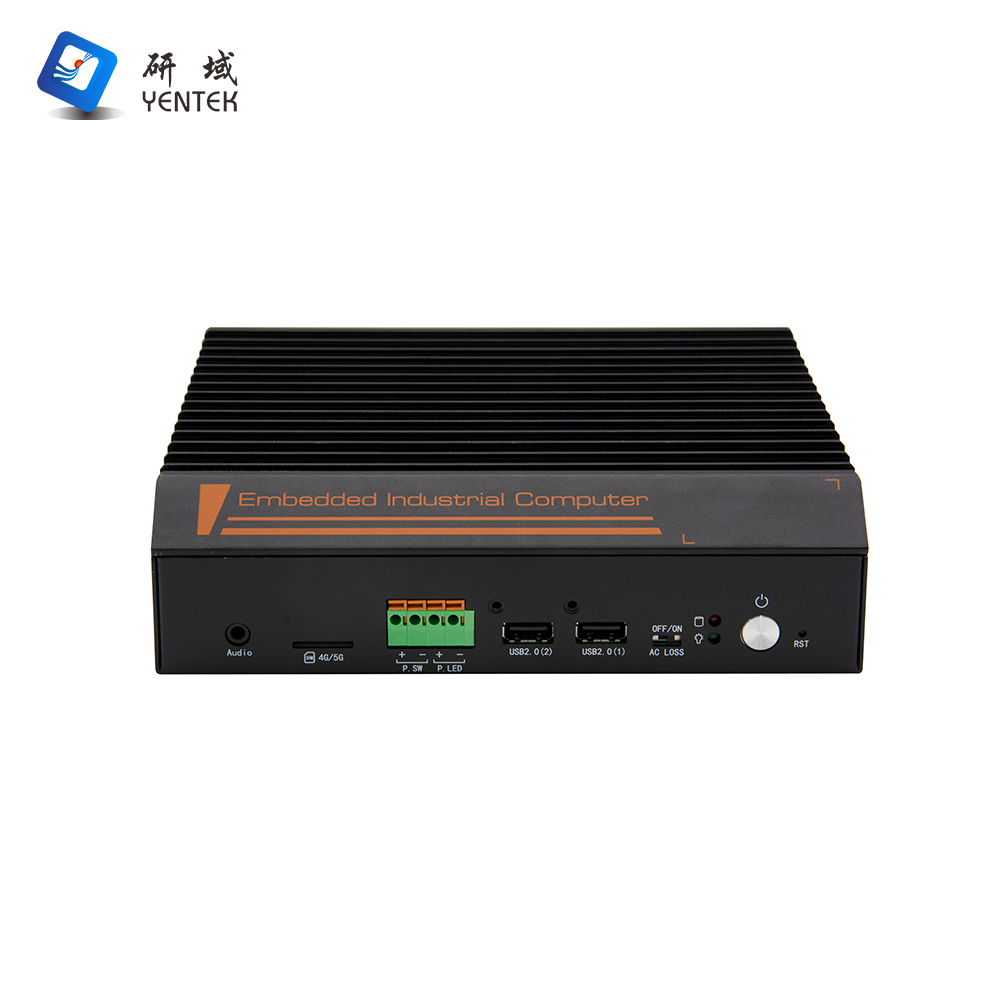

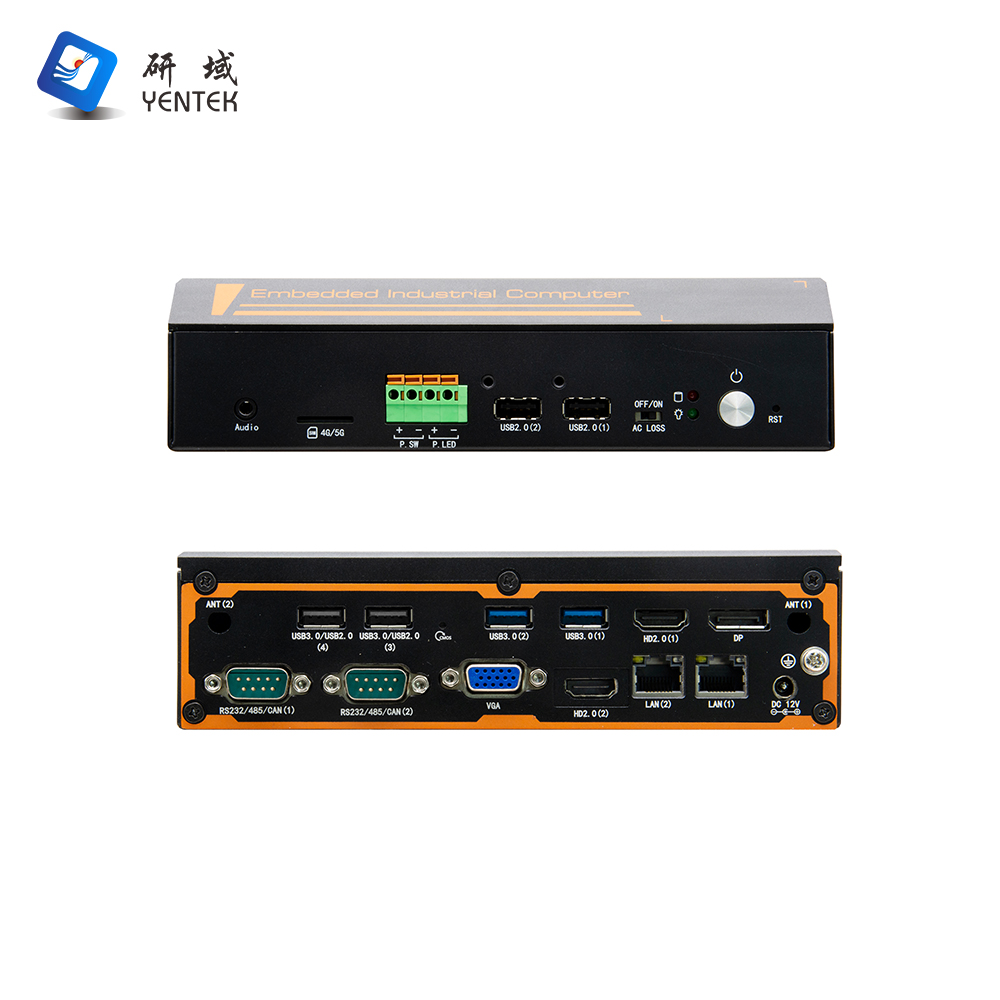

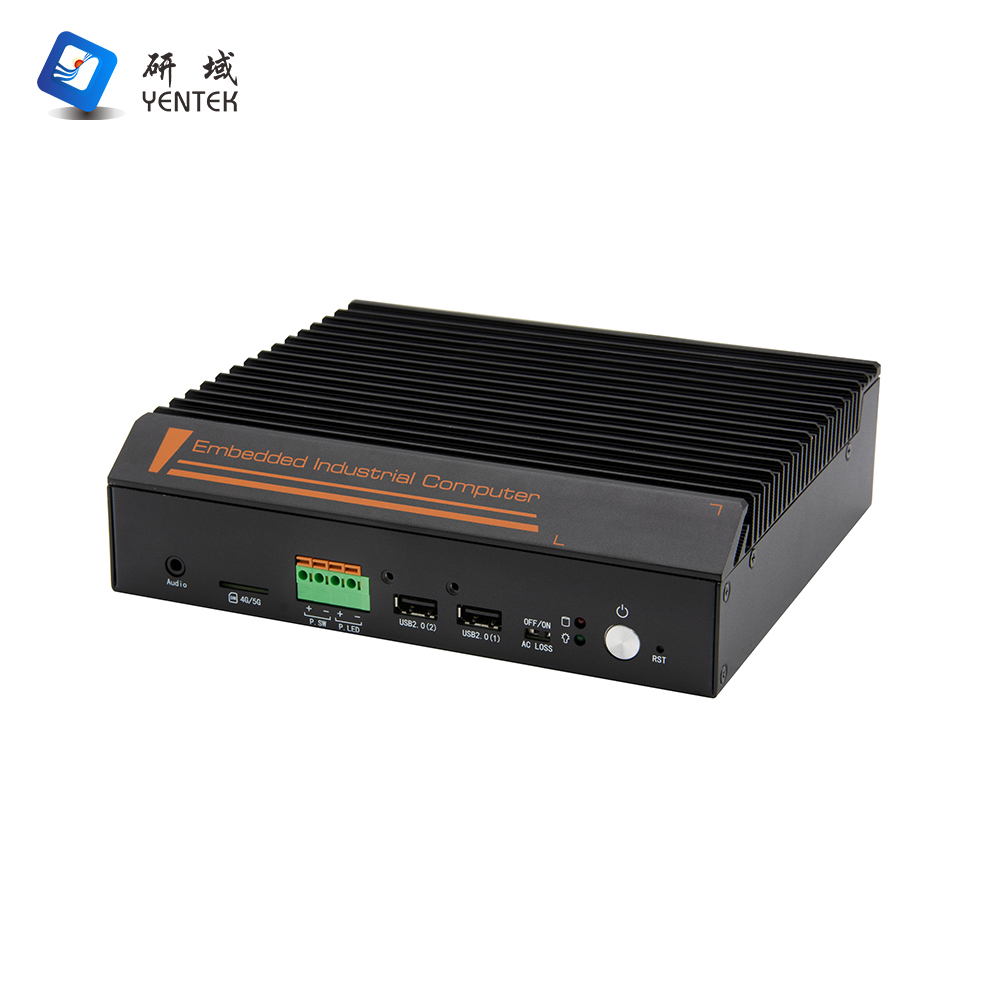

Front Panel Connectors | Switches | 1*Boot Button, 1*One Touch Restore, 1*ACLOSS (power on/off toggle switch) |
LED | 1*Power Indicator, 1*Hard Disk Indicator |
USB | 2*USB2.0 |
Audio | 1*Audio, Line out&Mic 2-in-1 |
Remote Switch | 1*Boot Signal, 1*Power Indicator Signal (located on the 1*4P Phoenix terminal) |
SIM | 1* SIM standard card slot |

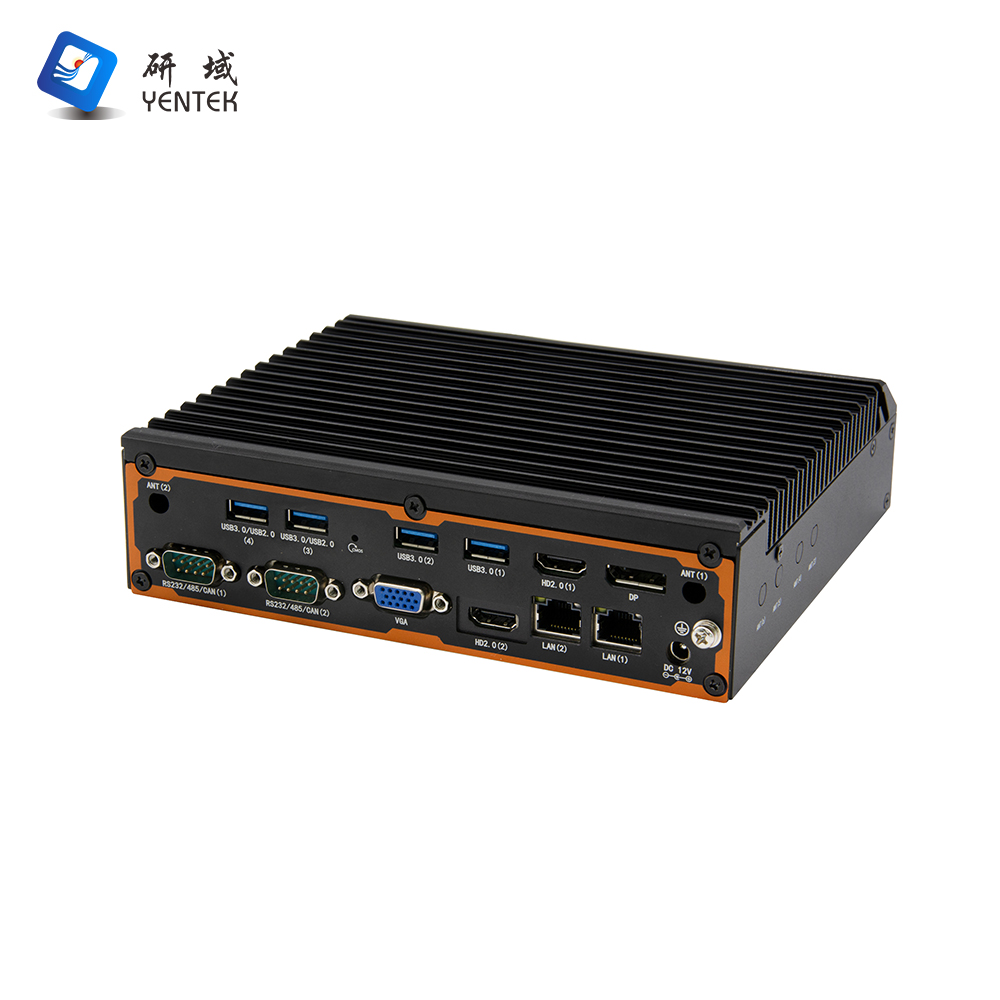

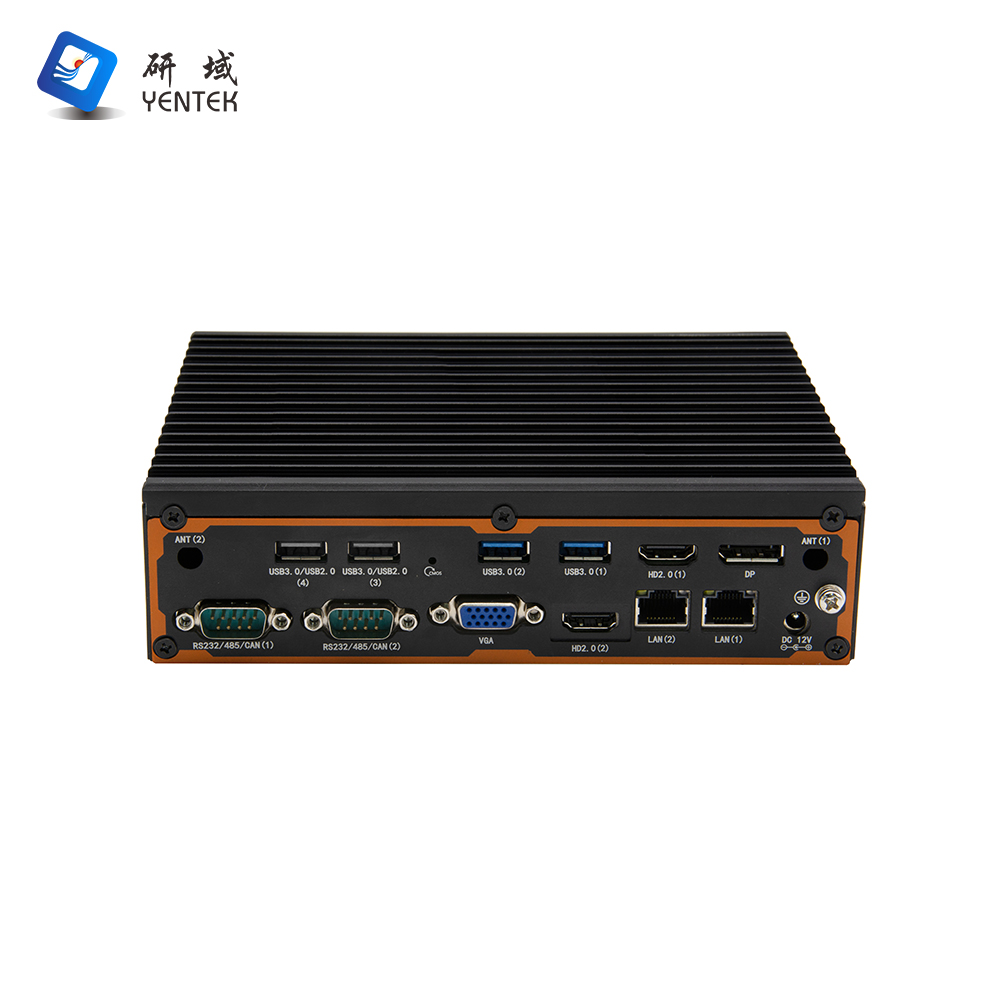

Rear Panel Interface | Switch | 1*CMOS restore button |
Display Interface | 1*HDMI2.0(4096*2160@60Hz), 1*DP1.4(4096*2160@60Hz), 1*VGA, support triple display |
Remarks: If you connect the DP, it supports double display DP+HDMI(upper), if you don't connect the DP, it supports triple display HDMI+HDMI+VGA |

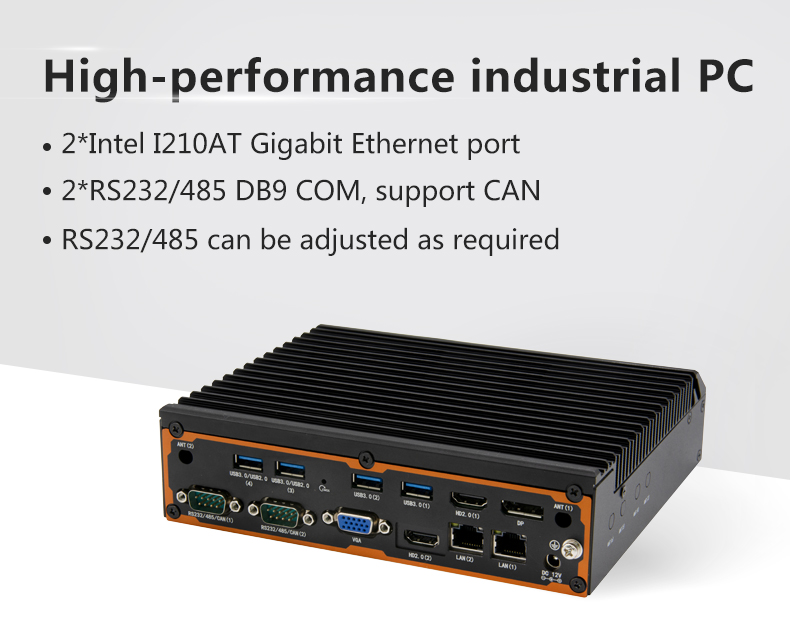

COM | 2*RS232 /485 DB9 serial port; COM1~2 can support CAN (CAN module needs to be loaded) |
LAN | 2*Intel I210AT Gigabit Ethernet port |
USB | 2*USB3.0, 2*USB2.0 |

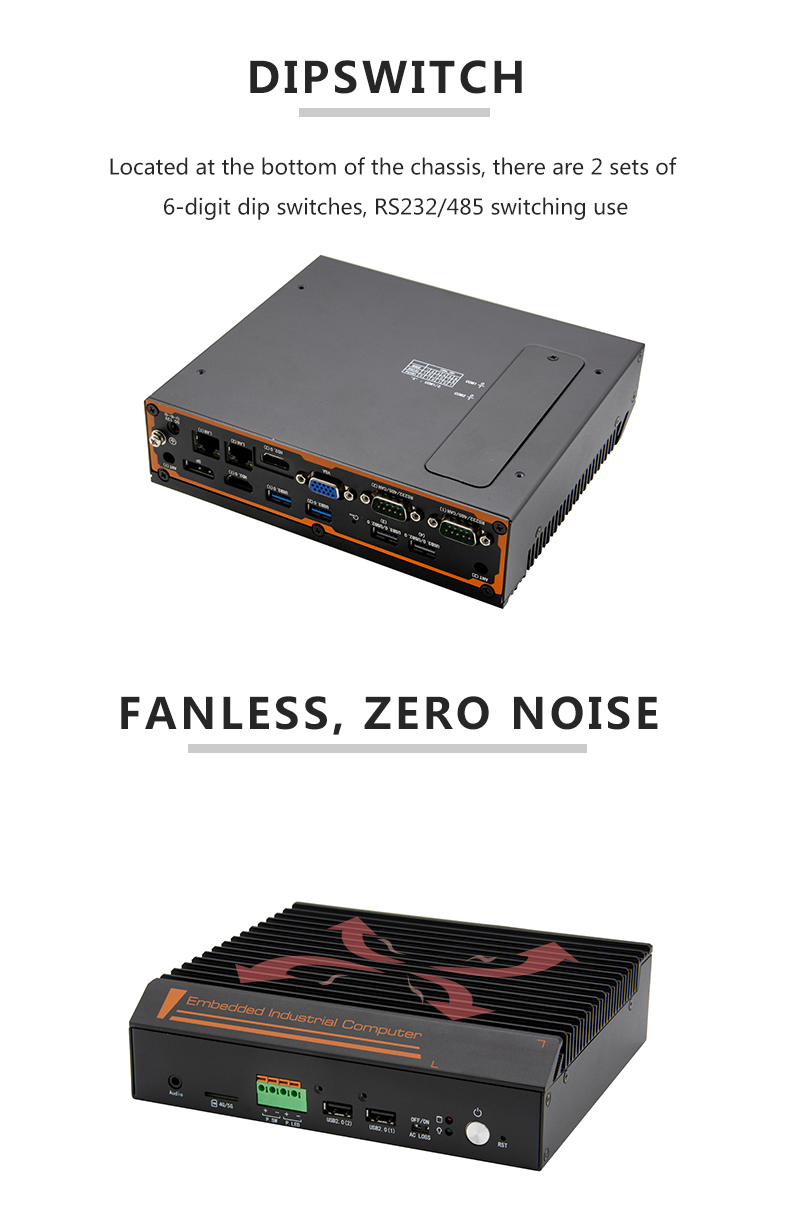

Dipswitches | 2 sets of 6-position dip switches, RS232/485 switching (dip switches are located at the bottom of the chassis) |

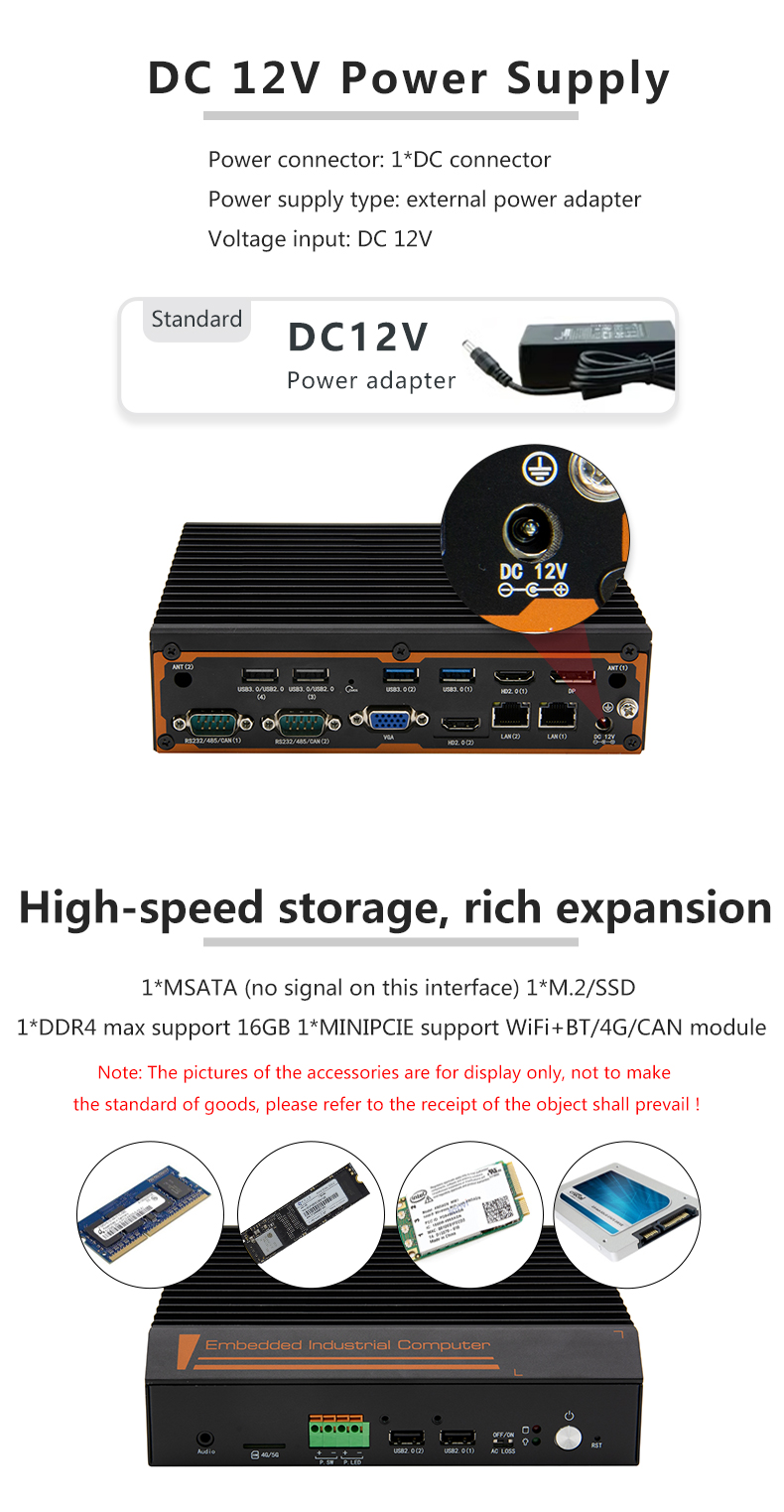

Power Interface | 1*DC12V (5.5*2.5) |
Storage | MSATA | 1*MSATA (no signal for this interface) ) |
SSD | 1*M.2, support Key-M, 2280, NVME PCIE x2/SATA Adaptive SSD |
Expansion | 4G/WiFi | 1*MINIPCIE, support WiFi+BT or 4G module or CAN module |
System Support | Microsoft | Windows 10 |
Linux | Linux |
Power Supply Type | Power Type | DC 12V |
Power Output | AC TO DC 60W or more (depending on the specific device) |
Environment | Operating Temperature | -10℃～50℃ |
Storage Temperature | -20℃～70℃ |
Relative Humidity | 5%-95% relative humidity, non-condensing |
Vibration | 0.5g rms/5-500HZ/random |
