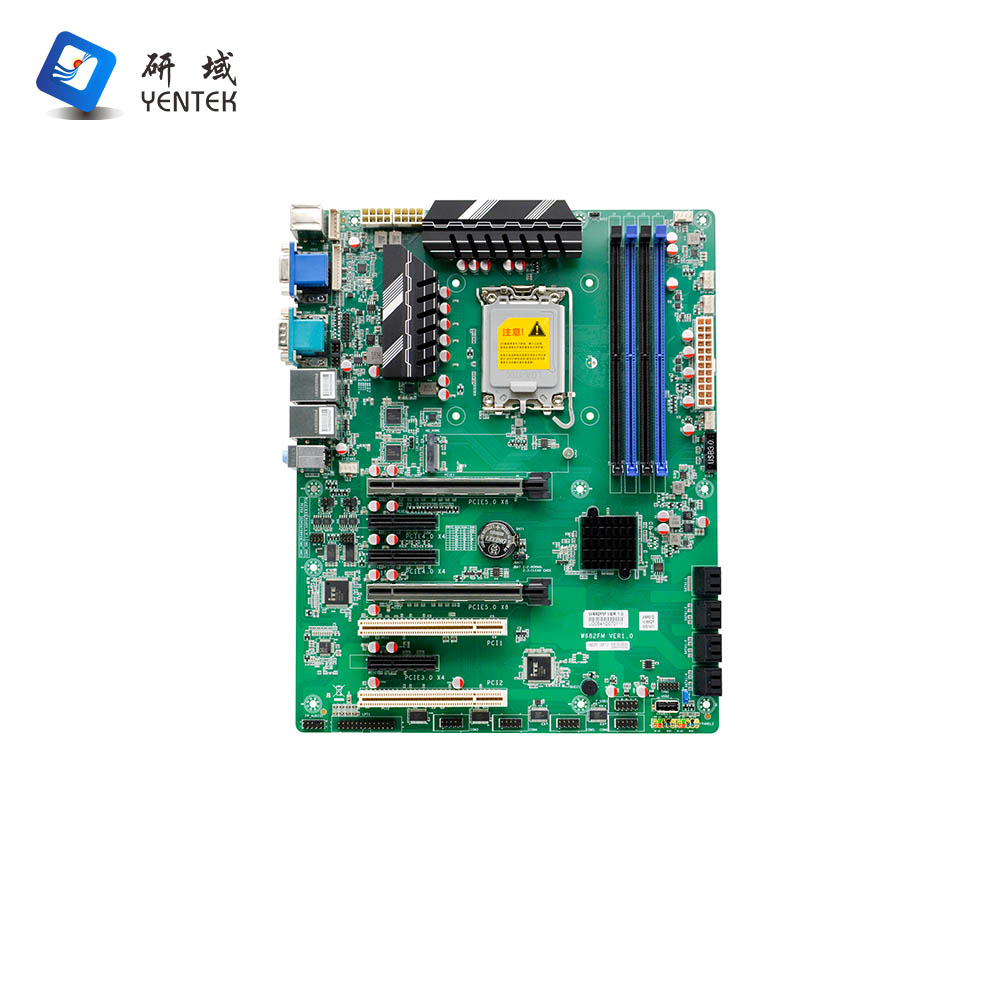

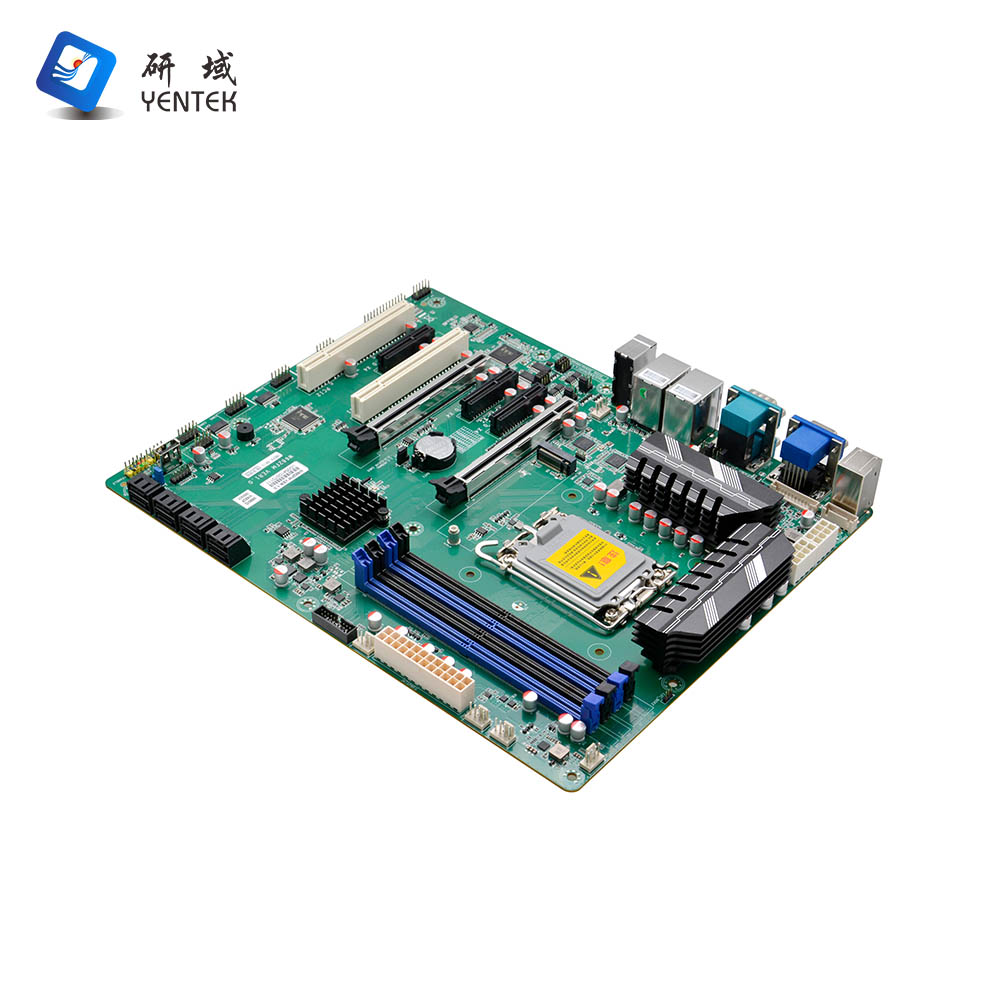

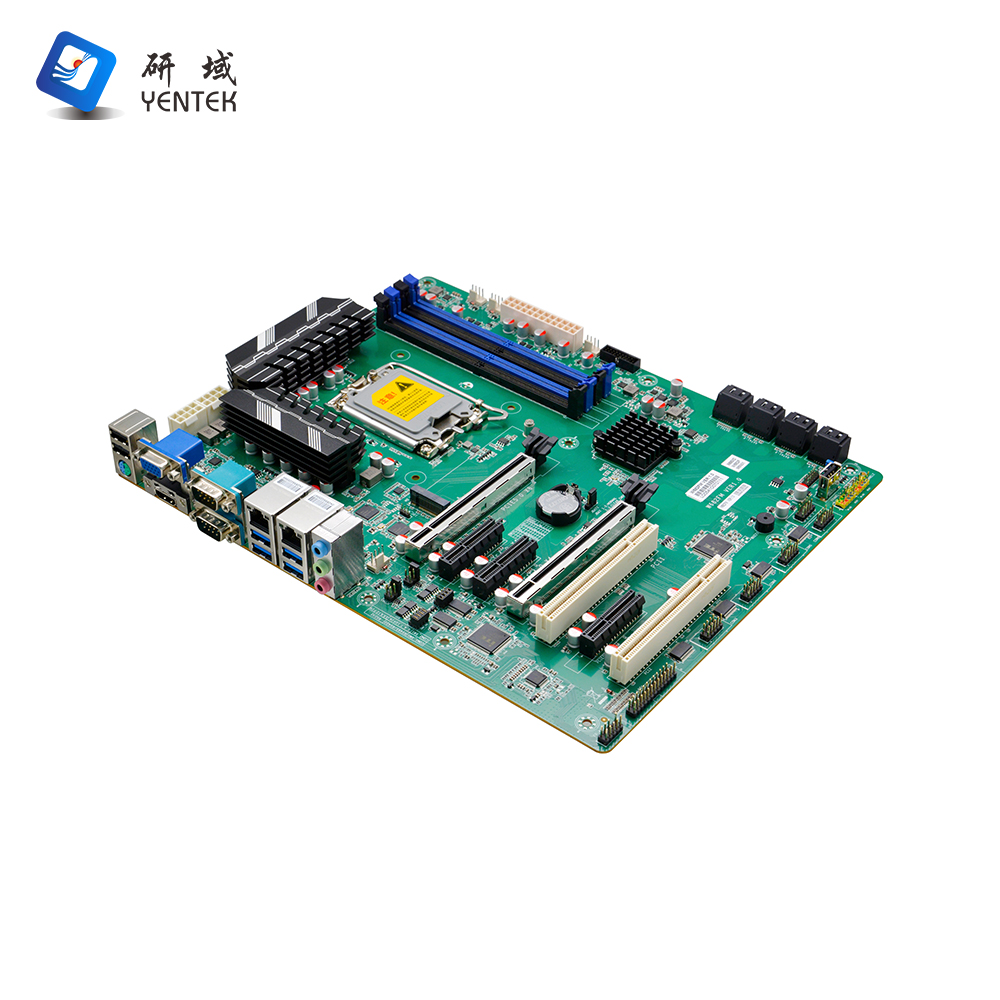

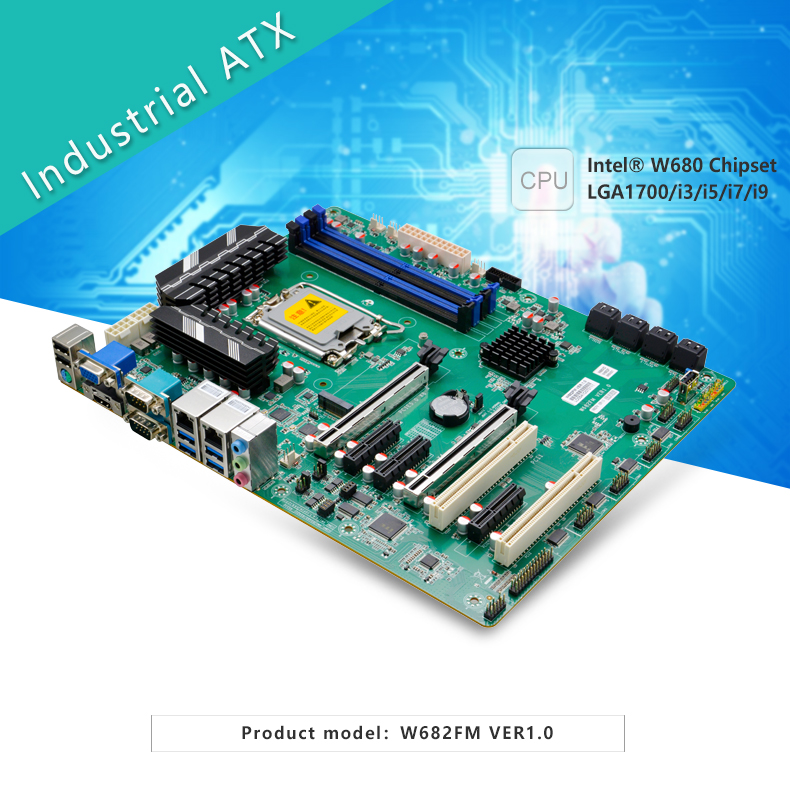

W682FM VER:1.0 | |
Processor | Supports LGA1700 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9 processors |
Chipset | Features the Intel® W680 chipset |
Memory | 4x DDR5 DIMM memory slots, supporting dual-channel memory up to 5600MHz, with a maximum capacity of 128GB, and ECC memory support |
Display
| Integrated Intel® HD Graphics with support for DirectX 12.1, OpenGL 4.5, and 4K display |
1x VGA port, supporting a maximum resolution of 1920x1200 @ 60Hz | |
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @24Hz | |
Network | 2 x I210AT Gigabit Ethernet chips, supporting Wake-on-LAN and PXE functionality |
Storage
| 8 x SATA 3.0 drive ports, with transfer speeds up to 6Gbps, supporting RAID 0, 1, 5, and 10 |
1 x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 standard SSD | |
Audio | Onboard ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out/Line-in |
Expansion Slots
| 2 x PCIe 5.0 x16 slots (actual x8 signal) |
1 x PCIe 3.0 x4 slot | |
2 x PCIe 4.0 x4 slots | |
2 x PCI slots | |

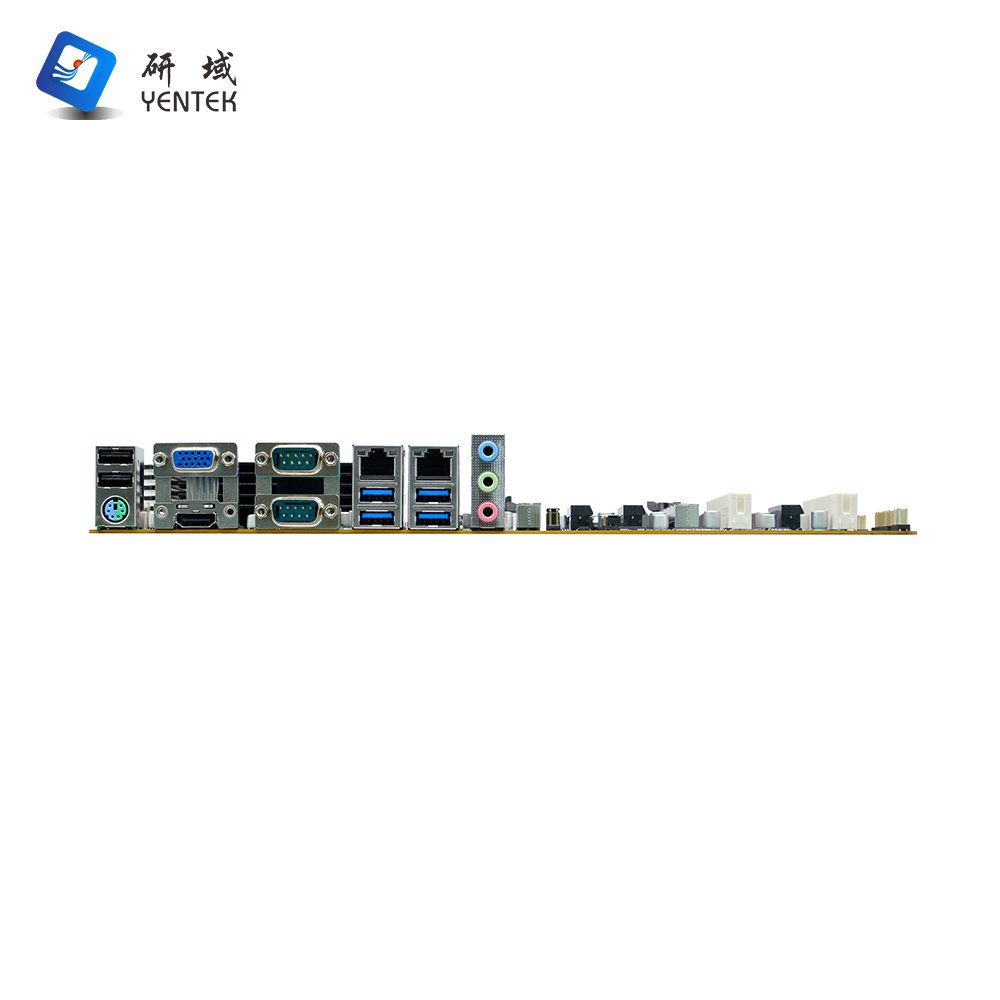

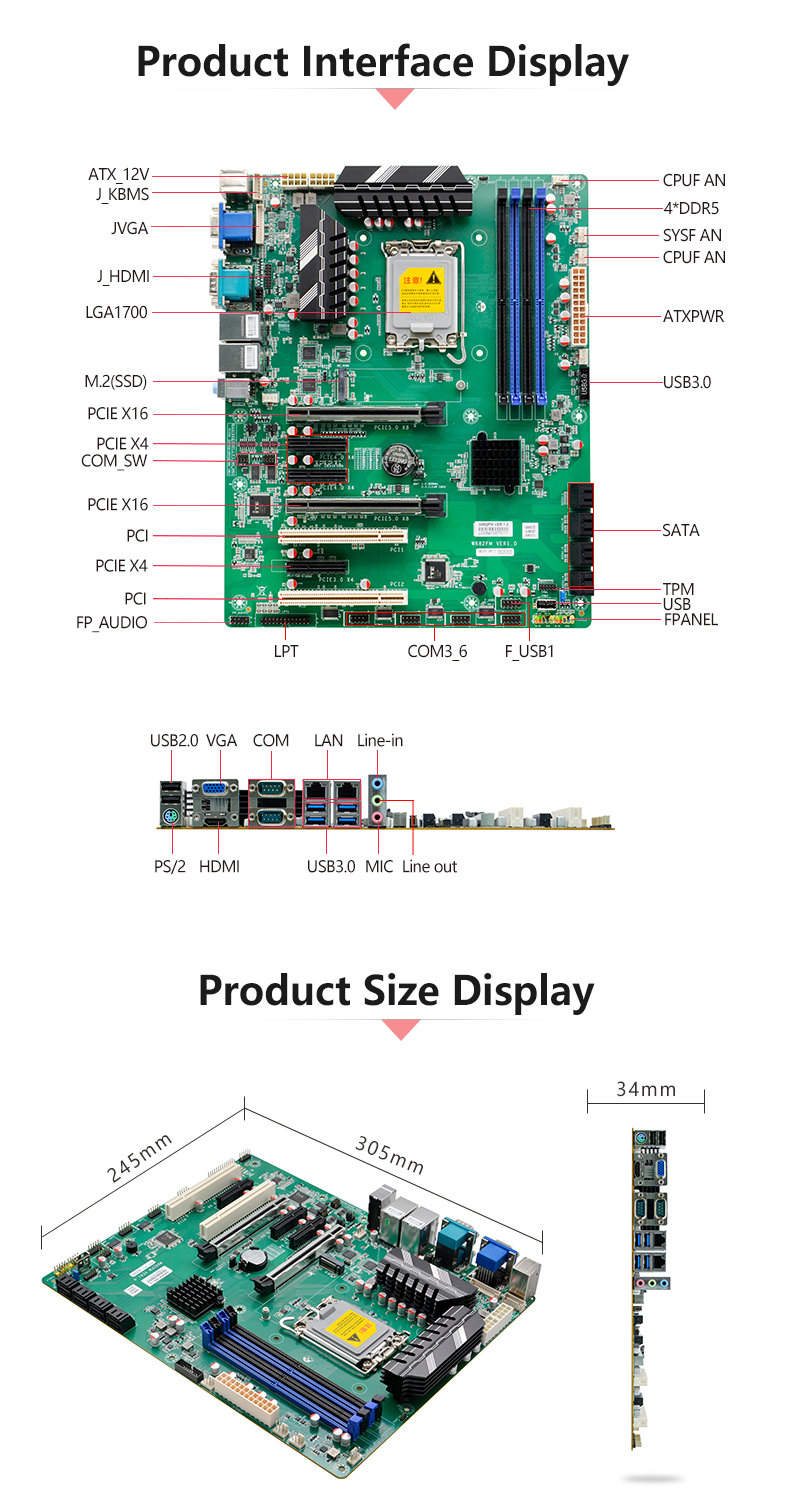

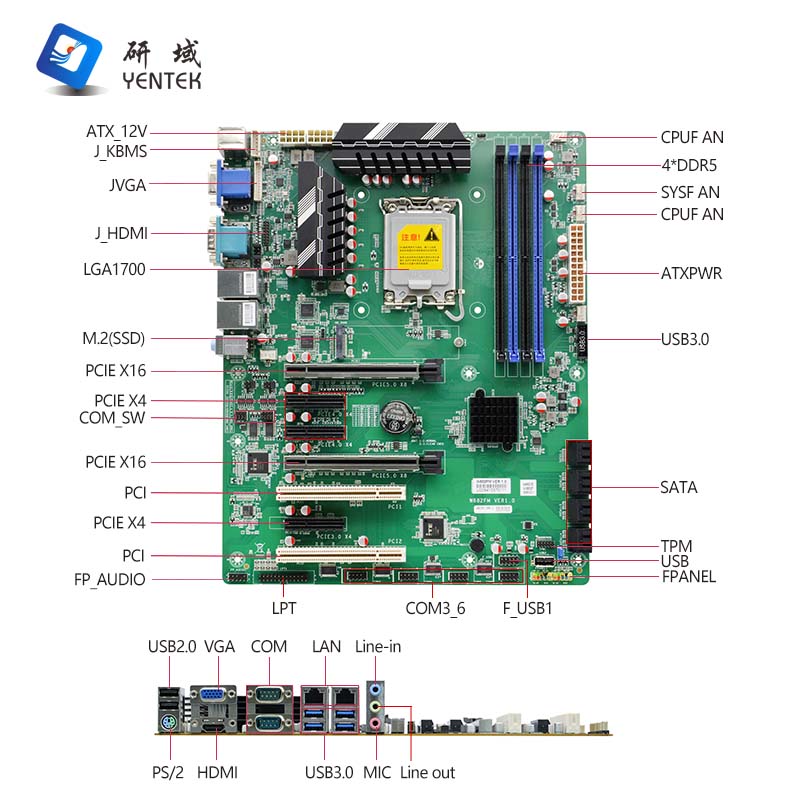

Rear Panel I/O Ports
| 1 x PS/2 port (for keyboard and mouse) |
1 x VGA port | |
1 x HDMI 1.4 port | |
2 x DB9 RS-232 serial ports, supporting pin 9 power supply and RS-485/422 functionality | |
4* USB 3.0 ports (5 Gbps), supporting 2A per port | |
2* USB 2.0 ports | |
2* RJ45 Gigabit Ethernet ports | |
1* 3-layer audio interface, supporting Line-out, Mic, and Line-in | |
Front I/O Ports
| 2* USB 2.0 ports (2*5-pin) |
1* Vertical USB 2.0 port | |
2* USB 3.0 ports (2*10-pin) | |
1 x Front Panel Audio Connector (2 x 5-pin) | |
2 x Front Panel Function Button and LED Connectors (2 x 5-pin) | |
1 x 24-pin ATX Power Connector, 2 x 8-pin ATX Power Connectors | |
1 x PS/2 Keyboard/Mouse Connector (6-pin) | |
1 x JVGA Connector (12-pin), same signal as DB15 | |
1* HDMI port (2x8-pin) | |
1* TPM port (2x6-pin) | |
4* RS232 serial ports (2x5-pin) | |
1* LPT port (2x13-pin) | |
Fan Connectors | 2* 4-pin CPU fan connectors; 3* 4-pin system fan connectors |
BIOS | 128MB Flash ROM |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Operating System | Windows 10/Windows 11/Linux |
Power Supply Type | Powered by ATX 24-pin and 8-pin connectors |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -20°C to 70°C |
Operating Humidity | 5%–95% relative humidity, non-condensing |

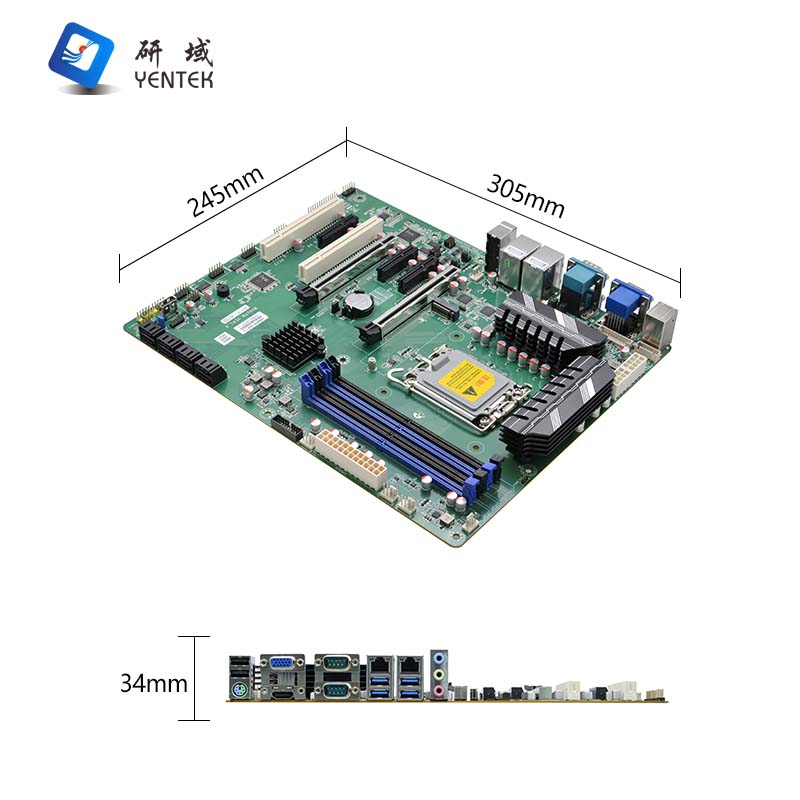

Dimensions | 305mm x 245mm |
Order information
No. | Model | Processor | Frequency | Southbridge | Memory | VGA | HDMI | DP | LAN | USB | COM | RS485/422 | Power |
1 | W682FM VER:1.0 | LGA1700 | / | W680 | 4*DIMM | 1 | 2 | / | 2*I210AT | 11 | 6 | COM1/2 | ATX |
