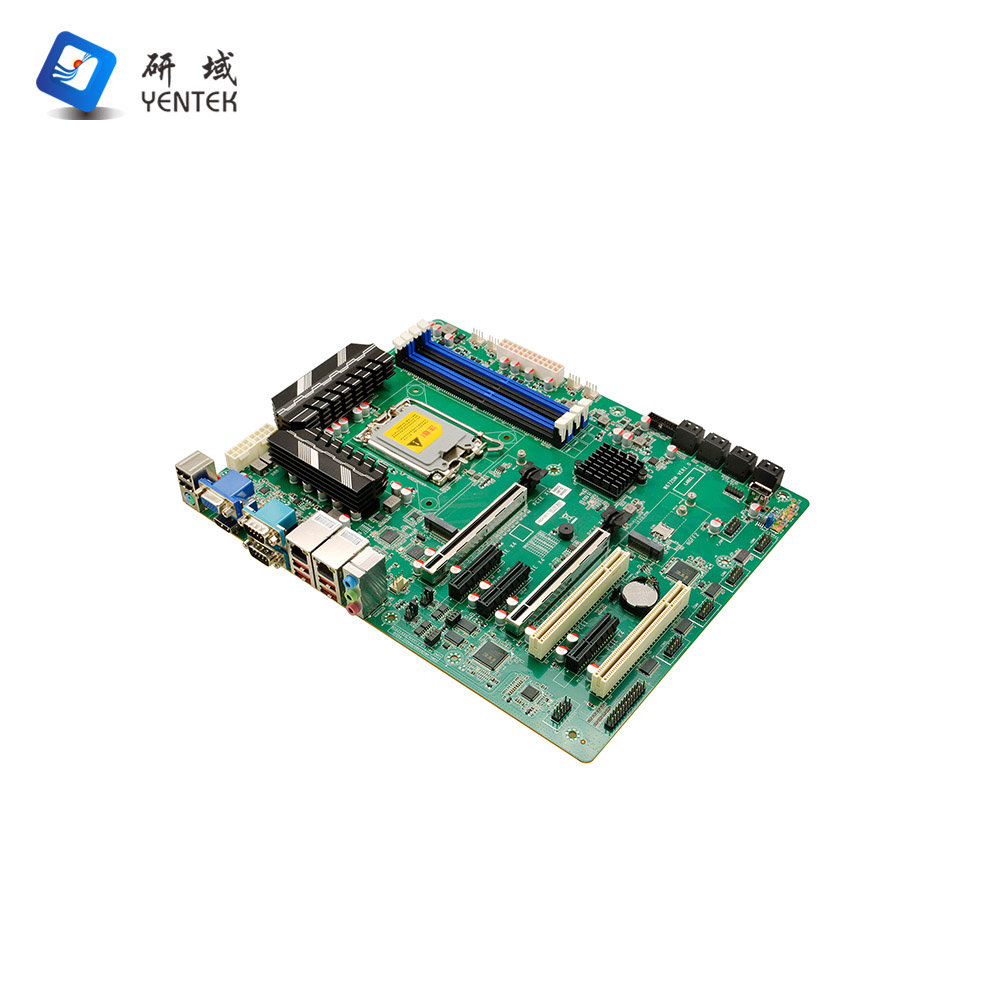

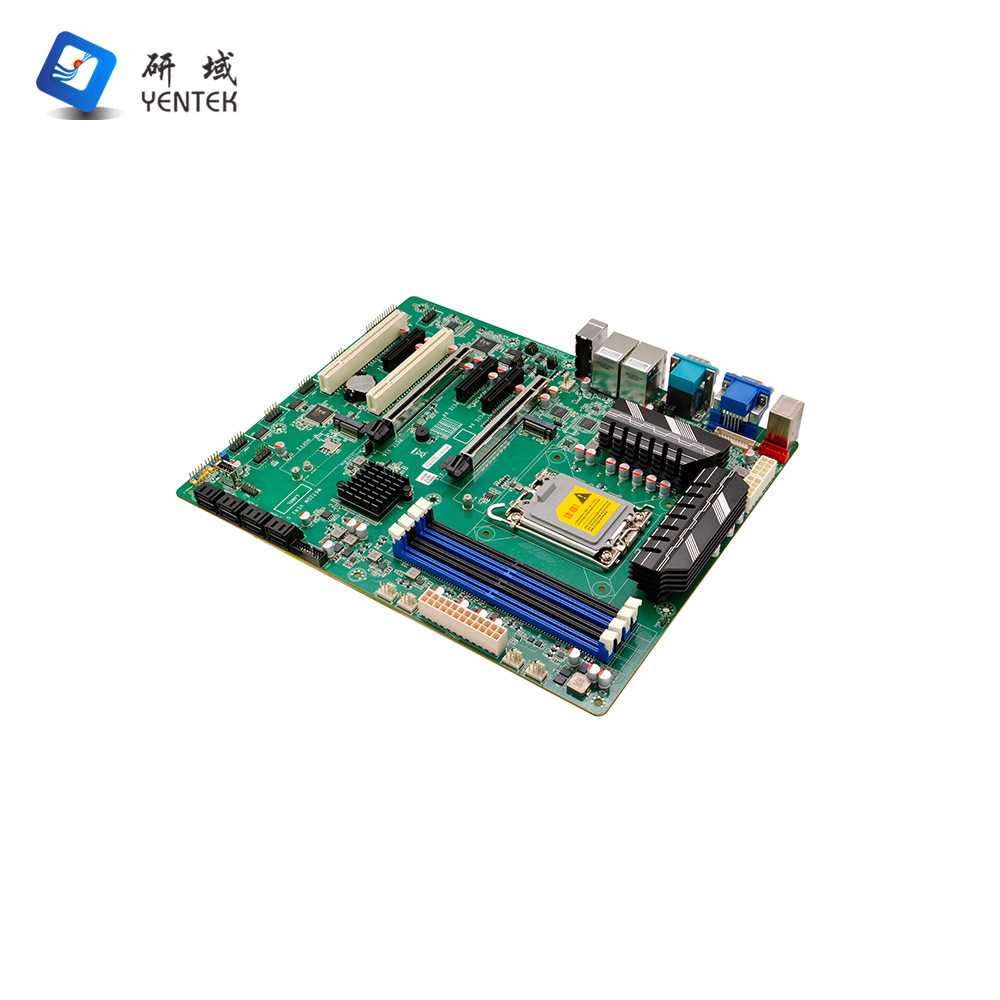

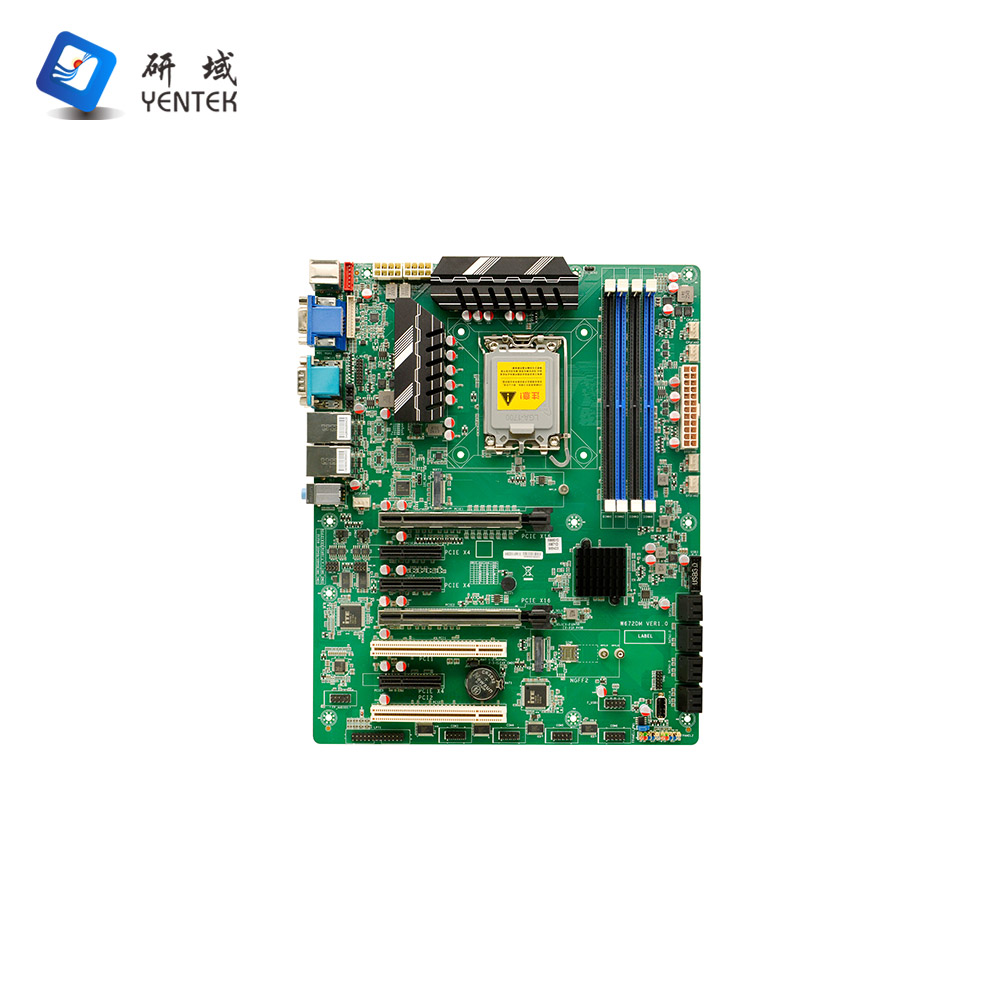

Product Model | W682DM VER:1.0 |
Processor | Supports LGA1700 12th/13th/14th Gen Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors |
Chipset | Features the Intel® W680 chipset |
Memory | 4 x DDR4 DIMM memory slots, supporting dual-channel memory up to 3200MHz, with a maximum capacity of 128GB |
Display | Integrated Intel® HD Graphics with support for DirectX 12.1, OpenGL 4.5 and 4K display |
1 x VGA port, supporting a maximum resolution of 1920 x 1200 @ 60Hz |
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096 x 2160 @ 24Hz |
Network | 2 x Intel® I210AT 1GbE network controller chips, supporting Wake-on-LAN and PXE functionality |
Storage | 8 x SATA 3.0 hard drive ports, with transfer speeds up to 6Gbps, supporting RAID 0, 1, 5 and 10 |
1 x M.2 slot, supporting M.2 Key M 2280 NVMe PCIe 4.0 x4 SSD |
Audio | On-board ALC897 7.1+2-channel high-fidelity audio controller, supporting MIC/Line-out/Line-in |
Expansion Slots | 2 x PCIe 4.0 x16 slots (Actual signal is x8) |
3 x PCIe x4 slots, of which PCIe 2 and PCIe 4 are 4.0, and PCIe 5 is 3.0 |
2 x PCI slots |
1 x M.2 slot, supporting M.2 Key B 2242/2252 4G/5G modules |

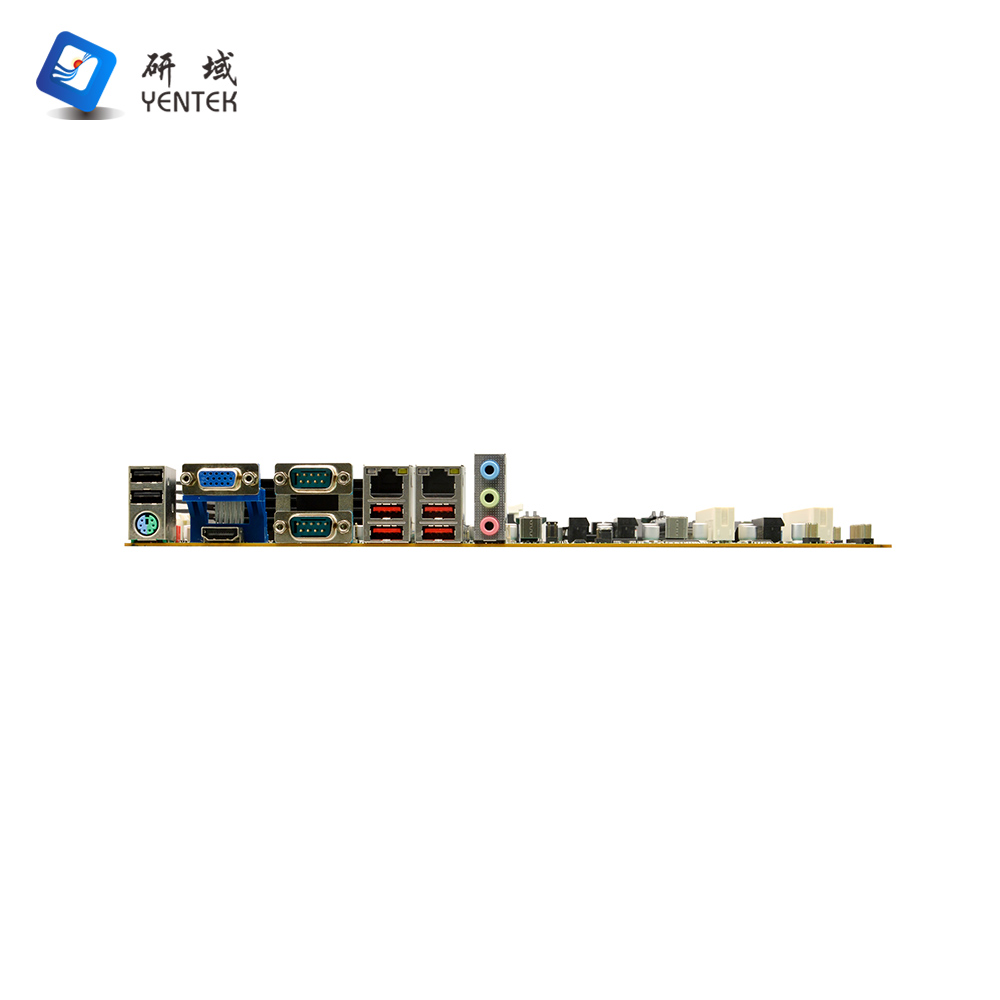

Rear Panel I/O Ports | 1 x PS/2 port (for keyboard and mouse expansion) |
1 x DB15 VGA port |
1 x HDMI 1.4 port |
2 x DB9 RS232 serial ports, supporting pin 9 power supply, compatible with RS485/422 via jumper settings |
2 x USB 2.0 Type-A ports |
4 x USB 3.2 Gen 2x1 Type-A ports (10 Gbps) |
2 x RJ-45 Gigabit Ethernet ports |
1 x 3-pin audio connector, supporting Line-out, Mic and Line-in |
On-board I/O Ports | 2 x USB 2.0 connectors (2 x 5-pin, pitch = 2.54 mm) |
1 x vertical USB 2.0 connector |
2 x USB 3.0 connectors (2 x 10-pin, pitch = 2.0 mm) |
1 x front panel audio connector (2 x 5-pin, pitch = 2.54 mm) |
2* Front panel function button and indicator interfaces (2×5-pin, pitch = 2.54 mm) |
1* 24-pin ATX power connector, 2* 8-pin ATX power connectors |
1* PS/2 keyboard and mouse interface (1×6-pin, pitch = 2.54 mm) |
1* JVGA interface (1×12-pin, same signal as DB15, pitch = 2.0 mm) |
1 x JHDMI connector, 2 x 8-pin, pitch = 2.0 mm |
1 x TPM connector, 2 x 6-pin, pitch = 2.0 mm |
4 x RS232 serial ports, 2 x 5-pin, pitch = 2.54 mm |
1 x SIM card slot |
1 x LPT connector, 2 x 13-pin, pitch = 2.54 mm |
Fan Connectors | 1 x 4-pin CPU fan connector; 4 x 4-pin system fan connectors |
BIOS | 128MB Flash ROM |
Watchdog | Supports hardware reset function (256 levels, 0–255 seconds) |
Operating System | Windows 10/Windows 11/Linux |
Power Supply Type | Powered via ATX 24-pin and 8-pin connectors |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -20°C to 70°C |
Operating Humidity | 5%–95% relative humidity, non-condensing |
Dimensions | 305mm x 245mm |
