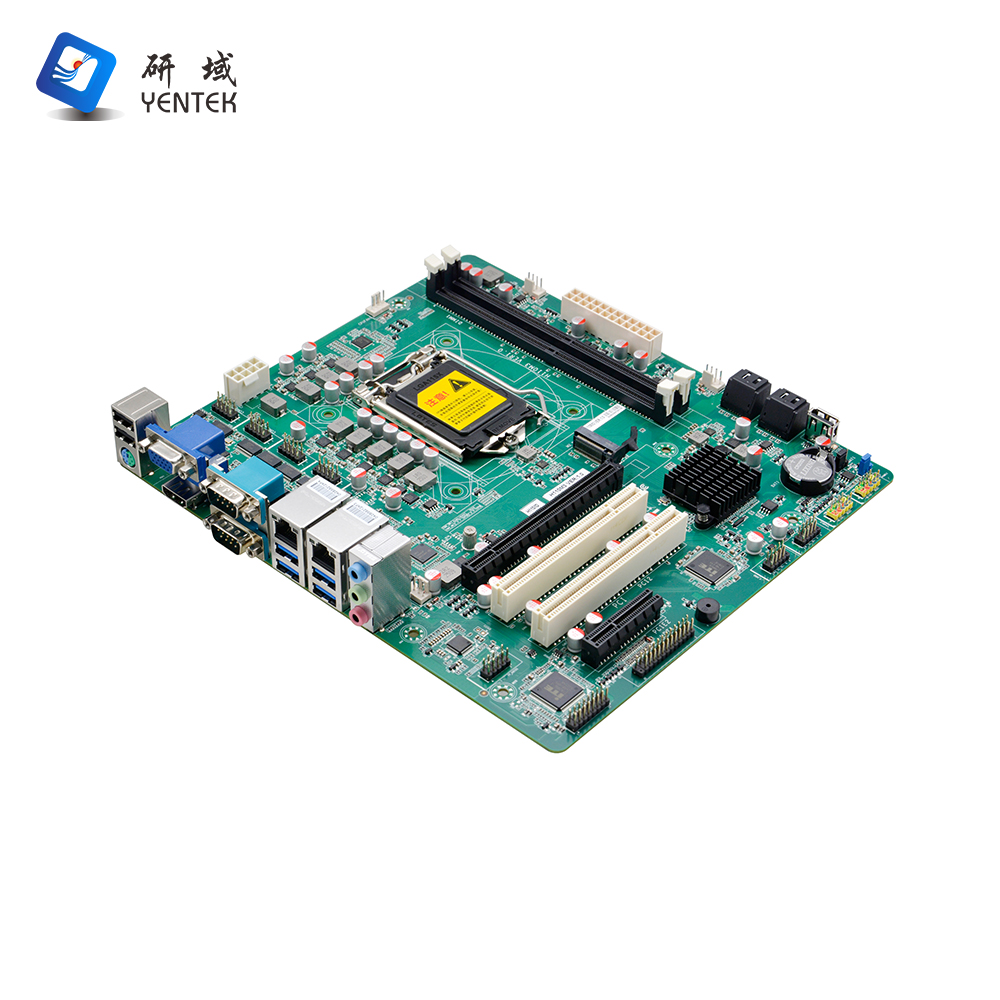

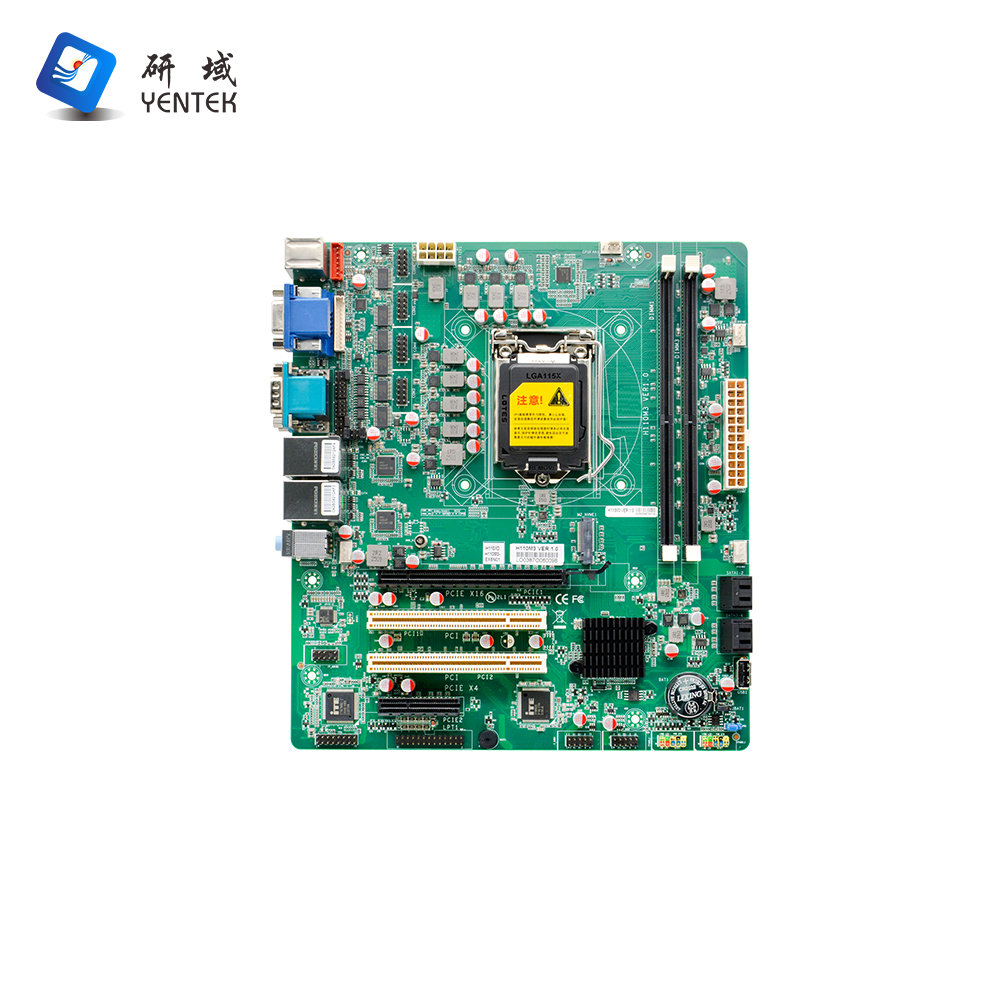

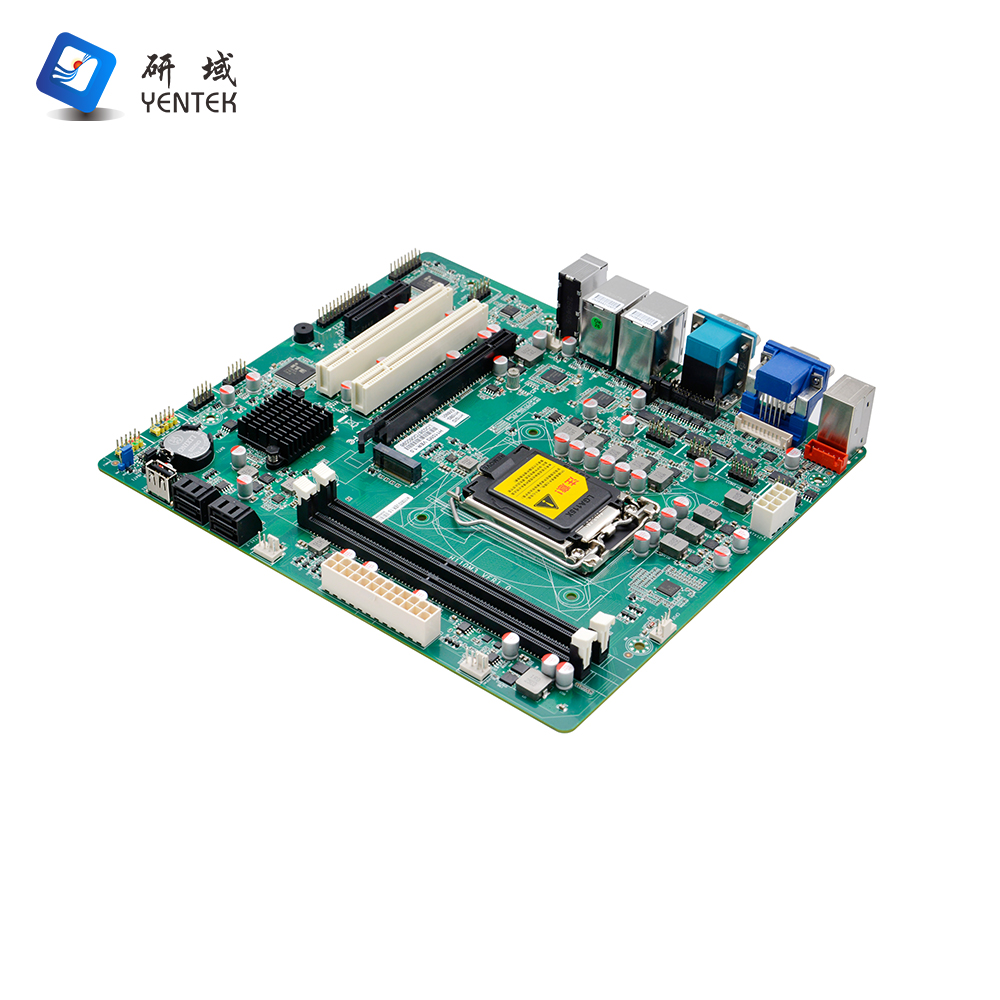

H110M3

Processor

Supports   6th/7th/8th/9th generation Celeron/Pentium/Core i3/i5/i7/i9 processors with   LGA1151 socket

Chipset

Intel H110 high-speed chipset

Memory

2x DDR4 DIMM memory slots, supporting dual-channel   2133/2400/2666MHz memory, maximum capacity 64GB

Display

Integrated Intel® HD Graphics controller, featuring 1x VGA port and 1x   HDMI 1.4 port.

Supports single display, dual display, and extended display modes

Network

2x Intel I210AT Gigabit Ethernet controllers, supporting Wake-on-LAN and   PXE functionality

Storage

4x   SATA 3.0 hard drive interfaces, SATA transfer speeds up to 6Gbps

1x M.2 slot, supports M.2 2280 NVMe PCIe 2.0 x1   standard SSDs; SATA specification SSDs supported with component modification

Audio

Onboard ALC897 7.1+2 high-fidelity audio controller,   supporting Mic, Line Out, Line In

Expansion Slots

1 x   PCIe 3.0 x16 slot

1 x   PCIe 2.0 x4 slot

2 x   PCI slots

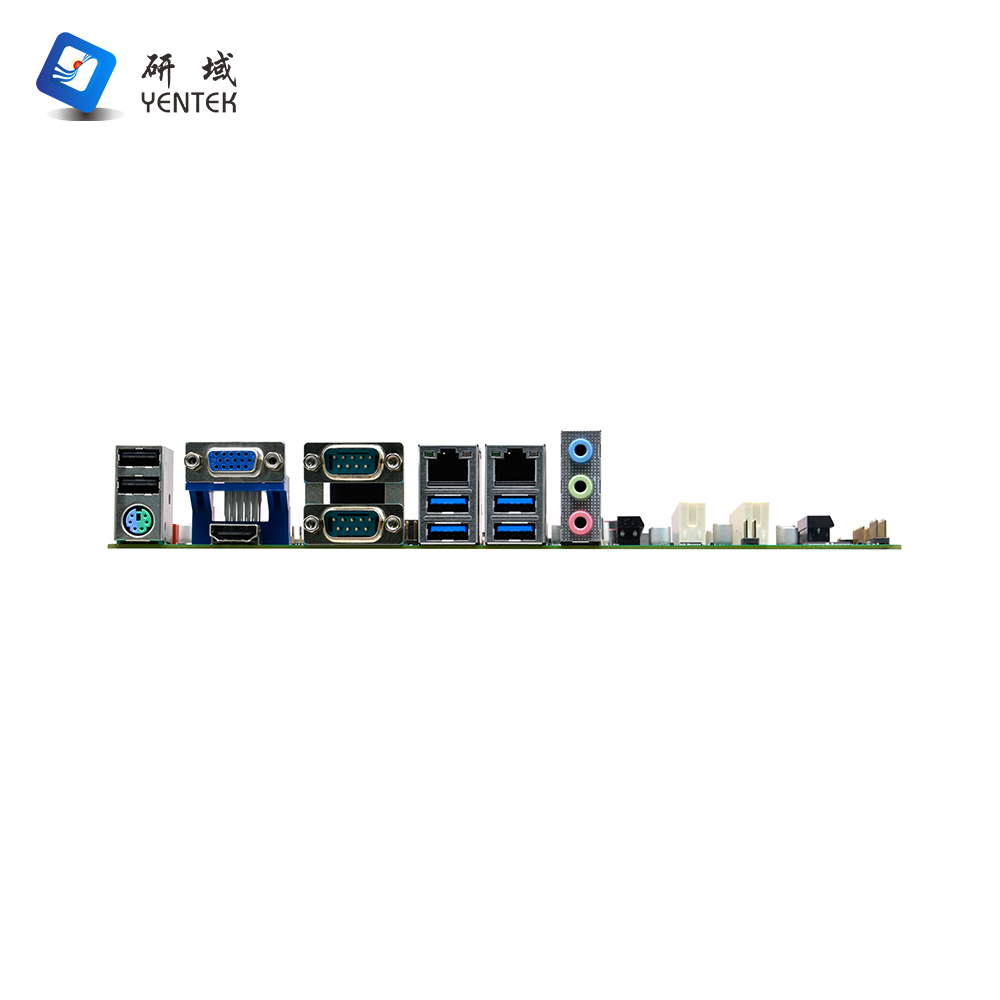

Rear Panel I/O Ports

1 x   PS/2 keyboard/mouse port

1 x   VGA display port

1 x   HDMI display port

2 x   RS232 serial ports (COM1/2 supports 5V/12V power supply, COM1/2 supports   RS485/422 functionality)

2* RJ45 Gigabit Ethernet ports

2* USB 2.0 ports

4* USB 3.0 ports, supporting 2A current per port

1* Line-out port (green), 1* Mic port (red), 1*   Line-in port (blue)

Internal I/O Ports

1* PS/2 keyboard/mouse port 1* 6-pin header with   same signal as UK1

1 x JVGA interface 1 x 12-pin, same signals as DB15

4 x RS232 serial ports 2 x 5-pin

1 x Front audio interface 2 x 5-pin

4 x USB 2.0 ports 2 x 5-pin

1x USB 2.0 port (USB Type-A)

1x TPM interface (2x 8-pin header)

2x Front panel function button and indicator   interfaces (2x 5-pin)

1x LPT (2x 13-pin header)

1x 24-pin ATX power input connector

1x 8-pin ATX power input connector

Fan Connectors

1x 4-pin CPU intelligent fan header, 3x 4-pin system   intelligent fan headers

BIOS

64Mb Flash ROM

Operating System

Windows 7 / 10 / 11 / Linux

Watchdog

Supports hardware reset function (256 levels, 0–255 seconds)

Power Supply Type

ATX power input

Operating Temperature

-20°C to 60°C

Storage Temperature

-20°C to 70°C

Operating Humidity

5%–95% relative humidity, non-condensing

Dimensions

245mm   x 220mm(mATX)
